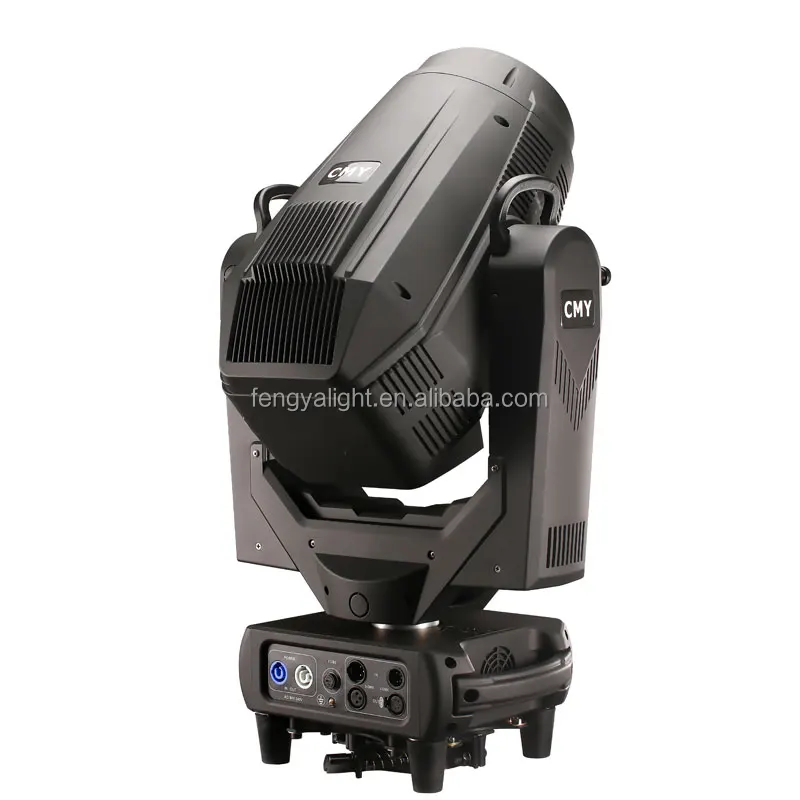

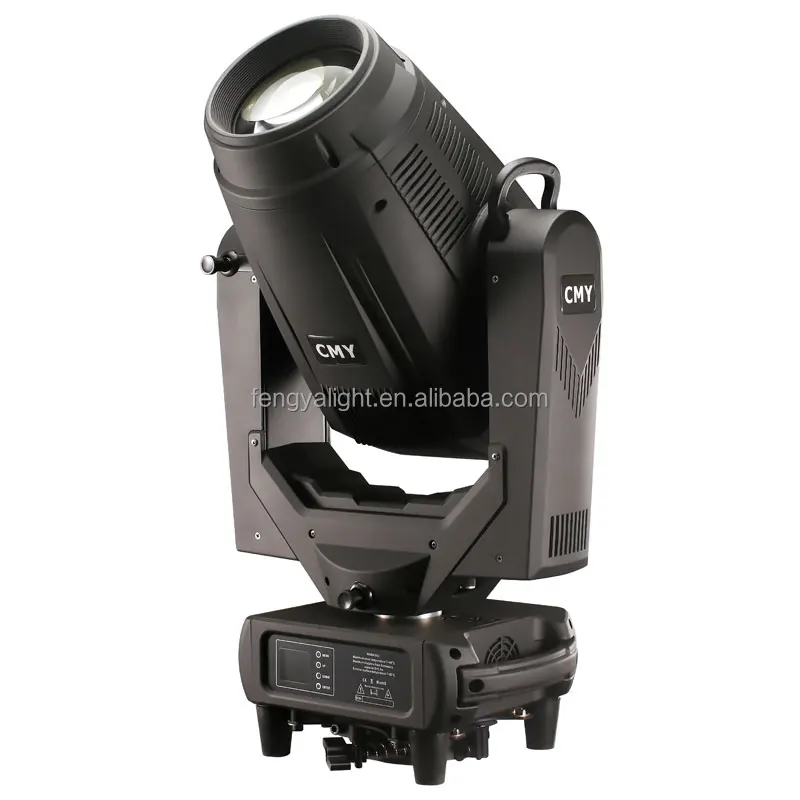

New CMY RDM ZOOM CTO 550w led hybrid beam washer spot moving head light

Product Overview

Description

CMY Color mixing 550w beam spot washer 3 in 1 zoom led moving head stage light
Model:FY-SLED-550W

Parameter:

specification:

550W CMY Zoom led beam spot wash moving head light
FY-SLED-550W

Technical parameters:
Voltage: 100V~240V AC, 50/60Hz
Power: 700W @ 220V
Power factor: PF>0.9

Light source specification:
Light source:600W high brightness Module LED (in order to protect the led lifetime, the real power adjust to 550W)
Color temperature:7500K-8000K (with built in CTO,CT is adjustable)
Life time:50000 hours

colour:
1 color wheel: 7 colors + white
2.With C M Y function, color can be adjusted;
Can be mixed to make the color richer.

Gobo wheel:
1.1 rotating gobo wheel: 7 gobos + white
The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate
2.1 fixed gobo wheel:11 gobos + white
3.1 dynamic wheel: super dazzling simulation dynamic and moving rain flowing water effects.

Prism:
8+16prism Two prism wheel, can be rotated in both directions

Focus:
DMX linear focus adjustment, super smooth focus adjustment.

Strobe/Dimming:
Electronic strobe, 0.3-25 times/second,linear dimming

Frost:
Independent frost lens, softer light

Rotation angle:
Use three-phase stepping motor, fast, quiet, with automatic return function.
Horizontal:540°
vertical: 270°

Beam Angle:
4-40°
DMX linear amplification, the beam angle can be freely switched from 4 to 40 degrees

Control mode:
DMX512 signal, 3-pin + 5-pin
25CH channel mode

Other functions:
Horizontal and vertical speed adjustable
Use powerful silent fan, LED temperature display, reduce power due to overheating, and ensure LED lifetime
Modular structure for easy maintenance

Housing material/protection level:
High temperature/UV light resistant engineering plastic
Protection grade: IP20
Working temperature:
Maximum ambient temperature 50°C
weight:
Net weight: 24kg
Gross weight: 25kg

packing size: (mm)
510(L)*370(W)*800(H)
