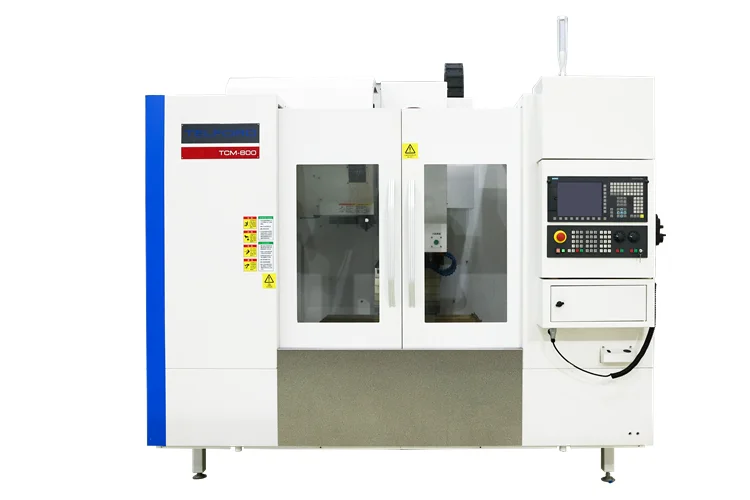

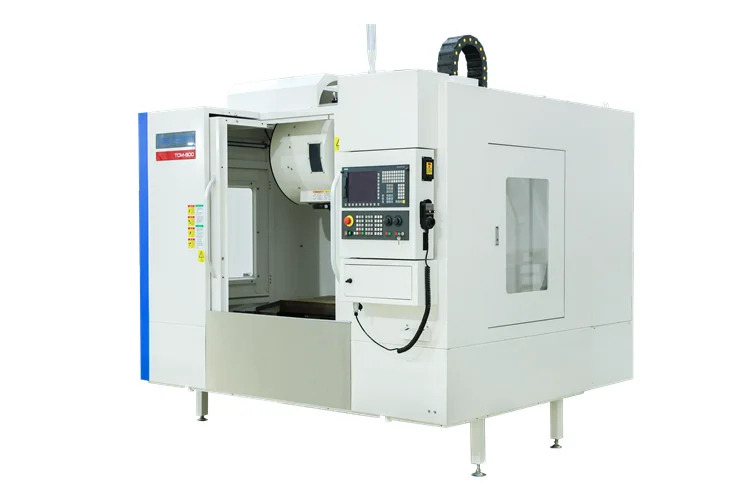

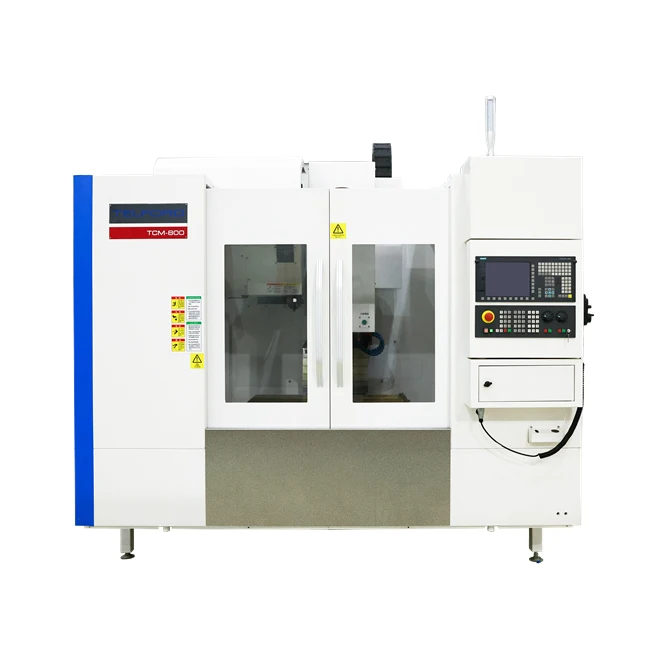

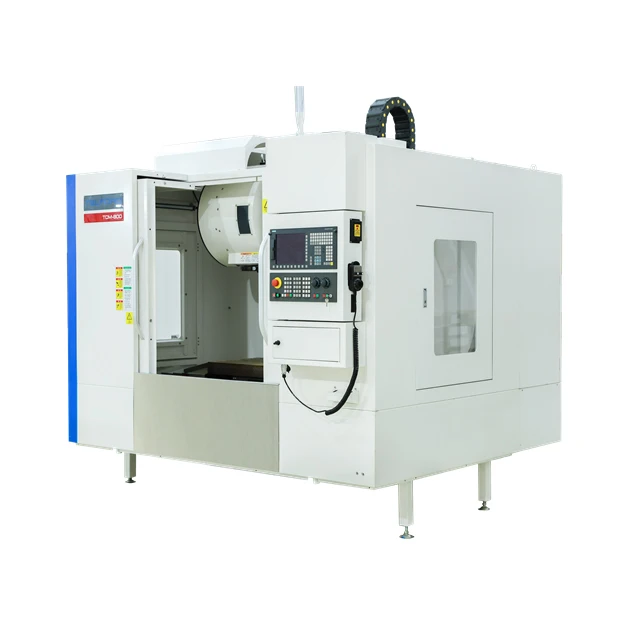

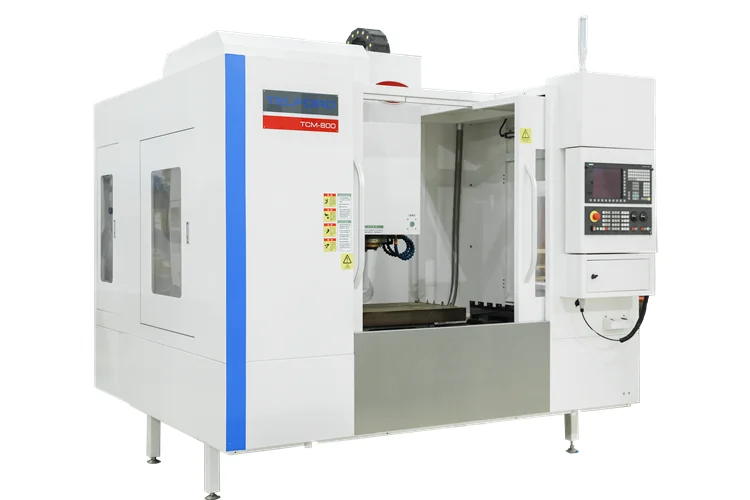

machining center KND system full protection VMC850
- Category: >>>
- Supplier: Nanjing High Tech Machinery Co. Ltd.
Share on (1600865696936):
Product Overview
Description
Numerical control machining vmc850 3 axis Fanuc Vertical machining centers (VMC)
PRODUCT DISPLAY
A-frame structure with high rigidity and strength
--------A Type A Frame Constructed of High Tensile Strength Densely Baked Cast Iron
--------High efficiency vertical machining centre for mechatronics integration design
--------Direct transmission, with less power loss and higher efficiency
--------High efficiency vertical machining centre for mechatronics integration design
--------Direct transmission, with less power loss and higher efficiency
PRODUCT INFORMATION
Main Specifiation | Unit | Parameters |
X-aixs travel | mm | 800 |
Y-aixs travel | mm | 500 |
Z-aixs travel | mm | 500 |
Positioning accuracy | mm | JIS±0.003mm/300mm |
Repeatability accuracy | mm | JIS±0.003mm |
Worktable size | mm | 1000*450 |
Max. loading | kg | 500 |
Rapid speed | m/min | 30 |
Spindle speed | rpm | 10000 |
Spindle taper | BT-40 | |
Weight | kg | 5500 |
Machine dimension | mm | 2430*2300*2500 |
Numerical control system | FANUC |
APPLICATIONS
1. Box type parts
For example, car engine block and gearbox, machine tool spindle box, diesel engine block and gear pump housing. In addition, due to the high accuracy, high processing efficiency, good rigidity, and automatic tool changing characteristics of the machining center itself, as long as the process flow is properly formulated and reasonable specialized fixtures and tools are used, problems such as high precision requirements, complex processes, and improved production efficiency of box shaped parts can be solved.
4. Plate, sleeve, and plate parts
This type of workpiece includes plate-shaped parts with keyways and radial holes, with hole systems and curved surfaces distributed on the end face, or axial workpieces such as flanged shaft sleeves And plate shaped parts with more left-hand machining, such as various motor covers.
For example, car engine block and gearbox, machine tool spindle box, diesel engine block and gear pump housing. In addition, due to the high accuracy, high processing efficiency, good rigidity, and automatic tool changing characteristics of the machining center itself, as long as the process flow is properly formulated and reasonable specialized fixtures and tools are used, problems such as high precision requirements, complex processes, and improved production efficiency of box shaped parts can be solved.
2. Complex surface parts
Parts with complex curved surfaces in the fields of aviation, aerospace, and transportation, such as cams, integral impellers of aircraft engines, propellers, mold cavities, etc. The use of multi-axis machining centers, combined with automatic programming technology and specialized tools, can greatly improve their production efficiency, ensure the shape accuracy of curved surfaces,and make automatic machining of complex parts very easy.
Parts with complex curved surfaces in the fields of aviation, aerospace, and transportation, such as cams, integral impellers of aircraft engines, propellers, mold cavities, etc. The use of multi-axis machining centers, combined with automatic programming technology and specialized tools, can greatly improve their production efficiency, ensure the shape accuracy of curved surfaces,and make automatic machining of complex parts very easy.
3. Irregular parts
Heterogeneous parts are irregularly shaped parts that require multi station mixed processing of points, lines, and surfaces (such as brackets, bases, profiling, etc.). When processing irregular parts, the more complex the shape, the higher the accuracy requirements, and the more advantages the machining center can display.
Heterogeneous parts are irregularly shaped parts that require multi station mixed processing of points, lines, and surfaces (such as brackets, bases, profiling, etc.). When processing irregular parts, the more complex the shape, the higher the accuracy requirements, and the more advantages the machining center can display.
4. Plate, sleeve, and plate parts
This type of workpiece includes plate-shaped parts with keyways and radial holes, with hole systems and curved surfaces distributed on the end face, or axial workpieces such as flanged shaft sleeves And plate shaped parts with more left-hand machining, such as various motor covers.
5. Parts in the trial production of new products
When changing the machining object, only a new program needs to be compiled and input to achieve the machining. Sometimes,processing can also be achieved by modifying some program segments or using special instructions in the program. If the zoom function command is used, parts with the same shape but different sizes can be processed, providing great convenience for single piece, small batch, multi variety production, product modification, and new product trial production, greatly shortening the production preparation and trial production cycle.
When changing the machining object, only a new program needs to be compiled and input to achieve the machining. Sometimes,processing can also be achieved by modifying some program segments or using special instructions in the program. If the zoom function command is used, parts with the same shape but different sizes can be processed, providing great convenience for single piece, small batch, multi variety production, product modification, and new product trial production, greatly shortening the production preparation and trial production cycle.
COMPANY INFORMATION
PACKAGE& TRANSPORT
FAQ
1. How do you package?
According to the size of the machine tool and container specifications, small machine tools use wrapping film and customized wooden boxes, while large machine tools use wrapping film.
2. How should I pay for my order?
You need to pay 30% of the payment first before we can start production. After the machine is completed, we will send you pictures or videos, and you will need to pay the balance before shipping.
3. How long is the delivery time?
Regular Machines,We will delivery then within 20 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
MOQ is 1 set, and warranty is one year.
5. What is your trade terms?
FOB, CFR, CIF or others terms are all acceptable.
According to the size of the machine tool and container specifications, small machine tools use wrapping film and customized wooden boxes, while large machine tools use wrapping film.
2. How should I pay for my order?
You need to pay 30% of the payment first before we can start production. After the machine is completed, we will send you pictures or videos, and you will need to pay the balance before shipping.
3. How long is the delivery time?
Regular Machines,We will delivery then within 20 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
MOQ is 1 set, and warranty is one year.
5. What is your trade terms?
FOB, CFR, CIF or others terms are all acceptable.
