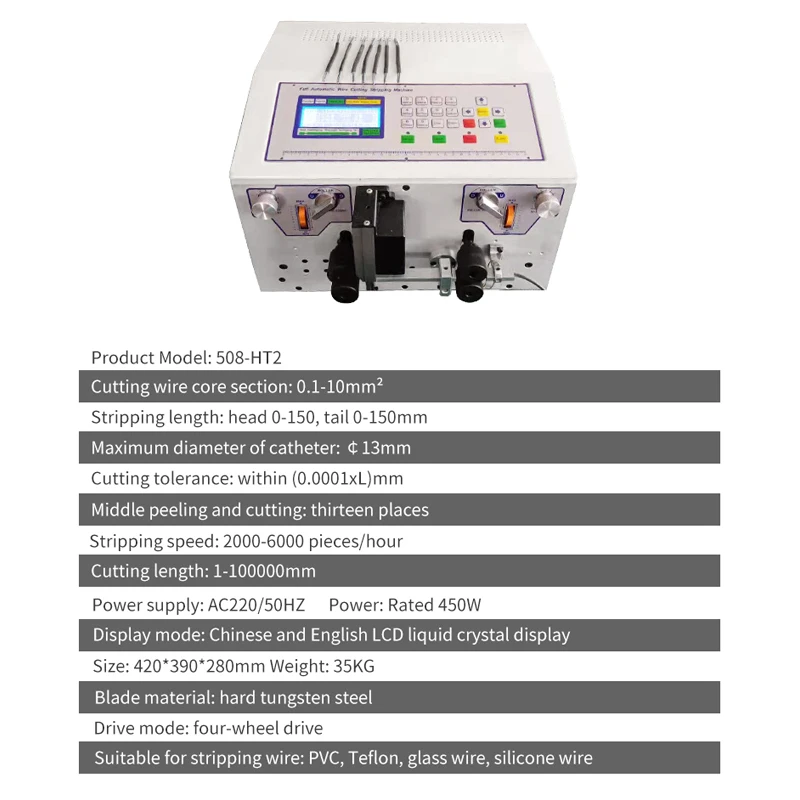

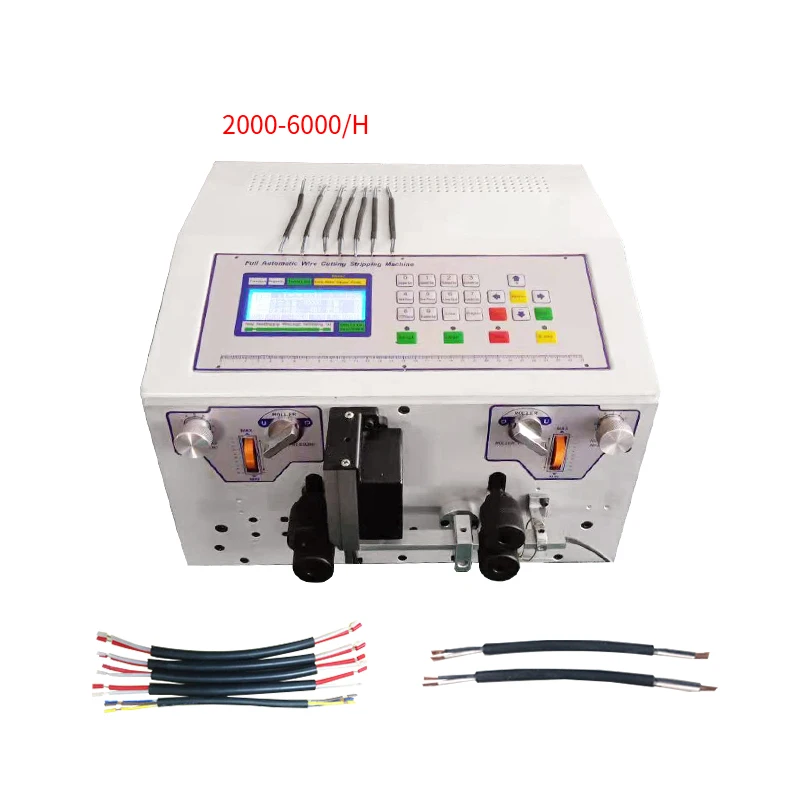

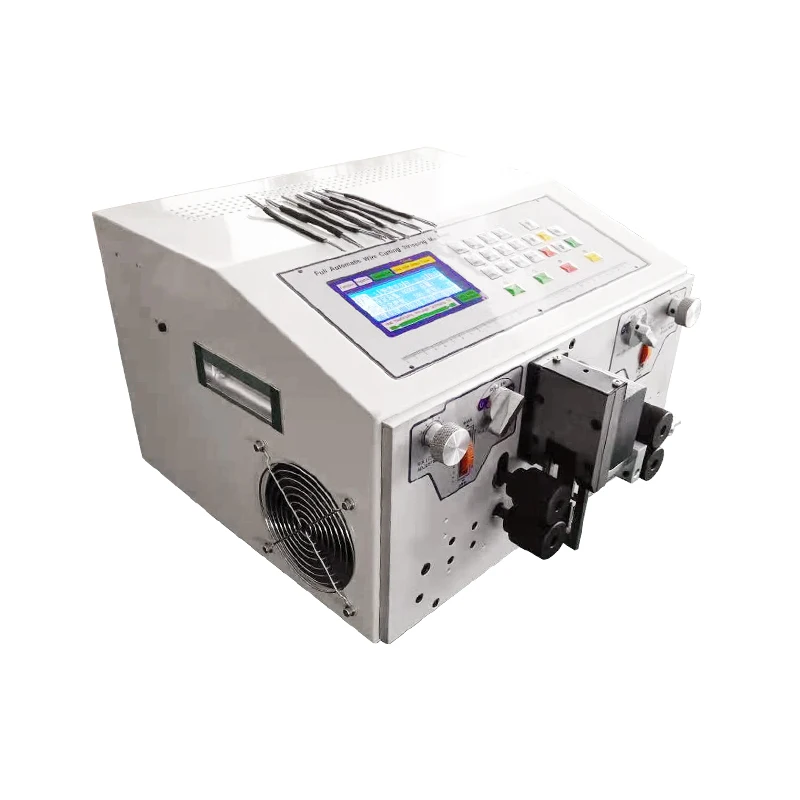

TR 508 JE/N Semi Automatic Electric Wire Stripper Machine Wire Cutting and Peeling Machine Terminal Wire Peeling Stripping
- Category: >>>
- Supplier: Dongguan Turing Automation Technology Co. Ltd.
Share on (1600865733876):
Product Overview
Description
Features:
Stripping Machine is mainly suitable for processing wires in such industries as electronic products, electric appliances, toys and auto and motorcycle parts, etc.
•High precision and productivity solutions for wire cable cutting and stripping.
•Easy to operate program and low maintenance.
•Safety protection.
•Optional external device connection possibility: Wire feeding machine, and wire take-out device
•Works with many kinds of wire insulation including PVC, Silicone cable, and wire fiber glass.

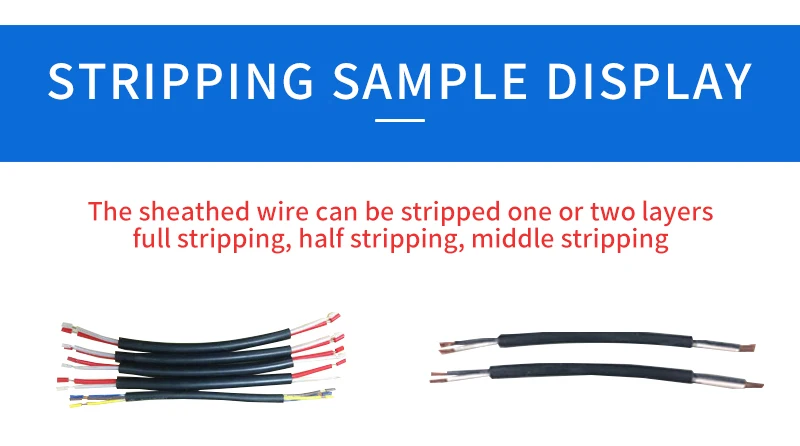

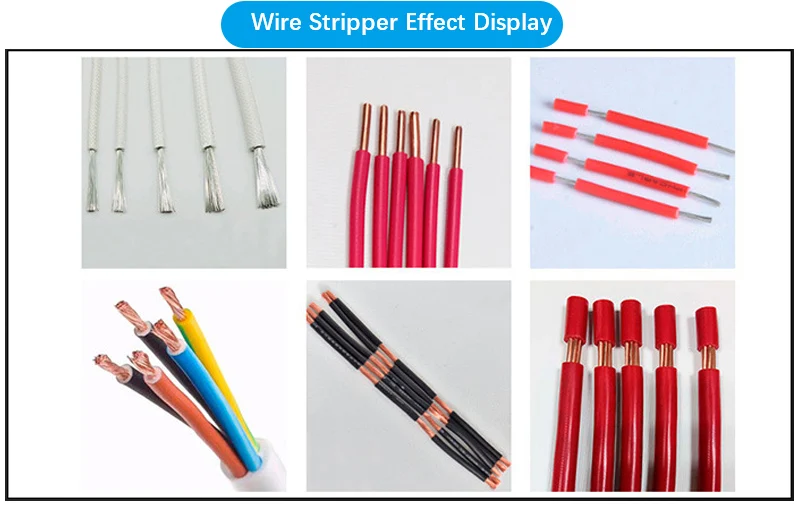

•Support Stripping lengths:Half Stripping, Full Stripping, lti-step stripping
•With 100 memory programs, easy to operate program of low maintenance.
•1 year warranty, life-long maintenance
•High precision and productivity solutions for wire cable cutting and stripping.
•Easy to operate program and low maintenance.
•Safety protection.
•Optional external device connection possibility: Wire feeding machine, and wire take-out device
•Works with many kinds of wire insulation including PVC, Silicone cable, and wire fiber glass.
•Support Stripping lengths:Half Stripping, Full Stripping, lti-step stripping
•With 100 memory programs, easy to operate program of low maintenance.
•1 year warranty, life-long maintenance
Product Description
Product Name | JE2-N Wire Cutting and Stripping Machine |
Wire material | PVC, Fiberglass etc |
Cutting length | 1 - 9999 mm |
Conductor cross-section | 0.1 - 4.5 mm² (32 - 11 AWG) |
Cutting length tolerance | 0.002 * L |
Maximum guide tube diameter | 6 mm |
Stripping length | Head 0-35, Tail 0-15mm |
Speed | 4000-7000pcs/h |
Noise level | < 70 dB(A) |
Power supply | 110, 220 V (50 - 60 Hz) |
Power | 200 W |
Weight | 31 kg |
Dimension | 420 * 390 * 280mm |
Function | Cutting, stripping wire head and tail, middle stripping , bending, twisting .etc. |
Company Profile
FAQ
Q1: Are you trading company or manufacturer ?
A: Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
A: Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Can you send me your products catalog with price list?
A: E-Catalog of showing products style is available to offer for your reference. Since specific items results invaries price, please kindly inquiry us with your detailed item.
Q4: What about your warranty?
A: Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: What's your payment term?
A : 30% TT deposit and 70% TT before delivery(prefer) or against B/L copy or L/C at sight
Q7: Is there any installationdirection after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q8: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A: Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Can you send me your products catalog with price list?
A: E-Catalog of showing products style is available to offer for your reference. Since specific items results invaries price, please kindly inquiry us with your detailed item.
Q4: What about your warranty?
A: Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: What's your payment term?
A : 30% TT deposit and 70% TT before delivery(prefer) or against B/L copy or L/C at sight
Q7: Is there any installationdirection after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q8: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
