Waste pp yarn tape cutting Bobbin cleaning machine PP woven bag production line

Product Overview

Description

FULL AUTOMATIC BOBBIN WASTE YARN CLEANING MACHINE

Description

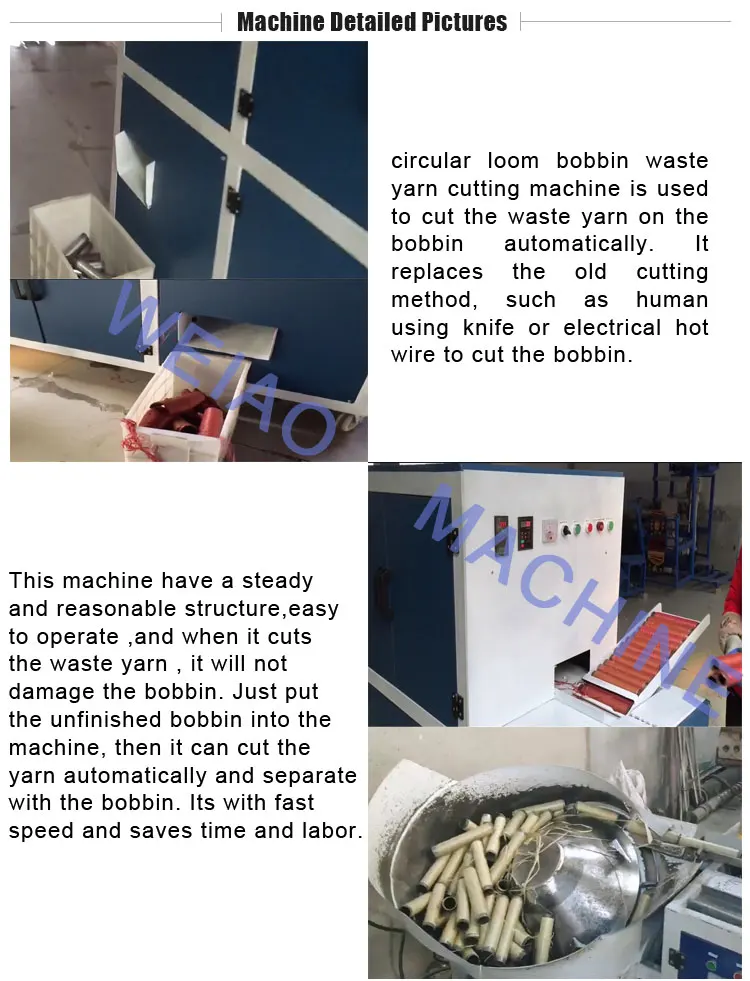

GSJ-400 circular loom bobbin waste yarn cutting machine is used to cut the waste yarn on the bobbin automatically. It replaces the old cutting method.such as human using knife or electrical hot wire to cut the bobbin.this machine have a steady and reasonables structure ,easy to operate ,and when it cuts the waste yarn. it will not damage the bobbin. just put the unfinished bobbin into the machine ,then it can cut they yarn automatically and weperate with bobbin. its with fast speed and saves time and labor.the new model machine control by electric, no need air compressor, much stable and reliable.



Main technical parameters

Model	GSJ-400G
Tube Diameter	32-38mm
Max Cutting T hichness	≤10mm
Cutting Speed	45-65pcs/min
Power Supply	6.0KW
Weight	1000KG
Size	3330mm*1720mm*1580mm
Main engine	BWDI--11-1.5KW
Auxiliary fan	260flj8-330w-220v
Endothem knife	250*87*20mm Four knives
Heating Rod	12*250mm220v500w 7/ pcs
Frequency converter	YQ3000-G11-402P2G YUQLANG brand
PLC	XC2-14R XINJIE BRAND
Rotary plate feeder	It is inseparable from the host commection
