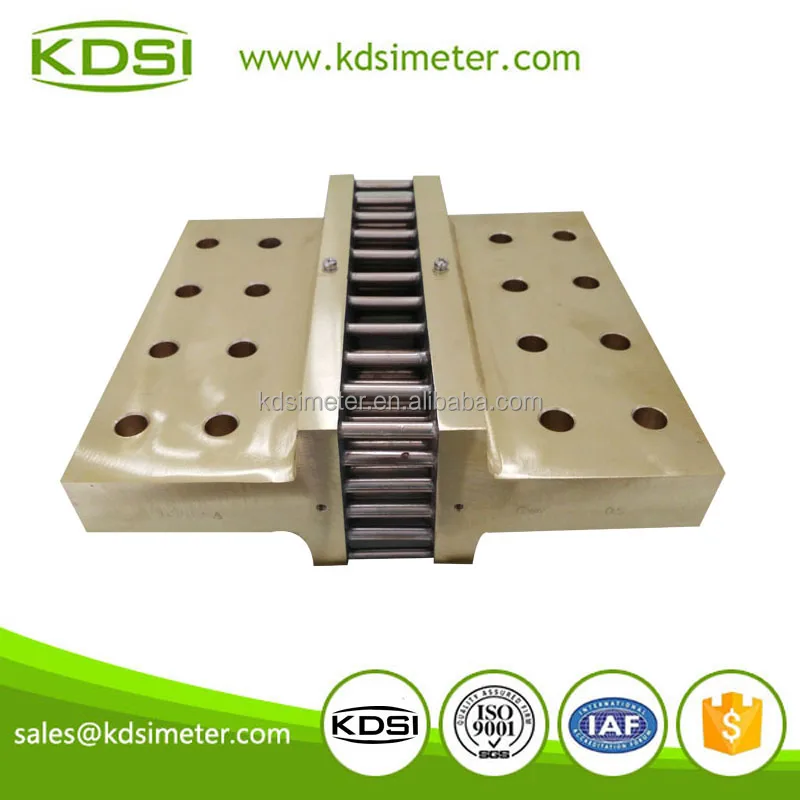

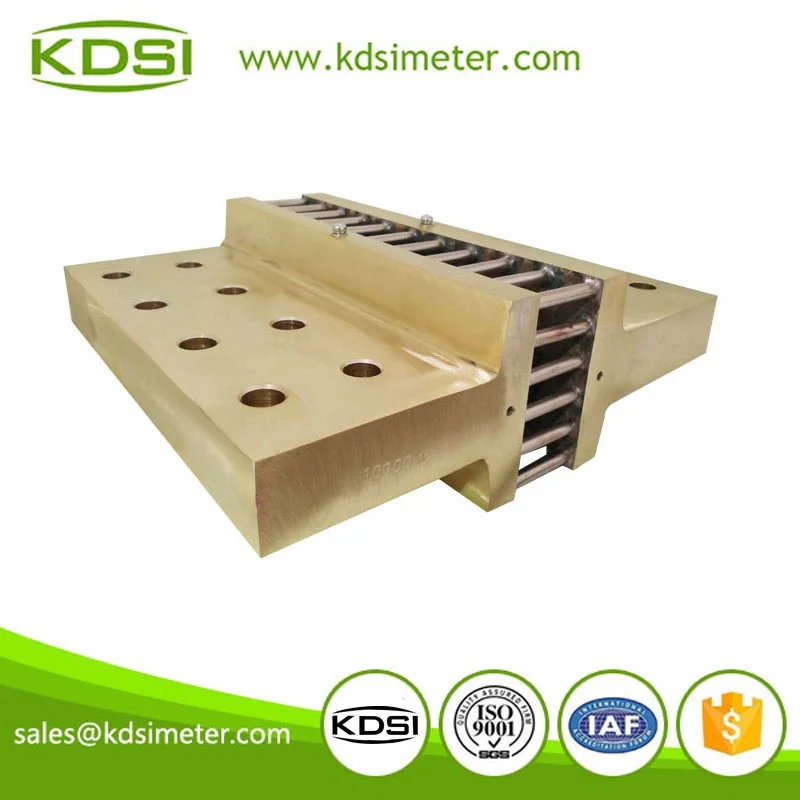

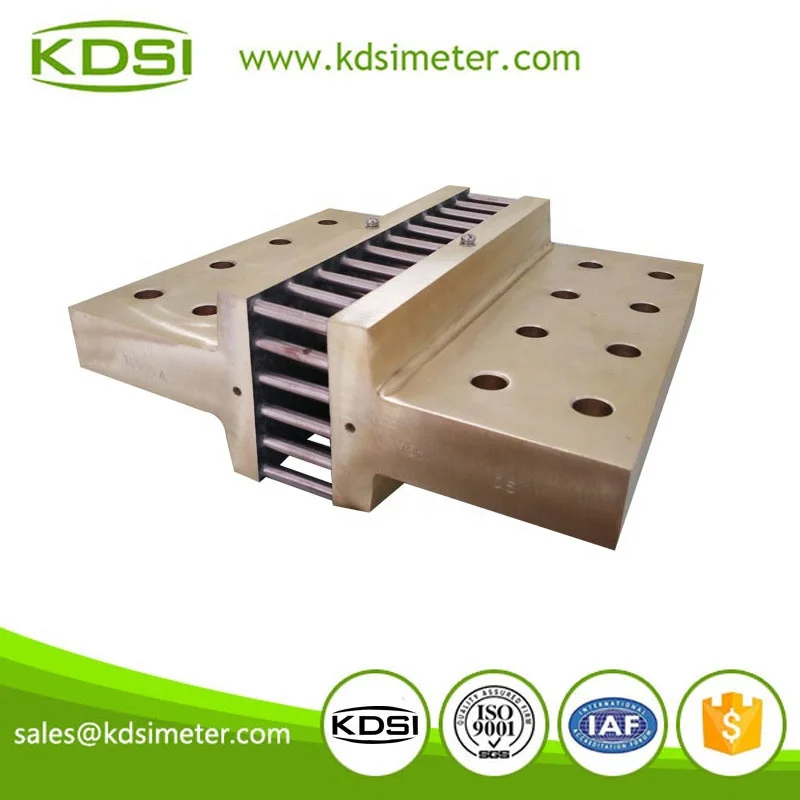

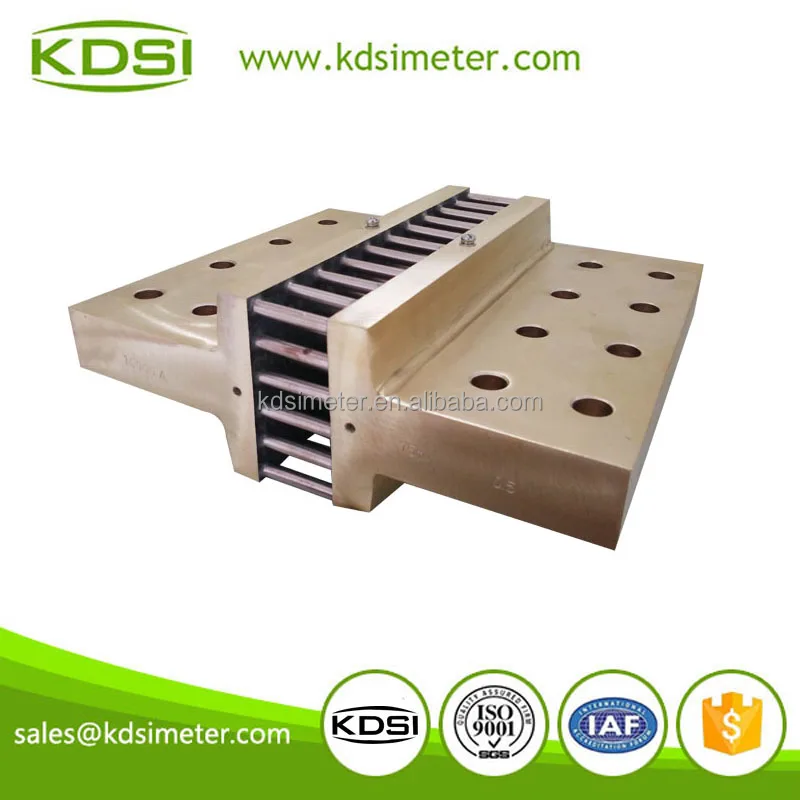

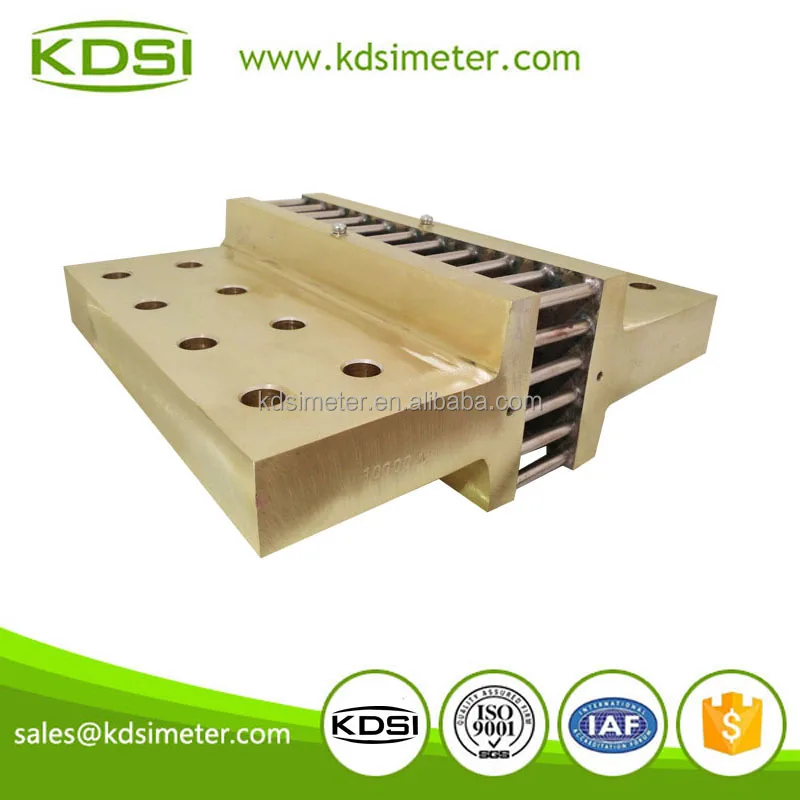

Portable Precise BE 60mV 10000A DC High Current Shunt Resistor

Product Description

♦ DC SHUNTS
DC shunts are available for currents between 10Amps and 10000Amps, offering reliability and calss0.5,accuracy making them suitable for a large range of industrial applications. Four ranges are available that develop either 50mV, 60mV,75mV,100mV at full load current. The millivolt signal can then be safely taken to suitably scaled moving coil indicating instrument or other monitoring device. The shunts are brass ended manganin and all shunts up to the 200 Amp rating are mounted on an insulted base ensuring electrical insulation. All non-insulated shunts may need protection against accidental contact. The shunts should be mounted vertically with the blade faces vertical to achieve maximum heat dissipation.
♦Product Features	♦Output
Brass ended manganin shunts  10 Amp to 5000 Amp 50mV or 60mV output 75mV or 100mV output Accuracy class0.5  Insulated base on shunts up to 200A	0-50mV 0-60mV 0-75mV 0-100mV
♦Specification	♦ Overload
Reference Standard : BS89,IEC51	1.2 In continuous  10 In for 5 seconds(10A to 500A) 5 In for 5 seconds(600A to 2000A) 2 In for 5 seconds(2500A to 10000A)
♦ Accuracy	♦ Operating Temperature
Class 0.5,1.0(+0.5%, 1.0% max.error)	-20°C      to 60°C
♦Current Rating, In	♦ Connections
0-10A to 0-5000A  (see range data table)

 Outline and Fixing Dimensions:(mm)

Product packing

 Our Partner ________________________________________________________________________________

 Six Advantages_______________________________________________________________________________

1. BRAND       20 years of experience, and a global supplier for voltmeters and ammeters with a professional team.

2. QUALITY   All of our products are made of new materials that can withstand the high temperature up to 180 degrees centigrade, and they are certified to the European Union CE and ISO9000.

3. APPLICATIONS  Wide Range of Applications, Distribution Cabinets, ships, Audio and Stage amplifiers, welding machines and so on.

4. LEAD TIME   Short lead time, only approximately three days for normal specifications.

5. PRICE            Cost-effective ,with the lowest price compared with those in the same quality.

6. SERVICES     Our products can be tailor-made for our customers, with the lifelong service available free of charge

1. Do your company do the manufacturer or the trading coming?

We are manufacturers.

2. How to visit your company?

Our company is closed to shanghai, can take high speed train from Shanghai HongQiao Station to KunShan Station ,about 20minites.

3. Does your company have ISO9001 QA system certification by 3rd party?

Yes, we have passed the ISO9000 CE certification.

4. Free sample is available or not?

Yes, But you need pay for the freight charge.

5. What about the min-Q’TY.?
For sample, min-Q’TY is 1PCS

6. What’s the payment term?

T/T,PAYPAL are available.

7. What’s the delivery time?

It’s based on your order quantity. Generally within two weeks.

8. What kind of freight way?

Express: DHL, UPS, TNT, FedEx, EMS, Parcel Post

Air or Sea.

9. Is OEM available for your company?

Sure. We can produce based on your special requirements, also can you’re your LOGO.

10. How long the warranty of your products?

KDSI promises all products are free maintenance (no matter where)

Looking forward your feedback!!!
