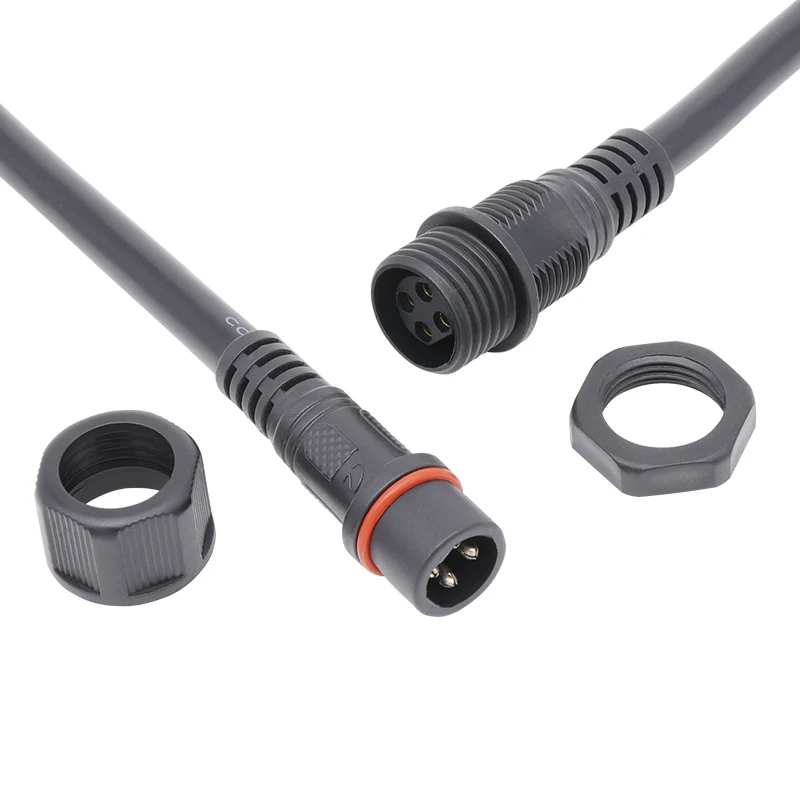

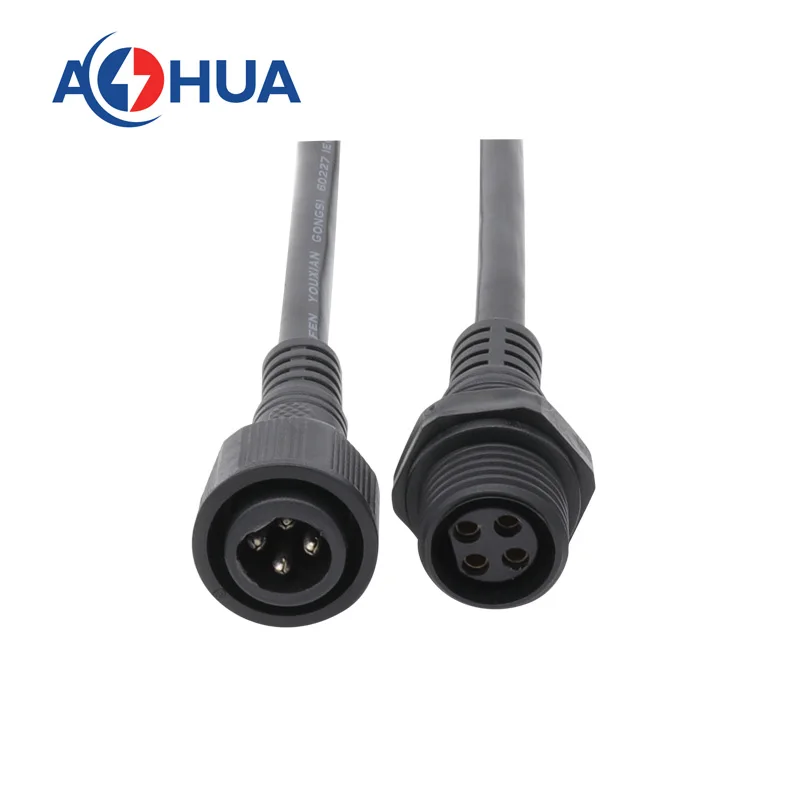

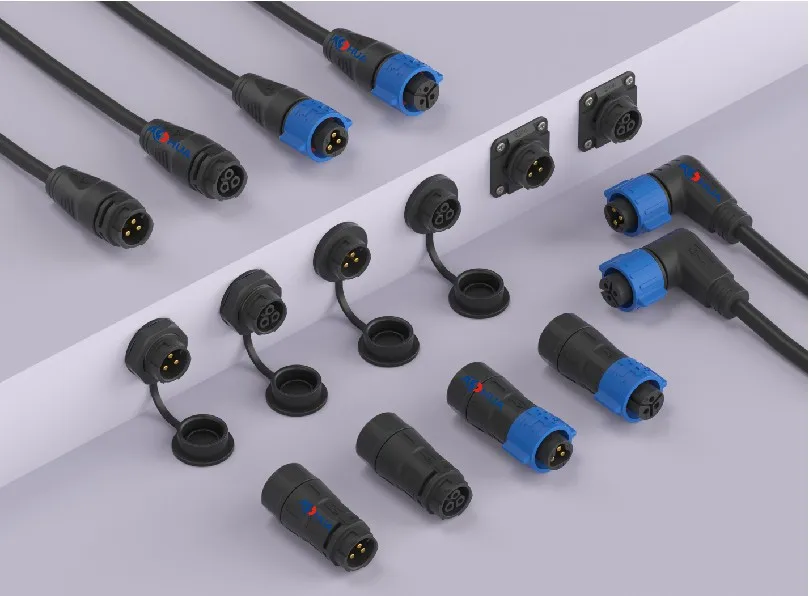

4PIN Waterproof Plastic Round PVC female panel Mounted M19 4Pin Led Connector IP65 Customized Terminal Wires Cable End
- Category: >>>
- Supplier: Shenzhen Aohua Electric Corporation Limited
Share on (1600865793483):
Product Overview
Description
Our Advantages
Related Products

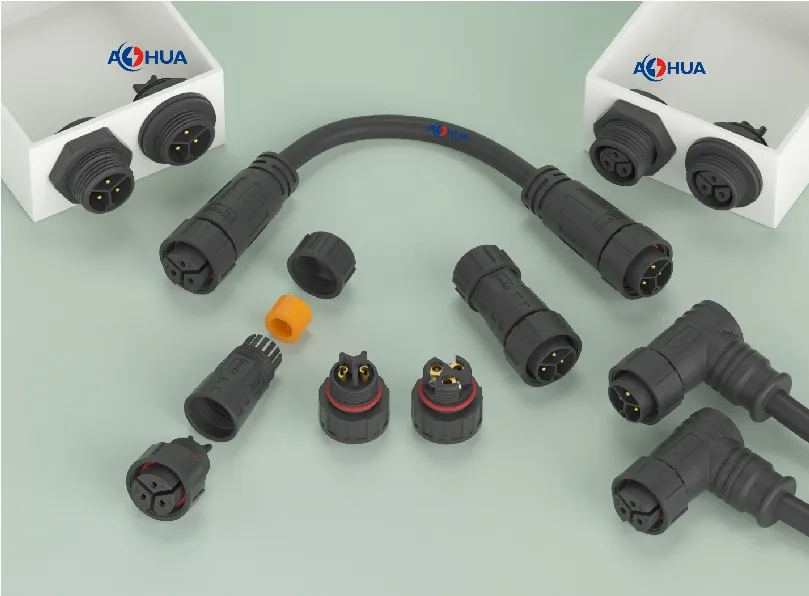

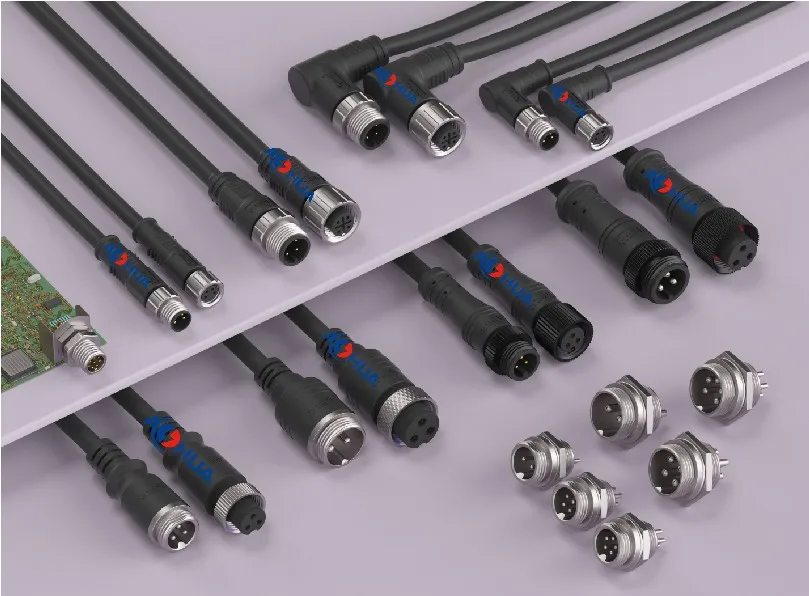

Assembly Connector | Wire to wire /Wire to panel waterproof connector,L/T screw type connector |
Over-mold Connector | Nylon/PVC /Metal /Aviation waterproof connector,DC connector |
T Connector | Over-mold T waterproof connector |
Y Connector | Over-mold Y waterproof connector |
Distributor Connector | M15/M19/M20 Series(1to2/3/4/5/6) LED waterproof connector |

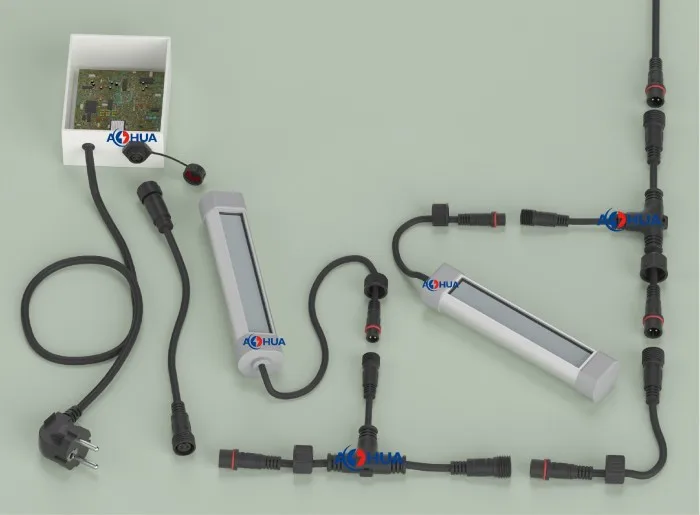

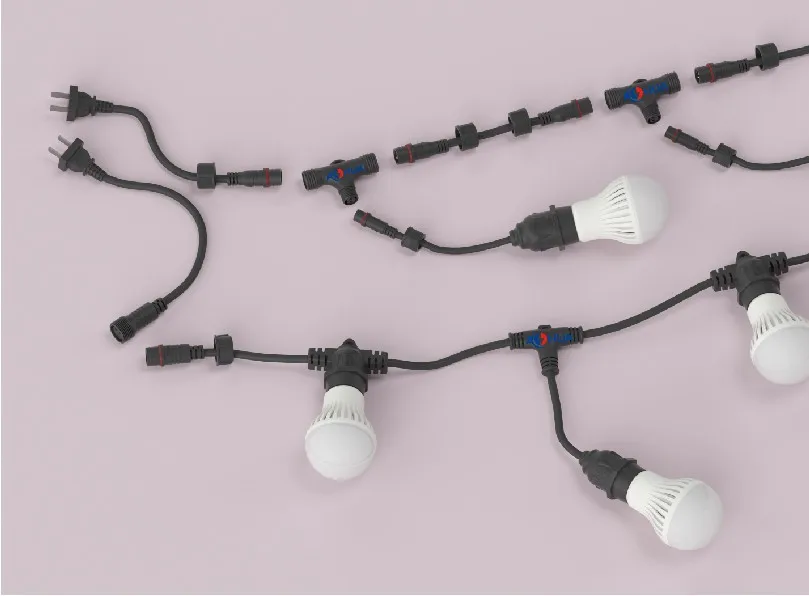

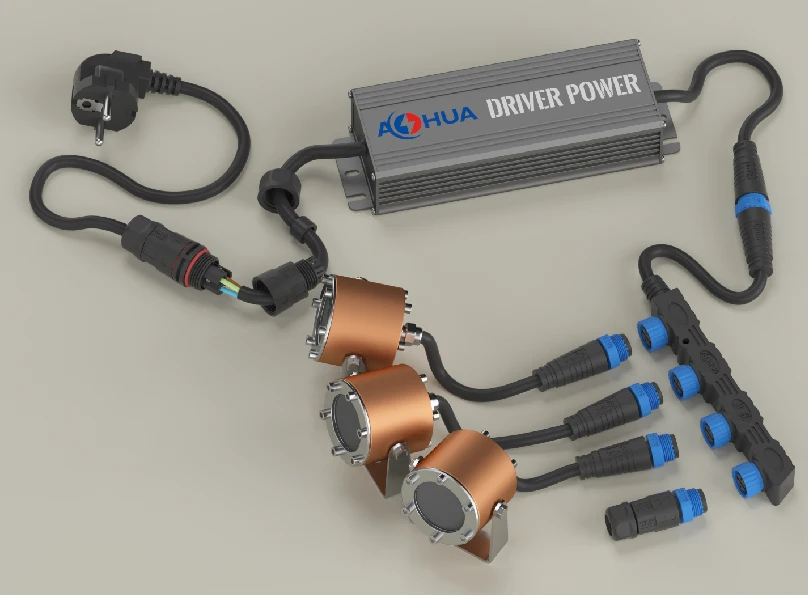

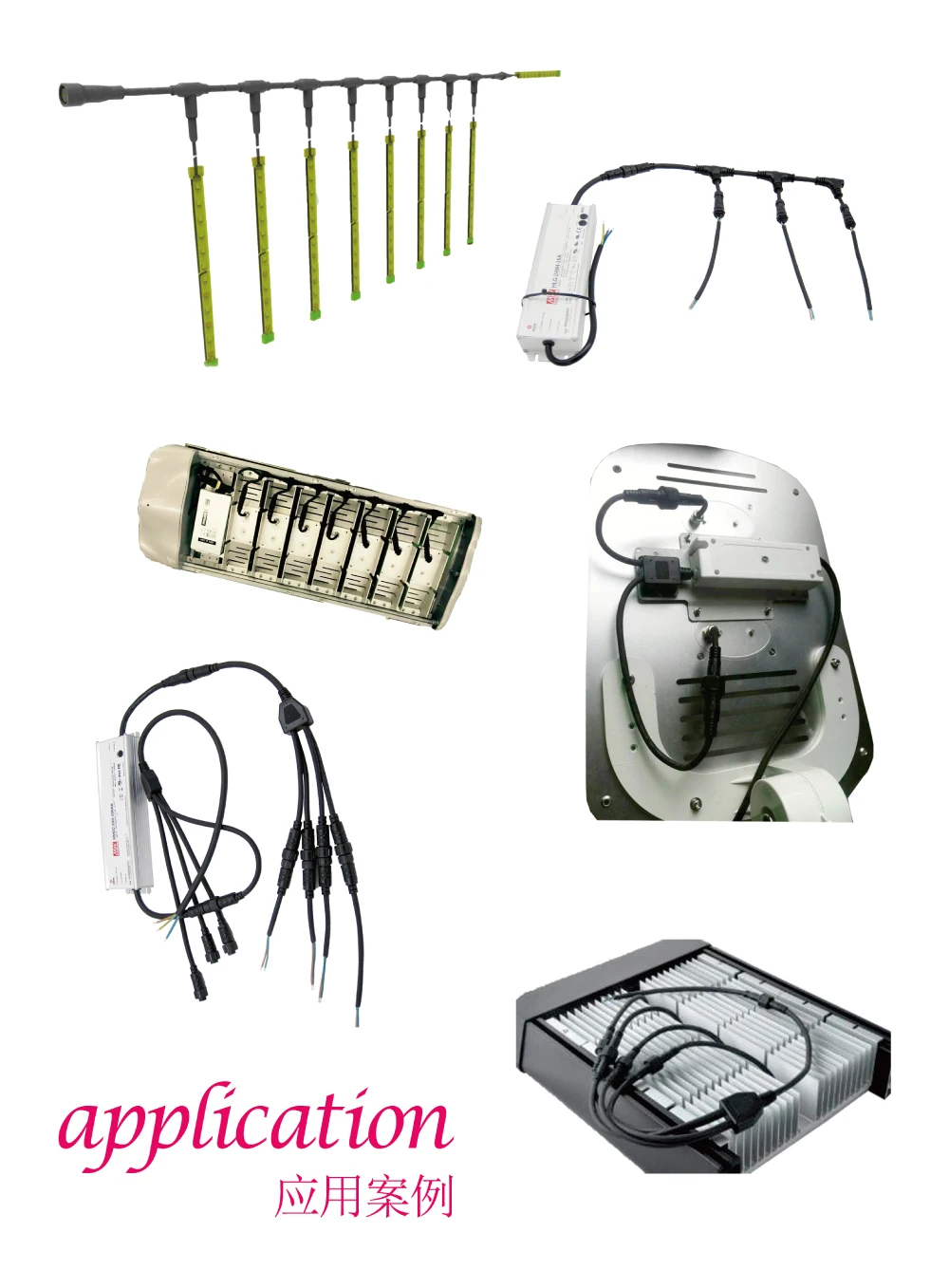

Application

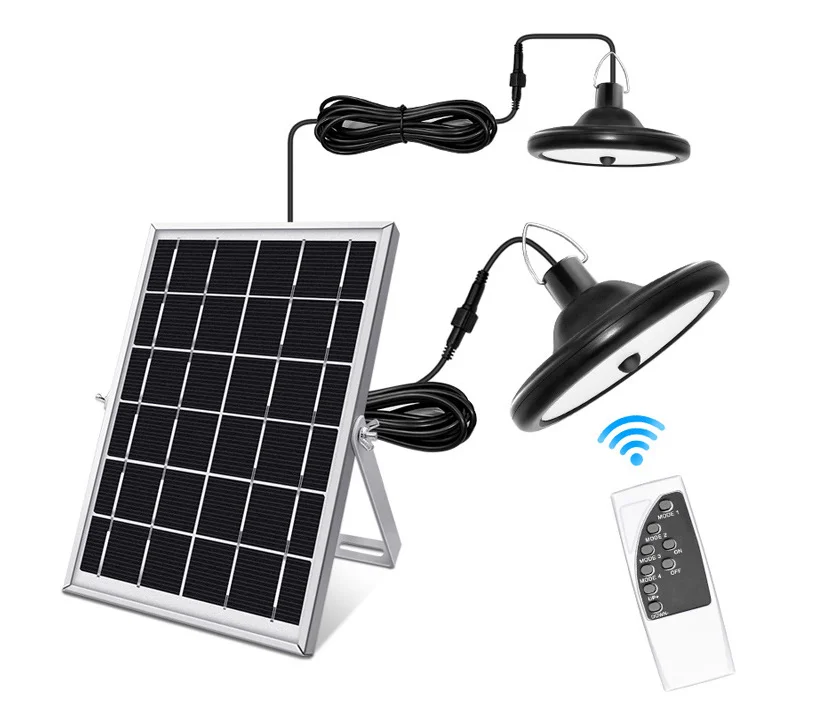

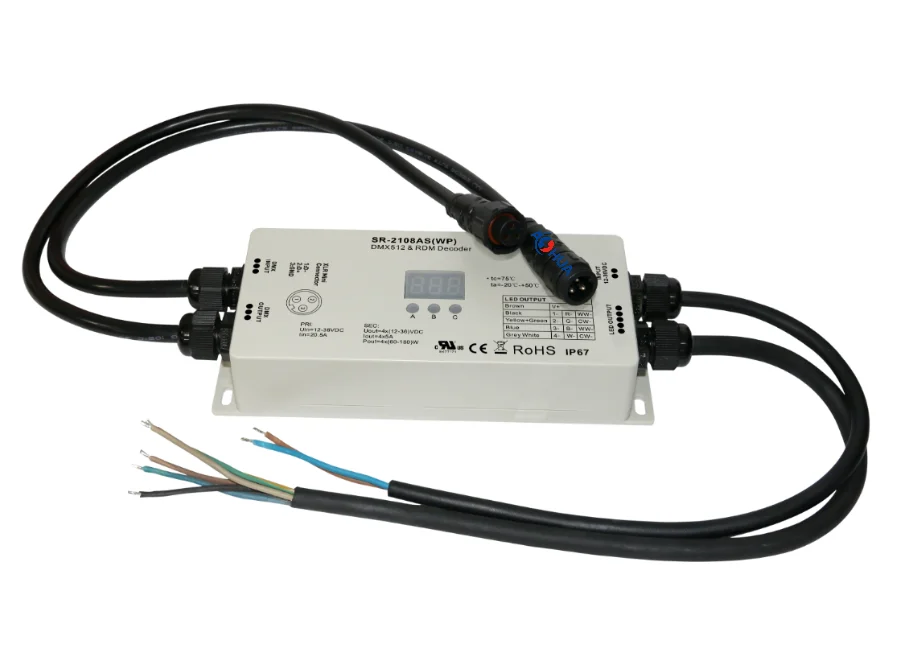

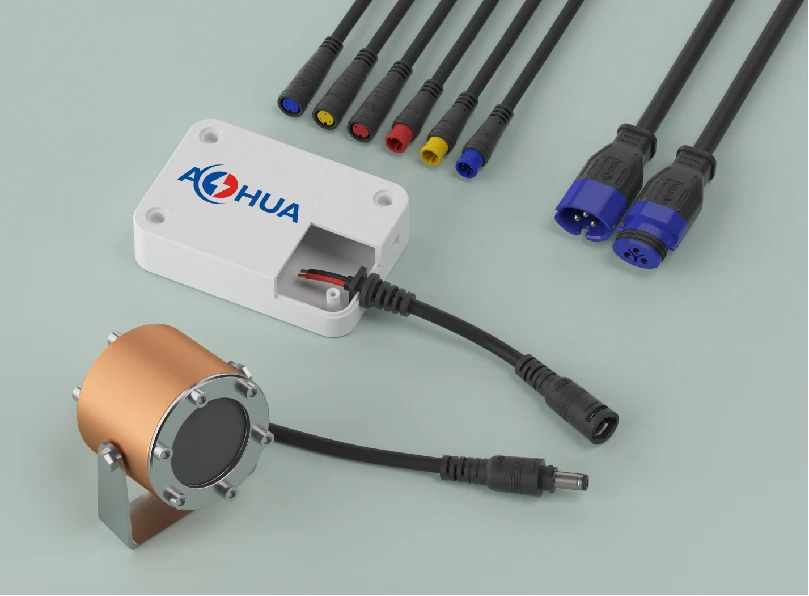

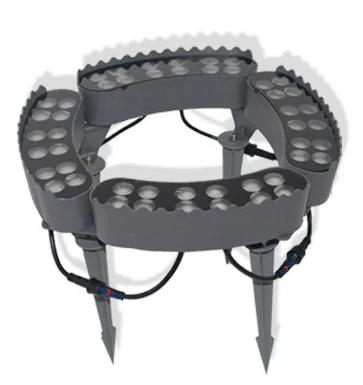

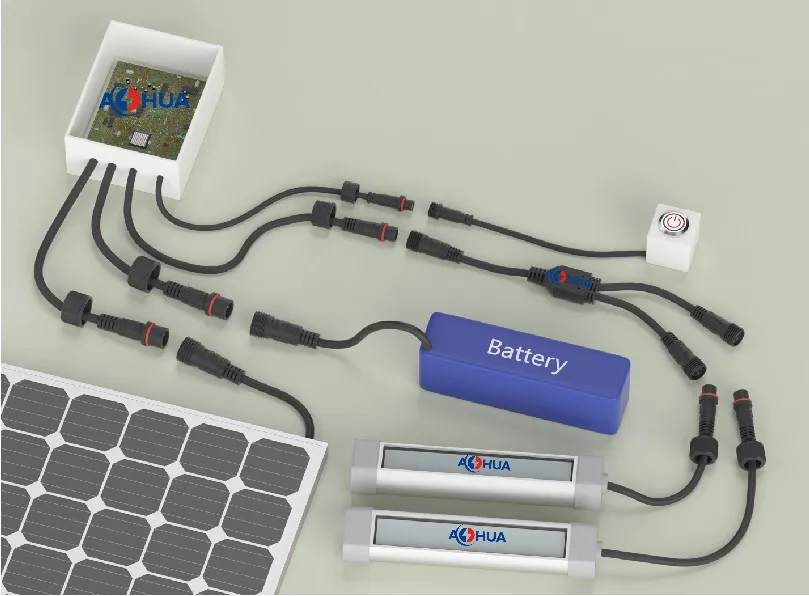

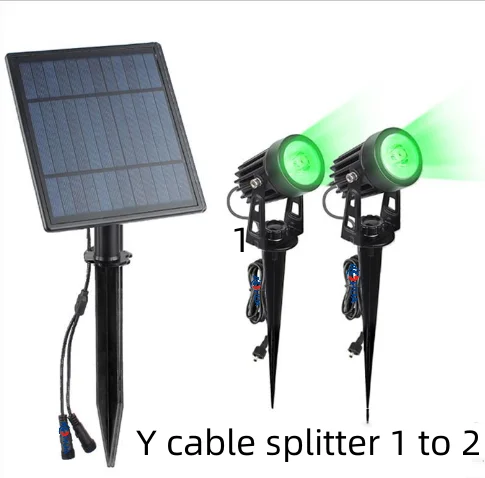

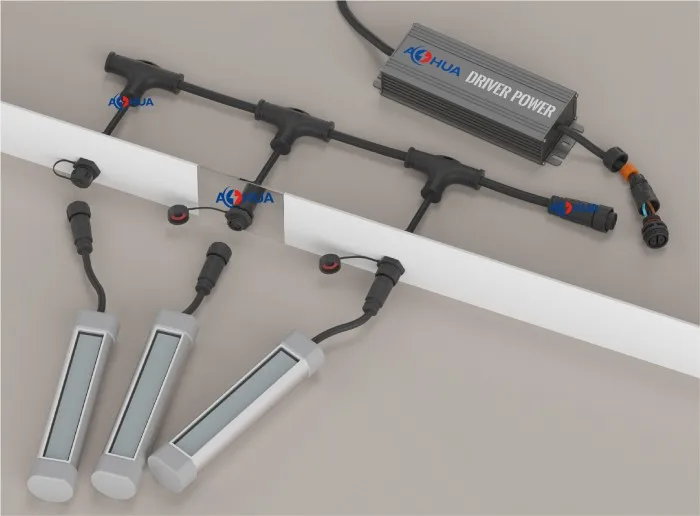

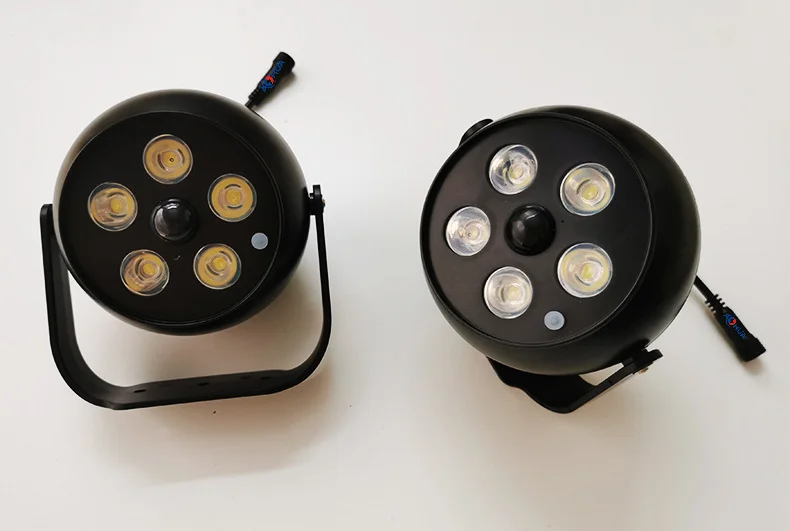

This type of connector is suitable for indoor/outdoor,such as outdoor led lighting, LED panel screens, outdoor security cameras,plant growth lamp,battery pack,

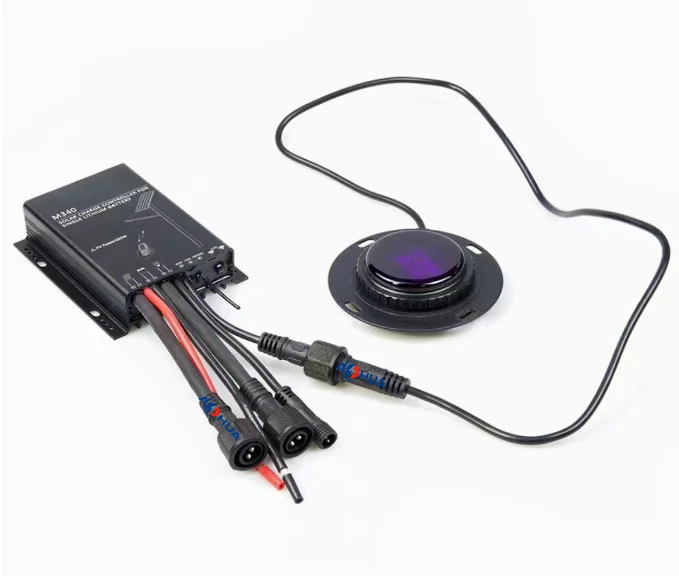

solar energy inverter, medical device, communications, marine equipment ,control systems, measuring equipment and testing
equipment,for data and power and so on.
solar energy inverter, medical device, communications, marine equipment ,control systems, measuring equipment and testing
equipment,for data and power and so on.
Product Details

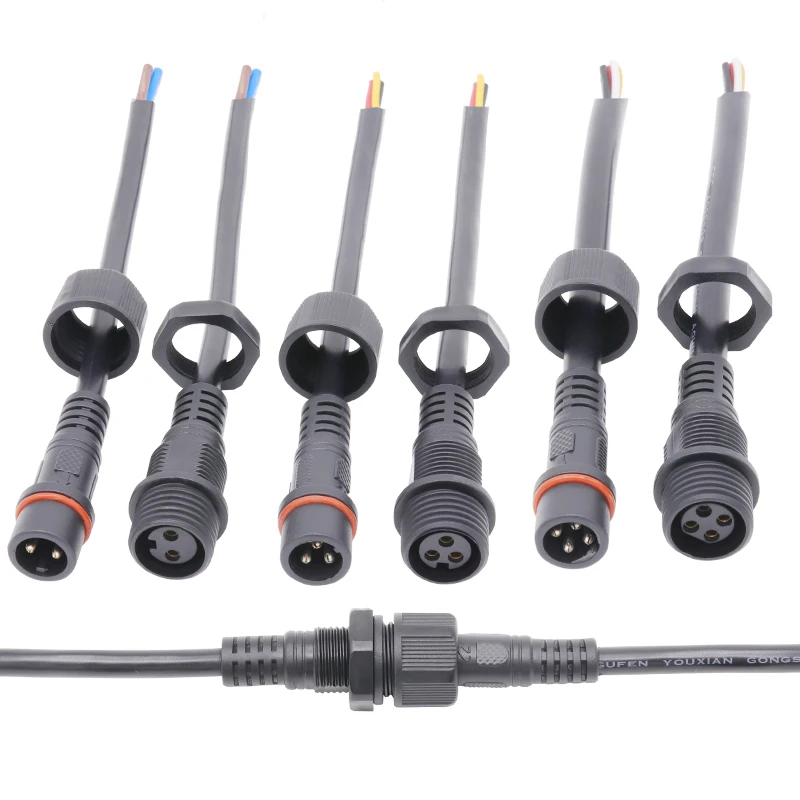

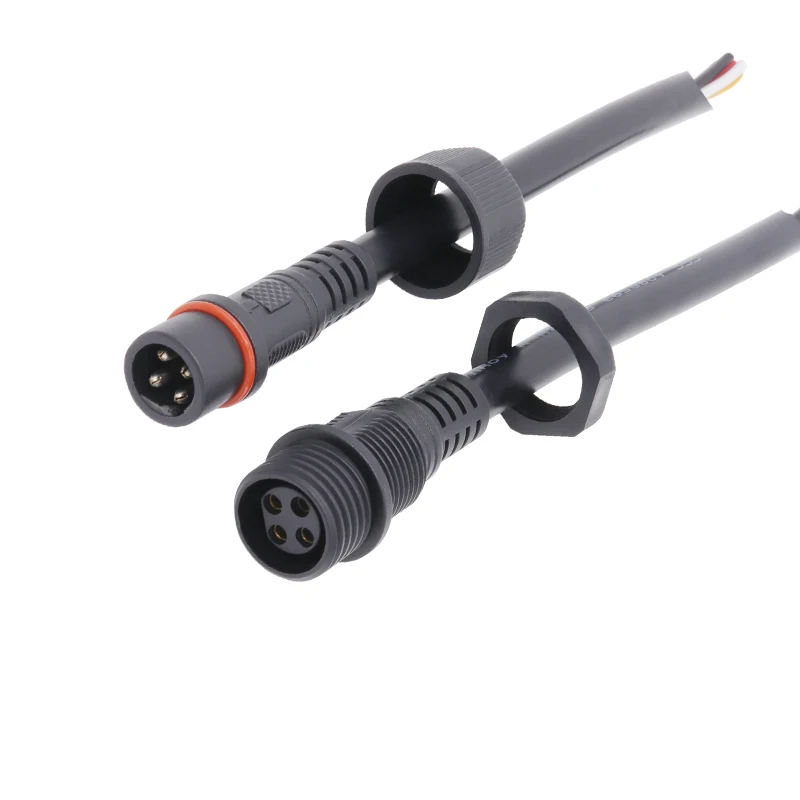

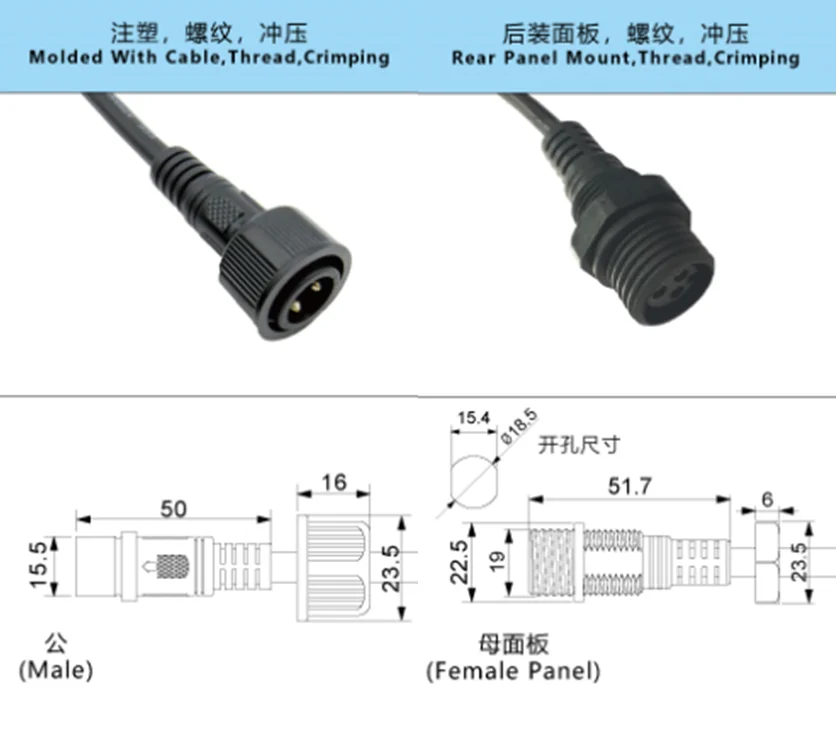

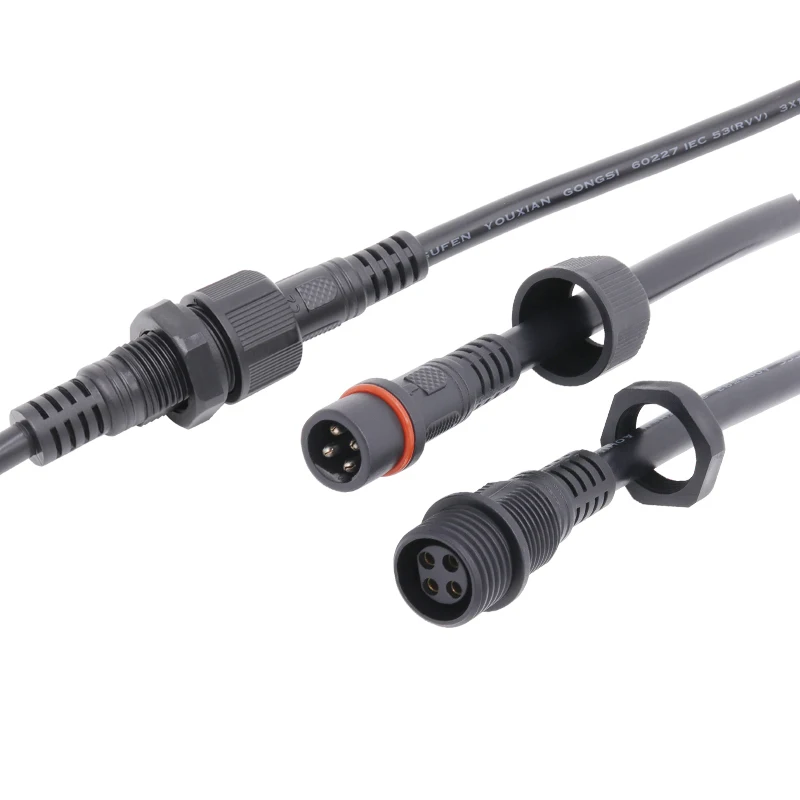

4PIN Waterproof Plastic Round PVC female panel Mounted M19 4Pin Led Connector IP65 Customized Terminal Wires Cable End
1.It is acceptable for the wire gauge:0.75mm²,0.5mm²,
18AWG,20AWG,22AWG,24AWG.
2.The plug material is PVC,cable is PVC too,there are Silicone,rubber cable for your choices.

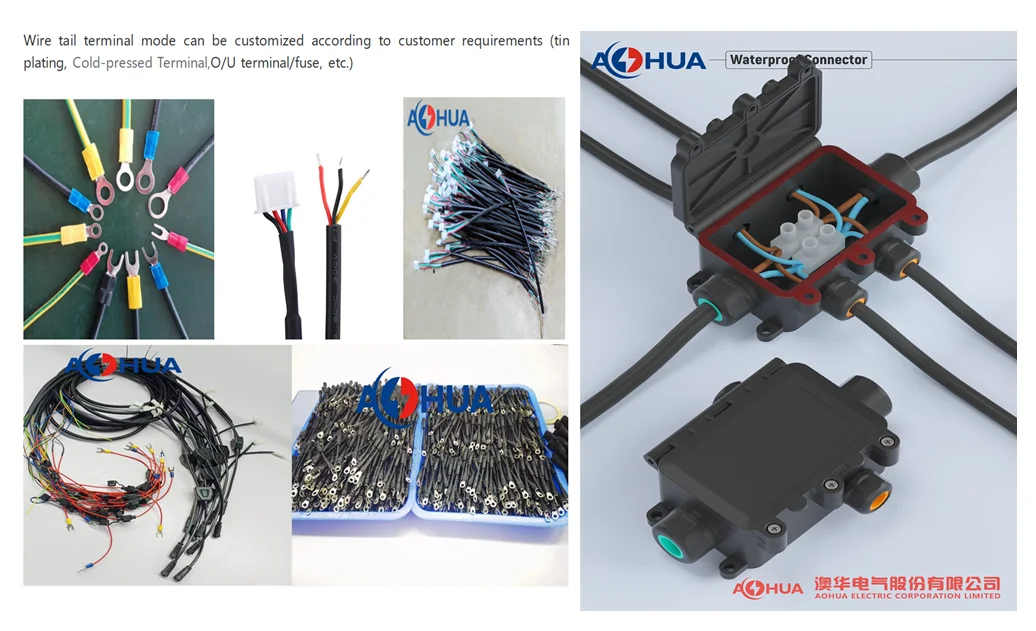

The cable length and the wire terminal processing are available .
Pins | Male | Female Panel | Wire Gague | Voltage | Current |
2 | AH-M19-1202MMP01131 | AH-M19-1202FFP01131 | ≤1.5mm² | 250V | 12A |
3 | AH-M19-1203MMP01131 | AH-M19-1203FP01131 | ≤1.5mm² | 250V | 12A |
4 | AH-M19-0504MMP01131 | AH-M19-0504FFP01131 | ≤0.75mm² | 250V | 5A |
5 | AH-M19-0405MMP01131 | AH-M19-0405FFP01131 | ≤0.5mm² | 110V | 4A |
6 | AH-M19-0406MMP01131 | AH-M19-0406FFP01131 | ≤0.5mm² | 110V | 4A |
7 | AH-M19-0207MMP01131 | AH-M19-0207FFP01131 | ≤0.3mm² | 60V | 2A |
8 | AH-M19-0208MMP01131 | AH-M19-0208FFP01131 | ≤0.3mm² | 60V | 2A |

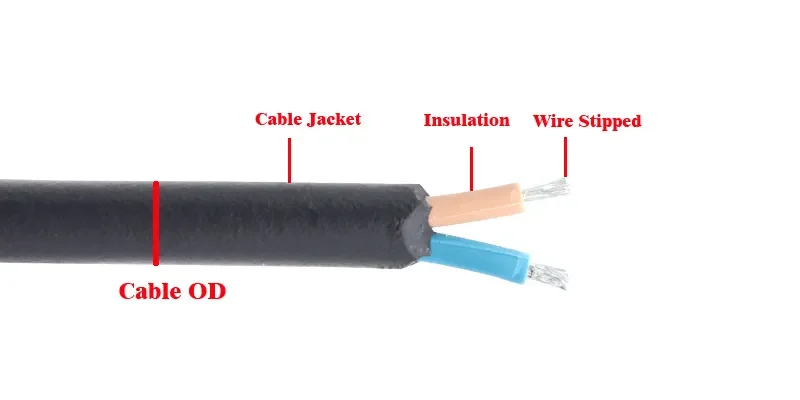

Cable OD | 6.0mm~8.4mm |
Machanical Life | 500mating cycles |
Operating Rating | -20ºC~+80ºC |
Waterproof Level | IP65 |
This is customized type connector.
Pls let us know:
1.What's the wire size do you need?
Such as: 4*22AWG...
2.What's the cable length do you want?
Such as: Male length 1000 mm,female length 500 mm...

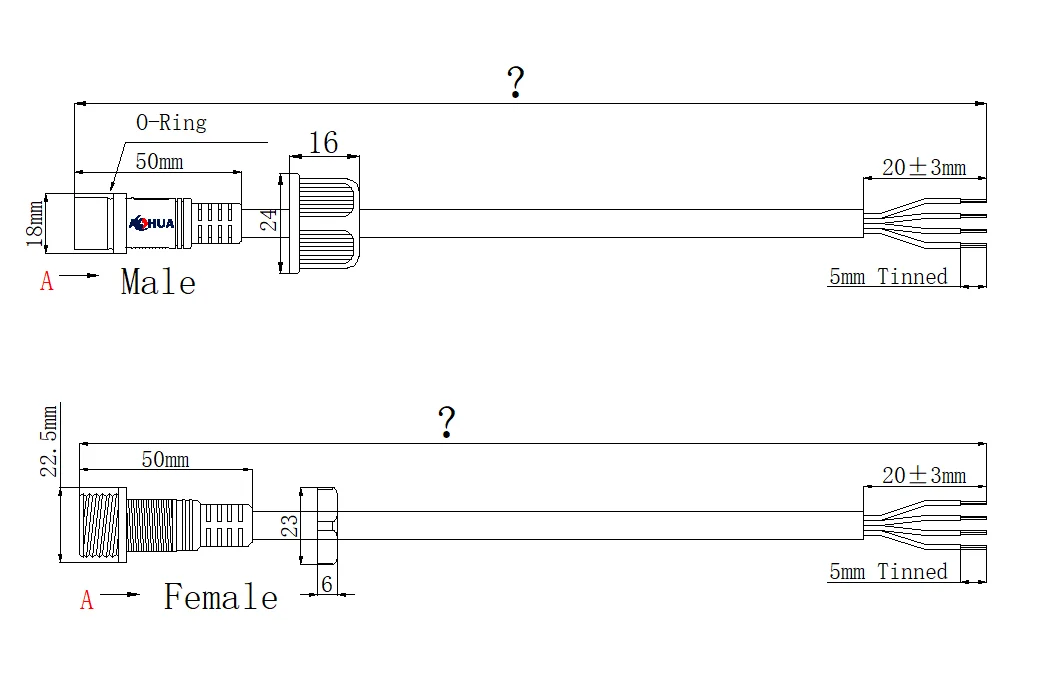

You simple sketch drawing will be appreciated.
Then we will send you a formal drawing for confirmation,after getting your approval,quote for you .
Pls let us know:
1.What's the wire size do you need?
Such as: 4*22AWG...
2.What's the cable length do you want?
Such as: Male length 1000 mm,female length 500 mm...
You simple sketch drawing will be appreciated.
Then we will send you a formal drawing for confirmation,after getting your approval,quote for you .
1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.

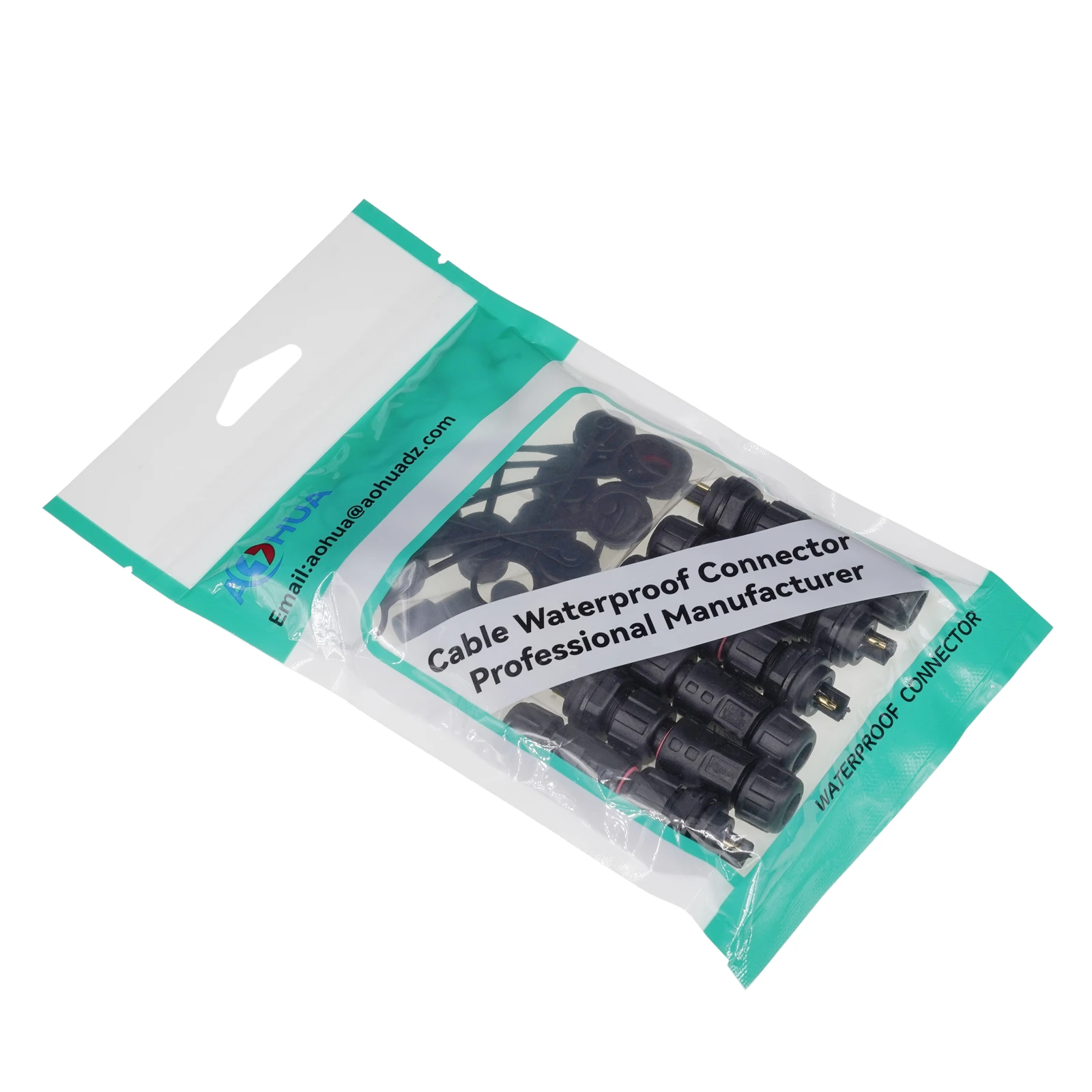

3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,we have been cooperating with many domestic and foreign engineering and enterprises. we pay great attention to the quality of products.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want.We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.

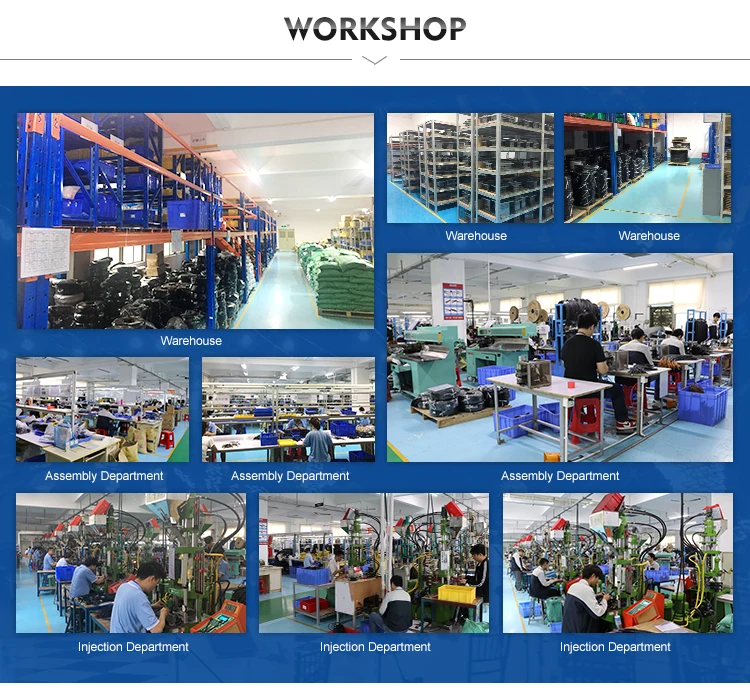

8.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,we have been cooperating with many domestic and foreign engineering and enterprises. we pay great attention to the quality of products.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want.We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
8.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
