New 2.4G 5G WIFI USB Smart Android tvstick Control Remote Google Assistant Fire TV device 4k Android TV Stick

                                                                            Android TV Stick
                                                                Model IKTVStick_R2R3_IK316

V1.0

Product Description

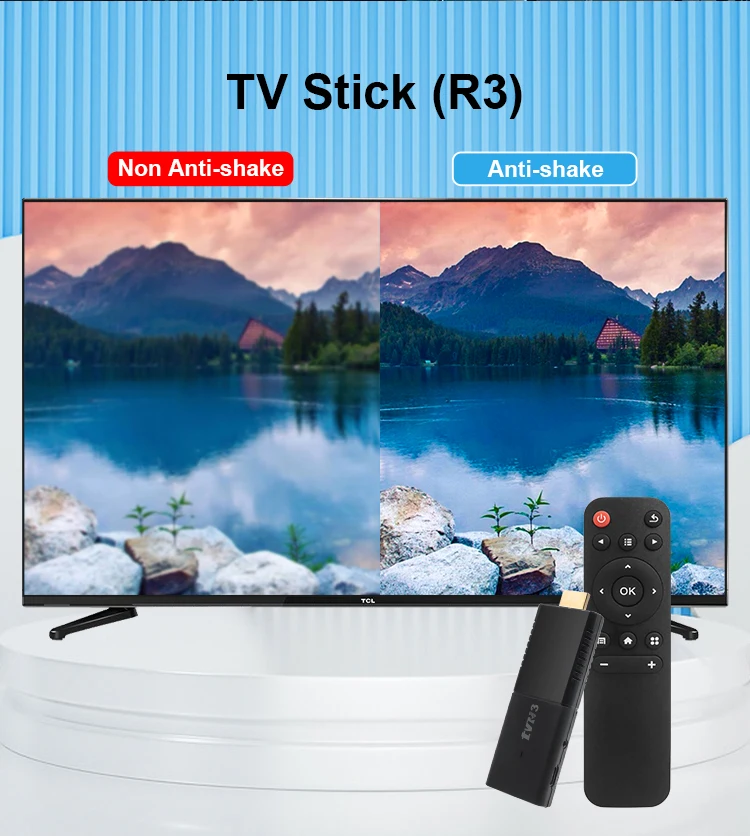

Android TV Stick: R3
H.264/H.265 up to 1080P@60fps Video encoding
H.264/H.265 decoding up to 4K@60fps

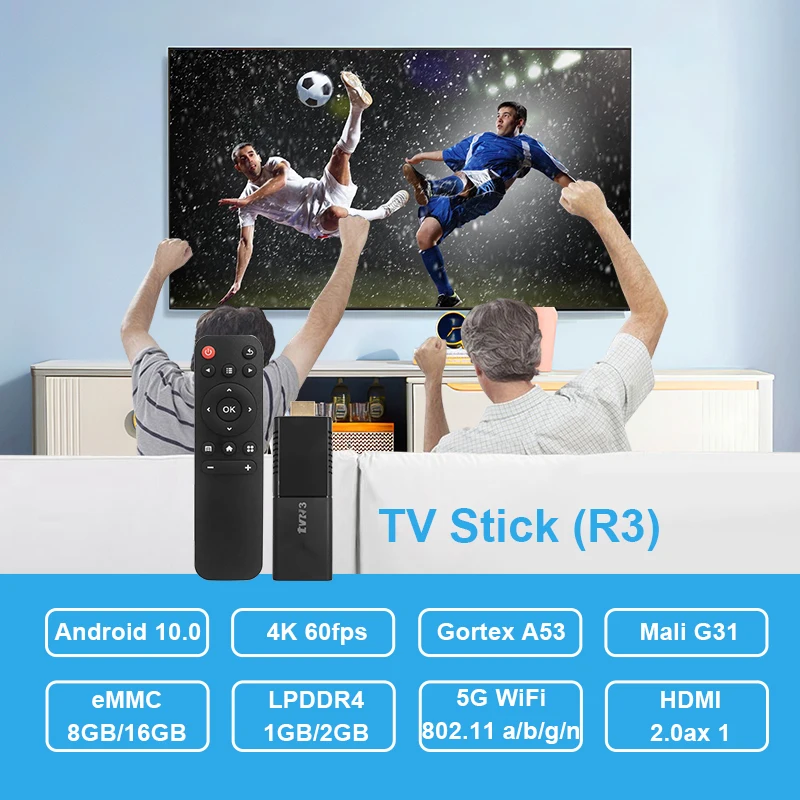

Basic Parameters

System

SoC: Allwinner IK316

CPU: Quad core ARM Cortex-A53

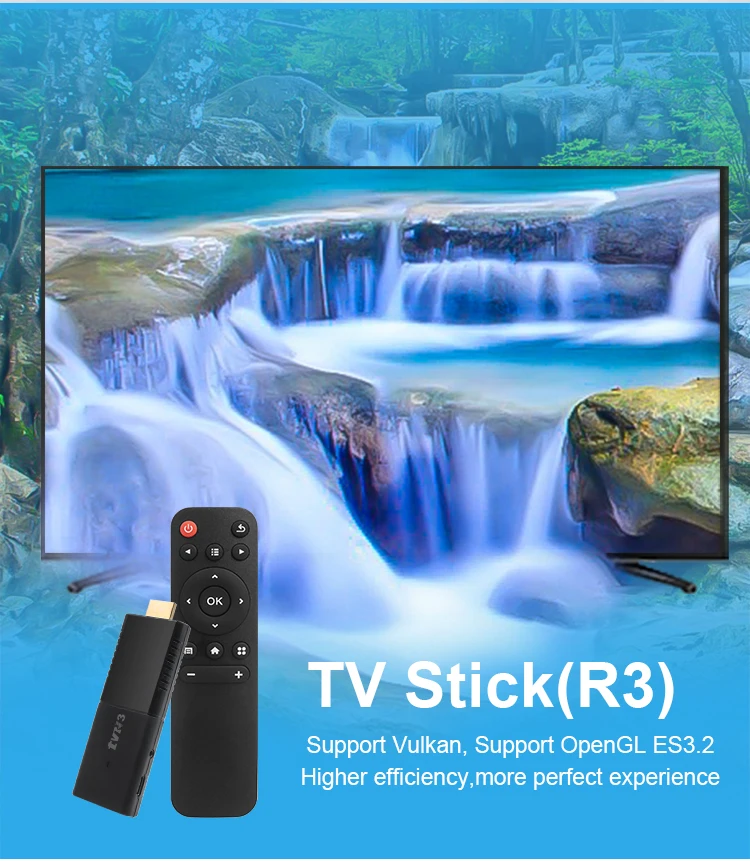

GPU: Mali-G31,OpenGL ES3.2/2.0/1.0，Vulkan 1.1，OpenGL2.0

DRAM: 64bit LPDDR4 1GB (2GB Optional)

Flash: EMMC 8GB(16GB Optional)

Launcher: Android OS

Language: Default English

OS: Android 10.0

Connectivity

SV6256P Wi-Fi 2.4G+5GHz 802.11 a/b/g/n

I/O

Video Output

HDMI 2.0a x 1

Audio Output

HDMI 2.0a x 1

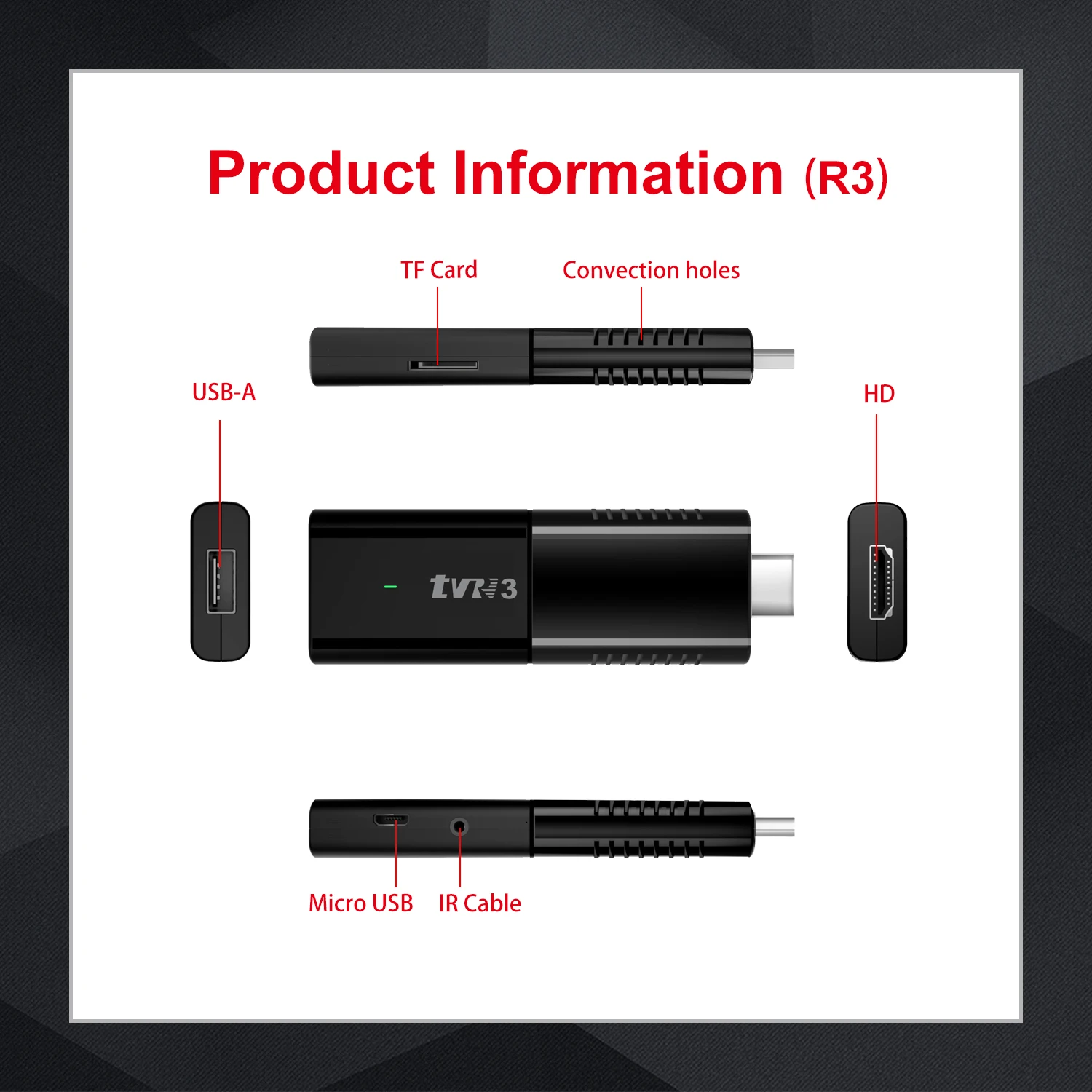

Peripheral Interface

Update Recovery Key x 1, TF x 1(R3 supports)

Power Interface

Micro USB DC 5V@1A ,with LED Indicator

Power Consumption

5W

Stanby Power

<0.5W

Other Interface

IR receiver,with extended line

Media

Video

Decoder:
H.265 Main10@L5.1 up to 4K@60fps,
VP9 Profile 2 up to 4K@30fps,
AVS2 JuZhun 10bit Profile up to 4K@30fps,
H.264 BP/MP/HP@L4.2 up to 4K@30fps,
H.263 BP up to 1080p@30fps,
MPEG-4 SP/ASP@L5 up to 1080p@60fps,
MPEG-2 MP/HL up to 1080p@60fps,
MPEG-1 MP/HL up to 1080p@60fps,
Xvid up to 1080p@60fps,
Sorenson Spark up to 1080p@60fps,
VP8 up to 1080p@60fps,
AVS/AVS+ JiZhun Profile up to 1080p@60fps,
WMV9/VC1 SP/MP/AP up to 1080p@60fps,
JPEG HFIF file format up to 45MPPS,
Encoder:
H.264 BP/MP/HP,
H.264 supports I/P frame,and only support single reference frame,
MJPEG/JPEG baseline,
Maximum 16-megapixel(4096X4096)resolution for H.264 encoding,
H.264 encoding capability:1080p@60fps,
JPEG sanpshot performance of 1080p@60fps independently,
Supports the constant bit rate(CBR)/variable bit rate(VBR) bit rate control mode,
ranging from 100Mbit/s,
Encoding of eight regions of interest(ROIs),

Format:
SVC, MVC, VC-1/WMV, AVS, WebM, RMVB, MPEG1/2/4, MJPEG, H.263, DivX 3/4/5, Xvid,
Real Video, VP6/8 etc.

Audio

Decoder:
MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis,
Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2,
Real Audio(AC-3 Optional )

Format:
MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc.

Subtitle Format

SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation

Photo Format

HD JPEG/BMP/GIF/PNG/TIFF

Features

Network Streaming

HTML5, RTSP, HLS, Smooth streaming

System Upgrading

Upgrading via USB disk or internet

External Storage

USB storage not less than 128GB (FAT32/NTFS)

APP

TBD

Other Parameters

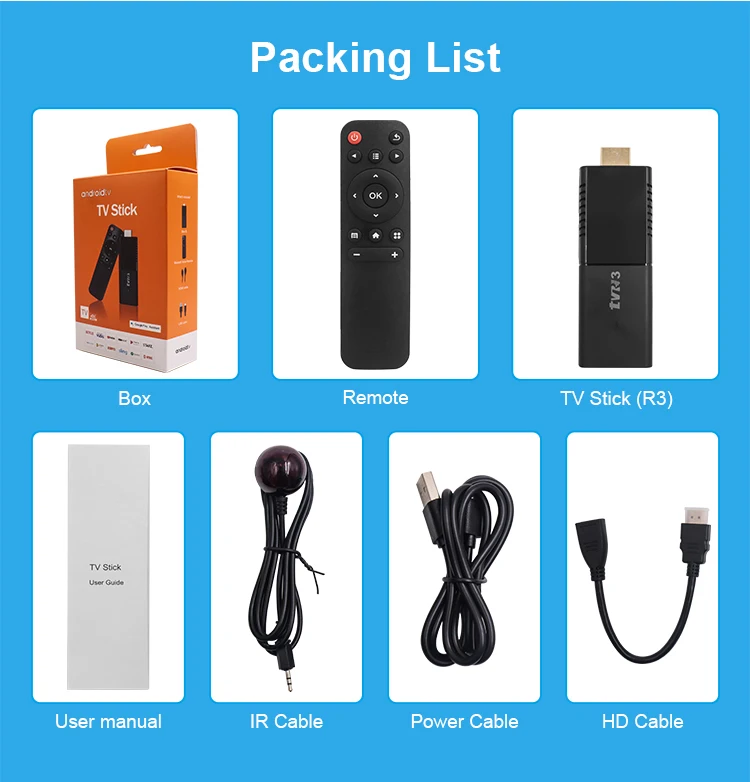

Packing List

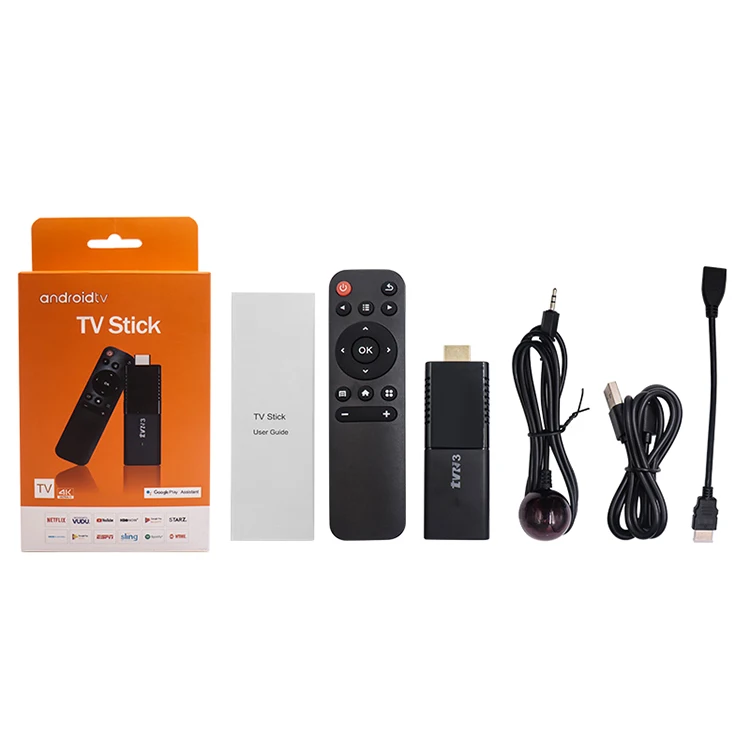

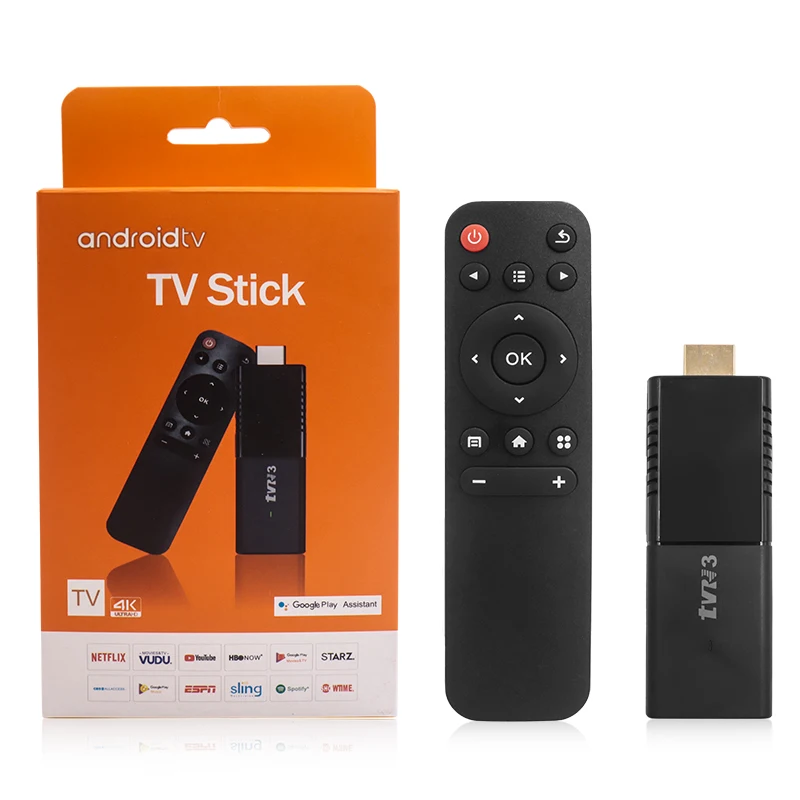

TV Stick x1;User manual x1;USB cable x1;HDMI cable x1;IR Cable x1;IR Remote x1

Operation Temperature

0~40℃, Humidity<95%

Physical characteristics

Size: 99mm*33mm*12mm

Weight: TBD

Color:Black

Material: Plastic

Stickers

MAC(QR code);Nameplate(Model Name)
