Rescue Hydraulic Combination Equipment for Fire Firefighters 6sets

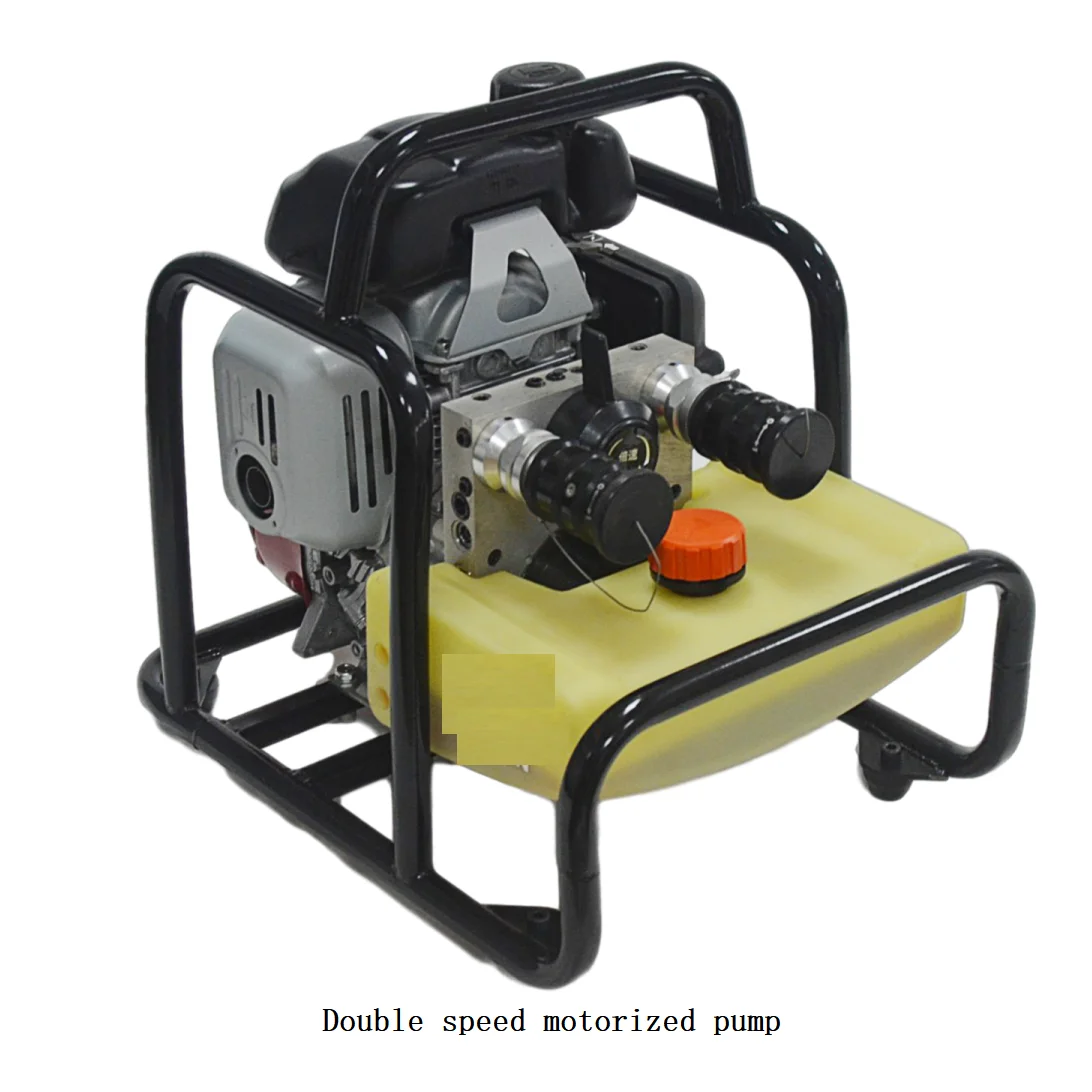

Double speed motorized pump

1. The hydraulic shear can be combined with hydraulic powered pumps, electric pumps, or hydraulic manual pumps.
2. The main body is made of high-strength alloy, and the sealing elements are all German seals. The imported tool steel material
technology is introduced into the tool, which not only ensures the shear strength but also ensures the toughness;
3. The body material adopts aviation lightweight high-strength aluminum alloy material, with surface ceramic treatment;
4. The handle designed with new materials makes rescue operations more comfortable and safe;
5. Unique bidirectional self-locking and automatic reset integrated directional hand valve, convenient for left and right hand
operation;
6. The opening distance of the blade end is large, which can handle the vast majority of rescue scenes;
7. The tool adopts a single tube, single interface, and tailless design, which can be quickly connected, inserted and pulled under
pressure, making operation safer and convenient to carry, store, and operate;
8. The integrated design of the handle and switch greatly facilitates the operation of rescue personnel;
9. Bolt embedded structure, making it easier to use in narrow spaces;
10. Multifunctional toothed blade, greatly improving cutting ability and shortening cutting time.

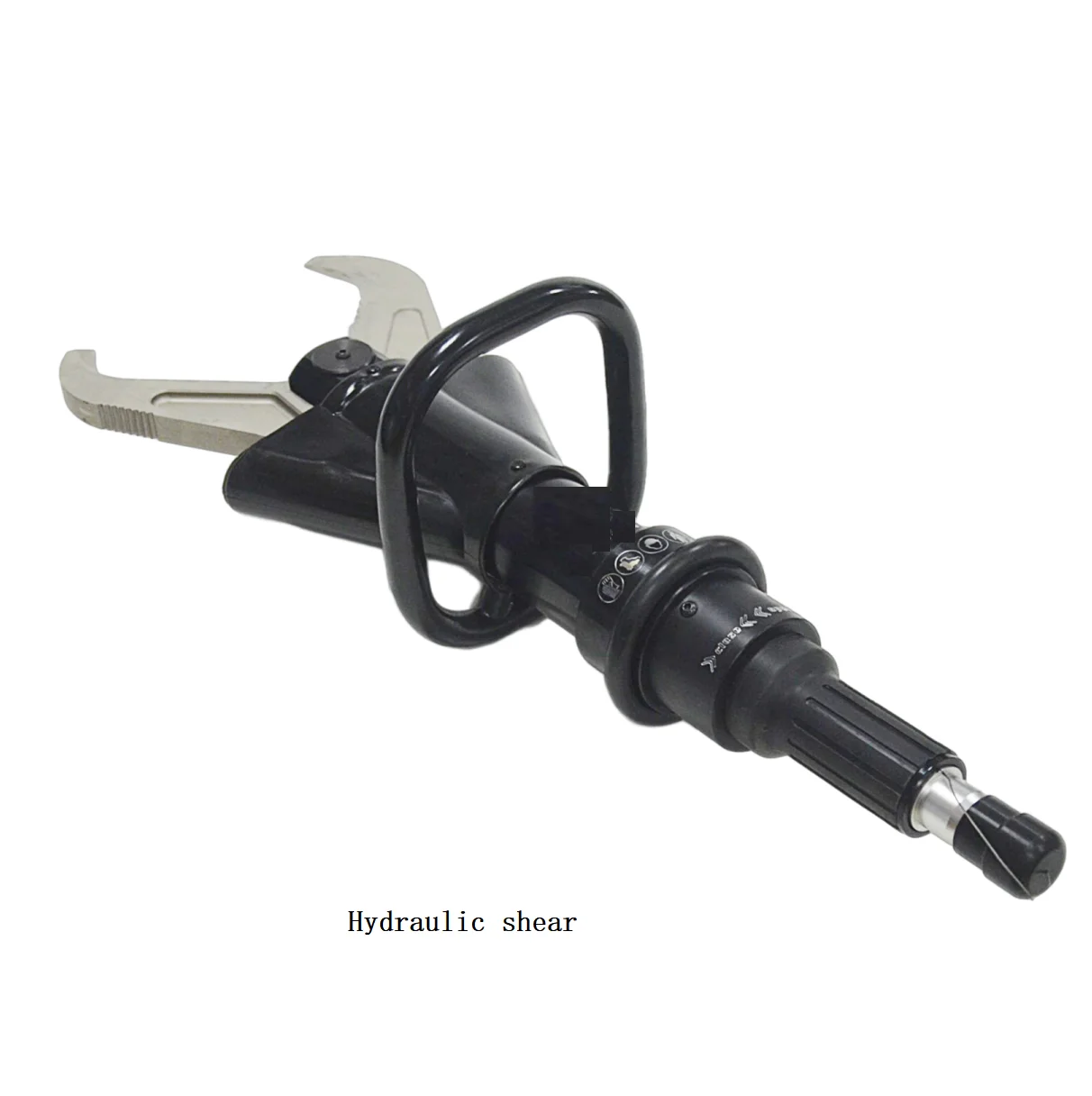

Hydraulic shear

1. The hydraulic shear expander has the functions of cutting, expanding, and pulling simultaneously, which can disassemble the
entire vehicle and cut off vehicle components, metal structural pipelines, special-shaped steel and steel plates;
2. The cutting tools are made of high strength alloy tool steel that can be reground, with long operation time and good wear
resistance;
3. The moving parts are equipped with protective covers, which prevent shearing and splashing, and automatically reset the manual
steering valve to provide safety assurance for the operator;
4. The manual valve operation can make the opening and closing of the blade fixed in any position, which can be self-locking;
5. Short opening and closing time, accelerating the rescue process;
6. All seals come from Deutschland seal, with better quality
7. The tool adopts a single tube, single interface, and tailless design, which can be quickly connected, inserted and pulled under
pressure, making operation safer and convenient to carry, store, and operate;
8. The opening distance is large and can handle the vast majority of rescue operations;
9. The integrated design of the handle and switch greatly facilitates the operation of rescue personnel;
10. Bolt embedded structure makes it easier to use in narrow spaces.

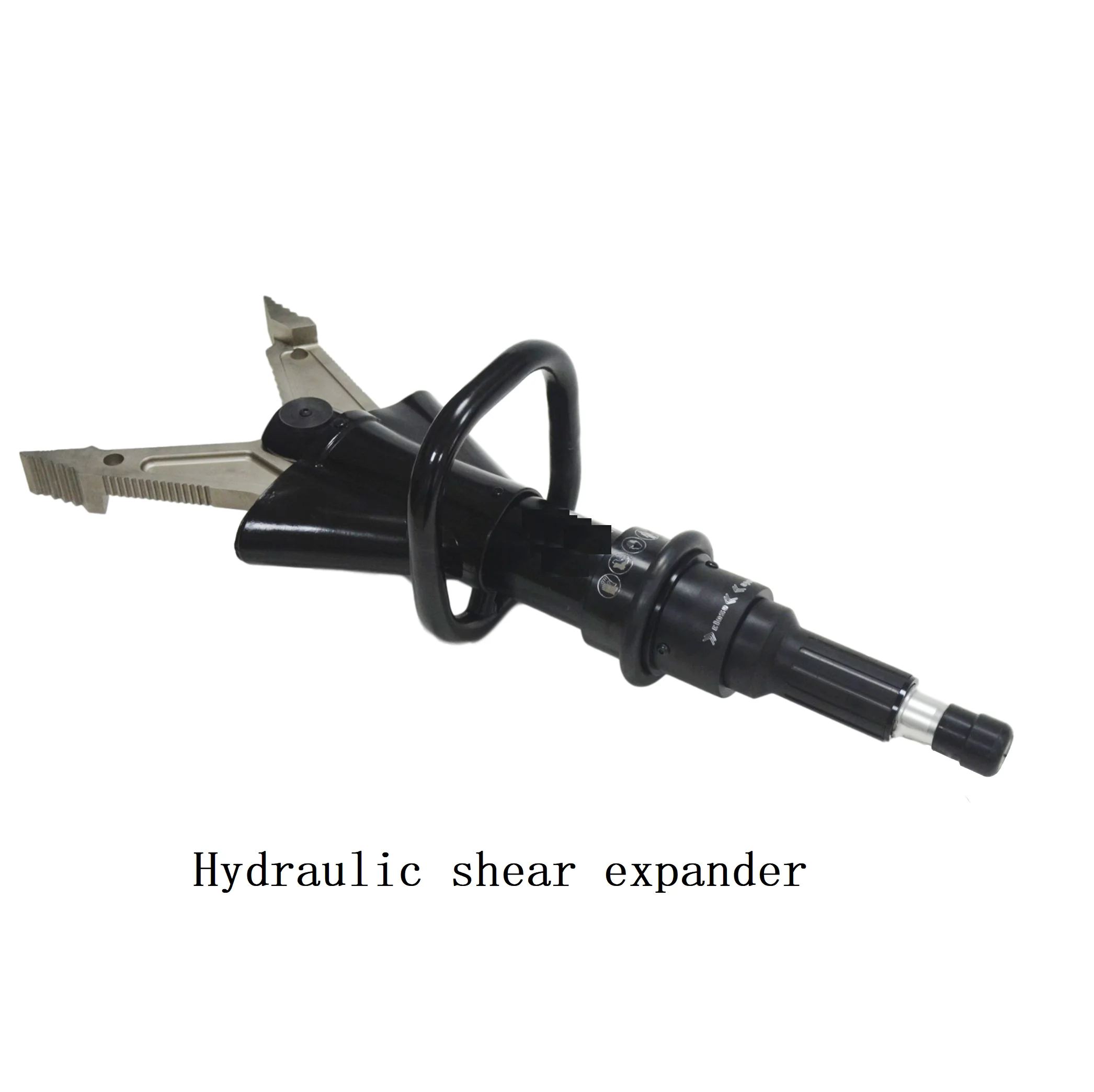

Hydraulic shear expander

1. The hydraulic shear expander has the functions of cutting, expanding, and pulling simultaneously, which can disassemble the
entire vehicle and cut off vehicle components, metal structural pipelines, special-shaped steel and steel plates;
2. The cutting tools are made of high strength alloy tool steel that can be reground, with long operation time and good wear
resistance;
3. The moving parts are equipped with protective covers, which prevent shearing and splashing, and automatically reset the manual
steering valve to provide safety assurance for the operator;
4. The manual valve operation can make the opening and closing of the blade fixed in any position, which can be self-locking;
5. Short opening and closing time, accelerating the rescue process;
6. All seals come from Deutschland seal, with better quality
7. The tool adopts a single tube, single interface, and tailless design, which can be quickly connected, inserted and pulled under
pressure, making operation safer and convenient to carry, store, and operate;
8. The opening distance is large and can handle the vast majority of rescue operations;
9. The integrated design of the handle and switch greatly facilitates the operation of rescue personnel;
10. Bolt embedded structure makes it easier to use in narrow spaces.

hydraulic spreader

1. The hydraulic dilator has powerful expansion, clamping, and pulling functions in emergency rescue tools, allowing for high-load
rescue operations,
2. Made of high-strength lightweight alloy steel, with light weight and high expansion tension;
3. It can be used to move and lift obstacles, pry open gaps and expand into channels, causing deformation of metal structures;
4. Short opening and closing time;
5. The combination of bidirectional hydraulic lock and automatic reset control valve has self-locking function, high operational
safety, and can not retract in any position;
6. The handle is convenient for left and right hand operation, and the moving parts are equipped with protective covers to ensure
the safety of the operator;
7. The sealing element adopts the industry benchmark Deutsch seal to ensure the sealing performance of the equipment;
8. The expansion head is embedded in the expansion arm, with a flat structure that can be wedged into narrow gaps to open up
rescue channels;
9. The tool adopts a single tube, single interface, and tailless design, which can be quickly connected, inserted and pulled under
pressure, making operation safer and convenient to carry, store, and operate;
10. The integrated design of the handle and switch greatly facilitates the operation of rescue personnel;
11. Extra large expansion distance for more expansion work.

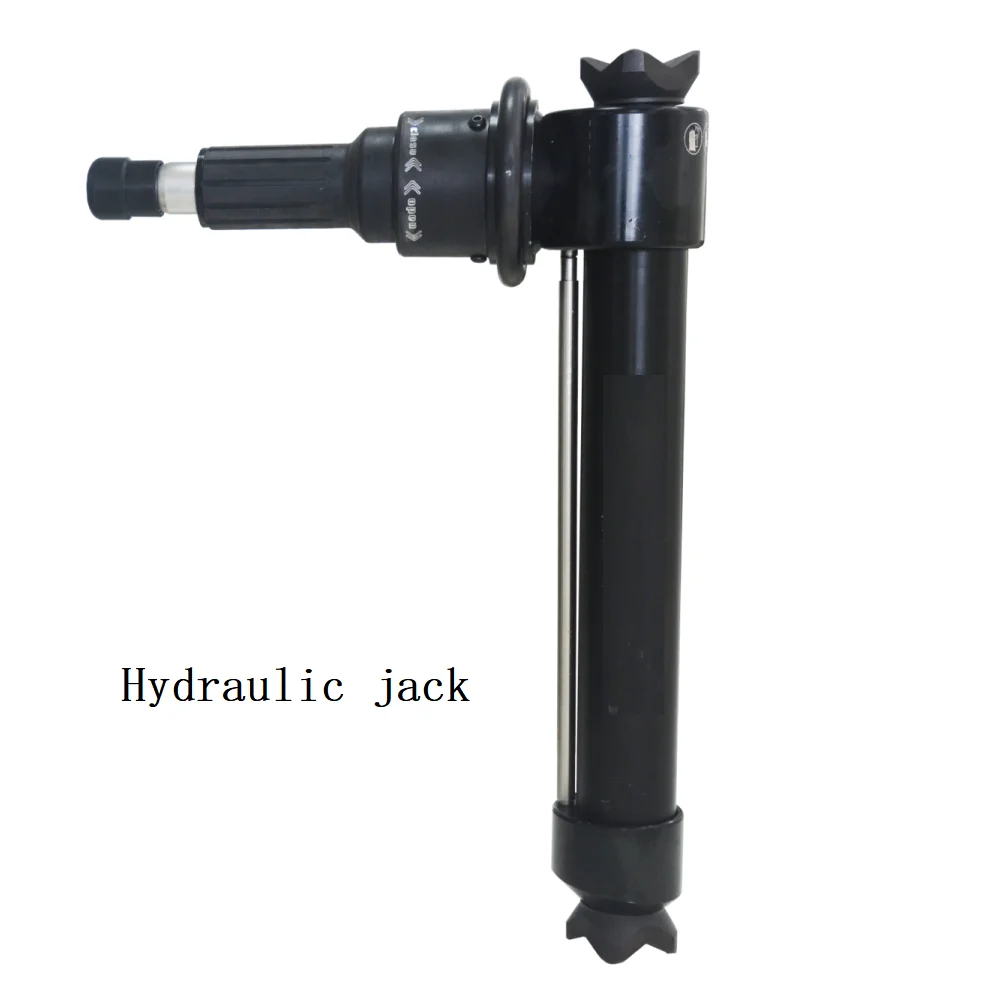

Hydraulic jack

1. The hydraulic jack is used in combination with hydraulic powered pumps, electric pumps, and manual pumps, and has the functions
of opening, lifting, and maintaining the stability of heavy objects;
2. The main body is made of high-strength alloy, which is lightweight and easy to carry;
3. The anti slip teeth at both ends can rotate 360 ° to prevent slipping during the top support process;
4. The bidirectional self-locking and automatic reset integrated directional hand valve can be locked in any position without
retraction, with high safety;
5. Fast top support speed and high rescue efficiency;
6. The sealing element adopts the industry benchmark Deutschland seal to ensure the sealing performance of the equipment;
7. Easy to operate, high sensitivity, and very convenient to operate with both hands;
8. The tool adopts a single interface design, which can be quickly connected and plugged in and out under pressure, making
operation safer and more convenient.

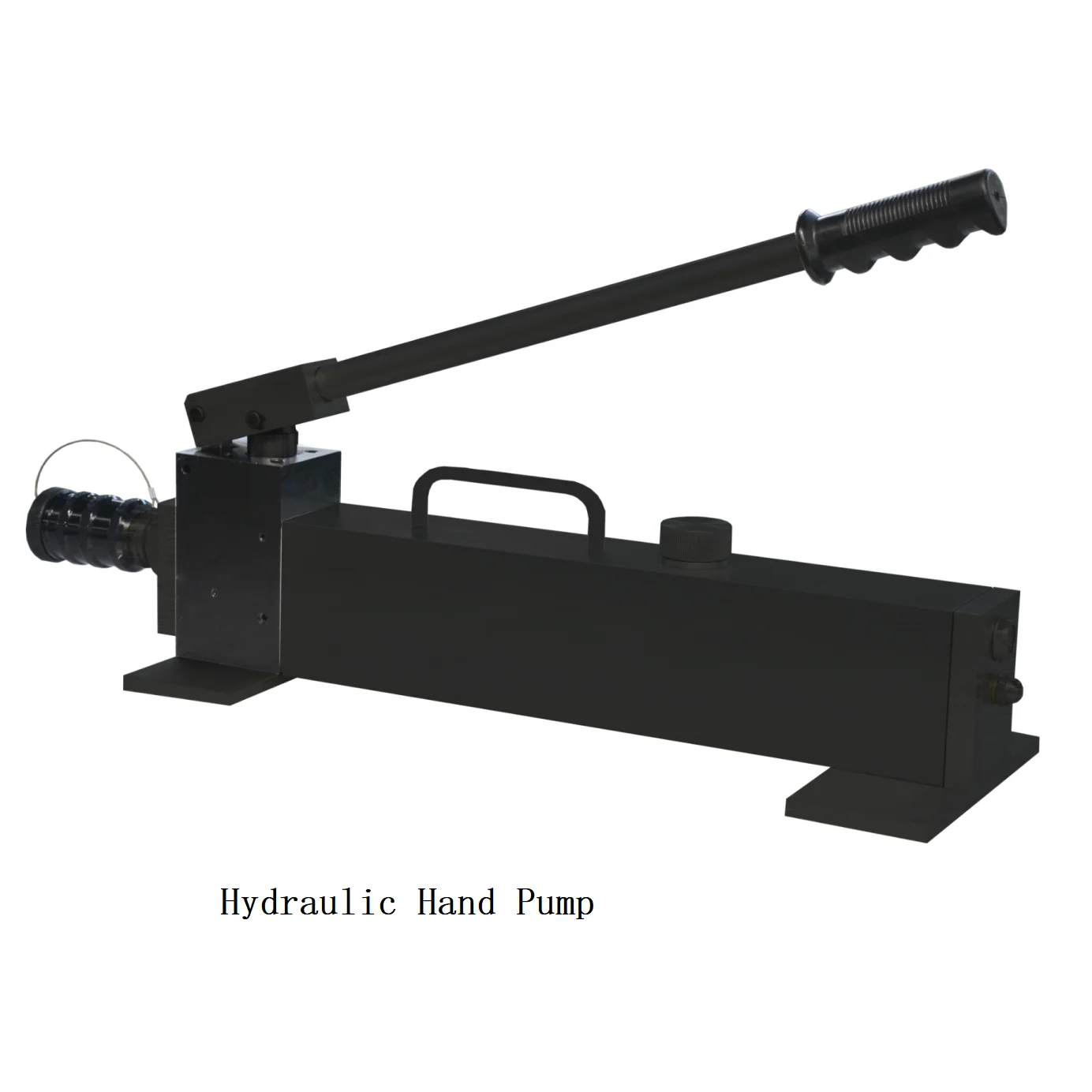

Hydraulic Hand Pump

1. As a power source, it can be used in combination with rescue tools such as shear, shear expander, and dilator, with locking
function and dust prevention device;
2. Adopting high-strength aluminum alloy cylinder body, high-performance and more lightweight;
3. Small size, light weight, no need for fuel, usually used in flammable, explosive, noiseless, and narrow space situations;
4. Using advanced aviation hydraulic oil, working at an ambient temperature of -30 ºC -55 ºC;
5. The main body of the oil cylinder is equipped with a handle, making it easy to handle and place;
6. Equipped with a safety overflow valve and equipped with high and low pressure automatic switching function;
7. The sealing element adopts the industry benchmark De Shi seal to ensure the sealing performance of the equipment;
8. 360 degree rotating buckle interface with contract spindle oil pipe for more convenient and safe operation.

Product characteristics :

Fire hydraulic demolition equipment is a commonly used equipment for firefighters to forcibly open doors and windows, demolish
buildings, open fire exits, clear smoldering fires, and clean up fire sites during firefighting or rescue operations. Hydraulic
dismantling tools mainly include:Double speed motorized pump,Hydraulic shear,Hydraulic shear expander,hydraulic spreader,Hydraulic
jack,Hydraulic Hand Pump.
