EW 1660 Automatic tape wrapper/hand held wire harness taping machine with base handheld portable cable tape winding machine
- Category: >>>
- Supplier: Wenzhou East World Automation Equipment Co. Ltd.
Share on (1600865838146):
Product Overview
Description
Products Description

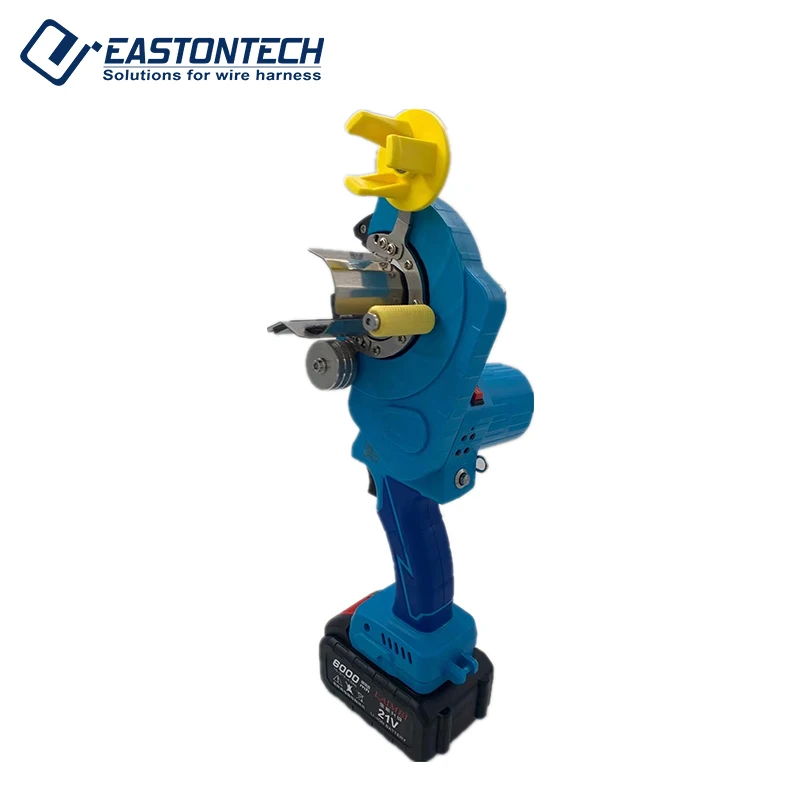

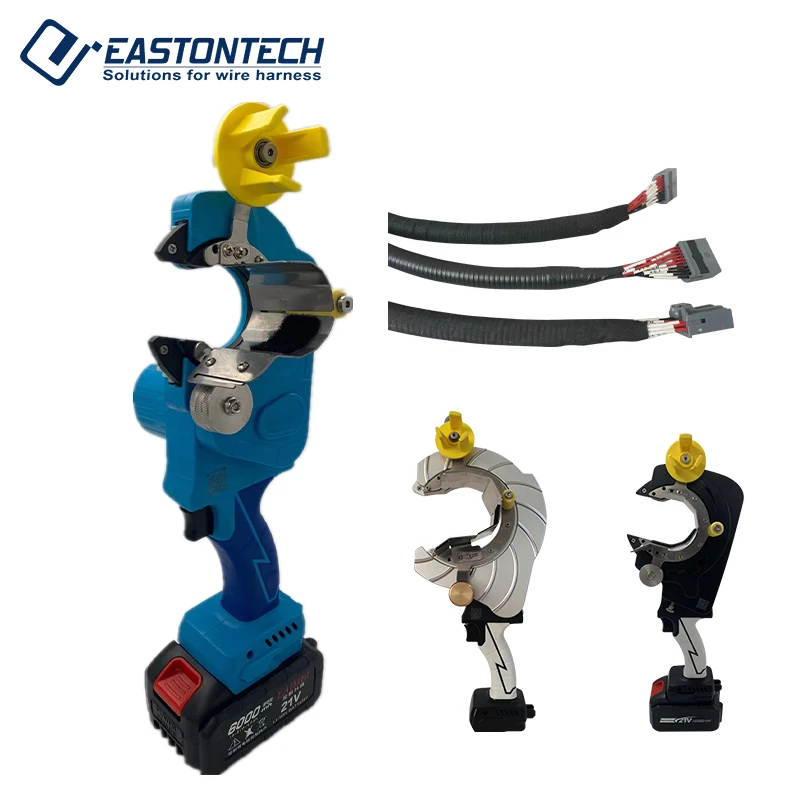

EW-1660 Lithium Battery Hand Held Wire Taping Machine
EW-1660 Lithium battery hand held wire taping machine with a built-in 6000 mA lithium battery, It can be used continuously for about 5 hours when fully charged,It is very small and flexible.
The weight of the machine is only 1.5kg, and the open design can start wrapping from any position of the wire harness , it's easy to skip the branches ,it is suitable for tape wrapping of wire harnesses with branches,Often used for wire harness assembly board to assemble wire harness.
Features:
1. Support full wrap, half-overlay wrap.
1. Support full wrap, half-overlay wrap.
2. Ergonomic and dynamic design, independent use of the configuration of the belt slant belt, effectively reduce the operator in the long working process of fatigue.
3. The wiring harness wrapping process is smooth, and the appearance is beautiful and smooth.
Product Paramenters
Model | EW-1660 | EW-1660-1 | |
Bottom plate | Yes | N/A | |
Wrap OD | 2 - 35 mm | ||
Tape material | PVC, adhesive tape and felt | ||
Tape width | 9 - 25 mm | ||

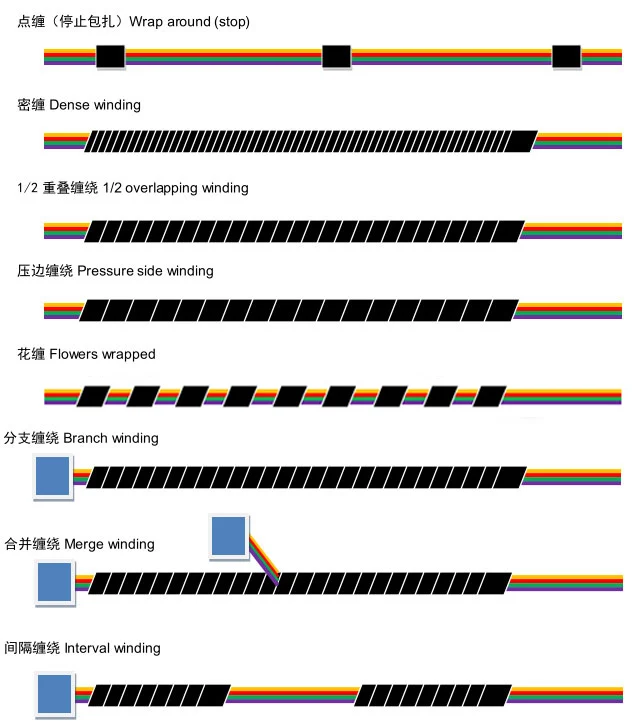

Wrap type | Full wrap, half-overlay wrap | ||
Wrap speed | 2 - 4 circles/s (adjustable) | ||
Charging voltage | 110 - 240 V (50/60 Hz) | ||
Battery life | 5 hours | ||
Weight | 1.75 kg | ||
Dimension | 100 * 75 * 400 mm | ||
Details Images
Low Carbon
First lithium battery rechargeable hand-held tape wrapping machine, through the use of button operation to wire harness efficient winding adhesive.
One Machine Dual-Use

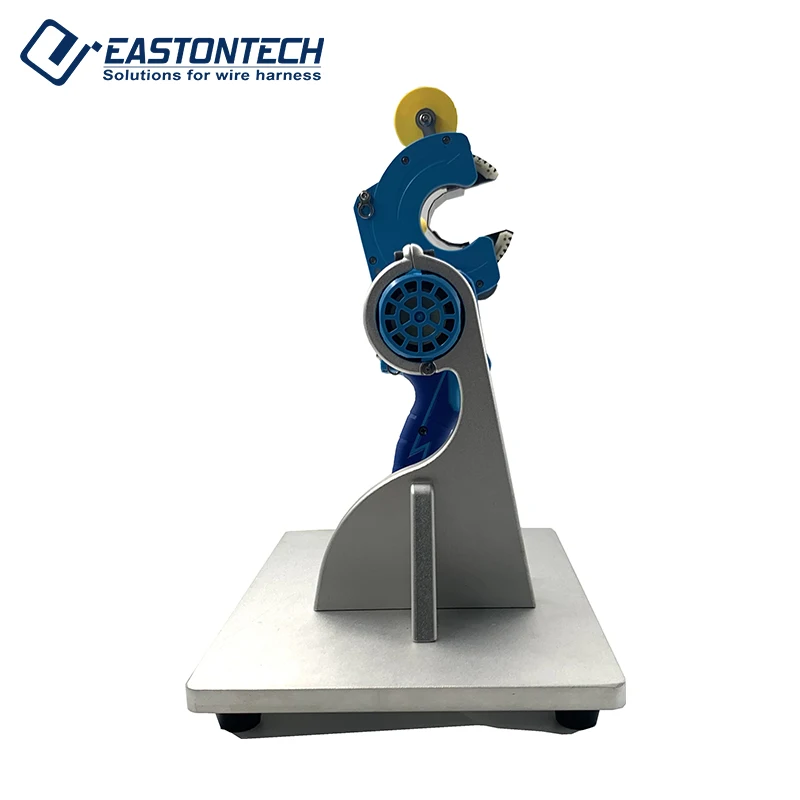

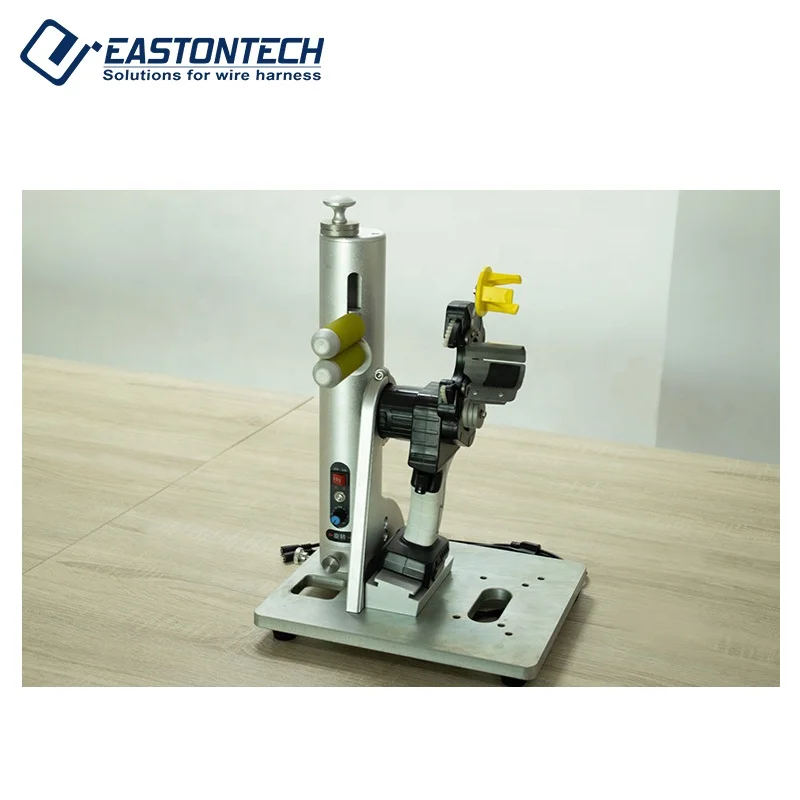

One is used alone after charging, without connecting the power line, can also add balance hanger, reduce the labor intensity of workers; The other is to add desktop fixed base, plug line use.
Speed Adjustable
The machine has five gears, 2- 4 revolutions per second, can be set according to the needs of different speed use.
High Safety Performance
The machine hides the knife edge device and the emergency brake device to ensure the safety of operation
