IC Solder Joint pull Tester Semiconductor Packaging Push and Pull Tester Photovoltaic PCB Chip Push and Pull Tester
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (1600865896155):
Product Overview
Description

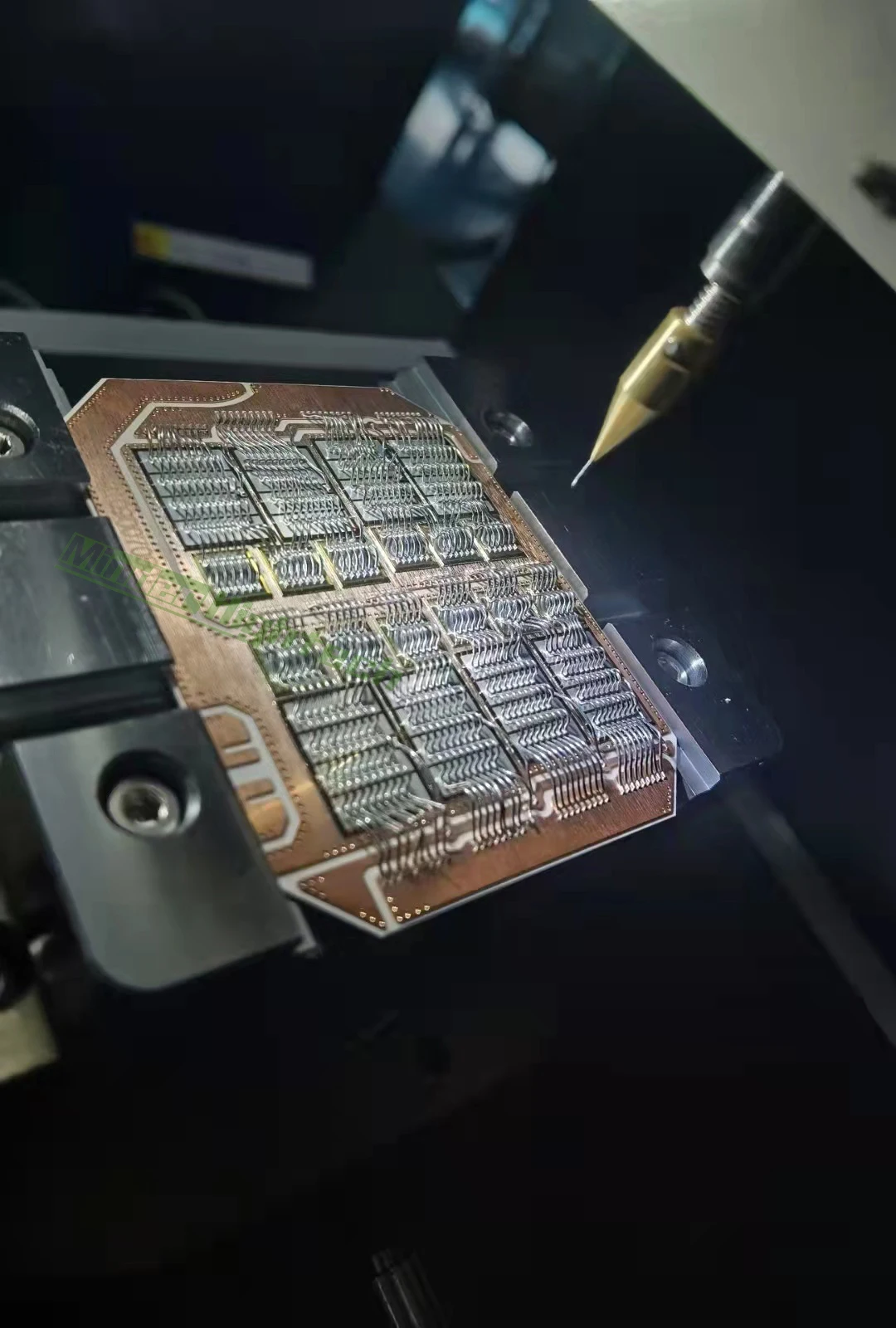

Product Exhibition

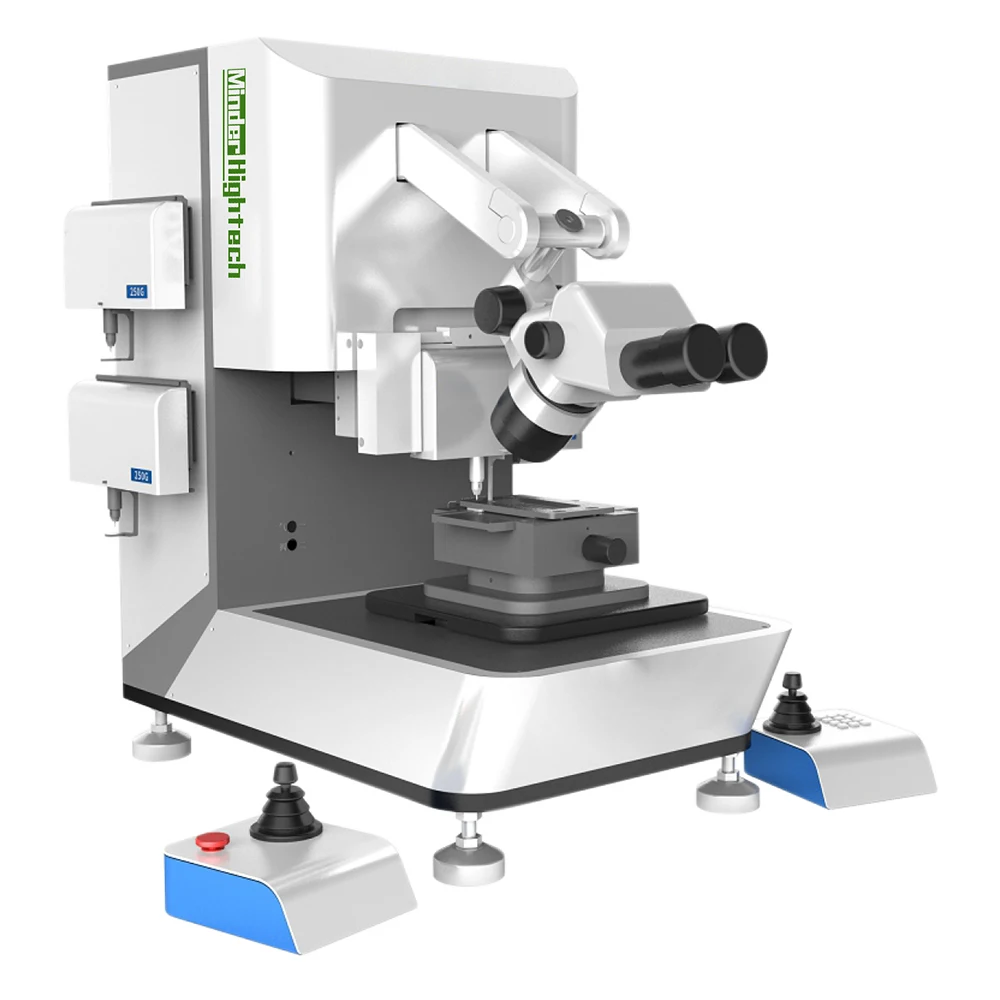

MD-BT101

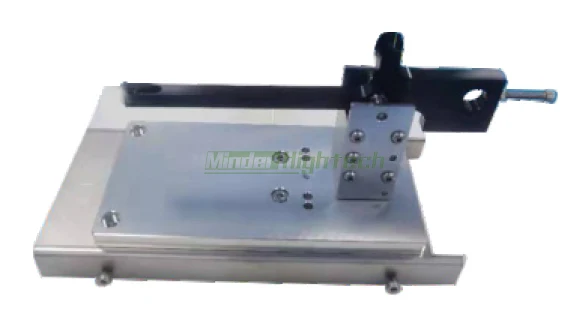

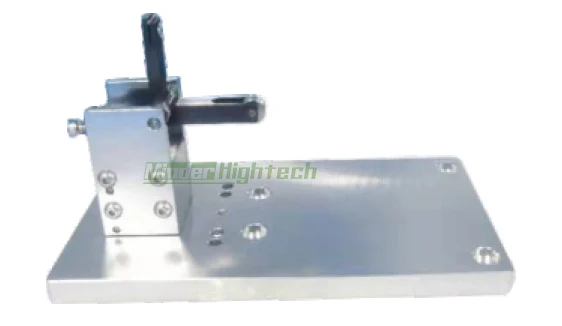

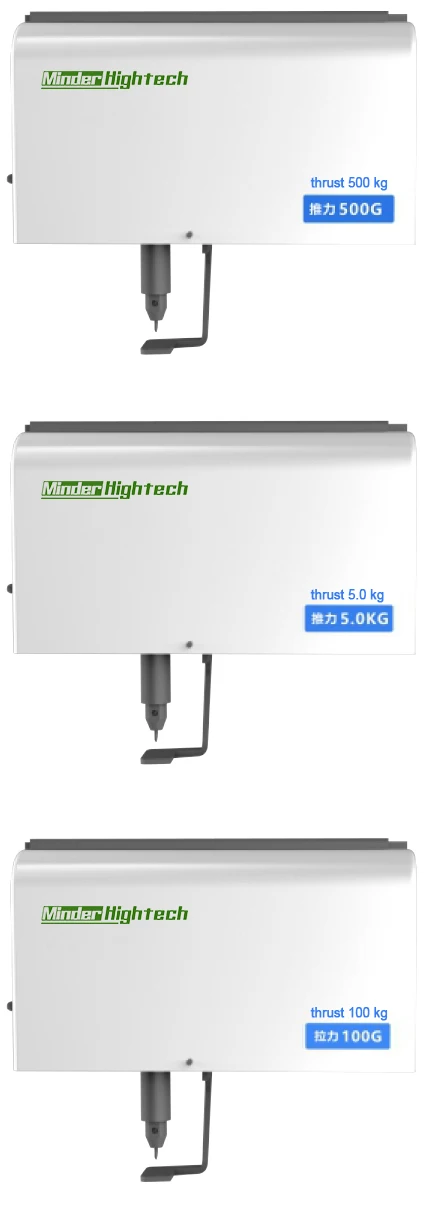

Multiple specifications of testing modules to meet different testing needs of customers
Equipment characteristics
1. All sensors adopt high-speed dynamic sensing and high-speed data acquisition systems to ensure the accuracy of test data.
2. Adopting the company's unique high-resolution (24BitPlus ultra high resolution) data acquisition system.
3. Adopting the company's unique safety limit and speed limit technology, making the operation easy and convenient.
4. Adopting the company's unique intelligent lighting control and adjustment system to reduce the damage of light sources to vision.
5. Equipped with a high-definition observation microscope as standard, reducing visual fatigue for personnel.
6. Dual rocker four way operation and user-friendly software configuration make operation simple and convenient.
7. Combining the unique design of ergonomics, making use more comfortable.
8. Comprehensive protective measures for equipment to avoid damage caused by personnel's misoperation
9. Strong R&D capabilities, providing customized products according to customer needs.
10. Attentive after-sales service ensures that users have no worries or concerns.
2. Adopting the company's unique high-resolution (24BitPlus ultra high resolution) data acquisition system.
3. Adopting the company's unique safety limit and speed limit technology, making the operation easy and convenient.
4. Adopting the company's unique intelligent lighting control and adjustment system to reduce the damage of light sources to vision.
5. Equipped with a high-definition observation microscope as standard, reducing visual fatigue for personnel.
6. Dual rocker four way operation and user-friendly software configuration make operation simple and convenient.
7. Combining the unique design of ergonomics, making use more comfortable.
8. Comprehensive protective measures for equipment to avoid damage caused by personnel's misoperation
9. Strong R&D capabilities, providing customized products according to customer needs.
10. Attentive after-sales service ensures that users have no worries or concerns.

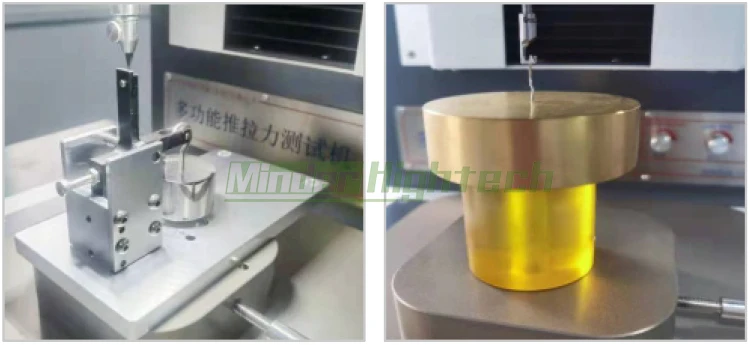

Test Page
Testing Parameters
Equipment model | MD-BT101 |
Testing accuracy | Sensor accuracy+0.003%: comprehensive testing accuracy+0.25% |
Test scope | Configure different range testing modules according to customer products |
Working mode | Push and pull the needle 180 degrees vertically in contact with the test product to ensure the accuracy of the data |
Sensor replacement method | Manually replace the test module |

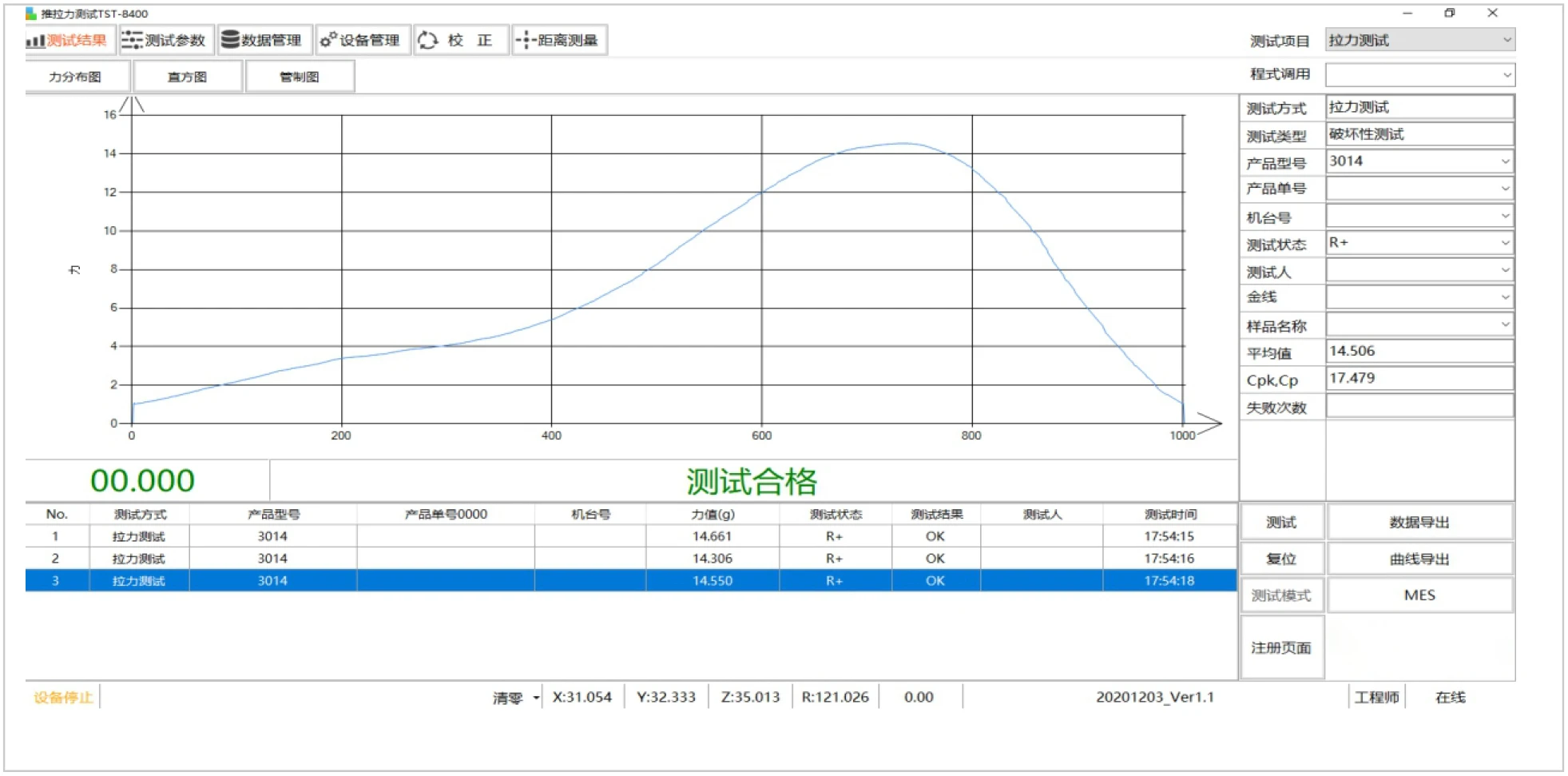

operating system | Control system+Windows operating interface |
Platform fixture | The machine can share various fixtures, and the fixtures can rotate 360 degrees |
X-axis stroke | 75mm |
X-axis resolution | +/-0 002mm |
Y-axis stroke | 75mm |
Y-axis resolution | +/-0.002mm |
Z-axis stroke | 80mm |
Z-axis resolution | +/-0.001mm |
power supply | 220V±5% |
power | 300W(MAX) |
External dimensions | L: 500mm W: :550mm H: :440mm |
weight | 50kg |

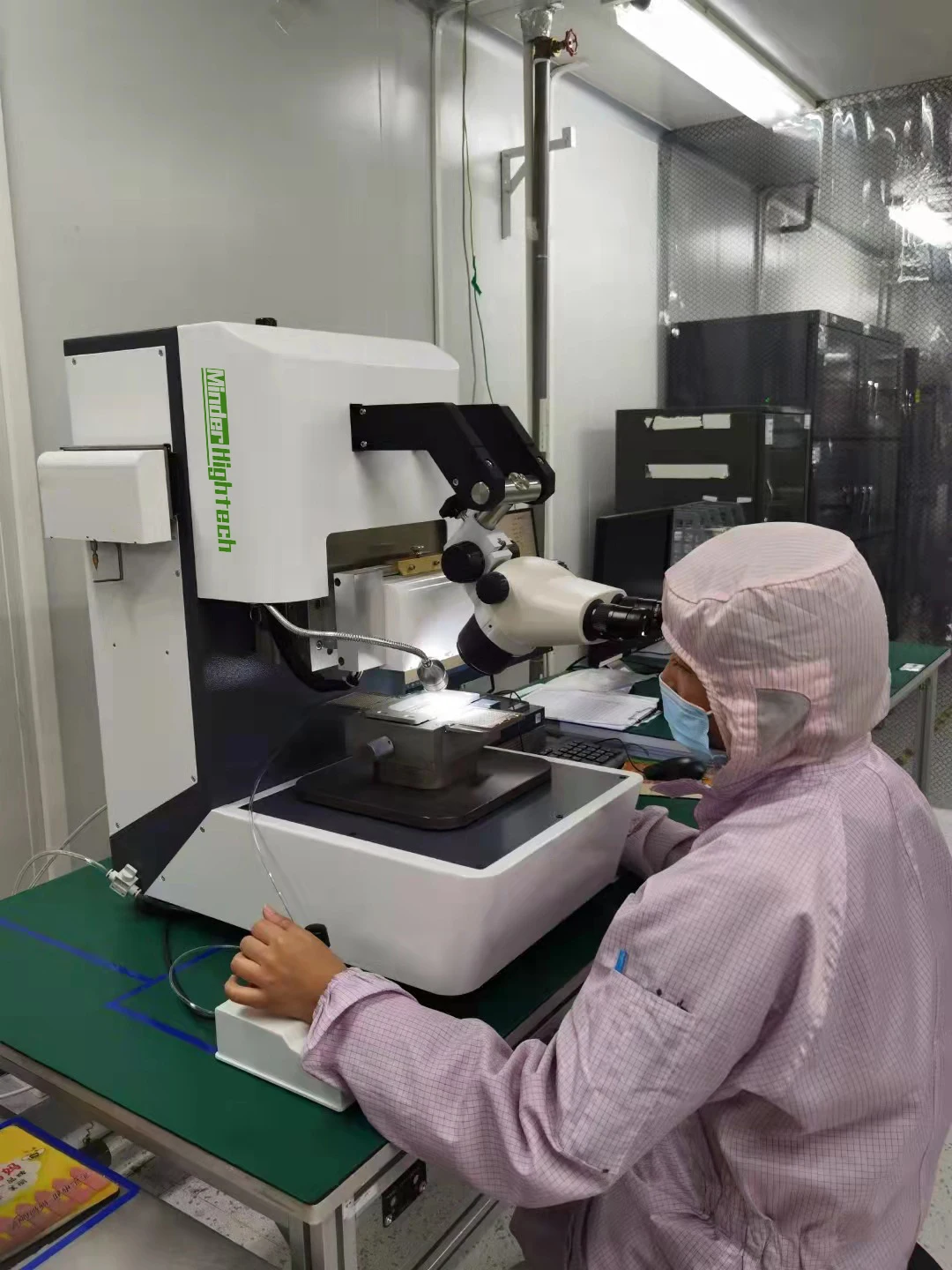

Product Details

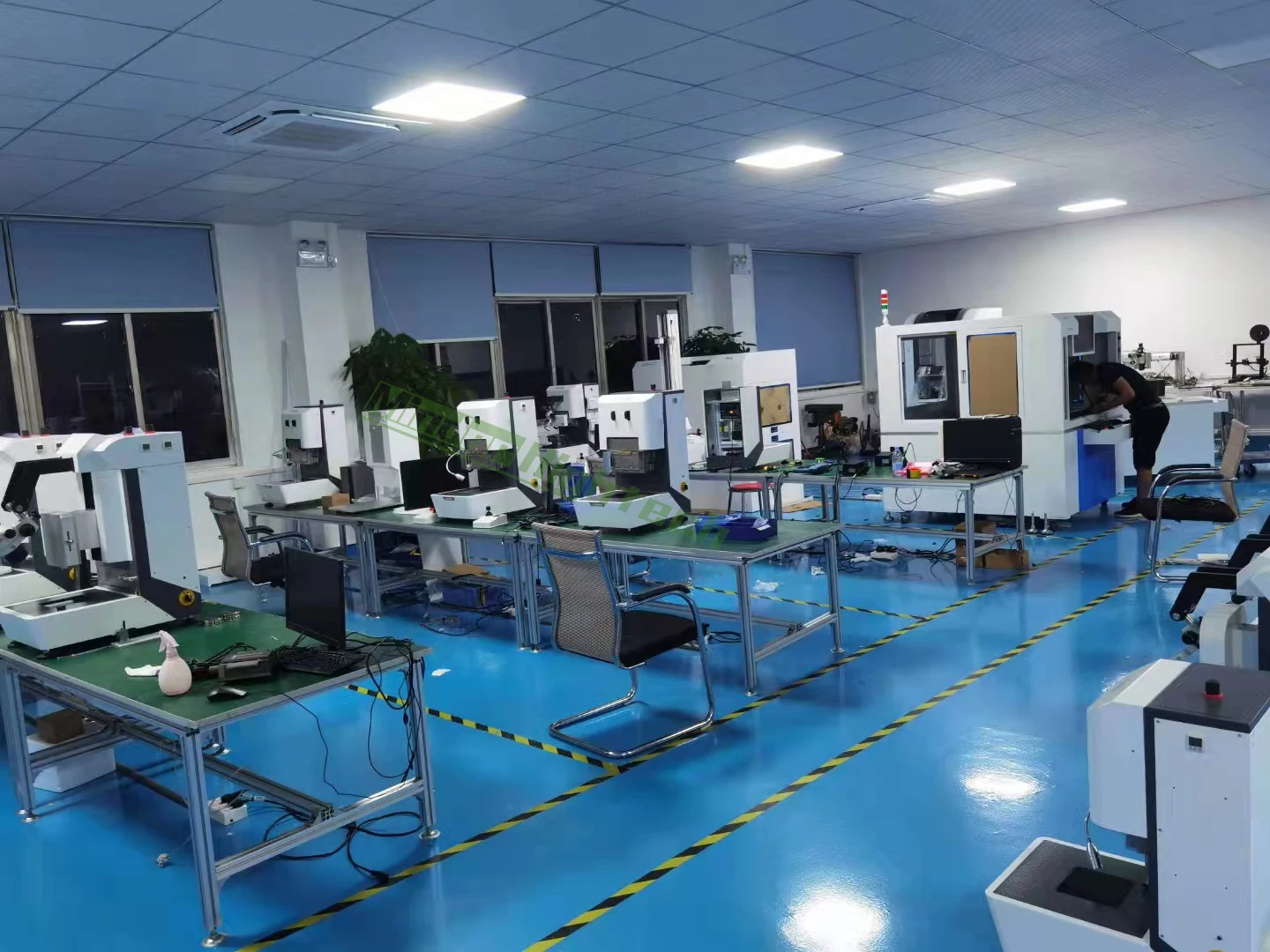

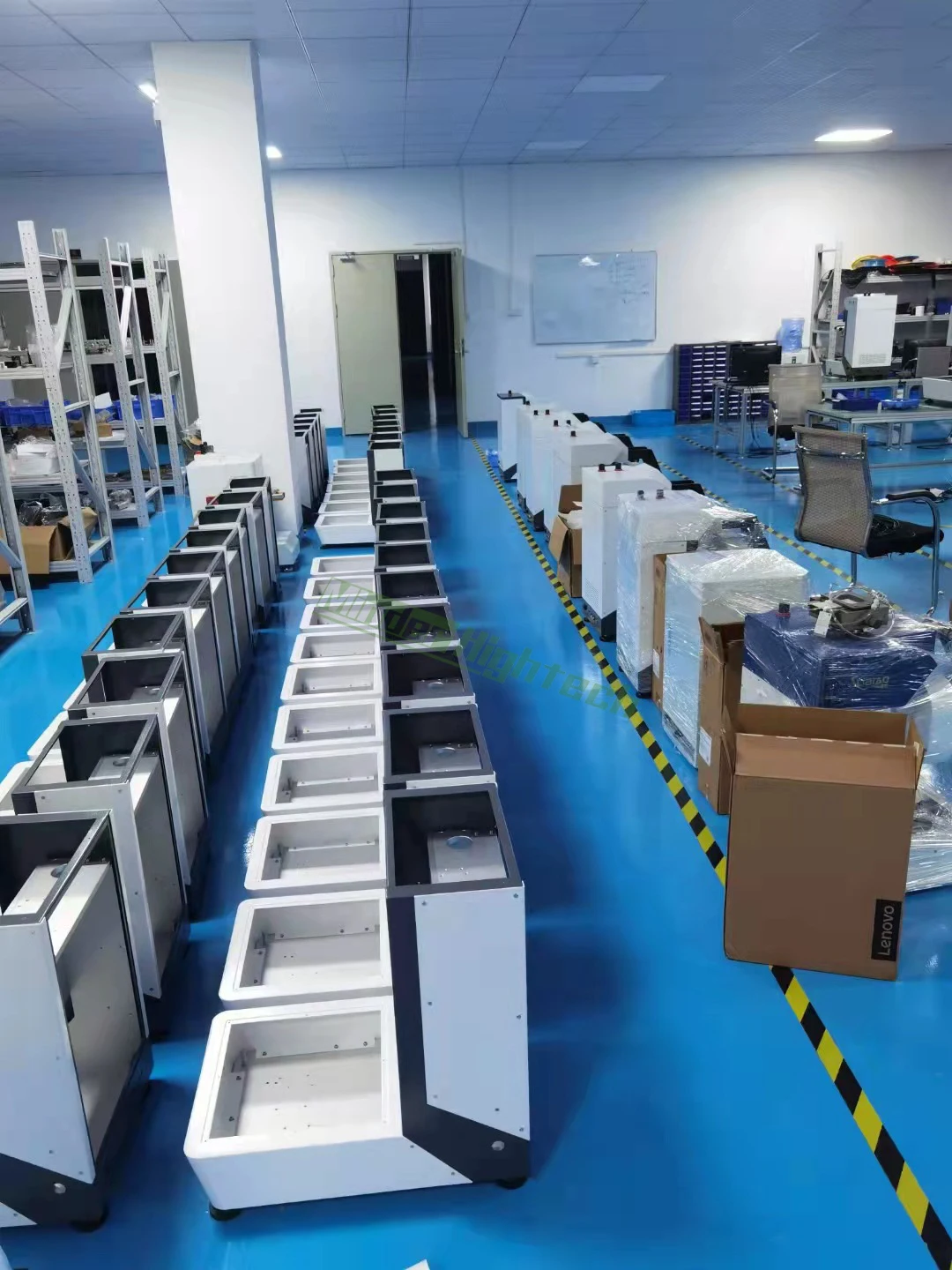

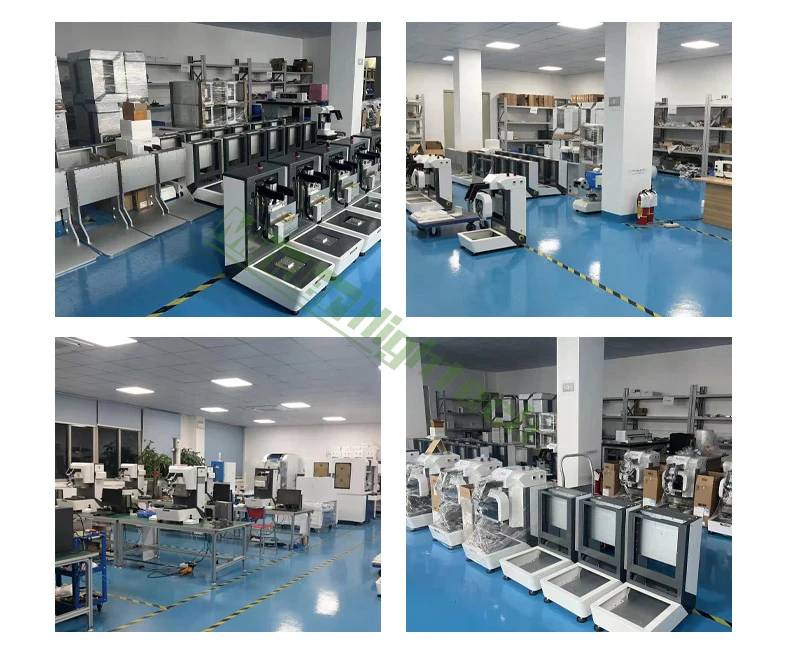

factory
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you arrange the payment ;
If we don’t have the products in stock you want, we will start production once getting the payment.
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
Please contact us for more detail information.
A: We have some products in stock , you can take away the products after you arrange the payment ;
If we don’t have the products in stock you want, we will start production once getting the payment.
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
Please contact us for more detail information.
