This system adopts stainless steel sand filter, active carbon filter effectively to remove big impure particles and suspending matters, improve RO membrane water inputting index, effectively remove the smell and rest chlorine of the original water, and improve the taste of water quality. The main machine adopts American high effective low-pressure compound film, with single film salt removing degree up to 99%. The high low-pressure protection imported form Korea ensures the breakdown low to 0, with the outputting water up to national pure water standard.

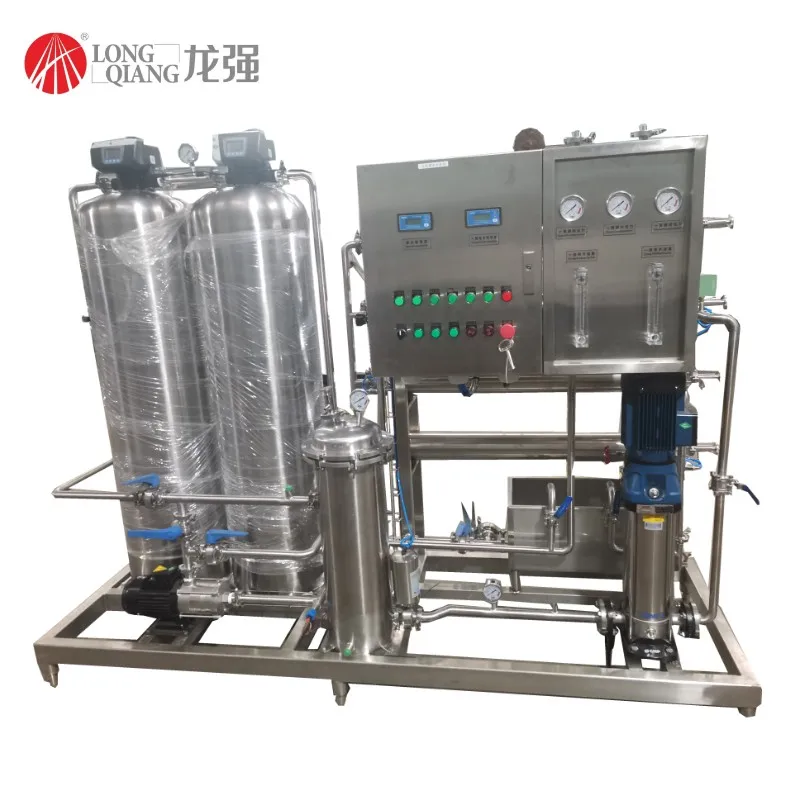

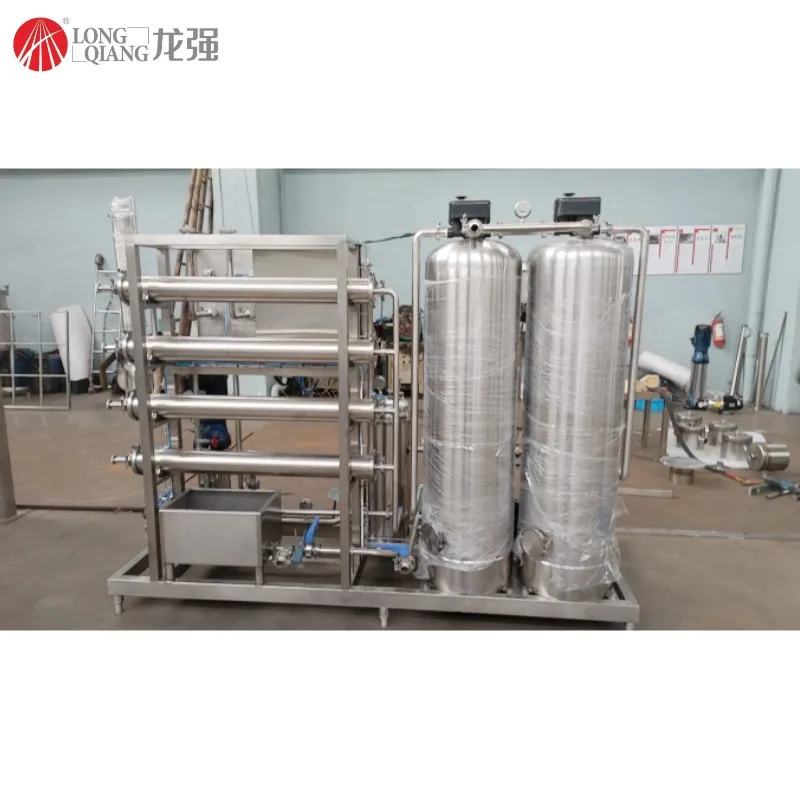

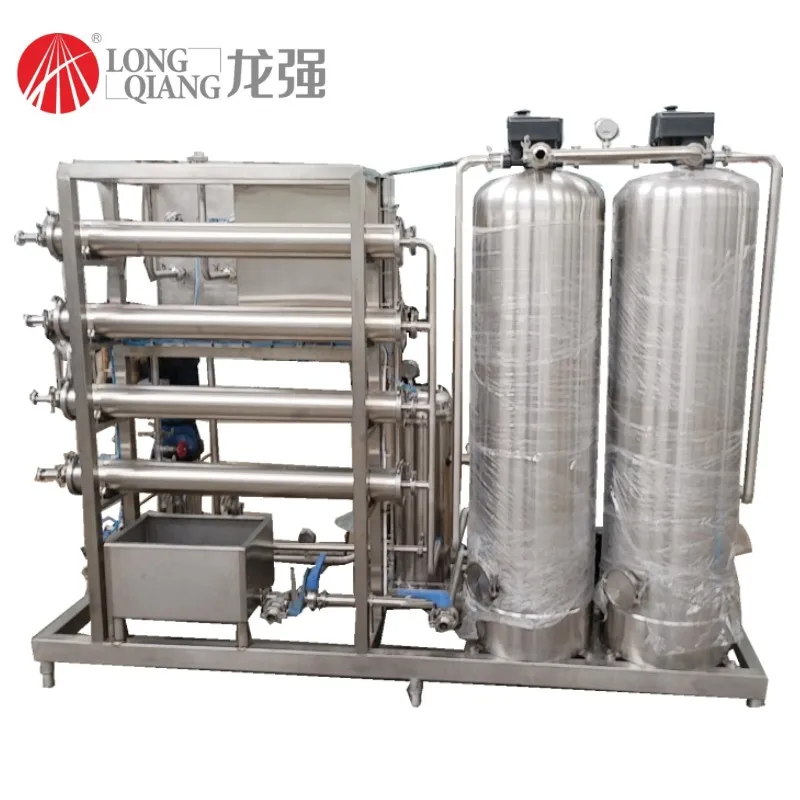

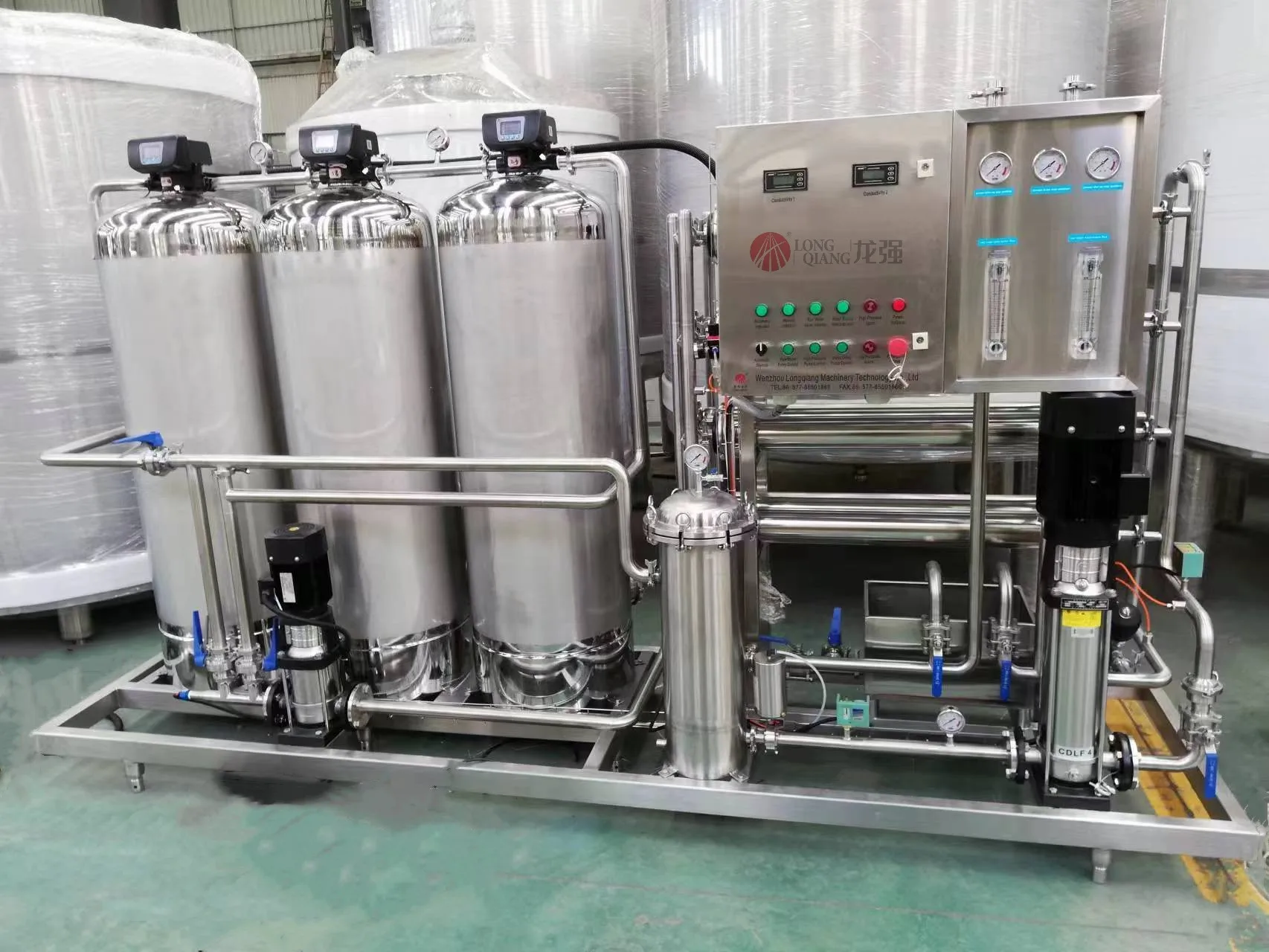

Reverse osmosis device
The reverse osmosis device is an equipment to purify the saline water under the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis method to adopt larger osmotic pressures id used to obtain the purpose to separate, extract purify and condense.
More than 97% soluble salts and 99% glues, microbe, particulate and organic substances, etc can be removed by the reverse osmosis. It becomes the most idea equipment for modern pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high quality water, easy operation and maintenance.
RO systemincluding
raw water pump, sand filter, active carbon filter, chemical doser, water softener,5 u m micro filter, reverse osmosis system, back washing system, sterilization, water tank and fittings
Technical parameter
Model
|
RO-1000
|
RO-3000
|
RO-5000
|
RO-10000
|
Process capacity (L/h)
|
1000
|
3000
|
5000
|
5000
|
Raw water pump model
|
CHL2-40
|
CHL8-40
|
CHL8-50
|
CHL8-50
|
Sand filter
|
400*1500
|
600*1500
|
800*1500
|
800*1500
|
Active carbon filter
|
400*1500
|
600*1500
|
800*1500
|
800*1500
|
Dosing system
Micro filter
|
Dosing box
|
|
Cartridge specification
|
65*500
|
65*750
|
65*750
|
65*750
|
Cartridge NO.
|
5
|
5
|
7
|
7
|
Reverse Osmosis system
Size (RO bar)
|
L
|
2600
|
2600
|
2600
|
2600
|
W
|
700
|
700
|
900
|
900
|
h
|
1900
|
2000
|
2000
|
2000
|
For the Ro system which we can supply, following:
1. RO Reverse Osmosis use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.
2. Reverse osmosis plant has protected when no power, poor power, larger electrical current, leakage, short circuit.
3.Reverse osmosis plant equipped with PLC and touch screen control .(Siemens PLC and Touch screen )
4. Commercial Reverse osmosis produce as per ISO standard
5 .We have nearly 40 years production experience.
6 .Can supply overseas for installation and commissioning.
