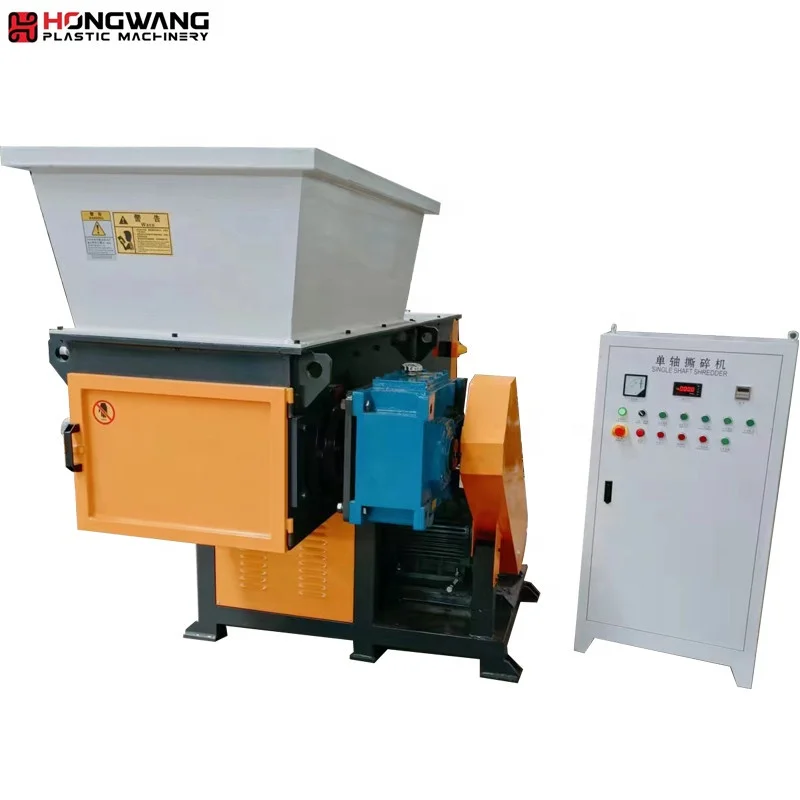

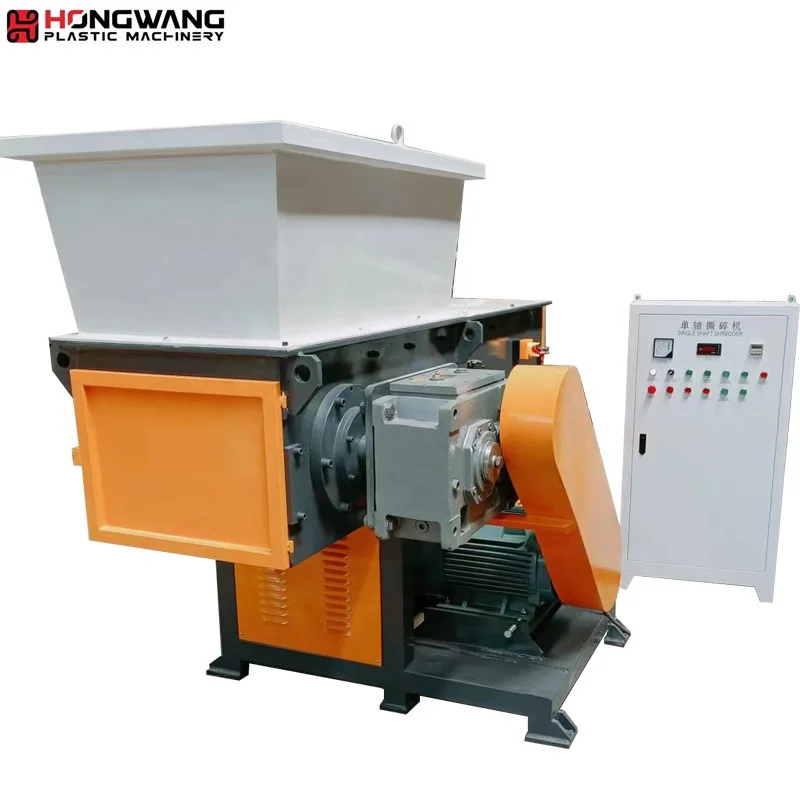

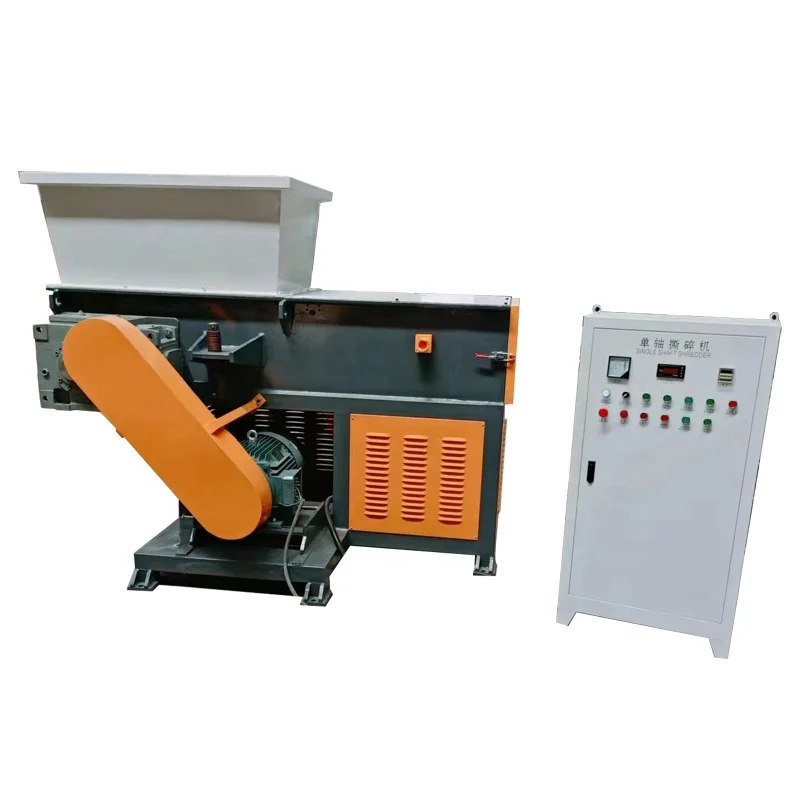

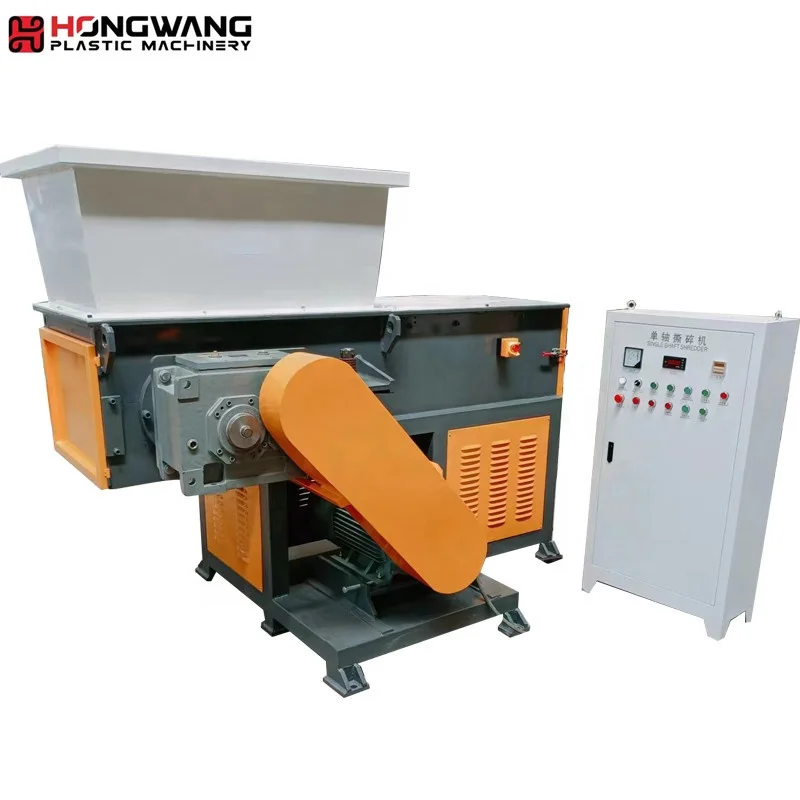

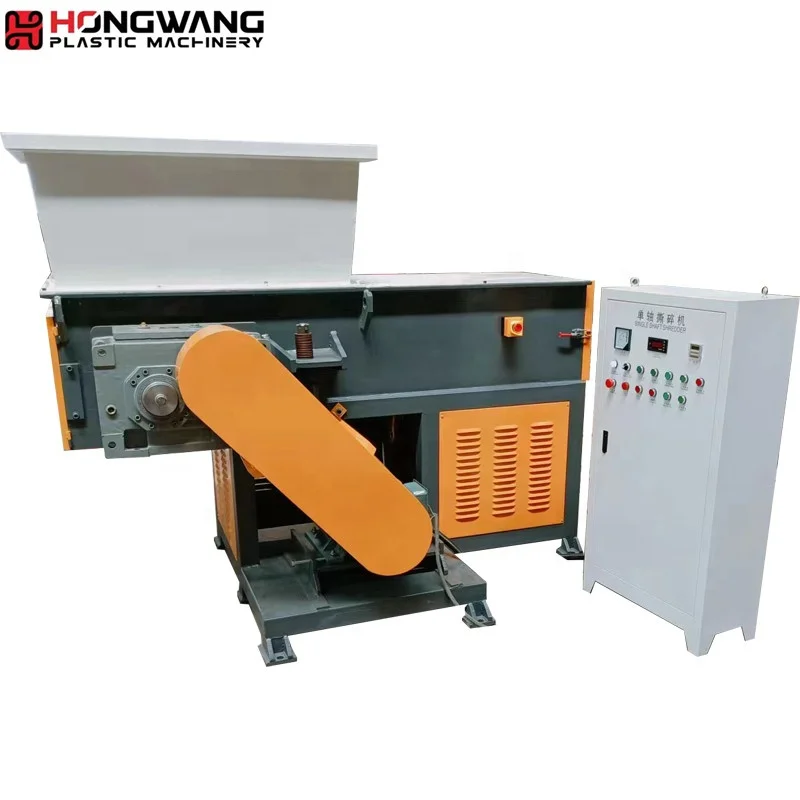

Copper Cable Shredder Machine, Eps Foam Shredder And Sieving Machine
- Category: >>>
- Supplier: Shanghai Hongwang Machinery Co. Ltd.
Share on (1600866423219):
Product Overview
Description
Product Overview

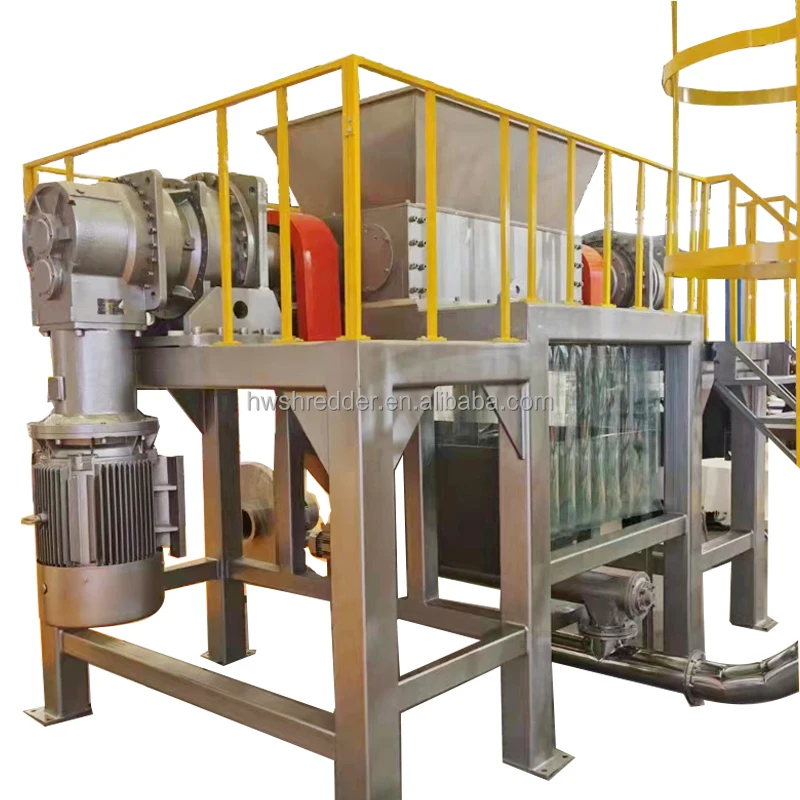

Twin shaft shredders feature:
1. Twin-shaft shredder has the characteristics of high speed, high torque and low noise. It adopts Siemens programming control system, which can be automatically controlled. It has start, stop, reverse and overload automatic reverse control functions;
2. The motor acceleration and deceleration machine drives the cutter shaft to achieve the shearing effect of low speed and high torque;
3. The bearing is six-fold sealed, effectively waterproof and dustproof, and prolongs the service life of the bearing;
4. After the tool is worn out, the advanced European tool coating and welding repair technology is adopted to realize the repeated use of the tool and greatly reduce the maintenance cost of the tool;
5. Separate design, the frame can easily and quickly remove the entire cutter shaft (shaft, blade, bearing, sealing system);
6. The knives are arranged in a helical line to achieve efficient cutting;
7. Both the inner hole and the spindle surface of the tool adopt a hexagonal design to realize the uniformity of the force on the tool;
8. According to different materials and product shapes to be shredded, different types of knives can be selected;
2. The motor acceleration and deceleration machine drives the cutter shaft to achieve the shearing effect of low speed and high torque;
3. The bearing is six-fold sealed, effectively waterproof and dustproof, and prolongs the service life of the bearing;
4. After the tool is worn out, the advanced European tool coating and welding repair technology is adopted to realize the repeated use of the tool and greatly reduce the maintenance cost of the tool;
5. Separate design, the frame can easily and quickly remove the entire cutter shaft (shaft, blade, bearing, sealing system);
6. The knives are arranged in a helical line to achieve efficient cutting;
7. Both the inner hole and the spindle surface of the tool adopt a hexagonal design to realize the uniformity of the force on the tool;
8. According to different materials and product shapes to be shredded, different types of knives can be selected;
FEATURES AT A GLANCE
WORKING PRINCIPLE:
2.Double shaft cutting system: Using different blades according customers' material;
3.Discharging conveyor system: Adopts independent power system, power system is integrally fixed on the shredder by
bolts, so that the power system can be integrally drawn out;
1.Feed hopper: Put the material to be crushed, prevent the material from splashing out;
2.Double shaft cutting system: Using different blades according customers' material;
3.Discharging conveyor system: Adopts independent power system, power system is integrally fixed on the shredder by
bolts, so that the power system can be integrally drawn out;
4.Power system: Choose famous brands motor;
PRODUCT SPECIFICATIONS
Model | HWS460 | HWS640 | HWS840 | HWS1040 | |||
Caliber(mm) | 460*440 | 640*560 | 840*600 | 1040*600 | |||
Output(kg/h) | 200*300 | 400*600 | 600*800 | 800*900 | |||
Cutter OD(mm) | 20*200*22 | 30*300*22 | 50*310*22 | 50*350*22 | |||
Revolutions(r/min) | 8-25 | ||||||
Motor | 7.5 | 7.5*2 | 22*2 | 37*2 | |||
Dimensions(cm) | 2500*800*1400 | 2800*1000*1600 | 2800*1200*1200 | 2800*1250*2100 | |||
Net(kg) | 1200 | 2100 | 2400 | 4100 | |||
Blade numbers(pcs) | 24 | 26 | 26 | 26 | |||
Blade size(mm) | Φ180*12 | Φ180*15 | Φ200*20 | Φ250*25 | |||
Main shaft diameter(mm) | Φ50 | Φ60 | Φ70 | Φ150 | |||
Application | Light metal products, plastic products, kitchen waste, wood, paper, etc | ||||||
PRODUCT CONFIGURATION
Siemens Motor
Large Torque Reducer
Imported NiCrMo Alloy Steel
SALES AND SERVICE NETWORK
Successful Project
Project in Vietnam
Project in Philippines
Project in Russia

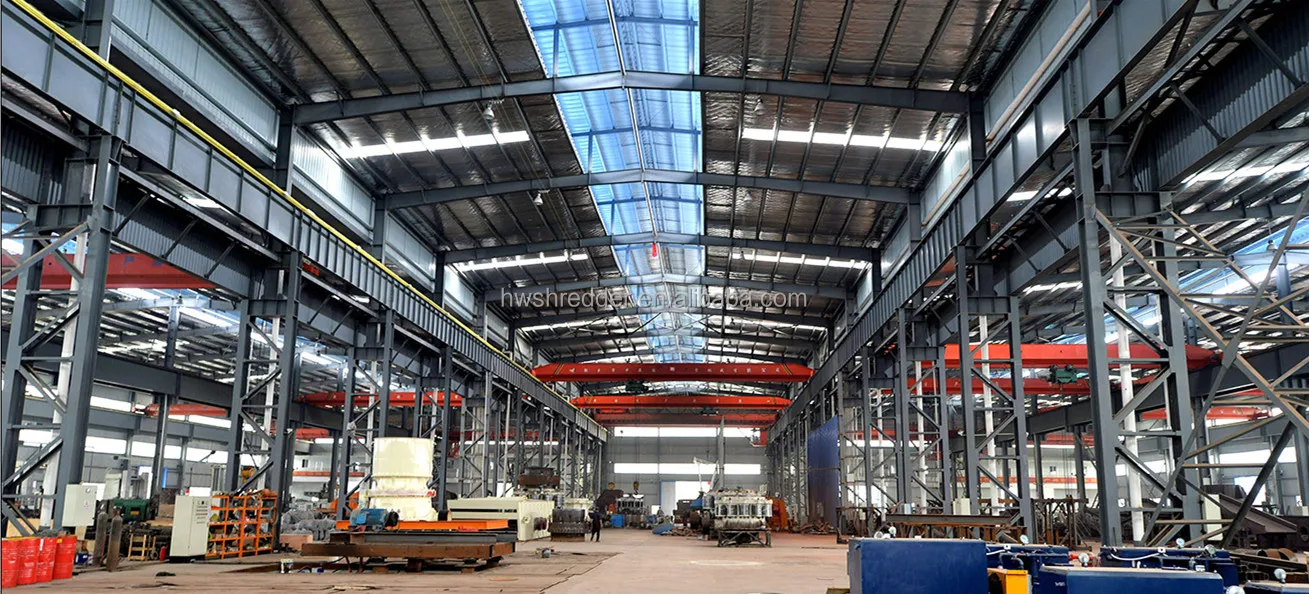

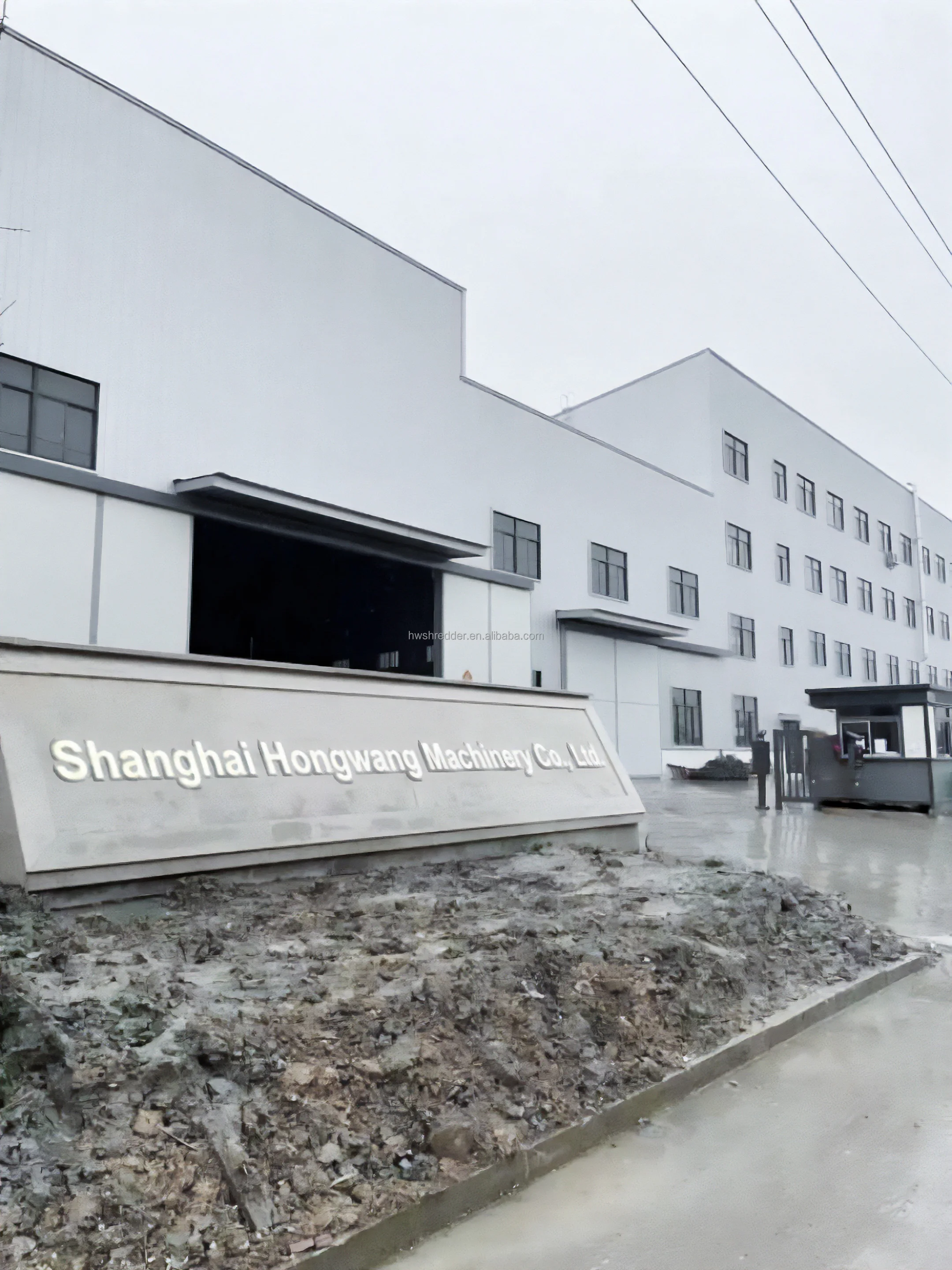

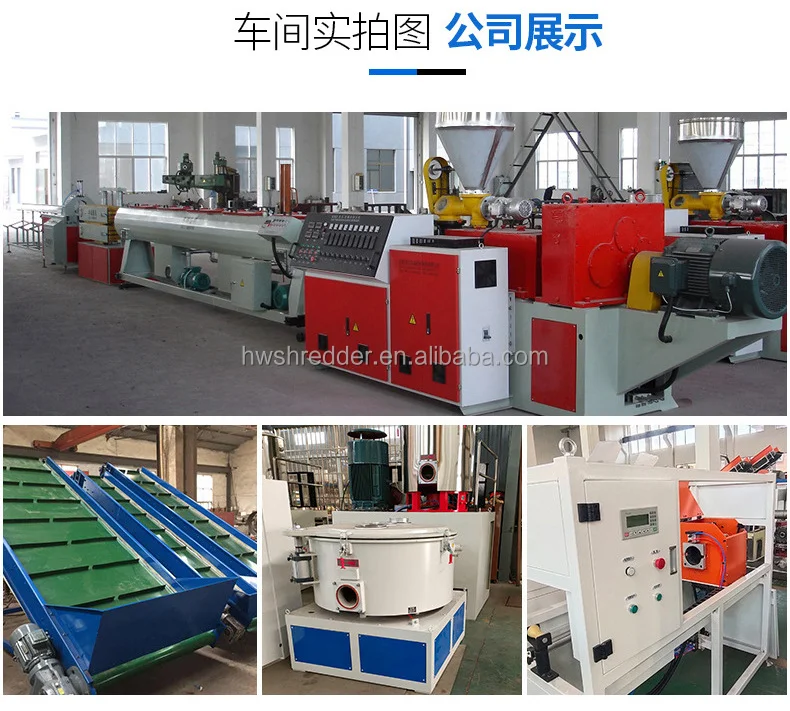

Company Profile
Why Choose US?
Hongwang was established in 1992 year in Shanghai on design and manufacture of high quality single shaft shredder, twin shaft shredder, flat-crusher, claw-crusher, film-crusher, low-speed crusher, color mixer, cutter and waste processing equipment.
Our honor is that we produced the first set of single shaft shredder in China in 1999 year. We welcome customization cost-effective solutions for the recycling of waste materials.
Our honor is that we produced the first set of single shaft shredder in China in 1999 year. We welcome customization cost-effective solutions for the recycling of waste materials.
FAQ
1- How to choose proper products you want?
• Please tell us as detail as what you want
• What's your raw material it is?
• What's the final products you want to produce?
• What's capacity you want ?
2- How to control the quality?
• We have technical, engineer team design the sample machinery before enter into market
• Production QC team ensure the machine manufacturing quality
• We will run every machine after finished before shipment
• Optional choose by client running the machinery by material
• We always update the new technology to every customer.
