aramid yarn outdoor aerial all dielectric self supporting span 100m fibra optica 144 hilos ADSS fibra optics cable
aramid yarn outdoor aerial all dielectric self-supporting span 100m fibra optica 144 hilos ADSS fibra optics cable
aramid yarn outdoor aerial all dielectric self-supporting span 100m fibra optica 144 hilos ADSS fibra optics cable
aramid yarn outdoor aerial all dielectric self-supporting span 100m fibra optica 144 hilos ADSS fibra optics cable
aramid yarn outdoor aerial all dielectric self-supporting span 100m fibra optica 144 hilos ADSS fibra optics cable
aramid yarn outdoor aerial all dielectric self-supporting span 100m fibra optica 144 hilos ADSS fibra optics cable
aramid yarn outdoor aerial all dielectric self-supporting span 100m fibra optica 144 hilos ADSS fibra optics cable

aramid yarn outdoor aerial all dielectric self supporting span 100m fibra optica 144 hilos ADSS fibra optics cable

Share on (1600866769238):


Price:US$ 923.00 - US$ 928.00

Quantity:


Product Overview

Description



Product Description

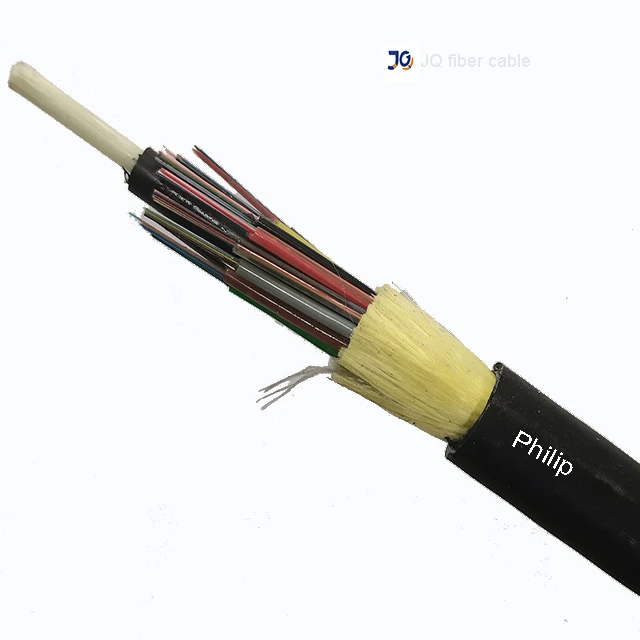

Fiber cable ADSS 144 cores
1. ADSS cable is loose tube stranded structure. 144 Fibers are positioned into 12 loose tube made of high modulus plastics.
2. All 12 tubes are filled with a water-resistant filling compound.
3. These 12 tubes (0 fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a
compact and circular cable core.
4. a water blocking tape cover all the loose tubes /fillers and FRP, it can protect the cable from water coming inside .
5. After the water blocking tape, there is aramid yarn as strength member, and then the cable is completed with PE or HDPE outer
sheath.
6. ADSS cable can be single jacket and double jackets.

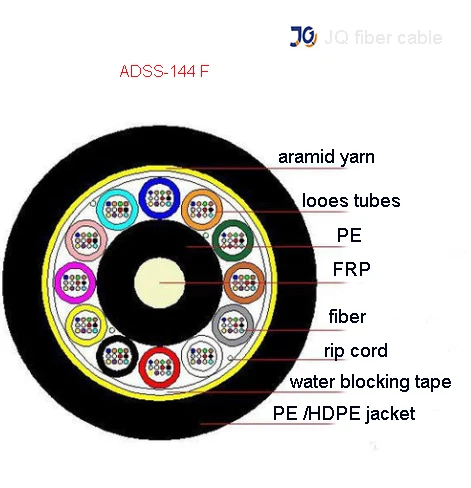

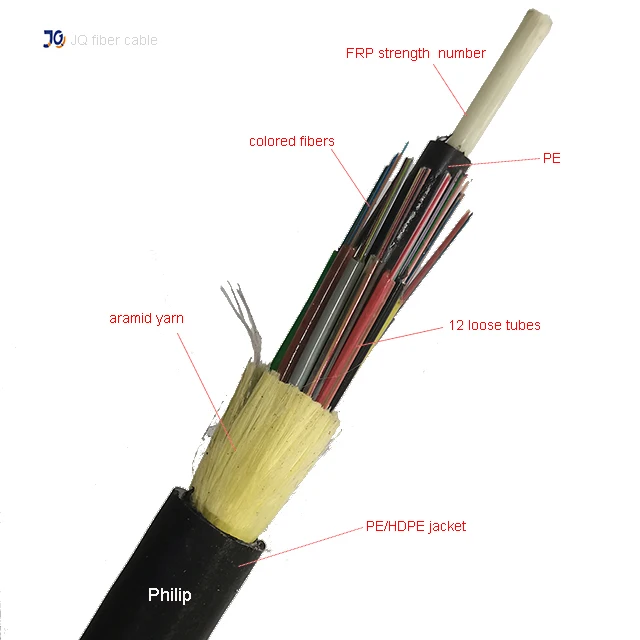

ADSS-144 F cable struture

1. for 144 cores adss fiber cable , we usually produce as 12 cores in a loose tube. 12loose tubes stranded together . 2. ADSS -144F cable can be as single jacket and double jackets

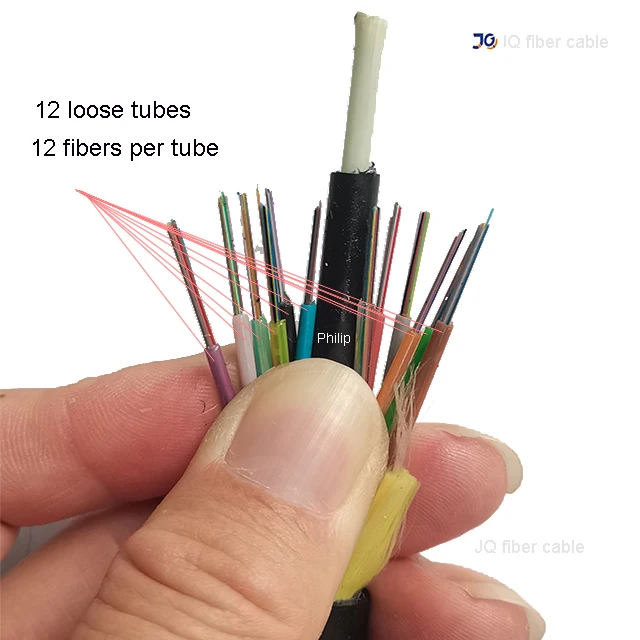

Fibers and loose tubes
1. 12 loose tubes color from bule/orange/green /brown/grey/white/red/black/yellow/purple/pink/aqua, 12 cores fibers inside each tube
2. no filler inside the cable.


ADSS -144 cores cable color
1/ we usually produce the ADSS fiber cable in black color, meanwhile, red/yellow /green are also
available if needed
ADSS -144F fiber cable printing

1/we produce adss fiber cable with a long time steady brightly clearly printing2/ we can also print the logo as requires.
Application
1/ADSS fiber cable is suitable for outdoor aerial/overhead installation.
2.we can produces different long span 144 cores ADSS cable, span length from 80m to 1000m .


Specification


parameter of fiber G652D
Item
Unit
Specification
Fiber Type
G.652D
Mode field diameter
1310nm
μm
9.2±0.4
1550nm
μm
10.4±0.8
Cladding diameter
μm
125.01
Cladding non-circularity
%
<1.0
Core/cladding concentricity error
μm
<0.5
Coating diameter
μm
245±5
Coating non-Circularity
%
<6.0
Coating/cladding concentricity error
μm
<12.0
Cable cut-off wavelength
nm
<1260

Attenuation Coefficient
1310nm
dB/km
<0.36
1550nm
dB/km
<0.22
Proof stress level
kpsi
≥100


parameter of ADSS -144F fiber cable
fiber count
sturcture
fiber per tube
loose tube diameter(mm)
CSM diameter(mm)
Nominal thickness of outer jacket(mm)
cable diameter(mm)
cable weight (kg/KM)
4
1+6
4
2.0±0.1
2.0/2.0
1.7
9.8±0.2
85
6
1+6
6
2.0±0.1
2.0/2.0
1.7
9.8±0.2
85
8
1+6
8
2.0±0.1
2.0/2.0
1.7
9.8±0.2
85
12
1+6
12
2.0±0.1
2.0/2.0
1.7
9.8±0.2
85
24
1+6
12
2.0±0.1
2.0/2.0
1.7
9.8±0.2
85
36
1+6
12
2.0±0.1
2.0/2.0
1.7
10.0±0.2
88
48
1+6
12
2.0±0.1
2.0/2.0
1.7
10.0±0.2
88
72
1+6
12
2.0±0.1
2.0/2.0
1.7
10.5±0.2
102
96
1+8
12
2.0±0.1
2.0/3.4
1.7
11.8±0.2
126
144
1+12
12
2.0±0.1
2.0/7.2
1.7
15.2±0.2
175


Packing & Delivery

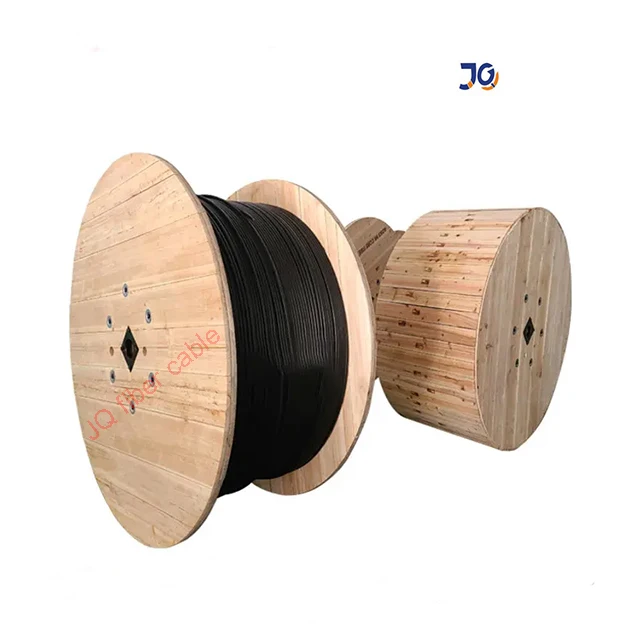

Packaging Details
1.Wooden drum, 1Km/ drum, 2Km/ drum, 3Km/ drum, we recommend to be 5km/km, customer's requirements are also welcome;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
Delivery
1.For large orders: by sea (LCL or FCL)
2.For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)



Company Profile








Guangzhou Jiqian fiber optical cable co., LTD is located in Guangzhou city, Guangdong province Xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable, the company adhering to the "integrity,fast, flexible, efficient and innovative" spirit of enterprise, strive for perfection, for the customer appreciation and paved the road to success.


certifications
we have gained the certifications for ISO 9001-2015/ROHS/CE/FC....




FAQ


1. Are you factory direct?

we are a professional Cable manufacturer, specialized in Fiber Optic Cable, such as ADSS, , MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.

2. What is your main products?

Outdoor fiber optic cables such as ADSS ,GYTA, GYTS, ASU, GYXTW / indoor fiber optic cables /FTTH Drop cables

3. Product quality guarantee period?

25 years Guarantee for fiber optic cable

4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
