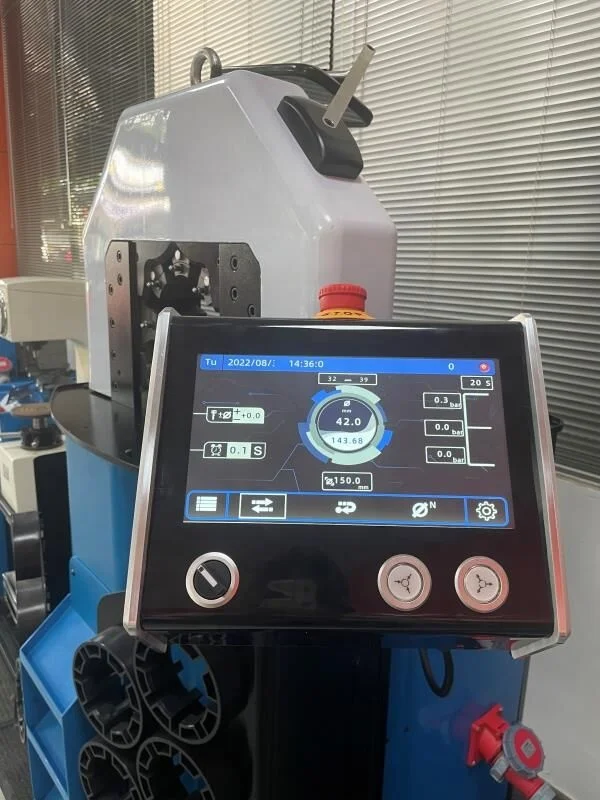

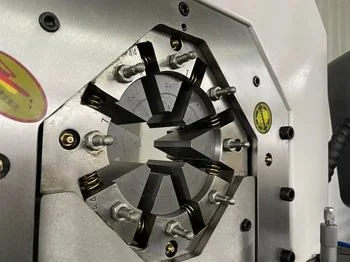

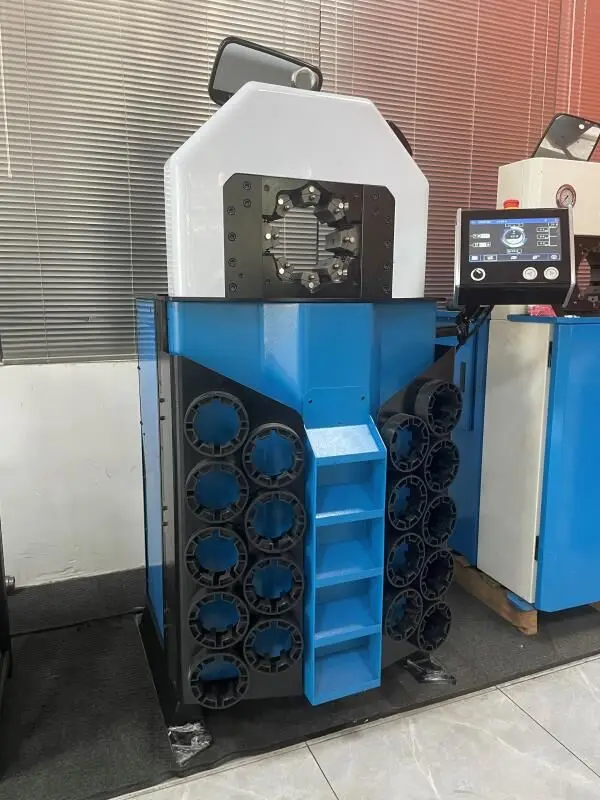

High Pressure Hydraulic Hose Crimping Machine Cable Press Hose Fitting Crimper
- Category: >>>
- Supplier: Weifang JYC Import And Export Co. Ltd.
Share on (1600866856258):
Product Overview
Description
Hydraulic hose crimping machine Application
With a huge hydraulic cylinder and high crimp force(610T), E180 could crimp up to 4 inch hydraulic hoses very easily.
With transitional die sets, E180 4 inch hose crimper could crimp up as big as 4 inch and as small as 1/4 inch.
Big opening to accept putting big flange to crimp.

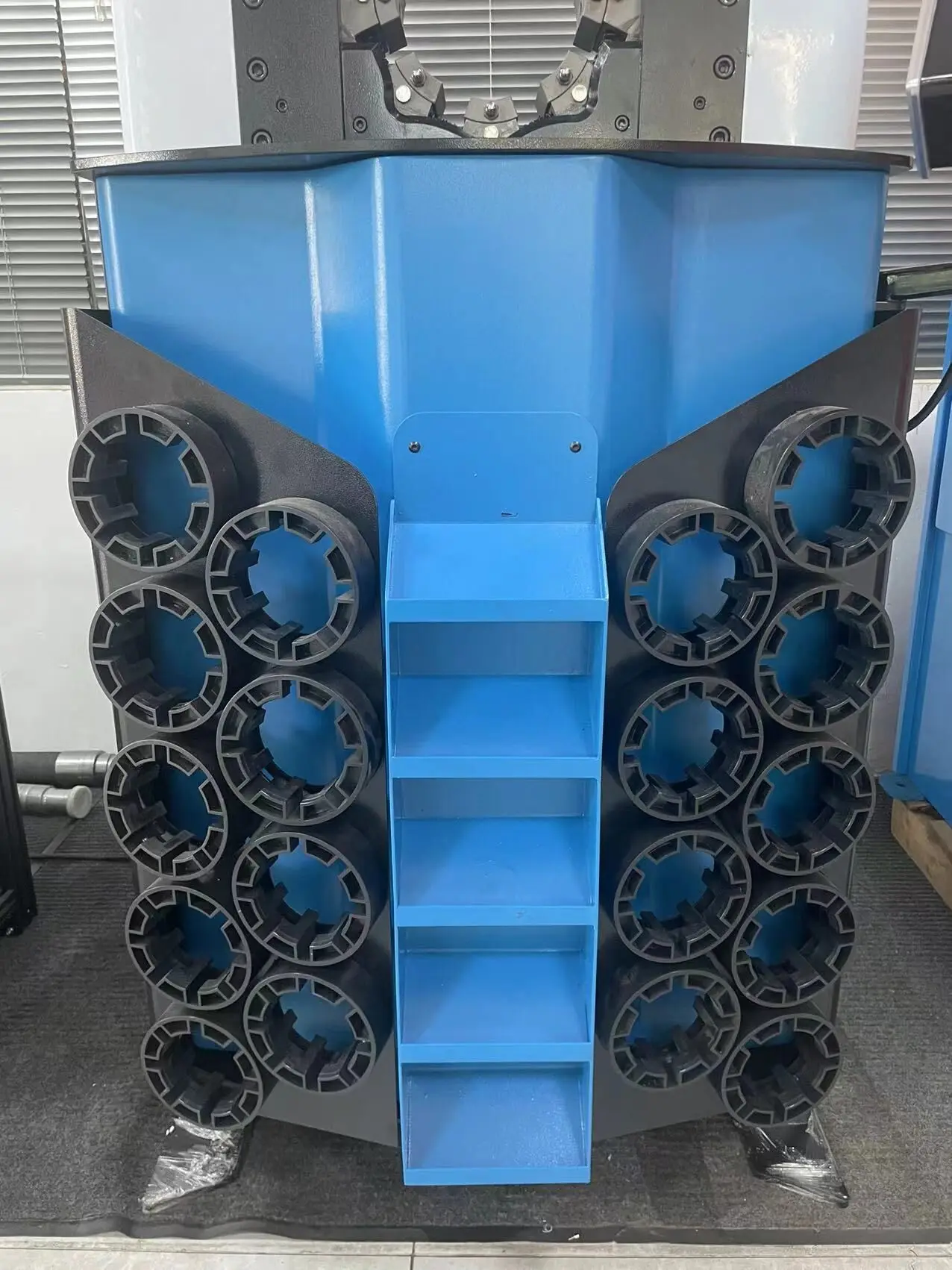

With dies rack, very easy to exchange dies and easy to stock.
16 sets with the machine and special dies could be customized as your request.
High speed and heavy duty and could be controlled automatically.
SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE | ||||||
Production name | hose crimping machine | Machine model | JYC-P180 | |||
Machine type | hydraulic crimping tool | Application | crimping hose | |||
Crimping range | 6-51mm(1/4--2 inch) | System pressure | 31.5Mpa | |||
Crimping force | 4000kN | Operation mode | electrical | |||
Dies set | 13 sets | Die length | 90mm | |||
Dimension | 850*930*1050mm | Weight | 850KG | |||
Voltage | 220V/380V | Power | 3KW/4KW | |||
Rated Flow | 10ml/r | Prodection Class | IP54 | |||
P180 Hose Crimping Machine Features
High Efficiency High Precision Good Product Consistency
Low labor Intensity Good Management Simple In Operation
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
*24x7 service
* Training how to install and use the machine
* Engineers available to service machinery overseas.
Packaging | ||
Size | 850*930*1050mm | |
Weight | 520KG | |
Packaging Details | Covering the machine with films,and package the machine with the starndard export wooden case. The normal package is wooden box(Size: 870*950*1070mm). Before delivery,we will make sure the package is in good condition. | |
Packaging | ||
Size | 870*950*1070mm | |
Weight | 520KG | |
Packaging Details | The normal package is wooden box(Size: 870*950*1070mm).We could custom package according to customer request.We will do every effort to make sure the machine protected to deliver to our customer's hands. | |
Our enterprise built up for 16 years! Made up of 10 years experienced professional R & D Worker and QC persons. Our hydraulic
products will be checked in each step, then double checked by QC, last packed and delivered to warehouse.Our hydraulic crimping
machines get the CE certification. Our factory have advanced industrial production process to save expenses,and offer all our
customers a good price to win in their market!We have the deep desire to cooperate with you, we are experienced and have the faith
to make you satisfaction with our hydraulic products and service. We have customers in UK, US, Russia,
Australia,UAE,Kenya,Bolivia,Philippines, etc.Email me or call me directly, we can't wait to see you!
products will be checked in each step, then double checked by QC, last packed and delivered to warehouse.Our hydraulic crimping
machines get the CE certification. Our factory have advanced industrial production process to save expenses,and offer all our
customers a good price to win in their market!We have the deep desire to cooperate with you, we are experienced and have the faith
to make you satisfaction with our hydraulic products and service. We have customers in UK, US, Russia,
Australia,UAE,Kenya,Bolivia,Philippines, etc.Email me or call me directly, we can't wait to see you!
