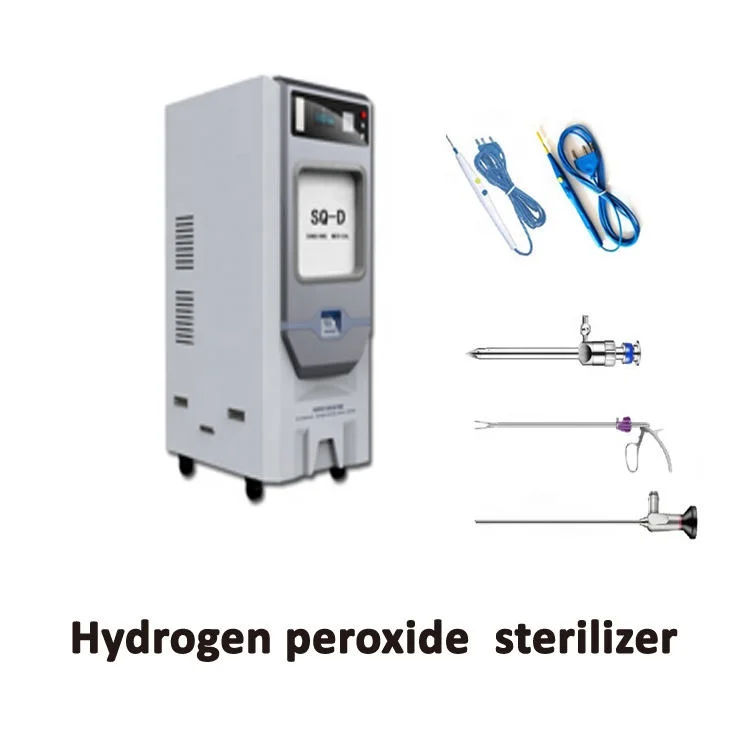

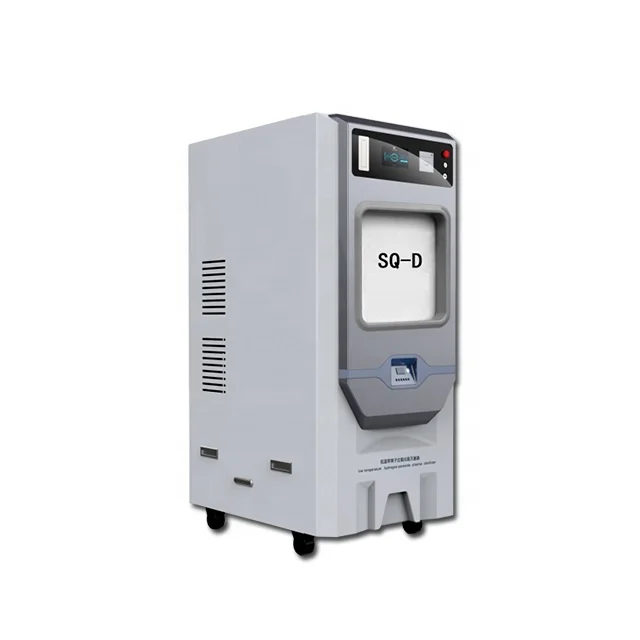

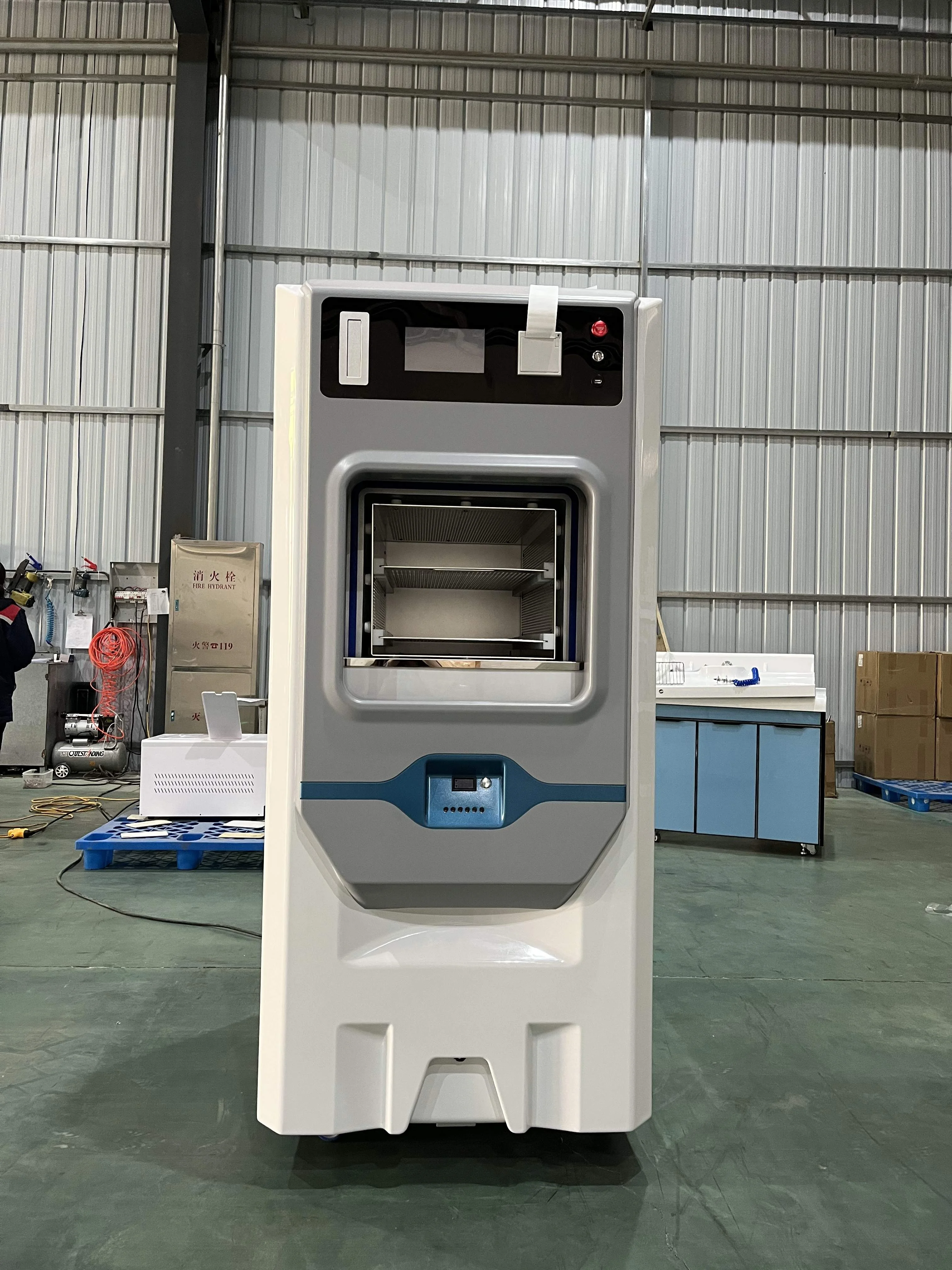

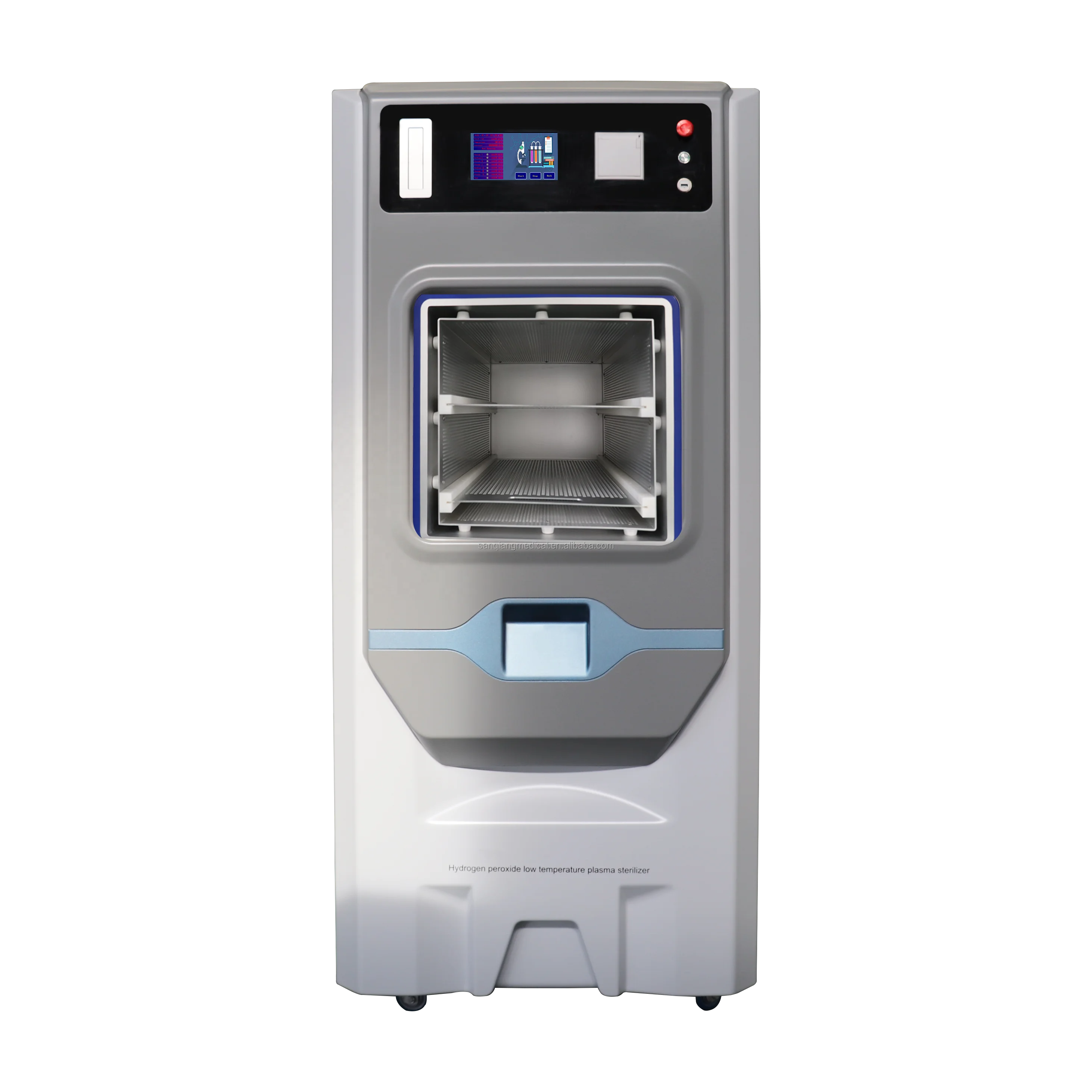

Factory Vertical Low Temperature Plasma Sterilizers Hydrogen Peroxide H202 Sterilizers 100L 130L 190L for Hospital

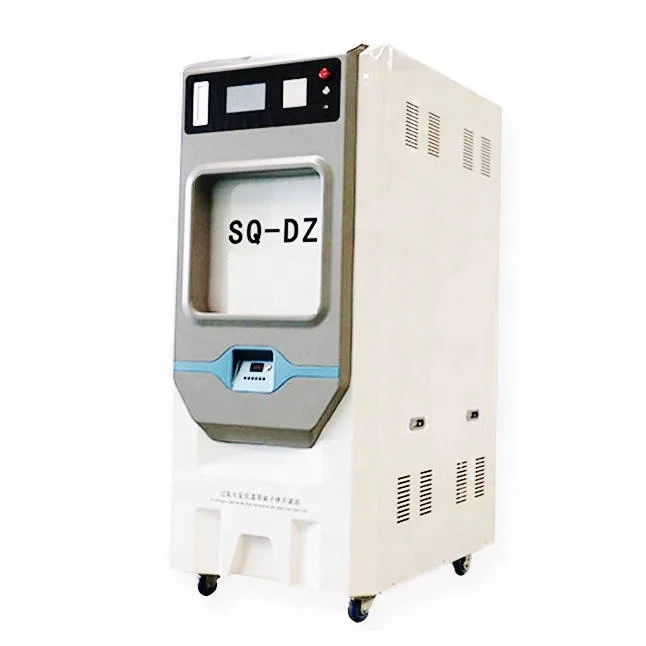

SQ-DZ 100L/130L/190L
Plasma sterilizer takes H2O2 as sterilizing agent and form plasmatic state of H2O2 by electromagnetic field under low temperature.
It combines both gaseous and plasmatic H2O2, to make sterilization for the items in chamber and decomposes the residual H2O2 after
sterilization. It is widely used in CSSD or other medical institute for the sterilization of electric wire and cable, optical
glasses and glass lens, power equipment and batteries, endoscopes, catheter, nonmetallic and other wet or heat sensitive
instruments.
It combines both gaseous and plasmatic H2O2, to make sterilization for the items in chamber and decomposes the residual H2O2 after
sterilization. It is widely used in CSSD or other medical institute for the sterilization of electric wire and cable, optical
glasses and glass lens, power equipment and batteries, endoscopes, catheter, nonmetallic and other wet or heat sensitive
instruments.

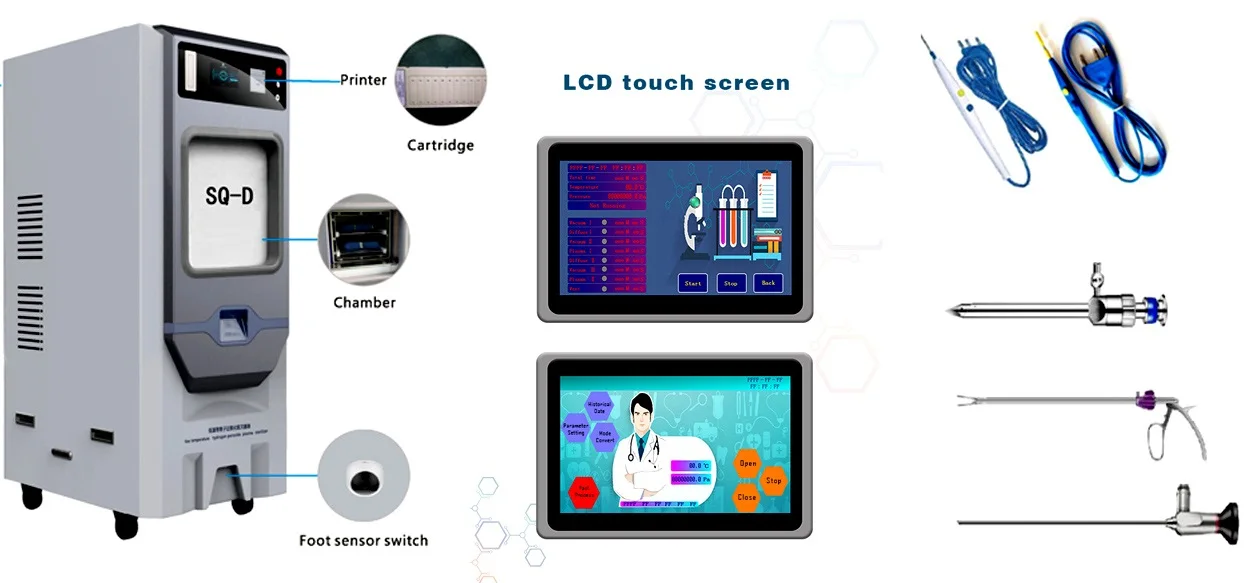

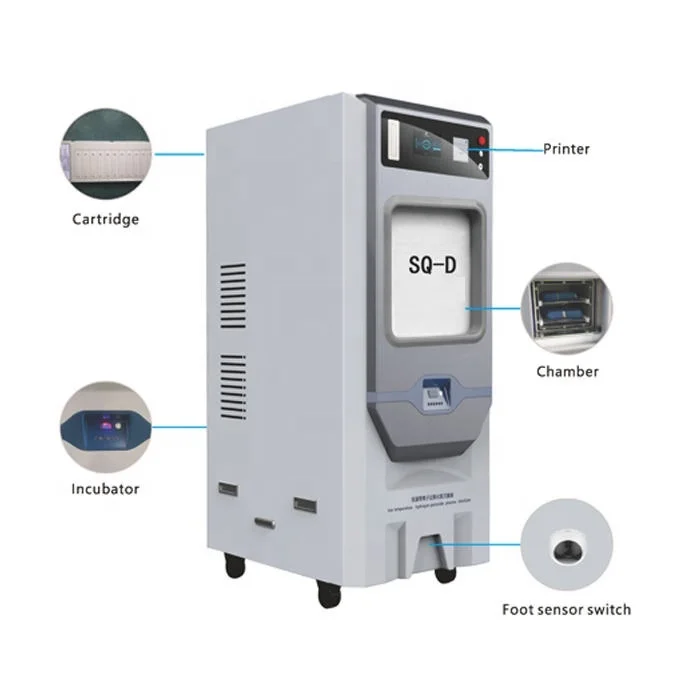

Cassette type dosing saves manpower and improves work efficiency;
The infrared foot touch switch is more in line with the ergonomic design concept;
The infrared foot touch switch is more in line with the ergonomic design concept;
The sterilizing agent hydrogen peroxide used in the equipment is decomposed into water and oxygen after sterilization, which is friendly to the user and the environment;
The sterilization time is relatively short: the general time is controlled between 35-50min, which shortens the sterilization cycle and greatly improves the efficiency of the hospital;
4-System authority certification support: ISO9001; ISO13485; ISO14004; ISO45001; and CE international quality inspection certification to ensure the quality of each equipment;
Application Range of Plasma Sterilizer:
Orthopedic Surgery, Biolab Center, Veterinary Hoapital, Central Sterile Supply Dept, Ophthalmic Surgery, Hospital(OR), Endoscope Center(MIS), Dental Surgery

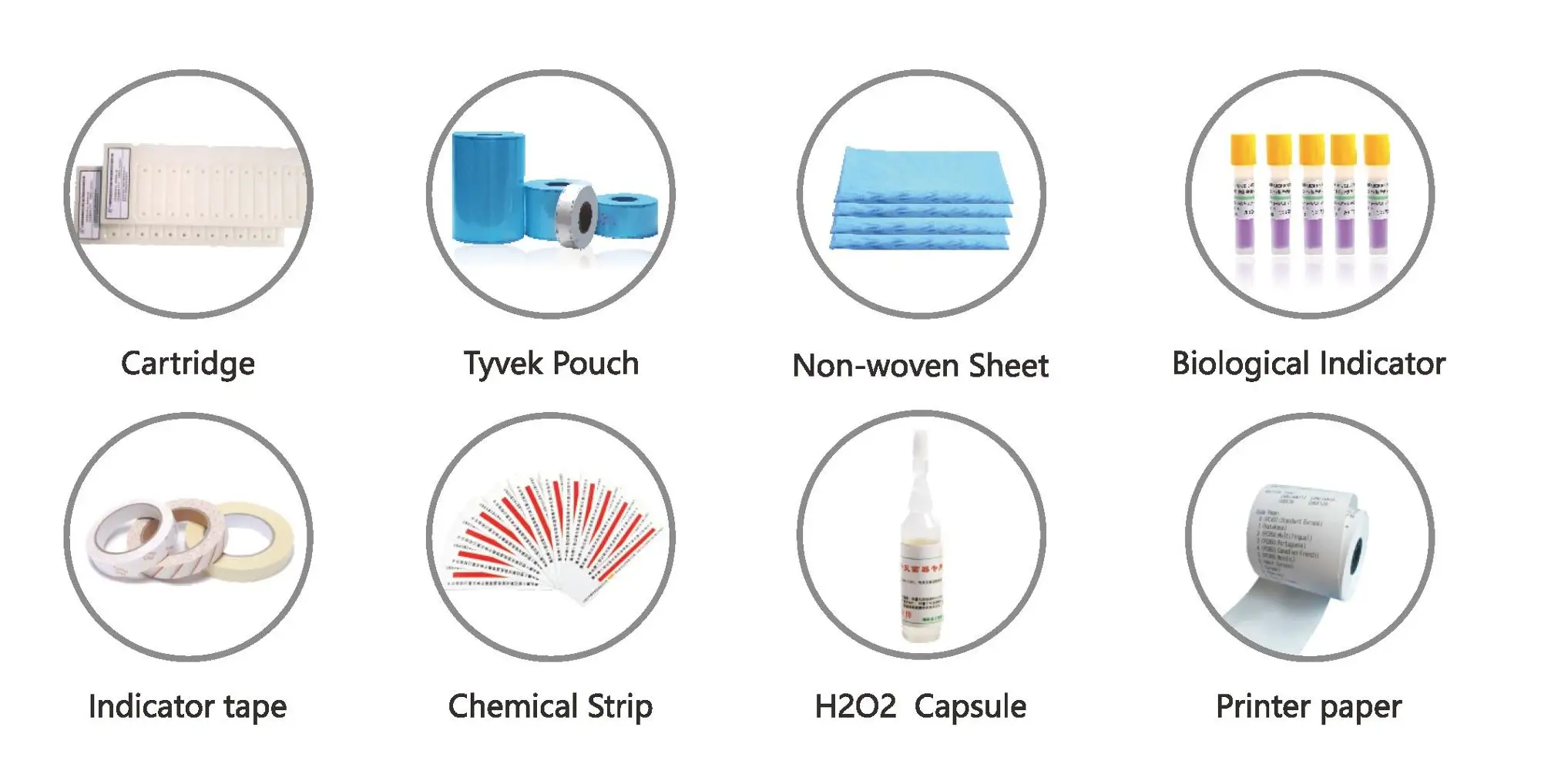

Consumables:
Technical
Technical
| Product Name | High Quality Low Temperature Cassette Plasma H2O2 Sterilizer |
| Type | Vertical (Full-Automatic) |
| Power Supply | AC220 50Hz |
Install Environment | 5-45℃ |
| Sterililation Temperature | 50℃ |
Working Pressure | 50pa |
| Cartridge | 12 pcs capsule |
Sterilizing Agent | 60%Hydrogen Peroxide Solution (H2O2) |
| H2O2 Consumption | 1.Short cycle 35min 2.Long cycle 55min 3.H2O2 solution valid time 1 year |
| Parameter Display | LCD Touch Screen |
| Vacuum Speed | Absorb to -50pa in five minutes |
| Door Open Mode | Using mandrel drive electric lift door |
| Door Protection Function | With door barrier switch function,the door will automatically stop when touch the barrier switch,prevent the injuries to operator and items |
| Pressure Sensor | Build-in pressure sensor which is imported from Japan to check chamber pressure automatically ensures that the chamber pressure is accurate and effective |
| Temperature Sensor | Build-in temperature sensor which is imported from Japan to check chamber temperature automatically ensures the chamber to be controlled within precise range of 50℃±3℃ |
| Category | Class B |

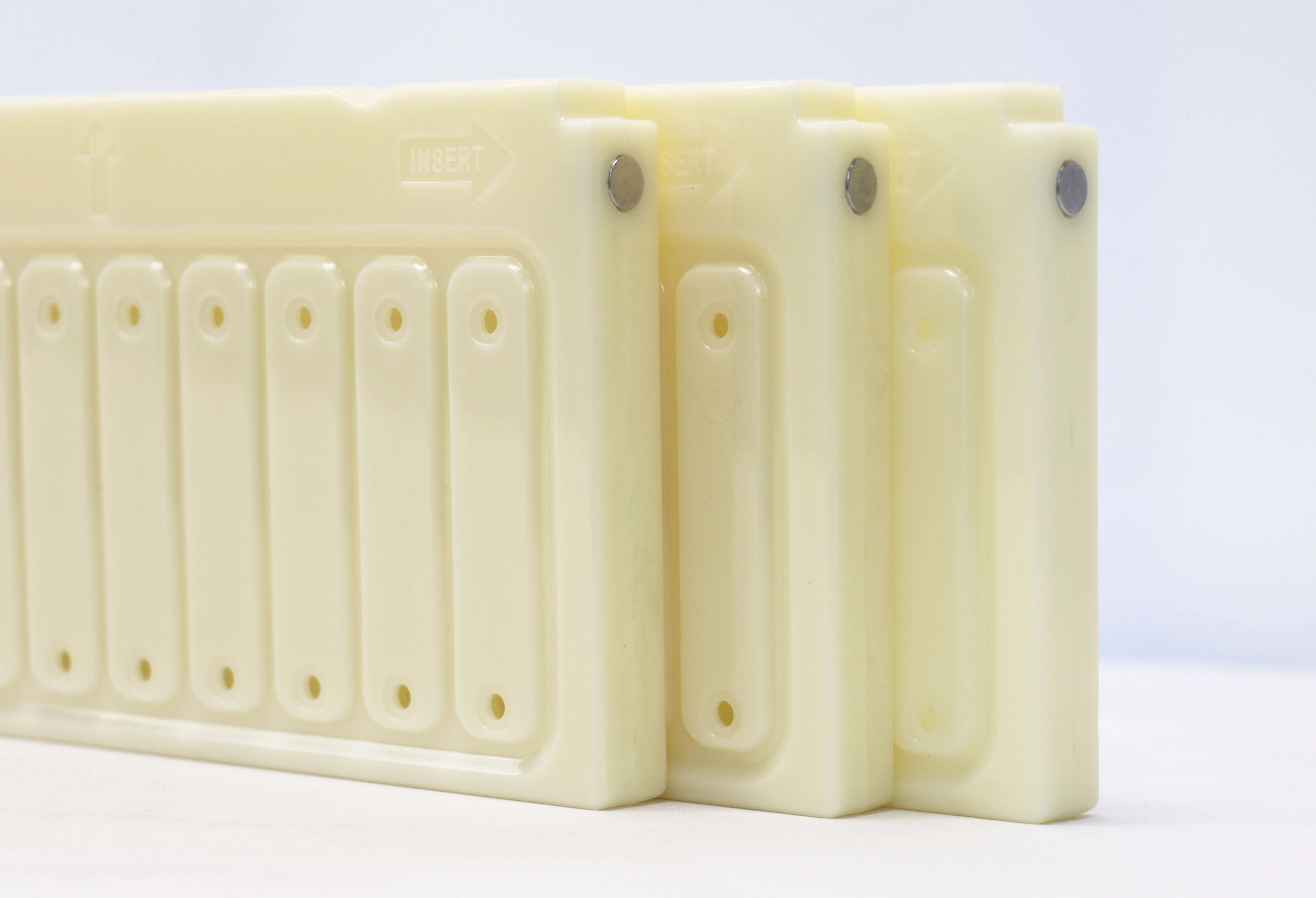

Cassette automatic dosing:12pcs capsule dosing position to improve work efficiency2 modes are available:Standard cycle 35 minutes 1 capsule
Strengthen the circulation 50 minutes 2 capsules

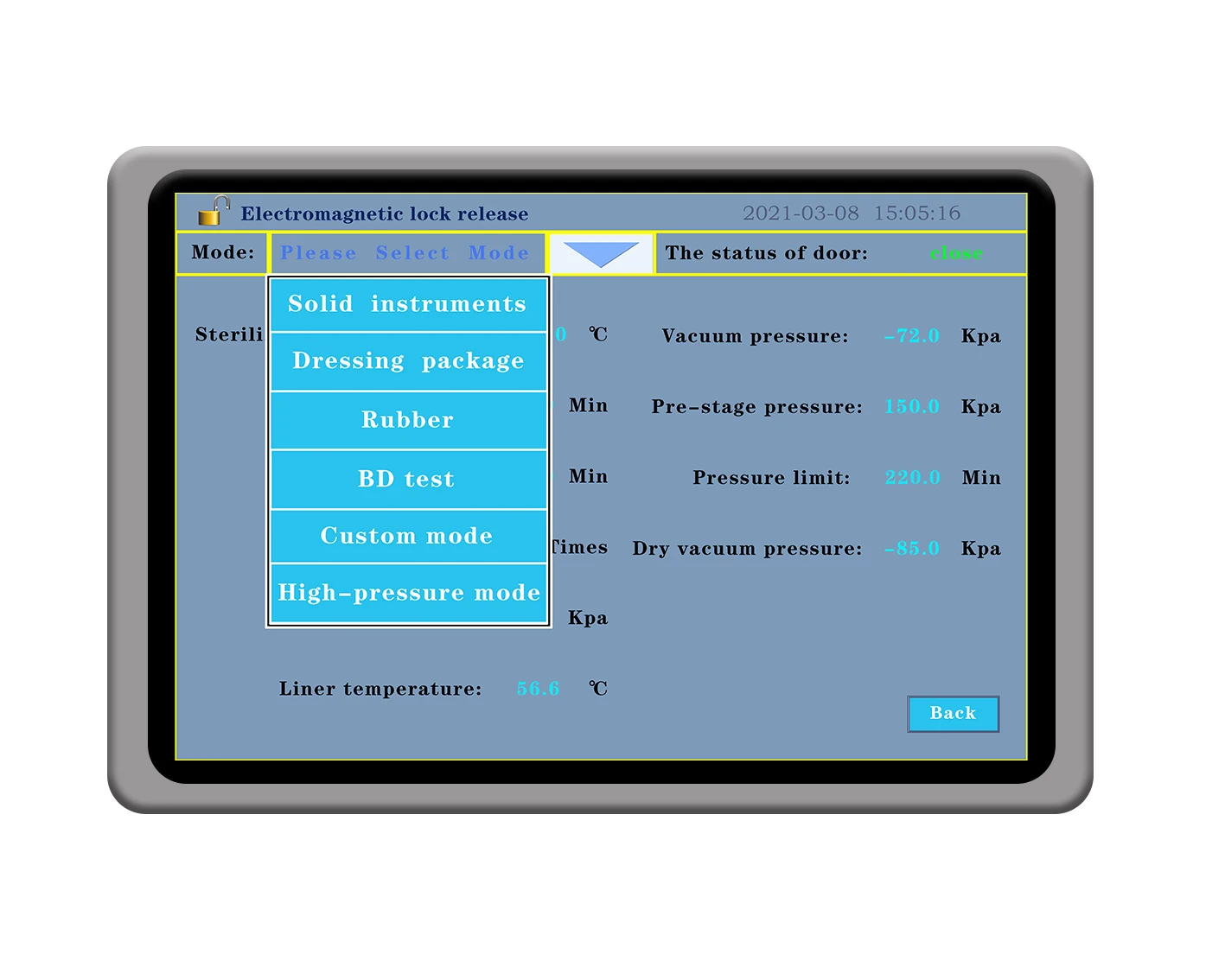

7" LCD touch screen:(and the communication rate is ≥ 19.2Kbps.)
Display status:
Temperature, pressure, time, cycle mode, process stage and alarm information, etc., and
provide actual interface photos.
provide actual interface photos.
About Us
About Us
Our factory founded in 1970,specializes in chemical machines and non-standard metal structure.The stainless electrical distiller and stainless portable electric steam disinfecting apparatus developed in1988. together with Shanghai Medical Apparatus Industrial(Group) Company,filled in the domestic blank.
The factory is located in the East Zone of Jiangyin Chengjiang Industrial Park,with an area of 10,000 sq.m(the building area of 5800 sq.m),approximately 100 staffs(including 15 senior technicians) and a lab in charge of the R&D of high & new technology products. So far the factory has passed the certification of ISO9001:2000 Quality System and CE, and the Middle East,ect. Our equipment cover mechanical & welding machines and detecting instruments,Over 50 sets in total.
Our products include:horizontal autoclave sterilizer,desk-type autoclave sterilizer,stainless portable electric autoclave sterilizer,stainless vertical-type autoclave sterilizer,stainless electric distiller,ultraviolet germicidal lamp,etc.Due to reasonable structure & beautiful appearance,our products are very popular at home and abroad.
Certification
Certification
Our autoclave has CE,ISO 9001,and ISO 13485 certificate.

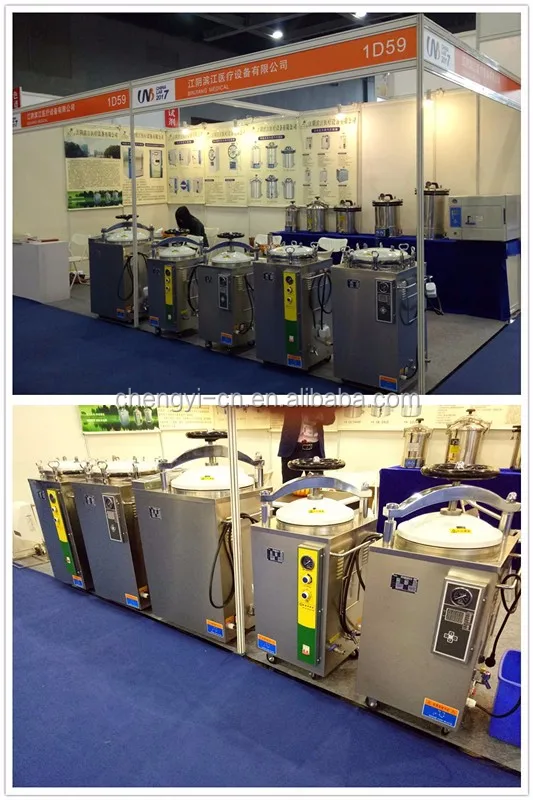

Exhibition Show
Exhibition Show

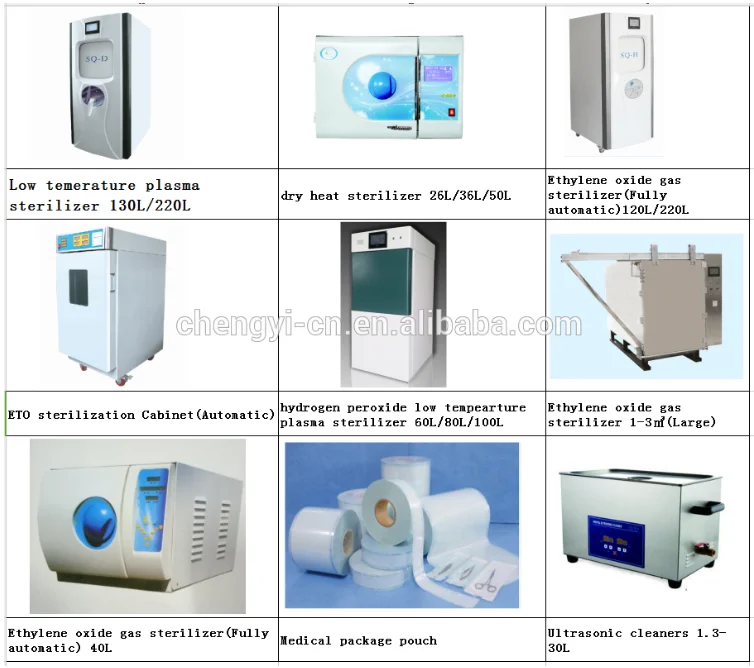

Related Products
Related Products

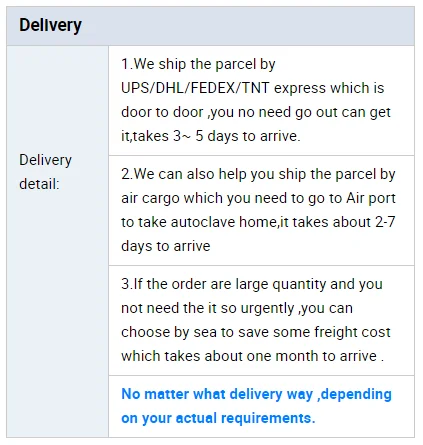

Packing & Delivery
