Internal/external steel pipe surface treatment cleaning shot blasting line

Product Overview

Description

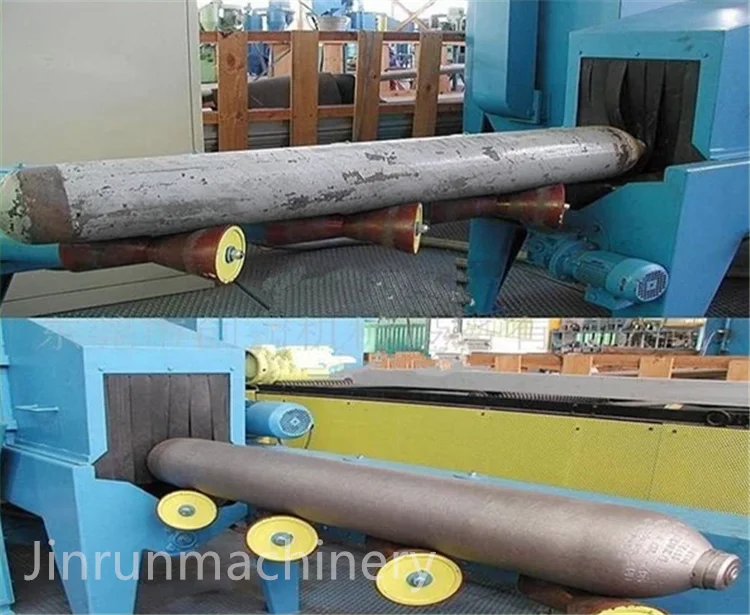

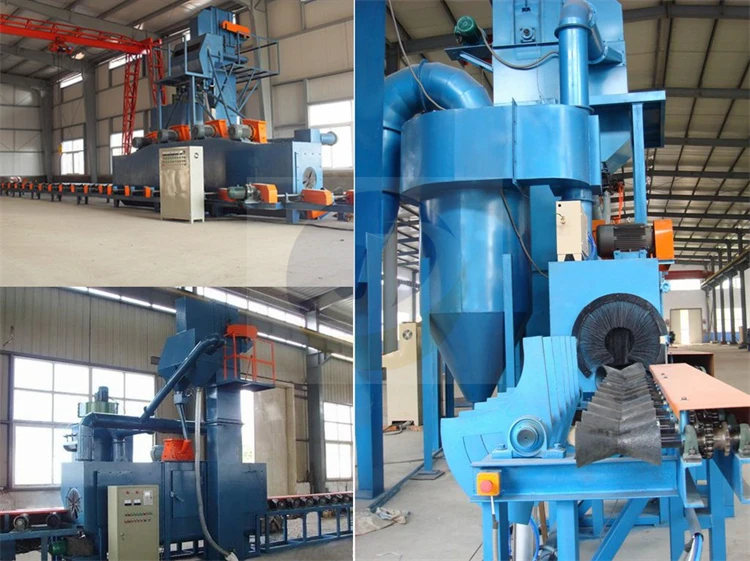

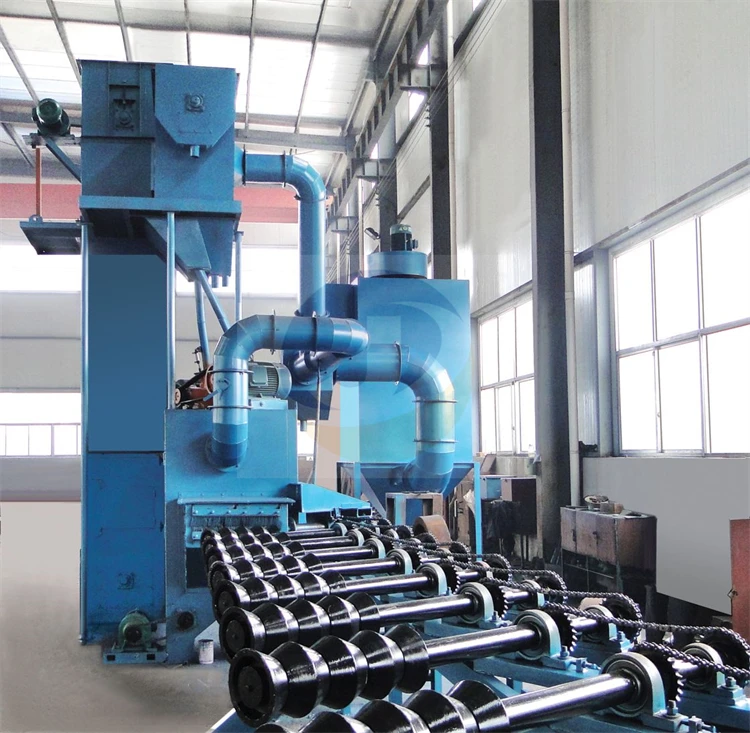

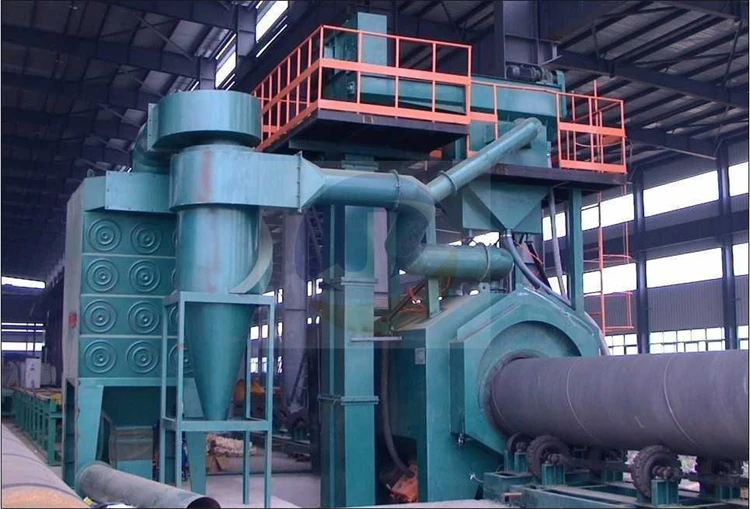

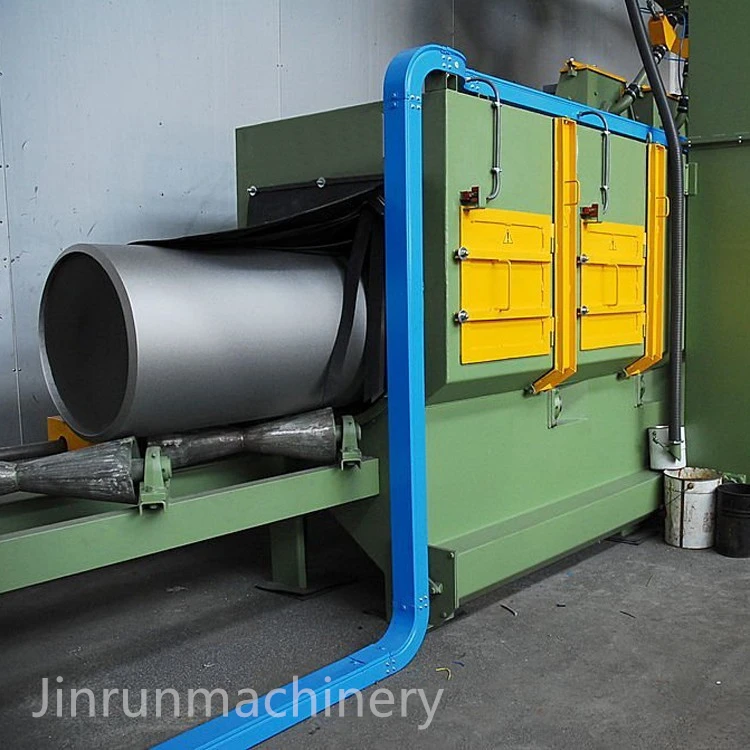

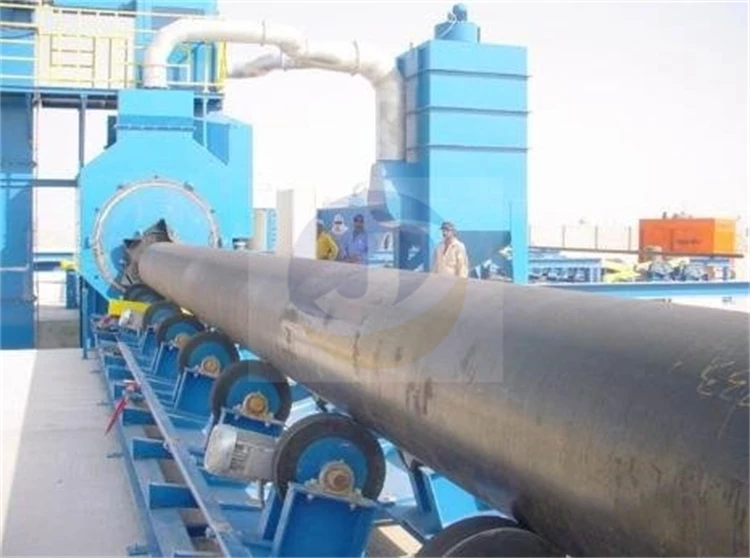

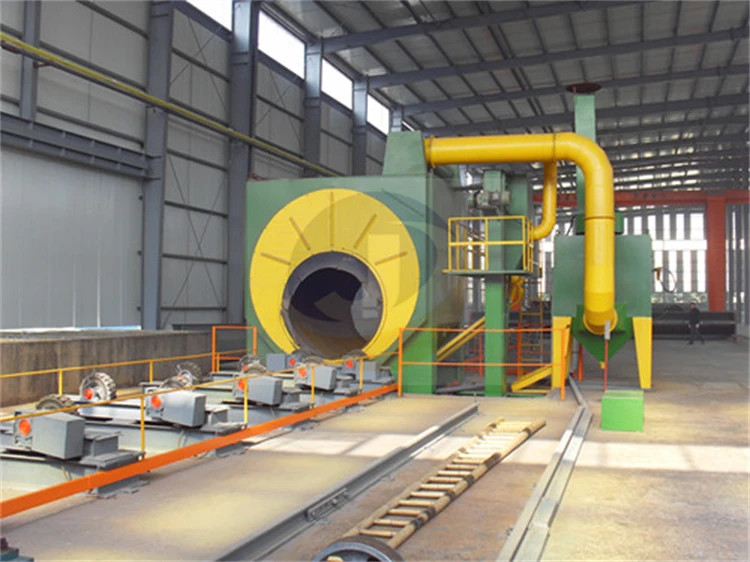

Steel Pipe Outer and Inner Shot Blasting Machine
The external pipe shot blasting machine can removal the oxide scale, rust and other sundries from the pipe outer and inner to have a good effect of derusting, reach the national standard of SA2-SA3 in SR/TQ414-98.
It can improve the tensile and compresive resistance of the pipe surface and can also possess the reliable depth of abrasion pattern, so as to get strong adhesion of the coating on the pipe with a satisfying result of anticorrosion and therrmal insulation. Meanwhile, the derusting speed can be adjusted as 1-6m/min according to different types.







Features and Benefits
♦ The feeding machine in this line has many models. This line is suitable for pipes with a wide range of size.from48 mm to 1000mm(inner). from500 mm to 2500mm(outer).
♦ The whole line gets low noise and the staffing dust-collecting equipment is energy efficient, meeting the state requirement for environmental protection.
♦ It is convenient to provide sand and one-time added sand can be used for lone time.
♦ Simple installation, easy for transportation and convenient maintenance.
♦ Easy to operate and simple to learn, automatic to control and reliable to perform.

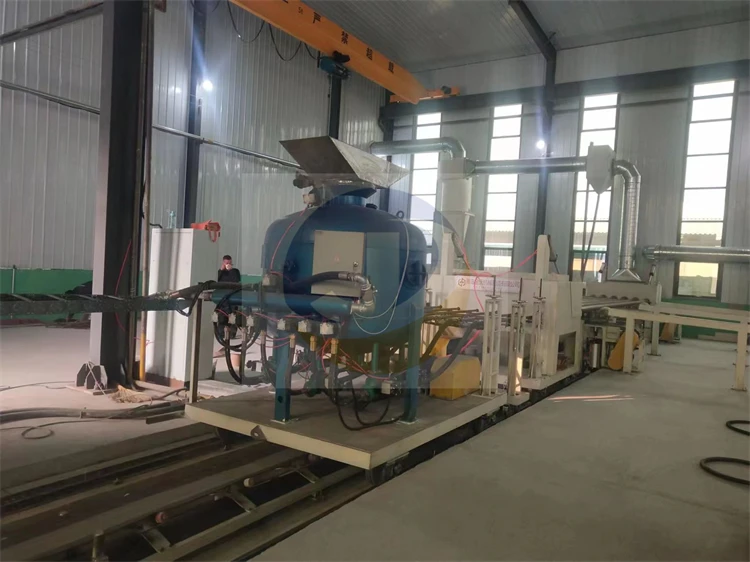

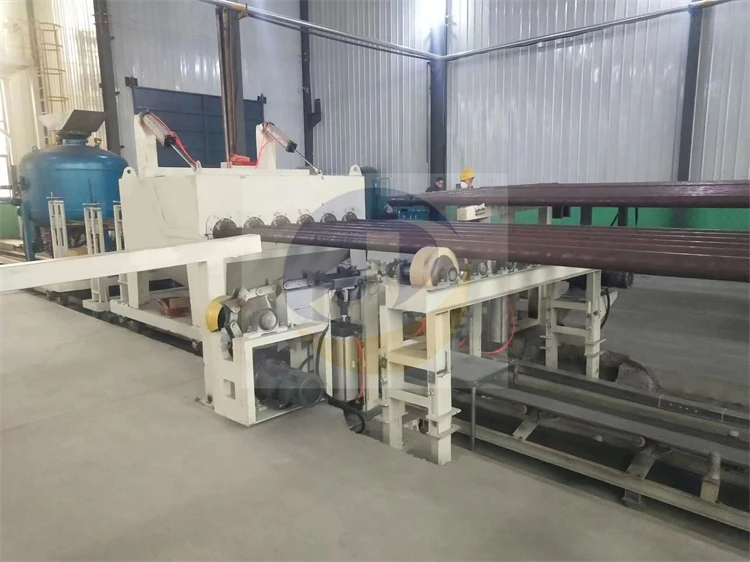

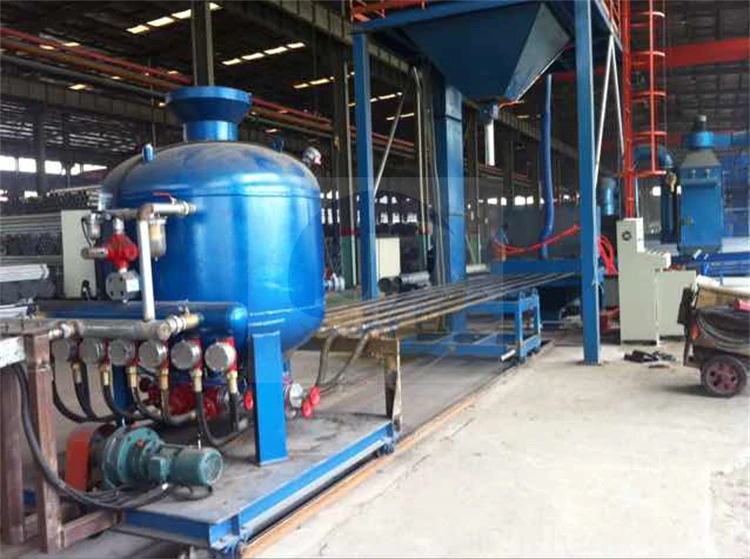

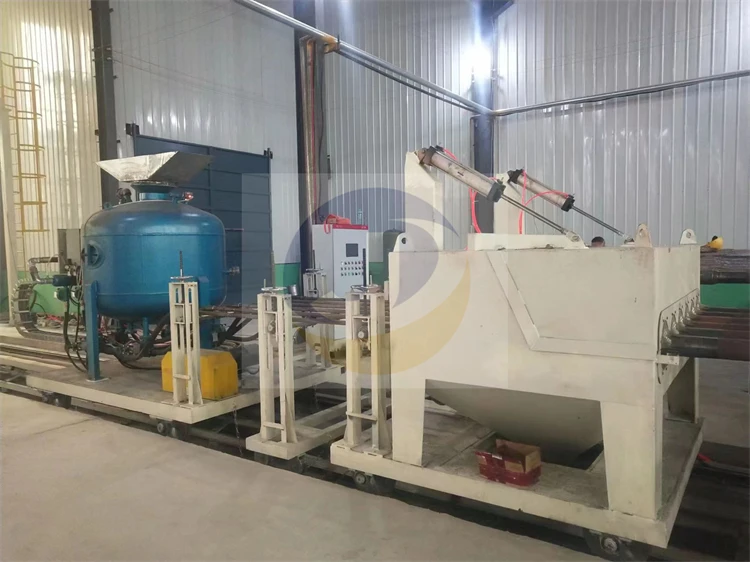

Steel Pipe Inner Sandblasting machine
This machine adopts hydraulic, electric impeller head or air pressure grit-blasting gun to eliminate rust, oxide coating, welding slag for internal pipes to make the surface appear metallic sheen, increasing the surface area. The derusting efficiency is 80-150 Square meter/h and the surface preparetion level reaches 2.5-3.  According to the different diameter, derusting equipment for internal pipes can be equiped with single-gun, double-gun, four-gun, six-gun and eight-gun sand tank. Used for the diameter range: φ48-φ1000.
Steel Pipe Inner Sandblasting machine composed of  pipe-rotating machine, grit-blasting trolley, grit-blasting head, grit-graying machine, grit-recycling line, specialized trolley for internal coating, grit-collecting box, grit separator, dust-removing system and operating platform, with many models to choose.





Parameter:



Model	QGW100	QGW720	QGW1200	QGW1500	QGW2800
Cleaning Size (mm)	50-300	100-720	200-1200	320-1500	1000-2800
Cleaning Speed (m/min)	2-10	2-6	1-6	1-6	1-2

Qingdao JinRun Machinery Co., Ltd. is located in Qingdao West Coast Economic New Zone (formerly Jiaonan City). The company has convenient transportation and strong production strength. It is a high-tech industrialized entity integrating casting machinery, surface cleaning, sand treatment, coating production line and automation equipment research, development, production, operation, export and service. The company has strong research and development strength, advanced production technology, perfect testing methods, scientific management system, as a professional manufacturer of foundry machinery industry, ranked high-end level in the technical, quality and automation. Welcome customers from all over the world to visit and discuss cooperation.



1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. ODM&OEM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 10 years, competitive with good quantity.

7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products be finished in high quality and stable feature.



a.       How many days do you need to produce this machine?

It depends on your specific requirement. Some general equipment, we usually have stock. For other customized machines, it needs about 15 to 50 days from engineers designing to production completion.



b.       What does your factory do regarding quality control?

 We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before delivery. We try our best to ensure each machine is in good operation to our customers.



c.       What’s your machine quality guarantee?

 Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.



d.       Could you give installation and commissioning overseas? How long will it take?

 Yes, we supply overseas service, but customers need to pay for the engineers flight tickets, and hotel, food., etc.

Small machines usually takes 5 days, while large machines usually takes about 15 to 20 days.



e.       How can I trust you to deliver the right machine as I ordered?

 We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency.
