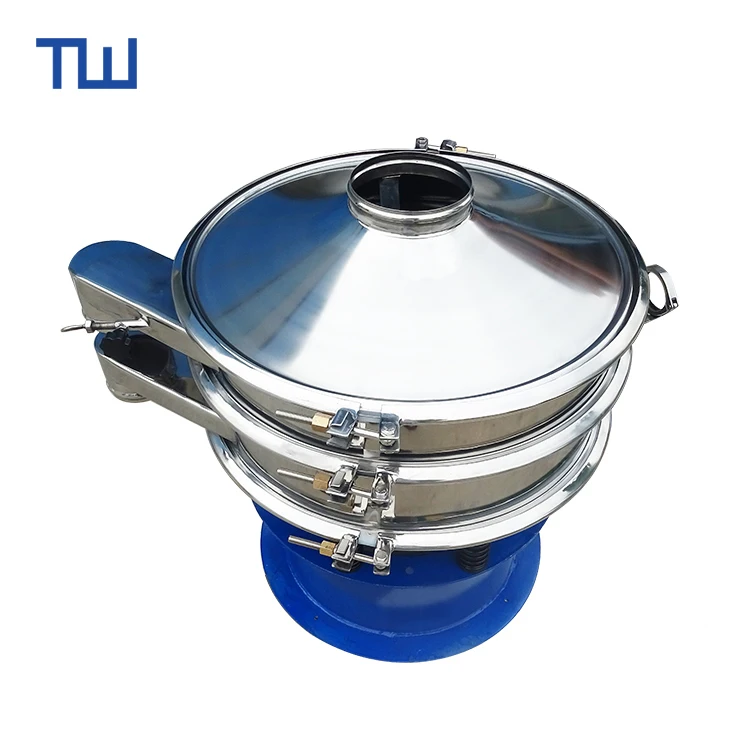

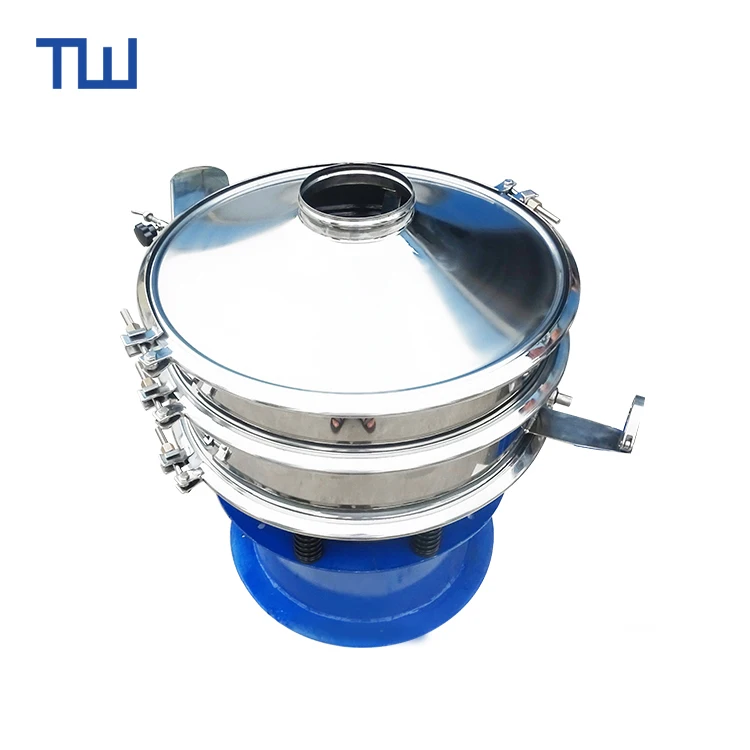

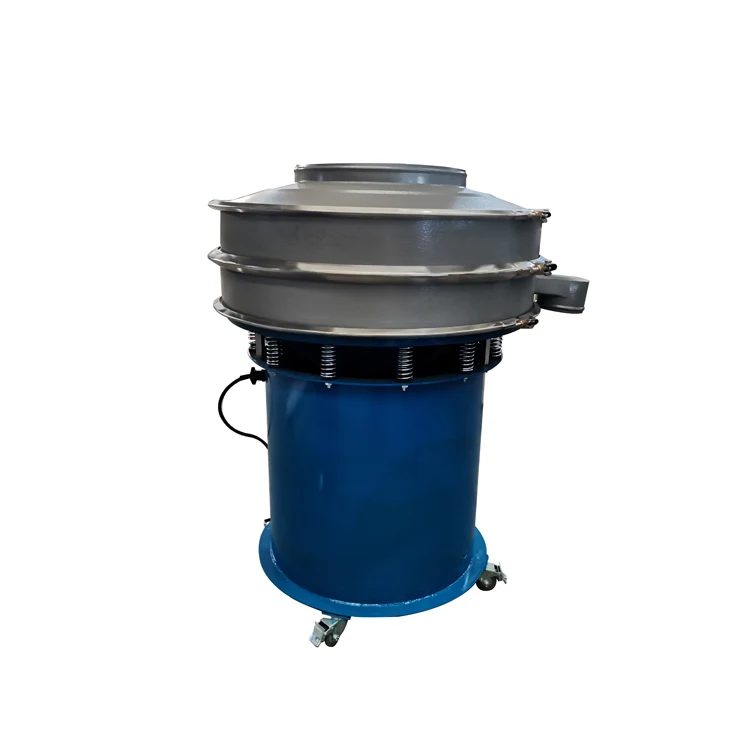

Automated corn starch vibratory separator vibrating sifter vibration machine screen vibrating machine for fine powder

Product Overview

Description

Automated corn starch vibratory separator vibrating sifter vibration machine screen vibrating machine for fine powder



Brief Introduction

Automated corn starch vibratory separator vibrating sifter vibration machine screen vibrating machine for fine powder for powder supplier for seed industry Machine is a kind of high precision fine power screening machine,it has high efficiency, low noise,only need 3-5 minutes to change the net.It is completely closed structure,and suitable for granular,powder and liquid mucilage.









 Feature

1. Fully enclosed, no dust spillage, continuous operation;

2. High screening accuracy, high efficiency and high screen utilization;

3. Small size, light weight, quick start, low noise;

4. The direction of the discharge port can be changed arbitrarily along the circumferential direction.



Application:

Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.
Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc.
Food industry: sugar, salt, alkali, flour powder, nut powder,  flavors ,  starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc

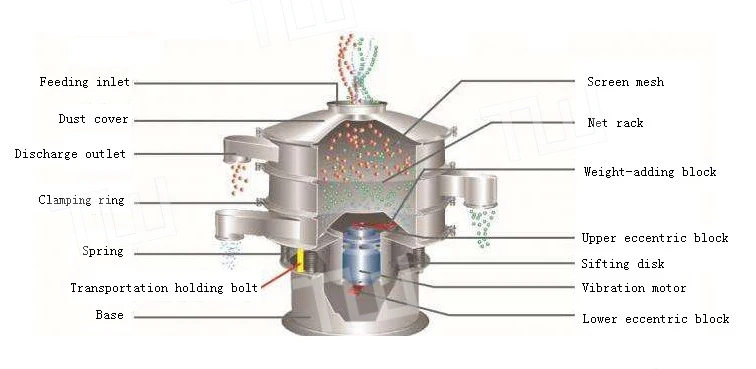

Work Principle:

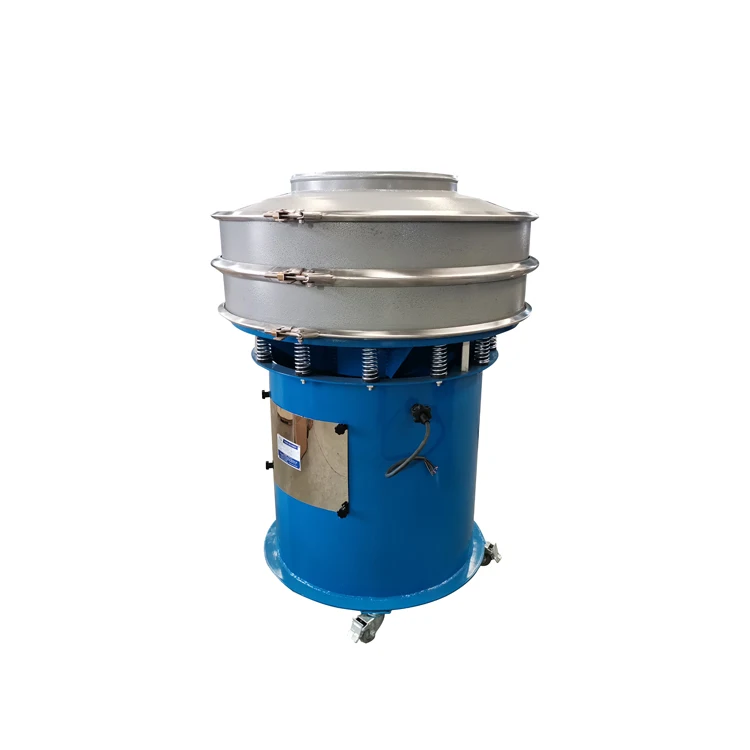

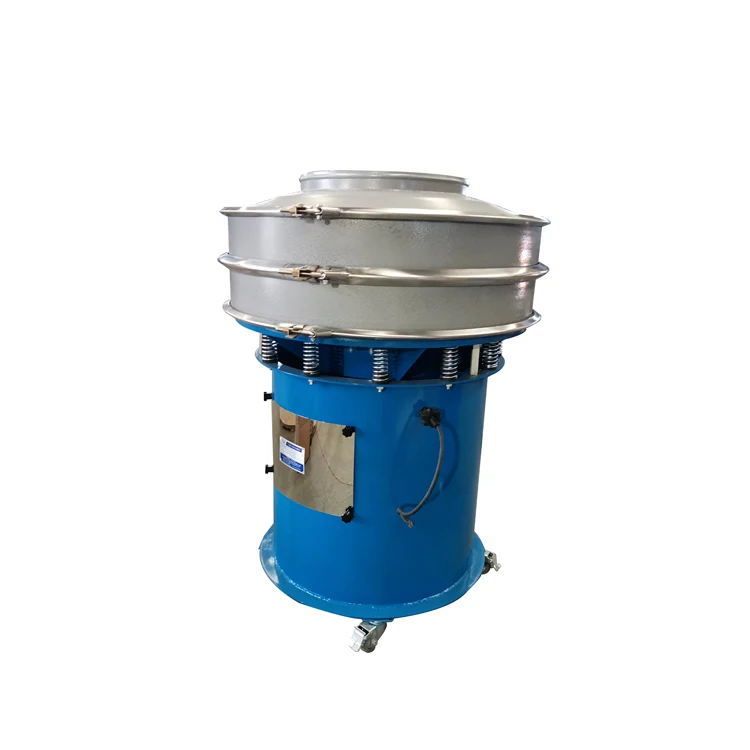

The fundamental principle of  Automated corn starch vibratory separator vibrating sifter vibration machine screen vibrating machine for fine powder is that theeccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal,vertical and inclined three-dimensional motions, and then passes this motion to screen surface.Adjusting the phase angle of the upper and lower ends can change the movement trajectory of the material on the screen surface, so as to achieve the purpose of classification, filtration and removal of impurities.this wheat flour vibrating screen sieve machine can add the mobile wheel .









Model	Power (kw)	Screen Effective Diameter  (mm)	Dimension (mm)	Layers
TWD-400-1S TWD-400-2S TWD-400-3S	0.18	φ320	580*580*560 580*580*660 580*580*760	1 2 3
TWD-600-1S TWD-600-2S TWD-600-3S	0.25	φ550	800*800*680 800*800*780 800*800*880	1 2 3
TWD-800-1S TWD-800-2S TWD-800-3S	0.55	φ750	900*900*780 900*900*930 900*900*1080	1 2 3
TWD-1000-1S TWD-1000-2S TWD-1000-3S	0.75	φ950	1160*1160*880 1160*1160*1030 1160*1160*1180	1 2 3
TWD-1200-1S TWD-1200-2S TWD-1200-3S	1.1	φ1150	1360*1360*980 1360*1360*1160 1360*1360*1360	1 2 3
TWD-1500-1S TWD-1500-2S TWD-1500-3S	1.5	φ1450	1850*1850*1130 1850*1850*1330 1850*1850*1550	1 2 3
TWD-1800-1S TWD-1800-2S TWD-1800-3S	2.2	φ1750	2200*2200*1360 2200*2200*1460 2200*2200*1680	1 2 3
