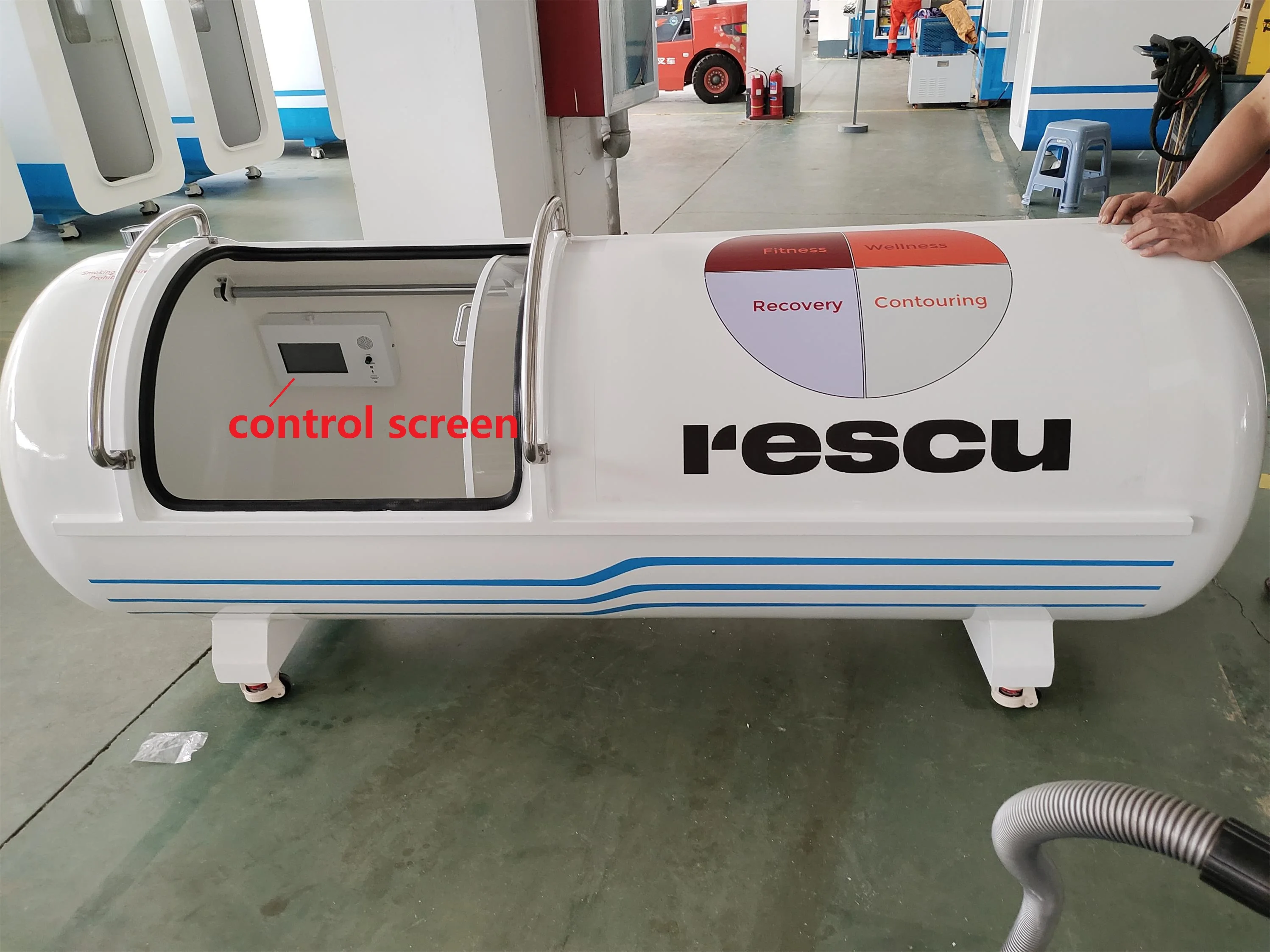

Hyperbaric Oxgen Therapy Hard Type Chamber

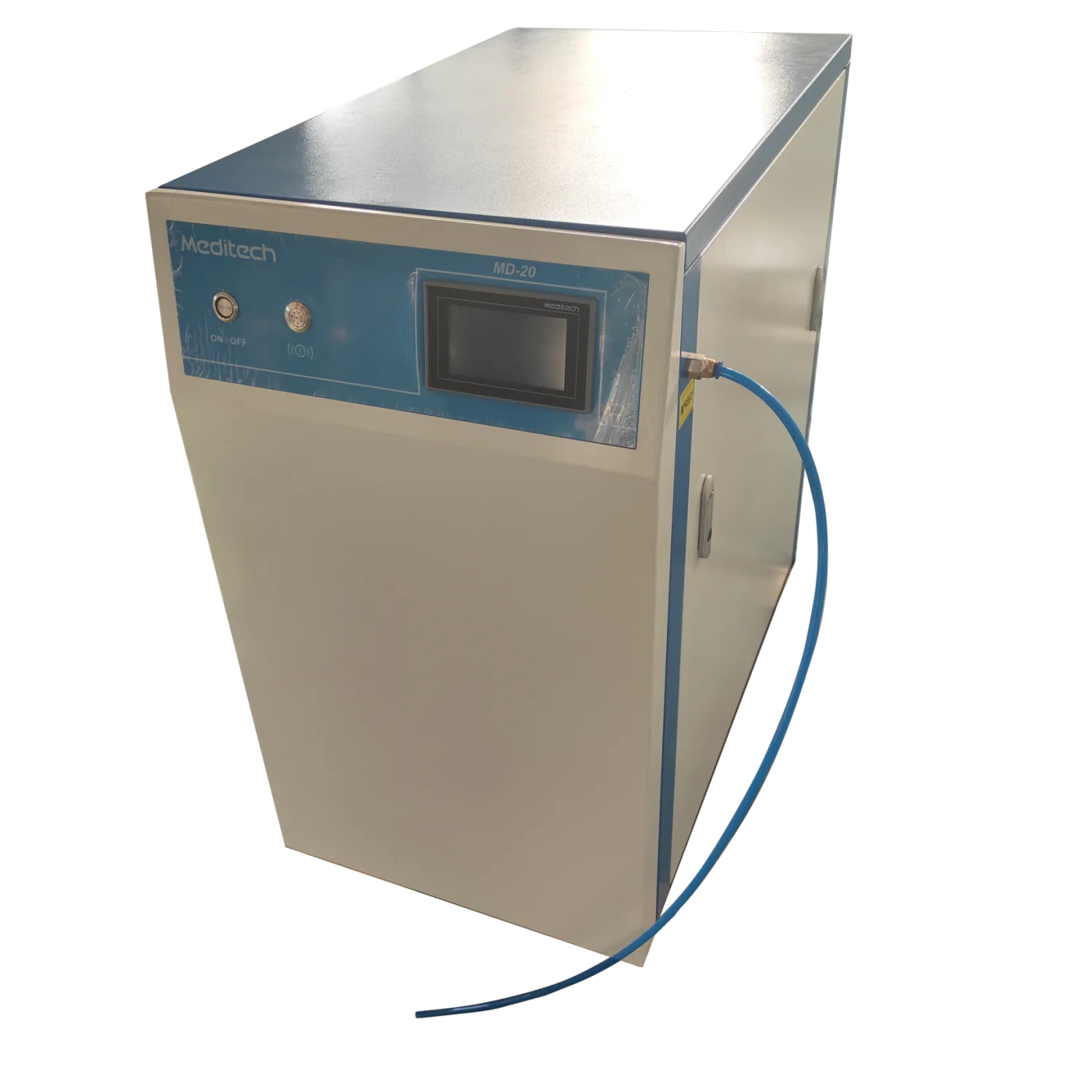

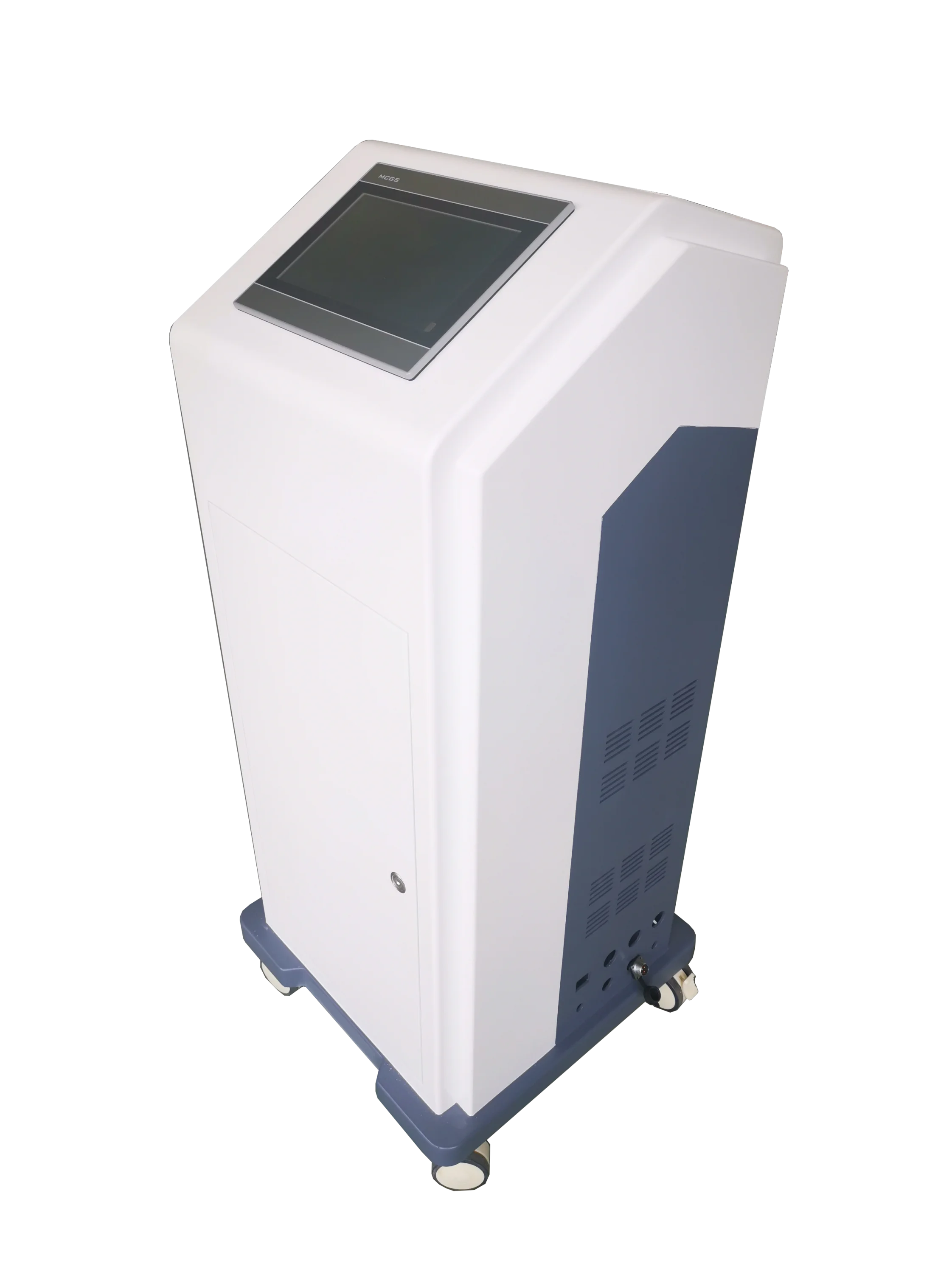

Through the oil-free air compressor set in the control box, the cabin is filled with fresh and clean air to form a micro pressure environment of 1.5 atmospheres. The medical grade oxygen generator or oxygen bottle is used to provide the oxygen needed for oxygen inhalation to the cabin personnel through the oxygen supply pipeline.
Product Paramenters
Envelope dimension of cabin | Φ800mm×2450mm |
Maximum working pressure | 0.05MPa |
Rated number of passengers entering the cabin | 1 person |
Cabin leakage rate | ≤5%/h |
Pressure reducing noise | ≤65dB（A） |
Pressurized medium | air |
Oxygen concentration in cabin | ≤23% |
Empty weight of cabin | ≤270Kg |
Volume | 1.2m³ |
Normal working time of equipment | ≤10min（up to maximum working pressure） |
Power Supply | AC220V±33V，50HZ±2HZ |
Details Images
1. Pressure gauge: the cabin is equipped with mechanical pressure gauge, which can display the current cabin pressure to personnel without power on.

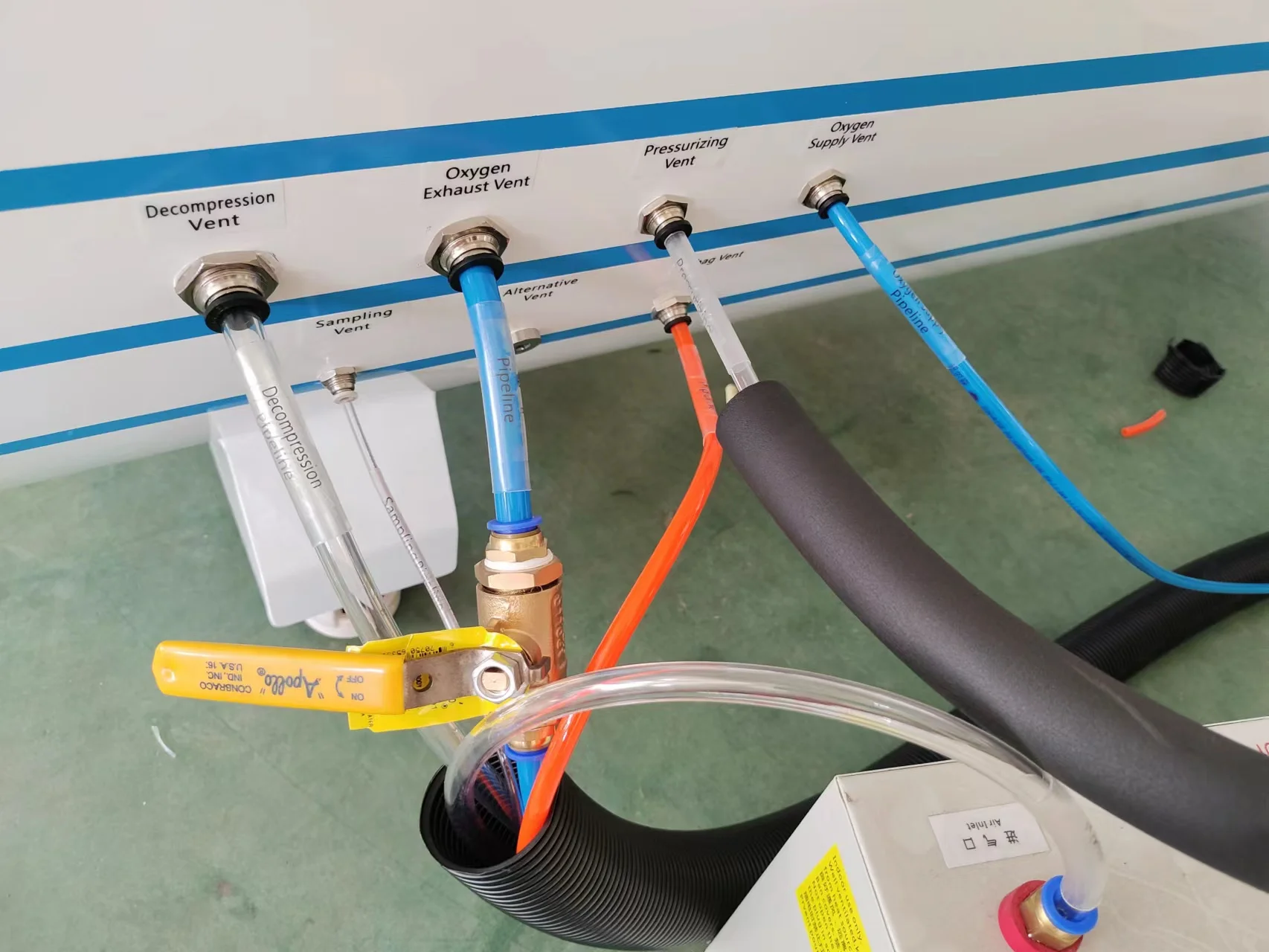

2.Balance valve: the equipment is equipped with two balance valves.
3. Emergency decompression valve: the emergency decompression valve is used to control the rate of pressure rise and fall and fast pressure relief in the cabin.
4.Mask respirator: it is used when the cabin personnel breathe high concentration oxygen, and the exhaled waste oxygen is directly discharged outside the cabin to prevent the oxygen concentration in the cabin from being too high.
5.Observation window: the observation window can be used to observe whether the cabin personnel are abnormal, and the cabin personnel can see the outside of the cabin through the observation window, so as to reduce the fear of the cabin personnel in a
closed container.
closed container.

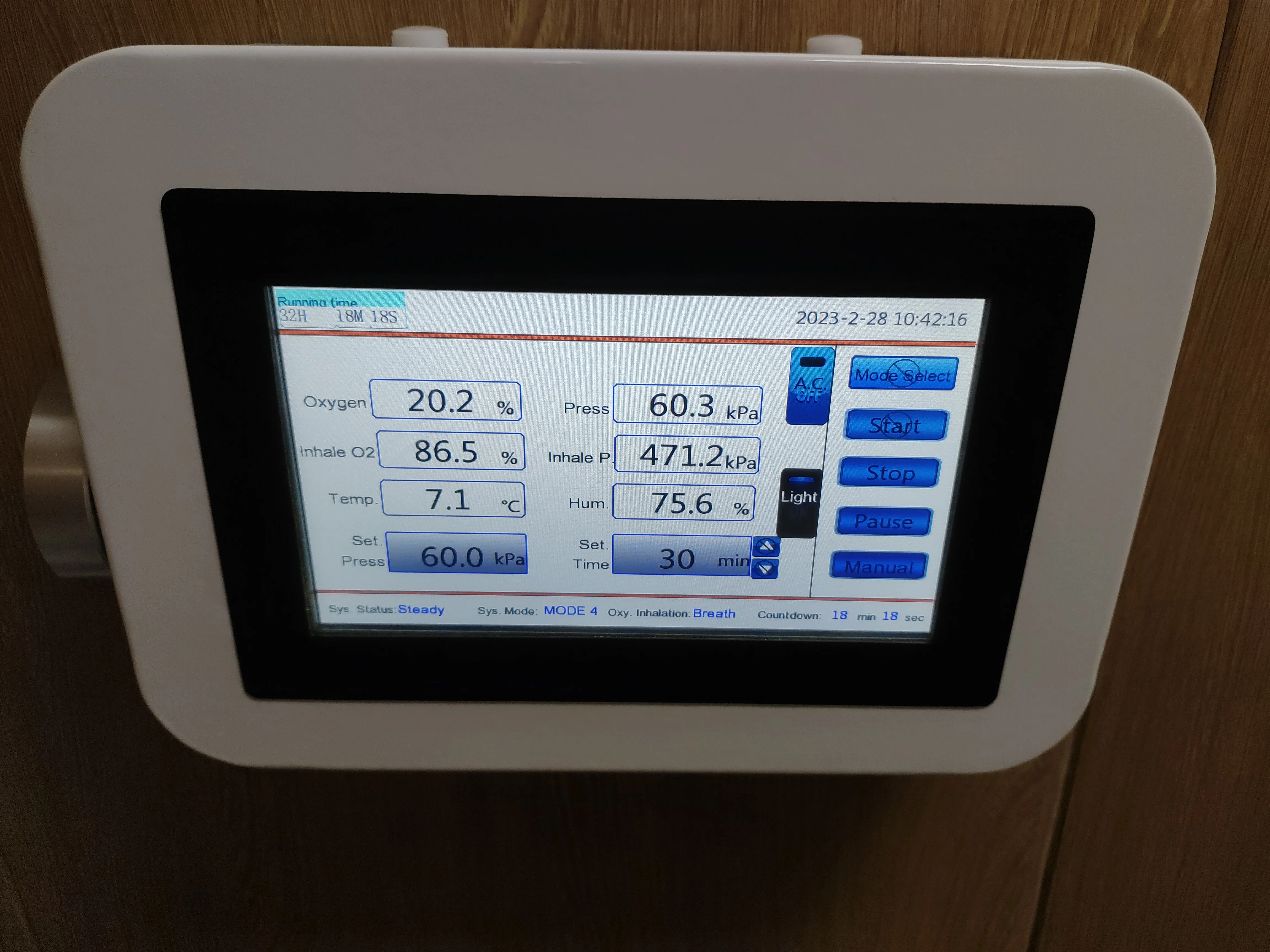

6.Control touch screen: the cabin is equipped with control touch single steel cabin, and the touch screen can display the current cabin pressure, oxygen concentration, temperature, humidity and other parameters.
Recommend Products
Company Profile
Package and Shipment
FAQ
1.What is hyperbaric oxygen therapy?
Hyperbaric oxygen therapy(HBOT) is a treatment where patient breathes pure oxygen while enclosedin a hyperbaric oxygen chamber at a pressure greater than one atmosphere, relying on oxygen'sphysical, chemical, and physiological effects to achieve the goal of treating diseases.
Under normal circumstances, oxygen is transported throughout the body only by red blood cells. With HBOT, oxygen is dissolved into all of the body's fluids, plasma, central nervous system, bones and thelymph, and can be carried to areas where circulation is diminished or blocked. In this way, extra oxygencan reach all damaged tissue and the body can support its own healing process. The increasedoxygen greatly enhances the ability of white blood cells to kill bacteria, reduces swelling and allowsnew blood vessels to grow more rapidly into the affected areas.
2.What is the oxygen concentration?
Reach medical oxygen level, oxygen concentration ≥93.
3.Delivery time
Less than ten units are in stock, and more than 15 units are in 30 days delivery ,for hyperbaric oxygen chamber and decompression chamber the delivery time is about 3 months(transportation time is extra).
4.What’s the minimum order quantity?
One set.
5. How long is the treatment?
Usually 60-120 minutes for each time, and rest once every ten days.
Hyperbaric oxygen therapy(HBOT) is a treatment where patient breathes pure oxygen while enclosedin a hyperbaric oxygen chamber at a pressure greater than one atmosphere, relying on oxygen'sphysical, chemical, and physiological effects to achieve the goal of treating diseases.
Under normal circumstances, oxygen is transported throughout the body only by red blood cells. With HBOT, oxygen is dissolved into all of the body's fluids, plasma, central nervous system, bones and thelymph, and can be carried to areas where circulation is diminished or blocked. In this way, extra oxygencan reach all damaged tissue and the body can support its own healing process. The increasedoxygen greatly enhances the ability of white blood cells to kill bacteria, reduces swelling and allowsnew blood vessels to grow more rapidly into the affected areas.
2.What is the oxygen concentration?
Reach medical oxygen level, oxygen concentration ≥93.
3.Delivery time
Less than ten units are in stock, and more than 15 units are in 30 days delivery ,for hyperbaric oxygen chamber and decompression chamber the delivery time is about 3 months(transportation time is extra).
4.What’s the minimum order quantity?
One set.
5. How long is the treatment?
Usually 60-120 minutes for each time, and rest once every ten days.
