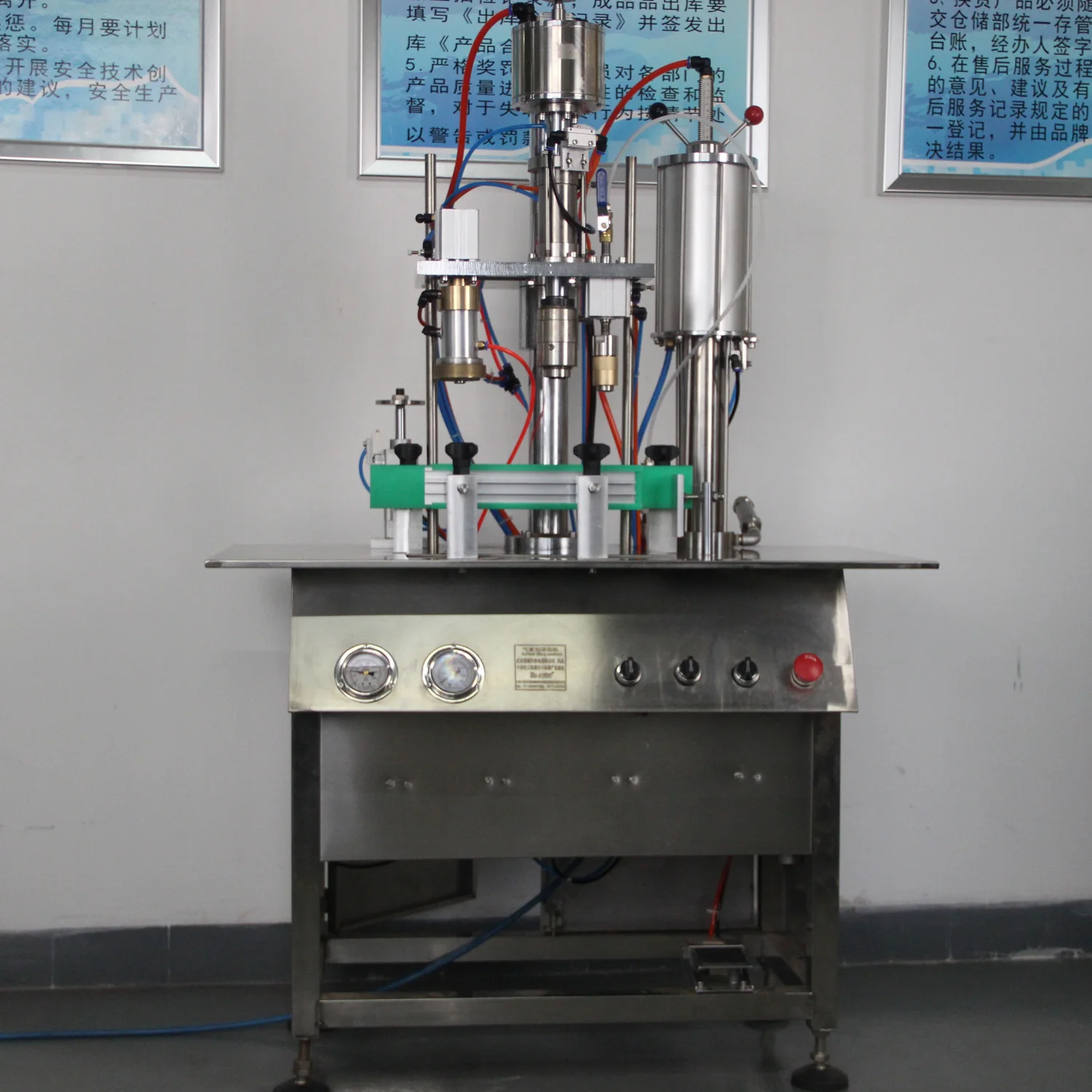

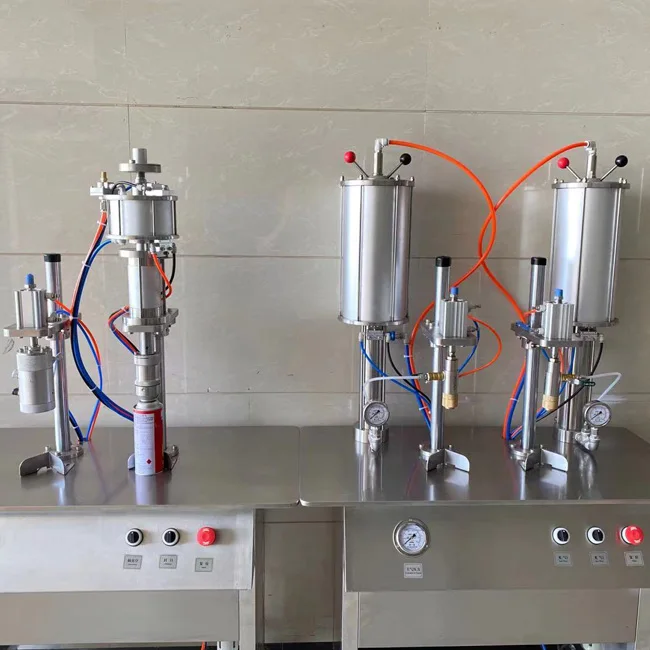

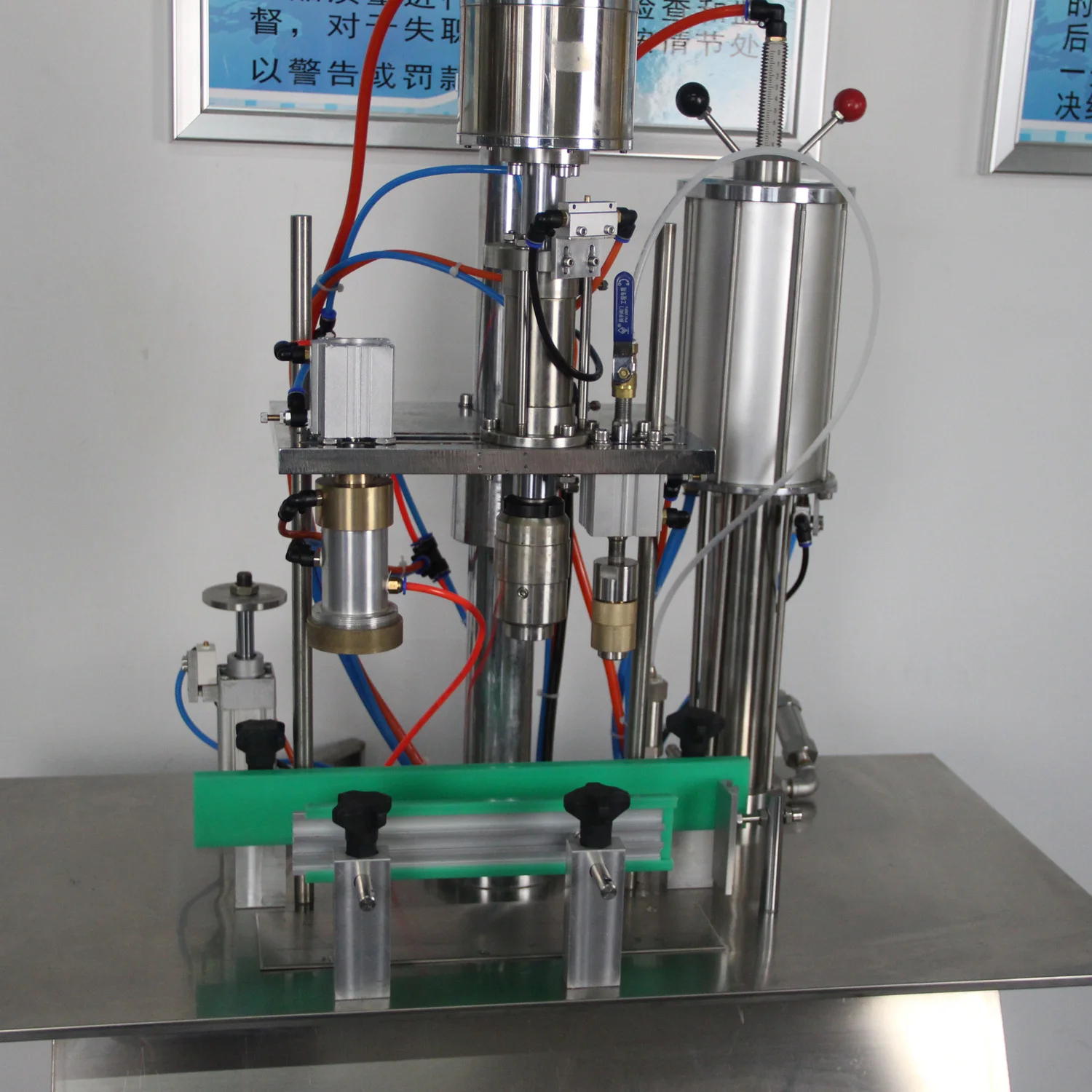

Semi Automatic LPG Gas Butane Gas Filling Machine For Butane Gas Cassette / Refill Can
- Category: >>>
- Supplier: Wuhan Jie Swisu Mechanical & Electrical Co. Ltd.
Share on (1600867110530):
Product Overview
Description
Product Description
Semi-Automatic Aerosol Oxygen Filling Machine-1600D
Machine Function Description:

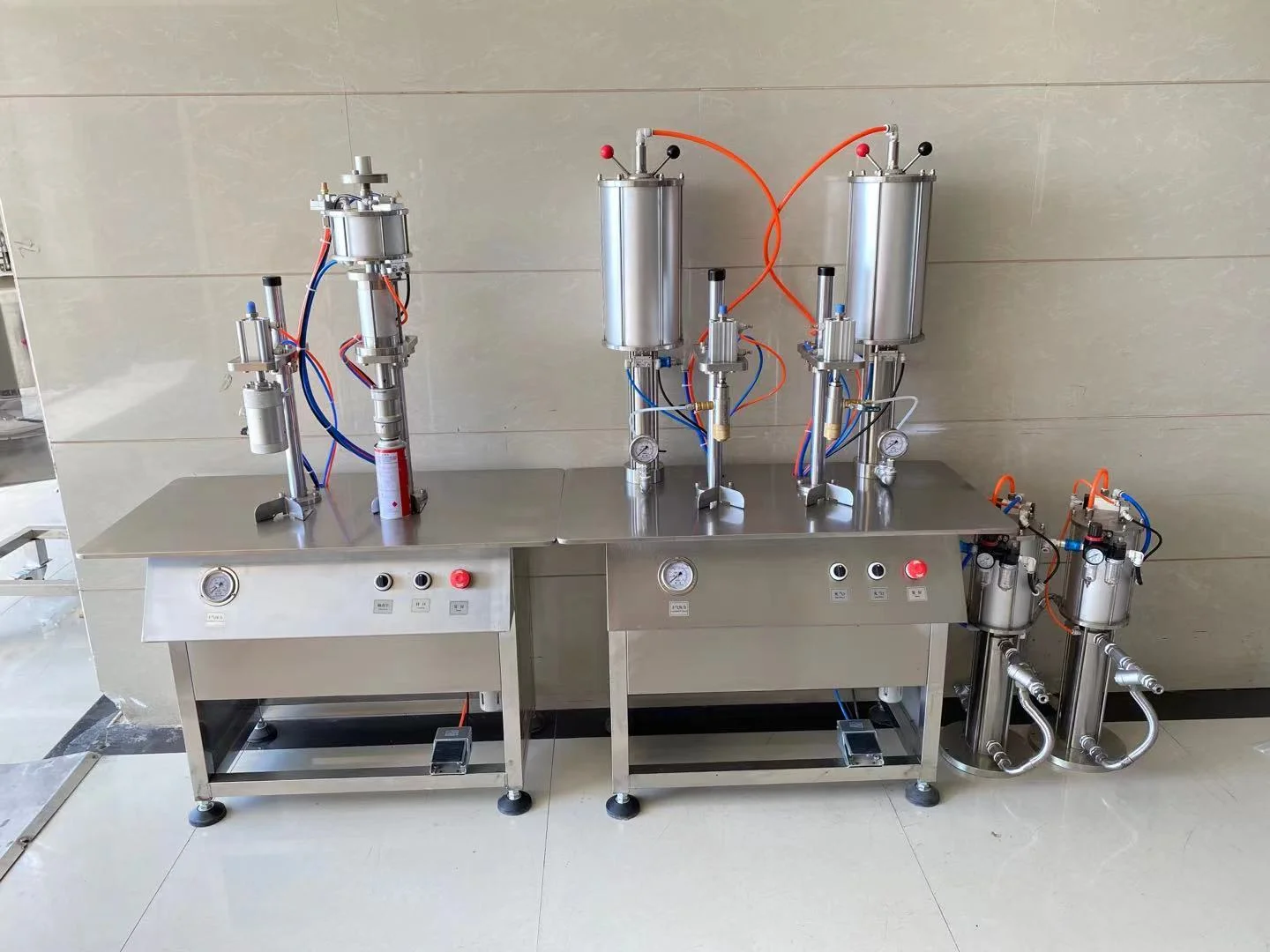

This equipment is pneumatic, uses the compressed air as power, no electricity, safe and reliable, and widely used for filling butane gas cartridge alp cooker, cassette gas and mini cooker filling. We design 1 vacuum and 1 crimping on one table , the 2 gases fillers in one table. For our experience, the vacuum and crimp speed will faster than gas filler, “double gas filling system” can improve the production rate.
Machine Highlights:

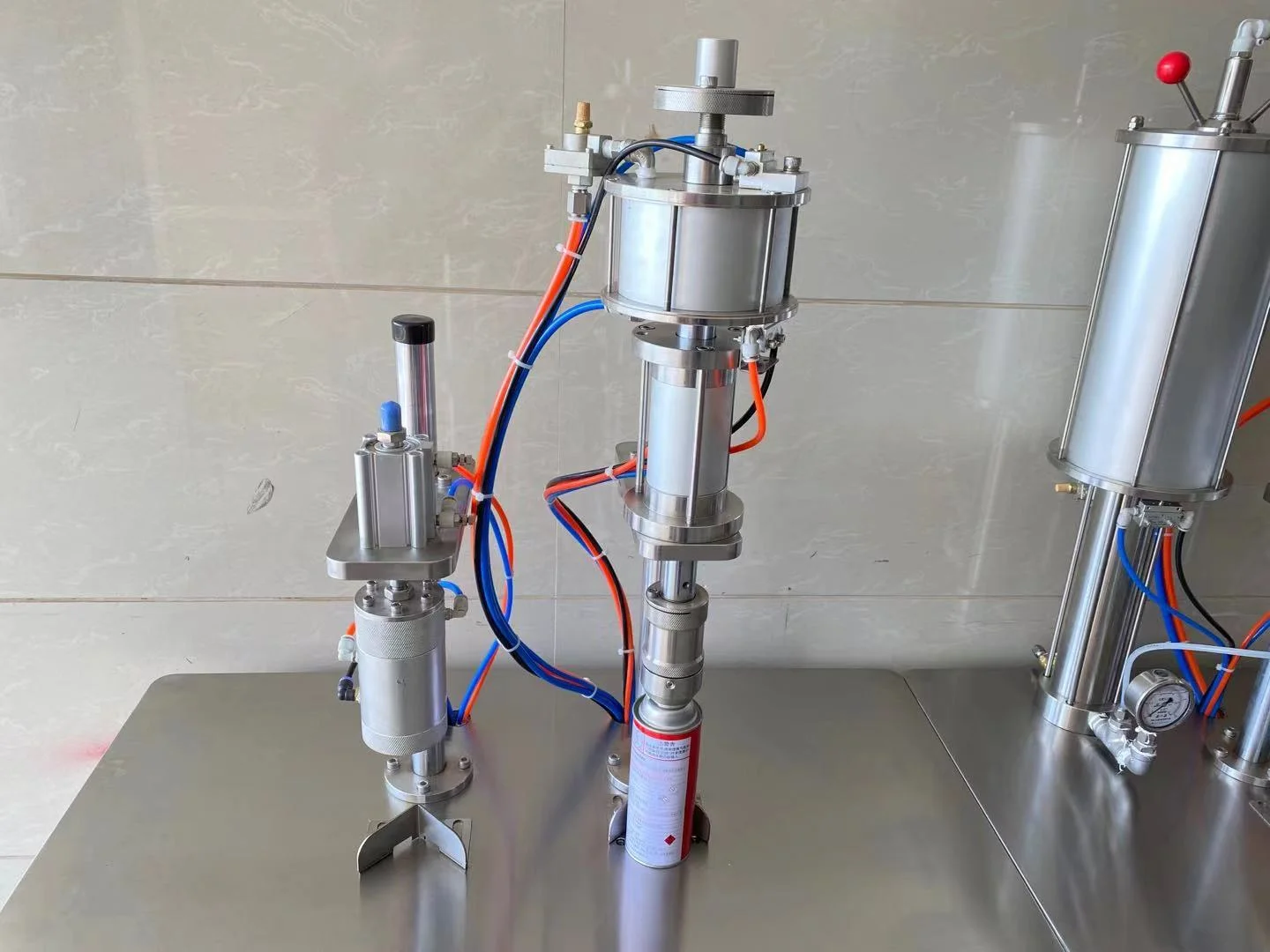

(1)Vacuum machine: As per to the national laws and industry standards, the cooking gas cartridge products should be evacuation before sealing. It can control the inner pressure with a safety level. And improve the purity of cooking gas. This machine use pneumatic vacuum generator, vacuum pressure can be setting on the machine.

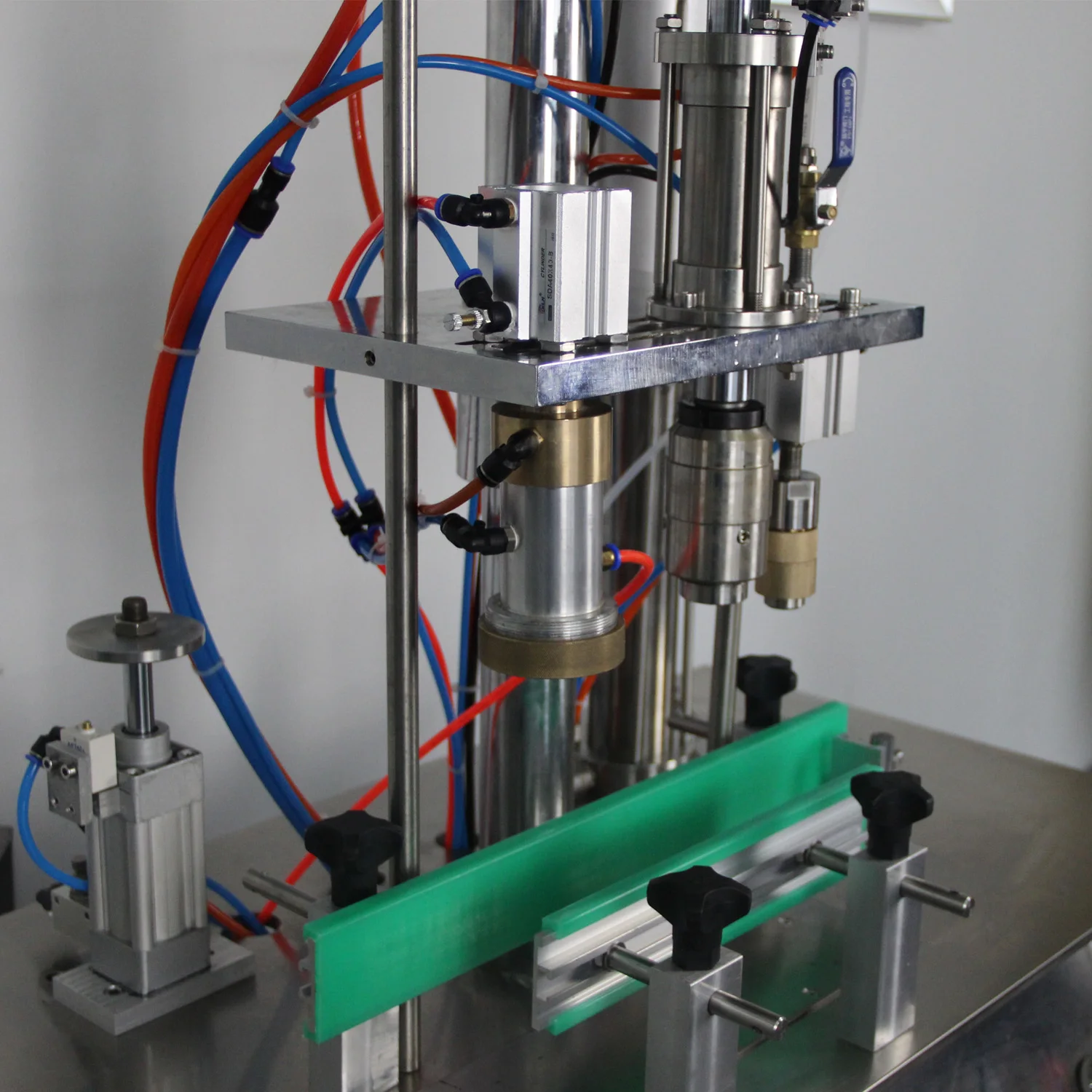

(2)Crimping machine :The Sealing diameter and depth are easy to adjust, and sealing quality is reliable. With high sealing speed, reliable sealing quality, as well as simple operation, adjustment and maintenance requirement. The machine is specially used for internal inflating sealing of global and universal 1-inch butane gas torch valve.

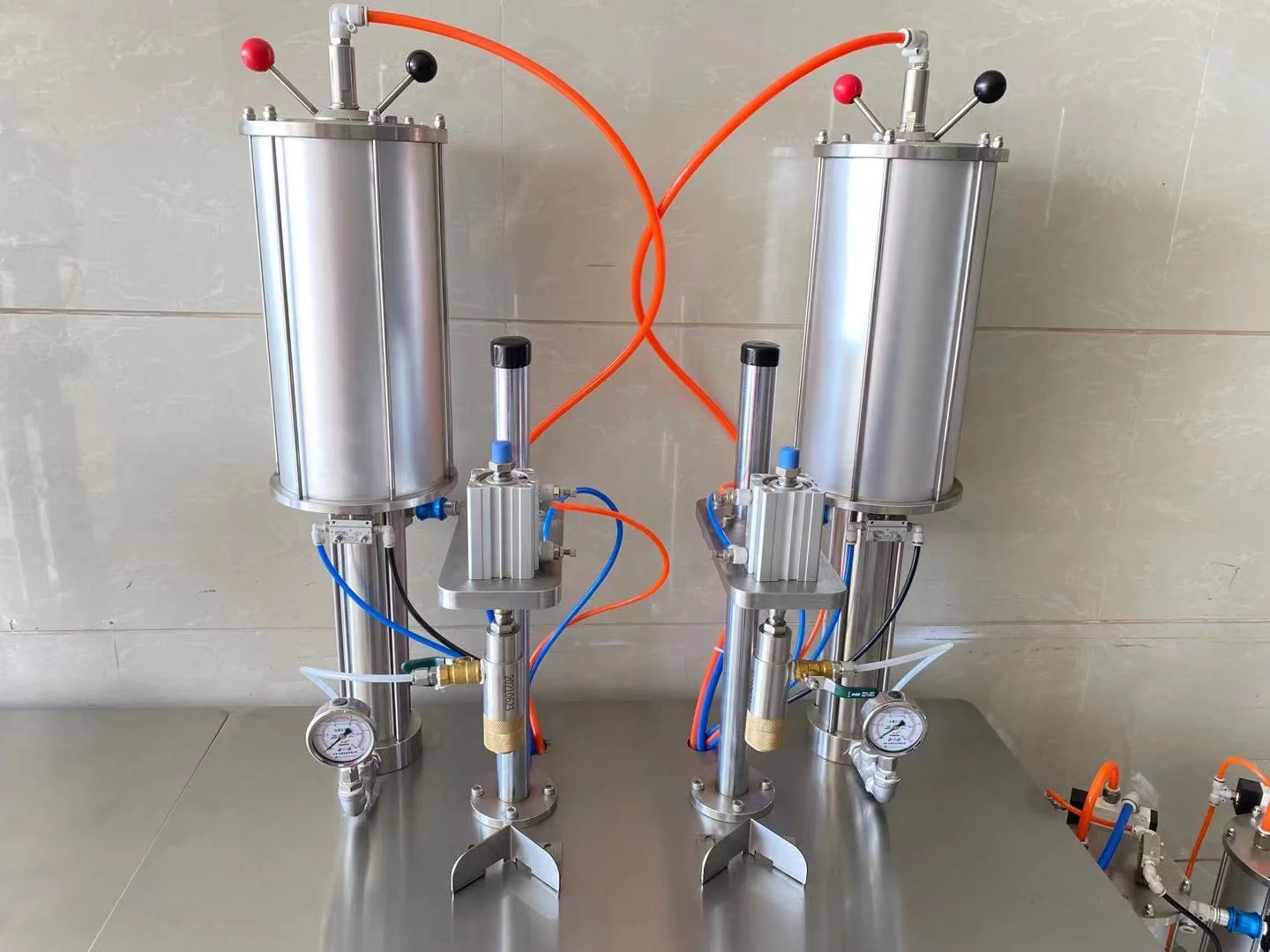

(3)Gas filling machine and boost pumps: The gas filling machine has fully absorbed the advanced filling machine technology from the Swiss Pamasol Company. It equipped with two-way pressurized booster pump, which can pressurize Butane (or butane propane mix gas)up to 1.0-1.5 Mpa and fluidize the gas. so as to accelerate filling speed and accurate measuring. The maximum filling capacity is 250g,the filling accuracy is ± 1%. It has small-occupied area and simple operation, belonging to economical aerosol production equipment. Weigh checker and water bath tank can be optional.
Machine Specifications:
Production capacity: | 250grams cartridge: 600-800cans/hr 220grams cartridge: 800-1000cans/hr 150grams cartridge: 1000-1200cans/hr |
Gas filling accuracy | ≤±1% |
Working Pressure: | 0.65-1.0Mpa |
Air consumption: | 1.2 m3/min |
Applicable aerosol can diameter | 35-66mm (other diameter can be customized ) |
Applicable aerosol can height | 70-330mm |
Available valve: | 1”(25.4mm) L type valve or non-core valve |

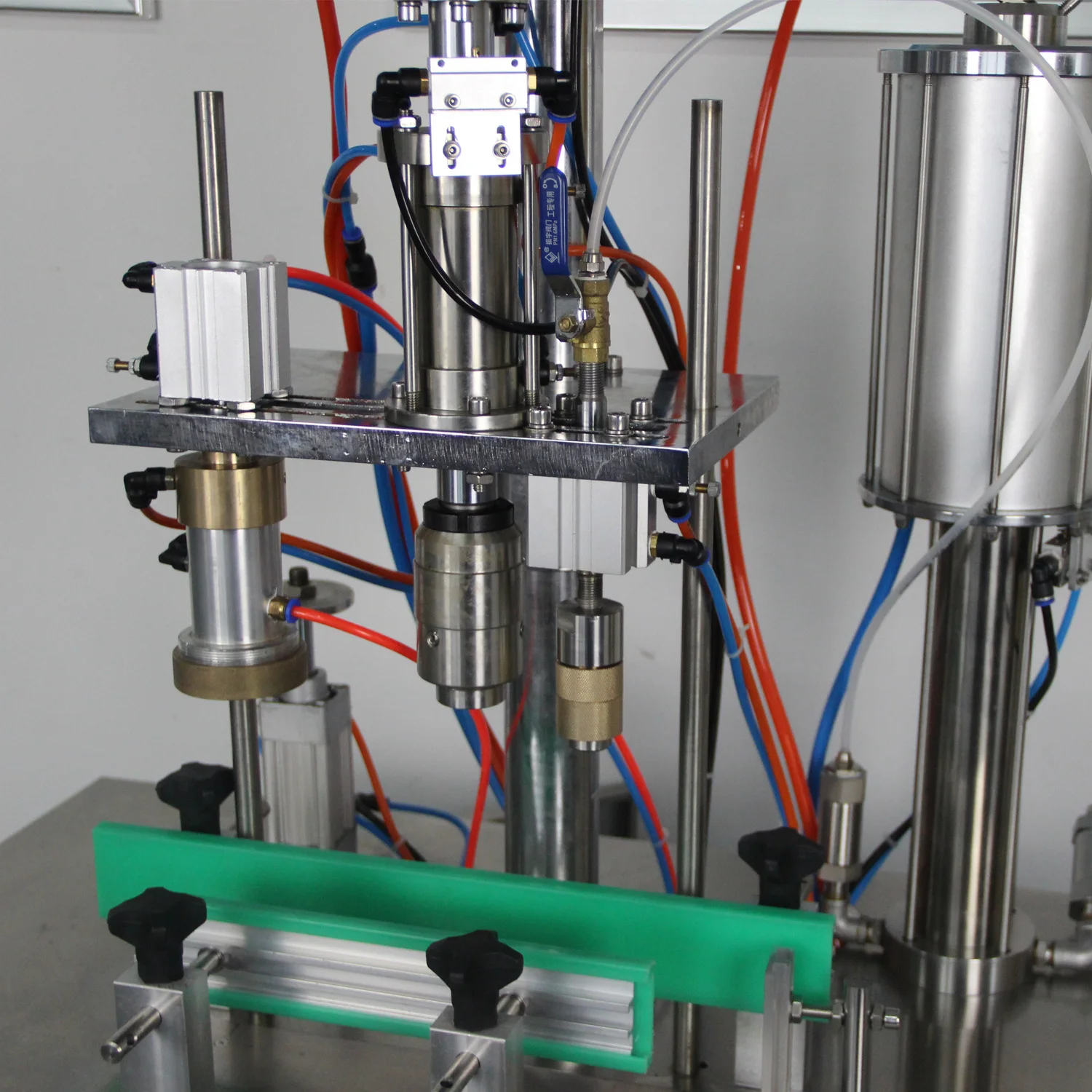

Machine Details:
Packaging & Shipping

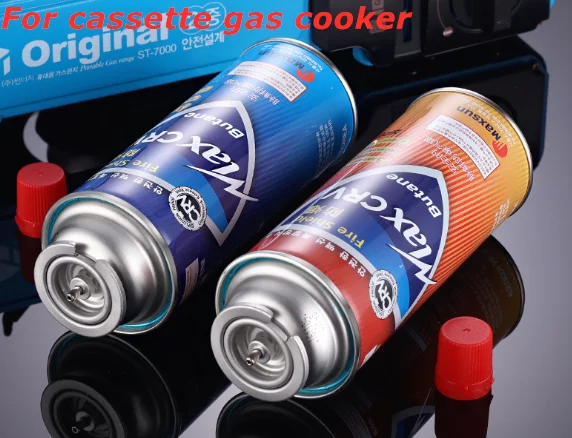

Application:

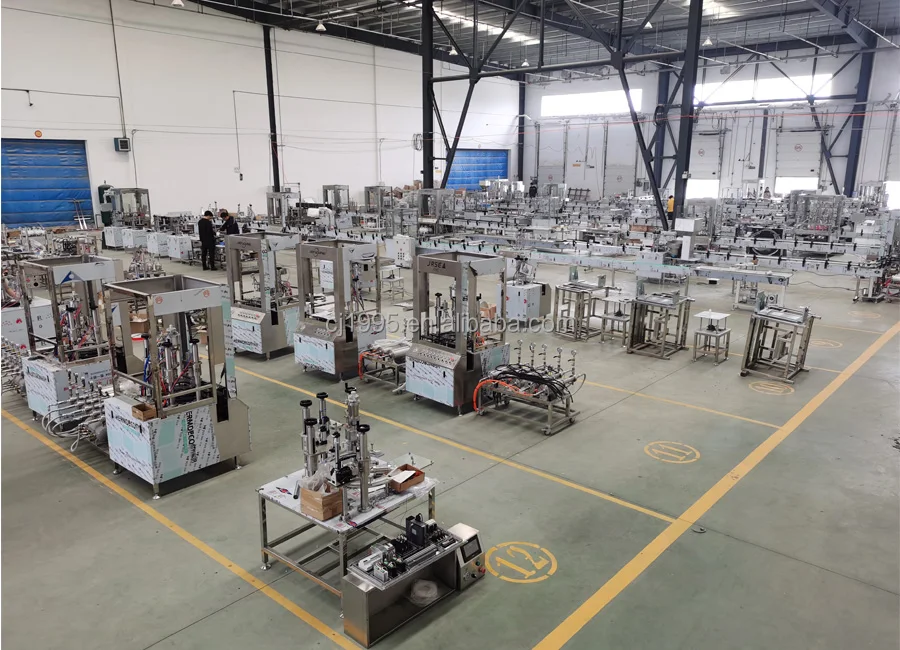

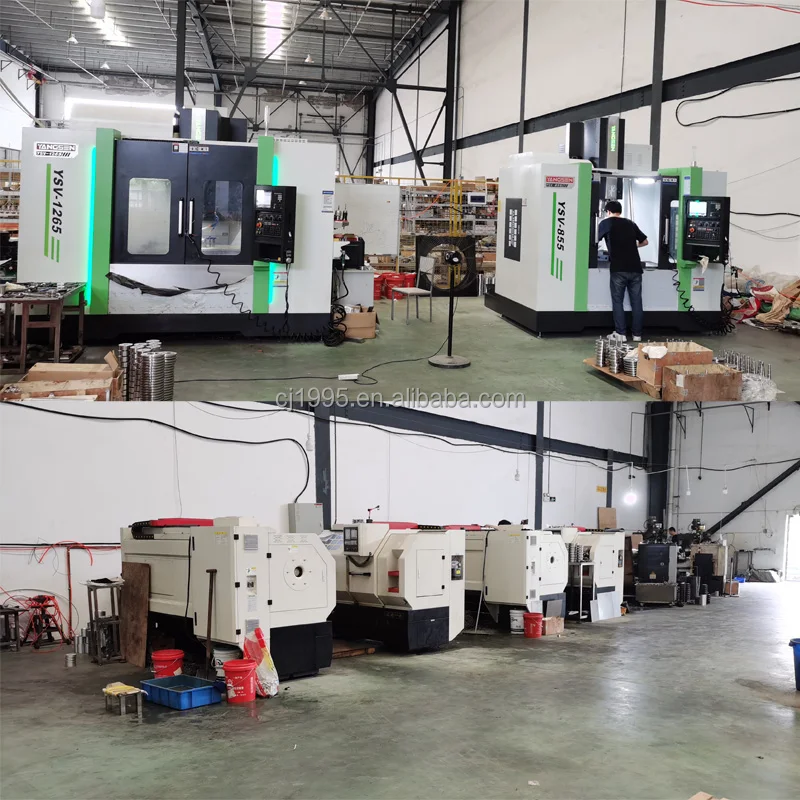

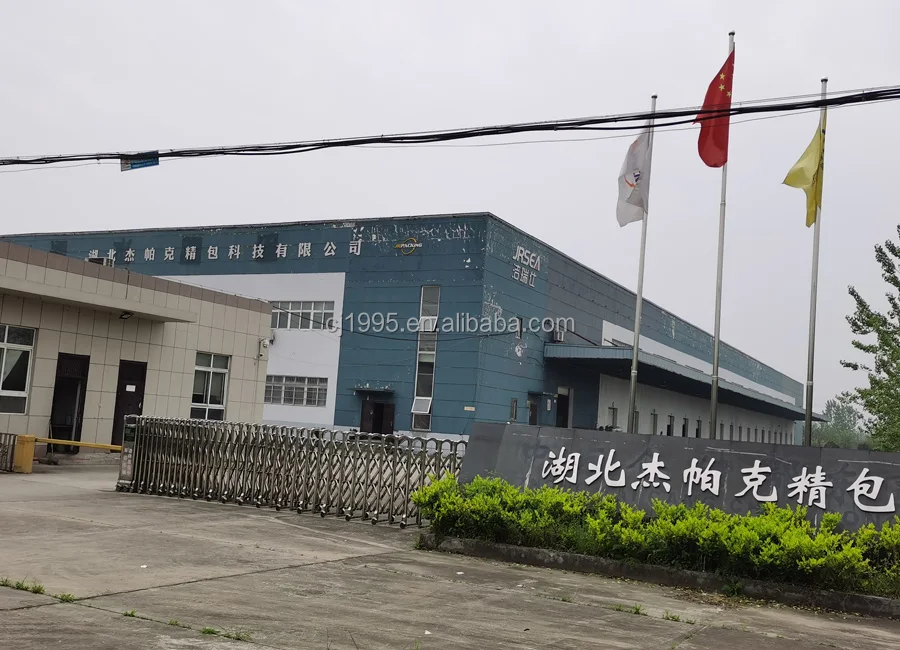

Company Information
Our Services
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory specialized in R&D of aerosol filling machines for over 15 years.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Wuhan, China. You could visit us by air to Wuhan Tianhe Airport or by high-speed train to Wuhan railway station, then we will pick you up to our factory.
Q3: How does your factory do regarding quality control?
A3: Quality is a priority. People from our company are always attached great importance to quality controlling from the beginning to the end. We support to inspect the machine before shipment. Our factory has gained ISO authentication.
Q4: What's the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide a one-year guarantee from the delivery date. If there is any wearing part be broken within the warranty and isn't caused by an improper operation then we would offer then new parts for free.
Q5: How about the after-service?
A5: We could send our engineer to install or fix the machine in site, but the customer needs pay the round air ticket cost and arrange the hotel accommodation for our engineer.
A1: We are a factory specialized in R&D of aerosol filling machines for over 15 years.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Wuhan, China. You could visit us by air to Wuhan Tianhe Airport or by high-speed train to Wuhan railway station, then we will pick you up to our factory.
Q3: How does your factory do regarding quality control?
A3: Quality is a priority. People from our company are always attached great importance to quality controlling from the beginning to the end. We support to inspect the machine before shipment. Our factory has gained ISO authentication.
Q4: What's the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide a one-year guarantee from the delivery date. If there is any wearing part be broken within the warranty and isn't caused by an improper operation then we would offer then new parts for free.
Q5: How about the after-service?
A5: We could send our engineer to install or fix the machine in site, but the customer needs pay the round air ticket cost and arrange the hotel accommodation for our engineer.
