High Accuracy and High Speed Touch Screen Mini Automatic Checkweigher Check Weigher Weighing Scale for Small Product
High Accuracy and High Speed Touch Screen Mini Automatic Checkweigher Check Weigher Weighing Scale for Small Product
High Accuracy and High Speed Touch Screen Mini Automatic Checkweigher Check Weigher Weighing Scale for Small Product
High Accuracy and High Speed Touch Screen Mini Automatic Checkweigher Check Weigher Weighing Scale for Small Product
High Accuracy and High Speed Touch Screen Mini Automatic Checkweigher Check Weigher Weighing Scale for Small Product
High Accuracy and High Speed Touch Screen Mini Automatic Checkweigher Check Weigher Weighing Scale for Small Product
High Accuracy and High Speed Touch Screen Mini Automatic Checkweigher Check Weigher Weighing Scale for Small Product

High Accuracy and High Speed Touch Screen Mini Automatic Checkweigher Check Weigher Weighing Scale for Small Product

Share on (1600867178684):


Price:$800.00 - $1,000.00

Quantity:


Product Overview

Description





Product Specifications

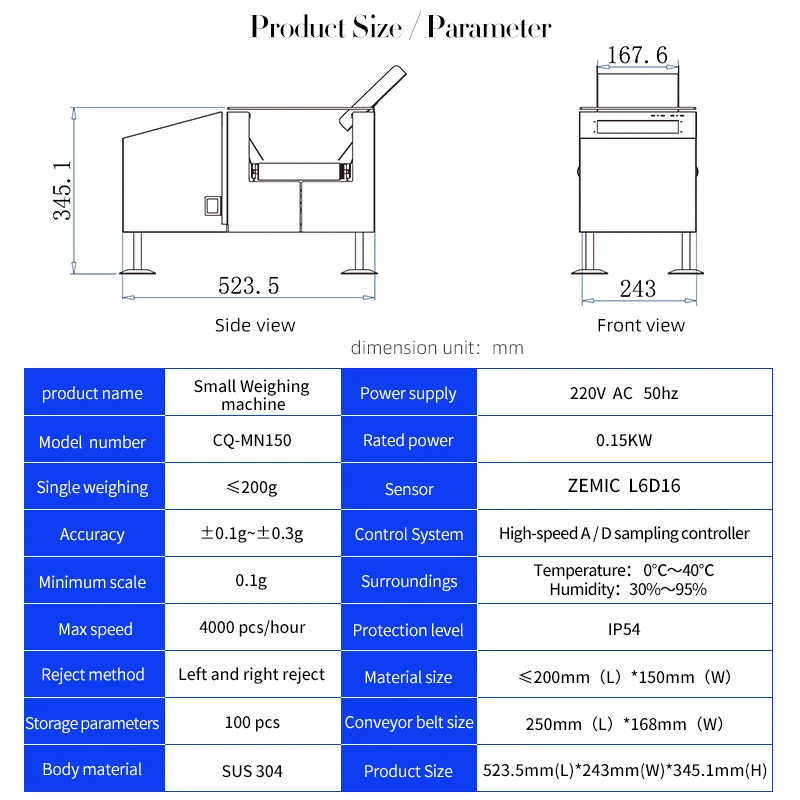

Model

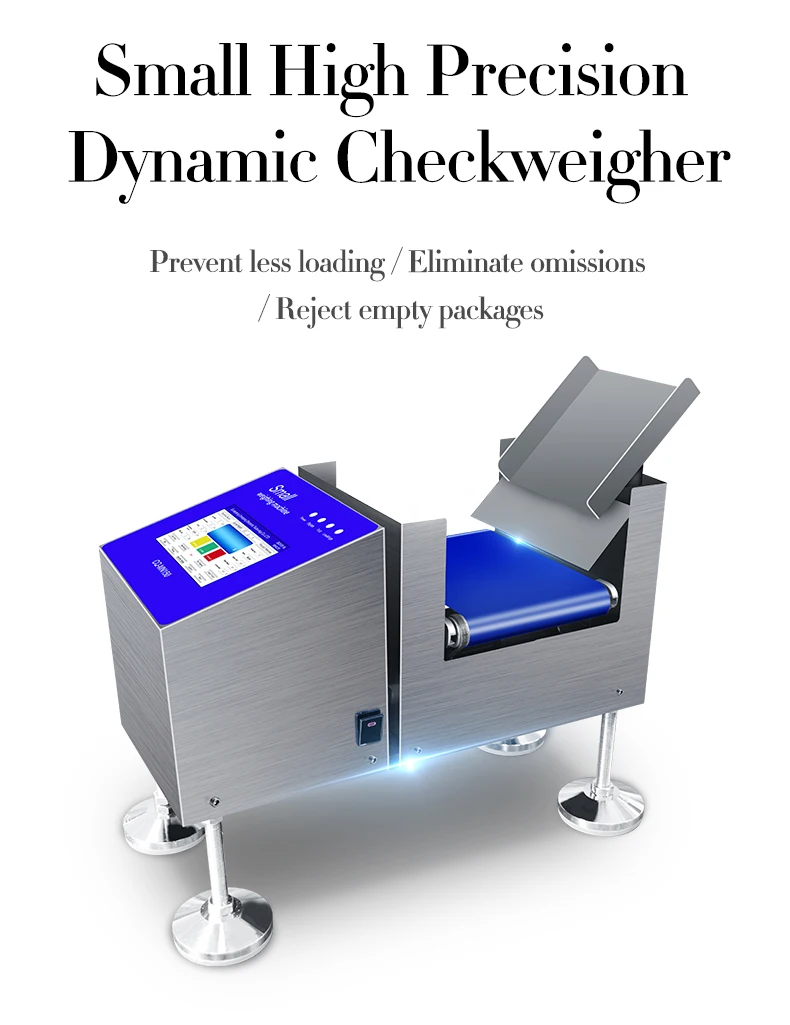

CQ-MN150 Mini Automatic Checkweigher Check Weigher Weighing Scale connected with Vertical Packaging Machine
Power Supply
220V(AC) 50Hz
Weighing Accuracy:
±0.2g(can identify materials with a single weight of 0.3 g and above 0.3 g)
Belt Speed
0-50m/min
Speed
4000pcs/H

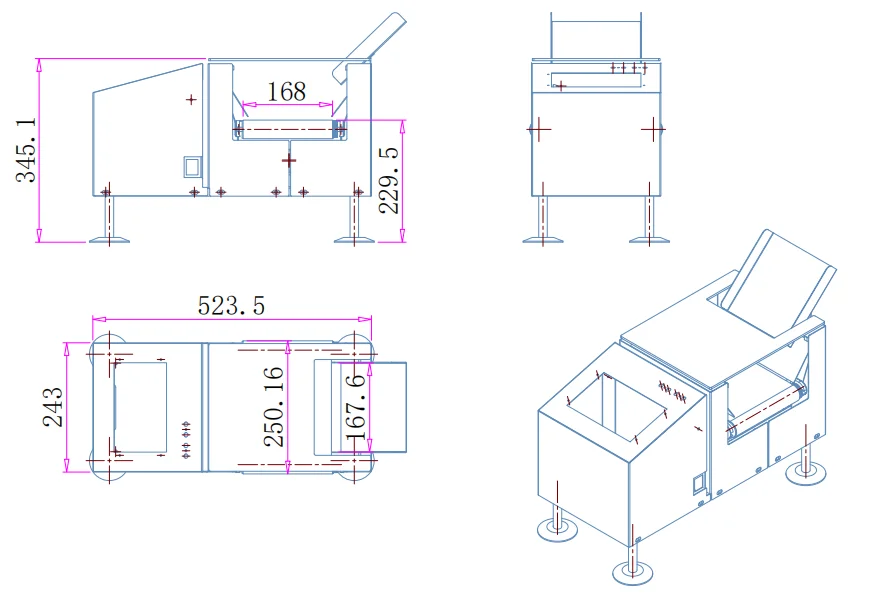

Product size
L200mm*W150mm
Display
7-inch highlight touch screen
Maximum weighing
200g
Weighing conveyor belt
L250mm*W168mm
Inlet height
420±30mm
Scale platform height
230±30mm

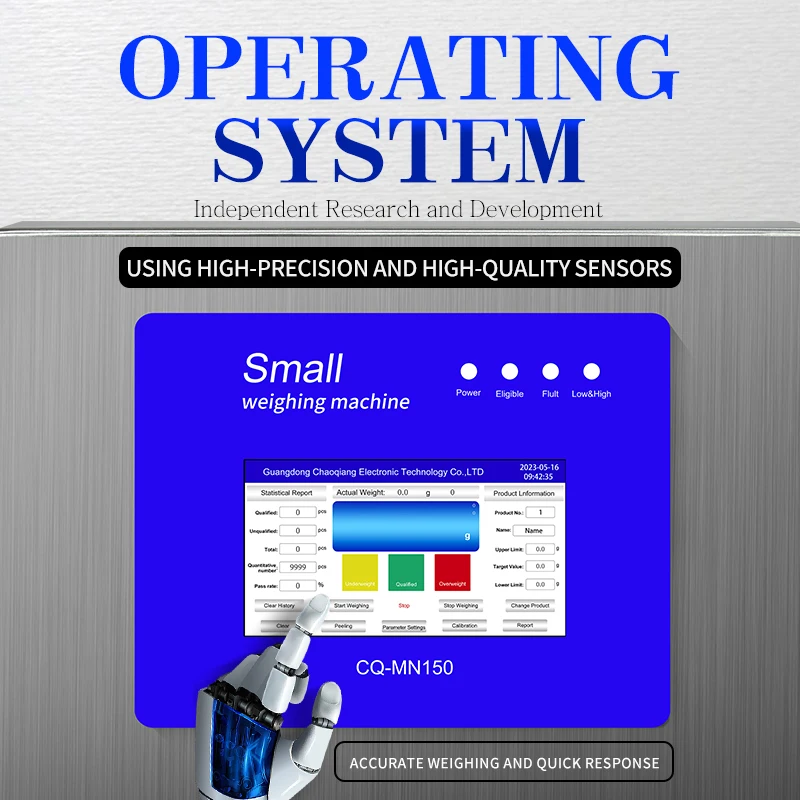

✱Man-machine interface: Customized 7-inch high-definition touch screen, sensitive and quick response to touch, clear text.
✱Weighing mode: pass, overweight, underweight have different icon display.
✱Weighing and sorting: qualified and unqualified flow out in different channels, and the qualified and unqualified channels can be switched freely.
✱Product storage: store the detection interval of 100 products, which can be searched, edited, called, and saved after power off.
✱Data statistics: can count the total number, qualified, not qualified, pass rate, quantitative number, when the quantitative number is equal to the qualified number, it can stop and alarm.

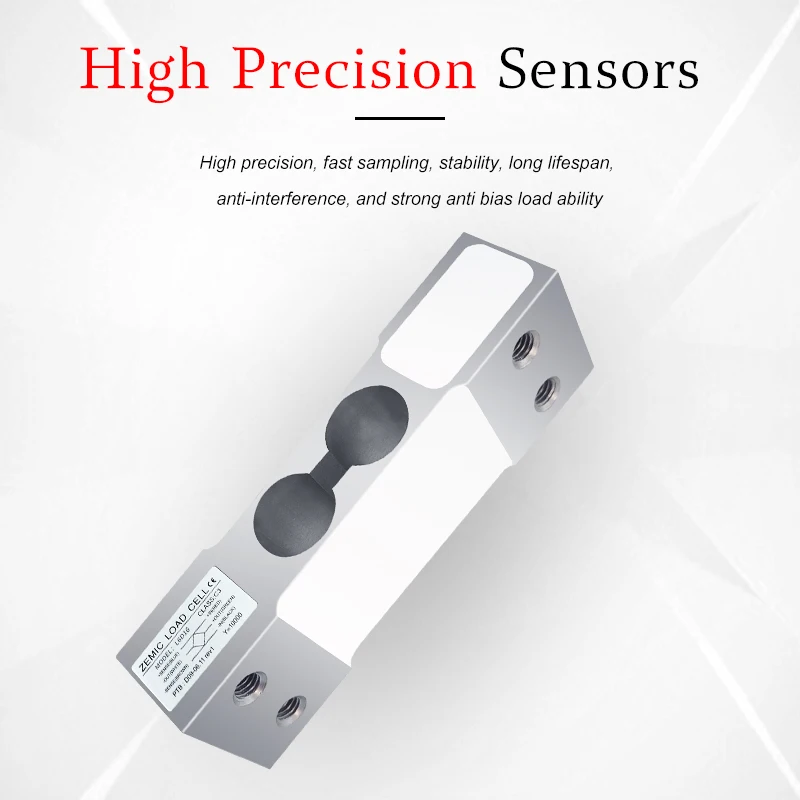

✱Weighing acquisition: high-speed AD weighing acquisition system.
✱Weighing accuracy: ±0.1 grams.
✱Resolution: 0.01 grams.
✱Weighing speed: High speed mode can reach 4000 pieces/hour.
✱Automatic zero tracking: automatic zero tracking.
✱Parameter saving: Product parameters and setting parameters can be saved after power off.

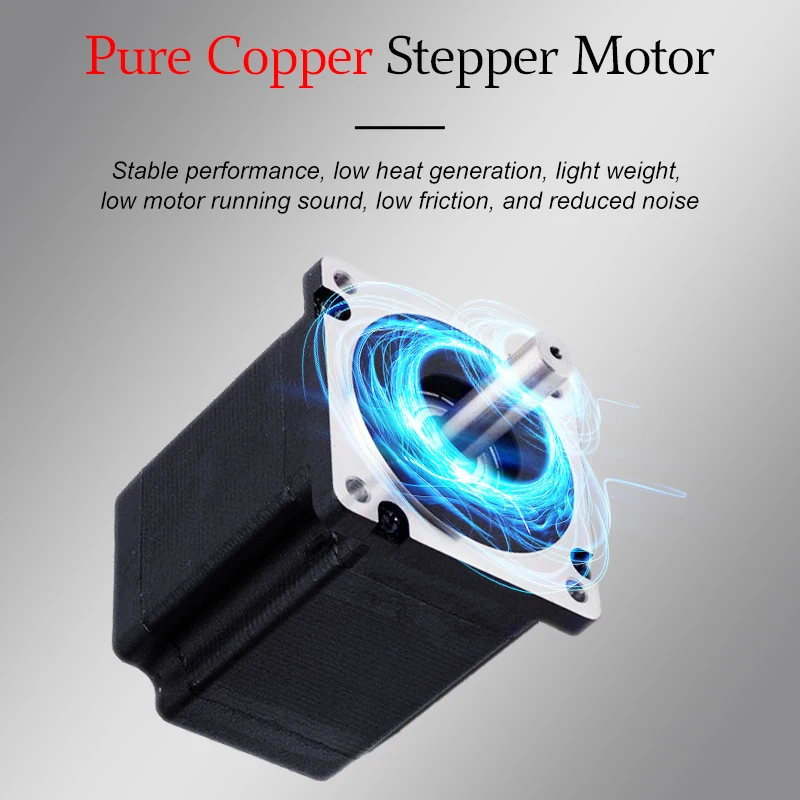

✱Step speed regulation: The belt speed can be adjusted according to the requirements.
✱Multi-language: Chinese and English by default, can be changed as needed.
✱Data export: You can export detailed statistical data, qualified, out of tolerance, total, etc. (optional).
✱External communication: external 485 communication can be connected, and free agreement is supported (optional). ✱Protection level: IP54
✱Power supply: 220VAC, 50Hz, 60-120w power consumption, 100v-270v single-phase power supply, complete and reliable grounding.


Product details




Company Profile










FAQ


1.How long of the warranty period?
Whole machine 1year. In warranty period, We will send the part free to replace the one that is broken
2.How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction.
3.What is your terms of payment?
T/T,L/C,Western Union, etcA:T/T 30% as deposit,and 70% before delivery.We'll show you the?photos?of the products and packages before you paythebalance.or 100% L/C at sight .
4.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.
5.Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.
