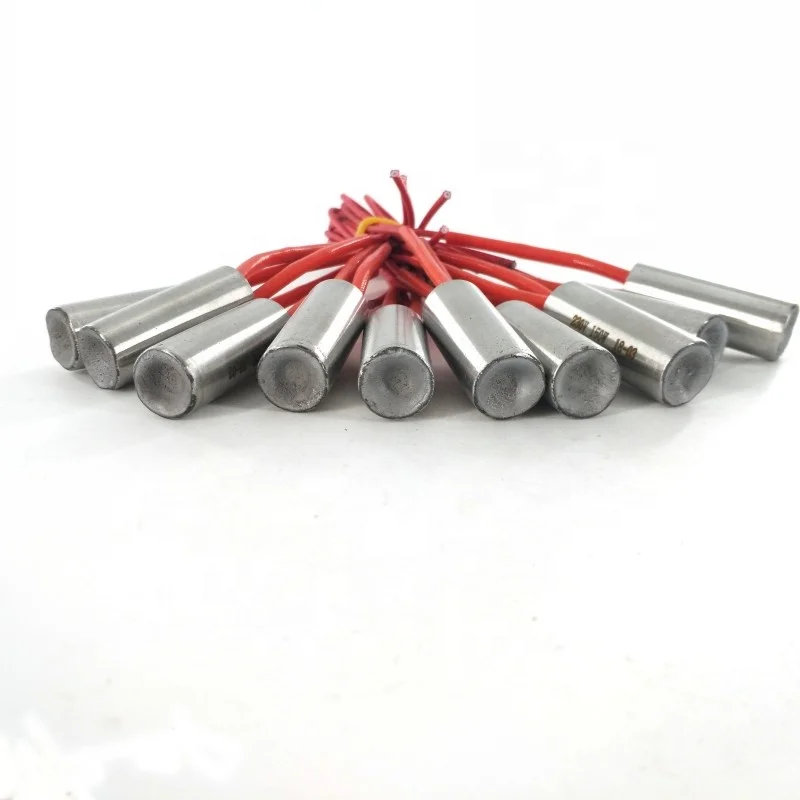

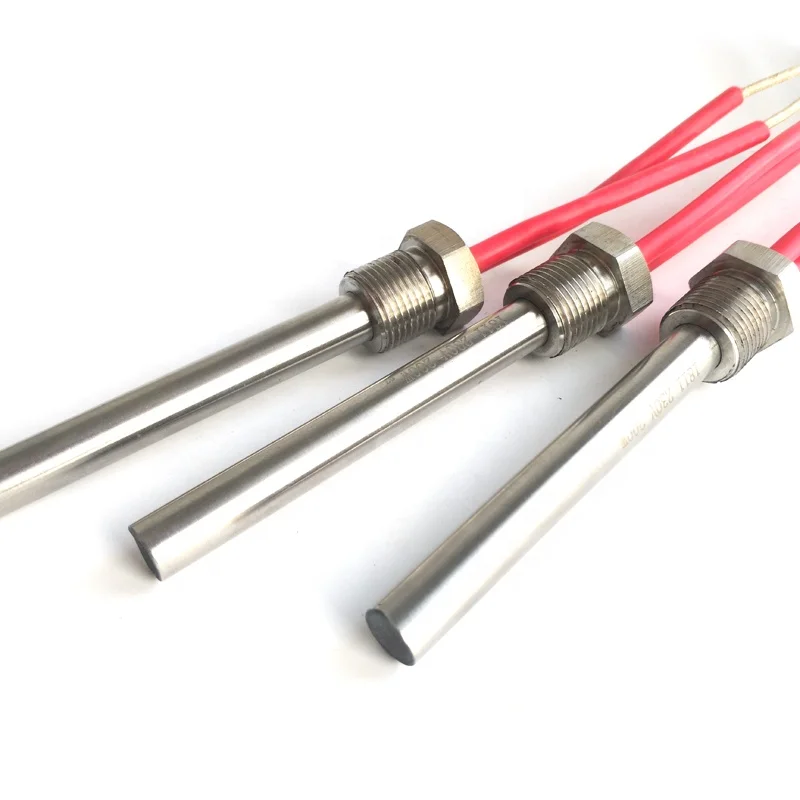

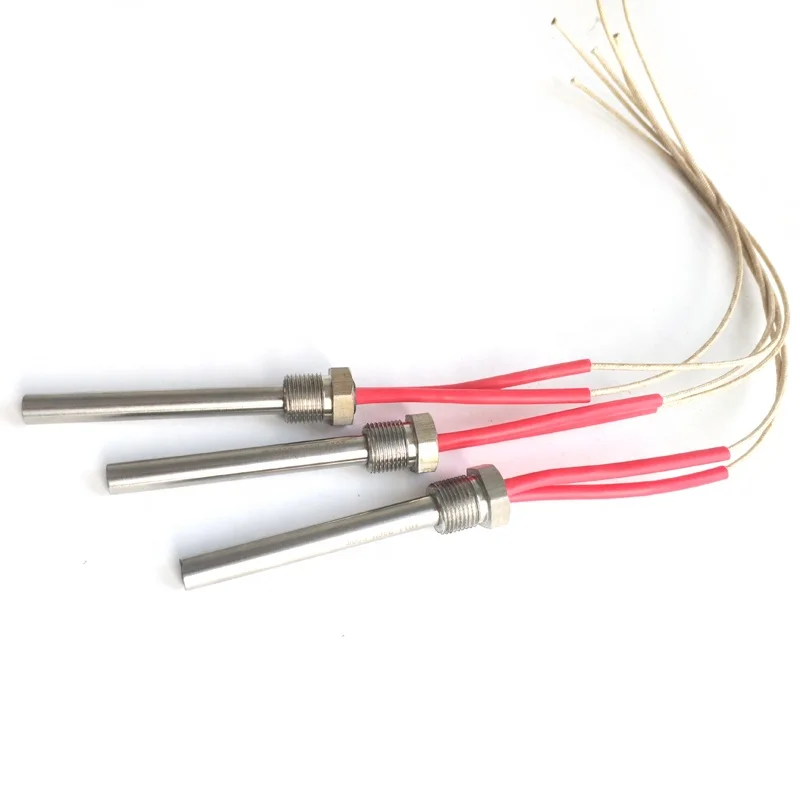

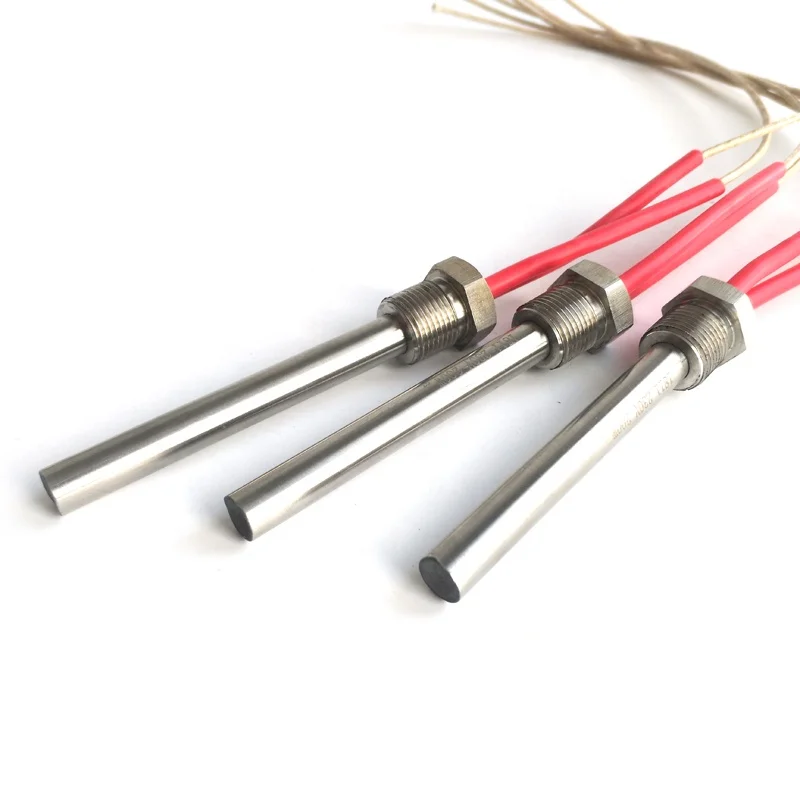

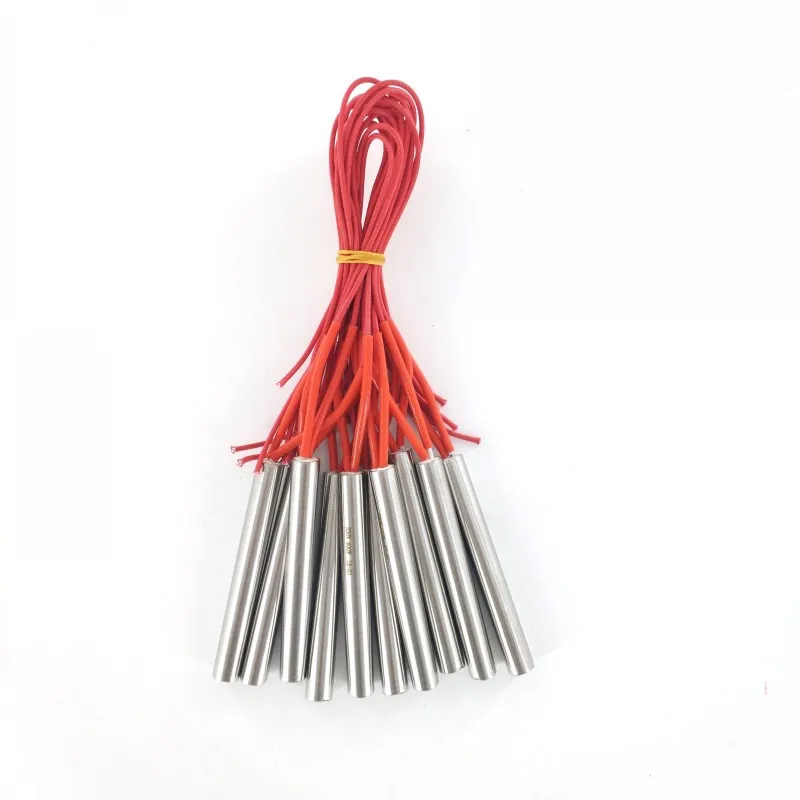

6mm diameter cartridge heater 3/4 inch thread cartridge heater heating element
- Category: >>>
- Supplier: Yancheng Songtai Electric Heating Element Factory
Share on (1600867256199):
Product Overview
Description

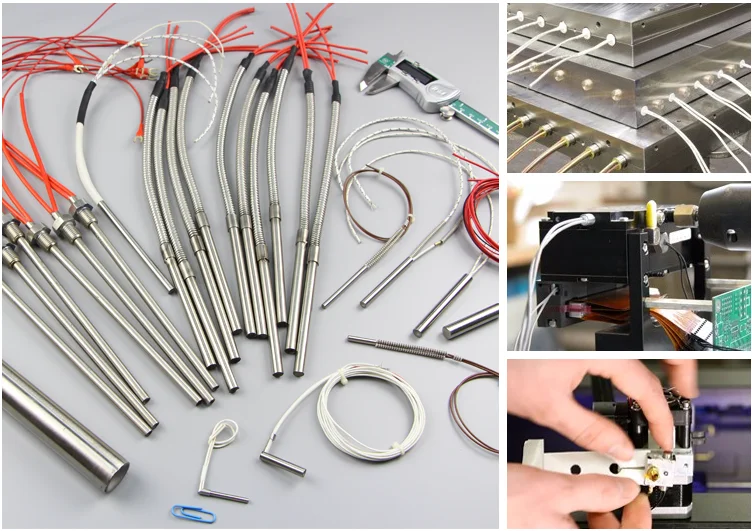

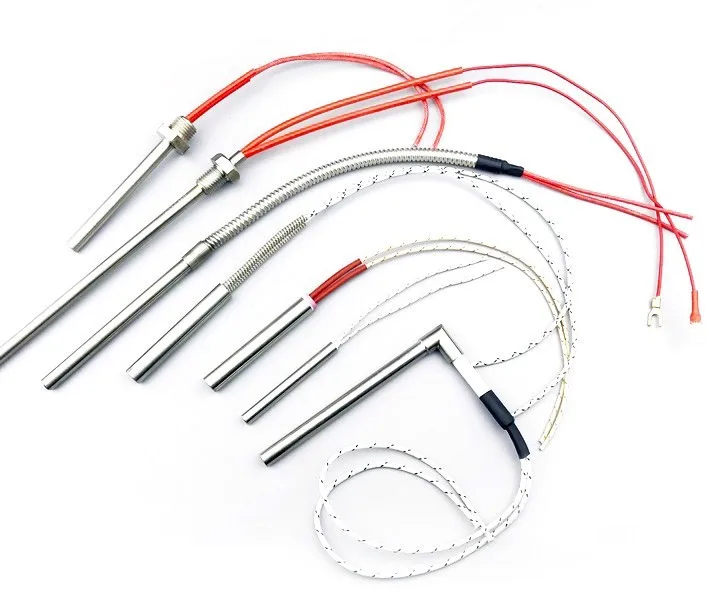

Cartridge Heater
Welcome to cooperate with us based on win-win situations.Please feel free to contact us .
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t
Flange Tubular Heater
Finned Tubular Heater
Tubular Heater
Silicone Rubber Heater
Infrared Heater
Coil Heater
\t\t\t\t\t\t\t\t\tProducts description \t\t\t\t\t\t\t

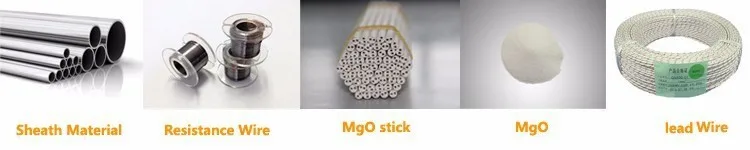

Outer Sheath Material | Stainless Steel 304, 321, 316; Incoloy 800; Incoloy 840 |
Resistance Heating Wire | NiCr 80/20 wire |
Wattage Tolerance | +5%, -10% |
Resistance Tolerance | +10%, -5% |
Maxium Heating Temperature | 800 Degree Celsius |
Voltage Available | 12V, 24V,48V,60V, 110V,230V,380V,480V. and other customized |
Length Tolerance | ±2% |
Diameter Tolerance | ±0.02mm |
Standard Cold Size | 5-10mm |
Insulation Resistance (cold) | ≥ 500 MΩ |
Maxium Leakage Current (cold) | ≤0.5 MA |
\t\t\t\t\t\t\t\t\tDetailed products \t\t\t\t\t\t\t

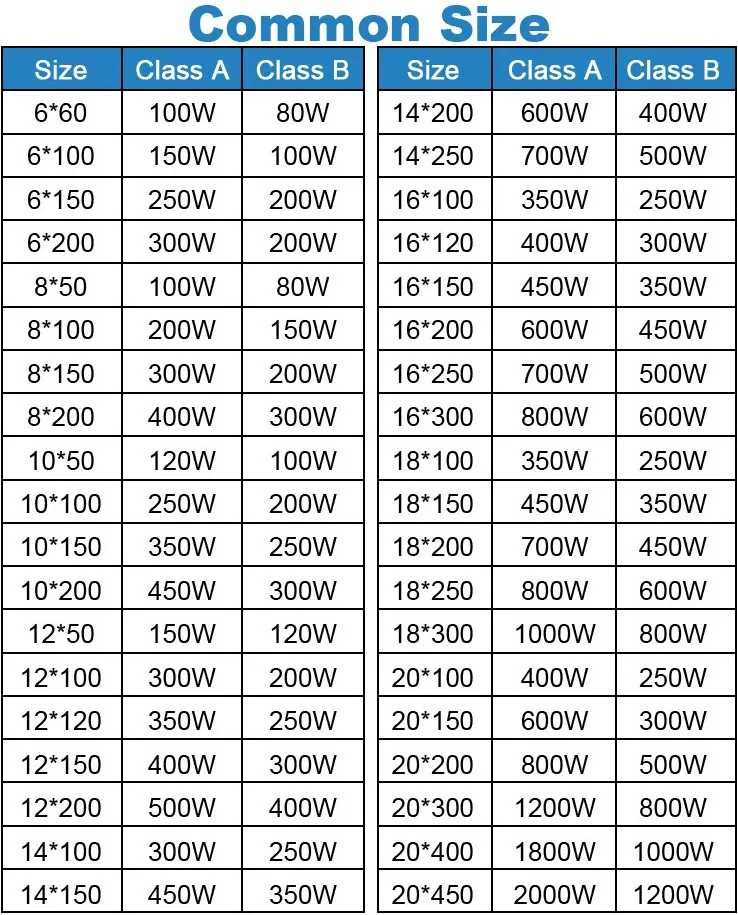

Specifications

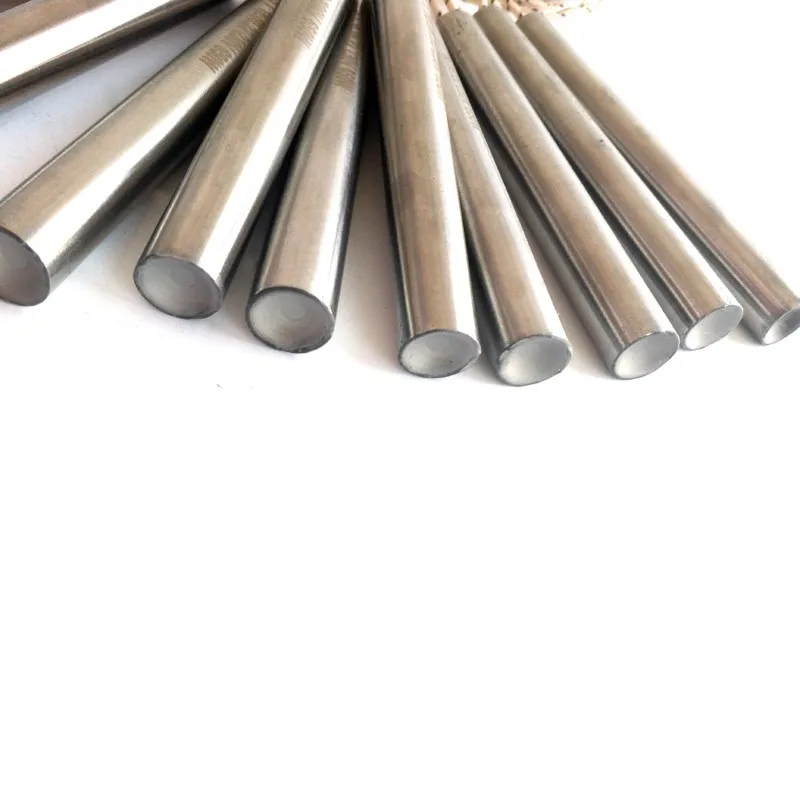

* High-Density Swaged Cartridge Heater
* Low density cartridge heater are available
* Various diameter from 3MM-38MM
* Good Alloy tube sheath for high corrosion resistance

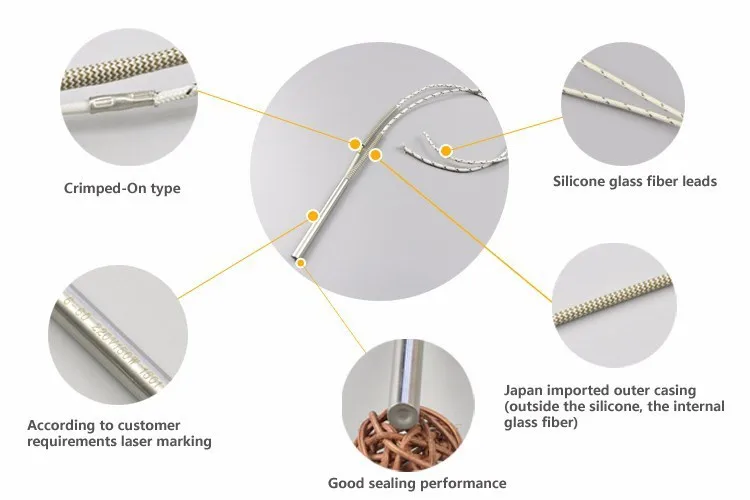

Main Features
* Imported resistance wire, ensure high density large wattge

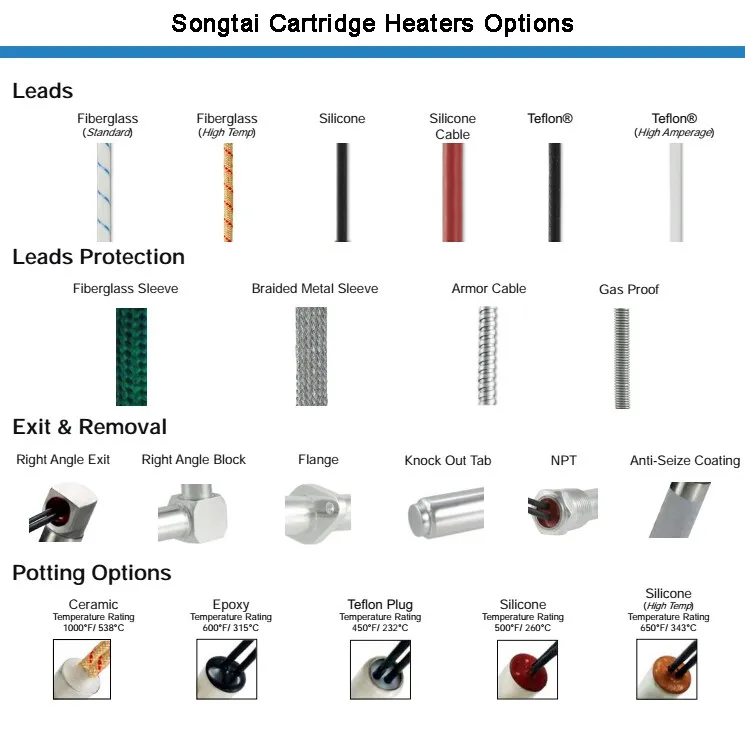

* Fasteners and flanges to meet a variety of installation requirements.* High temperature, wear-resistant, waterproof.
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
● Injection moulding-Internal heating of nozzle
● Hot runner systems-Heating of manifolds● Packaging industry-Heating of cutting bars
● Packaging industry-Heating of hot stamps
● Laboratories-Heating of analytical equipment
● Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood Warmer,Temperature Therapy
● Telecommunications:Deicing,Enclosure Heater
● Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
● Food Service:Steamers,Dish Washers,
● Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
\t\t\t\t\t\t\t\t\tCompany \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tCustomer Visit \t\t\t\t\t\t\t
Poland clients
American clients
American clients
Pakistan clients
\t\t\t\t\t\t\t\t\tExhibition \t\t\t\t\t\t\t
Contact US
Pls click below "Send" to get the free sample and quotation.
