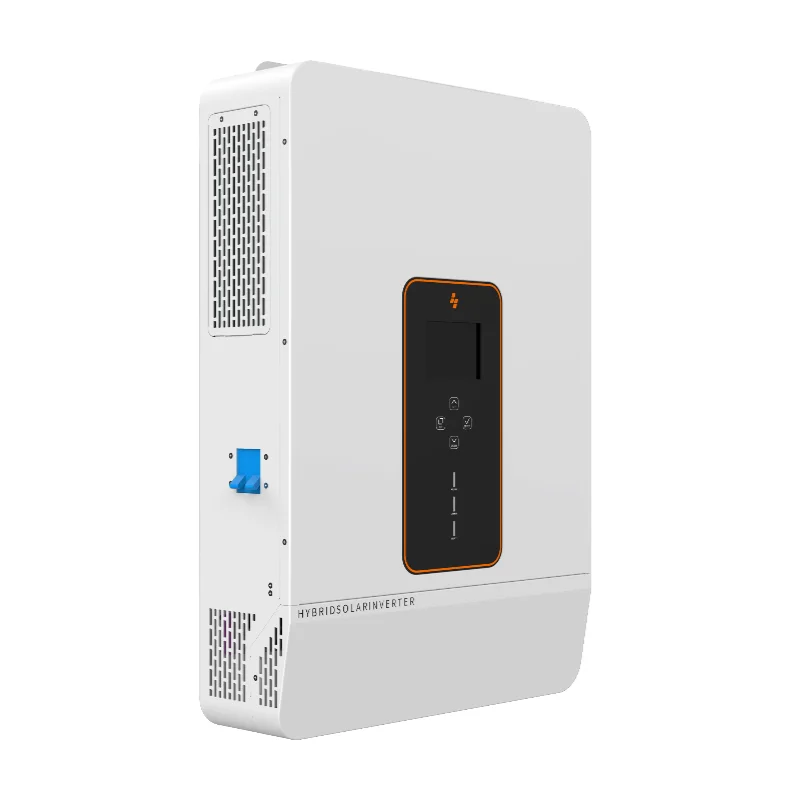

10KW 8KW DC 48V to AC 220V Solar Off Grid Pure Sine Wave Power Inverter
- Category: >>>
- Supplier: Foshan Maxgreen New Energy Technology Ltd.
Share on (1600867323196):
Product Overview
Description
Efficient
* Dual MPPT with up to 99.9% efficiency
* Up to 22A PV input current perfect for high power modules
* Up to 22A PV input current perfect for high power modules
Reliable
* Outputs high quality pure sine wave AC power
* 8-10kW load power to meet the needs of most households
* 8-10kW load power to meet the needs of most households
User-friendly
* Industrial design with a modern aesthetic look
* Easy to install and simple to use
* Easy to install and simple to use
Safety
* 360 degrees of security from hardware to software
* EU、IEC safety approvals
* EU、IEC safety approvals
All-in-one
* Solar Charger Controller up to 200A charging current
* Support for Li-ion battery BMS communication
* Support for Li-ion battery BMS communication
Intelligent
* Exclusive Li-ion battery BMS dual activation
* Time-slot function to save cost with peak-valley tariff
* Time-slot function to save cost with peak-valley tariff
Specification
Model | ASF4880U200-H | ASF48100U200-H | ||
INVERTER OUTPUT | ||||
Rated Output Power | 8,000W | 10,000W | ||
Max.Peak Power | 16,000W | 20,000W | ||
Rated Output Voltage | 120/240Vac（L1/L2/N/PE split phase） | |||
Load Capacity of Motors | 5HP | 6HP | ||
Rated AC Frequency | 50/60Hz | |||
Waveform | Pure Sine Wave | |||
Switch Time | 10ms（typical） | |||
BATTERY | ||||
Battery Type | Li-ion / Lead-Acid / User Defined | |||
Rated Battery Voltage | 48Vdc | |||
Voltage Range | 40-60Vdc | |||
Max.MPPT Charging Current | 200A | |||
Max.Mains/Generator Charging Current | 100A | 120A | ||
Max.Hybrid Charging Current | 180A | 200A | ||
PV INPUT | ||||
Num. of MPP Trackers | 2 | |||
Max.PV array power | 11,000W | |||
Max.input current | 22/22A | |||
Max.Voltage of Open Circuit | 500Vdc | |||
MPPT Voltage Range | 125-425Vdc | |||
EFFICIENCY | ||||
MPPT Tracking Efficiency | 99.9% | |||
Max. Battery Inverter Efficiency | 92% | |||
GENERAL | ||||
Dimensions | 620*435*130mm（2*1.4*0.4ft） | |||
Weight | 20kg（44lb） | 21kg（46.3lb） | ||
Protection Degree | IP20，Indoor Only | |||
Operating Temperature Range | -15~55℃,>45℃ derated （5~131℉，>113℉ derated） | |||
Cooling Method | Internal Fan | |||
Warranty | 2 Years | |||
CERTIFICATION | ||||
Safety | IEC62109-1, IEC62109-2,UL1741 | |||
EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | |||
RoHS | Yes | |||

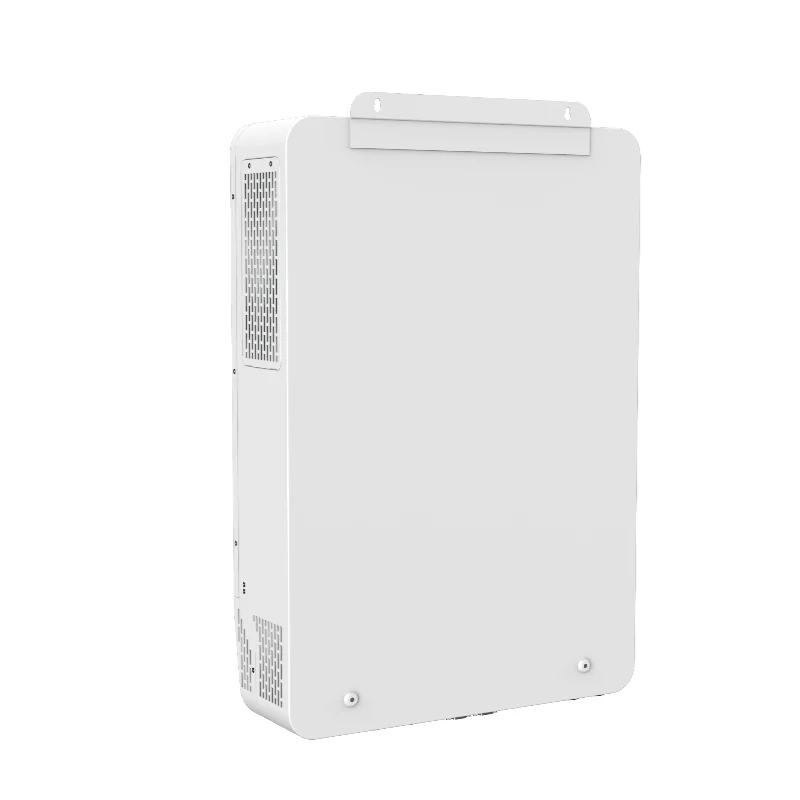

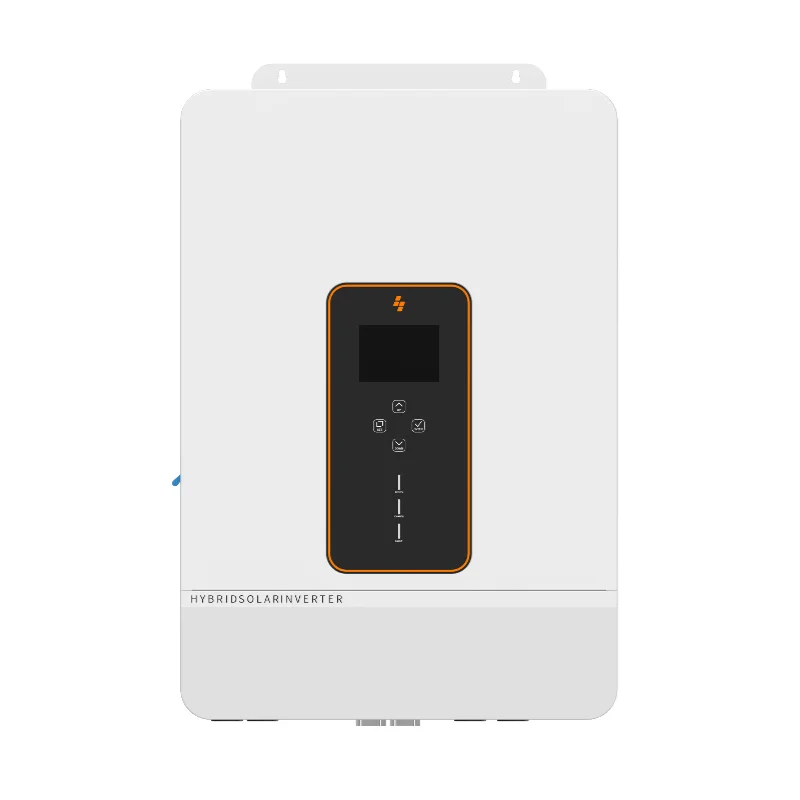

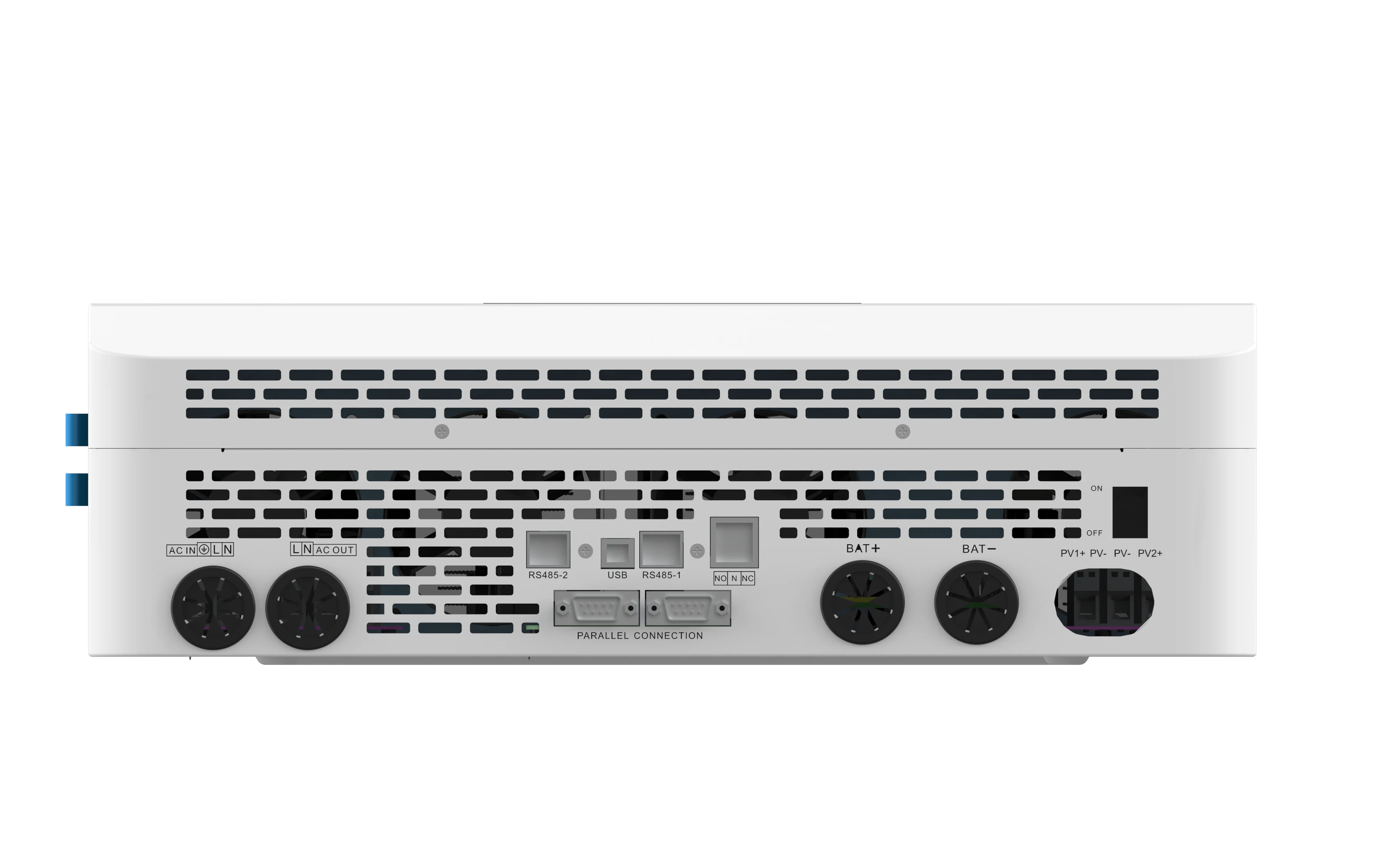

Details Images
Related Products

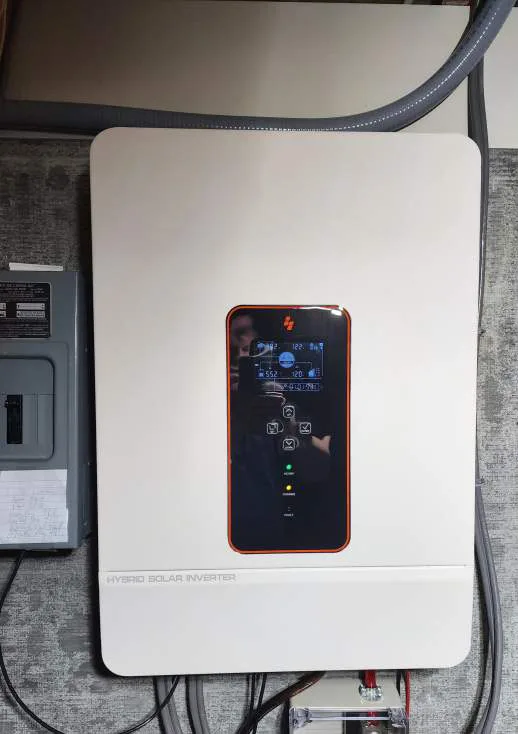

Product Application
Company Profile
Packing and Shipping
FAQ
Q1.What kind of certificates you have for your inverters?
A1:CE(IEC/EN62109-1,-2),ROHS2.0,cETL 2021
Q2.Are u a manufacturer or trading company?
A2:We are a state-level high-tech enterprise that integrates pluralism,R&D and manufacturing solar charge controller ,solar inverter charger
Q3.How can we guarantee quality??
A3:Always a pre-production sample before mass production and always final Inspection before shipment.
Q4.How inverter works??
A4:When there is mains supply available, then the system passes it to the load.
Simultaneously it also charges the battery (ies) to store the power with the help of inbuilt charger. As there is a failure of mains supply, the equipments supply is transferred from battery through inverter. Again when mains arrives, the load is again transferred to the mains supply.Q5.How is your customers service?
A5:All solar product will be tested strictly one by one before leaving factory.And the defective rate is below 0.1% we do try our best to provide a good customer service.
