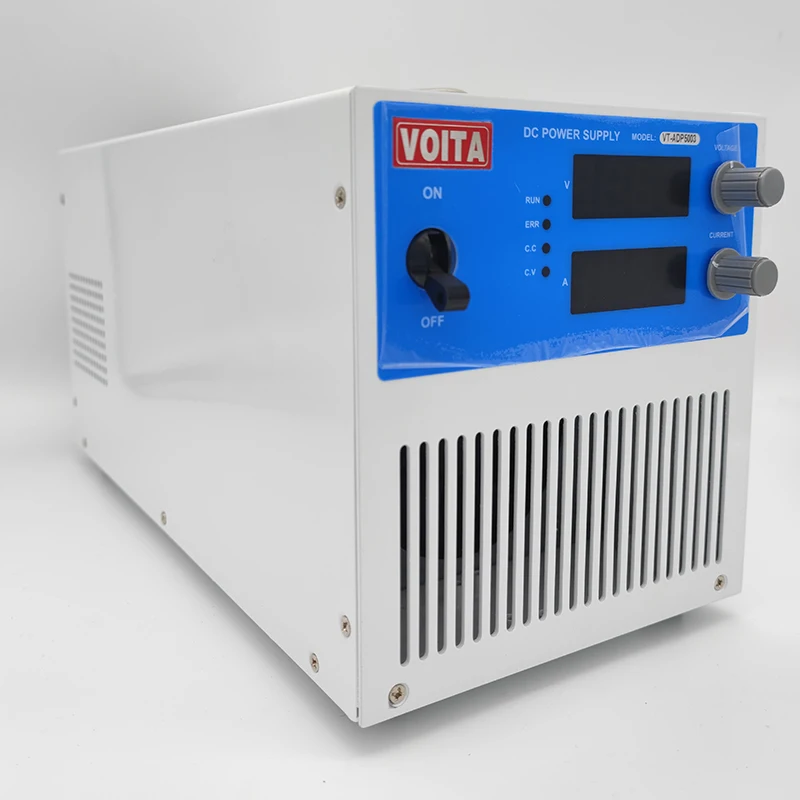

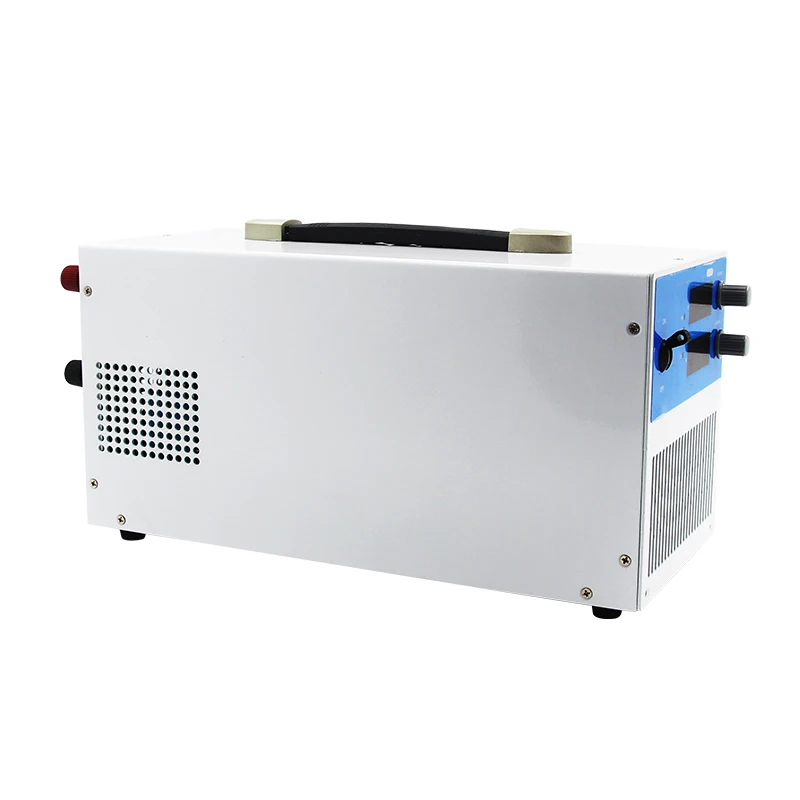

high efficient dc adjustable 0 15vdc 100a 1500w digital display power supply
- Category: >>>
- Supplier: Guangzhou Voita Electronic Technology Co. Ltd.
Share on (1600867367353):
Product Overview
Description
Character
1. Small size and light weight, suitable for working table and rack installation.
2. Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
3. Carefully designed electronic technology circuit, forced air cooling heal treatment, with a very low temperature coefficient.
4. Low noise and low ripple.
5. High gain amplifier circuit design, with good rapid response characteristics.

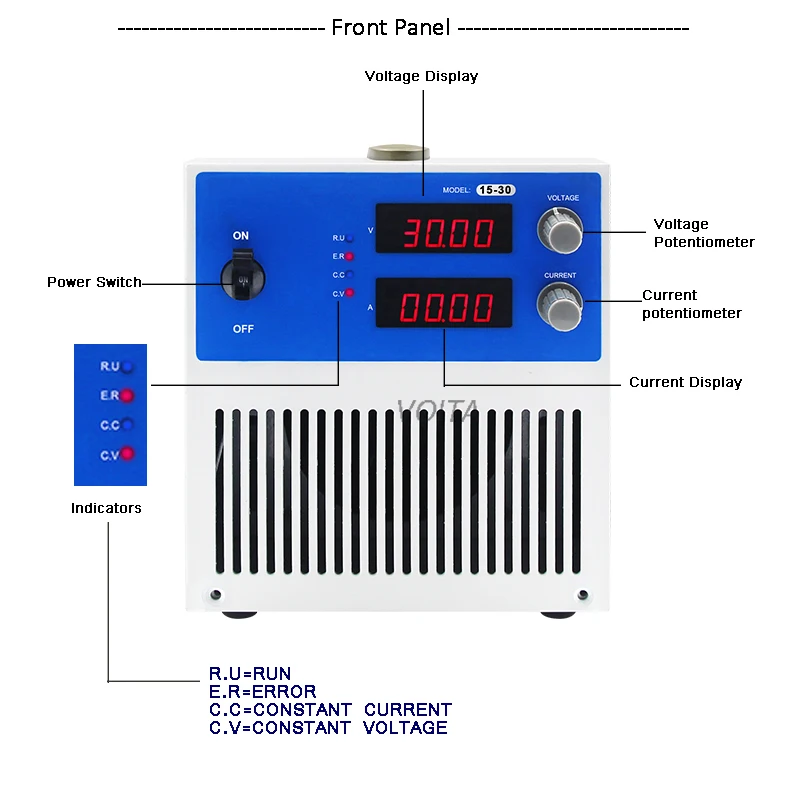

6. Voltage and current digital display meter with 4-bit high sampling rate and high resolution.
7. Built-in O.V.P over voltage protection line and O.T.P over temperature protection line, protection function is perfect and reliable.
8. It is designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.
Feature
1.Small size and light weight, suitable for working table and rack installation.
2.Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
3.Carefully designed electronic technology circuit, forced air cooling heat treatment, with a very low temperature coefficient.
4.Low noise and low ripple.
5.High gain amplifier circuit design, with good rapid response characteristics.
6.Voltage and current digital display meter with 4-b it high sampling rate and high resolution.
7, Built-in O.V.P over voltage protection line and 0. T. P over temperature protection line, protection function is perfect and reliable.
8. This product is designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.
1. Small size and light weight, suitable for working table and rack installation.
2. Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
3. Carefully designed electronic technology circuit, forced air cooling heal treatment, with a very low temperature coefficient.
4. Low noise and low ripple.
5. High gain amplifier circuit design, with good rapid response characteristics.
6. Voltage and current digital display meter with 4-bit high sampling rate and high resolution.
7. Built-in O.V.P over voltage protection line and O.T.P over temperature protection line, protection function is perfect and reliable.
8. It is designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.
Feature
1.Small size and light weight, suitable for working table and rack installation.
2.Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
3.Carefully designed electronic technology circuit, forced air cooling heat treatment, with a very low temperature coefficient.
4.Low noise and low ripple.
5.High gain amplifier circuit design, with good rapid response characteristics.
6.Voltage and current digital display meter with 4-b it high sampling rate and high resolution.
7, Built-in O.V.P over voltage protection line and 0. T. P over temperature protection line, protection function is perfect and reliable.
8. This product is designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.
Model | VT-ADP15100 | |
Input Voltage Range | 1 Phase: AC110V±10%,50Hz/60Hz; 1 Phase: AC220V±10%,50Hz/60Hz; 3 Phase: AC380V±10%,50Hz/60Hz; | |
Output voltage | 0-15VDC | |
Output current | 0-100A | |
Power | 1500W | |
Voltage Stabilization | ≤0.3%+10mV | |
Load Stabilization | ≤0.5%+30mV | |
Ripples and Noises | ≤0.5%+10mVrms | |
Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) | |
0.000V-9.999V, 0.00V-99.99V, 0-0V-999.9V | ||
Current Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) | |
0.000A-9.999A, 0.00A-99.99A, 0-0A-999.9A | ||
Insulation resistance | Input-output: ≥ 20m Ω | |
Input-shell: ≥ 20m Ω | ||
Output-shell: ≥ 80m Ω | ||
Insulation strength | Input-output: AC1500V, 10mA, 1minute | |
Input-shell: AC1500V, 10mA, 1minute | ||
Output-shell: AC1500V, 10mA, 1minute | ||
Output OverVoltage Protection | Built-in O.V.P. protection, protection limited value is rated +5% | |
Output Over Load Protection | Overload, current limit, constant current output | |
OverTemperature Protection | Built-in O.T.P. protection,protection value:85℃±5% heat sink temperature | |
Voltage Setting | 10-turn precision potentiometer | |
Current Setting | 10-turn precision potentiometer | |
Output Polarity | Output Positive(+) negative(- ) Can be grounded at will | |
Heat Dissipation Way | Forced fan cooling | |
Work Conditions | Indoor use design,Temperature:0℃~40℃;Humidity: 10%~85%RH | |
Storage Conditions | Temperature: -20℃~70℃; Humidity: 10%~90%RH | |

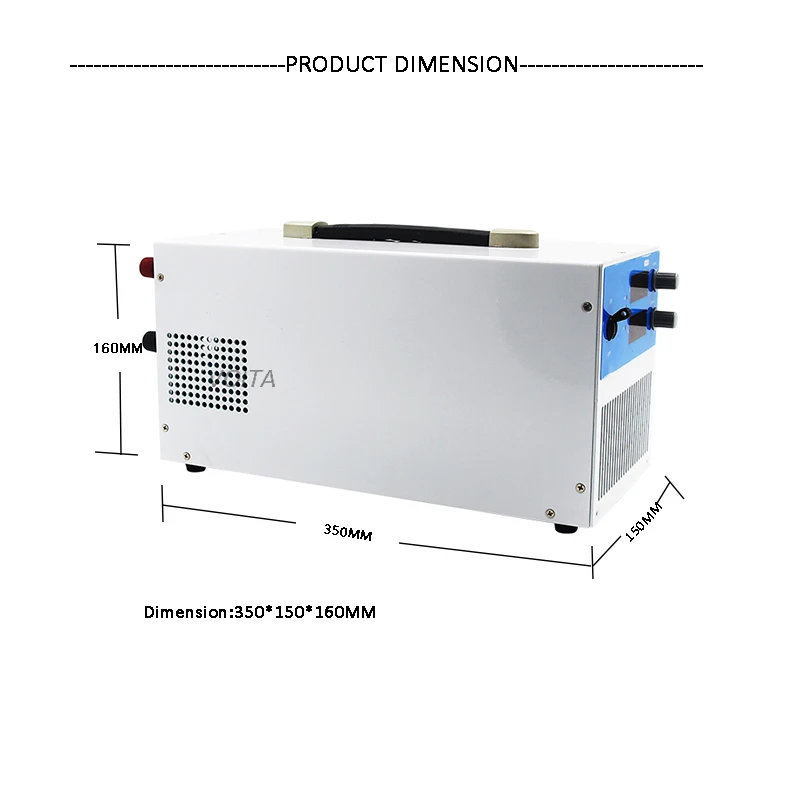

Product Dimension | 150mm*350mm*160mm | |
Analog Remote Control Function (Optional) | ||
Remote Control Function (Optional) | 0-5V /0-10Vdc analog signal control output voltage/current | |
0-5V0-10Vdc analog signal to read-back output voltage current | ||
0-5V/0-10Vdc analog Switch signal to control output | ||
4-20mA analog signal control output voltage & current | ||

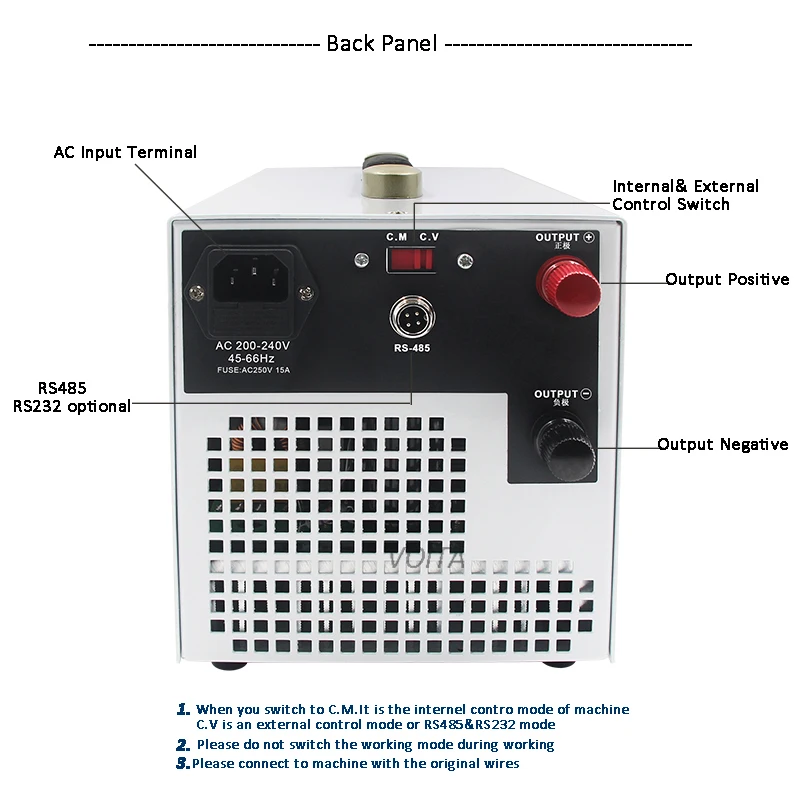

RS232/RS485 Communication port control by computer | ||
The default input is AC220V. (Please contact us for other input)
Parameter | Detail Specification for option | |||||||
Input | 1 Phase: AC110V±10%,50Hz/60Hz; 1 Phase: AC220V±10%,50Hz/60Hz; 3 Phase: AC380V±10%,50Hz/60Hz; | |||||||

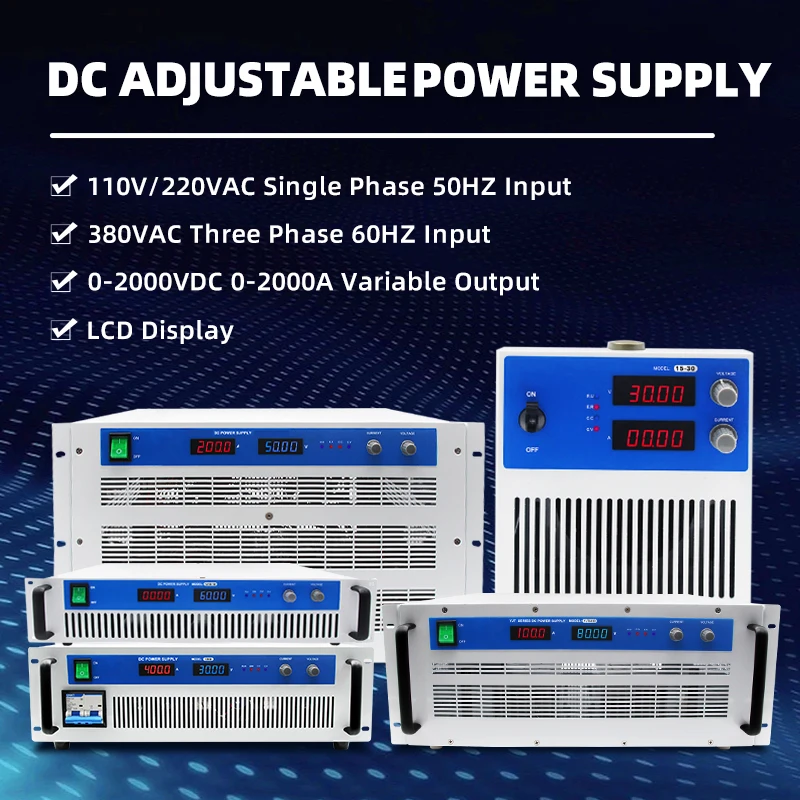

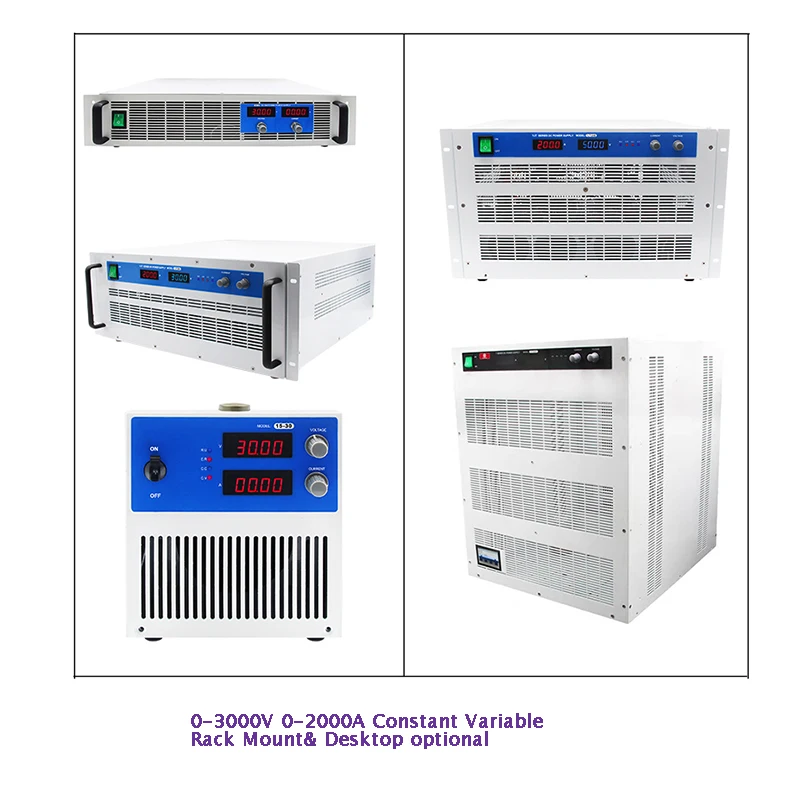

Output Voltage | 1~3000V,Stabilizer value. 0% to 100% adjustable | |||||||
Output Current | 1~2000A,Constant current value. 0% to 100% adjustable | |||||||
Output Power | 150W~100KW | |||||||
Addition function | 0-5Vdc /0-10Vdc analog signal control output voltage & current | |||||||
0-5Vdc /0-10Vdc analog signal to read-back output voltage & current | ||||||||
0-5Vdc /0-10Vdc analog Switch signal to control output ON/OFF | ||||||||
4-20mA analog signal control output voltage & current | ||||||||
RS232/RS485 Communication port control by computer | ||||||||
Noted: Factory accept OEM /ODM Customized service for all customer | ||||||||
