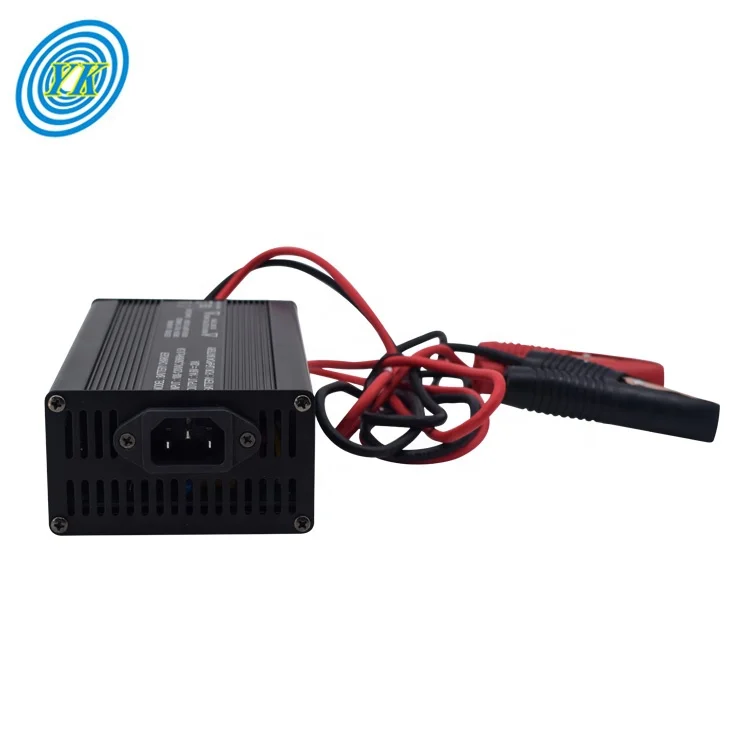

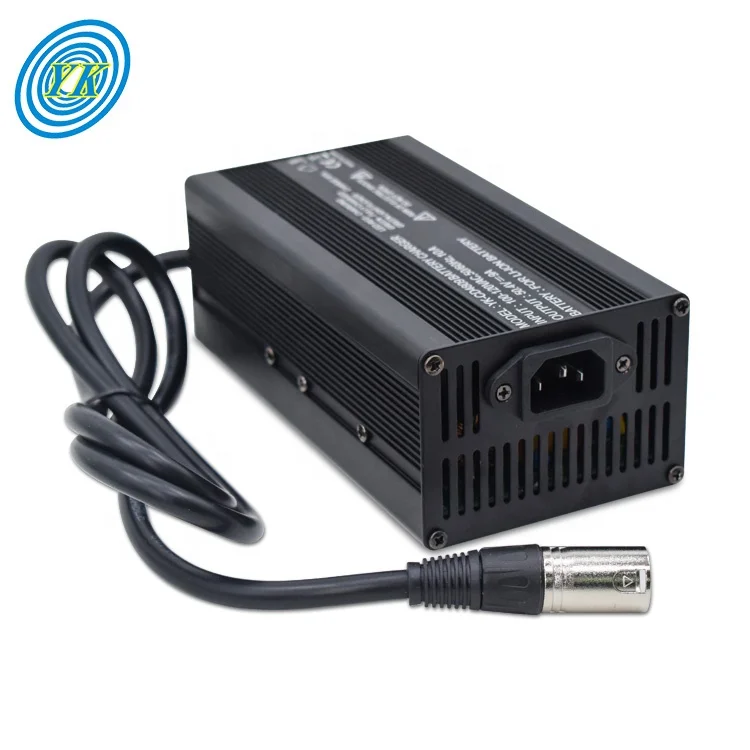

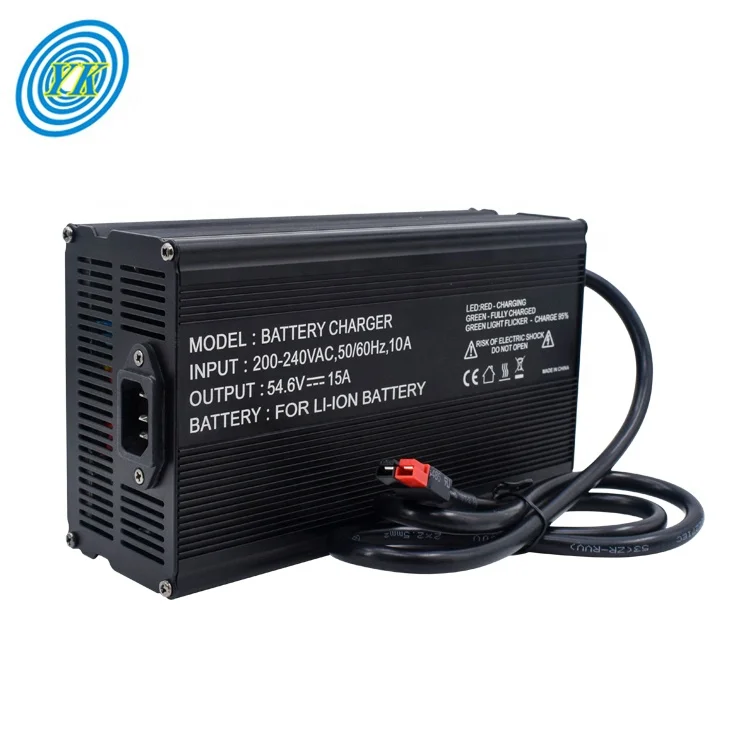

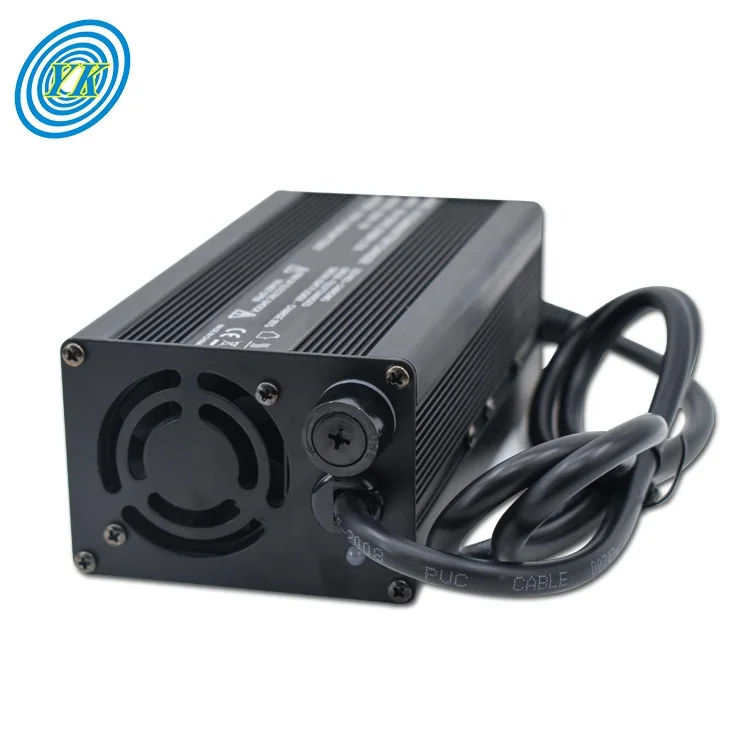

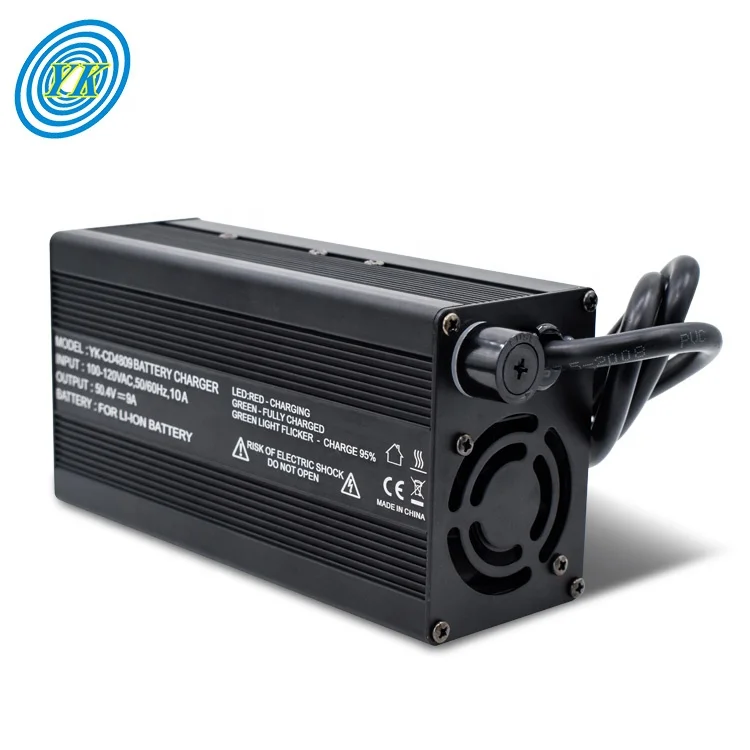

72v 5a Lipo LiFePO4 li ion smart battery charger for electric motorcycle
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600867404117):
Product Overview
Description
Product Description
Introduction
Most of the traditional charger and simple charger are made up of industrial frequency transformer and rectifier circuit (silicon controlled rectifier (SCR)). Even use the silicon controlled rectifier to adjust the AC mains supply to charge battery. Though this circuit is simple, but it has disadvantage:
1. Big volume and high weight, not convenient for transportation and use
2. Lacking protection function, bad reliability
3. Must manual adjust charge current, difficult to full charge and avoid over charge the battery.
4. Silicon controlled rectifier adjusts the AC mains supply to charge battery directly. Then there is not isolation with AC mains supply which is dangerous to get an electric shock. And it will damage the AC mains supply waveform.
Advantage
1. Short-circuit protection: output current will cut off automatically when short-circuit.
2. Overload protection: Output Current Will Be Limited Automatically When Overload.
3. Reverse polarity protection: it will shut down until fuse or the fault removed.
4. 3-stage charging mode: CC, CV and trickle (or Cut off) .
5. Long lifetime: In the MTBF test, it makes more than 30,000 POH (power on hours) ,which means about 10 years if it work 8 hours every day.
6. LED Meter available: Show Charging Voltage and Charging Current.
7. All kinds of production has passed the CE certification and ROHS.
8. Efficiency: 94%( full capacity).
Product Specifications
Brand | YUCOO | ||||||||||
Input Voltage | 1 phase 200-240VAC Input | ||||||||||
Output Voltage | 12V | 24V | 36V | 48V | 60V | 72V | |||||
Output Current | 20A | 13A | 10A | 8A | 6A | 5A | |||||
Shell | Aluminum Alloy Shell | ||||||||||
Suitable battery Type | Lead Acid / LiFePO4 /Li-ion Lipo battery voltage is 4.2V LiFePO4 battery voltage is 3.65V Lead acid battery voltage is 14.7V | ||||||||||
LiFePO4/3.65V Charge voltage | 14.6(4s) | 29.2(8s) | 43.8(12s) | 58.4(16s) | 73(20s) | 87.6V(24s) | |||||
Charging Principle | Full automatic transition CC,CV and Float/Cut-off | ||||||||||
Charging Time | Cut-off point for Li battery is 5% of CC and it can be set between 3-10%.(charging time:4 hours) | ||||||||||
Transition for Lead acid charger is 20% of CC.(charging time:6-8 hours) | |||||||||||
High-Efficiency | ≥90% | ||||||||||
MTBF | ≥50000h | ||||||||||
Dielectric Strength | Input to shell ≥AC1500V | ||||||||||
Input to output ≥AC1500V | |||||||||||
Output to shell ≥AC500V | |||||||||||
Operating Temperature | -20℃~50℃ | ||||||||||
Store Temperature | (-40~70)℃ | ||||||||||
Related humility | 90%(40±2℃) | ||||||||||
Protection Function | Over voltage / Over temperature / Over current/Short circuit and Reverse polarity Protect | ||||||||||
Display | Two LED indicators | ||||||||||
Advantage | Light/Small/Stable/Safe | ||||||||||
AC Plug | Accept any plug base on your request | ||||||||||
Warranty | 1 year Warranty | ||||||||||
Details Images
You may also like
Customized Range
YK-CDXX YY Series | Input Voltage | Output Voltage | Output Current |
YK-CD12** | 100-240Vac | 12V | 5A |
110Vac±15% | 8/15/25/30/35/40A | ||
220Vac±15% | 8/15/25/30/35/40/50A | ||
YK-CD24** | 100-240Vac | 24V | 4/5A |
110Vac±15% | 6/9/15/18/25/30A | ||
220Vac±15% | 6/10/15/18/30/40/50A | ||
YK-CD36** | 110Vac±15% | 36V | 2.5/4A |
110Vac±15% | 4/6/10/12/18/20/22A | ||
220Vac±15% | 4/6/6/10/13/20/2535/40A | ||
YK-CD48** | 100-240Vac | 48V | 2/3A |
110Vac±15% | 3/4.5/7.5/9/13/15/18A | ||
220Vac±15% | 3/5/8/10/15/20/25/30A | ||
YK-CD60** | 100-240Vac | 60V | 1.5/2A |
110Vac±15% | 2.5/3.5/6/7.5/10/13/13.5A | ||
220Vac±15% | 2.5/4/6/8/12/18/20/27A | ||
YK-CD72** | 100-240Vac | 72V | 1.2/1.5A |
110Vac±15% | 2/3/5/6/9/11/17A | ||
220Vac±15% | 2/3.4/5/6.5/10/15/17/22A |
