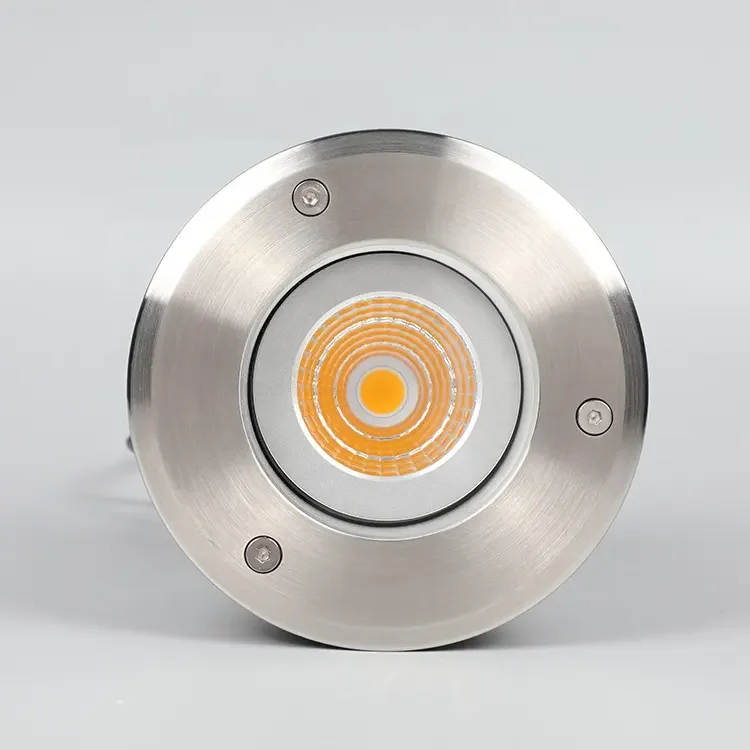

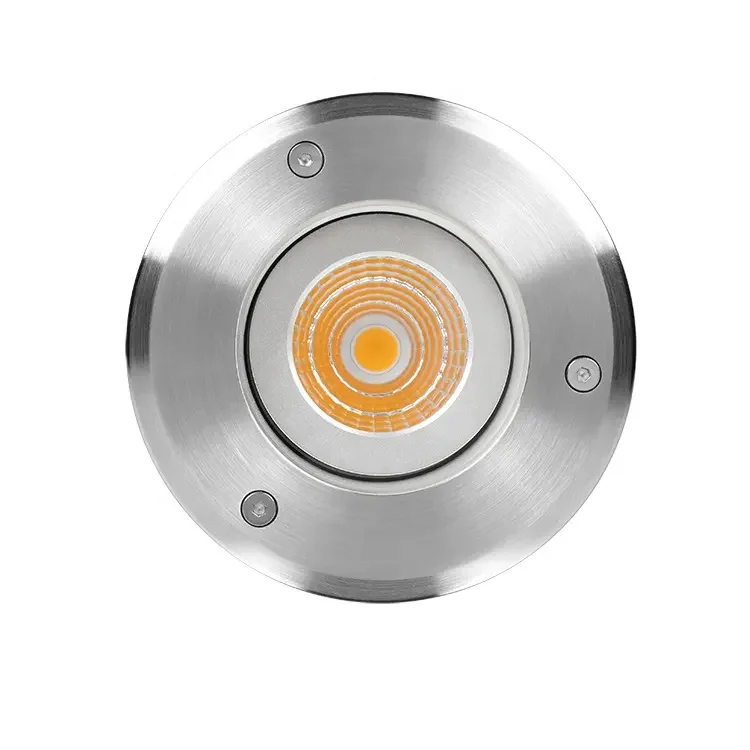

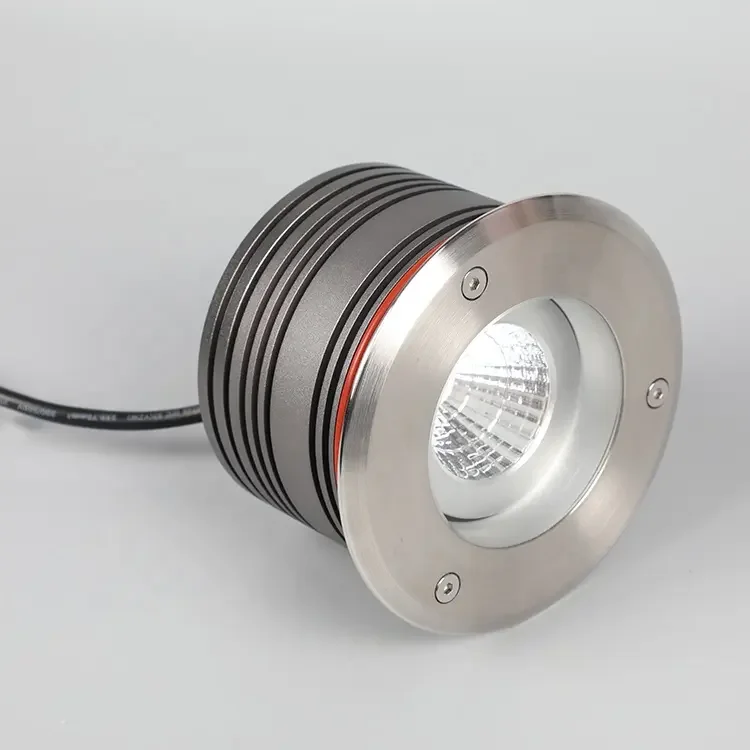

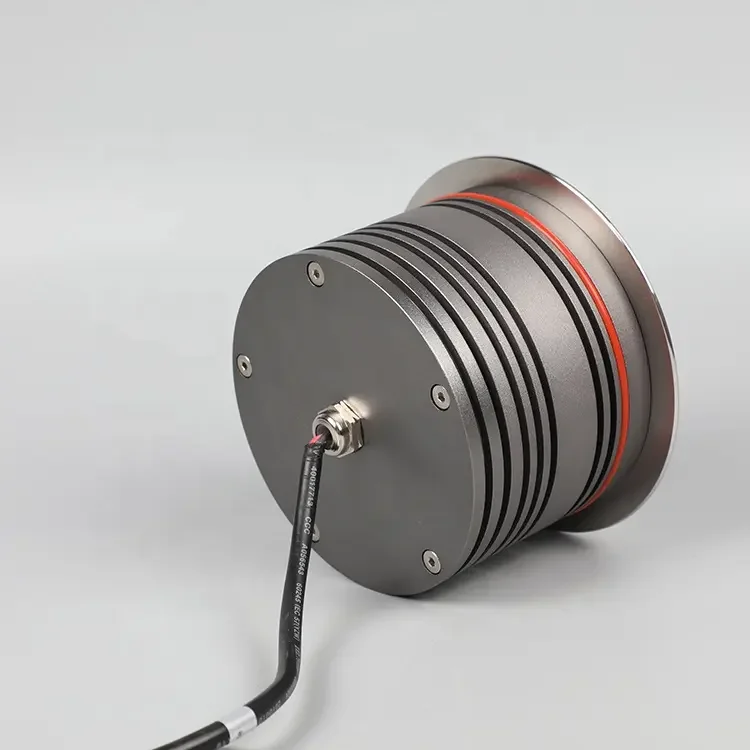

high quality buried lights led stainless steel buried light outdoor led inground lights

Share on (1600867429174):


Price:$54.60 - $121.80

Quantity:


Product Overview

Description



Product Description







. 1PCS 12W CREE COB LED with high lumen and beautiful light output.
. Stainless steel 316 (not 304) trim and tempered glass with high loading capacity.
.20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years

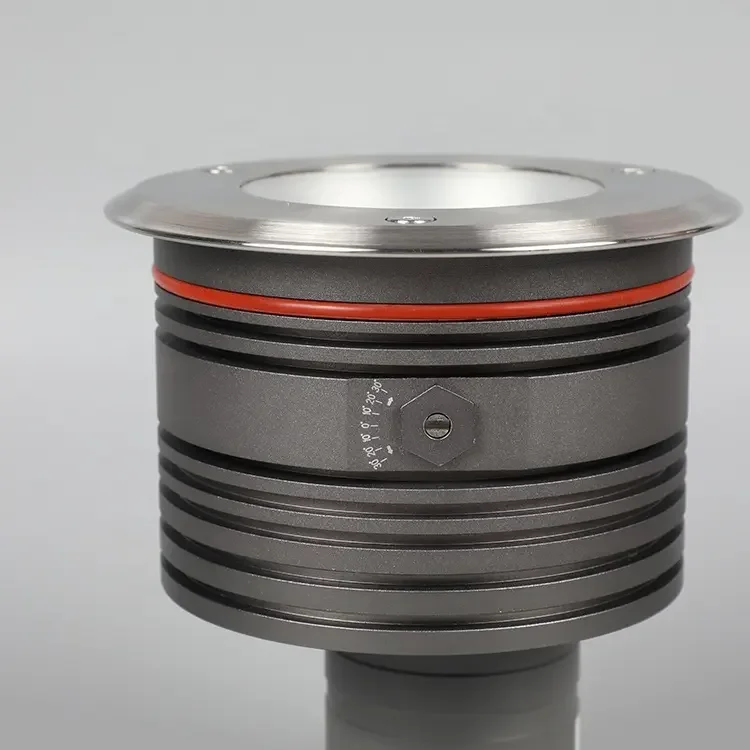

. 24°,38° ,60° (beam direaction adjustable by hand at 20° at max)  beam angle as options
. 950-1000lm   luminous flux output
.IP67 waterproof
. 3 years warranty
.8~10 years professional sales and technicians to serve you

























































































































General Data



Item No.



UL-12W-COB-1200-C



Power



12 Watts



LED type



1PCS 12W CREE COB LED



Luminous flux



950-1000 lm



CCT



2700K,3000K,4000K,6000K



CRI



80+



Beam angle



24°,38° ,60° (beam direaction adjustable by hand at 20° at max)



Dimension



Ø134x 76 (mm) Diameter x length



Cut out



120 mm



Net weight



1.9 kgs



Warranty



3 years



Certifications



CE, RoHS



Electrical Data



Input voltage



DC24V



Insulation class



Class III



Cable



1PC rubber cable 1M H05RN-F 2x1mm square



Driver



Low voltage constant current output,excluding the transformer



Construction Data



IP rating



IP67 Waterproof



Housing



Solid Passivated (Anodizing) Aluminum CNC machined



Protection finishing



20~25μm thickness anodized film for housing .Dark grey color



Trim



Stainless steel 316



Glass



Step tempered Glass.T=8mm.



Loading capacity



2000 kgs



Cable Gland



PG7  IP67



Gasket



O-ring PMQ silicone seal



Accessories



Mounting Sleeve



Solid Passivated (Anodizing) Aluminum CNC machined

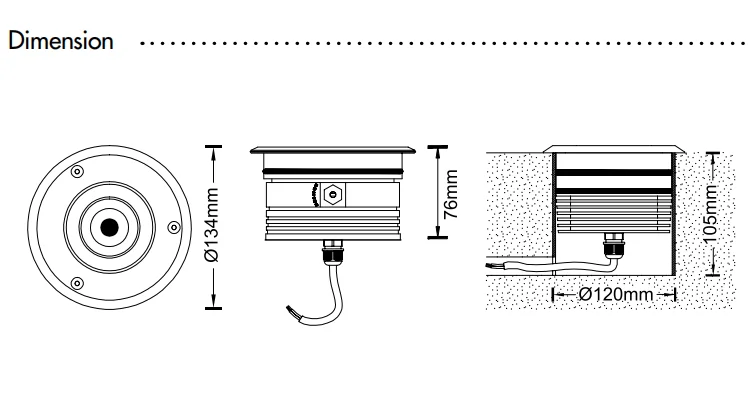

UL-12W-COB-1200-C .png

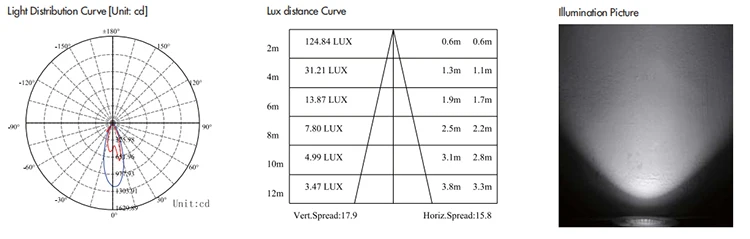

Photometric Data (3000K, 30°) & Illumination Picture

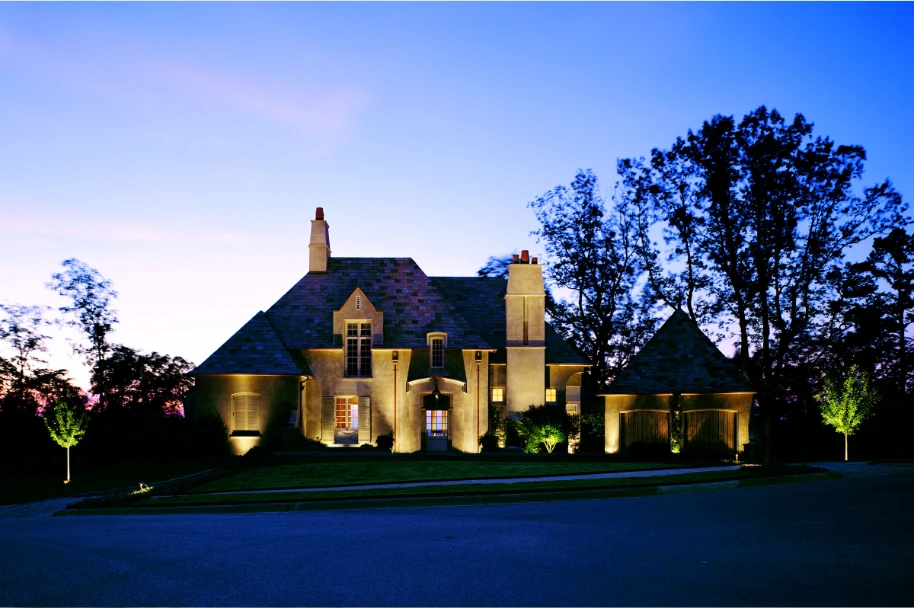

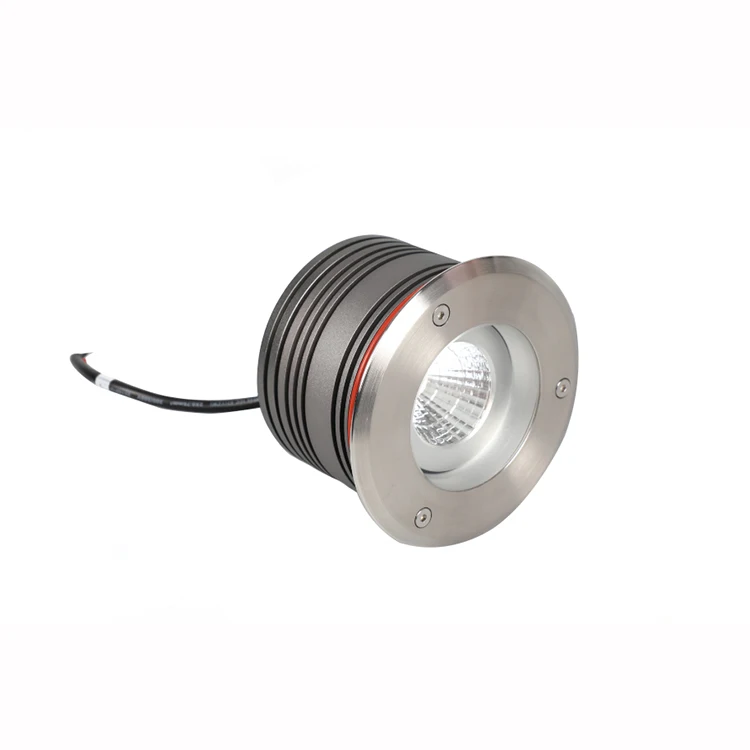

Application Pictures


.jpg






























Company Information







Packaging & Shipping







Our Services







1.Are you a trade company or a manufacturer?


We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.





2.What is your delivery date?


 The delivery date is around 7-15 days for samples,and 15~25 days  for regular orders after receipt of payment.





3.What is your payment terms?


For samples: 100% deposit.


For regular order:30% deposit in advance and 70% balance before shipment.


The payment method can be Paypal,western union bank, bank for TT .





4.What's your delivery terms ?


We can provide EX-WORKS ,CIF or FOB JIANGMEN,FOB HESHAN,FOB SHENZHEN delivery terms.





5.What's your warranty ?


We are confident on our quality of design,and the warranty is 3 years.





6.Can I buy the quantity below MOQ ?


Yes, please contact us for the detailed prices based on your detailed quantity requirement.





7. How many years are you producing exterior LED lighting ?


12 years since 2007.
