Huiyang ZLP800 Galvanized construction cradle Suspended Platform
- Category: Ladders & Scaffoldings >>>
- Supplier: Shandong Huiyang Construction Equipment Co. Ltd.
Share on (1600867693287):
Product Overview
Description
Parameter
Working Principle:
The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
Usage and Application:
ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.
Above all. HUIYANG Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.
The Parameters of ZLP series Suspended Platform | ||||||
TYPE | ZLP500 | ZLP630 | ZLP800 | |||
1. Rated Load | 500KG | 630KG | 800KG | |||
2. Lifting speed | 9.3m/min | 9.3m/min | 9.3m/min | |||
3. Lifting height | 1-400m | 1-400m | 1-400m | |||
4. Hoist | LTD5.0 | LTD6.3 | LTD8.0 | |||
4.1 Voltage-3 Phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) | |||
4.2 Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | |||
4.3 Power | 1.5kwx2 | 1.5kwx2 | 1.8kwx2 | |||
5. Safety Lock | LSG20 | LSG20 | LSG30 | |||
6. Electric Control Cabinet Components | CHNT | CHNT | CHNT | |||
7. Platform Sise (LxWxH) | 1-5mx0.69mx1.42m | 1-6mx0.69mx1.42m | 1-7.5mx0.69mx1.45m | |||
8. Steel Wire Rope | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.6mm | |||
9. Special Cable | (3x2.0+2x1.0mm) 100m | (3x2.0+2x1.0mm) 100m | (3x2.5+2x1.5mm) 100m | |||
10. Suspended Jibs | 340kg | 340kg | 340kg | |||
Lifting Parts Weight | 410kg(Steel) 290kg(Aluminum) | 480kg(Steel) 340kg(Aluminum) | 530kg(Steel) 380kg(Aluminum) | |||
Counter Weight | 750kg | 900kg | 1000kg | |||
Qty of 20" Container | 13sets | 13sets | 13 sets | |||

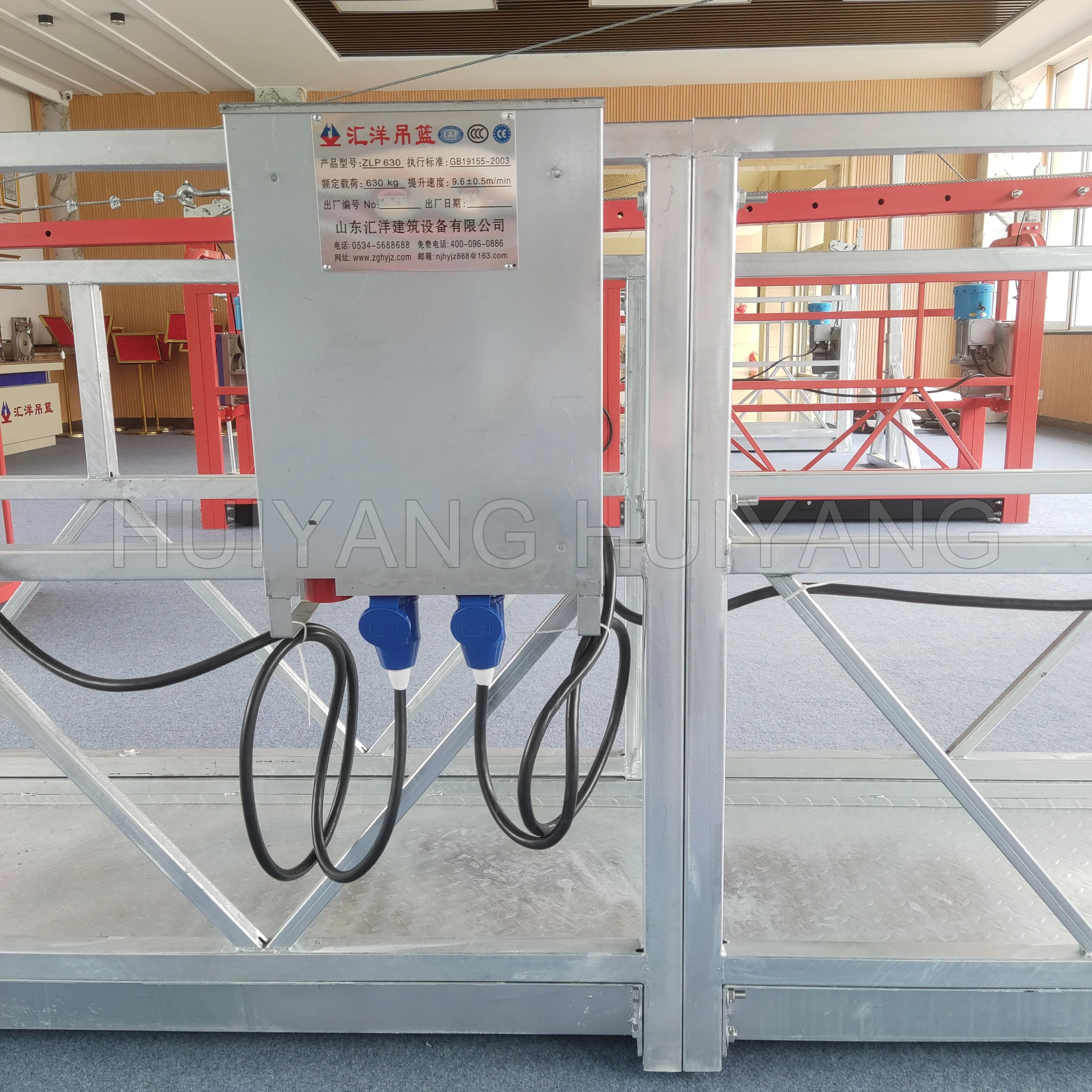

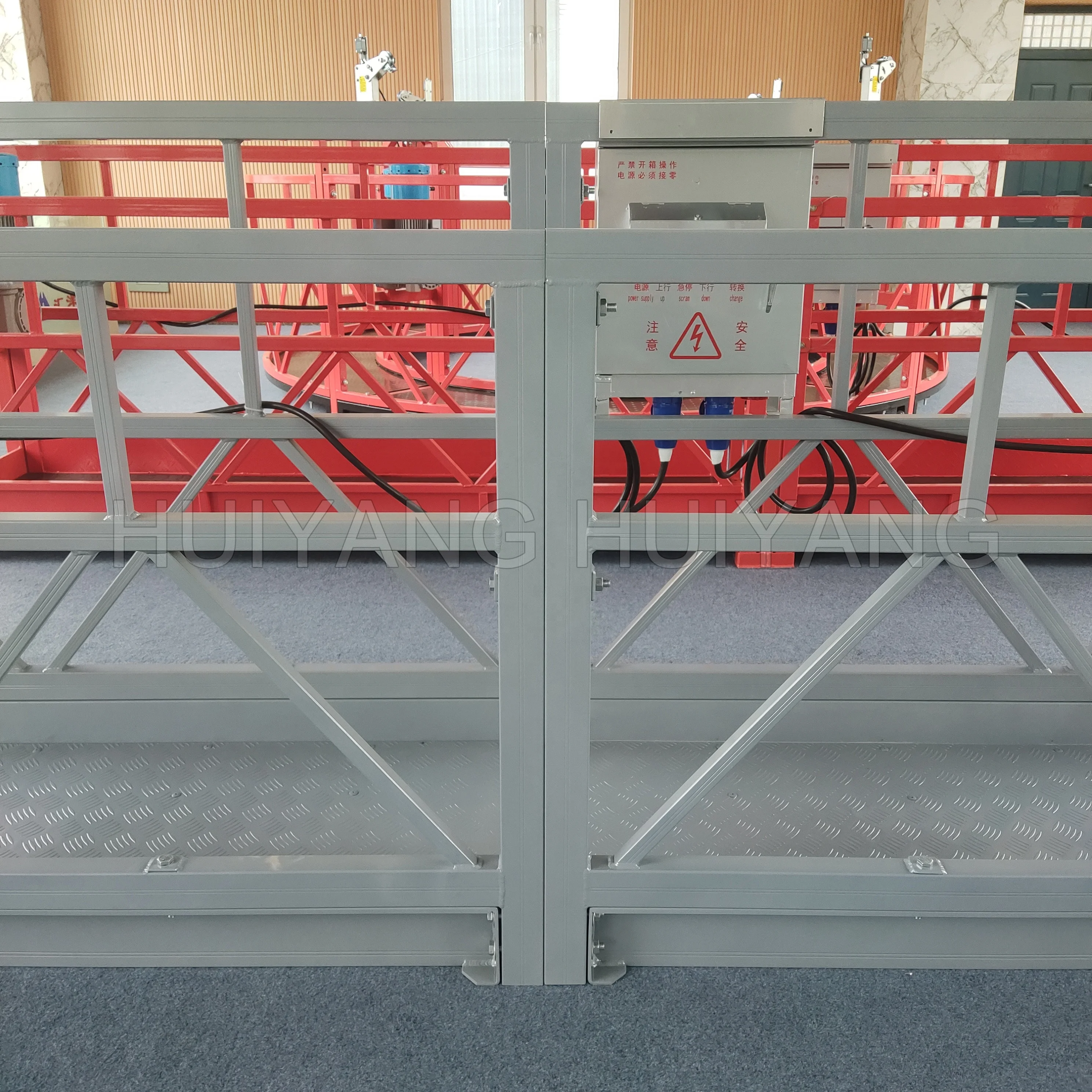

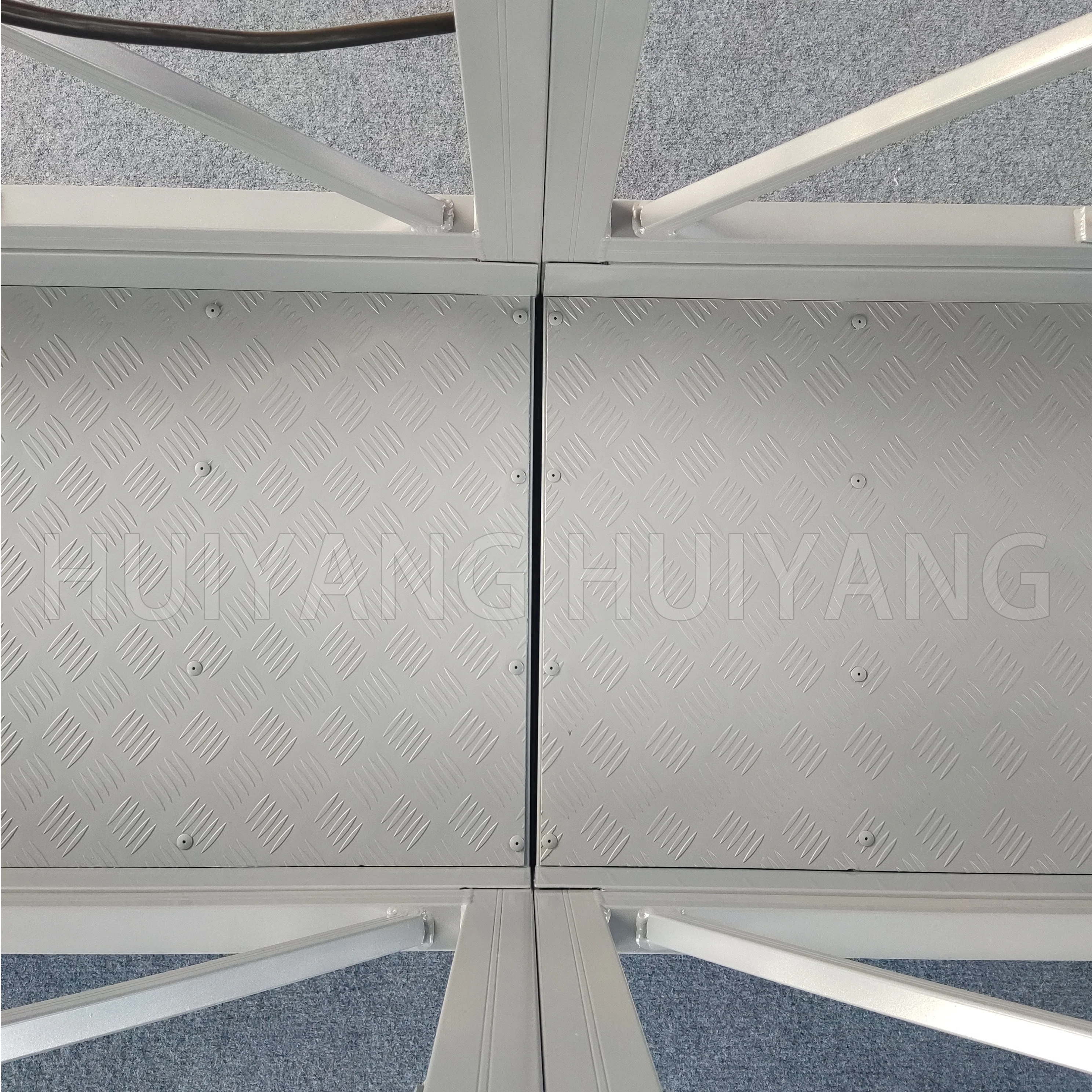

1. Working Platform: Steel Q235 + Painting;( Q235 + Galvanised; Aluminum Alloy + Painting is available also)
1.1 Working Platform is the workplace at heights for the workers.
1.2 Size of platform can be adjusted from 1.0m, 1.5m, 2m, 2.5 meter or 3m etc depending upon the needs of your building
1.3 With Bottom Wheel fitted underneath, the platform is easy to move.

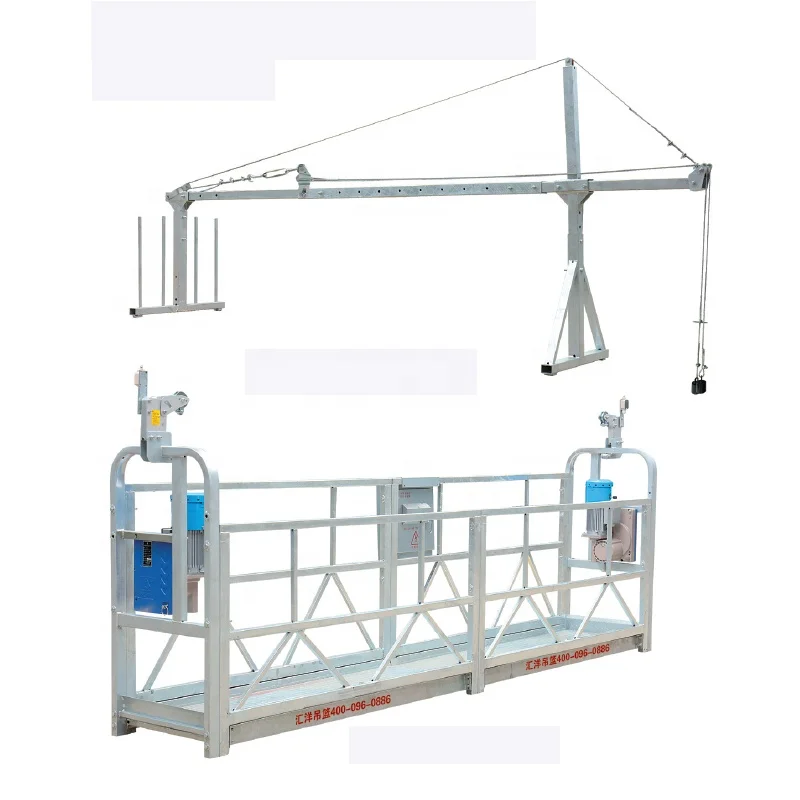

2. Suspension Mechanism: Steel Q235 + Painting (Q235 + Galvanised is ok )
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
3. Components:
LTD6.3 Hoist: 1.5kw, 2 sets;
LSD30 Safety Lock: 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 20-400m/pcs; D=8.3mm;
Electric Cabinet: 1pcs, 20-400m/pcs, 3x2.5+2x1.5 mm sq;
Safety Rope: 1pcs;20-400m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.
1.1 Working Platform is the workplace at heights for the workers.
1.2 Size of platform can be adjusted from 1.0m, 1.5m, 2m, 2.5 meter or 3m etc depending upon the needs of your building
1.3 With Bottom Wheel fitted underneath, the platform is easy to move.
2. Suspension Mechanism: Steel Q235 + Painting (Q235 + Galvanised is ok )
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
3. Components:
LTD6.3 Hoist: 1.5kw, 2 sets;
LSD30 Safety Lock: 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 20-400m/pcs; D=8.3mm;
Electric Cabinet: 1pcs, 20-400m/pcs, 3x2.5+2x1.5 mm sq;
Safety Rope: 1pcs;20-400m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.
Compenonts Details
Components 1

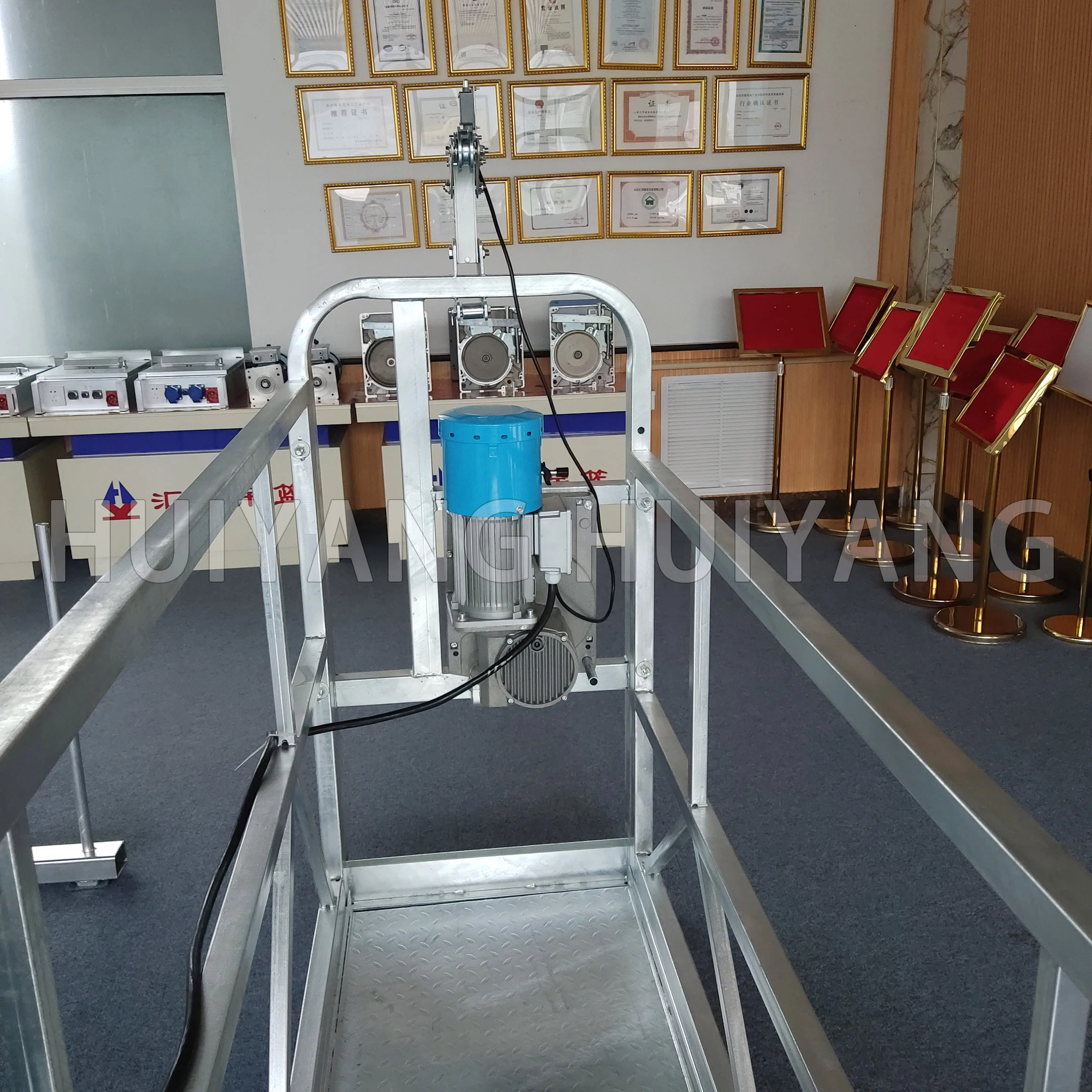

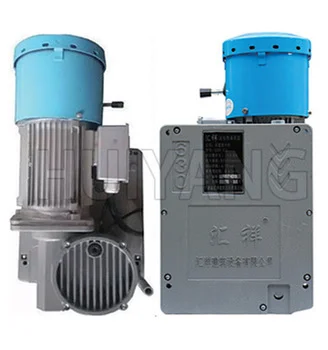

Name: Hoist Brand: HUIYANG Model: LTD 8.0 Quantity: 2 sets
Lifting Speed : 9.3±0.5m/min
Lifting Force: 8.0 KN
Name: Motor Brand: Tianjin YONGHENG
Power: 1.8kw*2
Name: Motor Brand: Tianjin YONGHENG
Power: 1.8kw*2
Voltage: 3 Phase 380V 50Hz/220v/415v
Rotational Speed: 1420rpm Weight: 53 kgx2
Rotational Speed: 1420rpm Weight: 53 kgx2
Components 2
Name: Safety Lock
Brand: HUIYANG
Model: LSG30
Quantity: 2 sets
Locking Rope Angle: 3°~8°
Allow impulsive force: 20KN
Steel Wire Diameter: 8.3mm Weight:5kgx2
Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.
Components 3
Name: Electrlic Cotrol Cabinet
Brand: HUIYANG
Surface HDG With manual Switch
Components Brand: CHNT
On Electric Control Cabinet, there are 4 buttons and a 380V 50Hz outlet for necessary use.
( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button )
Components 4
Name: Steel Rope Brand: Fasten
Length: 100m 4pcs 4x31SW+FC Diameter: 8.3mm
Weight:25kgx4
Name: Nylon Safety Rope 1Pcs=100m
(Without)
Name: Cable 1Pcs=100m (3x2.5+2x1.5mm)
Name: Counter Weight: No
