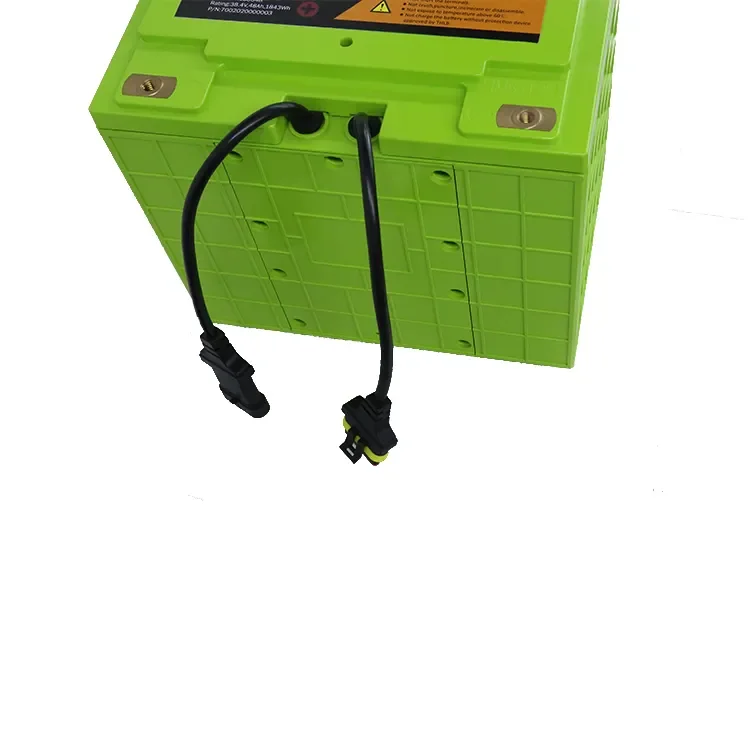

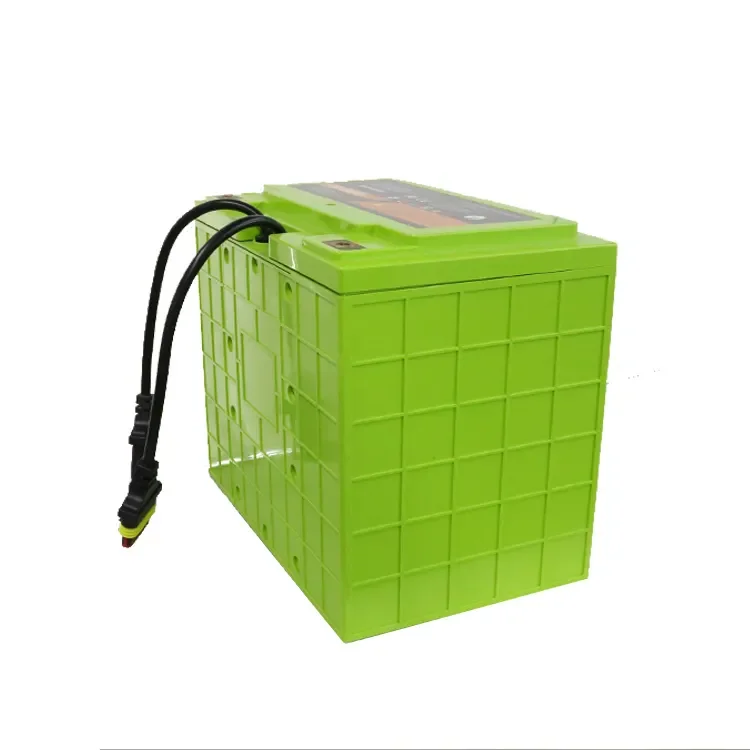

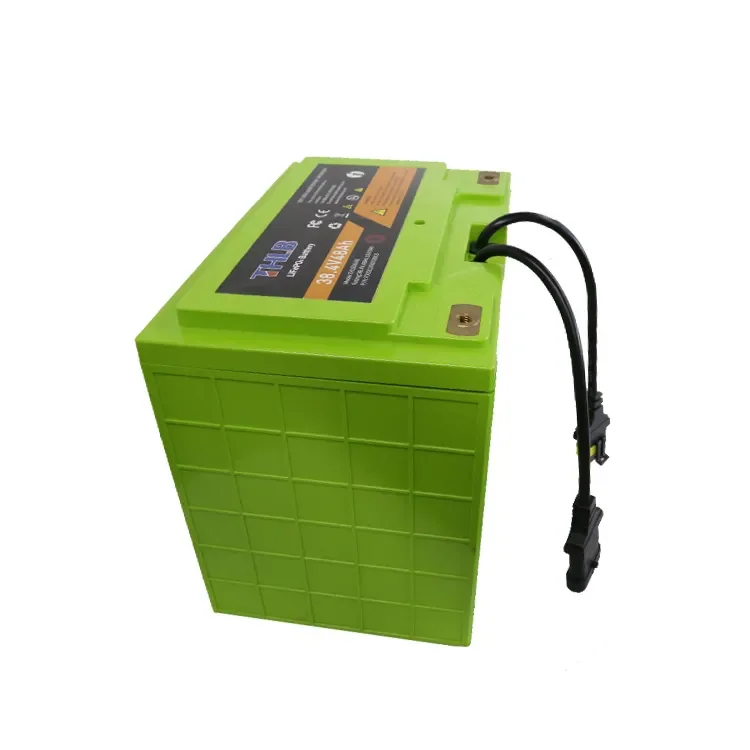

36V 48V 52V 50Ah lithium batteries Li ion factory made Rechargeable 18650 NMC cells pack energy storage system
- Category: >>>
- Supplier: Shandong Tian Han New Energy Technology Co. Ltd.
Share on (1600867704258):
Product Overview
Description
Product Description
Specification
One Battery module | 50Ahr or 1920Whr (384 pcs 18650 1.6Ah cells in a 12s32p configuration.) |
Nominal module voltage | 38.4V |
Maximum module voltage | 43.8V |
Minimum module voltage | 30.0V |
Nominal load current | 96A max. continuous current @ 23° C |
Peak load current | 140A max for 30 sec @ 23° C |
Charge Disconnect | When the Battery modules are charged to full, they will communicate with BMU, and the BMU has the capability to turn off the charger or open the main contactor. The battery module itself does not have any switch to disconnect the charger. |
Size | 310 mm x 180mm x 234 mm |
Terminals, Female Threaded | M8*1.25 |
Weight | 20 kg |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

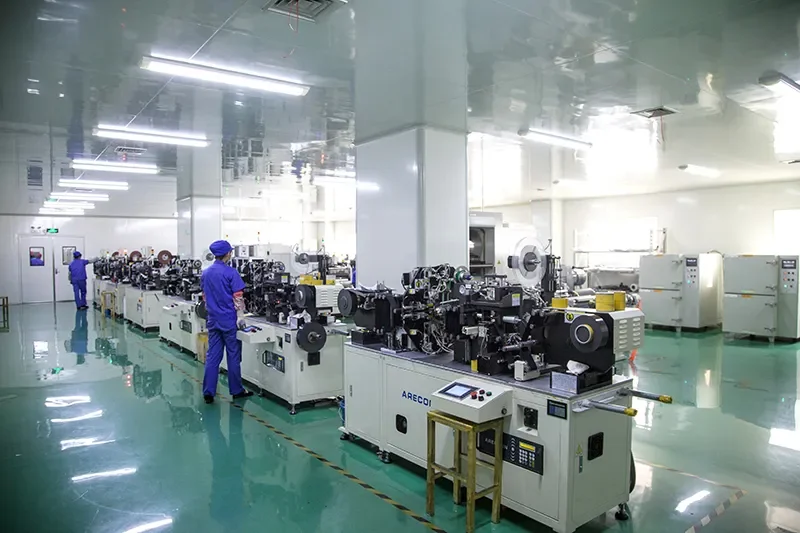

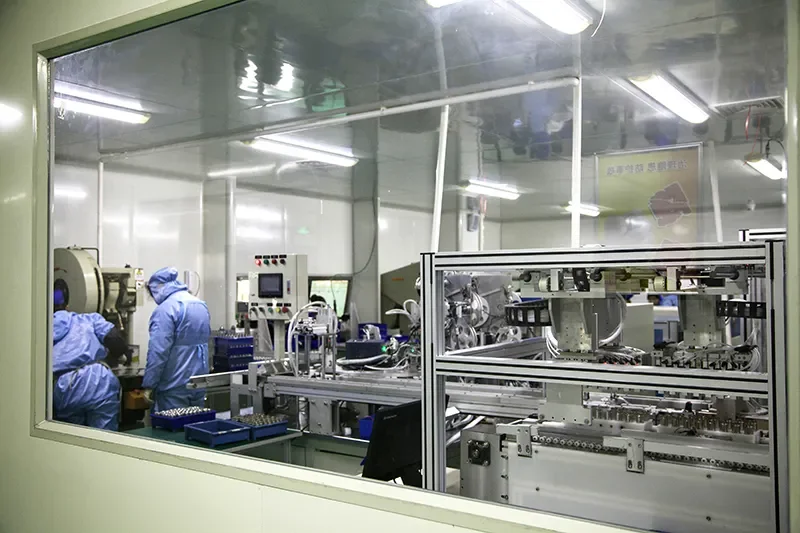

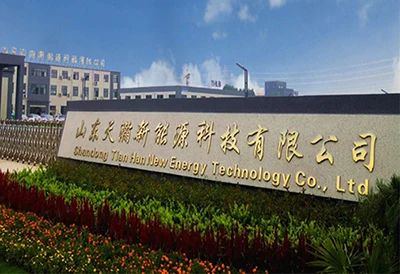

Company Profile
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes,we can supply samples,the lead time for samples is 7-10 days.and buyer pay for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes,the warranty is 3 years, if any quality problems on our side in this period, we can send new one as replacement.
Q4 What is your company's advantage?
A4: We only supply high level quality of lithium battery and we guarantee on-time shipment,we also provide excellent after sales service
Q5: Do you accept OEM/ODM?
A5: Yes,it is available.
Q6: What information do you need to make a customized battery pack?
A6: We need the details below: 1. Size of the battery pack you need in mm. 2. Capacity of the Battery pack. 3. Voltage of the battery pack. 4. Max discharge current. 5. Cable and connector types you need. 6. Casing and Terminals if required. 7. Any protection circuits you may need.
Q7:Are your batteries real capacity?
A7:All of our battery cells with Grade A,100% new and real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3.
Q9: What is your lead time for the mass production?
A9: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes,we can supply samples,the lead time for samples is 7-10 days.and buyer pay for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes,the warranty is 3 years, if any quality problems on our side in this period, we can send new one as replacement.
Q4 What is your company's advantage?
A4: We only supply high level quality of lithium battery and we guarantee on-time shipment,we also provide excellent after sales service
Q5: Do you accept OEM/ODM?
A5: Yes,it is available.
Q6: What information do you need to make a customized battery pack?
A6: We need the details below: 1. Size of the battery pack you need in mm. 2. Capacity of the Battery pack. 3. Voltage of the battery pack. 4. Max discharge current. 5. Cable and connector types you need. 6. Casing and Terminals if required. 7. Any protection circuits you may need.
Q7:Are your batteries real capacity?
A7:All of our battery cells with Grade A,100% new and real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3.
Q9: What is your lead time for the mass production?
A9: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
