SZGH High Precision CNC Lathe Machine CNC Turning Machine for Metal Cutting Factory Competitive Price
- Category: >>>
- Supplier: Shenzhen Guanhong Technology Co. Ltd.
Share on (1600867708394):
Product Overview
Description
Product Description

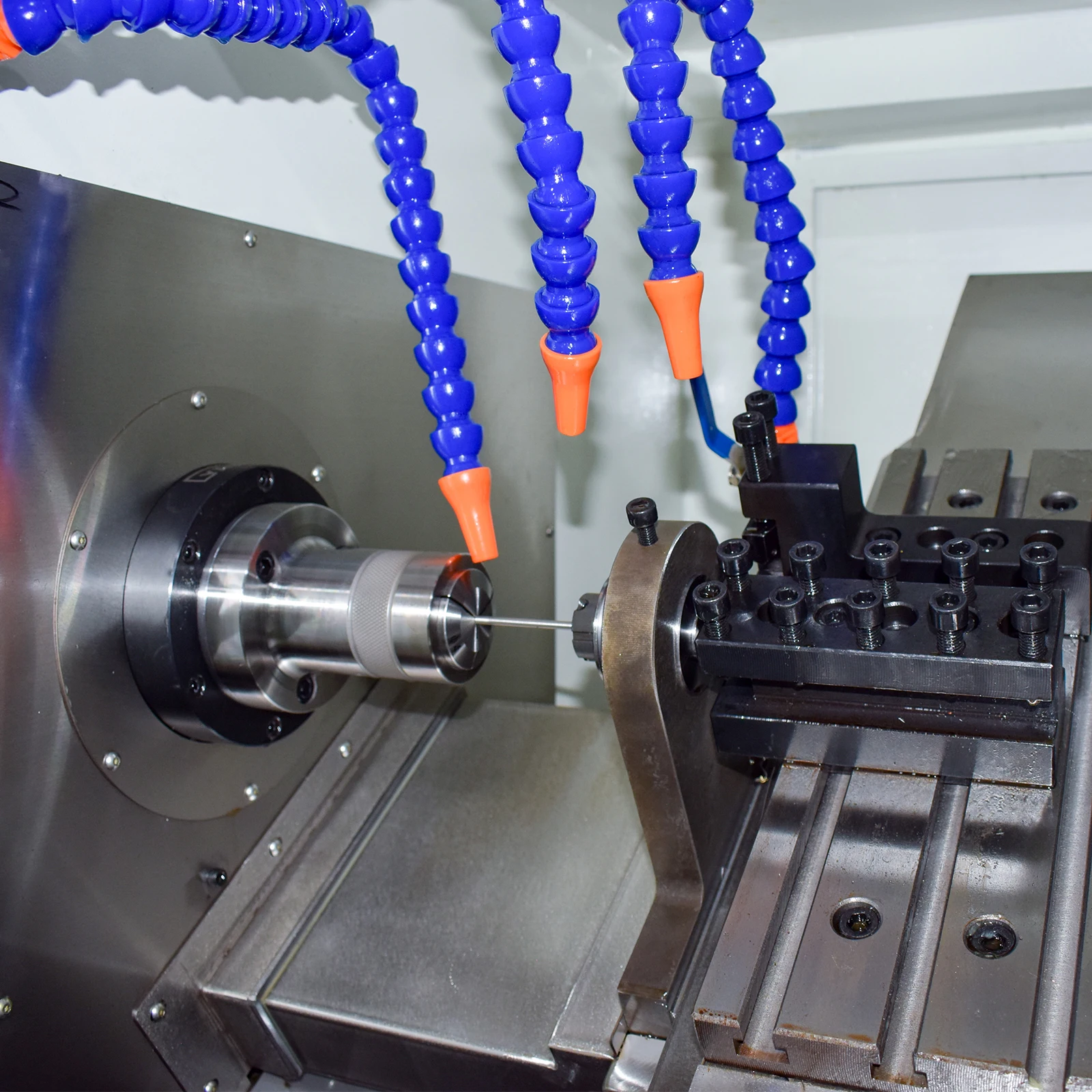

SZGH-25 lathe is suitable for batch production of copper, iron, aluminum and stainless steel bars within 25mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6. It is widely used in the upgrading of hard rail CNC lathes and hydraulic automatic lathes to realize automatic production and to save labor costs and improve product quality.
PATENT BASE
Anti-deformation patented heavy-duty base, heavy enough to support fast.
GOOD VIBRATION RESISTANCE
Heavy enough to support bar and large parts, anti-vibration, improve precision and smoothness.
UNIFIED ELECTRONIC CONTROL SYSTEM
Adopt SZGH electric control package to make electro-mechanical cooperation play the best efficiency.
HIGH QUALITY
The key components adopt high-quality wear-resistant configurations such as Taiwan, and the sleeve and spindle are all dynamically balanced.
Project | Unit | Standard value | Max value | ||
Processing Capacity | Max. diameter of bar bore | mm | 25 | 26 | |
Max. particle diameter (disk type) | mm | 200 | 300 | ||
Max. length of workpiece | mm | 150 | 180 | ||
Cutting amount of stainless steel on one side | mm | 2 | 2.5 | ||
Machining accuracy of the workpiece | mm | ±0.01 | - | ||
Surface roughness | Ra | 1.6 | - | ||
the height of center tool holder | mm | 40 | - | ||
Turning Diameter | mm | 350 | - | ||
Square Knife Specifications | mm | 16 | - | ||
Travels | X-axis effective travel (diameter) | mm | 500 | - | |
Z-axis effective travel | mm | 180 | - | ||
Feed | X-axis rapid traverse | m/min | 25 | 30 | |
Z-axis rapid traverse | m/min | 25 | 30 | ||
X-axis servo-motor power | kW | 1.3 | - | ||
Z-axis servo-motor power | kW | 1.3 | - | ||
Spindle | Max.Spindle Speed | rpm | 3500 | 4000 | |
Spindle Motor Power | kW | 2.2 | - | ||
Spindle nose taper | - | A2-4 | - | ||
Support hydraulic chuck size | inch | 5 | 6 | ||
Dimensions | Dimensions | mm | 1700*1400*1600 | - | |
Total Weight | kg | 1400 | - | ||
Machine tool specifications and component items | Specification | Standard | Optional | ||
Part Specifications | Screw | 25mm | Taiwan ball grinding precision grade | - | |
Guide rail | 25mm | Taiwan H-class linear guide rail | - | ||
Bearing | - | Domestic brand front 2 rear 2 high-speed angular contact bearings | |||
Spindle motor | 2.2kW | Variable frequency drive type | 3.7kW servo spindle | ||
Feed servo | 1.3kW | SZGH Speed Servo | - | ||
CNC Control | - | SZGH | SZGH | ||

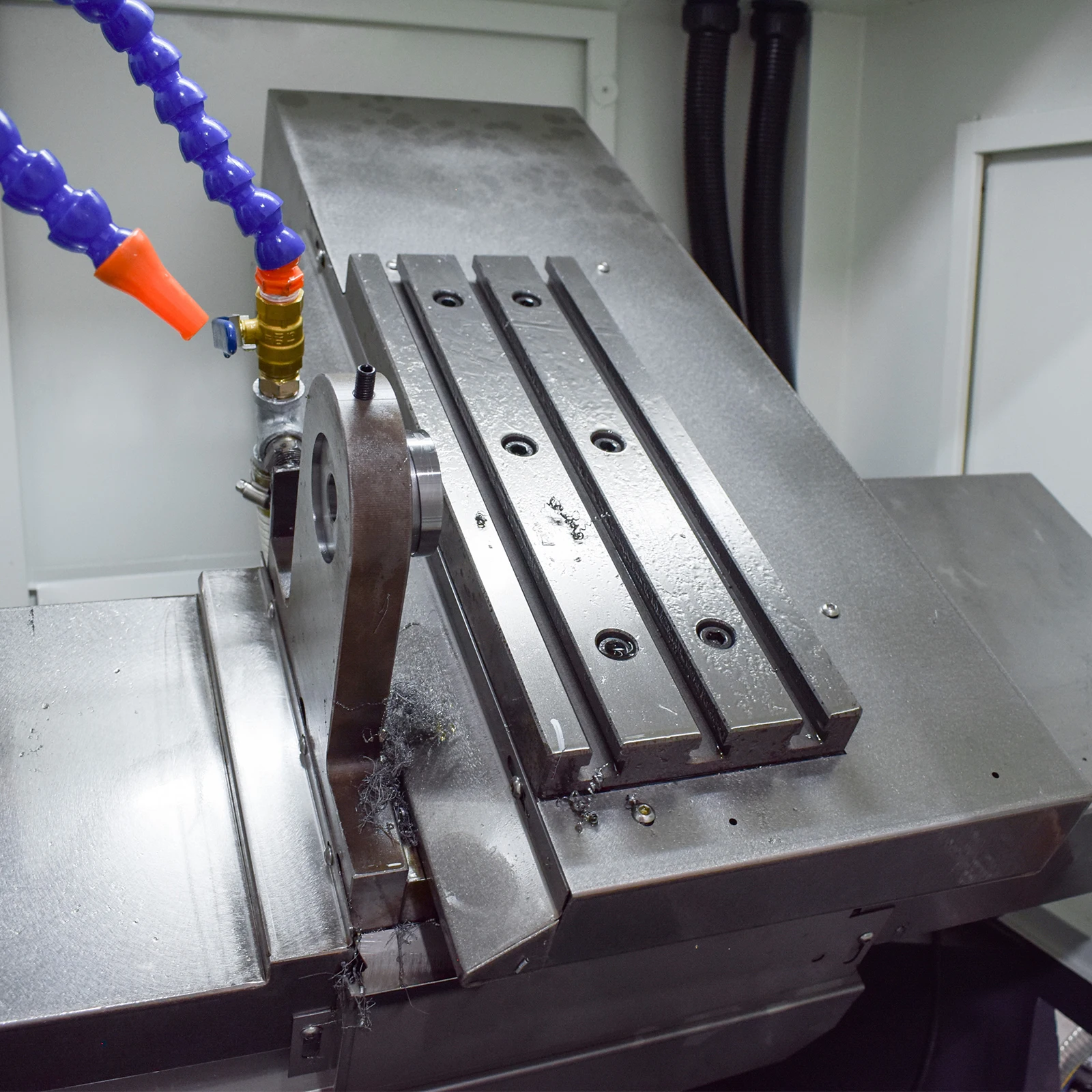

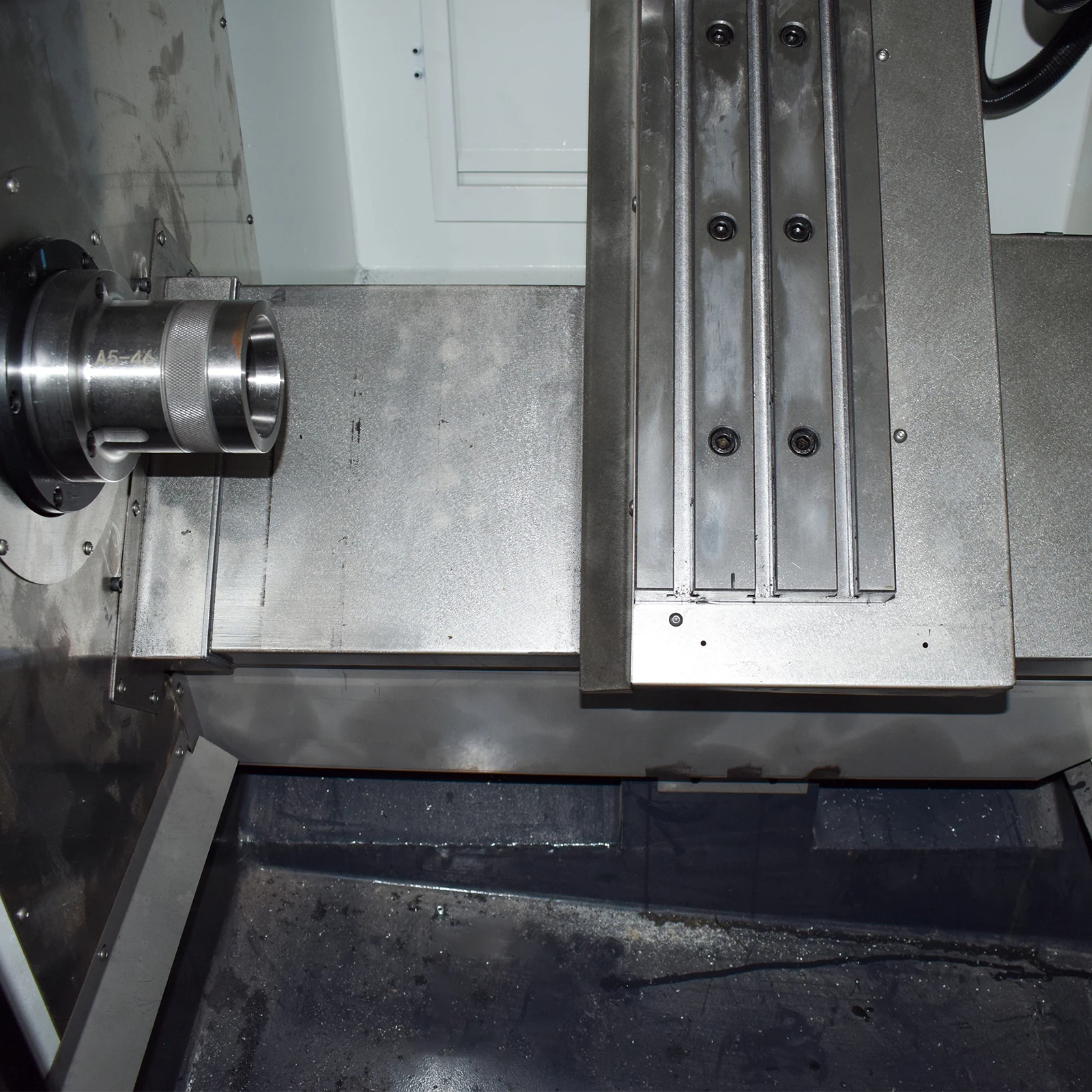

Machine specifications | Bed Type | 30° | Slant Bed | - | |
- | Heavy-duty anti-deformation patented base | - | |||

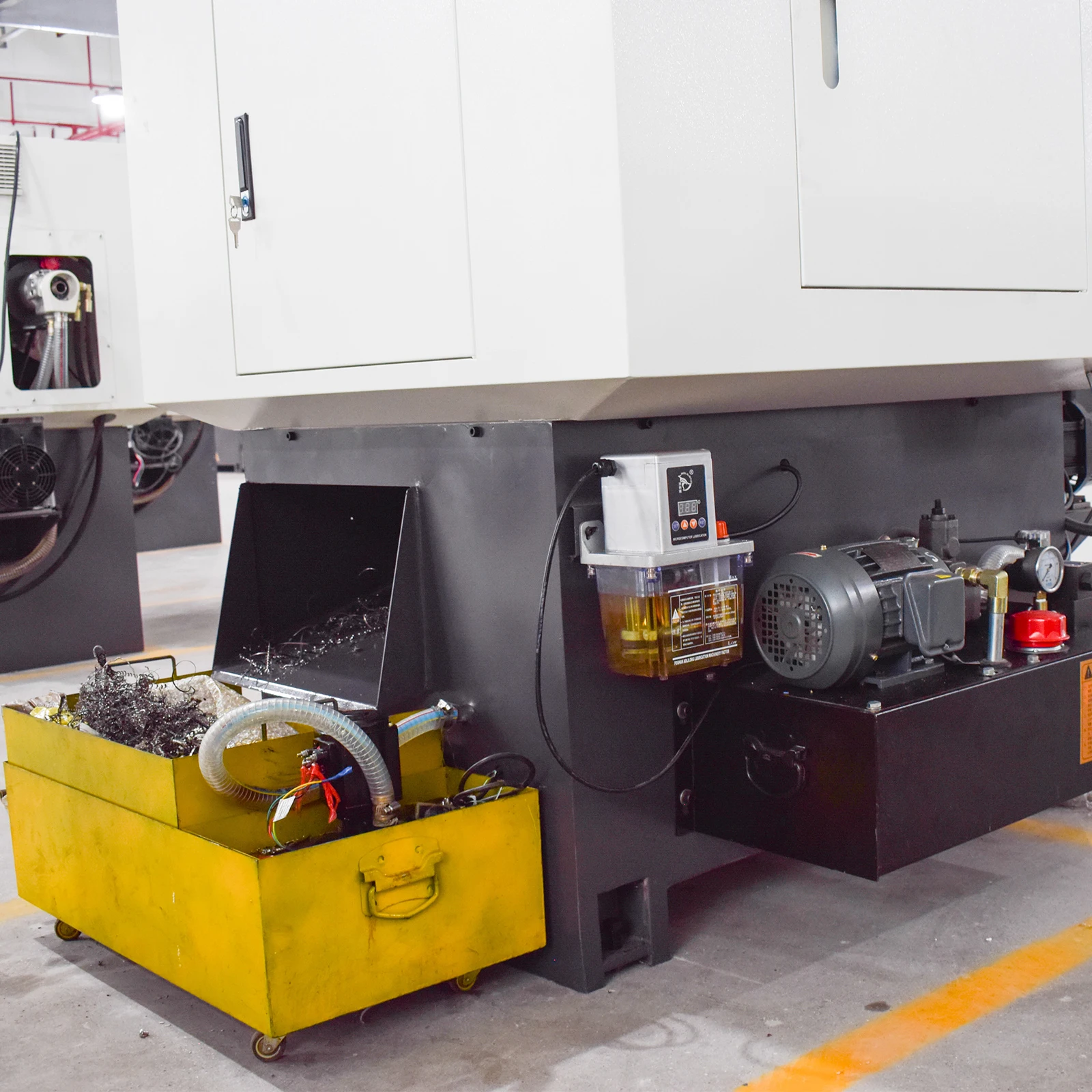

Clamping method | - | hydraulic clamping | - | ||
The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.
Related Products
Why Choose Us
FAQ
1. Who are we?
We are based in Guangdong, which provides CNC total solutions&Robot arm. Such as welding Robot arms, painting robot arms, handling robot arms, grinding robot arms, and scara robot, which has independent
technical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
technical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
2. How can we guarantee the quality?
Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. How does your CNC machine work with my production schedule?
Our machine tools use our complete set of CNC systems, and we can also change the corresponding configuration according to your needs, such as turrets, kits, etc., to solve the trouble of debugging and refitting after you receive the goods in advance.
Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. How does your CNC machine work with my production schedule?
Our machine tools use our complete set of CNC systems, and we can also change the corresponding configuration according to your needs, such as turrets, kits, etc., to solve the trouble of debugging and refitting after you receive the goods in advance.
4. What services can we provide?
1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean, Italian, and so on.
1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean, Italian, and so on.
5.What is control mode for feeding Axes?
Our Normal CNC support Pulse+Direction signals for feeding axes drivers;
Our Modbus CNC support EtherCAT/Powerlink modbus for feeding axes drivers.
6.What is control mode for spindle axes?
There are dual analog voltage outputs(0~10V) for speed control of spindle axis. Our Modbus CNC also support Pulse speed spindle, also can use pulse to control speed of spindle servo system.
7.Does your cnc support ATC function?
Yes, our CNC lathe system can support most of turret, like Eletric turret,servo turret,counting turret,etc;
We can edit special macro program & plc for special turrets also;
And our CNC milling system support Linear type , umbrella type, arm type, turret type tool magazines.
8.Does your cnc support booting logo exchange?
Yes, no problem.
Our Normal CNC support Pulse+Direction signals for feeding axes drivers;
Our Modbus CNC support EtherCAT/Powerlink modbus for feeding axes drivers.
6.What is control mode for spindle axes?
There are dual analog voltage outputs(0~10V) for speed control of spindle axis. Our Modbus CNC also support Pulse speed spindle, also can use pulse to control speed of spindle servo system.
7.Does your cnc support ATC function?
Yes, our CNC lathe system can support most of turret, like Eletric turret,servo turret,counting turret,etc;
We can edit special macro program & plc for special turrets also;
And our CNC milling system support Linear type , umbrella type, arm type, turret type tool magazines.
8.Does your cnc support booting logo exchange?
Yes, no problem.
