ADW210 Iot Multi Circuit 3 Phase ac Energy Meter With split core cts
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600867810488):
Product Overview
Description
Products Description

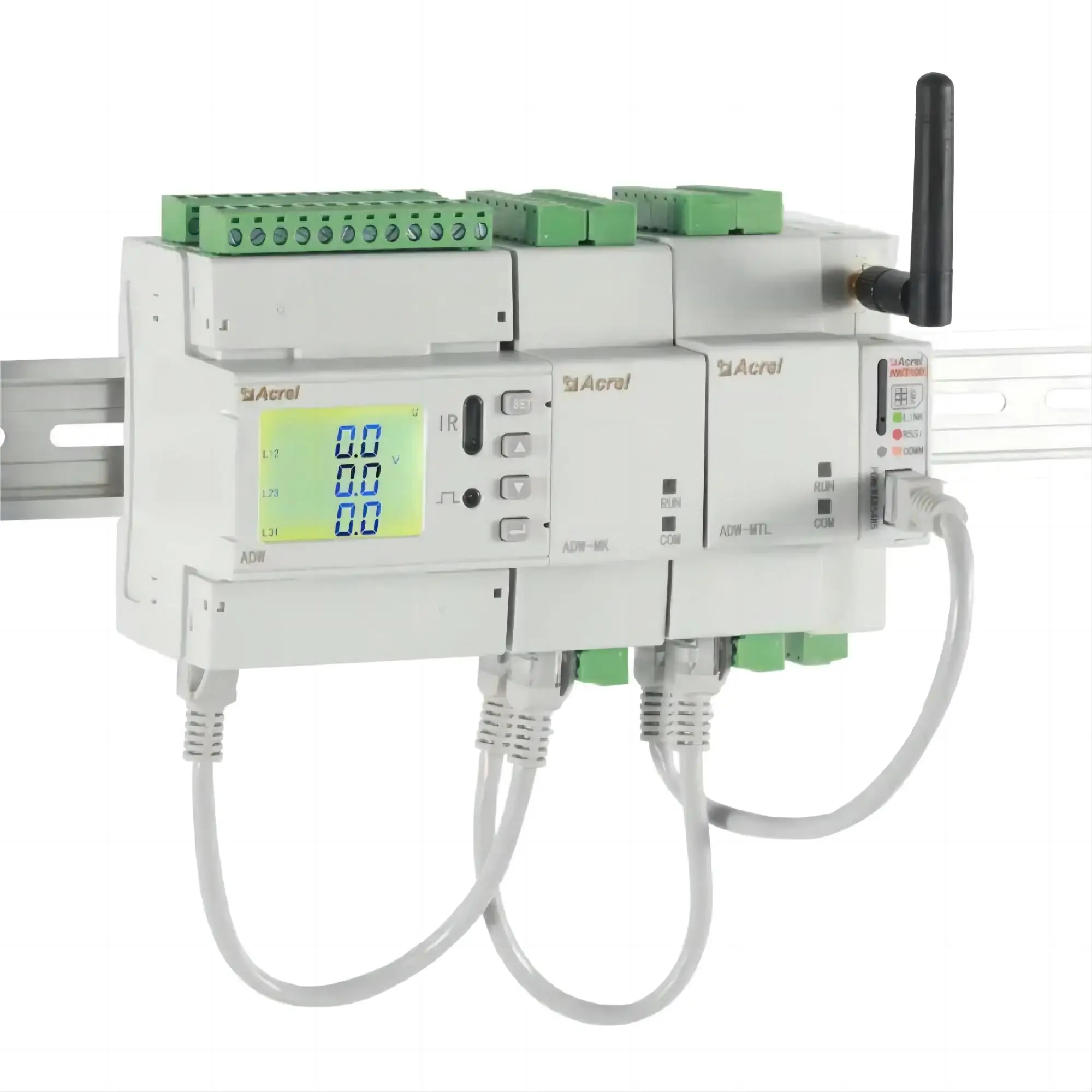

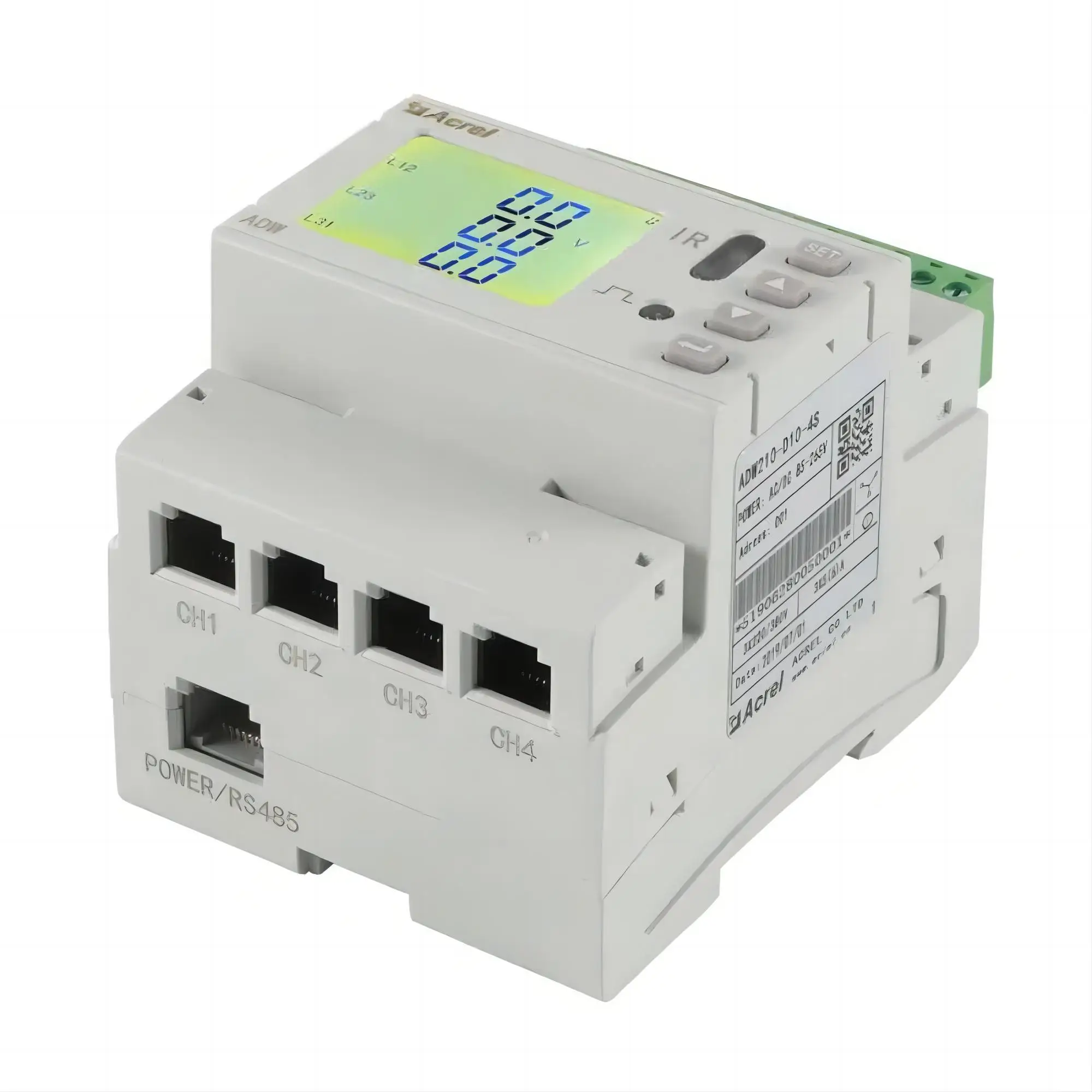

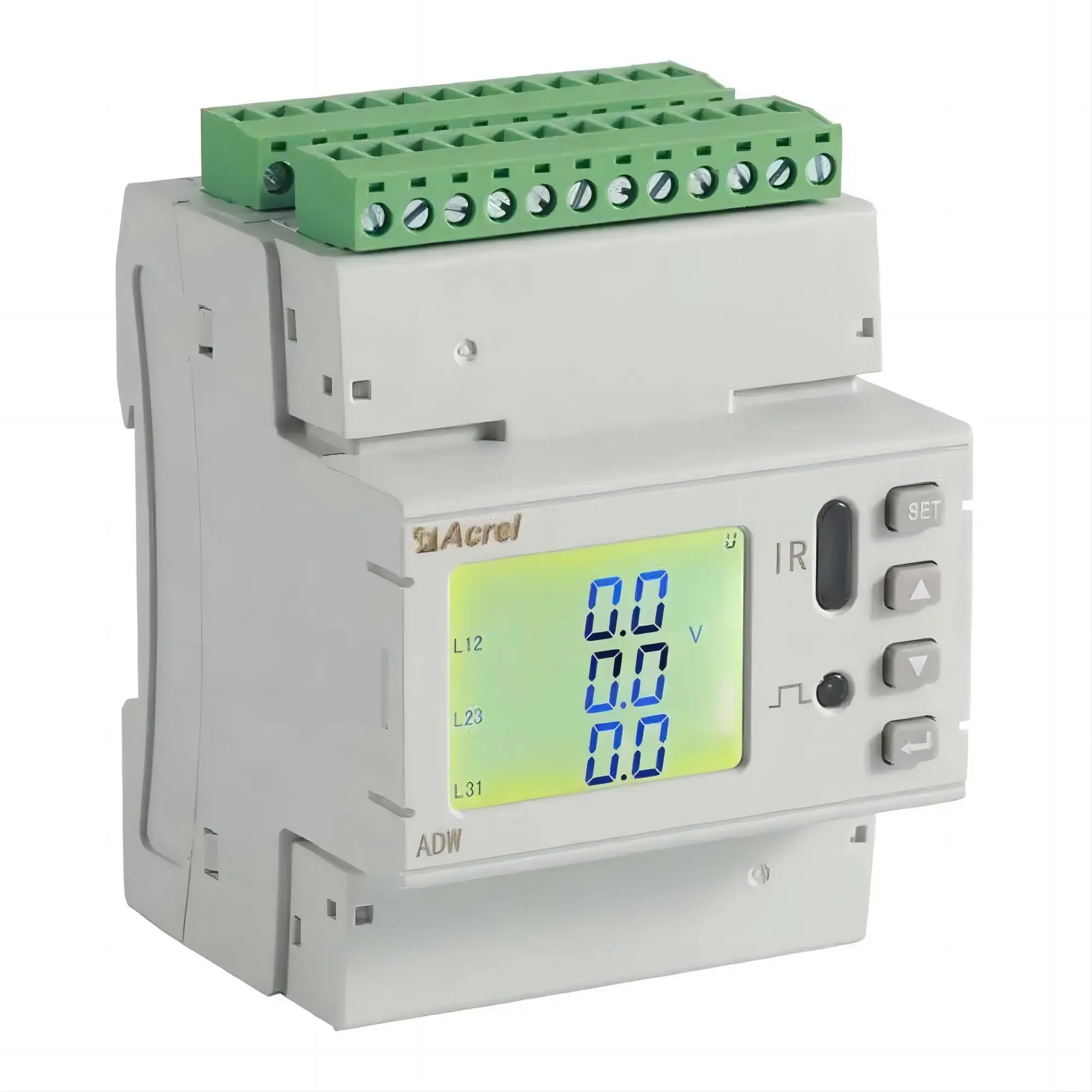

ADW210 IoT Wireless Multi-function Smart Energy Meter

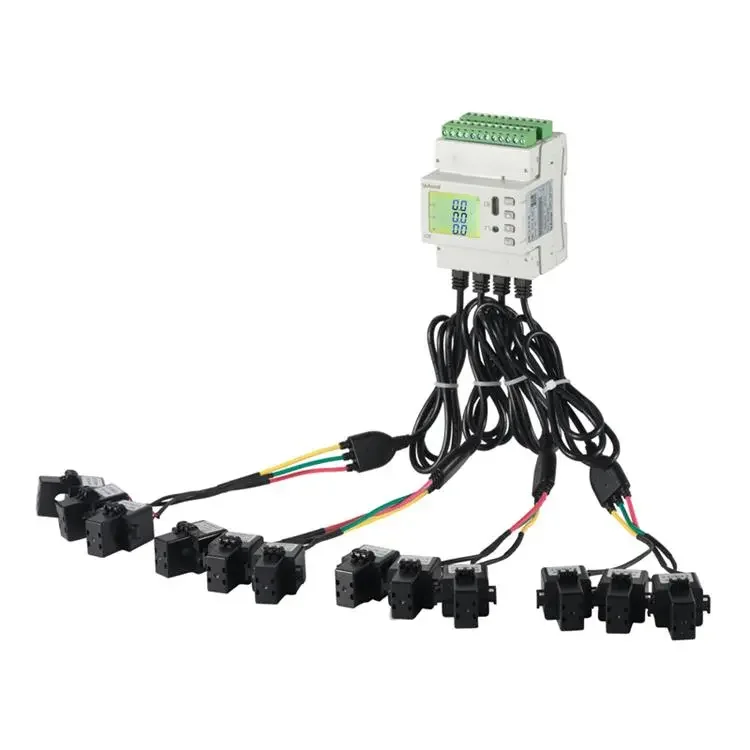

ADW210 is a multi channles three phase energy meter,it can maximum access 4 channels three phase,also can use as 12 channels single phase,these two methods just have the difference in wiring.The Multi Channel Energy Meter contains 12 pcs split core cts,the ampere input have 100A,400A,600A and secondarty input 5A,it is suitable for reconsutruciton project,cause the split core cts have RJ45 interface,you just need to insert the interface to energy meter,it can work.At the same time,the Din Rail Multi
Channel Energy Meter can work with our gateway to upload data to our cloud platform,can use 4G or wifi or ethernet wireless communication.
Channel Energy Meter can work with our gateway to upload data to our cloud platform,can use 4G or wifi or ethernet wireless communication.
Auxiliary power | AC/DC 85~65V,Consumption ≤10VA | ||
Input | Frequency | 45~65Hz | |
Voltage | AC 3x220V/380; Overload: 1.2 times of related value(continuous) | ||
Current | |||
Measurement accuracy | Frequency 0.05Hz, voltage, current Class 0.5; 2-31st harmonic accuracy: ±1%； Active electric energy lvel 1，reactive electric energy level 2; | ||
Features | Pulse output | Output mode: optocoupler pulse with open collector | |
Communication | RS485, Modbus-RTU; Baud rate 1200~38400; | ||
Switching input | Dry contact input, built in power su[pply; | ||
Switching output | Output mode:relay normally open contact output; contact rating: AC 250V/3A, DC 30V/3A | ||
● Measurement: Up to 4-channel 3-phase kWh, kVarh, Current, Power, 2~31st Harmonic and etc
● Voltage Rating: 3x220V/380V AC (3P4W)
● Current Rating: 5A, 100A, 400A or 600A AC (with external CTs)
● Frequency: 45~65Hz
● Communication: RS485 (MODBUS-RTU)

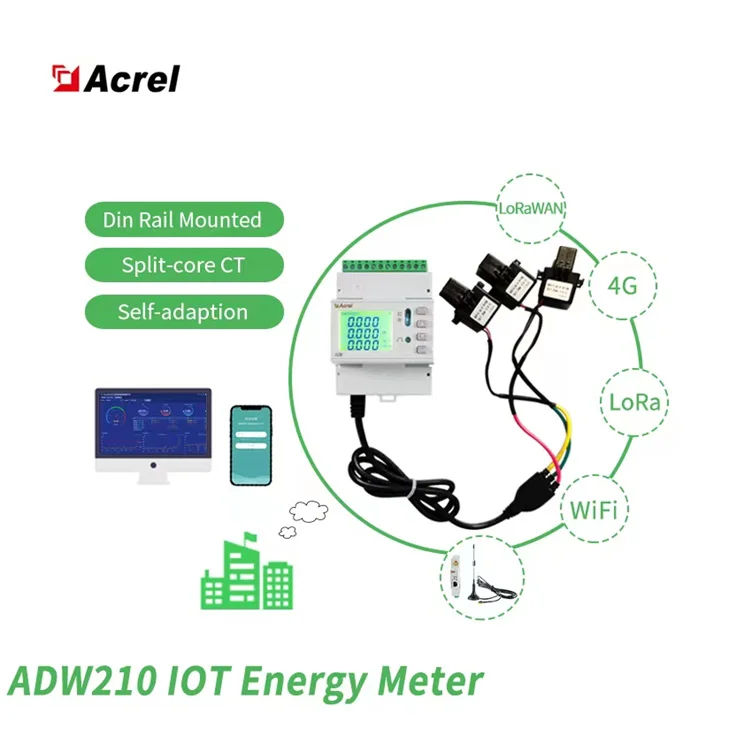

● Extra Function: Wireless Communication (4G, WiFi, LoRa and etc); Cable Temperature Measurement; DO/DI Function
● Display: LCD
● Dimension: 87.8*72*97.7mm（L*W*H) --- Main Body
● Wiring: 3-phase 4-wire Connection
● Installation: 35mm DIN Rail
● Standard&Certificate: CE; LVD
● Voltage Rating: 3x220V/380V AC (3P4W)
● Current Rating: 5A, 100A, 400A or 600A AC (with external CTs)
● Frequency: 45~65Hz
● Communication: RS485 (MODBUS-RTU)
● Extra Function: Wireless Communication (4G, WiFi, LoRa and etc); Cable Temperature Measurement; DO/DI Function
● Display: LCD
● Dimension: 87.8*72*97.7mm（L*W*H) --- Main Body
● Wiring: 3-phase 4-wire Connection
● Installation: 35mm DIN Rail
● Standard&Certificate: CE; LVD
Application Sceanrio
Acrel IOT Cloud Platform Demo:https://iot.acrel-eem.com/
Admin:acrel Pawword:123456

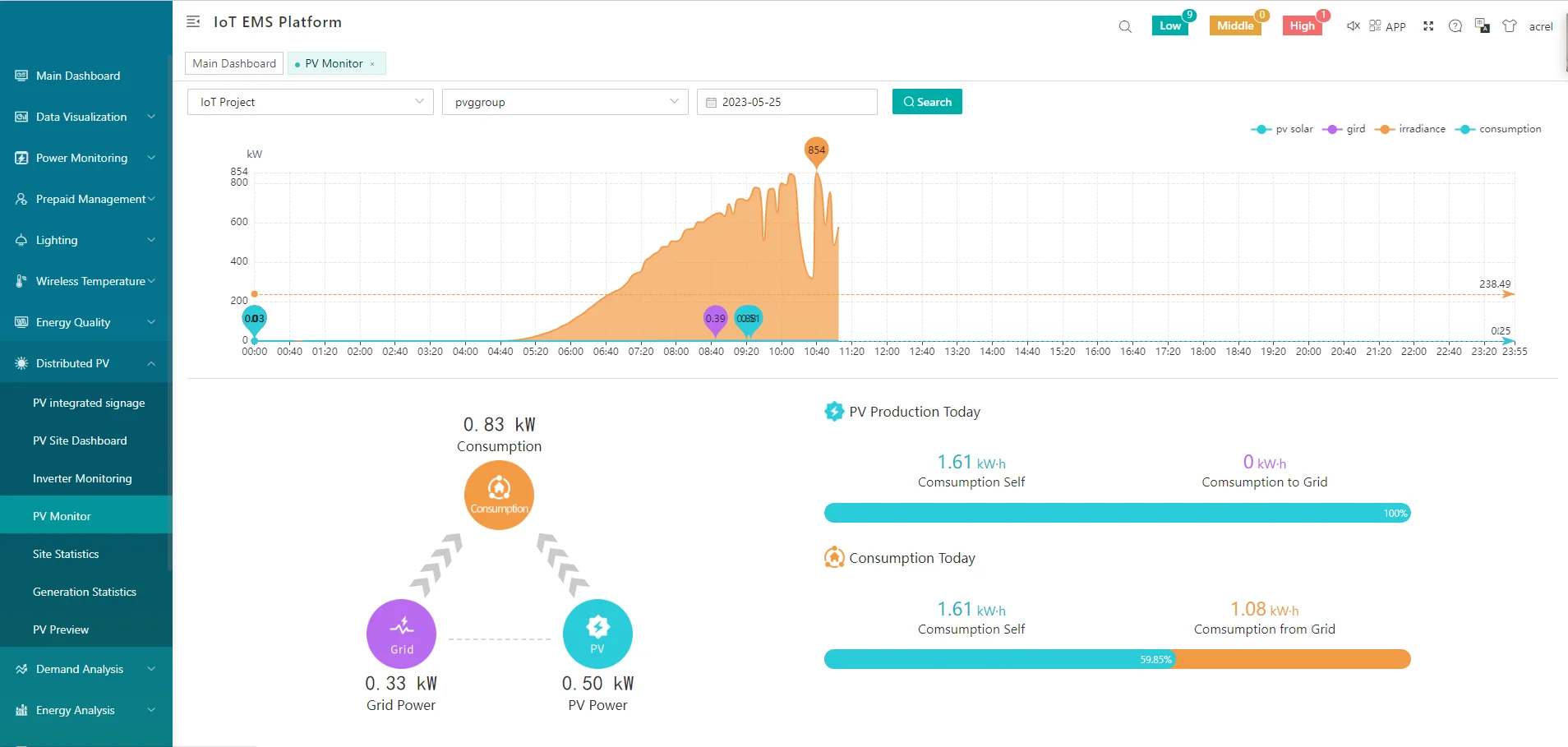

By install acrel energy meter or any other devices,can monitor the data from solar panel(dc side),inverter side,grid side and load side.The inverter efficiency of the photovoltaic inverter, the maintenance time of the photovoltaic panel, the power consumption at the load end, the power consumption of the national grid, and the power fed back to the state grid can be obtained through graphics and data.
Acrel IOT Cloud Platform support API forward to the third party platform or provide standard MQTT to support.

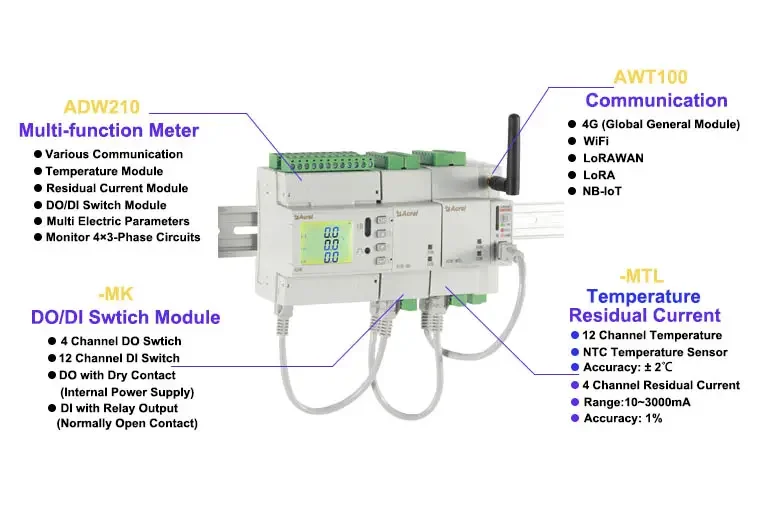

Features

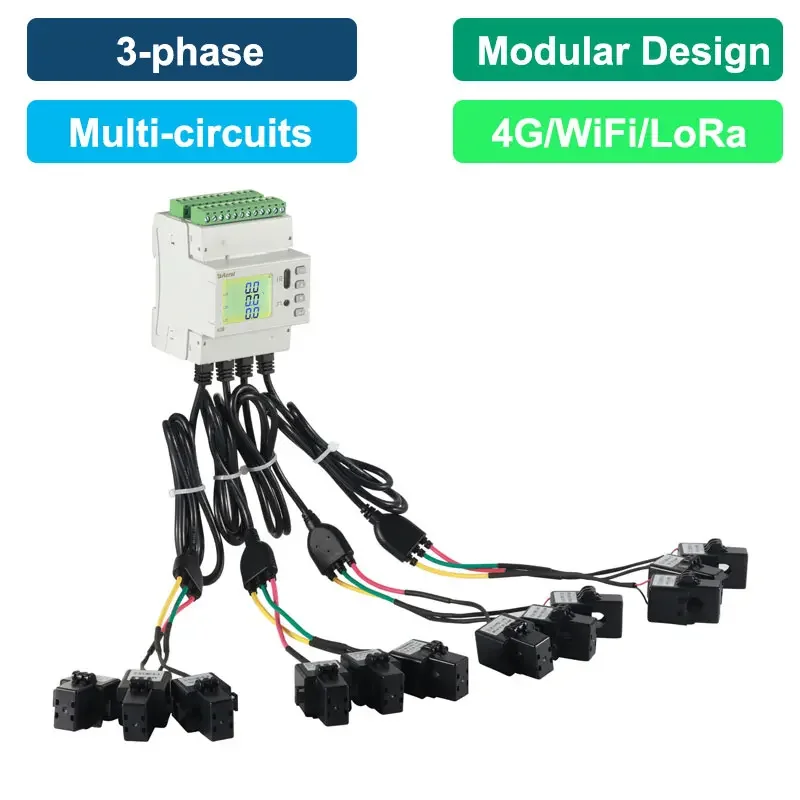

Multi-circuits Monitoring
● Monitor up to 4×3-phase circuits in total● Paired CTs with specs of 5A/1.25mA; 100A/20mA; 400A/100mA or
600A/100mA
● External CTs Connectwith ADW210 Main Body thrrough RJ12 Interface
● 4G (Global general module)
● WiFi
● LoRaWAN
● LoRa
● NB-IoT
● Temperature Measurement:-20℃~+100℃
● Residual Current Measurement:10~3000 mA
● Accuracy：Temperature：± 2℃; Residual Current：1% (Class 1)
● 12 channel DI (Digital Input)
● 4 channel DO (Digital Output)

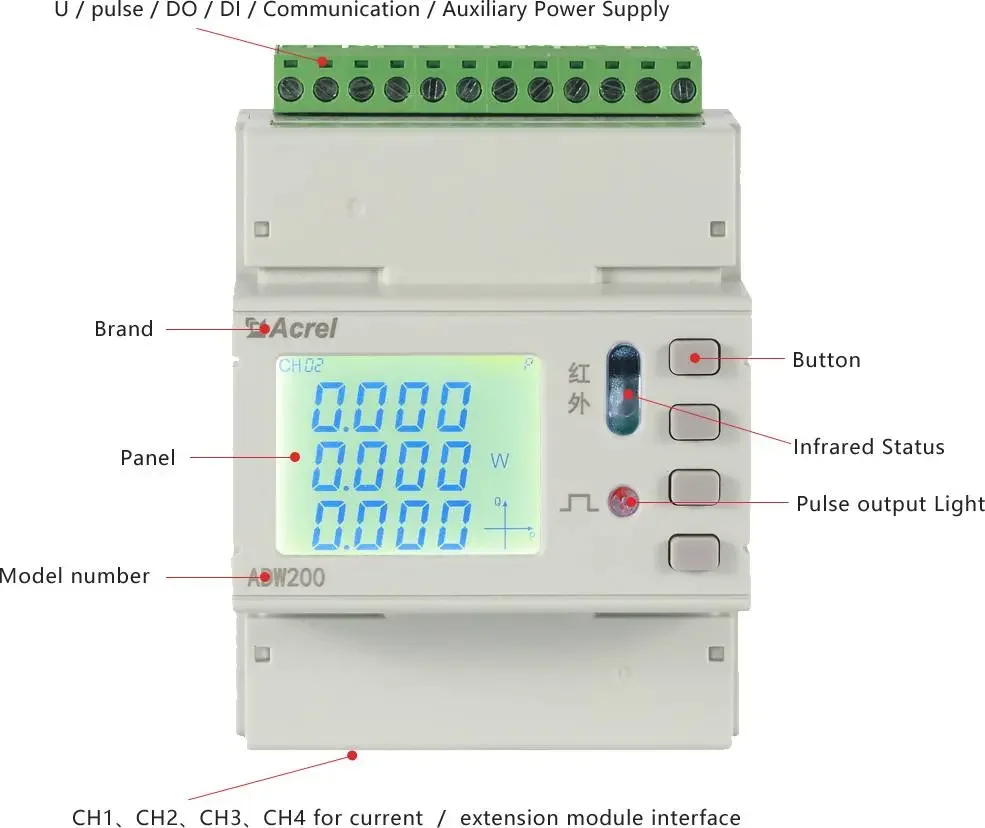

Display Sample
Wiring Illustration

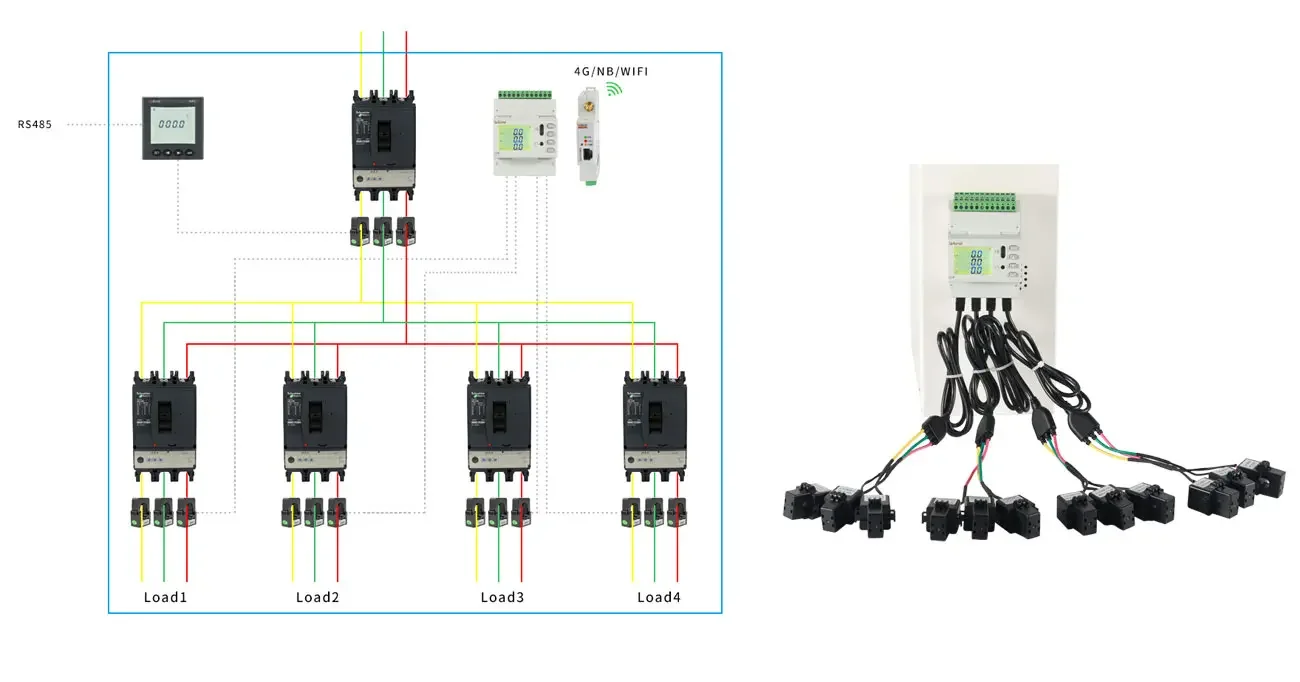

3-phase 4-wire Wiring of ADW210 monitoring 4 3-phase Circuits

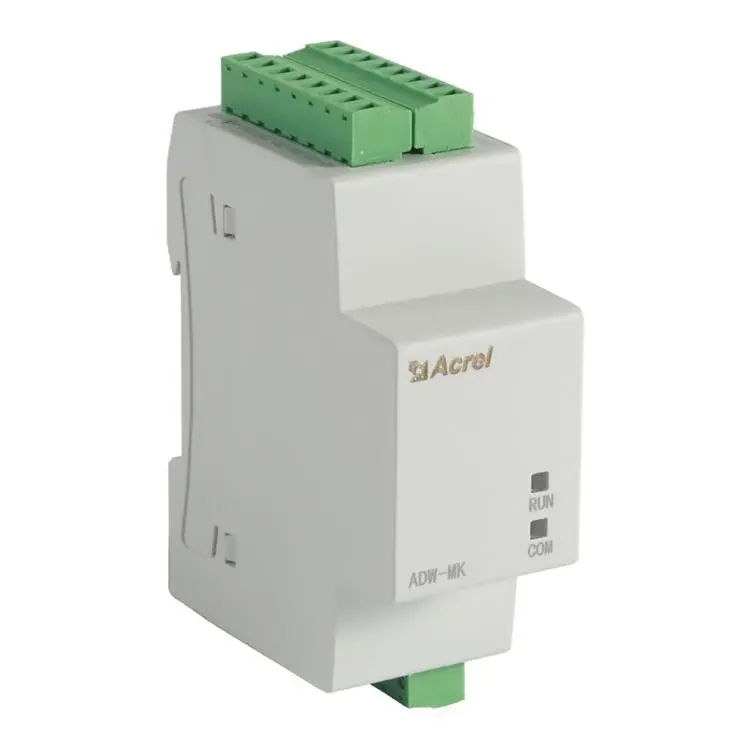

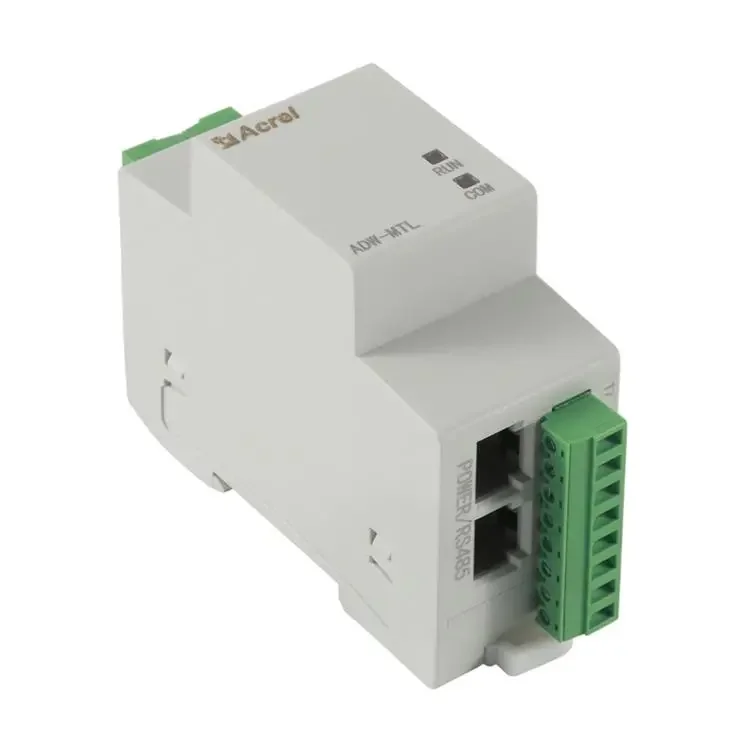

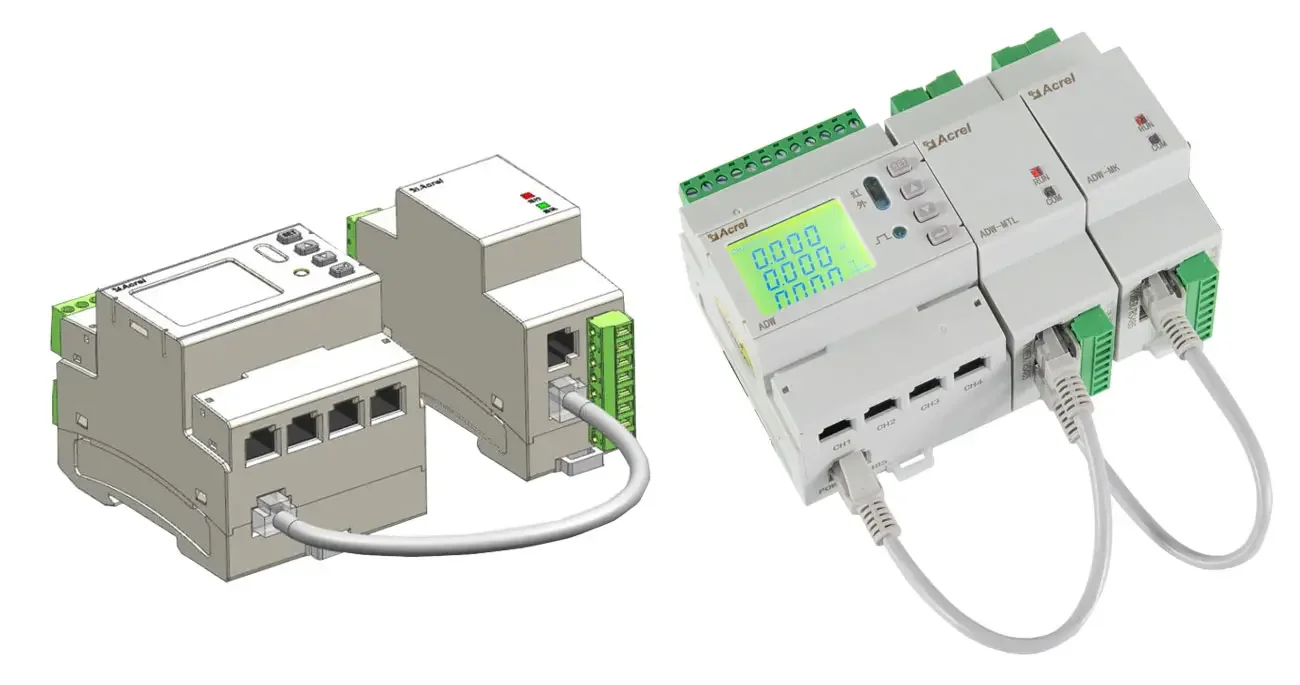

Wiring between ADW210 Main Body and MTL&MK Extra Function Module through RJ45 Interface

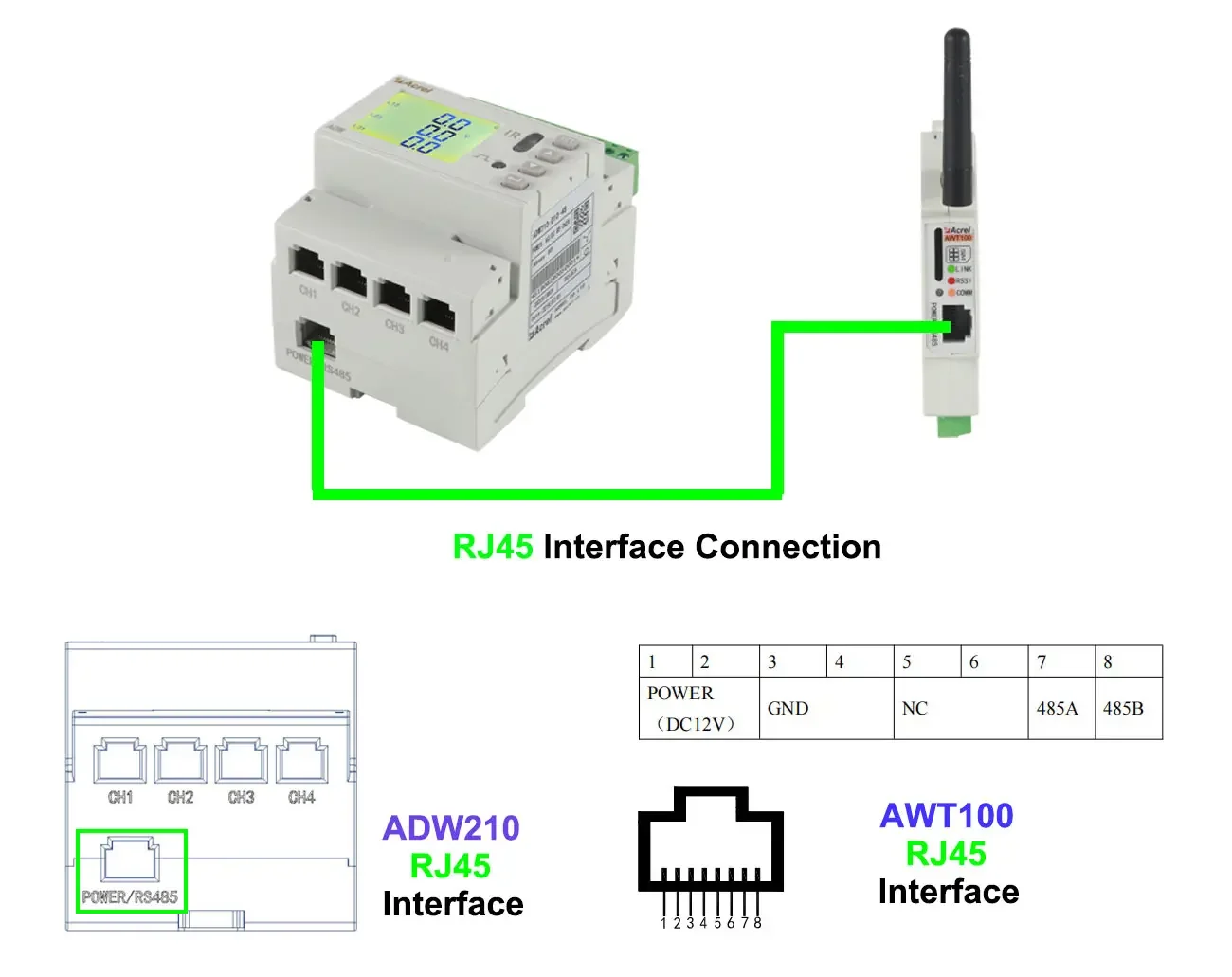

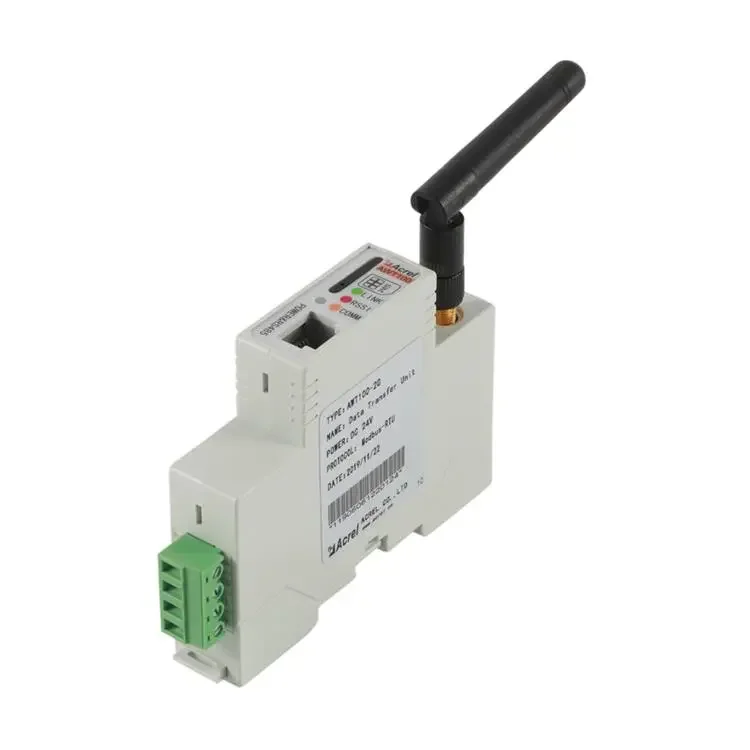

Wiring between 1 ADW210 Main Body and 1 AWT100 Communication Module
(Attention: In the connection between 1 ADW210 and 1 AWT100 through RJ45 interface, we don't need Auxiliary Power Supply for AWT100)

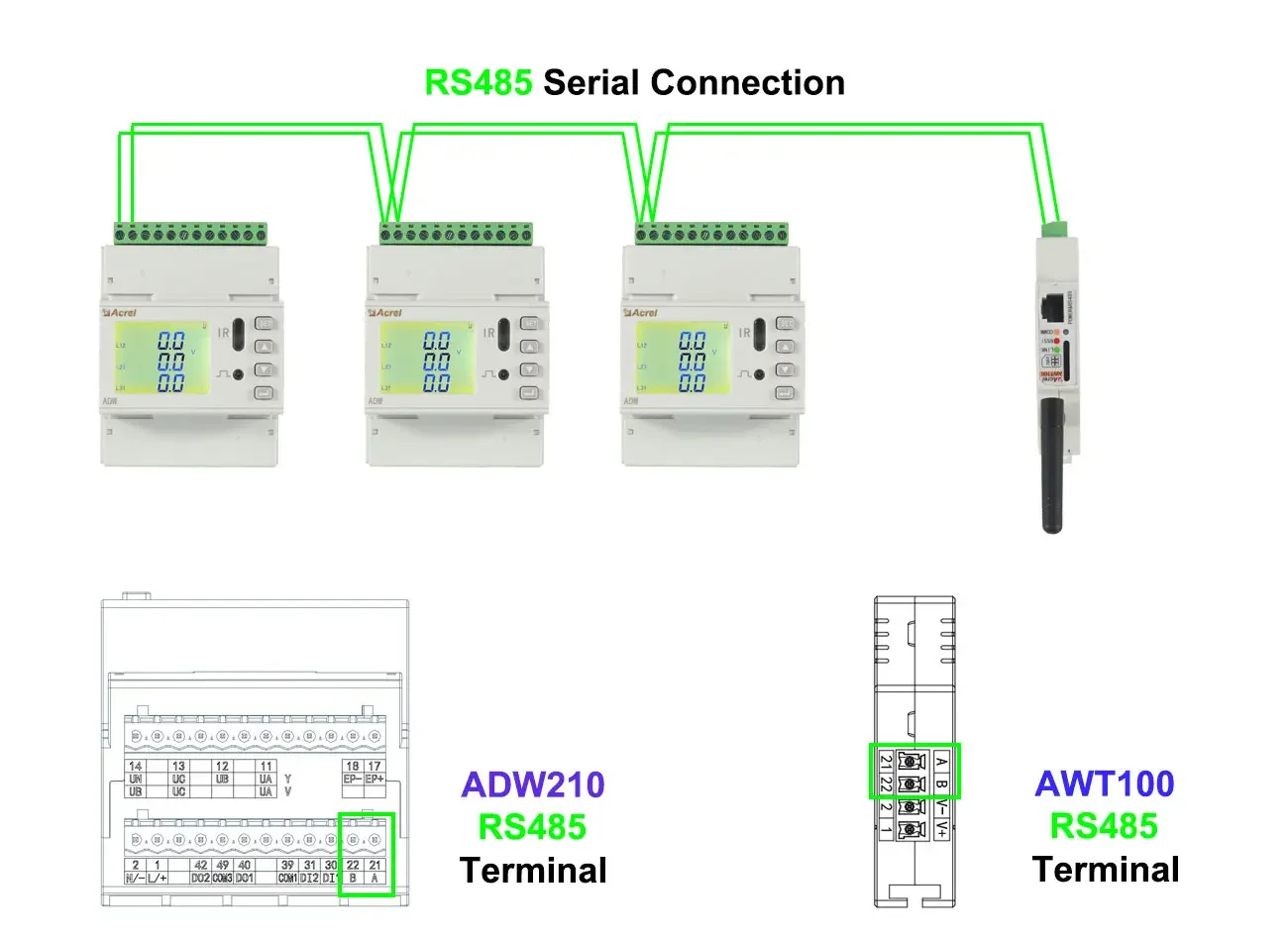

Wiring between more than 1 ADW210 Main Bodies and 1 AWT100 Communication Module
(Attention: In the connection between more than 1 ADW210 and 1 AWT100 through RS485 Serial Ports, we need DC24 or DC12V Auxiliary Power Supply for AWT100)
Typical Networking Connection
