Product Overview
Description
Reference Links Of ESP32 At Below:
https://github.com/Nicholas3388/LuaNode
https://github.com/nodemcu/nodemcu-firmware/tree/dev-esp32
Specification Of "ESP32 30PIN":
ESP-WROOM-32 ESP32 ESP-32S Development Board 2.4GHz Dual-Mode WiFi Dual Cores Microcontroller
Processor Integrated With Antenna RF AMP Filter AP STA For Arduino IDE 2.Ultra-Low Power Consumption, Works Perfectly With TheCompatible ForArduino IDE 3.SupportThree Modes: AP, STA, And AP+STA 4.Support LWIP Protocol,Freertos 5.ESP32 Is A Safe, Reliable,And Scalable To A Variety Of Applications
Processor Integrated With Antenna RF AMP Filter AP STA For Arduino IDE 2.Ultra-Low Power Consumption, Works Perfectly With TheCompatible ForArduino IDE 3.SupportThree Modes: AP, STA, And AP+STA 4.Support LWIP Protocol,Freertos 5.ESP32 Is A Safe, Reliable,And Scalable To A Variety Of Applications

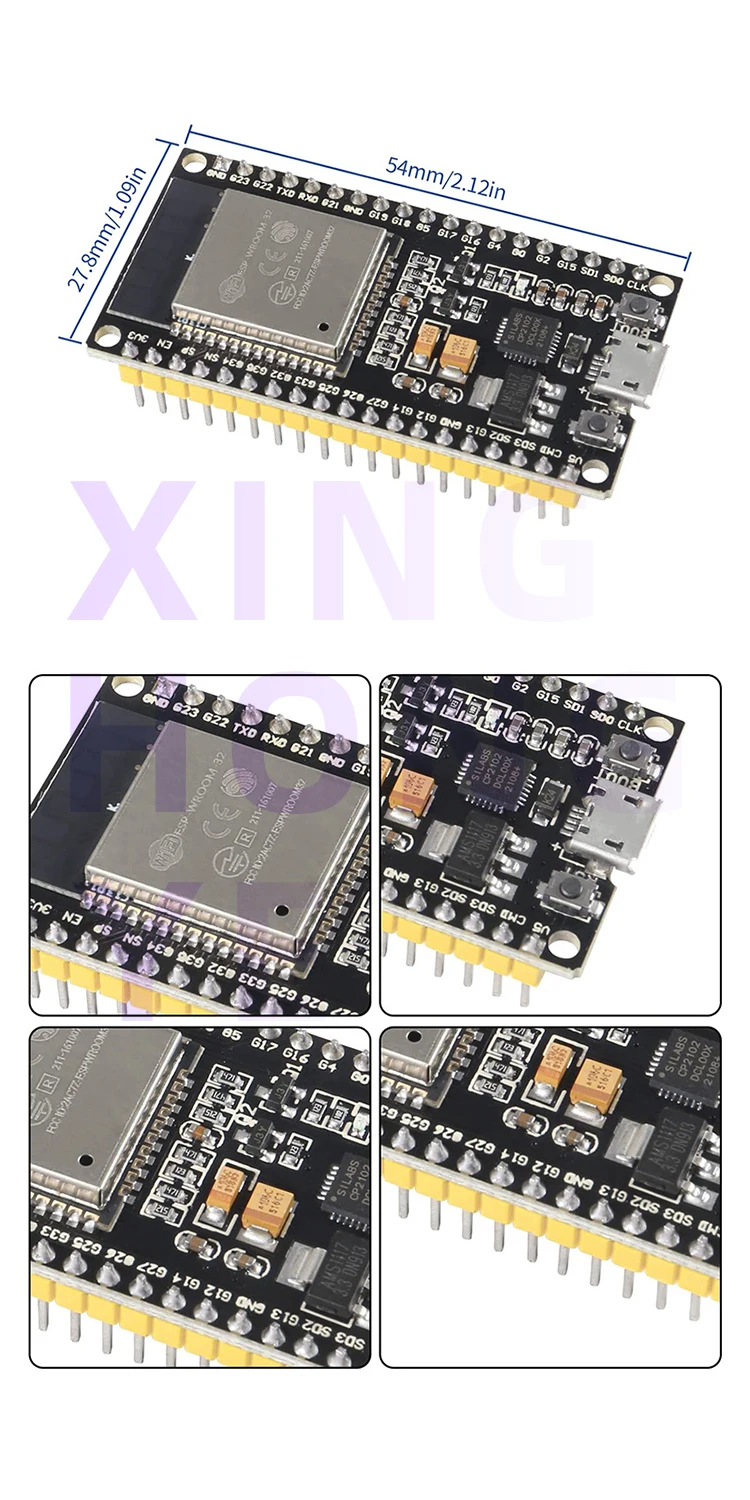

Specification Of "ESP32 38pin":
Dual Core ESP-32 Development Board, 2.4GHz Dual Mode Development Board.The Module Has 38 Pins And
Has More Features Than A 30-pin Module. And Smaller In Size, More Convenient To Use. Ultra-Low Power Consumption,small Volume, Easy To Embed To Other Products, Works Perfectly Compatible With Arduino IDE. Support Lua Program, Easy To Develop, Support LWIP Protocol, Freertos, Three Modes : AP, STA And AP + STA.
Features: High Performance Esp32 Module Small Volume, Easily Embeded To Other Products Supporting Lua Program, Easily To Develop Complete Microcontroller With WLAN (802.11bgn) Reset And Boot Buttons Are Available, So A New Firmware Can Be Quickly And Easily Installed The Development Board Combines A CPU With 2 Tensilica LX6 Cores, Clocked At Up To 240 MHz, And 512 Kilobytes SRAM In A Single Microcontroller Chip
Has More Features Than A 30-pin Module. And Smaller In Size, More Convenient To Use. Ultra-Low Power Consumption,small Volume, Easy To Embed To Other Products, Works Perfectly Compatible With Arduino IDE. Support Lua Program, Easy To Develop, Support LWIP Protocol, Freertos, Three Modes : AP, STA And AP + STA.
Features: High Performance Esp32 Module Small Volume, Easily Embeded To Other Products Supporting Lua Program, Easily To Develop Complete Microcontroller With WLAN (802.11bgn) Reset And Boot Buttons Are Available, So A New Firmware Can Be Quickly And Easily Installed The Development Board Combines A CPU With 2 Tensilica LX6 Cores, Clocked At Up To 240 MHz, And 512 Kilobytes SRAM In A Single Microcontroller Chip

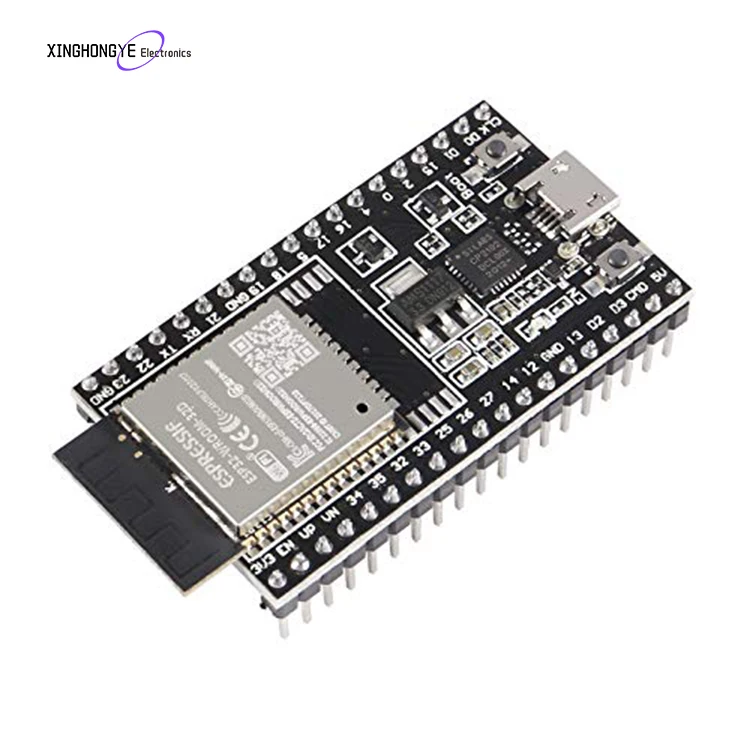

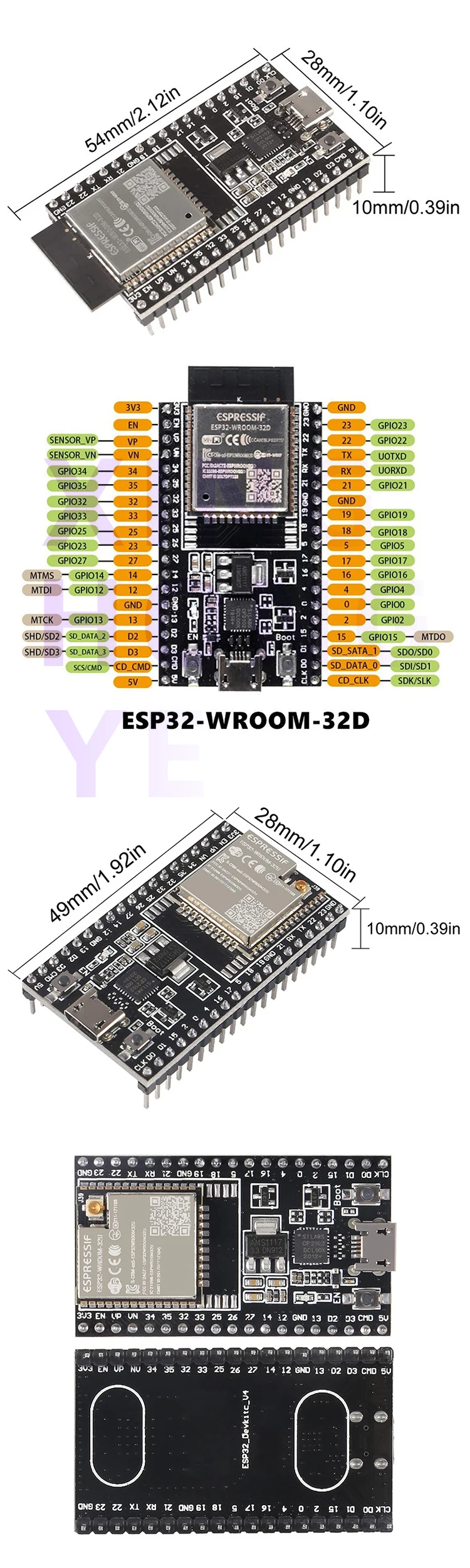

Specification Of "ESP32-WROOM-32D & U":
ESP32-DevKitC V4 Board USB A / Micro USB B Cable Computer Running Windows,Linux, Or MacOS You Can Skip The Introduction Sections And Go Directly To Section Start Application Development.
Overview ESP32-DevKitC V4 Is A Small-sized ESP32-based Development Board Produced By Espres-sif. Most Of The I/O Pins Are Broken Out To The Pin Headers On Both Sides For Easy Interfacing. Developers Can Either Connect Peripherals With Jumper Wires Or Mount ESP32-DevKitC V4 On A Breadboard.
Overview ESP32-DevKitC V4 Is A Small-sized ESP32-based Development Board Produced By Espres-sif. Most Of The I/O Pins Are Broken Out To The Pin Headers On Both Sides For Easy Interfacing. Developers Can Either Connect Peripherals With Jumper Wires Or Mount ESP32-DevKitC V4 On A Breadboard.
To Cover A Wide Range Of User Requirements, The Following Versions Of ESP32-DevKitC V4 Are Available:
ESP32-WROOM-32
ESP32-WROOM-32D
ESP32-WROOM-32U
ESP32-SOLO-1
ESP32-WROVER
ESP32-WROVER-B
ESP32-WROVER-I
ESP32-WROVER-B (IPEX) male
Or Female Pin Headers.
Or Female Pin Headers.

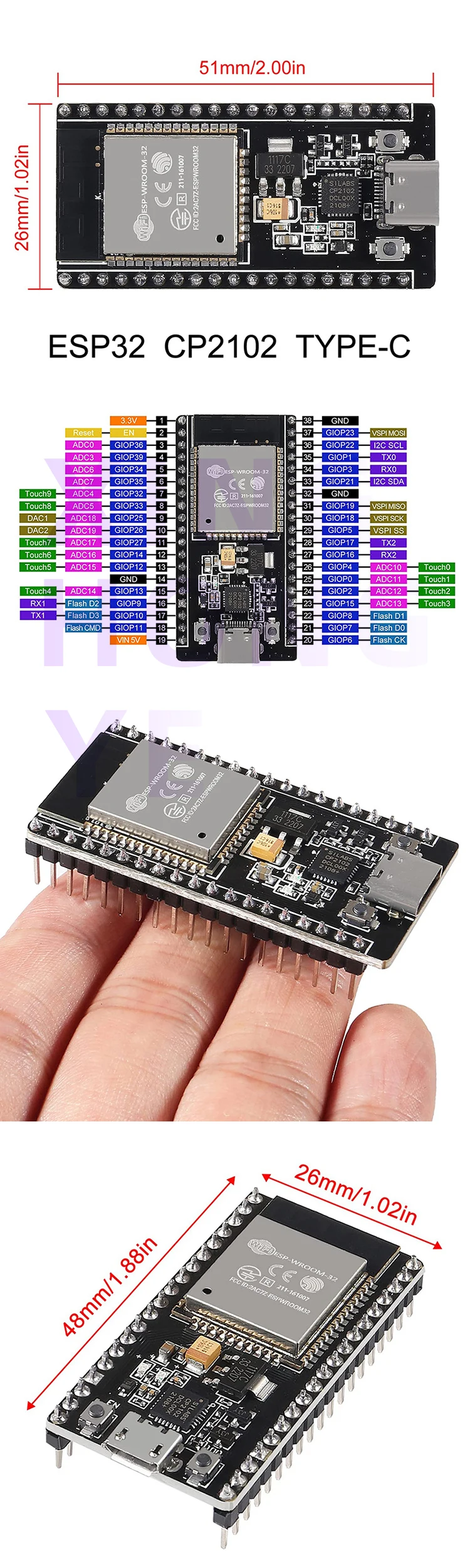

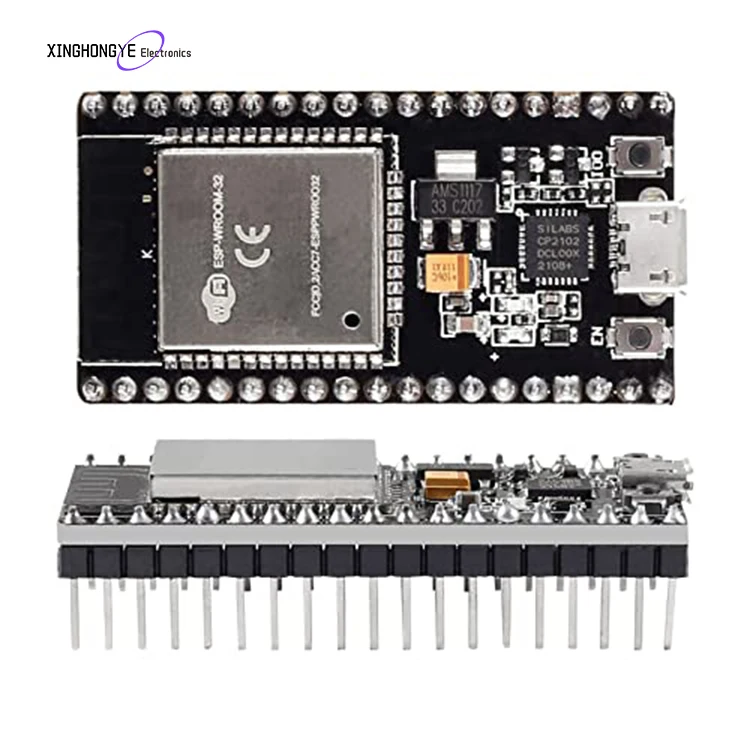

Specification Of "ESP32 CP2102":
The Module Has 38 Pins And Has More Features Than A 30-pin Module. Narrower Width, Compatible
With Breadboard Support Lua Program, Easy To Develop. Support Of Three Modes: AP, STA And AP + STA. This Board Is Used With 2.4GHz Dual-mode Wi-Fi Chips ESP-WROOM-32, As Well As The 40nm Low-power Technology.
This Module Is Safe, Reliable, And Scalable To A Variety Of Applications. ESP32S ESP32 Development Board 2.4 GHz Dual Core WLAN WiFi Microcontroller ESP-WROOM-32 Chip For Arduino 38PIN Narrow Version
Features: Complete Microcontroller With WLAN (802.11bgn) Reset And Boot Buttons Are Available, So A New Firmware Can Be Quickly And Easily Installed. The Development Board Combines A CPU With 2 Tensilica LX6 Cores, Clocked At Up To 240 MHz, And 512 Kilobytes SRAM In A Single Microcontroller Chip. Note: The Module Has 38 Pins And Has More Features Than A 30-pin Module. And Smaller In Size, More Convenient To Use.
With Breadboard Support Lua Program, Easy To Develop. Support Of Three Modes: AP, STA And AP + STA. This Board Is Used With 2.4GHz Dual-mode Wi-Fi Chips ESP-WROOM-32, As Well As The 40nm Low-power Technology.
This Module Is Safe, Reliable, And Scalable To A Variety Of Applications. ESP32S ESP32 Development Board 2.4 GHz Dual Core WLAN WiFi Microcontroller ESP-WROOM-32 Chip For Arduino 38PIN Narrow Version
Features: Complete Microcontroller With WLAN (802.11bgn) Reset And Boot Buttons Are Available, So A New Firmware Can Be Quickly And Easily Installed. The Development Board Combines A CPU With 2 Tensilica LX6 Cores, Clocked At Up To 240 MHz, And 512 Kilobytes SRAM In A Single Microcontroller Chip. Note: The Module Has 38 Pins And Has More Features Than A 30-pin Module. And Smaller In Size, More Convenient To Use.

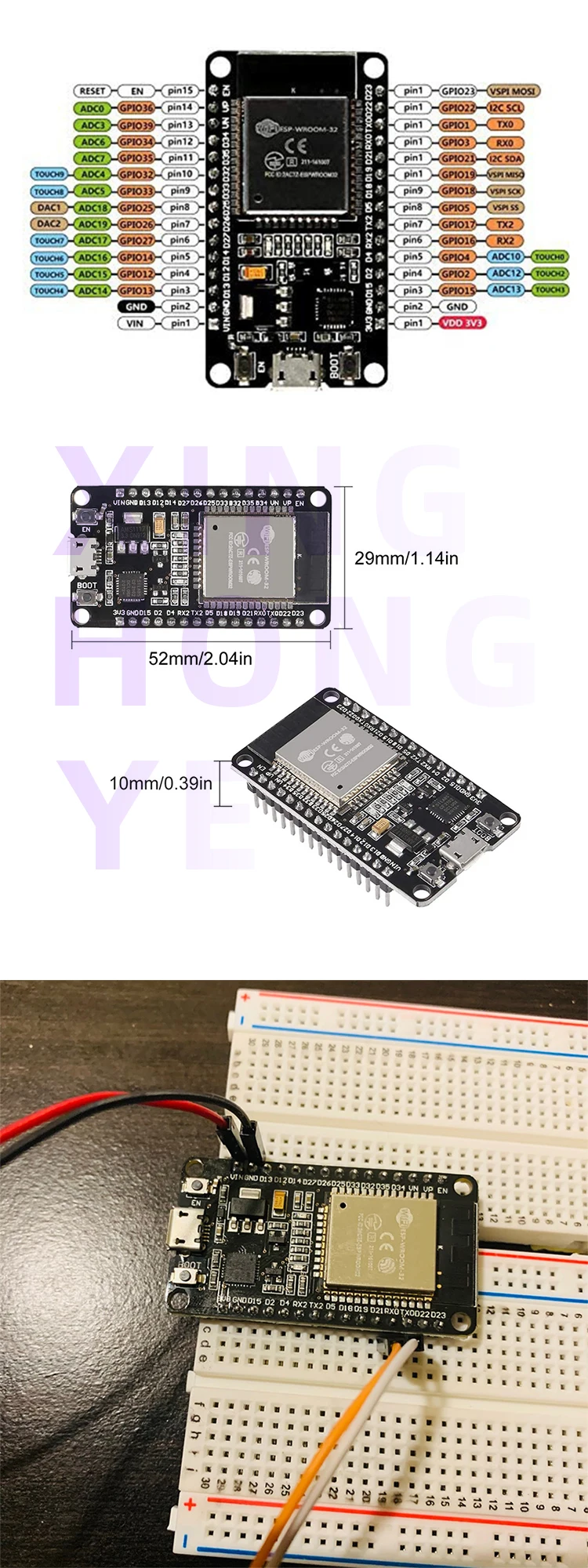

Specification Of "ESP32 CH340C":
Development Board Model: ESP32-DevKitC-32
Module Model: ESP32-WROOM-32
Main Control Chip:ESP32-DOWDQ6-V3
Dual-core 32bit MCU Integrated WiFi Integrated 520-kBSRAM, 448-kBROM16-kBSRAMinRTC
External Storage: 4MB
USB Driver Chip: CH340C, With Good System Compatibility, Higher Download Speed, And More Stability. Support VIN External Wide Voltage Input 5-12V Power Supply (battery Version Maximum 5.5V Input) Support USB Power Supply, External 3.3V Power Supply, And VIN Power Supply Three Kinds Of Power Supply Mode
Development Board Size: 52*28mm/weight About 9.5g
Support ArduinoIDE Mixly, Mind+, Python And Other Programming Software

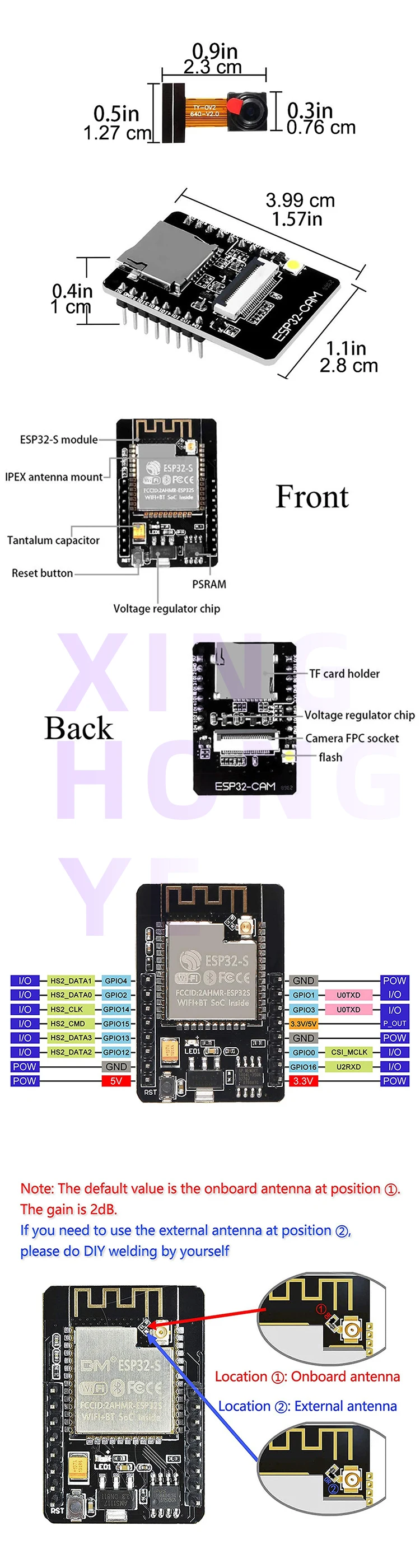

Specification Of "ESP32 Cam":
Using Low-power Dual-core 32-bit CPU, Which Can Be Used As An Application Processor. The Main
Frequency Is Up To 240MHz, And The Computing Power Is Up To 600 DMIPS Built-in 520 KB SRAM, External 8MB PSRAM Support UART/SPI/I2C/PWM/ADC/DAC And Other Interfaces Support OV2640 And OV7670 Cameras, Built-in Flash Support Picture WiFI Upload Support Multiple Sleep Modes And STA/AP/STA+AP Working Mode Lwip And FreeRTOS Embedded Support Smart Config/ One-click Network Configuration Support Secondary Development
Frequency Is Up To 240MHz, And The Computing Power Is Up To 600 DMIPS Built-in 520 KB SRAM, External 8MB PSRAM Support UART/SPI/I2C/PWM/ADC/DAC And Other Interfaces Support OV2640 And OV7670 Cameras, Built-in Flash Support Picture WiFI Upload Support Multiple Sleep Modes And STA/AP/STA+AP Working Mode Lwip And FreeRTOS Embedded Support Smart Config/ One-click Network Configuration Support Secondary Development
Parameters:
Working Voltage: 4.75-5.25V
SPIFlash: Default 32Mbit
RAM: Internal 520KB + External 8MB PSRAM
Wi-Fi: 802.11b/g/n/e/i
Support Interface (2Mbps): UART, SPI, I2C, PWM Support
Support Interface (2Mbps): UART, SPI, I2C, PWM Support
TF Card: Maximum Support 4G
IO Port: 9 Serial
Port Rate: Default 115200bps
Spectrum Range: 2400 ~2483.5MHz
Antenna Form: Onboard PCB Antenna, Gain 2dBi
Image Output Format: JPEG (only OV2640 Support), BMP,GRAYSCALE

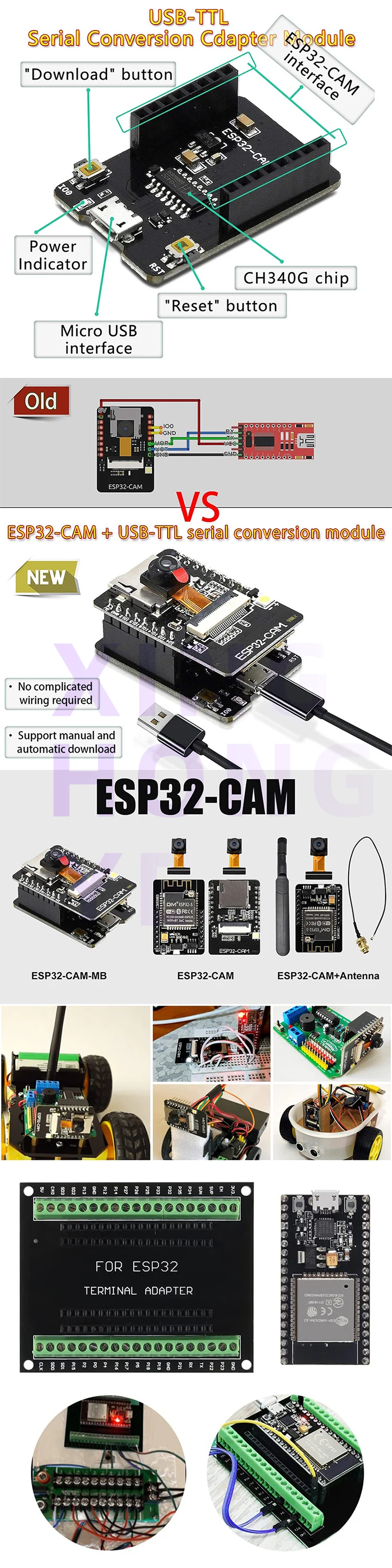

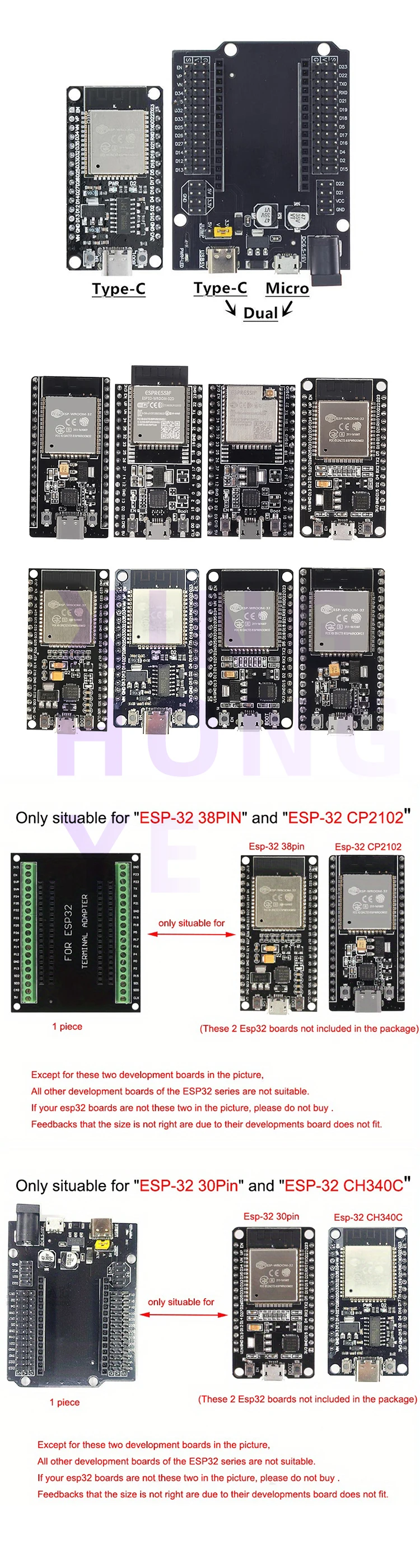

Notice: “Adapter For 38Pin"
Only Situable For "ESP-32 38Pin" "ESP32 CP2102" Other Types ESP32 Not Suitable. As The Photo Below
Products Description
MOQ | 5 Pcs |
Unit Price | Please contact us for the latest prices |
Lead Free Status | lead-free |
Lead time | 1-3 Working days |
Distributor | Shenzhen Xinghongye Technology Co., Ltd. |
Port | Shenzhen or hongkong |
Condition | Brand new& Original |
REACH Status | REACH Unaffected |
Shipping By | DHL\\UPS\\Fedex\\EMS\\TNT\\Aramex |
Payment | L/C , T/T , D/A , D/P , Western Union , MoneyGram |
