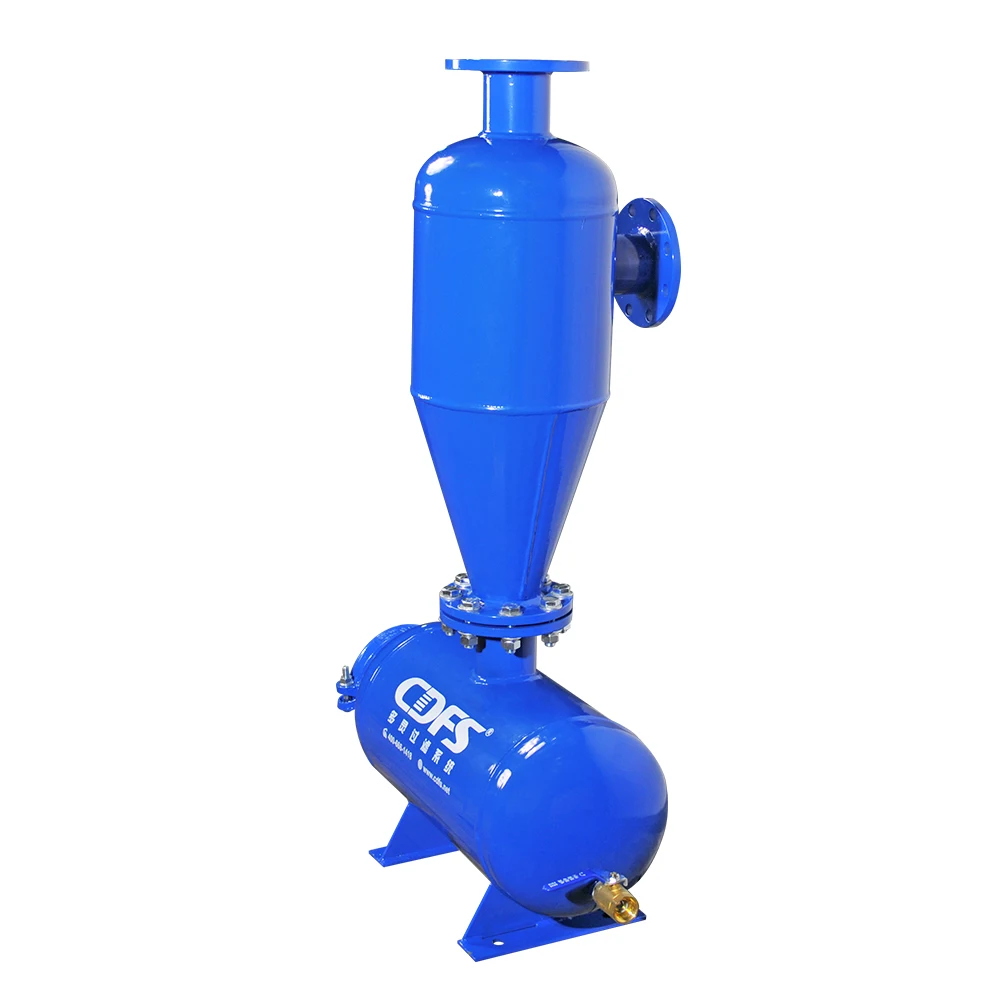

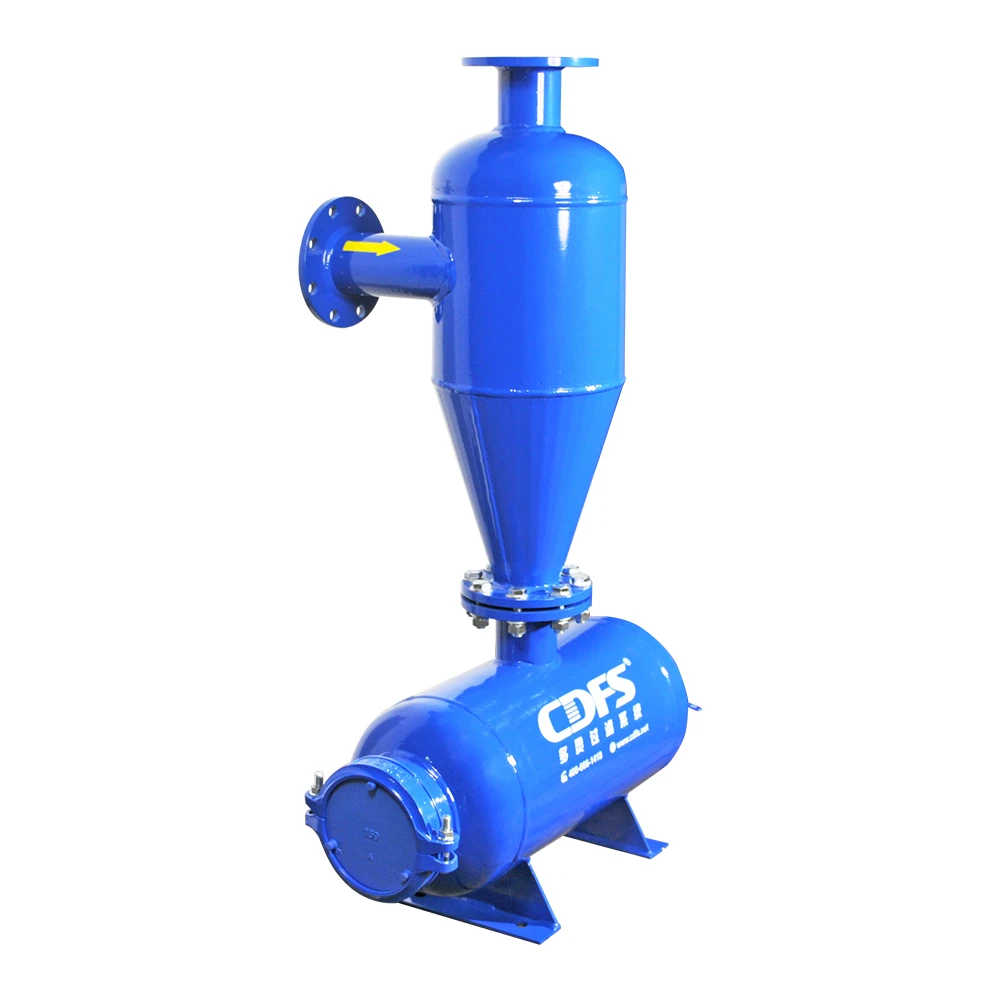

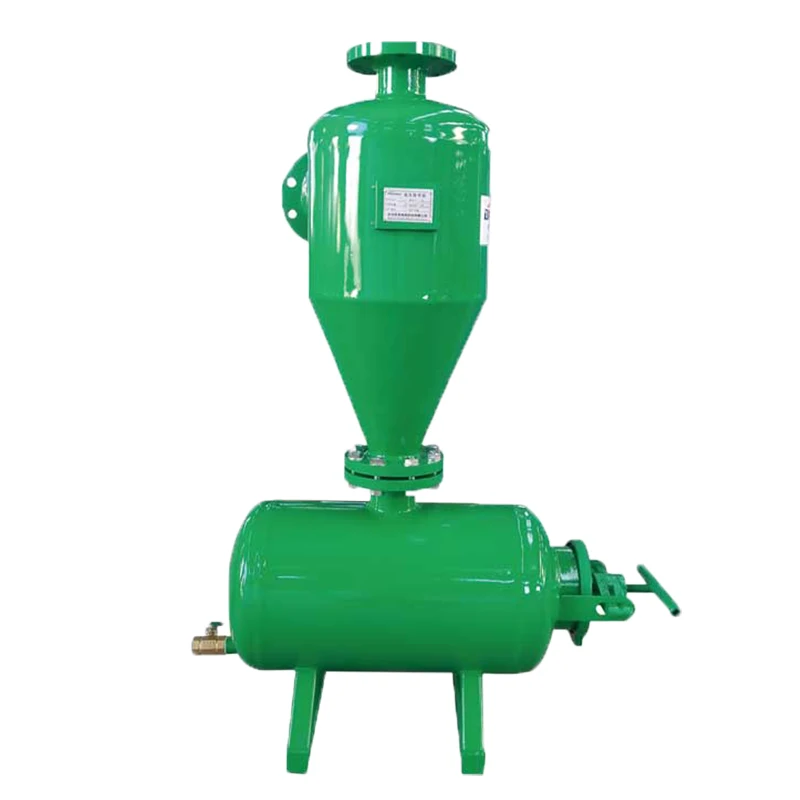

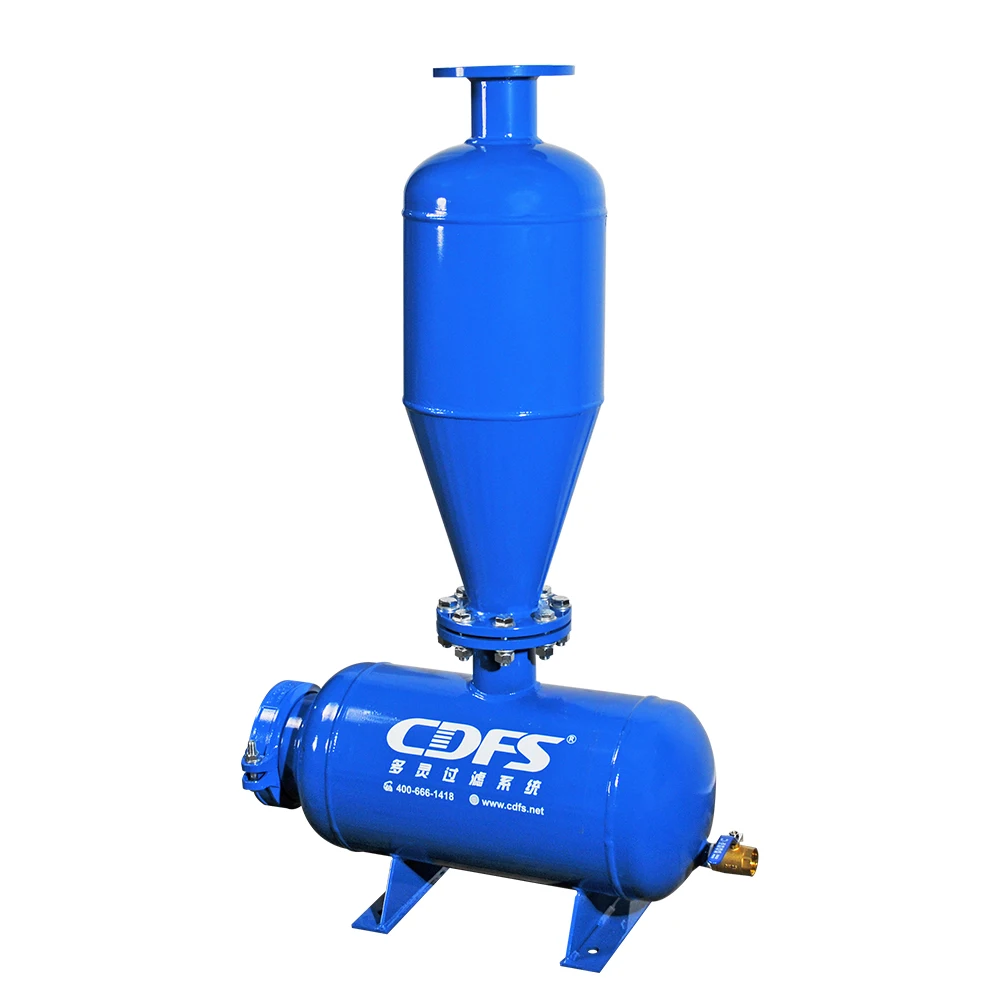

2 inch 20M3/H hydro cyclone water filter for irrigation
- Category: >>>
- Supplier: Hunan Dawning Filter System Technology Co. Ltd.
Share on (1600867904807):
Product Overview
Description
Centrifugal Filter Hydrocyclone Water Filter
Products Description
Brief Introduction
DLXL hydrocyclone centrifugal filter
Used as the primary filtration of groundwater and deep well water to remove large particles. Sand removal rate is up to 99%.
Used as the primary filtration of groundwater and deep well water to remove large particles. Sand removal rate is up to 99%.
Features
1.Simple structure, low cost.
2.Easy to install and operate. Maintenance-free
3.Small and large volume processing capabilities, saving installation space.
4. Customzied service: Pressure,material and power if there are specialized requirements,welcome to contact us
2.Easy to install and operate. Maintenance-free
3.Small and large volume processing capabilities, saving installation space.
4. Customzied service: Pressure,material and power if there are specialized requirements,welcome to contact us

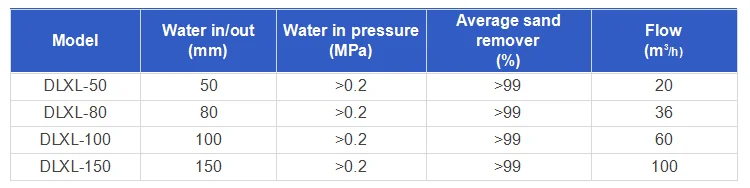

Model | DLXL-50 |
Material | Carbon steel |
Control | Automatic |
Sand removing | 99% |
Flowrate | 20m3/h |
Water in/out | 2 inch |
Working pressure | 2-8 bar |
Sand storage tank | 20L |
How it work
The centrifugal filter is based on the principle of centrifugal sedimentation and density difference.
When the water flow enters the device tangentially from the sand separator inlet under a certain pressure, due to the different densities of sand and water, the centrifugal force and centripetal force The buoyancy and fluid drag forces cause different forces to cause the low-density clean water to rise and be discharged from the overflow port. The dense sand is discharged from the bottom sand discharge port to achieve the purpose of sand removal.
Under a certain range and conditions, the greater the inlet pressure of the sand remover, thehigher the sand removal rate, and multiple units can be used in parallel. Process flow Raw water-agricultural irrigation
centrifugal filter-fine filter-storage tank-user.
Product packaging
Processed wood for exporting
Site Installation
Centrifugal filter screen filter 100m3/h

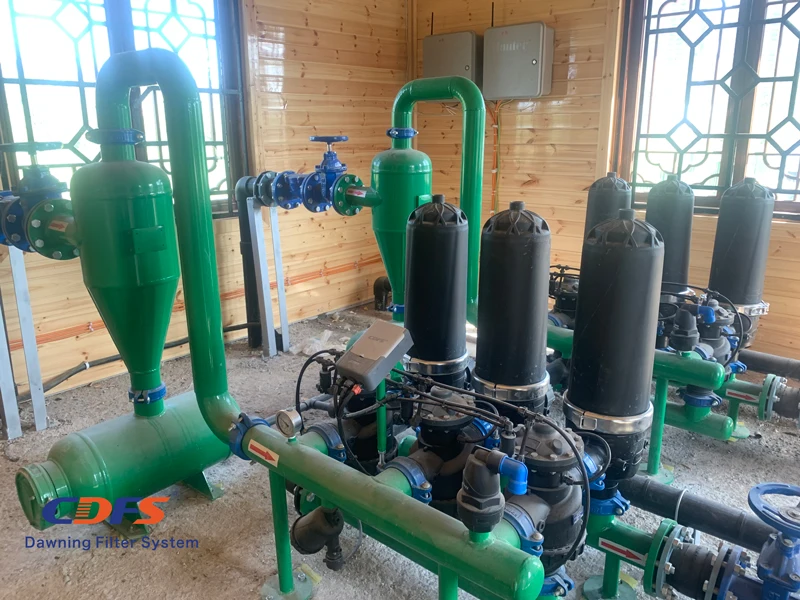

Centrifugal filter disc filter system for irrigation
Centrifugal filter disc filter system for irrigation
Raw water: river water
Raw water: river water
Hydrocyclone filter self cleaning filter 100m3/h
Related Products
Company Profile
About CDFS
Based in China, Dawning is a water filtration and water treatment equipment company developing, producing, and selling since 2002. We have specialized in providing water filtration systems for 20 years, focusing on saving water and energy, simplifying maintenance, and improving the quality of agricultural and industrial water.
Our products mainly include water filtration, water descaling, and disinfection systems. We provide efficient and stable solutions for irrigation, municipal, building, and industrial water treatment.
Our products mainly include water filtration, water descaling, and disinfection systems. We provide efficient and stable solutions for irrigation, municipal, building, and industrial water treatment.
View more...
Our Exhibition
Certifications
Contact us
FAQ
Q: Where is your factory?
A:Changsha city, Hunan province, China
Q:Can you accept OEM?
A:Yes.We could do OEM for you.
A:Changsha city, Hunan province, China
Q:Can you accept OEM?
A:Yes.We could do OEM for you.
Q: Can we customize the material and size?
A: Yes. Send us a drawing.
Q: Do you have a certification?
A: Yes. we have ISO / CE certificate and certificate of patent
Q: How about the delivery time?
A: Usually 7 days after prepayment is confirmed.
Q: Do you have a certification?
A: Yes. we have ISO / CE certificate and certificate of patent
Q: How about the delivery time?
A: Usually 7 days after prepayment is confirmed.
