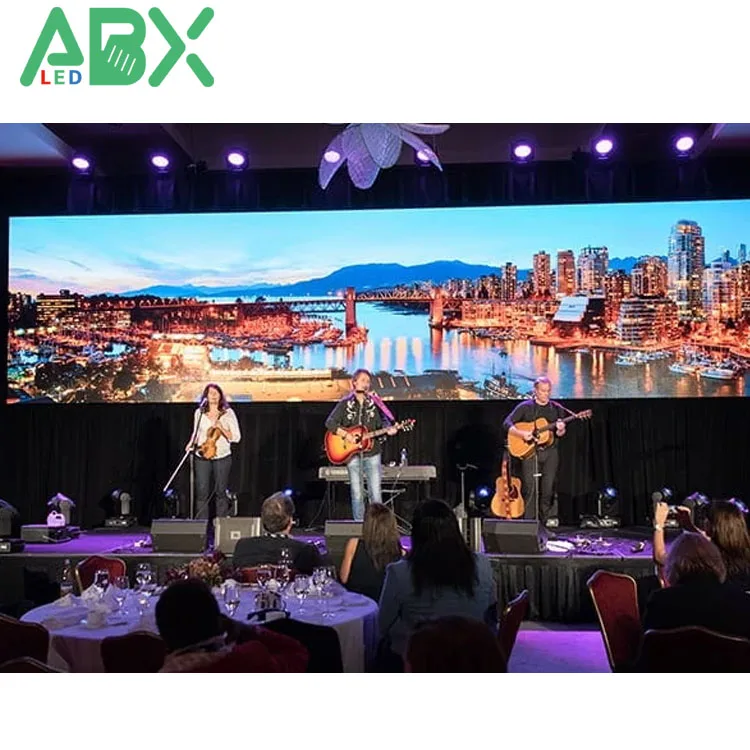

Abxled High Color Performance Indoor Led Panel Wall Ground Stand Support Truss LED Display Screen
- Category: >>>
- Supplier: Shenzhen Abxing Industrial Co. Ltd.
Share on (1600867929619):
Product Overview
Description
Products Description
7.8kg per cabinet.better performance with high definition visual display.
Cabinet thickness of 85mm.the feature of lightweight make the LED display is easy to carry, transport and install, saving good amount of money on your labor costs.
ABXLED has the LED display industry top design team,the design innovation has its own unique philosophy,with a number of core technologies.Innovative structural design,avant-garde Cabinet lines,give you extraordinary experience

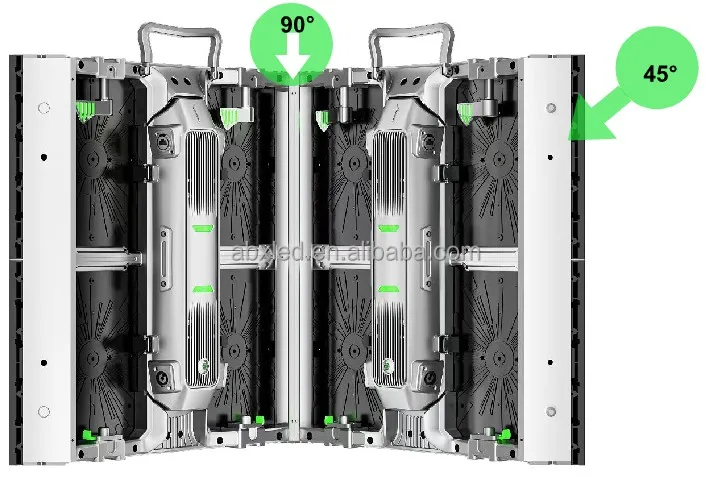

ABX-R series supports 90° right-angle LED display installation to meet the needs and applications of some special stage performances.

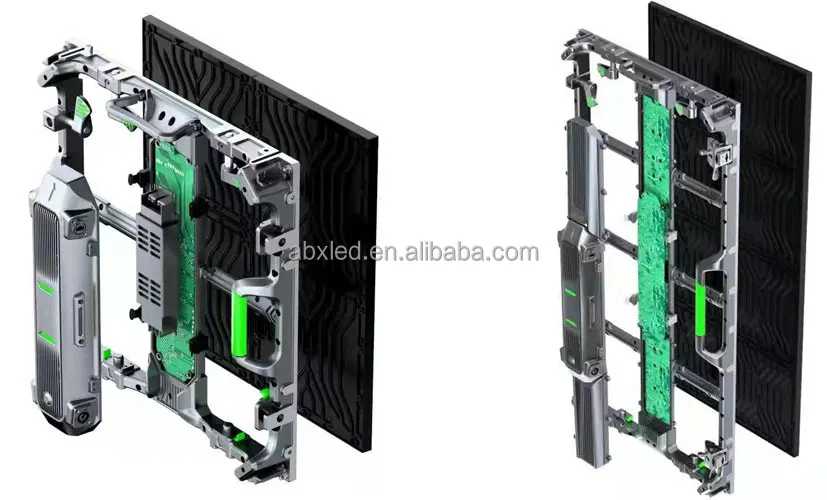

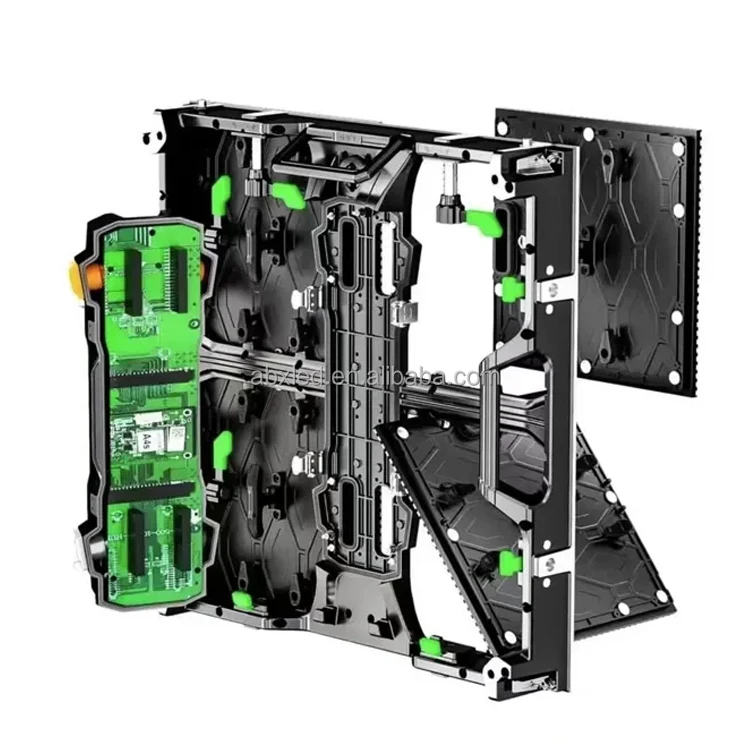

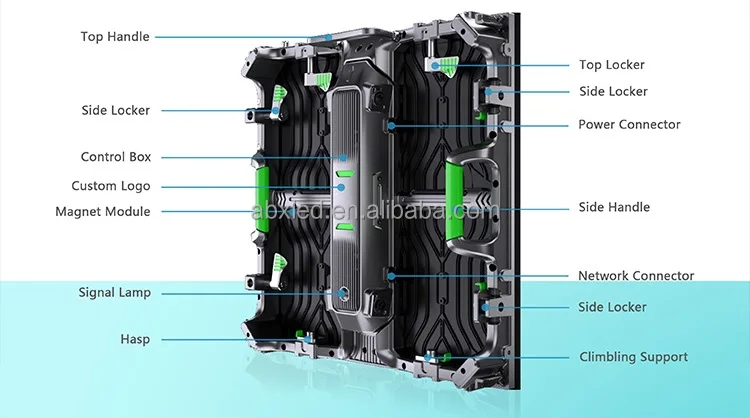

The detachable control box can be quickly disassembled without any tools (bottom box, power supply and control card), which is convenient for quick replacement and maintenance.
ABX-R Series Rental LED Display is front and rear Service product, not only 100% front accessable but also can do rear service.

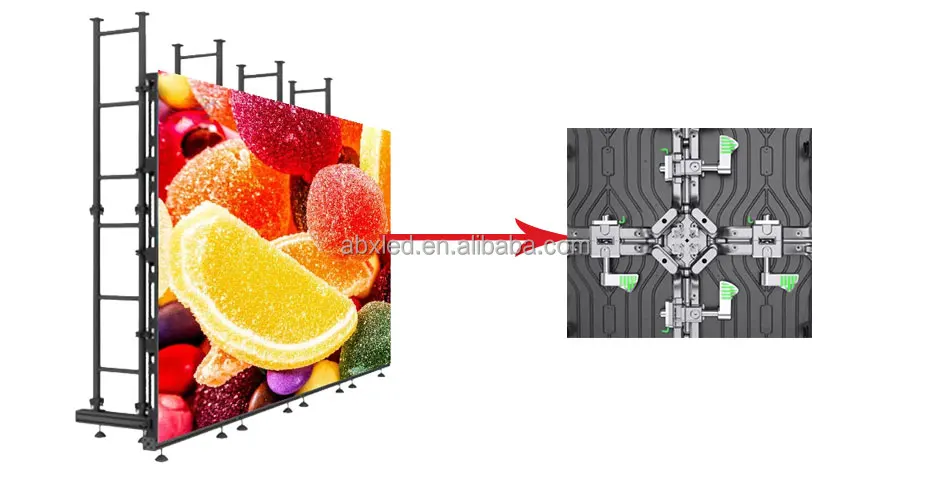

The LED panels are magnetic and can be removed by front Service tools from front side in 5 seconds. easy and convient, Save time and labor cost for you.
The LED panels are magnetic and can be removed by front Service tools from front side in 5 seconds. easy and convient, Save time and labor cost for you.
High precision aluminum cabinet frame make seamless splicing image and video display, offering you the perfect visual experience
you desire from any angles.The picture quality confronts viewers with an entirely new sensory experience.
you desire from any angles.The picture quality confronts viewers with an entirely new sensory experience.

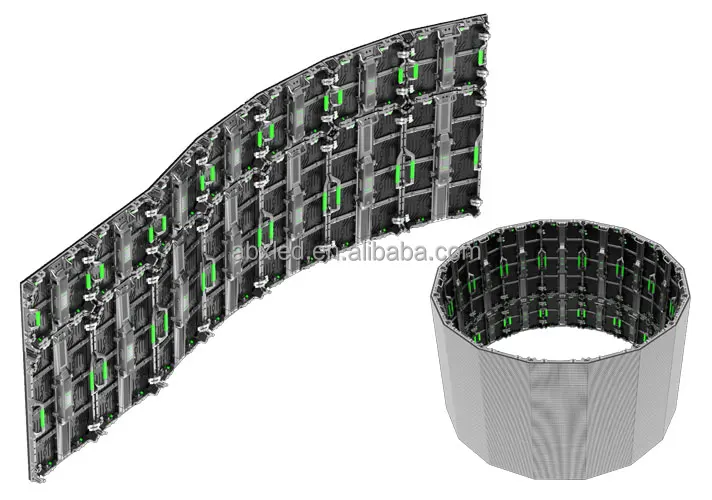

In order to meet the needs of LED display in use. ABX-R series led display design for Curved Installation. Curved with every 5° between -15°and 15°, which can make convex and concave.
More Features & More Advantages
* 3 times aging process
* Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
* Long service time and low attenuation by applying dual channels for heat dissipation
* High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function
* No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation
* 3 times aging process
* Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
* Long service time and low attenuation by applying dual channels for heat dissipation
* High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function
* No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation
our service
Pre-sales service
A. Quick Response to Inquires and Demands
B. Technical Solution with Quotation and specification
C. Professional Salesman and Engineers recommendation
B. Technical Solution with Quotation and specification
C. Professional Salesman and Engineers recommendation
After-Sales Service
A. Quick Response to Inquires and Demands
B. Technical Solution with Quotation and specification
C. Professional Salesman and Engineers recommendation
B. Technical Solution with Quotation and specification
C. Professional Salesman and Engineers recommendation
In-Sales Service
A. Installation Guidance and User Manual
B. Software Control on Site or Remote support
C. Training and Important Notice
B. Software Control on Site or Remote support
C. Training and Important Notice
Warranty & Maintenance
ABXLED guarantee all our LED display for 2~5 yeas. we will be responsible for repairing led display including led modules,power supply receiver cards under warranty and supply technical support.
Design Drawing
ABXLED design the cad drawing on how to fix up the led display for free and some other expert suggestion,we will send our engineers to your place if we are expected after our negotiation.
Installation&Control
ABXLED provide the operation training and maintenance training for free in the factory or we can send our engineers to your site by negotiation manual control solutions,software,etc is provided together.
Specification
500*500 LED Display Series | ||||||||||
ITEM | UNIT | Ren-500-2.604 | Ren-500-2.976 | Ren-500-3.91 | Ren-500-4.81 | |||||
Pixel Pitch | mm | 2.604 | 2.976 | 3.91 | 4.81 | |||||
Pixel Matrix Per | Pixel/sqm | 147456 | 112896 | 65536 | 43264 | |||||
Module Pixel structure | N/A | SMD2121/1515 | SMD2121/1515 | SMD2121/1921 | SMD2121/`921 | |||||
Brightness | nits | 800-4500MCD | 800-4500MCD | 800-4500MCD | 800-4500MCD | |||||
Scan | N/A | 1/32 | 1/28 | 1/16 | 1/13 | |||||
Cabinet Resolution | Pixel | 192×192 | 168×168 | 128×128 | 104×104 | |||||
Power Con. (Max / Avg) | W/sqm | 600/180 | 600/180 | 600/180 | 600/180 | |||||
Module Dimension | mm | 250x250 | 250x250 | 250x250 | 250x250 | |||||

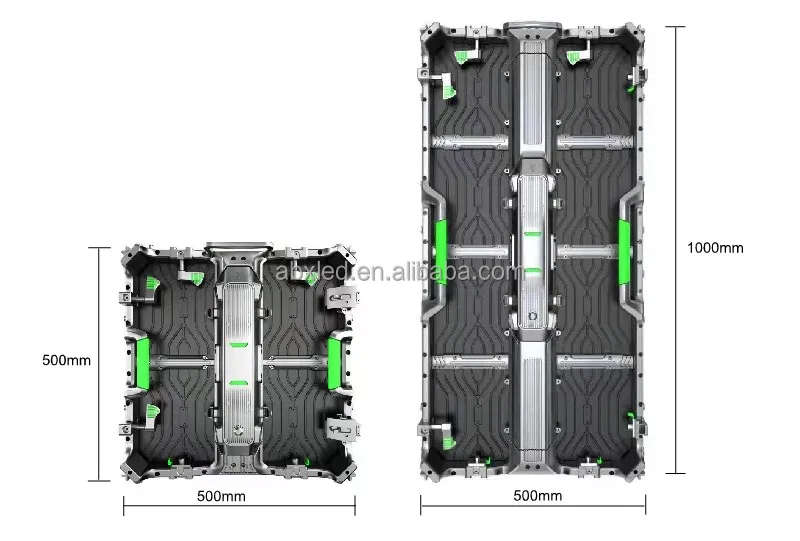

Cabinet Dimension | mm | 500x500x90 | 500x500x90 | 500x500x90 | 500x500x90 | |||||
Cabinet Weight | kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg | |||||
Service Access | N/A | Rear/Front | Rear/Front | Rear/Front | Rear/Front | |||||
View angle | ℃ | 160°/ 140° | 160°/ 140° | 160°/ 140° | 160°/ 140° | |||||
Refresh Rate | Hz | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 | |||||
Grey Scale (bit) | bit | 16 | 16 | 16 | 16 | |||||
IP Rate | IP | IP31/65 | IP31/65 | IP31/65 | IP31/65 | |||||
Life span | hrs | 100000 hrs | 100000 hrs | 100000 hrs | 100000 hrs | |||||
Working Temperature | ℃ | -10-40 ℃ | -10-40 ℃ | -10-40 ℃ | -10-40 ℃ | |||||
Storage Temperature | ℃ | -20-60 ℃ | -20-60 ℃ | -20-60 ℃ | -20-60 ℃ | |||||
Power Supply | V | AC100-240V(50-60Hz) | AC100-240V(50-60Hz) | AC100-240V(50-60Hz) | AC100-240V(50-60Hz) | |||||
Color temperature | N/A | 3000-10000 K(adjustable) | 3000-10000 K(adjustable) | 3000-10000 K(adjustable) | 3000-10000 K(adjustable) | |||||

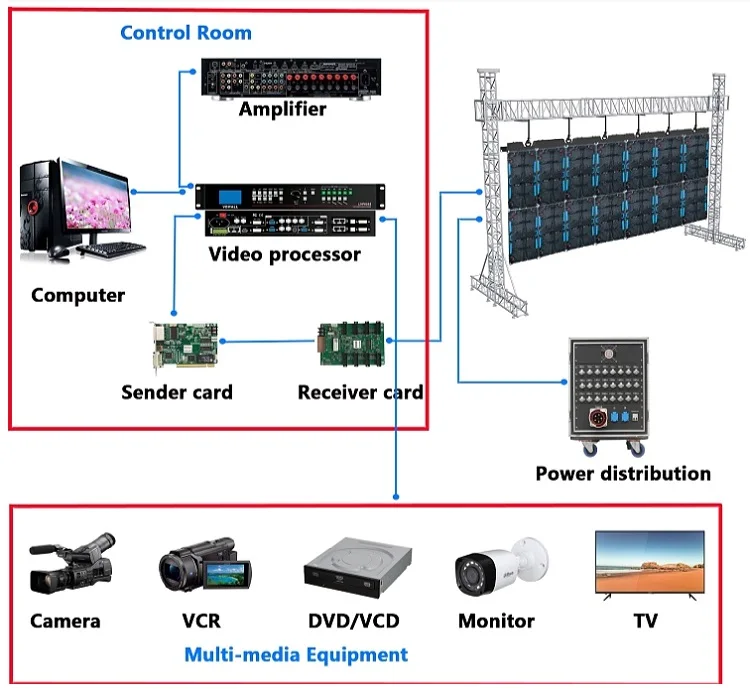

Led display system control diagram

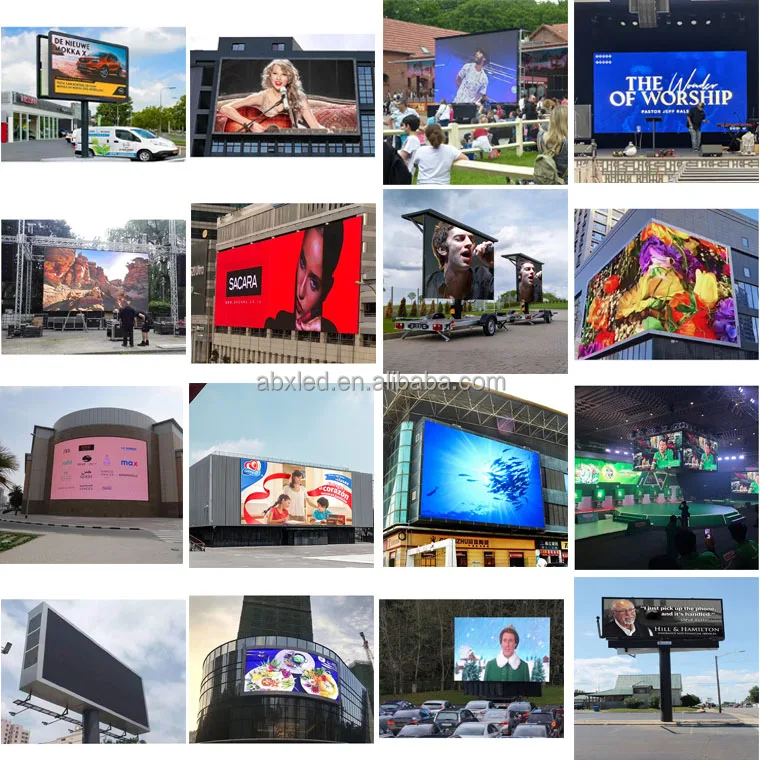

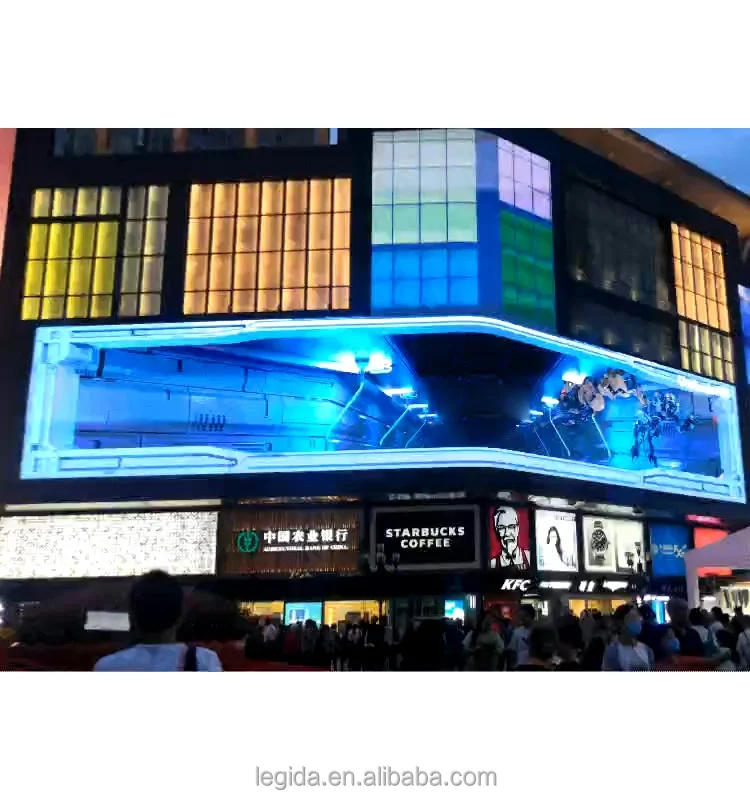

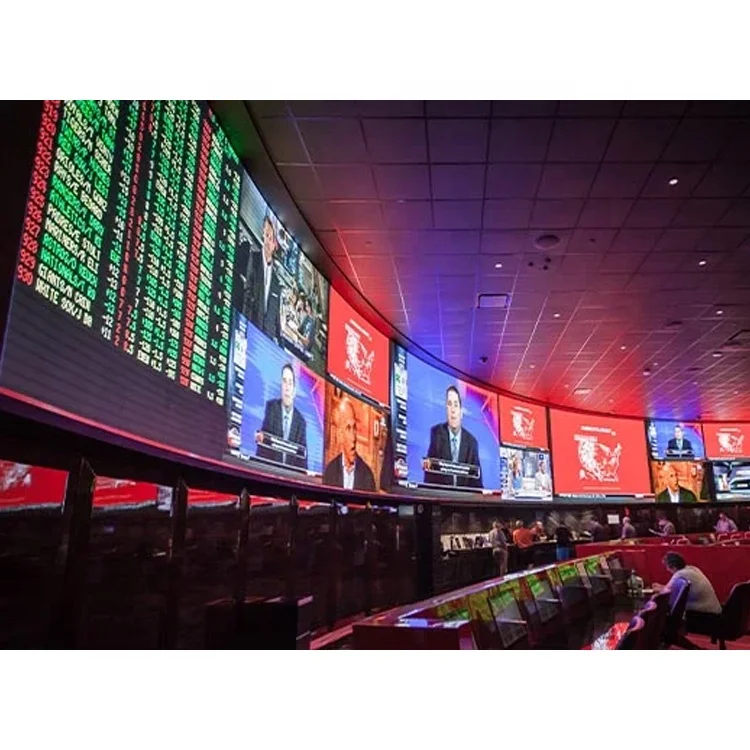

LED display case
Certifications
Company Profile
Shenzhen Abxled Industrial Co., LTD. (ABXLED) is the leading supplier of LED display who specialize in LED Display R&D,
manufacture, sales and service. Also provide integrated LED display solutions. 3,000 square meters production capacity with 7 modernized dust-free and static-free production lines, by 6 new high speed SMT machines, 2 large leadless reflow oven, and more than 300 skilled workers. Various indoor and outdoor products such as UHD LED Display, Indoor & Outdoor Rental LED Display, Indoor & Outdoor Commercial LED Display, Smart Terminal LED Display, Stadium LED Display, Customized irregular LED Display, Transparent led display ,Indoor and outdoor poster screen etc, which achieved professional international authority of CE, ROHS, FCC, UL and CCC certifications and so on. We strictly carry out ISO9001 and 2008 quality management system. ABXLED keep long term friendly relationship with our customers and achieved high reputation from our customers around the world.ABXLED is always your reliable partner.
manufacture, sales and service. Also provide integrated LED display solutions. 3,000 square meters production capacity with 7 modernized dust-free and static-free production lines, by 6 new high speed SMT machines, 2 large leadless reflow oven, and more than 300 skilled workers. Various indoor and outdoor products such as UHD LED Display, Indoor & Outdoor Rental LED Display, Indoor & Outdoor Commercial LED Display, Smart Terminal LED Display, Stadium LED Display, Customized irregular LED Display, Transparent led display ,Indoor and outdoor poster screen etc, which achieved professional international authority of CE, ROHS, FCC, UL and CCC certifications and so on. We strictly carry out ISO9001 and 2008 quality management system. ABXLED keep long term friendly relationship with our customers and achieved high reputation from our customers around the world.ABXLED is always your reliable partner.
Exhibition
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.

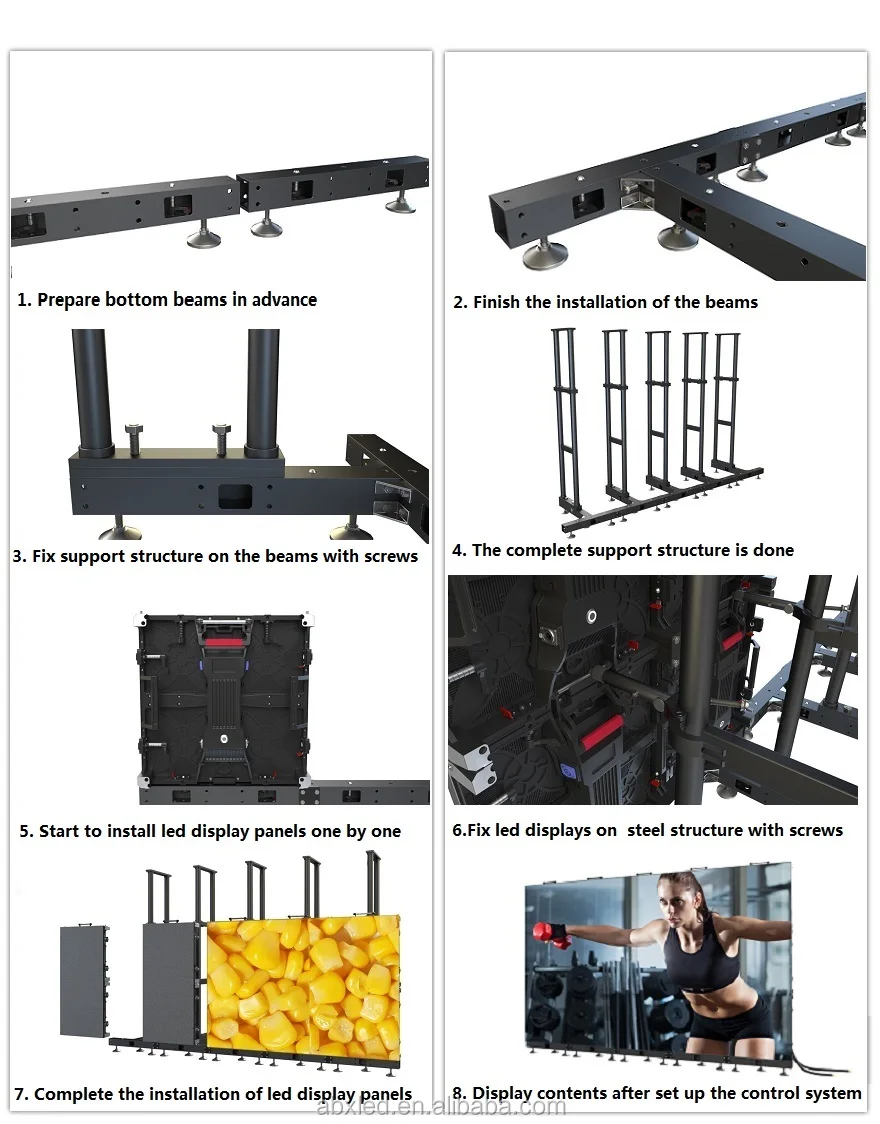

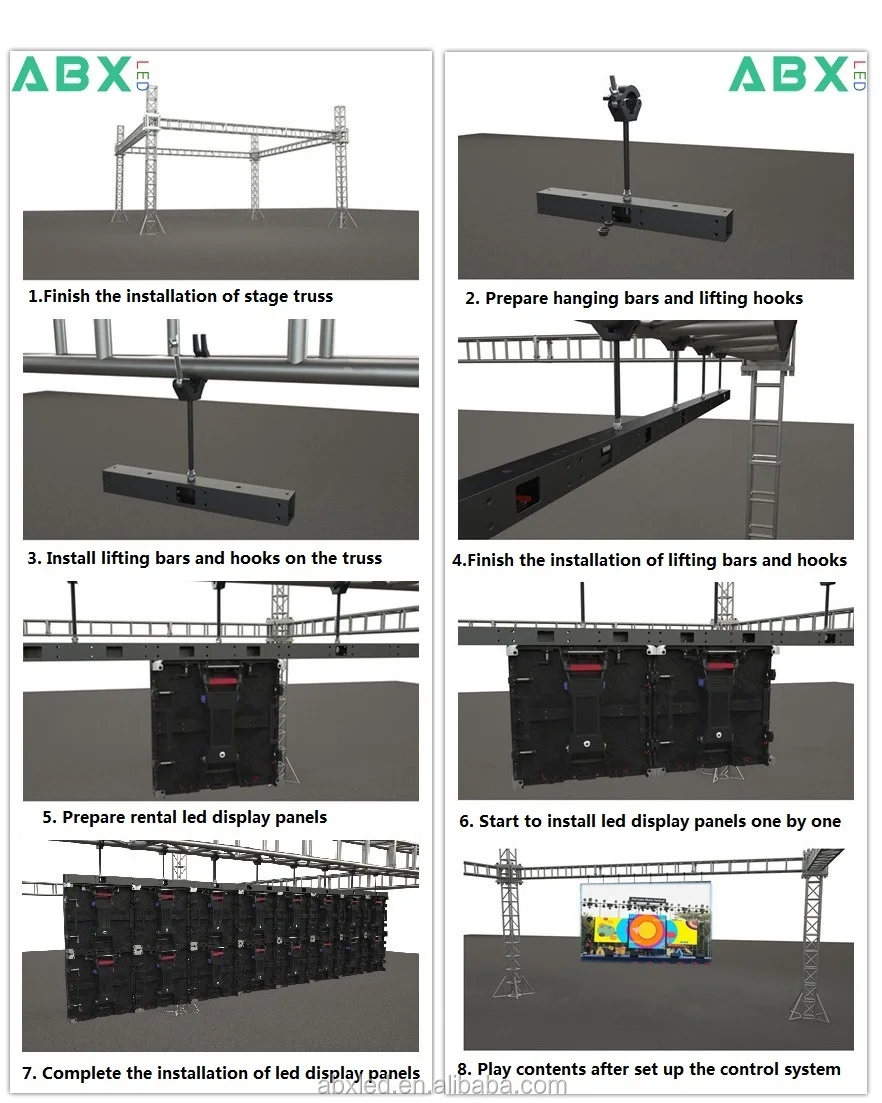

Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
