Lifepo4 Battery Household 5KWh 10KWh 51.2V Lithium Ion Battery
- Category: >>>
- Supplier: Yanglin Tech Co. Ltd.
Share on (1600867950562):
Product Overview
Description
Product Description
Lithium Ion Phosphate Battery
**Flexible configuration--Multiple battery modules can be connected in parallel to expand capacity and power
**Intelligence--Compatible with multi - brand inverter communication.
**Environmentally friendly--convenient wall-hanging and landing installation, safe and pollution-free.
Specification

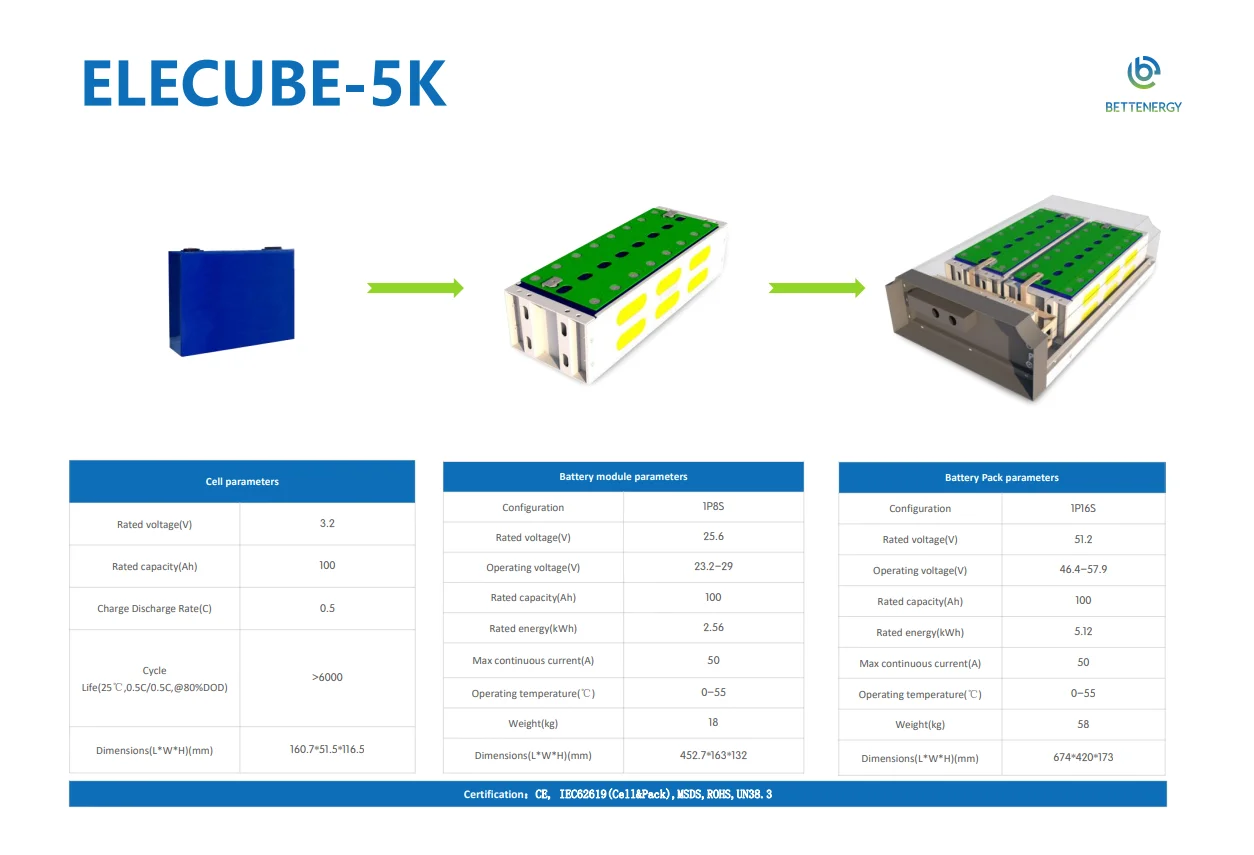

Cell parameters | Battery module parameters | Battery Pack parameters | ||
ELECUBE-5K | ||||
3.2V 100Ah | 25.6V 100Ah | Rated voltage(V) 51.2 | ||
0.5 Charge Discharge Rate(C) | Operating temperature(℃) 0-55 | Rated capacity(Ah) 100 | ||
Cycle Life(25℃,0.5C/0.5C,@80%DOD) >6000 | Max continuous current(A) 50 | Rated energy(kWh) 5.12 | ||
Dimensions(L*W*H)(mm):160.7*51.5*116.5 | Dimensions(L*W*H))(mm) 452.7*163*132 | Weight:58kg Dimensions(L*W*H)(mm) 674*420*173 | ||

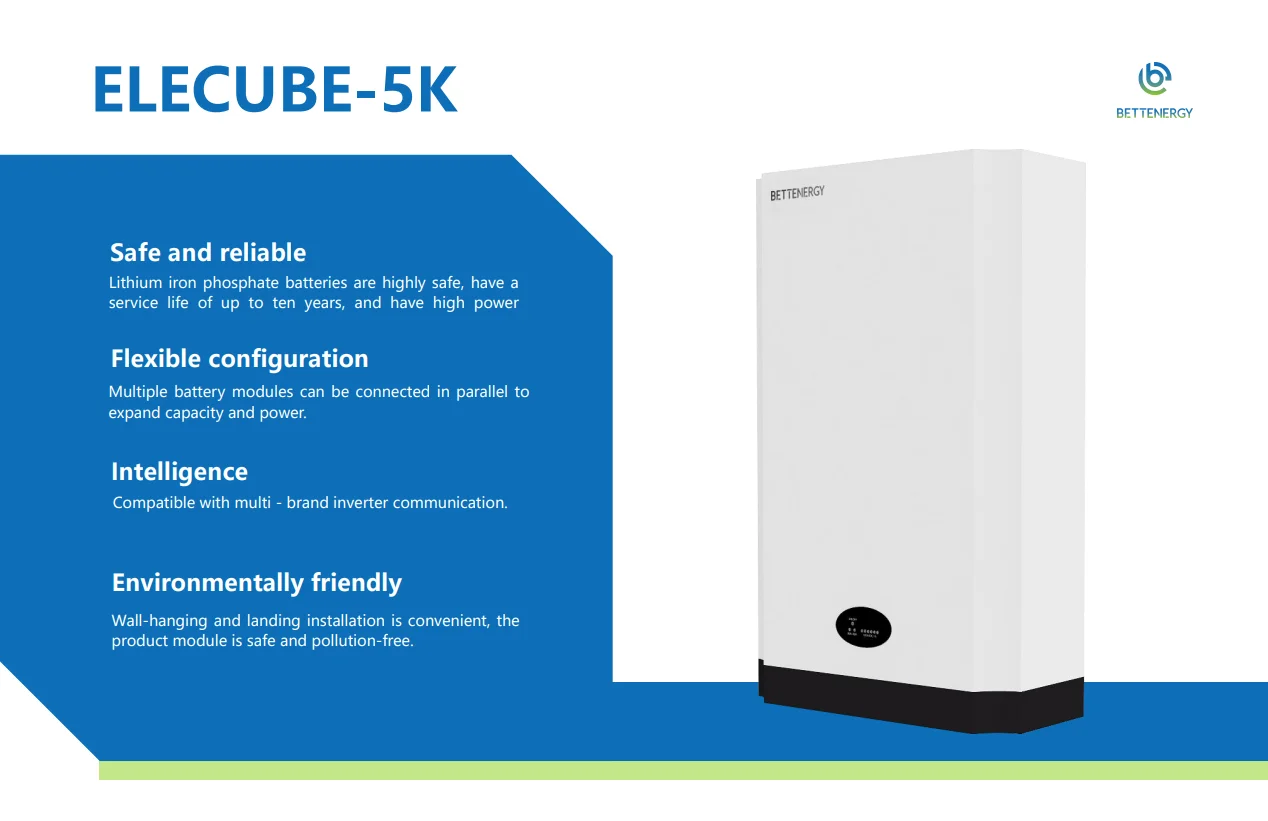

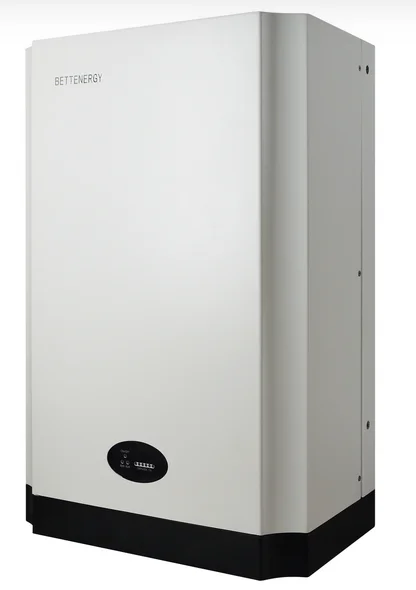

ELECUBE-5K Lifepo4 Lithium Powerwall For Solar System
* Lithium iron phosphate batteries are highly safe, have a service life of up to ten years, and have high power
* Multiple battery modules can be connected in parallel to expand capacity and power.
* Compatible with multi - brand inverter communication.
* Wall-hanging and landing installation is convenient, the product module is safe and pollution-free
Nominal Voltage
51.2 V
Dimensions (H*W*D)
867.5* 422 * 118mm
Cycle Life (80% DoD @25℃)
≥6000
Communication Port
RS232 / RS485 / CAN
Warranty
5/10 Years
* Multiple battery modules can be connected in parallel to expand capacity and power.
* Compatible with multi - brand inverter communication.
* Wall-hanging and landing installation is convenient, the product module is safe and pollution-free
Nominal Energy Capacity
5100 Wh
5100 Wh
Nominal Voltage
51.2 V
Dimensions (H*W*D)
867.5* 422 * 118mm
Cycle Life (80% DoD @25℃)
≥6000
Communication Port
RS232 / RS485 / CAN
Warranty
5/10 Years

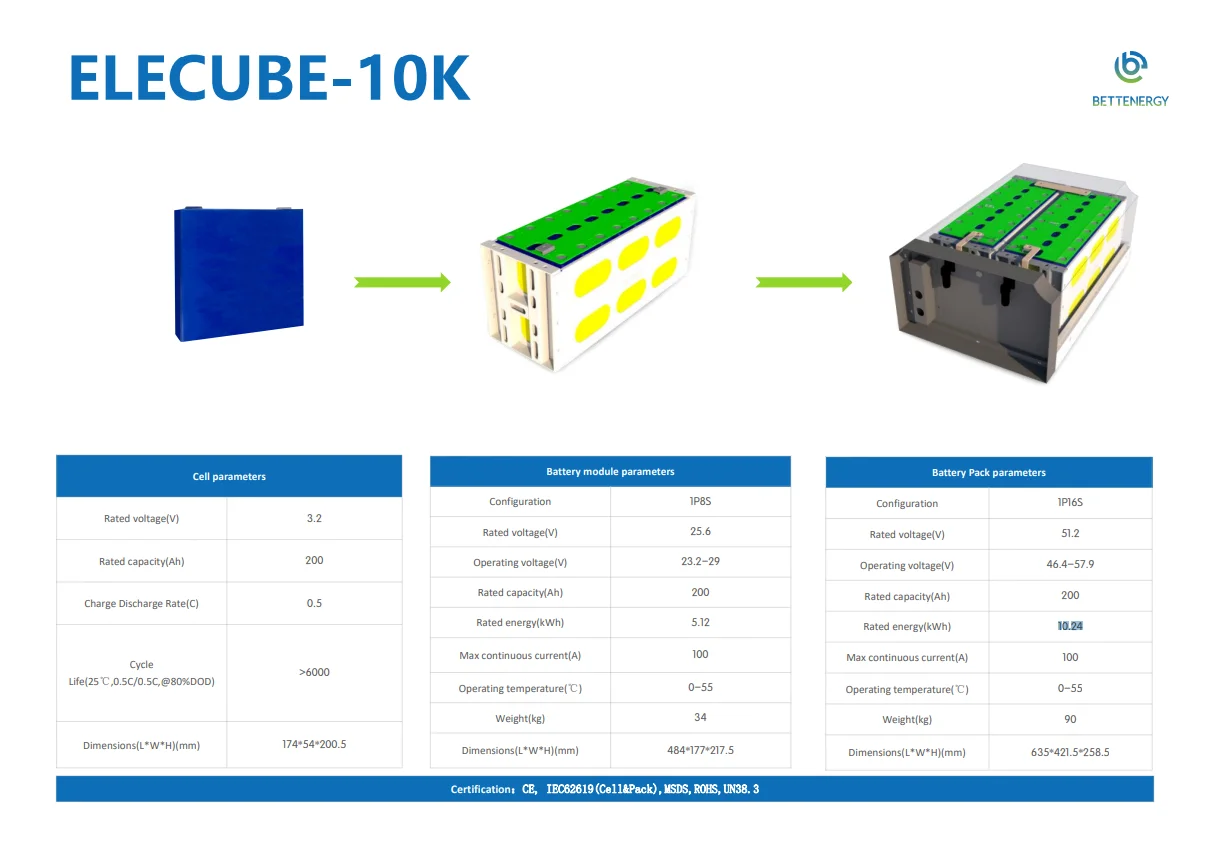

Cell parameters | Battery module parameters | Battery Pack parameters | ||
ELECUBE-10K | ||||
3.2V 200Ah | 25.6V 200Ah | Rated voltage(V) 51.2 | ||
0.5 Charge Discharge Rate(C) | Operating temperature(℃) 0-55 | Rated capacity(Ah) 200 | ||
Cycle Life(25℃,0.5C/0.5C,@80%DOD) >6000 | Max continuous current(A)100 | Rated energy(kWh) 10.24 | ||
Dimensions(L*W*H)(mm):174*54*200.5 | Dimensions(L*W*H))(mm) 484*177*217.5 | Weight:90kg Dimensions(L*W*H)(mm) 635*421.5*258.5 | ||

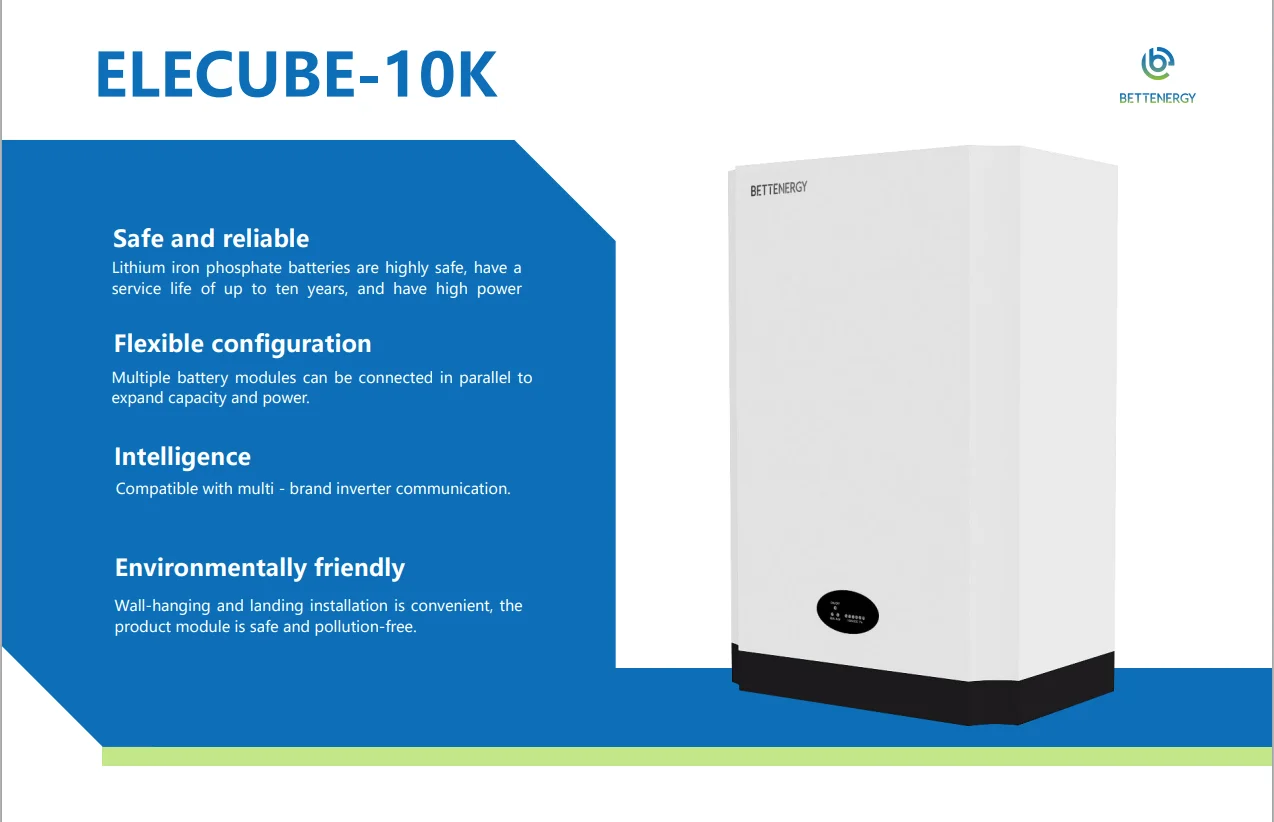

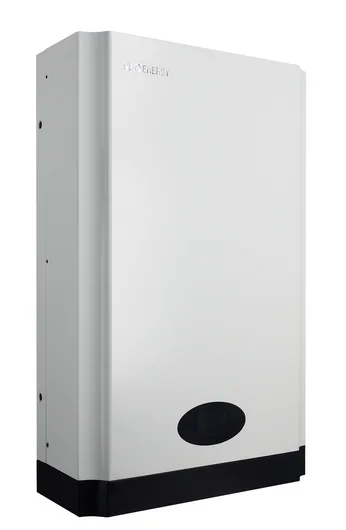

ELECUBE-10K Lifepo4 Lithium Powerwall For Solar System
* Lithium iron phosphate batteries are highly safe, have a service life of up to ten years, and have high power
* Multiple battery modules can be connected in parallel to expand capacity and power.
* Compatible with multi - brand inverter communication.
* Wall-hanging and landing installation is convenient, the product module is safe and pollution-free
* Multiple battery modules can be connected in parallel to expand capacity and power.
* Compatible with multi - brand inverter communication.
* Wall-hanging and landing installation is convenient, the product module is safe and pollution-free
Nominal Energy Capacity
10200 Wh
10200 Wh
Nominal Voltage
51.2 V
Dimensions (H*W*D)
871.1 * 509* 133mm
Cycle Life (80% DoD @25℃)
≥6000
Communication Port
RS232 / RS485 / CAN
51.2 V
Dimensions (H*W*D)
871.1 * 509* 133mm
Cycle Life (80% DoD @25℃)
≥6000
Communication Port
RS232 / RS485 / CAN
Warranty
5/10 Years
5/10 Years

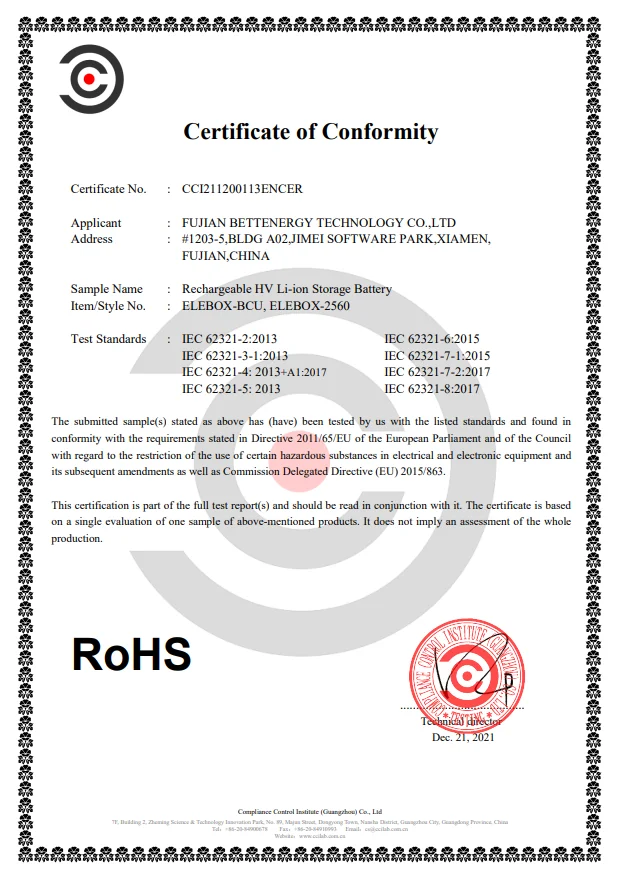

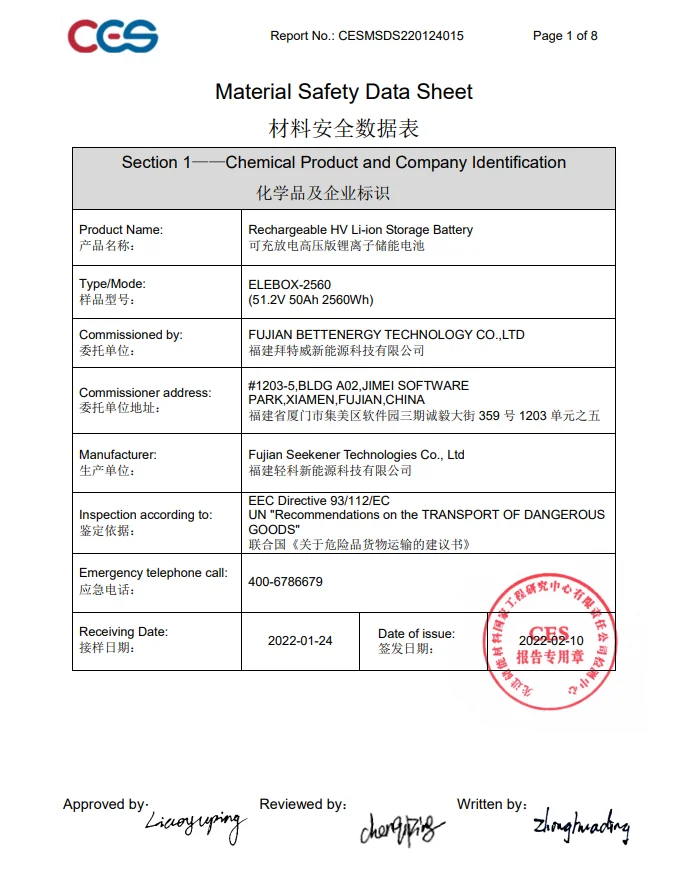

Certificate

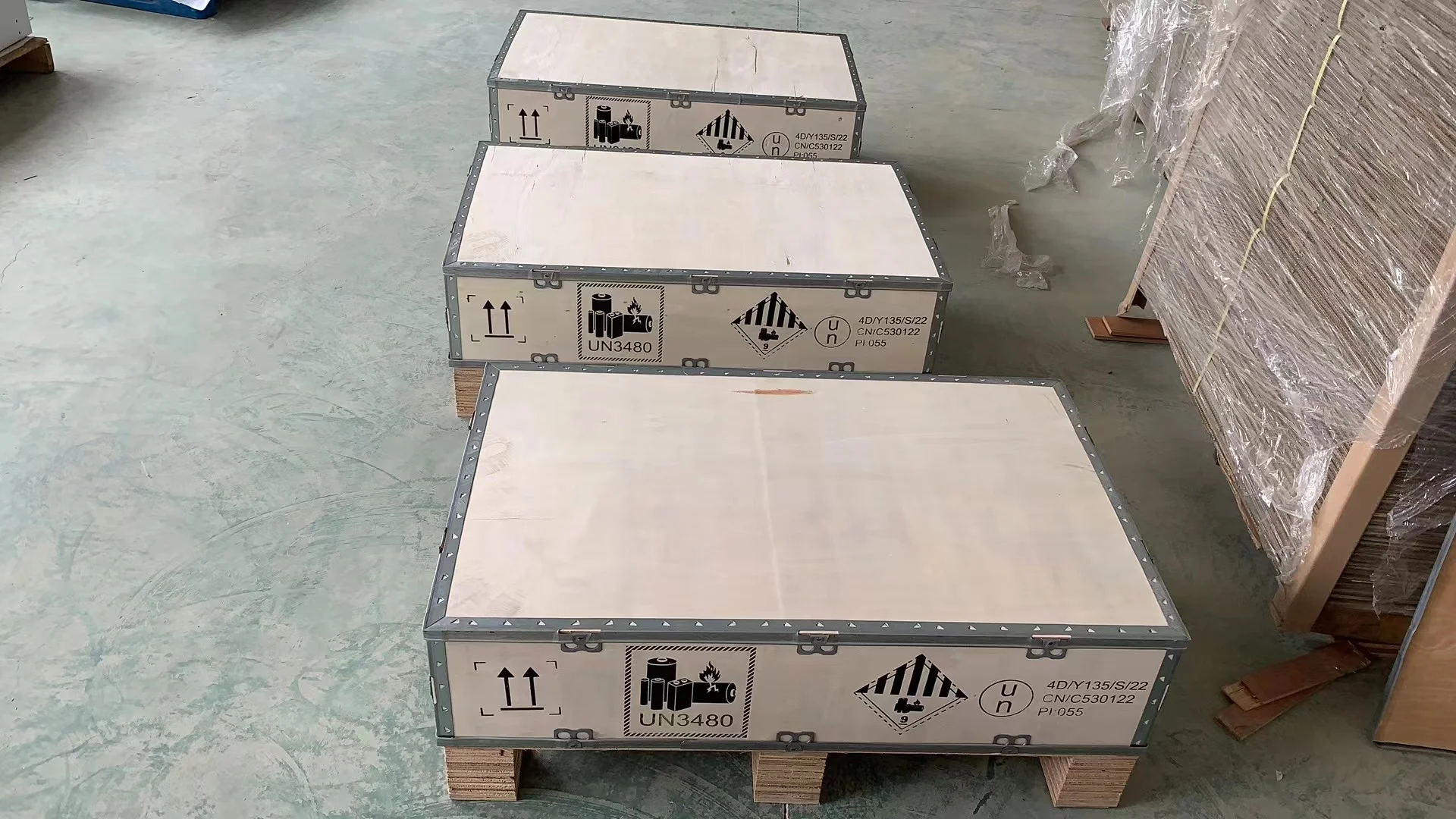

Package
Wood crates for better protection.
FAQ
Question 1: What can you buy from us?
Answer:Solar Panels,Solar Battery,Solar Inverter,Solar Power System, Solar Panel Mounting Brackets
Answer:Solar Panels,Solar Battery,Solar Inverter,Solar Power System, Solar Panel Mounting Brackets
Question 2: Why Choose us?
Answer:1)We have professional photovoltaic partners in many countries.
2)Complete certifications and competitive prices.
2)Complete certifications and competitive prices.
Question 3: What is MOQ request?
Answer: One unit is acceptable. For more quantities, welcome to contact us for details.
Question 4: Are you a manufacturer?
Answer: Our factory is located in the beautiful coastal city Xiamen, China. From our factory to your place, quality is assured.
Question 5: How long can you ship this item after I place orders?
Answer: 7 working days for one set. For more sets, please e-mail us for more details.
Question 6: How about your service and warranty?
We will answer any of your question within 24 hours.
1) Solar System Warranty 10 Years
2) Solar Inverter Warranty 3 Years
3) Lead-Acid battery Warranty 1-3 Years, Lithium iron phosphate Battery 3-5 years
4) Solar Panel Mounting System Warranty 10 Years
Question 7: Do you design the solar panel mounting system for us?
Yes. We can always offer a satisfying solution after we get your requests.
Question 8: Can I receive this product without damages?
We care the package very much and the complete system will be packed in wooden crates for better protection.
Question 4: Are you a manufacturer?
Answer: Our factory is located in the beautiful coastal city Xiamen, China. From our factory to your place, quality is assured.
Question 5: How long can you ship this item after I place orders?
Answer: 7 working days for one set. For more sets, please e-mail us for more details.
Question 6: How about your service and warranty?
We will answer any of your question within 24 hours.
1) Solar System Warranty 10 Years
2) Solar Inverter Warranty 3 Years
3) Lead-Acid battery Warranty 1-3 Years, Lithium iron phosphate Battery 3-5 years
4) Solar Panel Mounting System Warranty 10 Years
Question 7: Do you design the solar panel mounting system for us?
Yes. We can always offer a satisfying solution after we get your requests.
Question 8: Can I receive this product without damages?
We care the package very much and the complete system will be packed in wooden crates for better protection.
