Price:US$200.00 - US$320.00

Quantity:


Product Overview

Description



Products Description




Product Name
Explosion-proof Pressure Transmitter
Explosion-proof level
NEPSI Exdb IIC T6 Gb
Measurement Range
-0.1MPa~0; 0~(10KPa~60MPa)
Output signal
4-20mA; 4-20mA+HART; 0-10VDC; RS485
Accuracy
0.25%F.S 、0.5%F.S 、0.075%F.S
Working temperature
-40~105℃
storage temperature range
-40～85℃
long-term stability
<0.2%FS/year
overload pressure
150%FS
Protection Grade
IP65 （IP67）
output signal
4~20mA, 0~5V, 0~10V, 1~5V
Power supply
10～32VDC
Electrical Connection
Waterproof outlet
Pressure Form
Gauge Pressure /Absolute Pressure
OEM & ODM Support:
Yes
Response time
0.25s
Shell material
cast aluminum alloy/SUS304
Diaphragm material
SUS316L/Hastelloy C/tantalum/SUS316L gold plated
Filling fluid
silicone oil
Sensor seal material
nitrile rubber/fluorosilicone/polytetrafluoroethylene PTFE

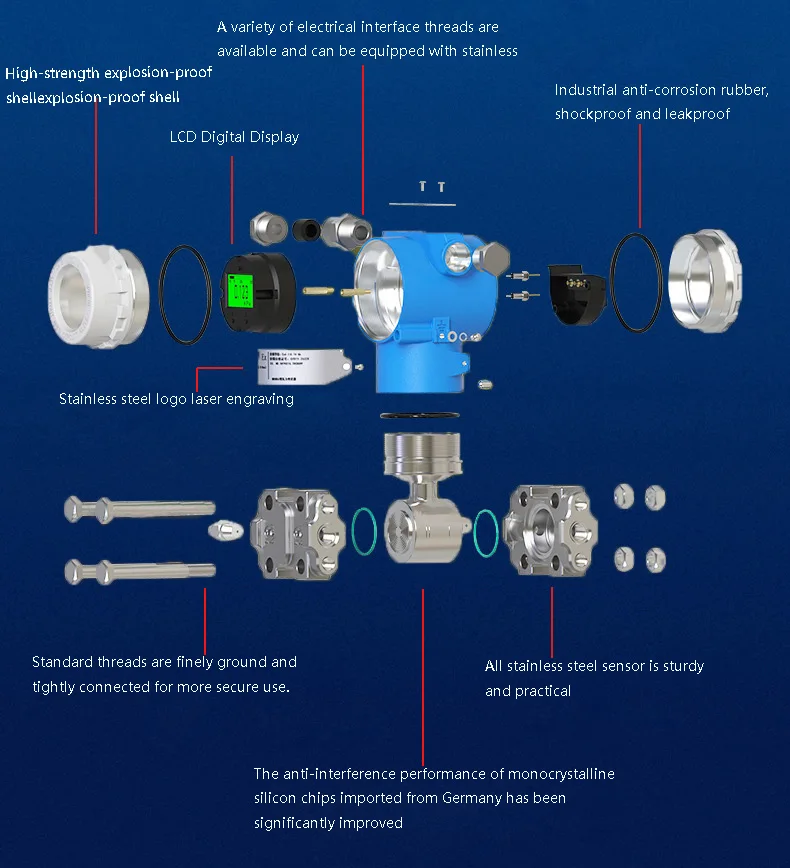

Details Images




Application






Certifications
