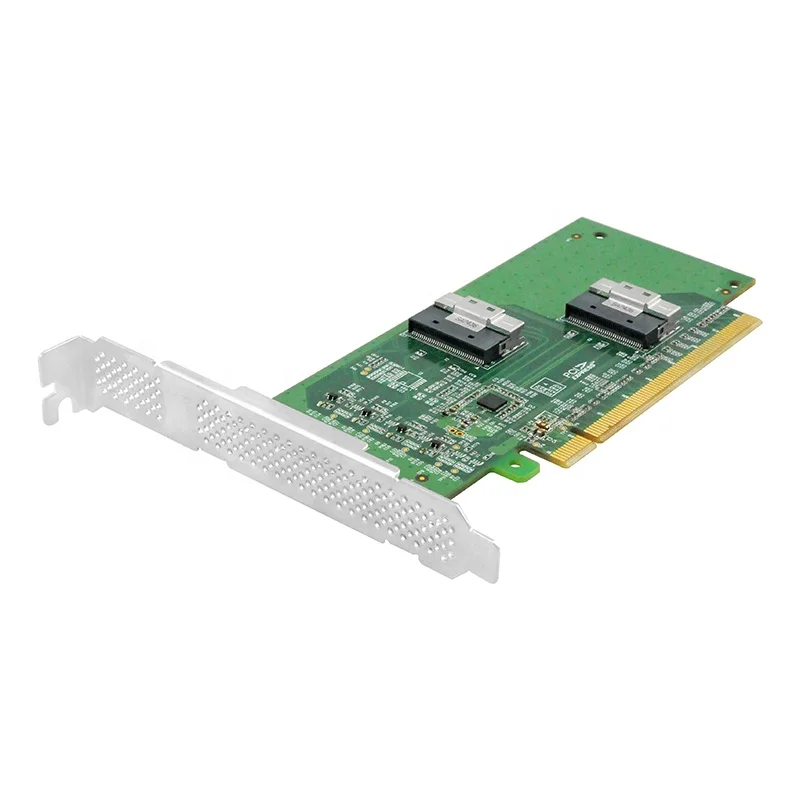

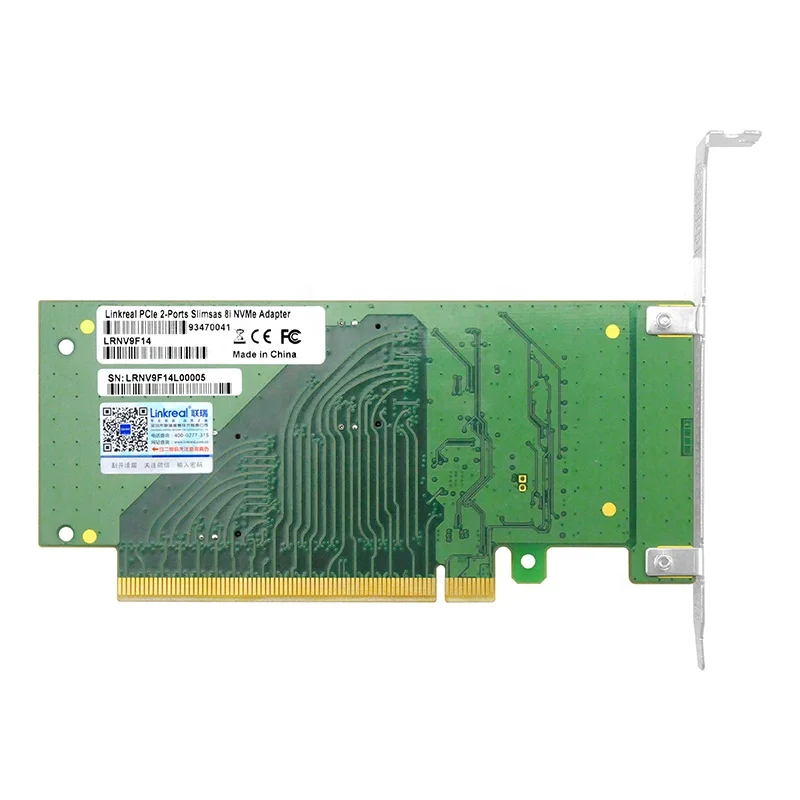

Linkreal LRNV9F14 PCI Express x16 to Two SlimSAS SFF 8654 8i Adapter
- Category: >>>
- Supplier: Linkreal Co. Ltd.
Share on (1600868030168):
Product Overview
Description
Linkreal LRNV9F14 PCI Express x16 to Two SlimSAS SFF-8654 8i Adapter
LRNV9F14 is a high performance, low dielectric loss factor interface conversion card designed for PCIe 4.0 U.2 SSD. It connects NVMe SSD or PCIe connectors via SlimSAS connector (SFF-8654). The bandwidth of the card is the bandwidth that the PCIe slot of the motherboard can support.
The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD, Otherwise this card can only support PCIe x16 link width.
Specifications
PCI Express Base Specification, r4.0, compatible PCIe 1.0&2.0&3.0
Compliant with SFF-8654 Specification Version 1.2
Compliant with NVM Express 1.3
Support up to 4 NVMe SSDs
Operating system support
The adapter does not require a driver for operation or communication to attached NVMe drives. The drives are presented natively to the host and use the native NVMe drivers.
The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD, Otherwise this card can only support PCIe x16 link width.
Specifications
PCI Express Base Specification, r4.0, compatible PCIe 1.0&2.0&3.0
Compliant with SFF-8654 Specification Version 1.2
Compliant with NVM Express 1.3
Support up to 4 NVMe SSDs
Operating system support
The adapter does not require a driver for operation or communication to attached NVMe drives. The drives are presented natively to the host and use the native NVMe drivers.
Redhat
Free BSD
Vmware
Linux
Windows
Application
Suitable for higher performance of PCIe Gen 4 connections for Storage Servers, Data Center, Servers RAIDs and Controllers.
Application
Suitable for higher performance of PCIe Gen 4 connections for Storage Servers, Data Center, Servers RAIDs and Controllers.
Directly connected to PCIe 4.0 U.2 NVMe SSD by SFF-8654 8i to SFF-8639 cable
Support bifurcated in quad x4data link width configuration(CPU and BIOS both support)
Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)
l Build in SlimSAS(SFF-8654) 8i connector 2 sets, pin-out defined by SFF-9402 for high-performance storage connectivity
PCIe Standard Full-profile bracket pre-installed and also a low-profile bracket for small form factor computer.
Support bifurcated in quad x4data link width configuration(CPU and BIOS both support)
Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)
l Build in SlimSAS(SFF-8654) 8i connector 2 sets, pin-out defined by SFF-9402 for high-performance storage connectivity
PCIe Standard Full-profile bracket pre-installed and also a low-profile bracket for small form factor computer.
HARDWARE | ||||||||
Number of Device | 4 internal | |||||||
Bus Type | PCI Express | |||||||
Compatible Drive Types | U.2 (PCIe_NVMe SSD, SFF-8639) | |||||||
CONNECTOR(S) | ||||||||
Drive Connectors | 2*SFF-8654(74 Pin, x8 PCIe Gen 4) | |||||||
Host Bus | PCI Express x16 | |||||||
Environmental Parameter | ||||||||
Humidity | 15% ~ 90% | |||||||
Operating Temperature | 5°C to 50°C (41°F to 122°F) | |||||||
Storage Temperature | -25°C to 70°C (-13°F to 158°F) | |||||||
Physical Features | ||||||||
PCB Size (mm) | 146.5mm*67.9mm | |||||||
weight (g) | 102.5g | |||||||
Order Information | ||||||||
M/N | Description | |||||||
LRNV9F14 | PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Adapter | |||||||
PS: The above details is just for reference,if there is any change,no inform will have. | ||||||||
