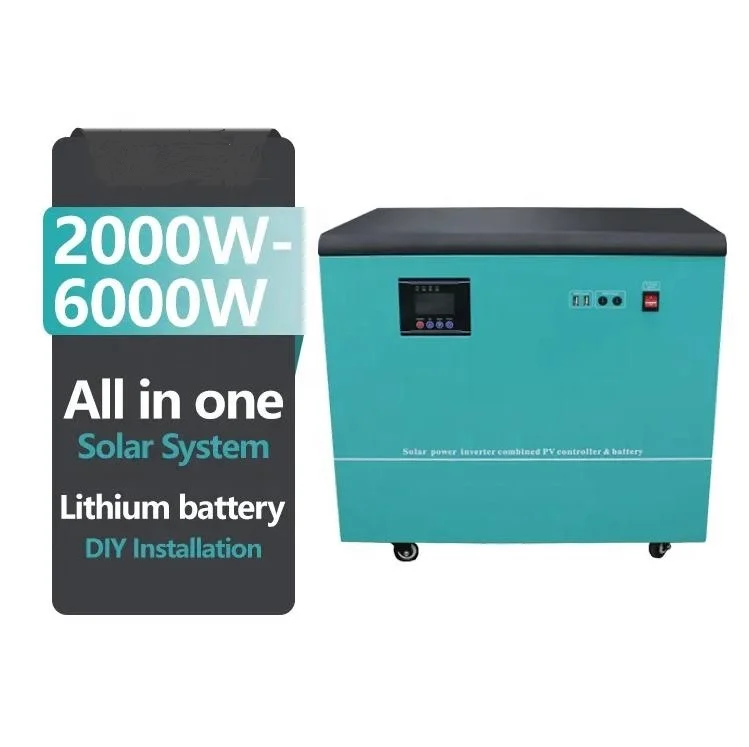

Bullcube 12V 24V 48V to 110V 220V dc to ac solar inverter 2000w 3000w 5000w 6000w Off Grid Pure sine wave power inverter
- Category: >>>
- Supplier: Shenzhen Bullcube Energy Technology Co. Ltd.
Share on (1600868211049):
Product Overview
Description
Products Description

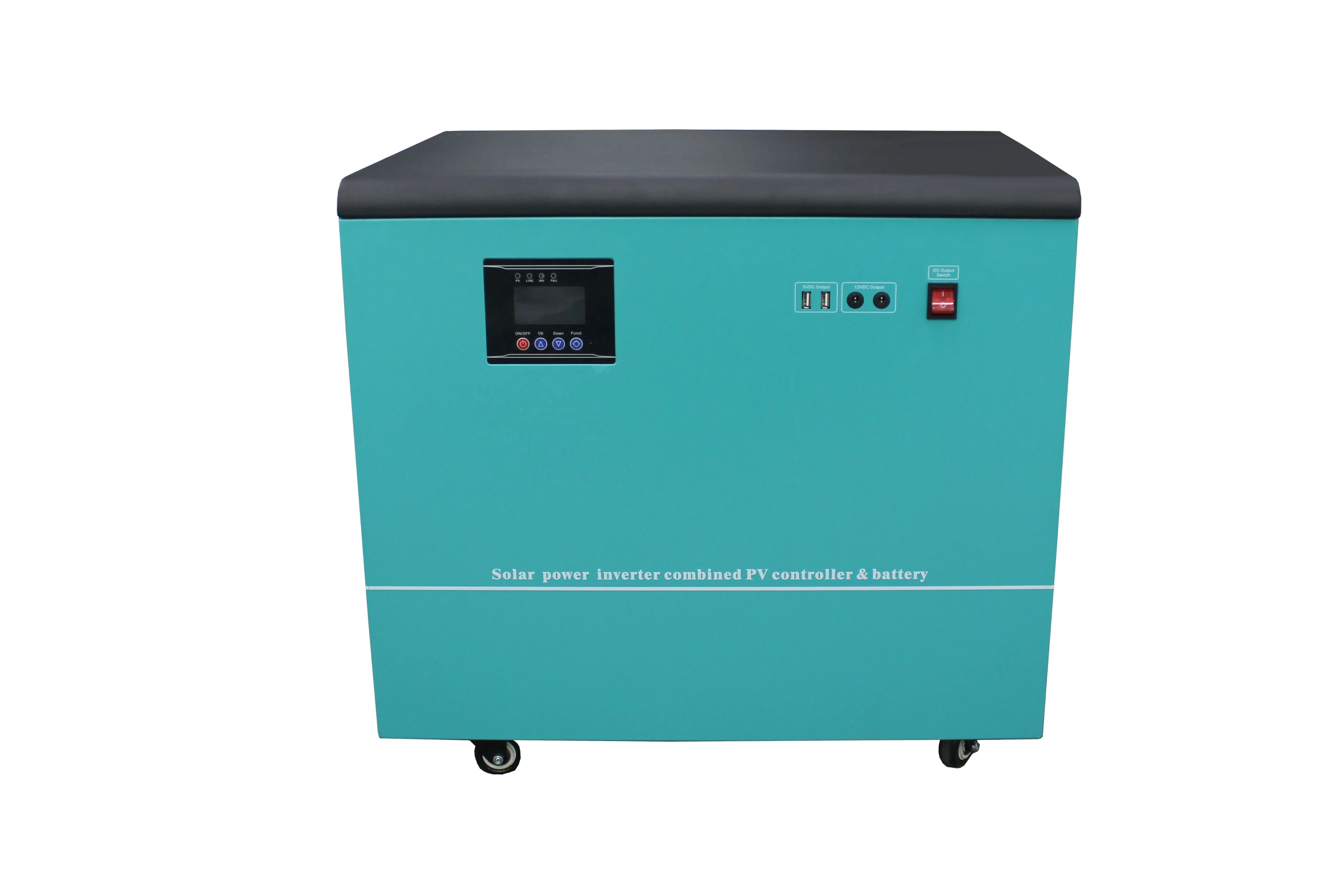

Bullcube 12V 24V 48V to 110V 220V dc to ac solar inverter 2000w 3000w 5000w 6000w Off Grid Pure sine wave power inverter
Features
● Double CPU intelligent control technology, performance excellence;
● The power mode / energy saving mode / battery mode can be set up,
Flexible application;
● Smart fan control, safe and reliable;
● The pure sine wave output, can adapt to various types of load;
● Wide input voltage range,high-precision output automatic voltage function.
● The LCD real-time display device parameters, running status at a glance;
● The output overload, short circuit protection, automatic protection and alarm;
● The intelligent MPPT solar controller, overcharge,overdischarge protection, current limiting charging, multiple protection;
● The power mode / energy saving mode / battery mode can be set up,
Flexible application;
● Smart fan control, safe and reliable;
● The pure sine wave output, can adapt to various types of load;
● Wide input voltage range,high-precision output automatic voltage function.
● The LCD real-time display device parameters, running status at a glance;
● The output overload, short circuit protection, automatic protection and alarm;
● The intelligent MPPT solar controller, overcharge,overdischarge protection, current limiting charging, multiple protection;

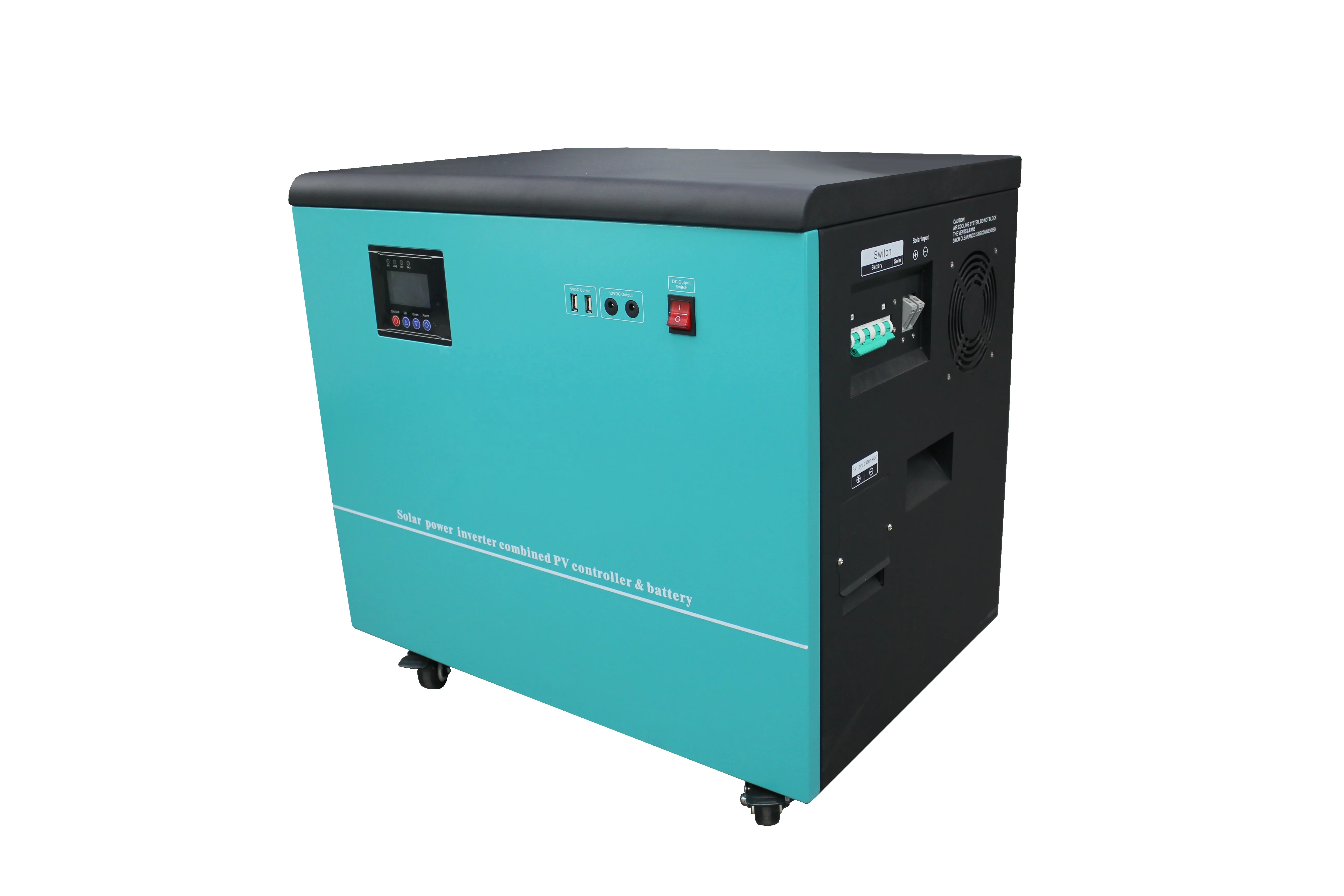

①-- AC input/outputfuse holder
②-- AC Output
③-- AC input/output termianl
②-- AC Output
③-- AC input/output termianl
④-- Solar input port
⑤-- Fan
⑥--Solar input breaker
⑦-- Battery input breaker
⑤-- Fan
⑥--Solar input breaker
⑦-- Battery input breaker
⑧-- 5VDC-USB、12VDCoutput ON/OFF switch
⑨-- 12VDC Output：12VDC-USB output terminal
⑩-- 5VDC Output：5VDCoutput terminal
⑨-- 12VDC Output：12VDC-USB output terminal
⑩-- 5VDC Output：5VDCoutput terminal
Function keys | Decription |
Power on / off key | Single on / off control |
Page up/set key | Under the main interface, click to view the device parameters and set the increment under the interface |
Scroll down/set key | Under the main interface, click to view the device parameters and set the decrement under the interface |
Function keys | Long press to enter device mode setting /Under the setting interface, short press the button to confirm the parameters and return to the main interface |
LED display | Description | ||||
PV | Green | Quick Flash | Maximum power tracking mode charge | ||
Slow Flash | Floating charging mode | ||||
OFF | Stop charging | ||||
LINE | Green | Light | The AC is connected and the output is bypassed | ||
OFF | Do not connect AC power or it is in inversion state | ||||
INV | yellow | Light | The device is in inversion state | ||
OFF | The device is not in inversion state | ||||
FAU | red | Light | Device AC output short circuit or severe overload | ||
OFF | The device work normally | ||||
Model | 3000W | 5000W | 6000W | ||||
Battery rated voltage（vdc） | 25.6 | 51.2 | |||||
Inverter | Rated power（w） | 3000 | 5000 | 6000 | |||
Input voltage range（vac） | 85-138VAC/170-275VAC | ||||||
Input frequency（Hz） | 45-65 | ||||||
Output voltage（vac） | 110/220 | ||||||
Output frequency（Hz） | 50/60 | ||||||
Output wave | Pure Sine Wave | ||||||
Speficifation of built-in battery | 2.56KWH | 5KWH | 8KWH | ||||
MPPT Solar input | MPPT Voltage Range | 60V~150VDC | |||||
PV Power | 1500W | 3200W | |||||
Rated charge current | 60A(Max) | ||||||
MPPT efficiency | ≥99% | ||||||
Floating charge voltage | 28.4VDC | 56.8VDC | |||||
DC output | Low voltage recovery voltage | 26.8 VDC | 53.6VDC | ||||
Low voltage protecton voltage | 22.4 VDC | 44.8VDC | |||||
5VDC USB output | 2 * /MAX 2A | ||||||
12VDC output ports | 2* /MAX 2A | ||||||
Heat dissipation/Cooling | Temperature control by intelligent exhaust fan | ||||||
Operating ambient temperature | -20 - +50℃ | ||||||
Storage ambient temperature | -25 - +55℃ | ||||||
Operating/Storage ambient | 0-90% No condensation | ||||||
External size：W*D*H（mm） | 620*420*580 | ||||||
Package size：W*D*H（mm） | 720*420*761 | ||||||
Recommend Products
Company Profile
BULLCUBE

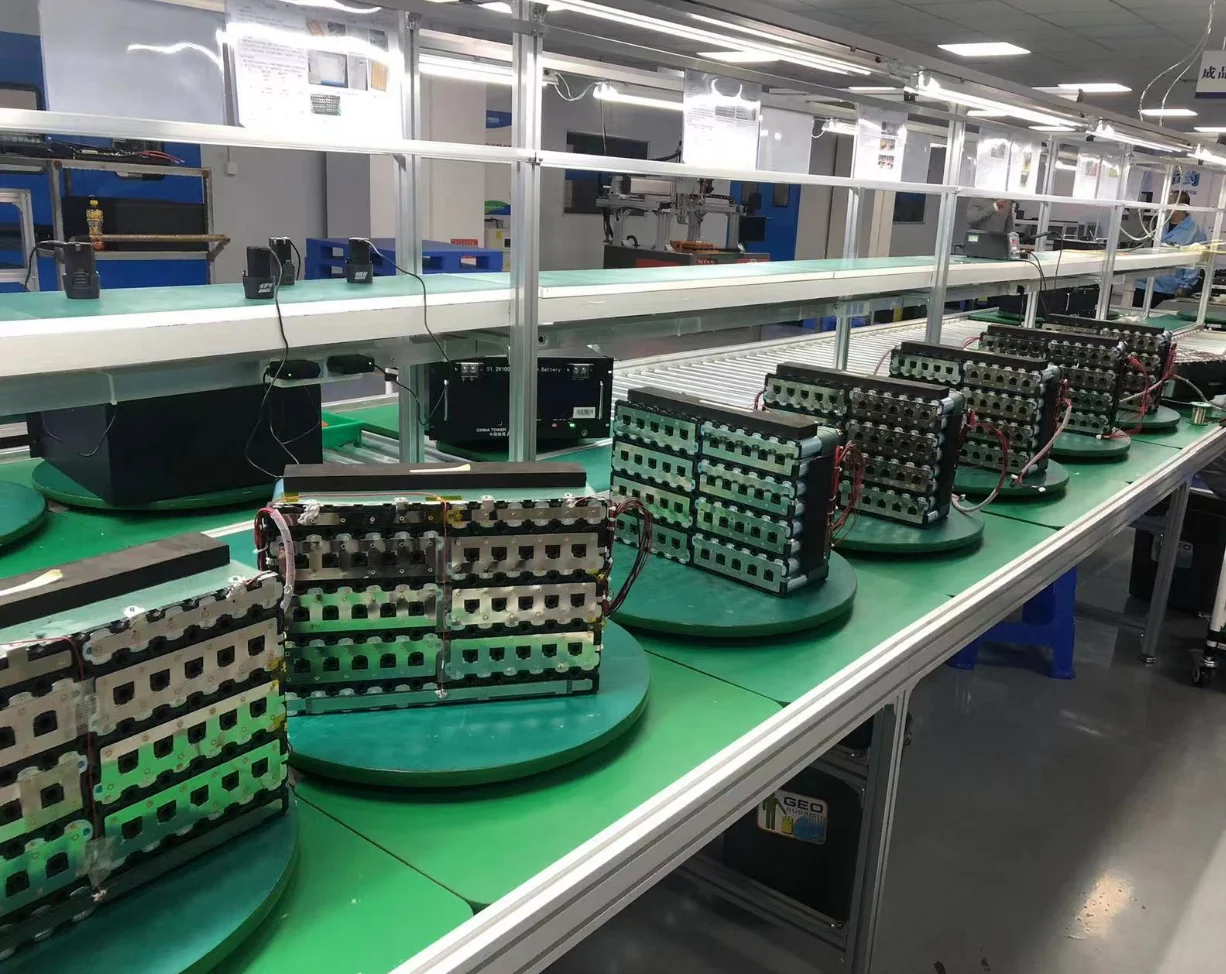

Shenzhen Guangxun Energy Technology Co. was established in 2011 as a protection board and control board manufacturer. In 2019, lithium-ion soft pack core manufacturing plant was build in Huizhou Zhongkai High-tech Zone .In 2021 to set up the Energy Storage Pike Division, in 2022 to integrate the BMS protection board, core, Energy Storage Pike new energy three core departments to set up Shenzhen Guangxun Energy Technology Co.
Our brand BULLCUBE dedicated to providing high-performance, high-quality, cost-effective energy storage products customization and solutions. The factory is located at No. 3-11, east of Xinke Avenue, Tongqiao Town Industrial Zone, Zhongkai High-Tech Zone, Huizhou City, China. At the end of 2021, we will expand our production and add a new production site. After the expansion, the total production area reached 17,000Sqm, plus 8,000Sqm office and dormitory area. The annual production capacity of the company will exceed 600 million yuan, and it will have nearly 500 employees. The company has built a high starting point and high standard 100,000-grade dust-free workshop, and invested up to more than 50 million yuan in plant decoration.
Our brand BULLCUBE dedicated to providing high-performance, high-quality, cost-effective energy storage products customization and solutions. The factory is located at No. 3-11, east of Xinke Avenue, Tongqiao Town Industrial Zone, Zhongkai High-Tech Zone, Huizhou City, China. At the end of 2021, we will expand our production and add a new production site. After the expansion, the total production area reached 17,000Sqm, plus 8,000Sqm office and dormitory area. The annual production capacity of the company will exceed 600 million yuan, and it will have nearly 500 employees. The company has built a high starting point and high standard 100,000-grade dust-free workshop, and invested up to more than 50 million yuan in plant decoration.
Delivery & Payment
FAQ
Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM are all welcome.
Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, we suggest within 3 units.
Q. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened for replacing the BMS & cells under the guidance of engineer.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 7 days.and buyer pay for sample cost and shipping cost.
Q. What warranty do I have？
A: Warranty: 3 years, we could provide repairment or replacement within the warranty period. If any quality issues on our side in this period, Please show us videos or photos to confirm before we sent solution.
A: YES, LOGO/sticker/OEM/ODM are all welcome.
Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, we suggest within 3 units.
Q. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened for replacing the BMS & cells under the guidance of engineer.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 7 days.and buyer pay for sample cost and shipping cost.
Q. What warranty do I have？
A: Warranty: 3 years, we could provide repairment or replacement within the warranty period. If any quality issues on our side in this period, Please show us videos or photos to confirm before we sent solution.
