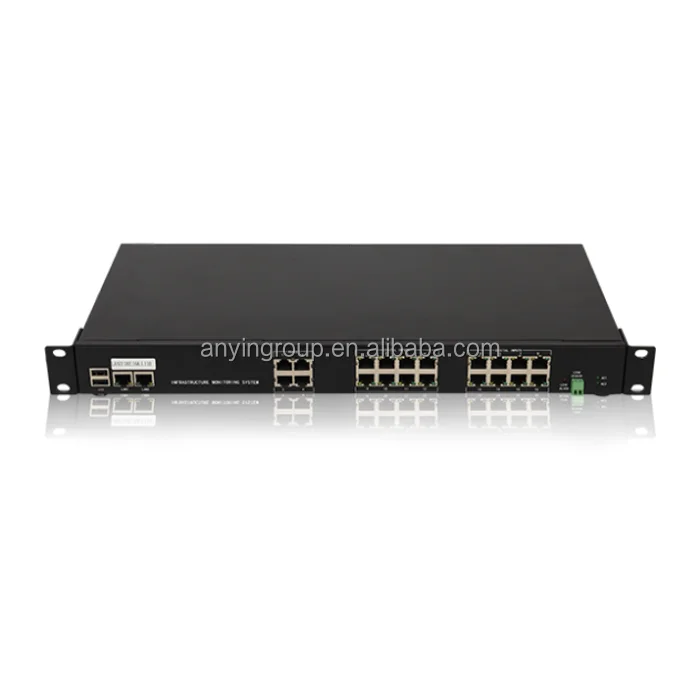

Remote Snmp/TCP IP/RS485 Embedded Environment Monitoring System Including English Software
- Category: >>>
- Supplier: Shenzhen Anying Technology Co. Ltd.
Share on (1600868420764):
Product Overview
Description
Product Description

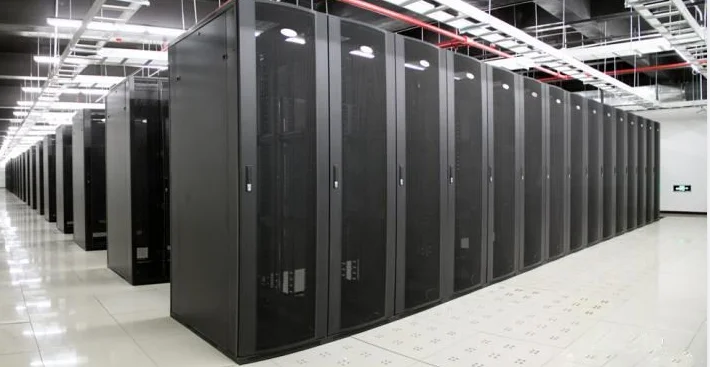

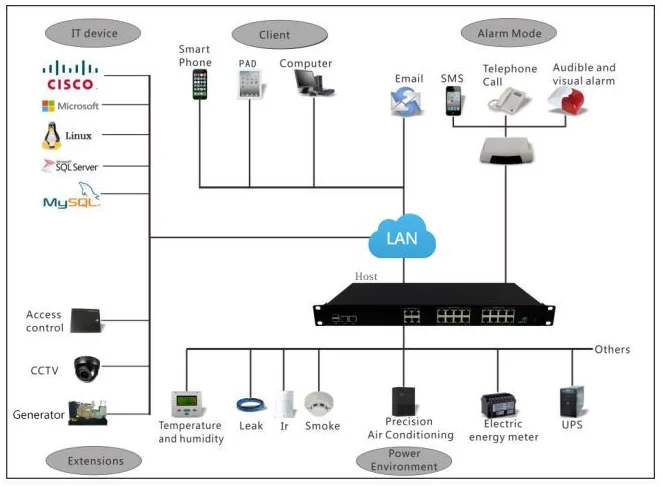

Environmental Monitoring System For IDC ROOM
AY-A8E The host is designed for unattended IDC room to remote monitoring and control systems, with the relevant
sensors, you can monitor the power supply, air switch, lightning protection device, generator, UPS, battery, precision
air conditioning, commercial air conditioning, fresh air system, lighting, temperature and humidity, harmful gas, fire,
water act, Once the infrastructure-related parameters are abnormal, the management system will automatically notify
the relevant management personnel through SMS, cable, mail, sound and light alarm, audio, etc., to ensure that the
room equipment failure, can be found and resolved problem.
Specification
item | value |
Network | TCP IP |
Model Number | AY-A8E |
Type | Linux Operating System |
Place of Origin | SHENZHEN |
Brand Name | ANYING |
Application | IDC ROOM |
Product name | Monitoring Host |
Operating System | Linux System |
Power Supply | AC100~240V |
Framework | B/S Framework |
ETHERNET | 2 10/100/1000M |
WATT | 72W |
Digital Input | 16 |
RS485 Input | 4 |
Size | 1U: 439mm*216mm*45mm |
Network | Lan |
Details Images

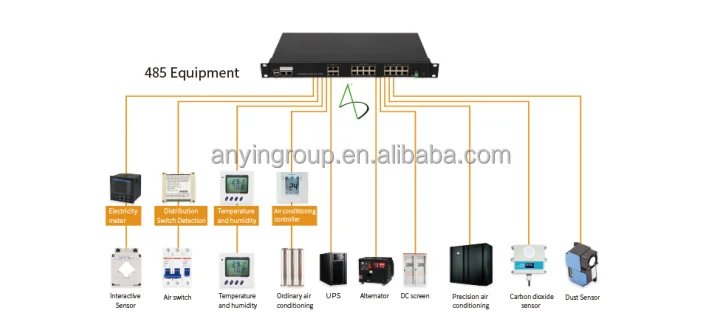

DIGITAL INPUTS

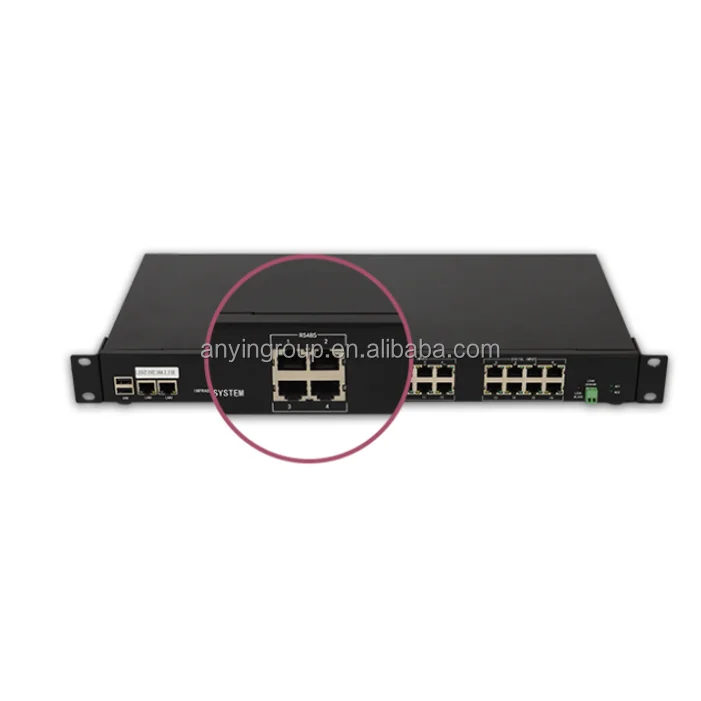

4 RS485 inputs for temperature humidity sensor, air conditioner controller, location water leak controller, electricity meter etc.
16 Digital inputs for Relay Sensor like Non location water leak sensor, infrared sensor, smoke sensor,

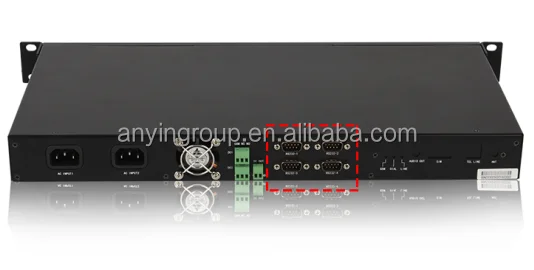

4 RS232 Inputs for Precision Air Conditioner , UPS Monitoring etc
1.ALL-IN-ONE design, highly integrated power environment monitoring alarm function in one.
2.RS485\\DI interface with RJ45 standard interface, built-in POE power supply mode, no external power supply,
wiring simple and quick.
3.Motherboard with ARM architecture, embedded Linux operating system, the software using B / S structure, no need to
install additional servers and software to support mobile phone APP applications
install additional servers and software to support mobile phone APP applications
4.Built-in leak detection module, the device only need to add a leak detection cable or sensor unit can be
5.Host built-in SMS, telephone voice alarm
6.1 channel audio interface for access to the broadcast system or live audio alarm, support English and Chinese
7.Multi-channel communication port, including 4 RS232 interface, 4 RS485 with isolation interface, 2 10/100 / 1000M
Ethernet interface, 16DI;
Ethernet interface, 16DI;
8.1U / 19-inch standard chassis, front and rear can be replaced to installed;
9.Dual power supply redundant input, input voltage: AC100-240V
10.Industrial standard design, stable and reliable, can be work 7x24h in -20- 70 ℃ environment.

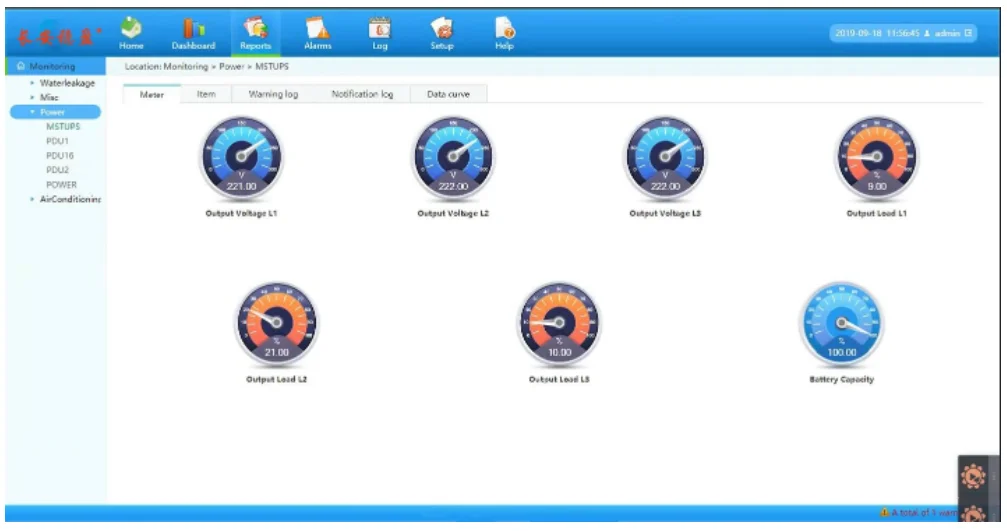

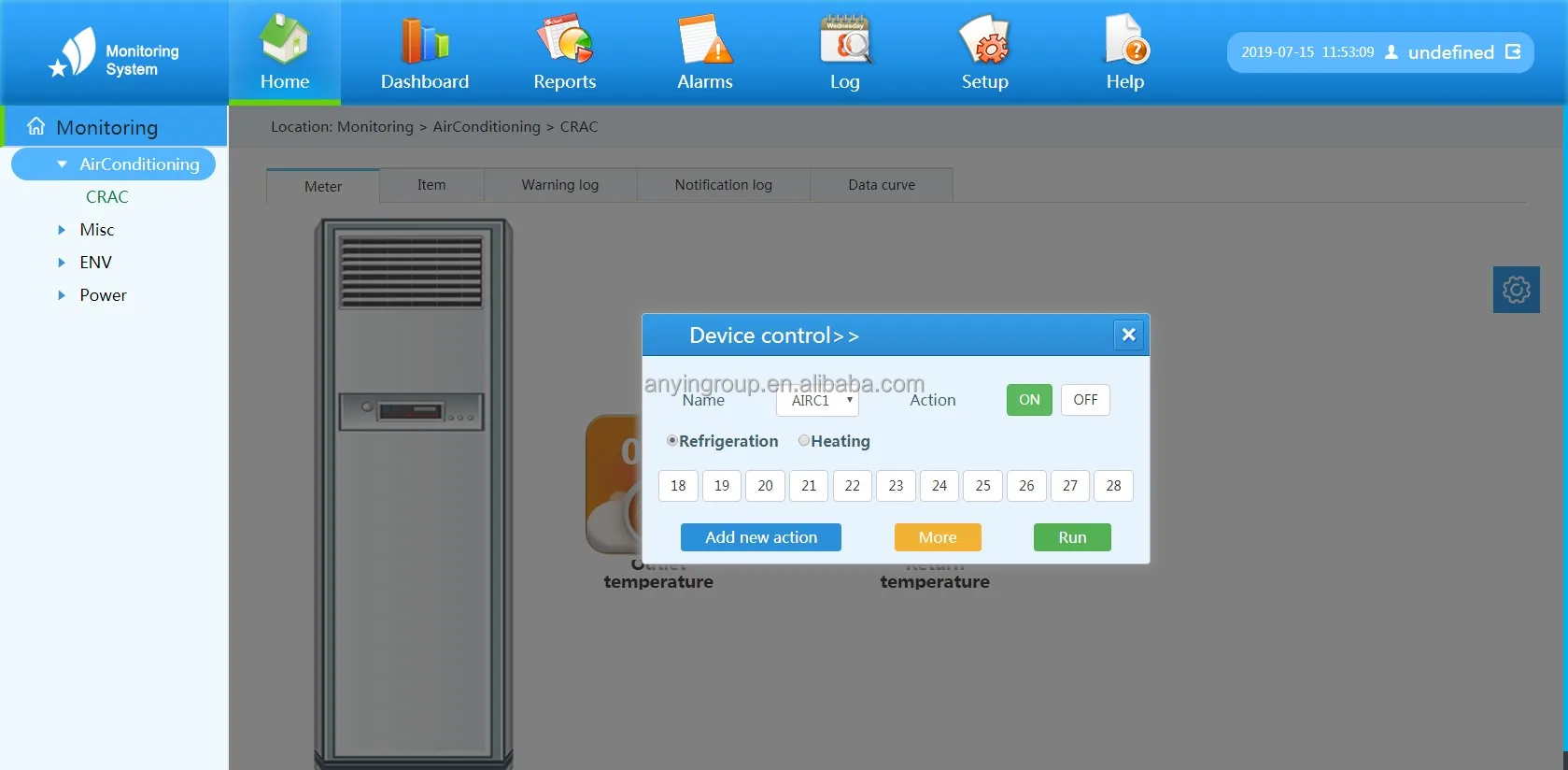

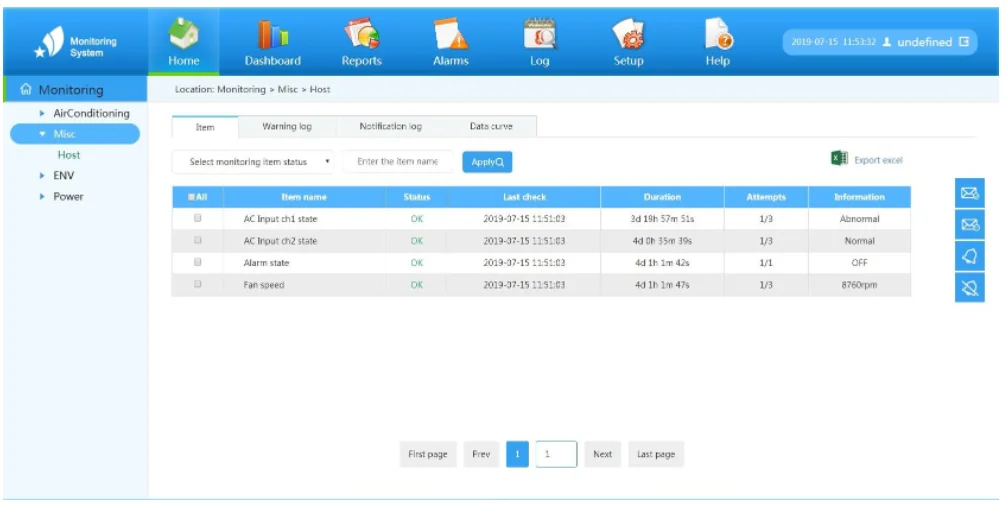

Software Platform
Installation Instructions
Application
1.Server Room: Water Leakage, Temperature humidity, Power Distribution, Smoke, Access Control, Air Conditioner, Power Supply etc
2.Distribution Room: UPS Monitoring, Power Supply, Current, Voltage, Battery etc
3.Warehouse Environment: Such as grain, tobacco, medicine , chemical industry, food etc, mainly for temperature humidity , water flood etc.
4. Commercial Buildings: Bank, Shopping mall, Elevator Shaft etc
Recommend Products
Non Location Water Leak Sensor
A-LC1A
Location Water Leak Controller
A-LLM1
Temperature Humidity Sensor
A-TH1
