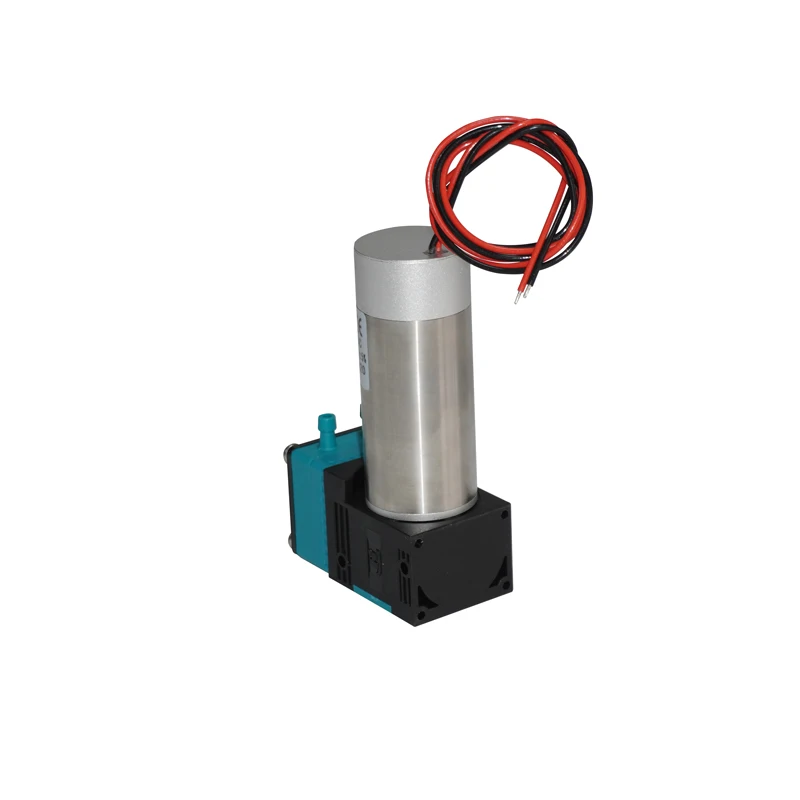

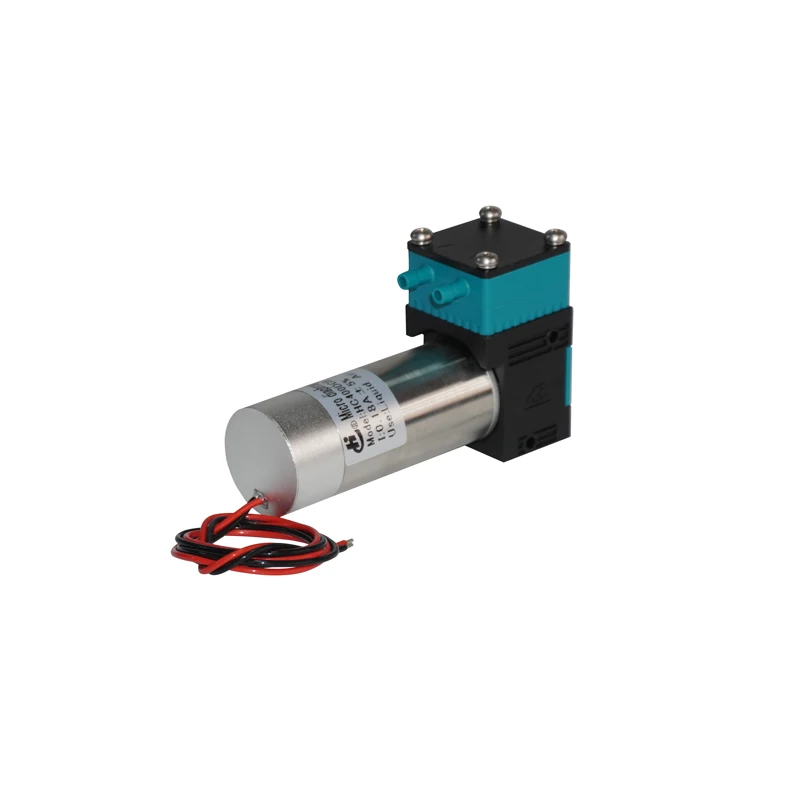

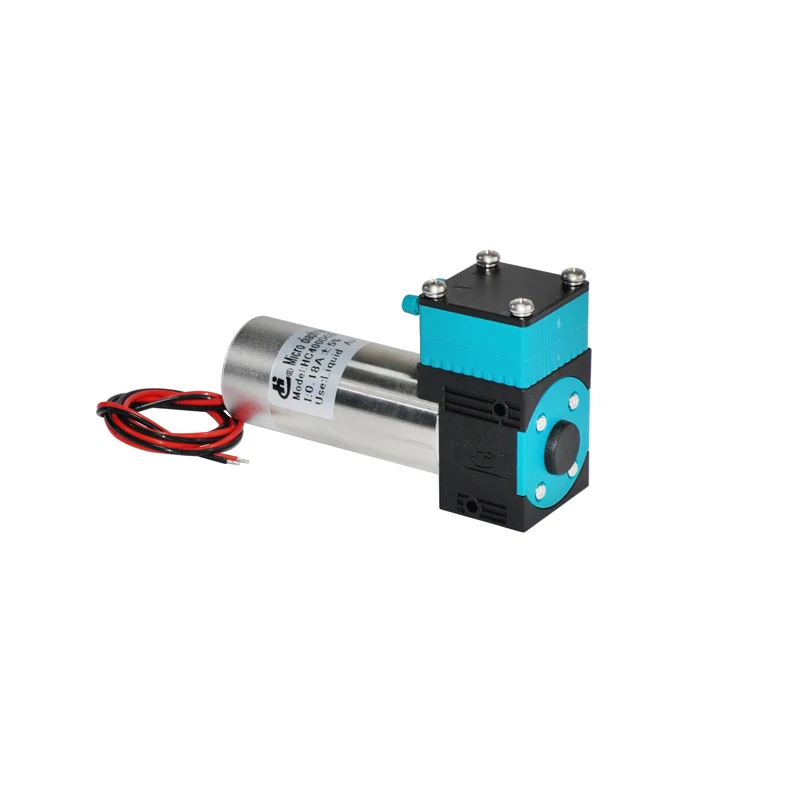

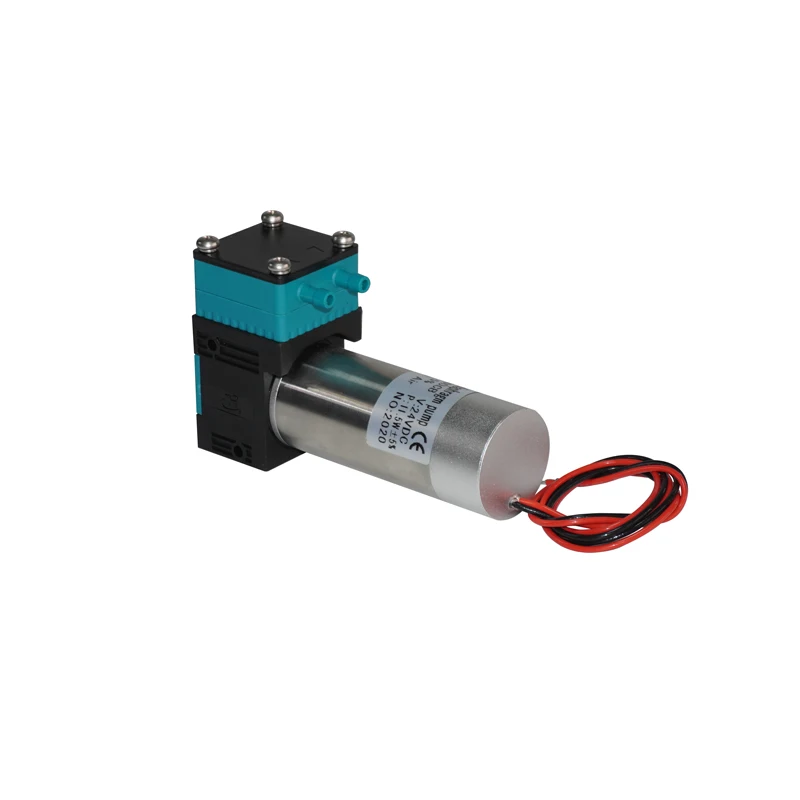

Practical Micro Water Diaphragm Automatic Pump Medical Environment Filtering Color Spectrum Chemical Pump Air Liquid HC 400DCB
- Category: >>>
- Supplier: Shenzhen Hungsung Weiye Electronic Technology Co. Ltd.
Share on (1600868437153):
Product Overview
Description
Product Overview
Practical Micro Water Diaphragm Automatic Pump Medical Environment Filtering Color Spectrum Chemical Pump Air Liquid HC 400DCB Factory Wholesale Price
FEATURES AT A GLANCE
Automatic Pump
Micro Chemical Pump
Medical Environment Pump
Medical Environment Pump
Advantage:
Long Life
Low Noise
Exemption
No Leakage
Preservative
Air Rotation
Small Volume
Self-absorbing
High Efficiency
Oil-free Lubrication
Air Liquid Universal
Long Life
Low Noise
Exemption
No Leakage
Preservative
Air Rotation
Small Volume
Self-absorbing
High Efficiency
Oil-free Lubrication
Air Liquid Universal
DC Brushless Motor
PRODUCT SPECIFICATIONS
Technical Data | Data | |
Model | HC 400DCB | |
Motor | DC Brushless | |
Voltage | 12V/24V | |
Load-Current | 0.5A 0.3A | |
Applicable medium | Air Liquid Universal | |
Free water flow | 600ml/min | |
Max water pressure | 0.25Mpa | |
Free air flow | 4l/min | |
Max air pressure | 0.1Mpa | |
Max vacuum | -60kpa | |
Pressure head | >15m | |
Suction height | 7m | |
Noise | 55dB | |
Weight | 0.24kg | |
Life | 10000h | |
Size | 94*31.1*58.1mm | |
Ambient temperature | 5-40℃ | |
Fluid temperature | 10-60℃ | |
Products Description
The air inlet and air outlet of the diaphragm pump are one-way valve.
The elastic membrane installed on the eccentric crankshaft is driven by the motor to make the cavity deform and achieve the inhalation and discharge of the medium.Application Field:
Electrolyte
Chemical Analysis
Medical Equipment
Laboratory Equipment
Biochemical Instrument
Digital Printing Equipment
Plate Washing Equipment
Extraction Analysis of Environmental Protection Instrument
Precautions:
Filters with at least 30 micron filtration accuracy should be connected at the pump entrance
Precautions:
Filters with at least 30 micron filtration accuracy should be connected at the pump entrance

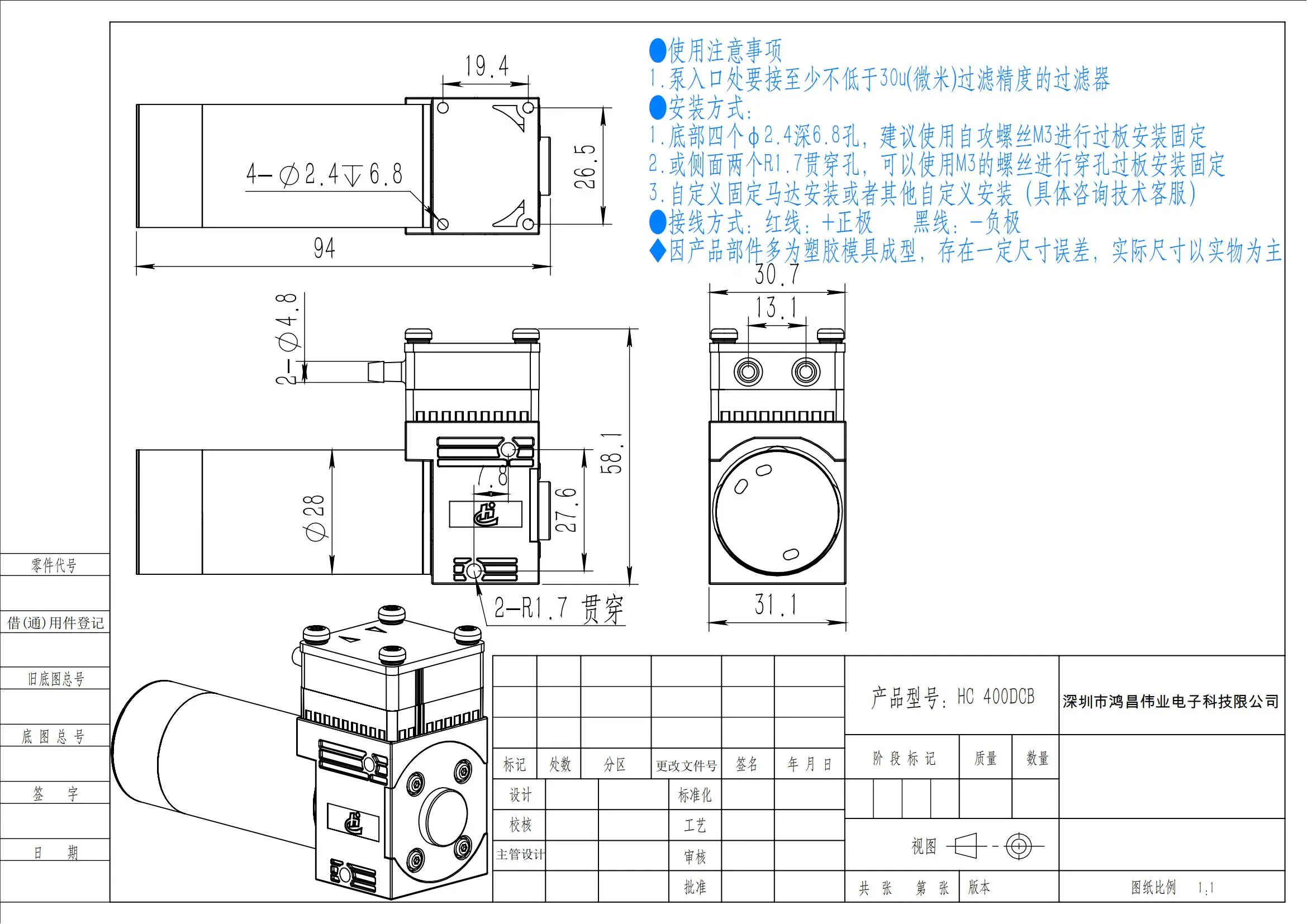

Installation method:
1. Four 2.4 depths at the bottom of the bottom. It is recommended to use a screw M3 to install it through the board;
2. Two R1.7 penetration perforations on the side, you can use M3 screws to be installed and fixed;
3. Customized fixed motor installation or other custom installation
1. Four 2.4 depths at the bottom of the bottom. It is recommended to use a screw M3 to install it through the board;
2. Two R1.7 penetration perforations on the side, you can use M3 screws to be installed and fixed;
3. Customized fixed motor installation or other custom installation
Because the product parts are mostly formed by plastic mold, there are certain size errors, and the actual size is mainly actual.
300: Inner diameter (ID) 2.5mm,
350: Inner diameter (ID) 4mm,
400: Inner diameter (ID) 4mm,
750: Inner diameter (ID) 4mm,
800: Inner diameter (ID) 4mm,
850: Inner diameter (ID) 4mm,
Material:
Pump head: PA66
Valve: EPDM
Divide: EPDM
Size of the water pipe suggestions:
200: Inner diameter (ID) 1.5mm,
Pump head: PA66
Valve: EPDM
Divide: EPDM
Size of the water pipe suggestions:
200: Inner diameter (ID) 1.5mm,
outer diameter (OD) 3mm
300: Inner diameter (ID) 2.5mm,
outer diameter (OD) 4mm
350: Inner diameter (ID) 4mm,
outer diameter (OD) 6mm
400: Inner diameter (ID) 4mm,
outer diameter (OD) 6mm
750: Inner diameter (ID) 4mm,
outer diameter (OD) 6mm
800: Inner diameter (ID) 4mm,
outer diameter (OD) 6mm
850: Inner diameter (ID) 4mm,
outer diameter (OD) 6mm
Product packaging
Our Advantages

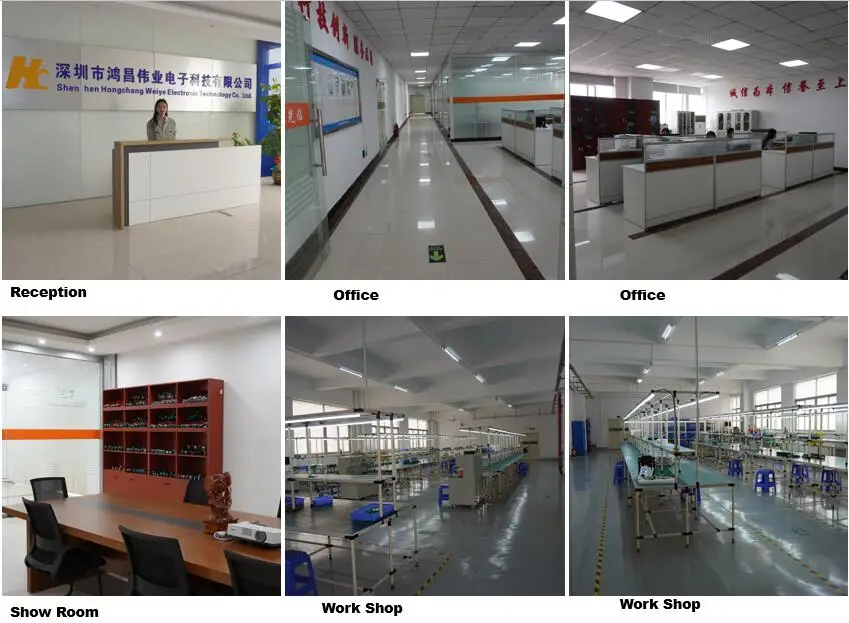

Company Profile
Shenzhen Hunsgsung Weiye Electronic Technology Co., Ltd. was established in 2003.
The company is located in Shajing Street, Baoan District, Shenzhen. Now Hungsung’s headquarter incorporate all departments of a manufacturing company: Management, sales, R&D, production,service, and accountancy.
We have a strong technical force and a sound scientific quality management system.
We always adhere to the business philosophy of 'Quality is life, technology is development. And with first-class quality, fast delivery channels and excellent after-sales service. The company's strength and product quality have been recognized by the industry.
Our main products: micro diaphragm pump for liquid, micro diaphragm pump for air, micro solenoid valves, and oilless piston vacuum pump.
The company is located in Shajing Street, Baoan District, Shenzhen. Now Hungsung’s headquarter incorporate all departments of a manufacturing company: Management, sales, R&D, production,service, and accountancy.
We have a strong technical force and a sound scientific quality management system.
We always adhere to the business philosophy of 'Quality is life, technology is development. And with first-class quality, fast delivery channels and excellent after-sales service. The company's strength and product quality have been recognized by the industry.
Our main products: micro diaphragm pump for liquid, micro diaphragm pump for air, micro solenoid valves, and oilless piston vacuum pump.
