wall mounted vending machine payment terminal with touch screen roulette gloves ordering system ultrasound machine 21.5 Inch
- Category: >>>
- Supplier: Shenzhen Weiguan Views Technology Co. Ltd.
Share on (1600868520061):
Product Overview
Description
OEM 21.5 Inch Flexible Infrared Uhd Touch Screen Lcd Display Module
Products Description
Product Core Feature:

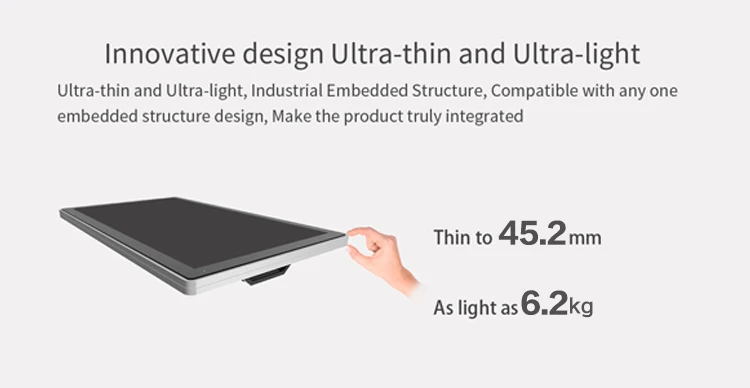

◆ Ultra-thin, ultra-light and industrial embedded structure.The design is compatible with any integrated embedded structure
equipment, so that the product is truly smooth and integrated design.
◆ The ergonomic handle design makes installation more convenient and maintenance easier.
◆ Side lock embedded structure to make more flexible matching with other equipments.
◆ Adopt the high-brightness,high-contrast LCD panel,top 3D digital decoding processing chip, and the latest image noise reduction
technology to make the image display clearer and the color revivification effect more realistic.
◆ It has the function of automatic detection of signal ports. When a single channel signal is connected, it can automatically jump
to the corresponding channel to display the image, but not need to select the signal manually.
◆It has the function of automatic afterimage protection on the LCD screen, which can effectively prevent the LCD screen from being
burnt and prolong the service life of the display screen when displaying a still picture for a long time.
◆Industrial standard design to make it continuously support 365*24 hours of uninterrupted work
equipment, so that the product is truly smooth and integrated design.
◆ The ergonomic handle design makes installation more convenient and maintenance easier.
◆ Side lock embedded structure to make more flexible matching with other equipments.
◆ Adopt the high-brightness,high-contrast LCD panel,top 3D digital decoding processing chip, and the latest image noise reduction
technology to make the image display clearer and the color revivification effect more realistic.
◆ It has the function of automatic detection of signal ports. When a single channel signal is connected, it can automatically jump
to the corresponding channel to display the image, but not need to select the signal manually.
◆It has the function of automatic afterimage protection on the LCD screen, which can effectively prevent the LCD screen from being
burnt and prolong the service life of the display screen when displaying a still picture for a long time.
◆Industrial standard design to make it continuously support 365*24 hours of uninterrupted work
Product | 21.5 inch touch screen | ||||||
Model | TYL-H220KM-F | ||||||
Screen | Active area | 478.6× 260.3mm (H×V) | |||||
Display Ratio | 16:9 | ||||||
Backlit | LED | ||||||
Resolution | 1920*1080 | ||||||
Brightness | 250cd/㎡ | ||||||
Contrast | 3000：1 | ||||||
Response Time | 6.5ms | ||||||
Dot pitch | 0.241×0.241mm | ||||||
Color | 16.7M | ||||||
Interface | VGA signal | 1 in, Support up to 1920*1080 (downward compatible) | |||||
HDMI signal | 1 in, Support up to 1080P 60Hz (downward compatible) | ||||||
USB touch | 1 in | ||||||
Audio out | 1 left and right channel output | ||||||
Touch | Touch | Capacitive projection G+G | |||||
Tempered glass | 2mm | ||||||
Touch point | 10 | ||||||
Touch accuracy | 2.5mm | ||||||
Anti-glare | optional | ||||||
Power supply | Working Voltage | AC90-246V input | |||||
Max power | 25W | ||||||
Use environment | Temperature | 0～60°C | |||||
Humidity | 5～90%RH | ||||||
Appearance information | Weight | 6.2KG | |||||
Dimension | L533.5mm× H320.8mm×W45.2mm | ||||||
Accessories | Power cable*1 | ||||||
Optional accessory | HDMI cable-0.5mm,Speaker 8 Ohms 5W*2,DC12V Output 0.8m,bracket | ||||||
HDMI cable anti-releasing design | Yes | ||||||
Front protection level | IP65 | ||||||
EMI conducted interference, electromagnetic radiation | GB13837<<Sound and television broadcasting receivers and related equipment - Radio disturbance characteristics - Limits and methods of measurement>> | ||||||
EMS electrostatic immunity | GB17626.2-2008 IEC61000-4-2 4 level standard contact discharge 4KV air discharge8KV | ||||||
EMS Lightning surge | GB17626.5-2006 ±1KV | ||||||
Pressure resistance | Power supply poles and input/output terminals AC1500V 60S,The leakage current is less than 10MA | ||||||
Insulation | Power supply poles and input/output terminals DC500V 60S >4MΩ | ||||||
Safety | Ground resistance | 25A 60S <0.1Ω | |||||
Drop test | Height 850-1000mm，One time for each of the six sides and three edges, the test time 10min | ||||||
Why Choose Us
The reason why choose us ?
1. We have our own R&D team, and we have strict standards for product development, production, inspection and delivery. Over 15 years of experience gives us the edge!
2. We have an automated production line and a production-free workshop that greatly reduces production time.
3. We provide OEM/ODM services to our customers worldwide. Our factory area is 5,000-10,000 square meters.
4. We will serve outlets in the United States and Canada. Over 6000 projects have been successfully installed to satisfy every client covering domestic and abroad market.
5. Our Trade Assurance limit on Alibaba keeps growing, we can now be covered up to US $322,000.00 on your orders.
6. As part of our multiple services, we can offer 1 years warranty on all our products. Don't worry about after-sales problems at all.
1. We have our own R&D team, and we have strict standards for product development, production, inspection and delivery. Over 15 years of experience gives us the edge!
2. We have an automated production line and a production-free workshop that greatly reduces production time.
3. We provide OEM/ODM services to our customers worldwide. Our factory area is 5,000-10,000 square meters.
4. We will serve outlets in the United States and Canada. Over 6000 projects have been successfully installed to satisfy every client covering domestic and abroad market.
5. Our Trade Assurance limit on Alibaba keeps growing, we can now be covered up to US $322,000.00 on your orders.
6. As part of our multiple services, we can offer 1 years warranty on all our products. Don't worry about after-sales problems at all.
Feedback
Company Information
Product packaging
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in producing LCD displays since 2003.
2. Q:How long is the warranty?
A:Our officially promised warranty time is 12 months from the date of delivery.
3. Q:I would like to ask you if it's possible to have my logo on the product.
A: TYALUX (our brand), neutral appearance, customized logo, all are available if you like.
4. Q:Which panel you use ?
A:Samsung and LG A+ panel.
5. Q:I haven't done business with you guys before, how can I trust your company?
A: Advertising displays received CE, RoHS, ISO9001, CCC etc; Our company is golden supplier more than 10 years; what’s more, our company became a listed company in NEEQ in 2016.
A: We are a professional manufacturer specialized in producing LCD displays since 2003.
2. Q:How long is the warranty?
A:Our officially promised warranty time is 12 months from the date of delivery.
3. Q:I would like to ask you if it's possible to have my logo on the product.
A: TYALUX (our brand), neutral appearance, customized logo, all are available if you like.
4. Q:Which panel you use ?
A:Samsung and LG A+ panel.
5. Q:I haven't done business with you guys before, how can I trust your company?
A: Advertising displays received CE, RoHS, ISO9001, CCC etc; Our company is golden supplier more than 10 years; what’s more, our company became a listed company in NEEQ in 2016.
