CSQ SPDT Relay 24 vac 230vac 16a Sensor Temperature Relay Digital Timer
- Category: Relays >>>
- Supplier: Siqi Technology Co. Ltd.
Share on (1600868524707):
Product Overview
Description
Products Description
Product Paramenters

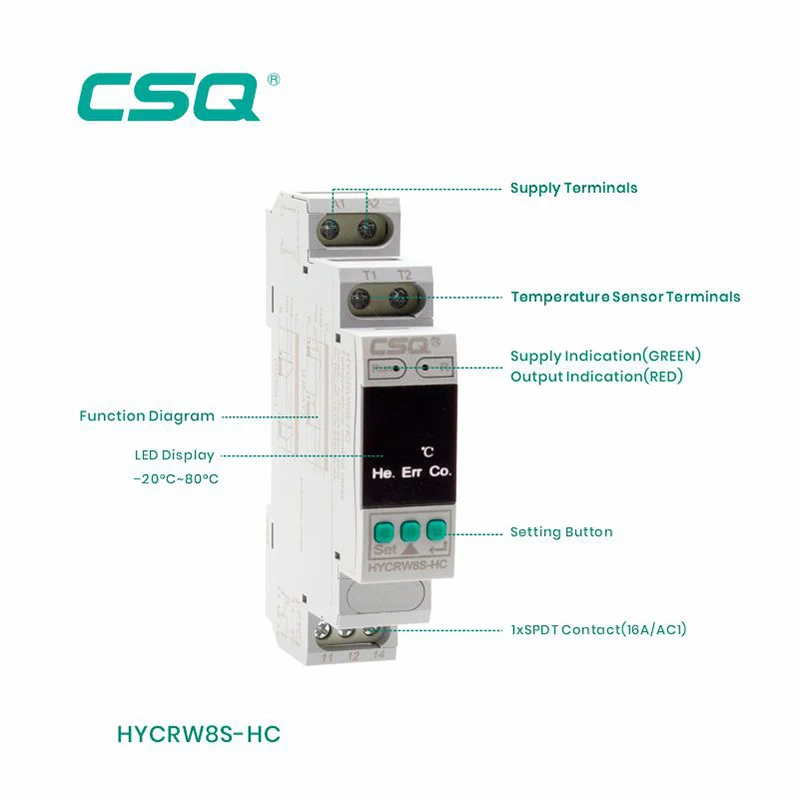

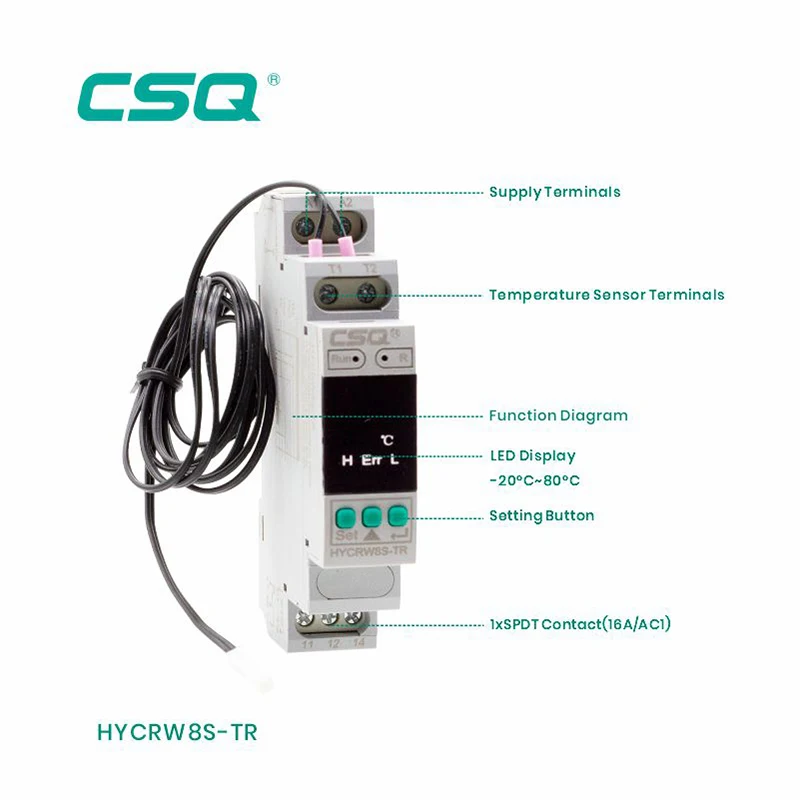

Model | HYCRW8S-TR | HYCRW8S-HC | |
Function | Temperature range monitoring control | Heating/cooling mode monitoring control | |
Output configuration | 1 x SPDT | 2 x SPDT | |
Working voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation ±10% | Digital display, button adjustment | |
Indicator | Working indication: Green LED 0.5S flashes, Relay indication: R red LED real-time indication | 0.1s-999s(0.1 seconds-999 seconds) | |
Setting method | Three-digit digital display, button adjustment, step size 1℃ | Basic error <0.5% | |
Signal input | Thermal resistance: Pt100 | Digital display, button adjustment | |
Adjustment range | -20-80℃ resolution: 0.1 or 1℃ | 0.1s-99h | |
Lag value | 0.5-9.9℃ | Basic error < 1% | |
Measurement error | ± (2.0%FS+one word) | ||
Delay range | 0.5-19.9S | ||
Reset time | ＜500ms | 10/16A (AC1-resistive) | |
Contact capacity | 10/16A (AC1-resistive) | 3/5A (AC1-resistive) | |
Mechanical life | 1x10 5 (resistive load, room temperature, 1s on 9s off) | ||
Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt spray and corrosive gas | ||
Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt spray and corrosive gas | ||
Atmospheric pressure | 86-106kPa | ||
Protection class | IP20 | ||
Installation method | 35mm Din rail type | ||
