introduce

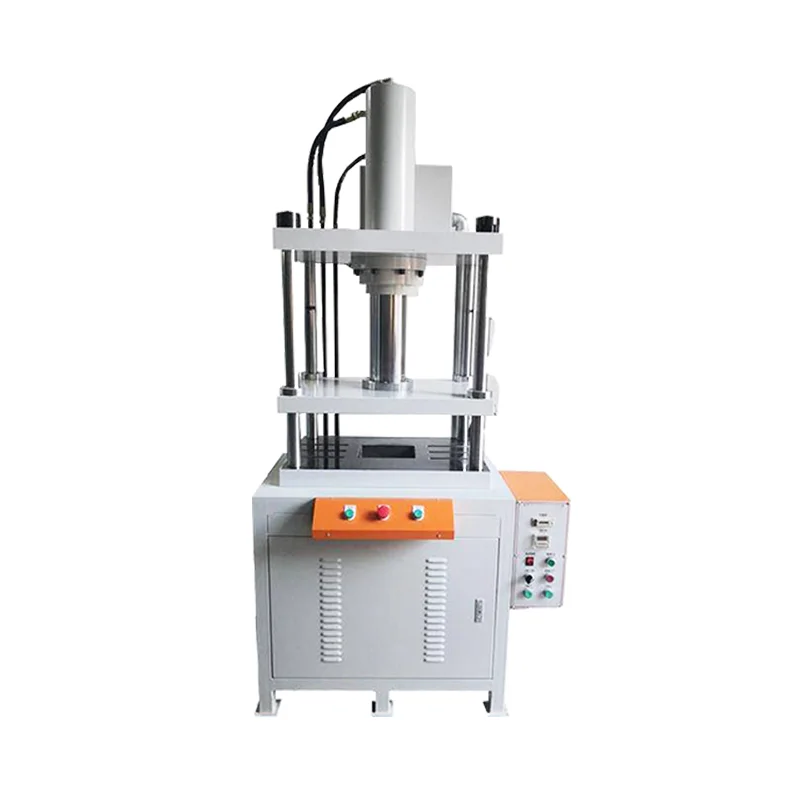

Sliding table CNC oil pressure punching machine
Hydraulic punching machine is a kind of punching machine used for punching, embossing, forming, shallow drawing, shaping and pressure assembly of metal or non-metallic parts. It is especially suitable for edge punching of aluminum products, nozzle punching of die castings, shaping of mobile phone shells, edge trimming of silicone buttons for mobile phones, leveling of silicon steel sheets, and burr treatment of plastic and rubber products, etc.


Nominal force (KN)
500
THEORY OUTPUT(TON) Theory output (ton)
304050 (adjustable pressure)
Liquid working pressure (MPA)
12
Dimension of working face (length * width)MM
Inside the left and right columns 450*300 outside the front and back columns
Opening distance (MM)
300
Closing distance (MM)
0
Cylinder slow down feed rate
50
Height of table above ground (MM)
750
Cylinder stroke (MM)
300
Rapid descent speed of cylinder (MM/S)
150
Cylinder rising speed (MM/S)
150
Electric source
3 Ф 380 vac, 50/60 hz
