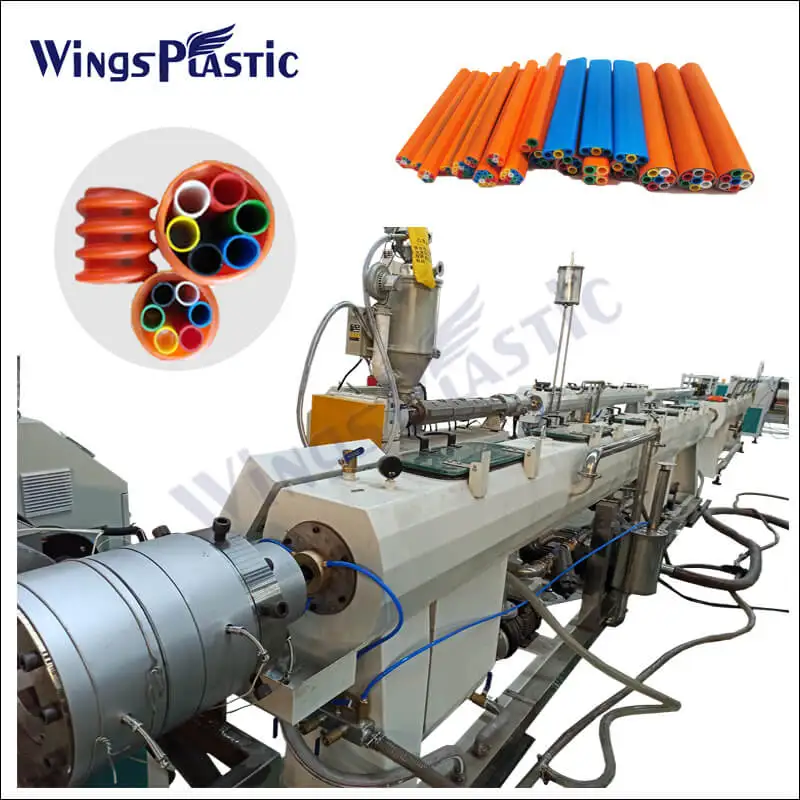

Plastic corrugated optic duct pipe extrusion machine line
- Category: >>>
- Supplier: Qingdao Wings Plastic Technology Co. Ltd.
Share on (1600868544837):
Product Overview
Description

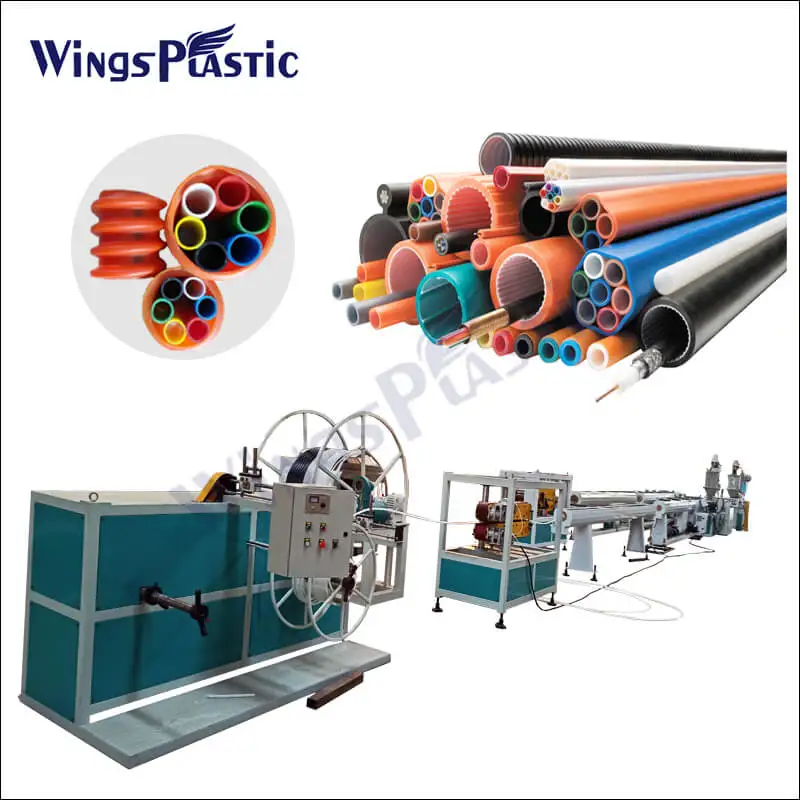

Plastic corrugated optic duct pipe extrusion machine line
Product Description
HDPE Core Pipe Extrusion Line
Always the whole production line includes two extrusion lines.

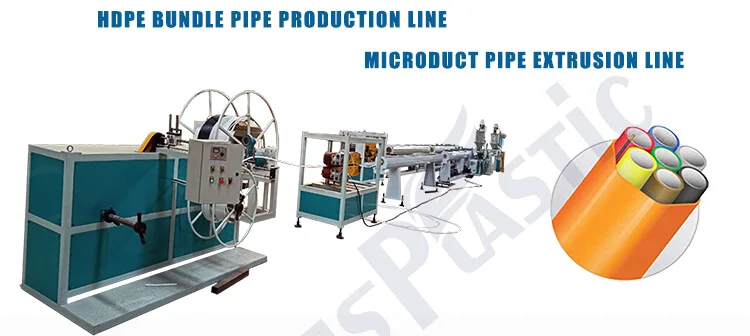

One is HDPE core pipe extrusion line (extruder, die head, water tank, puller, winder ), another is HDPE bundle pipe extrusion line. As core pipe extrusion line is same with water pipe extrusion line. Here mainly introduce the bundle pipe extrusion line
Always the whole production line includes two extrusion lines.
One is HDPE core pipe extrusion line (extruder, die head, water tank, puller, winder ), another is HDPE bundle pipe extrusion line. As core pipe extrusion line is same with water pipe extrusion line. Here mainly introduce the bundle pipe extrusion line
Core Pipe Unwinding Unit
It is working for small core pipe unwinding
It is working for small core pipe unwinding

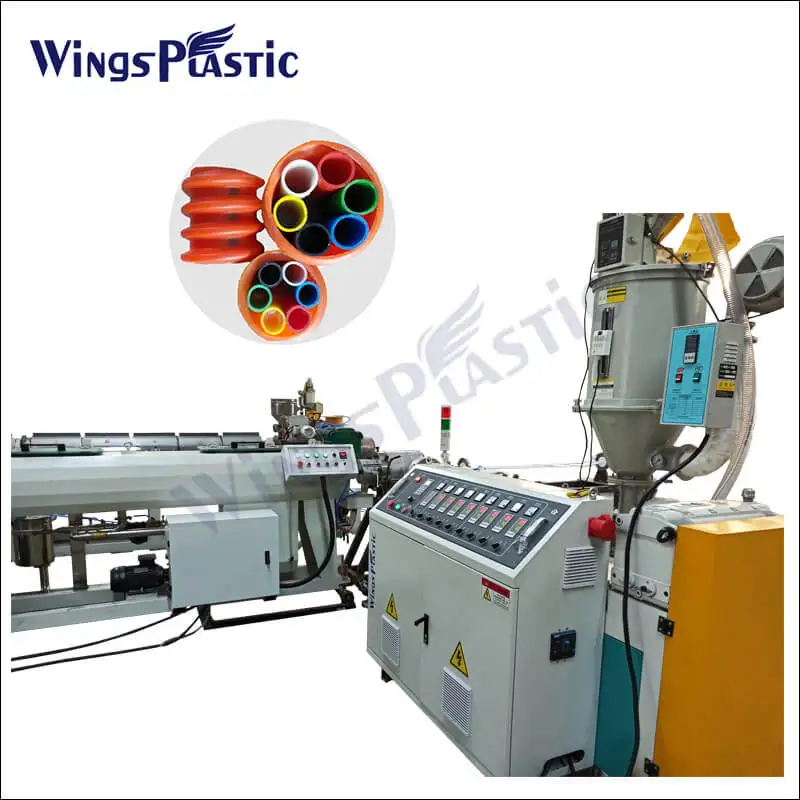

Single Screw Extruder
There is 45/33,65/30,65/33,75/30,75/33 ... etc extruders according diameters and ouput.
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality pipe extrusion.
There is 45/33,65/30,65/33,75/30,75/33 ... etc extruders according diameters and ouput.
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality pipe extrusion.

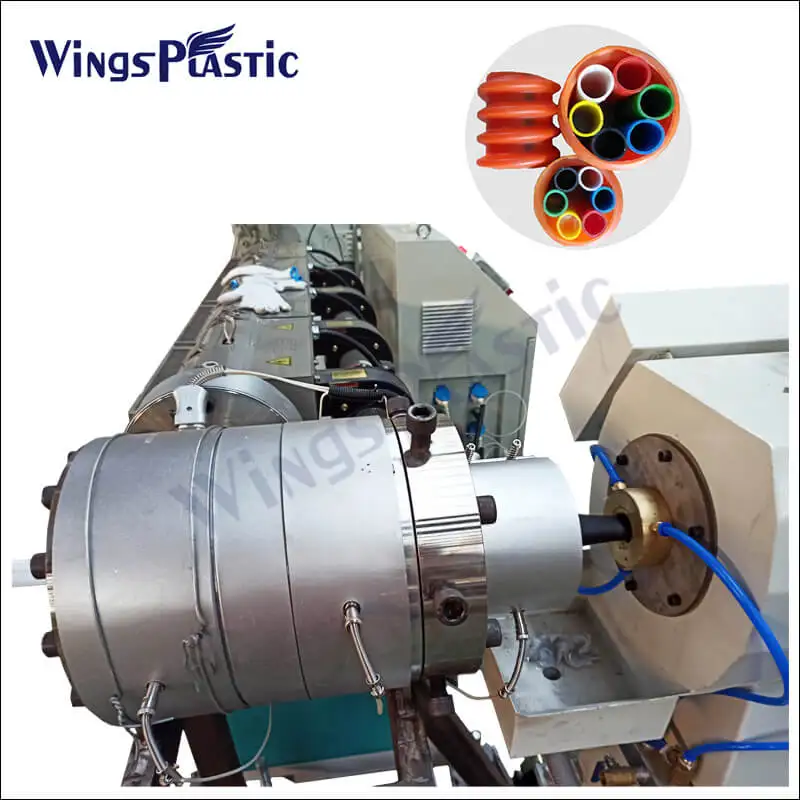

Pipe Extrusion Die head
The die head is made by 40Cr moulds materials.
Using mica heating way

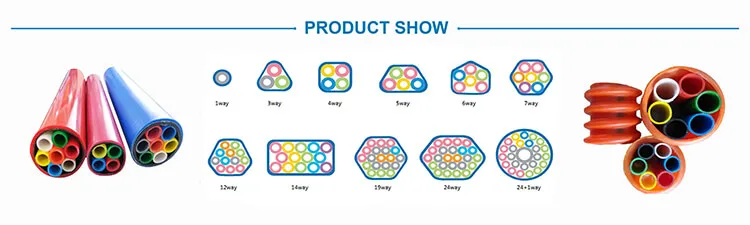

It could be do coating with 2 way, 3way,4way,5way,7way etc.
The die head is made by 40Cr moulds materials.
Using mica heating way
It could be do coating with 2 way, 3way,4way,5way,7way etc.
Pipe Water Tank
It is adopted stainless steel materials, high quality vacuum and water pumb. There is flow stabilization system for better pipe
surface.
It is adopted stainless steel materials, high quality vacuum and water pumb. There is flow stabilization system for better pipe
surface.
Water cooling tank
it is stainless steel materials.
It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed.
it is stainless steel materials.
It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed.
Haul off unit
It could be rubber belt or rubber block clamping way.
It could be rubber belt or rubber block clamping way.
Winding Machine
It adopts torque motor control unit, max winding 1km to 5km according customer request
It adopts torque motor control unit, max winding 1km to 5km according customer request
Specification
Plastic Processed | PE, PP, HDPE, PPR, HDPE/PP, PE/PP, Lldpe, LDPE |
Application | PIPE |
Screw Design | Single-screw |
Screw Material | 38CrMoALA |
Screw diameter (mm) | 65 |
Screw L/D Ratio | 33:1 |
Screw Speed (rpm) | 74rpm |
Voltage | Customized |
Warranty | 1-2 years |
Key Selling Points | High Productivity |
Inverter | Delta brand |
Contactor | Siemens Contactor |
Switch | CHNT |
Temperature controller | Omron Brand |
Packing & Delivery
Company Profile
Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE PP PVC PA single wall corrugated pipe machine, double-wall corrugated pipe production line,
Equipment operation is stable, automatic production, saving labor, efficient extrusion
Equipment operation is stable, automatic production, saving labor, efficient extrusion
