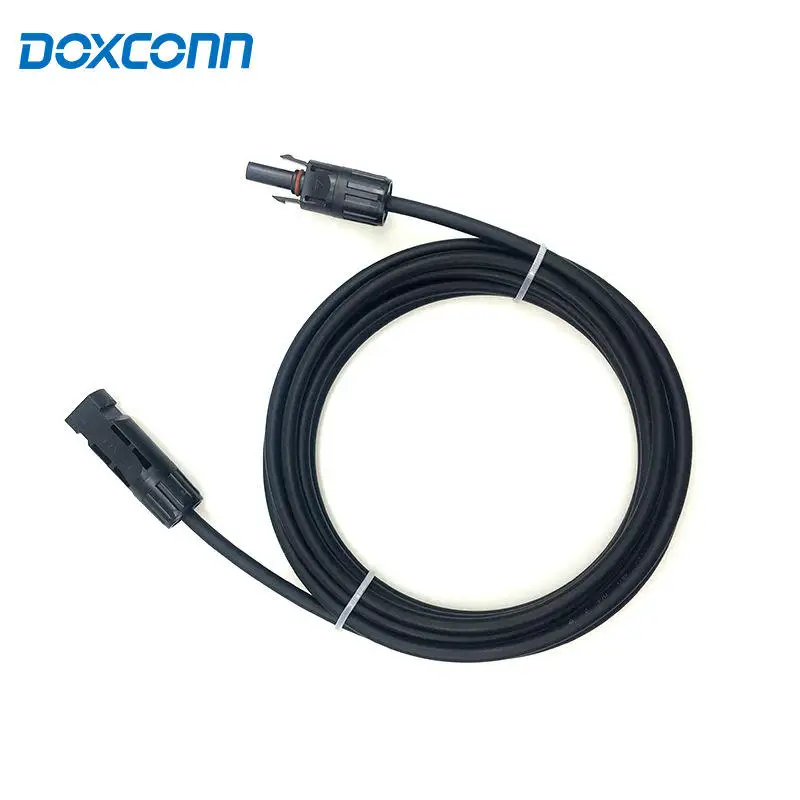

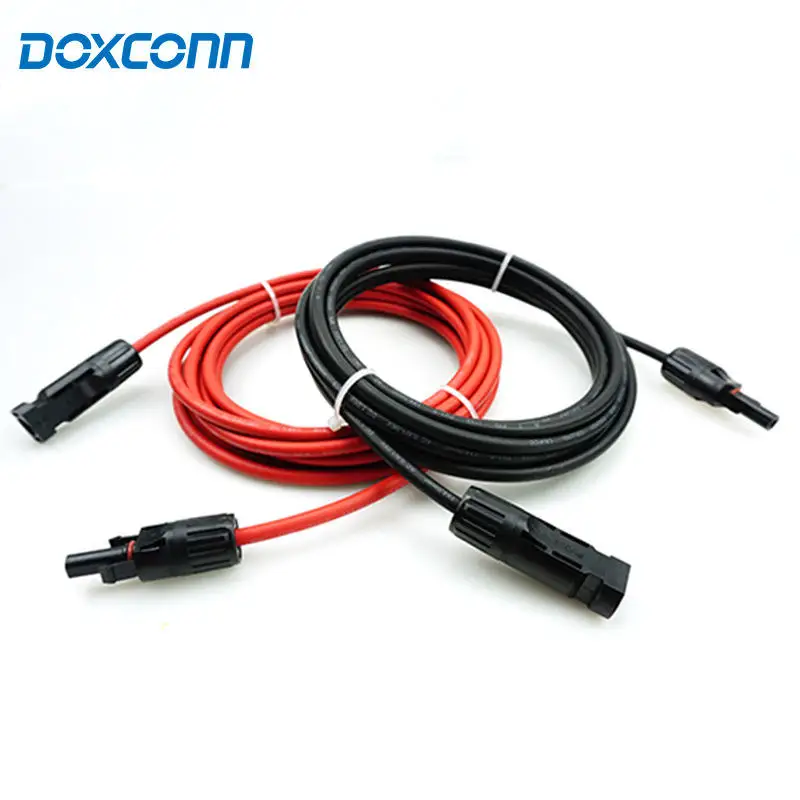

TUV UL PV1F Solar DC Panel Extension Cable XLPO 4mm2 6mm2 Wire Solar PV Connector Power Cables 3FT

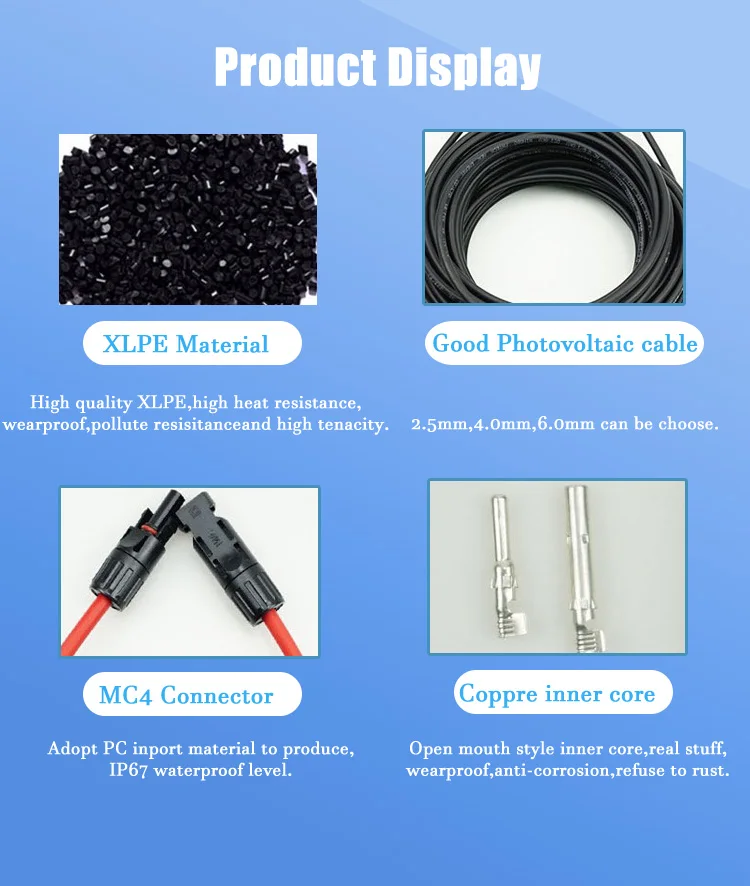

Material: XLPE insulation,Stranded, tinned copper conductor

Rated voltage: 1000V AC/1500 V DC

Cross section area:4MM2,6MM2

Core:Single core or twin cores

Rated Temperature: -40℃~90℃

Color: Black,red

Cable diameter: 5.8MM or 6MM

Test voltage:6500V 5min.

Certification: Rohs,TUV

Application:Widely used in Portable Power Station, Solar Generator, solar panels, RV backup batteries, inverters, drones, model cars, model boats, manipulators, household appliances;

Advantage:

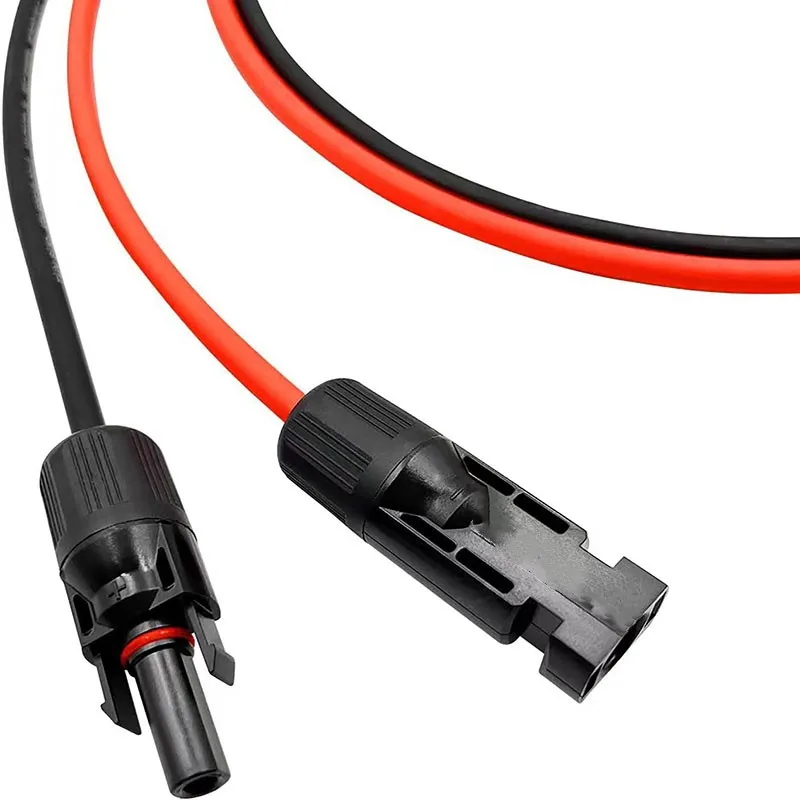

*MC4 Connector and Injection Molding XT60 Connector, Beautiful Appearance, Good Insulation and Waterproof Performance, Solid and durable;

* UV resistant and waterproof, TUV tested extension cable.

* Make more space between your solar panels and the charge controller.

*1500V Ultra-High Rated Voltage, 30A Rated Current, With Ultra-Low internal resistance, Effectively reduce loss, Good insulation







Single core solar pv power cable
Number of cross section area(n*mm2)
Max. Diameter(mm)
Max. DC resistance(Ωk/km)
Insulation  thickess(mm)
Jacket thickness(mm)
Cable diameter(mm)
Current-carrying capacity(A)
Weight(kg/km)
1*1.5
0.20
13.700
0.7
0.8
4.8
33
37.4
1*2.5
0.20
8.210
0.7
0.8
5.2
42
49.0
1*4
0.30
5.090
0.7
0.8
5.8
56
67.4
1*6
0.30
3.390
0.7
0.8
6.5
77
91.7
1*10
0.40
1.950
0.7
0.8
7.7
103
142.6
1*16
0.40
1.240
0.7
0.9
9.0
140
205.9
1*25
0.40
0.795
0.9
1.0
11.0
171
314.2
1*35
0.40
0.565
0.9
1.1
12.5
212
412.6
1*50
0.40
0.393
1.0
1.2
15.0
269
586.6
1*70
0.50
0.277
1.1
1.2
16.5
335
783.7
1*95
0.50
0.210
1.1
1.3
18.5
392
1020.6
1*120
0.50
0.164
1.2
1.3
20.5
444
1294.3
1*150
0.50
0.132
1.4
1.4
23.0
503
1627.0
Conductor material
TINNED STRANDED COPPER(镀锡铜)
Insulation
LZSH XLPO Jacket and insulation
Color
BLACK.RED
(黑.红)
Certification
TUV
