Product Overview

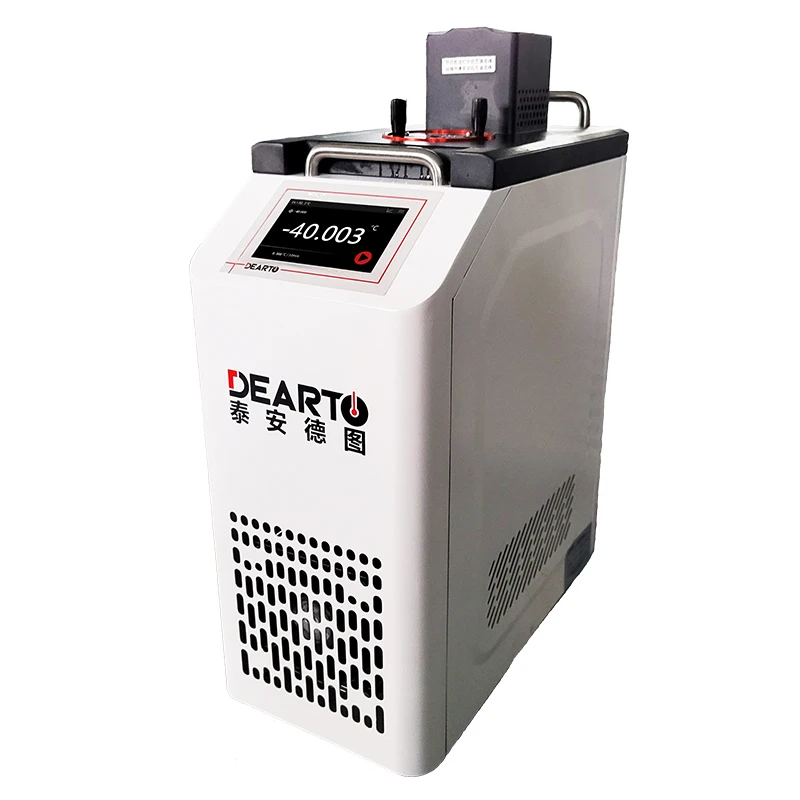

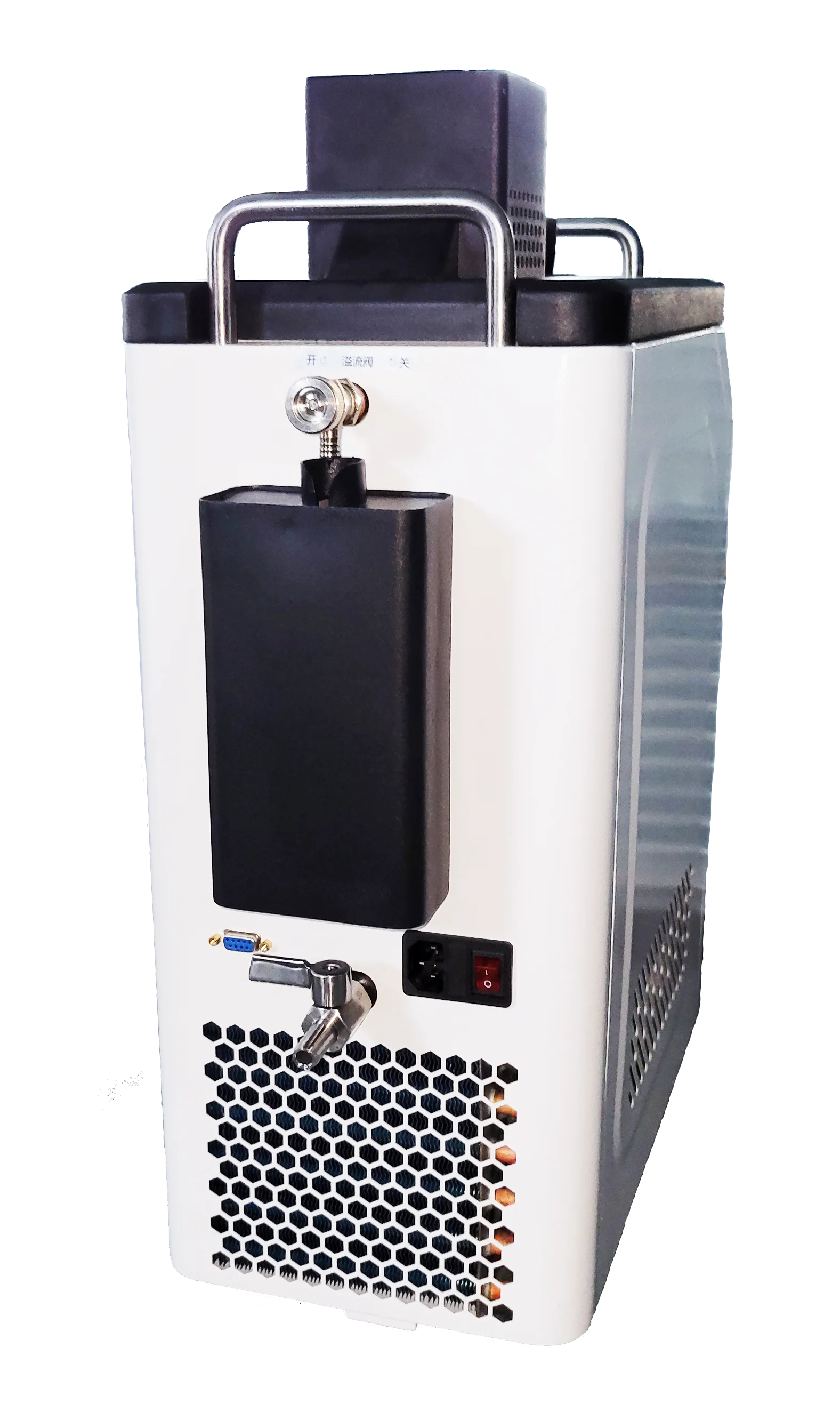

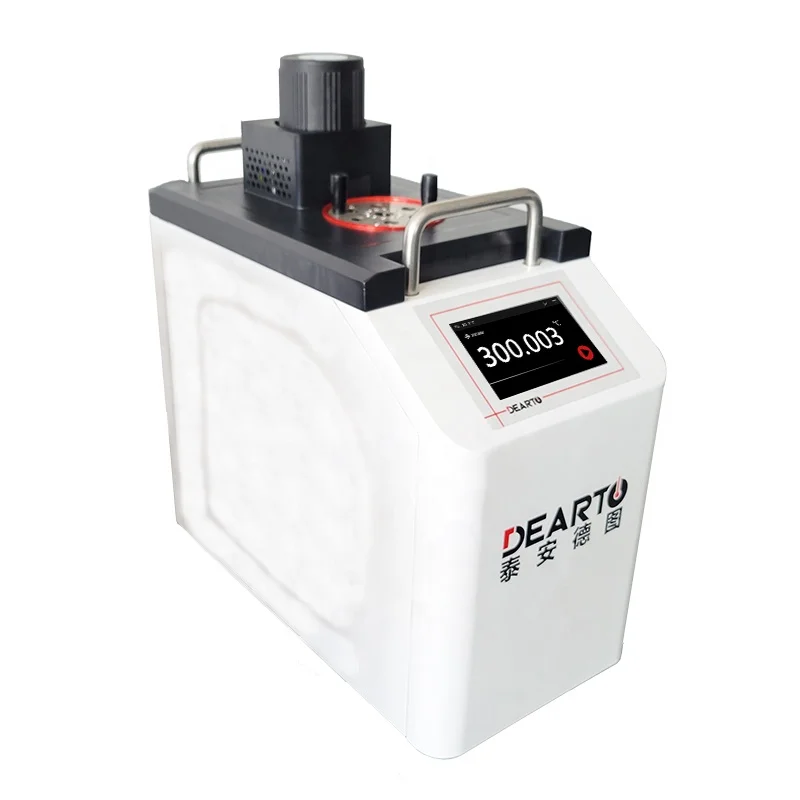

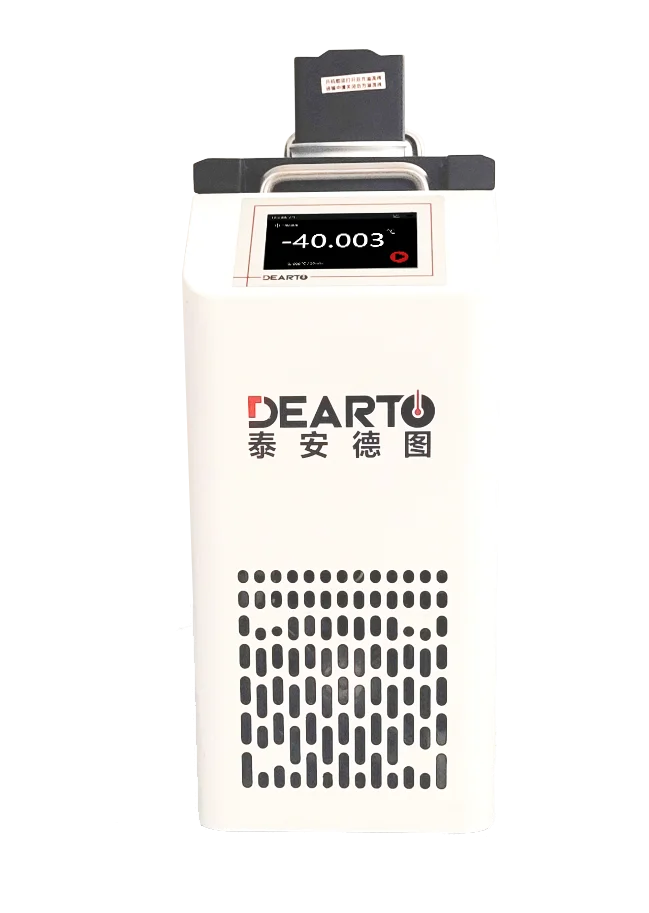

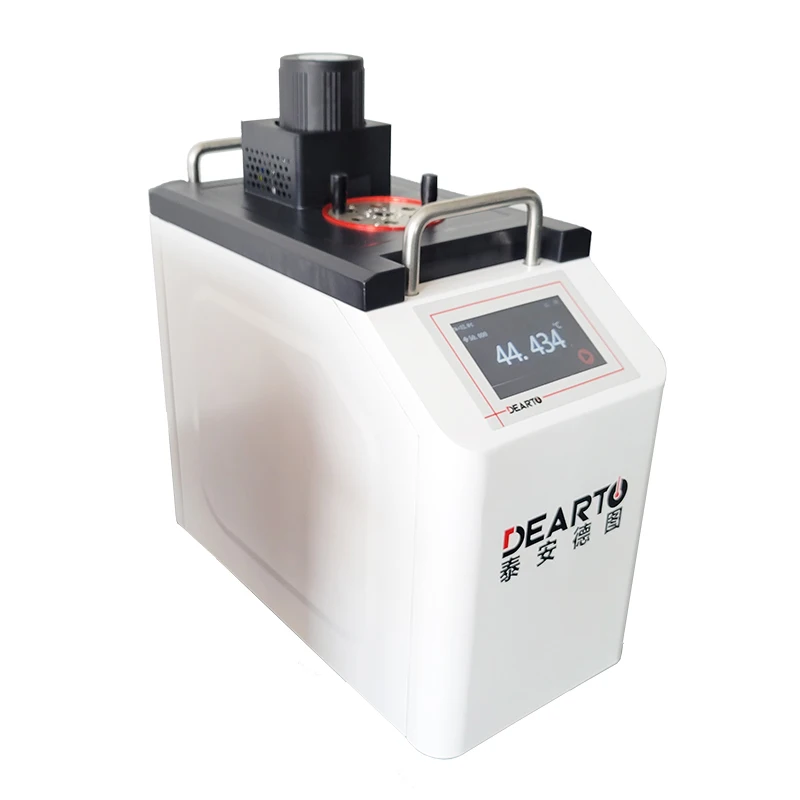

DTS-BG ultra-portable intelligent thermostatic bath is a high-precision automatic control temperature verification device,which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy.Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.


FEATURES AT A GLANCE


* Compact dimensions;
* Intelligent touch screen control;
* Display temperature difference,fluctuation data;
* Automatic segment temperature control,rapid cooling/heating "0"overshoot;
* Micro-circulation technology;
* Temperature curve display. ETC

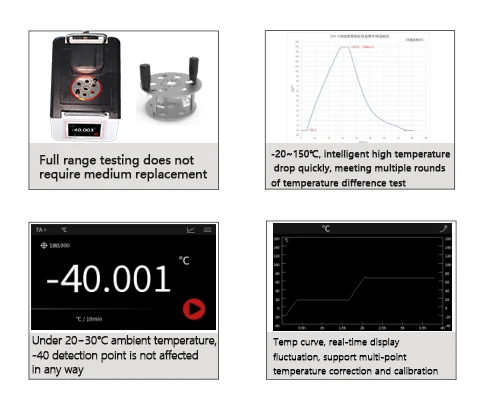

Operation interface


Starting interface
Curve display interface
Setting interface


PRODUCT SPECIFICATIONS


Product name
                                Intelligent micro refrigerated/heated thermostatic bath
Model
DTS-10BG
DTS-20BG
DTS-30BG
DTS-95BG
DTS-125BG
DTS-40BG
Temperature range
-10℃~180℃
-20℃~150℃
-30℃~150℃
-40℃~95℃
-40℃~125℃
-40℃~150℃
-20℃~180℃
-40℃~180℃
Control method
Touch screen
Display resolution
0.001℃
Temperature fluctuation
≤±0.02℃/10min（0℃）
Temperature uniformity
≤0.02℃（0℃）
Heating rate
6.5℃~11.5℃/min
Cooling rate
5℃~10℃/min（20℃）
Work area size
Φ80×280 mm / Φ100×280 mm
Dimensions（mm）
500(L)×220(W)×600(H)
Working medium
Special medium
 Anhydrous alcohol
Special medium
Remarks
Flange size can be customized according to customer needs
