40T hydraulic scrap metal baling press machine

Share on (1600868665354):


Price:$5,600.00

Quantity:


Product Overview

Description



Product Overview

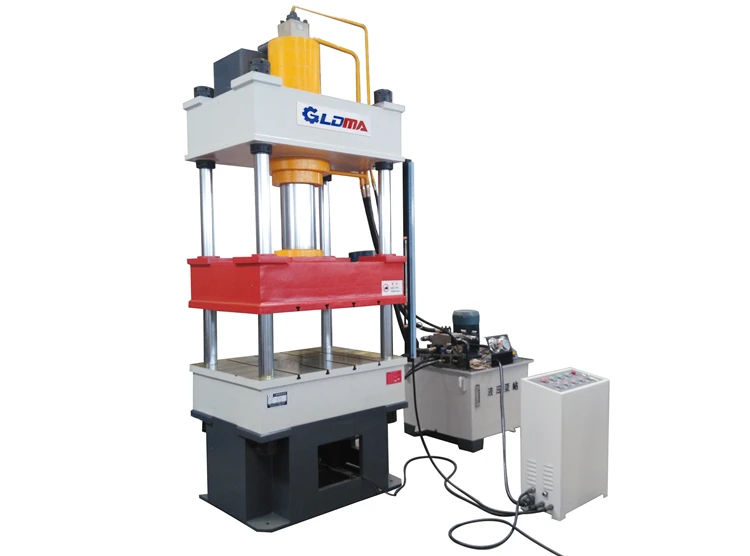

Hydraulic press machine
Y32 Series Four-Column Hydraulic Press is one of the new generation of plate process. Three-beam and four-pole structure design for large operating spaces - suitable for automatic operation forming, punching, bending, straightening and multi-press assemblies to form automatic production line. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts, slide and bolster tables with T-slots.


PRODUCT SPECIFICATIONS


Model
Y32-40
Y32-63
Y32-100
Y32-100A
Y32-160
Y32-160B
Y32-200
Y32-200A
Rated pressure
400kn
630kn
1000kn
1000kn
1600kn
1600kn
2000kn
2000kn
MAX pressure of liquid
25mpa
25mpa
25mpa
25mpa
25mpa
25mpa
25mpa
25mpa
Knock-out pressure
120kn
190kn
190kn
190kn
400kn
400kn
400kn
400kn
Stroke of slide
450mm
500mm
600mm
600mm
700mm
700mm
700mm
700mm
Knock-out stroke
150mm
200mm
200mm
200mm
200mm
200mm
250mm
250mm
Daylight
750mm
750mm
880mm
880mm
1000mm
1000mm
1100mm
1100mm
Power
5.5kw
7.5kw
7.5kw
7.5kw
11kw
11kw
15kw
15kw


Details Images

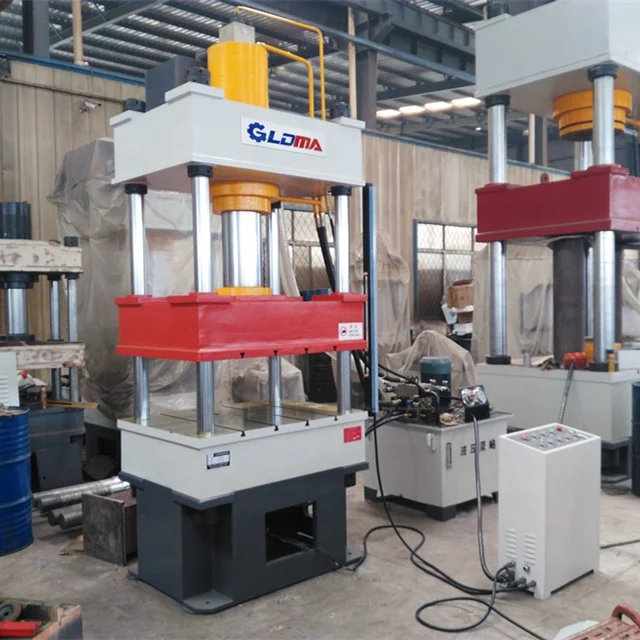

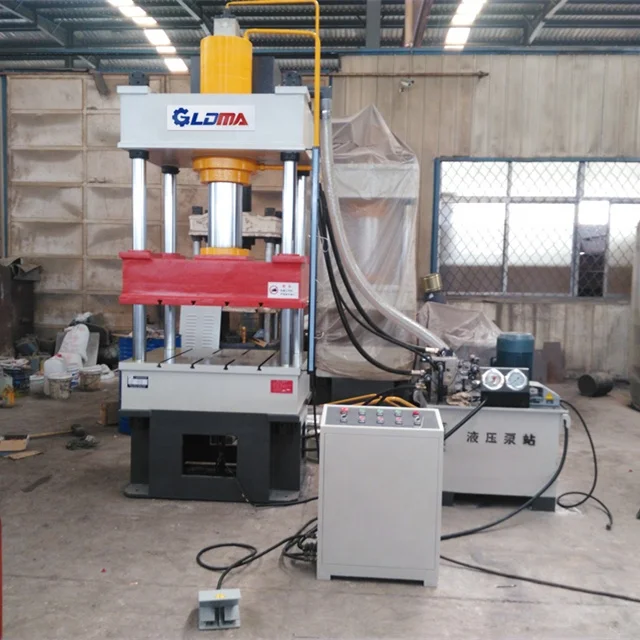

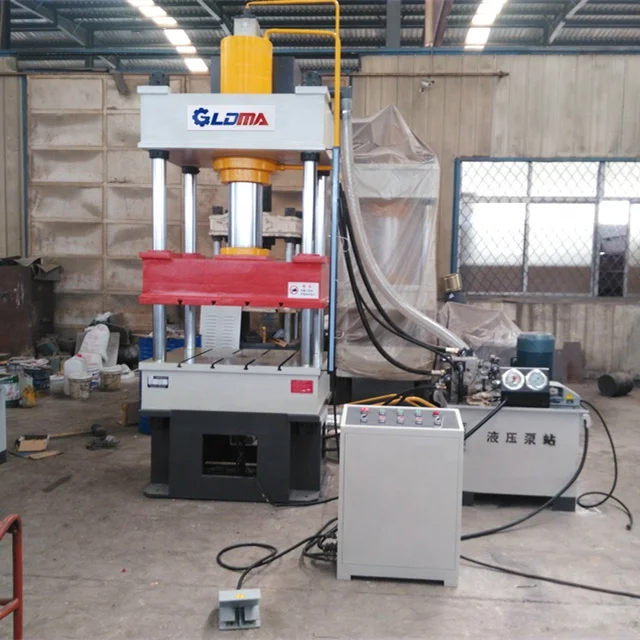

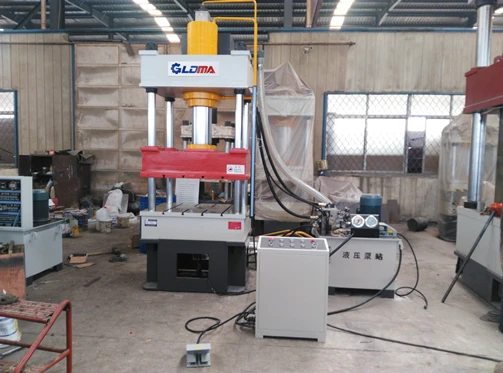

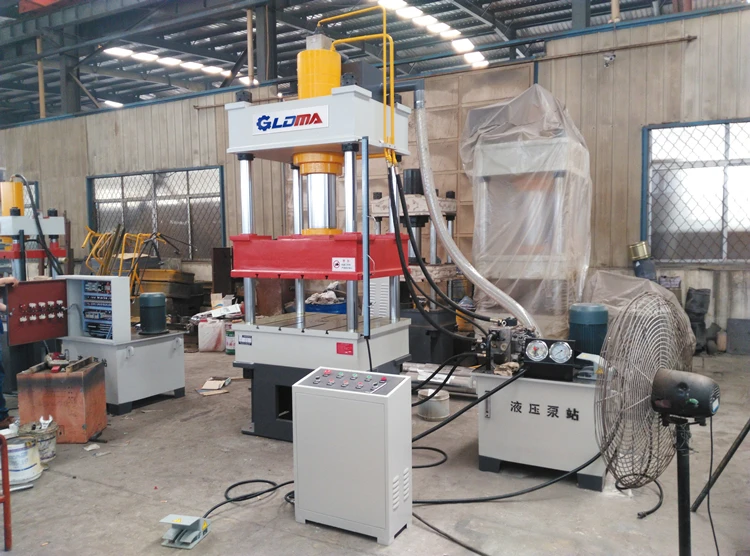

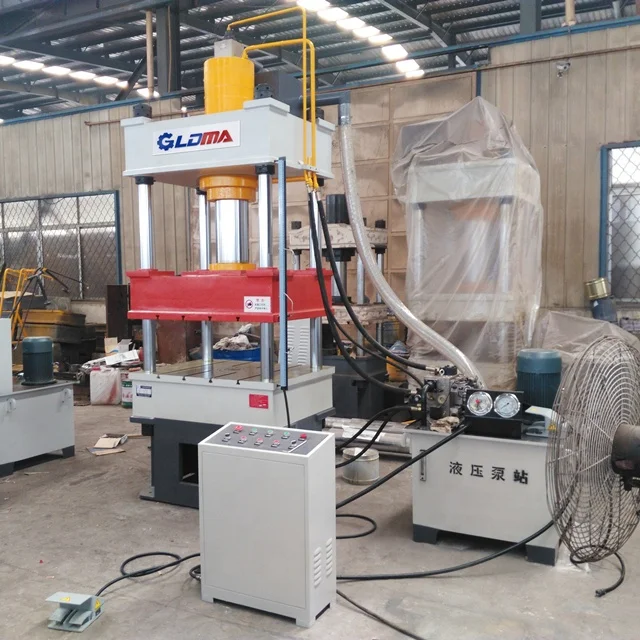

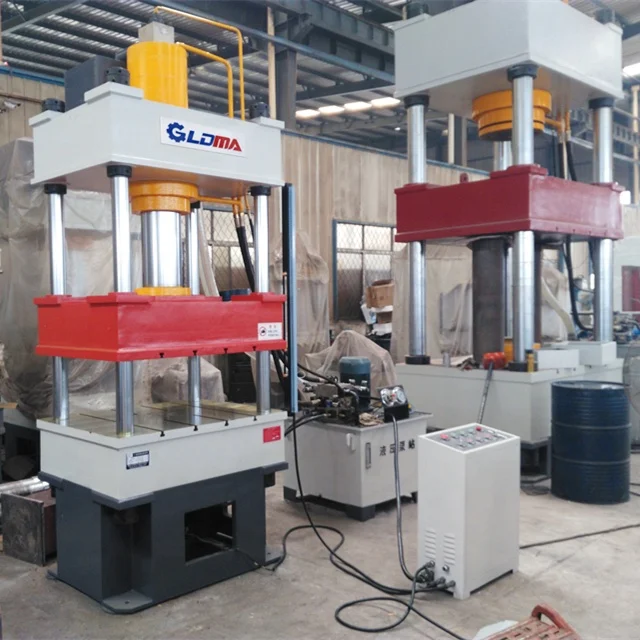

GLDMA Press machine
Uses a variable flow piston pump - offers high pressure resistance, high velocity, good durability and low noise. Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch, Germany. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate. Front Side Covers with safety switches, back light safety guards (Category-4), foot pedal conforming to CE regulation. Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain. Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic. PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds. All our electrical, hydraulic and mechanical parts meet the standard in the industry and available throughout North America and Europe. The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.




SALES AND SERVICE NETWORK




FAQ


Q:Are you a factory or trading company?
A:
We are a professional machine manufacturer.
Q:How to choose the machine, any information need to be offered?
A:
The thickness, width and the material of the plate you process will be needed.
Q:Where is your factory located? How can I visit there?
A:
Our factory is located in Maanshan city Anhui Province(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
