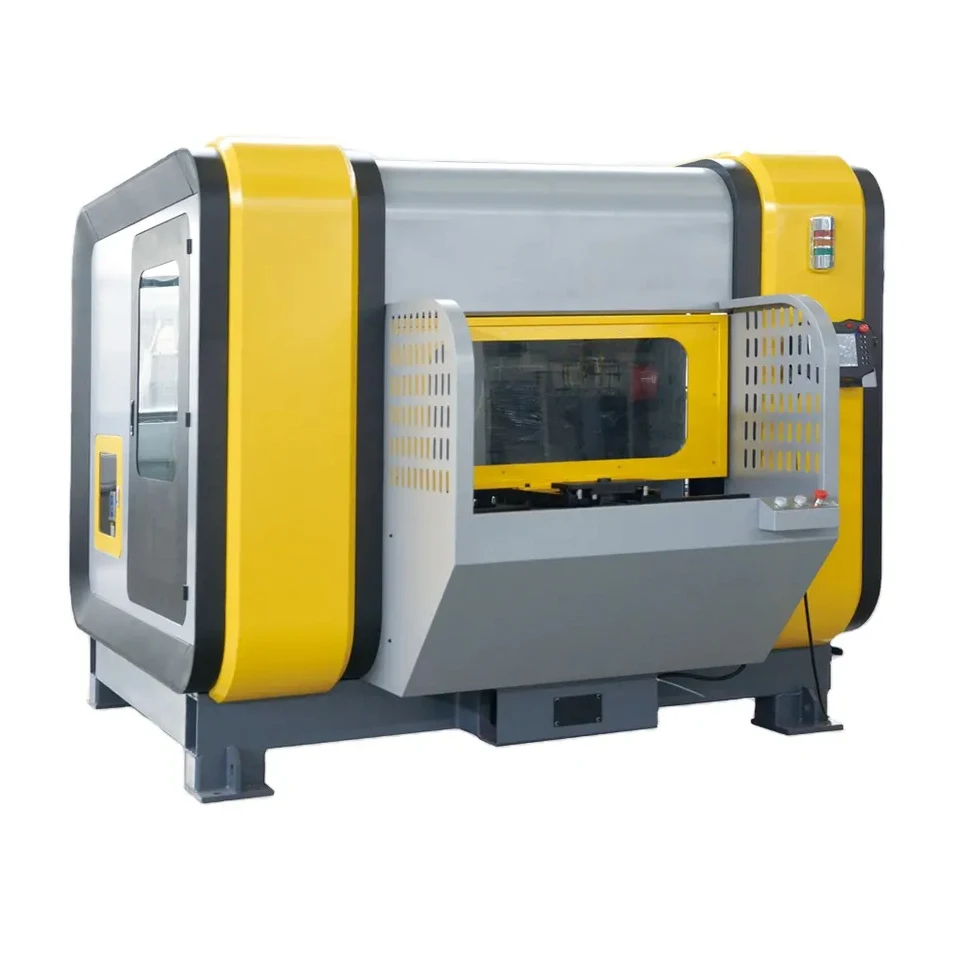

CNC Deburring and Grinding Machine For Motorcycle And Automobile Wheel Hub Hardware Accessories
- Category: >>>
- Supplier: Delin Intelligent Technology Co. Ltd.
Share on (1600868711785):
Product Overview
Description
Product Description
Machine Features

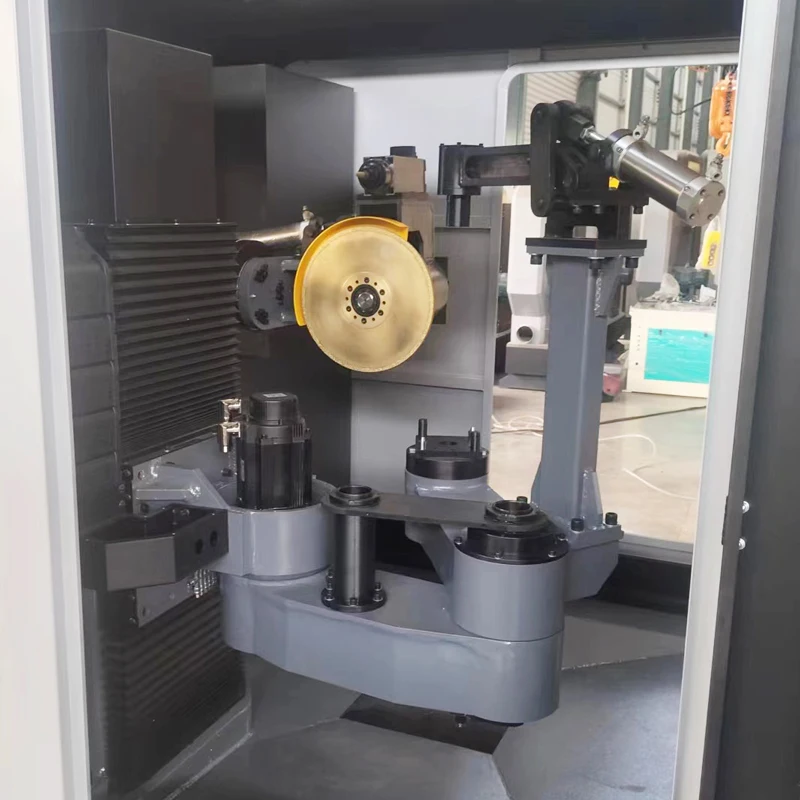

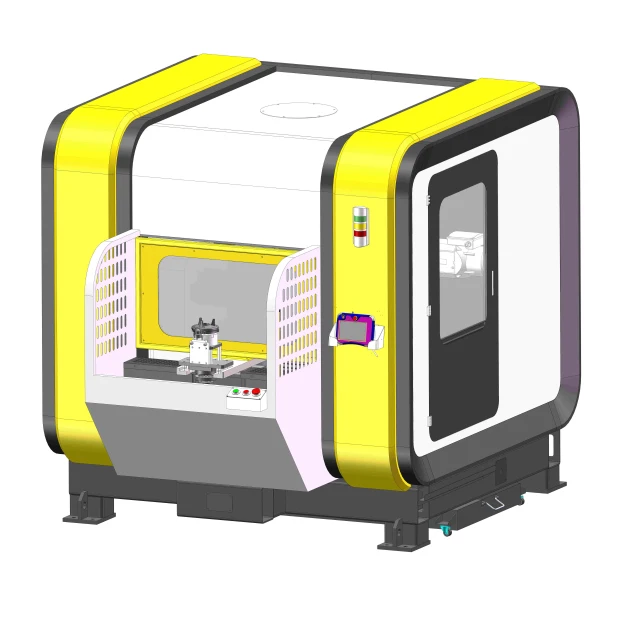

1. This equipment is a mechanical arm type CNC grinding workstation with multiple degrees of freedom, which is flexible and efficient;

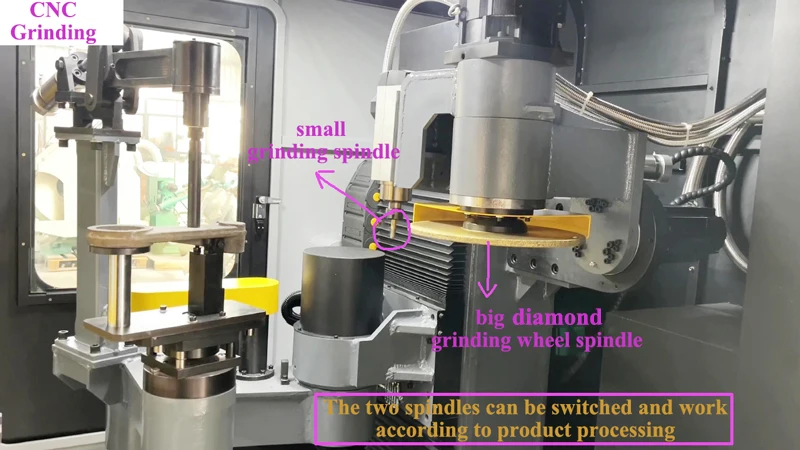

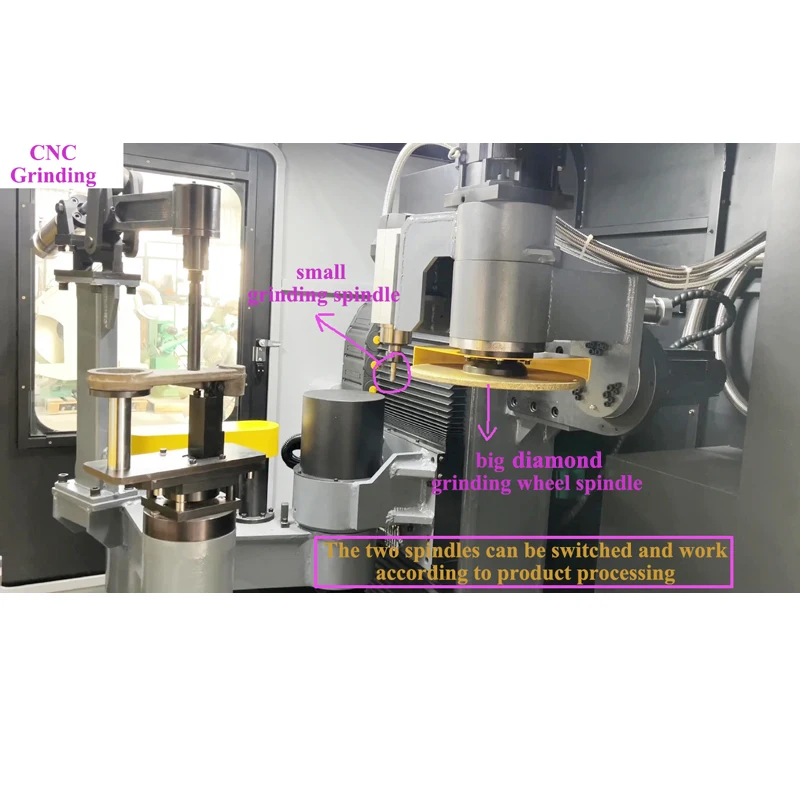

2. The workbench adopts an exchangeable rotary workbench and a quick-change tooling design. The workpiece can be loaded and unloaded at the clamping position while the workpiece is being processed, which is safer and more reliable, and can greatly improve production efficiency;3. The grinding spindle is equipped with a large diamond grinding wheel spindle and a small grinding spindle, which can be automatically switched according to the processing technology. The large diamond grinding wheel spindle is suitable for rapid grinding of large contours, and the small grinding spindle is suitable for grinding small inner holes and inner arc corners, which can meet the grinding needs of different parts;
4. The control system adopts today's advanced numerical control system with stable performance and high control precision;
5. The machine base, column, and mechanical arm have strong structural rigidity, and the machine tool has good stability;
6. Fully enclosed protection design, the outside can be connected to the dust removal pipeline, which can reduce the damage to the human body caused by dust and noise. The clamping station is equipped with a light curtain, which makes the operation safer and more reliable.
Grinding Machine Application

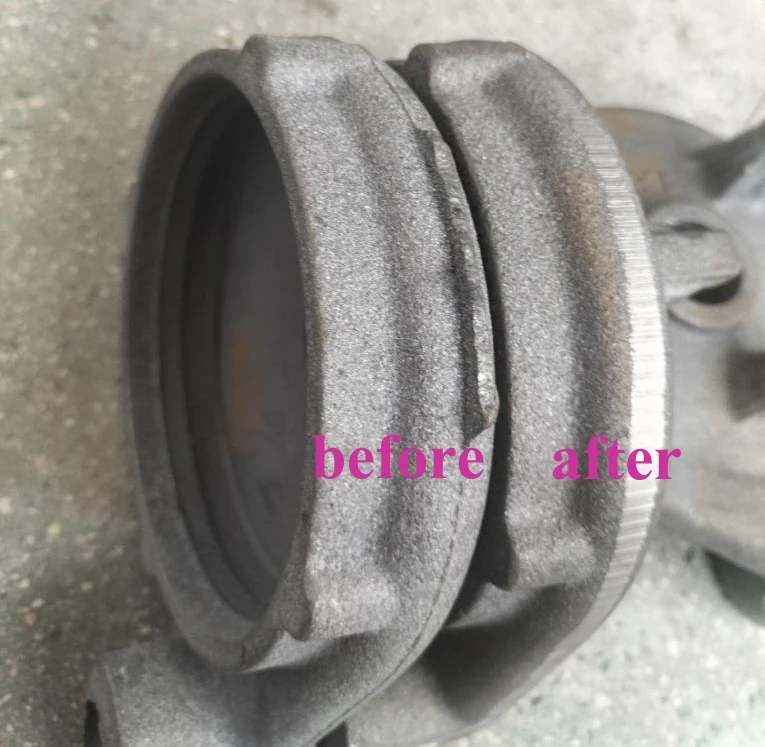

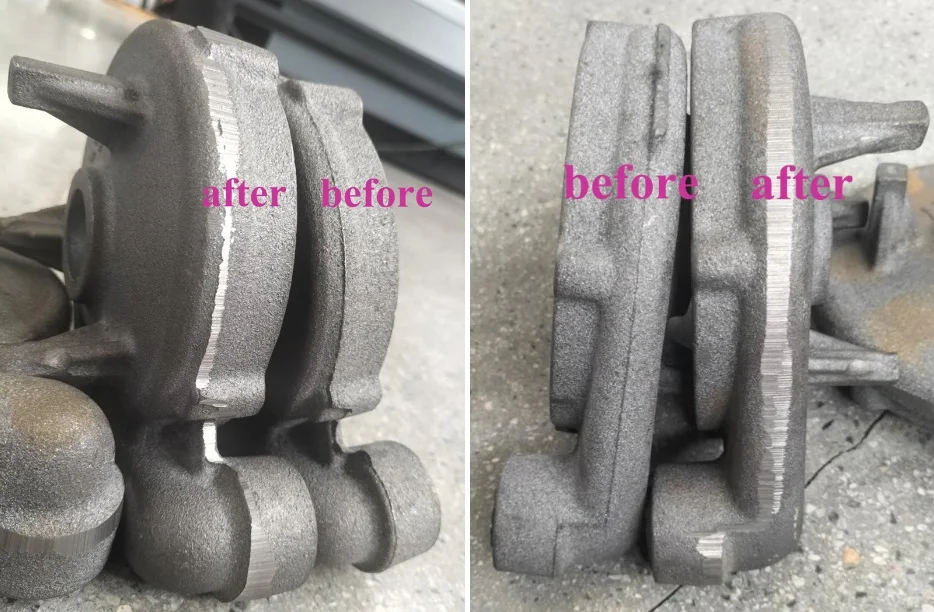

1. Deburring and grinding of cast iron parts, such as automobile cylinder head, flywheel cover, clutch housing, chain cover, etc.
2. Deburring and grinding of cast aluminum parts, such as grinding wheel hubs, automobile hubs, etc.
3. All kinds of hardware and jewelry polishing.
1. Deburring and grinding of cast iron parts, such as automobile cylinder head, flywheel cover, clutch housing, chain cover, etc.
2. Deburring and grinding of cast aluminum parts, such as grinding wheel hubs, automobile hubs, etc.
3. All kinds of hardware and jewelry polishing.
Other Products
Our Company
DELIN Machinery company main products and services cover automatic polishing machines, CNC grinding machines, low-pressure casting machines, water gate cutting machines, manual polishing series products and environmental protection dust removal systems, etc. We providing an overall solution for the automation of the production process for the manufacturing industry. Production technology and technology innovation solutions, intelligent production management system solutions. |
