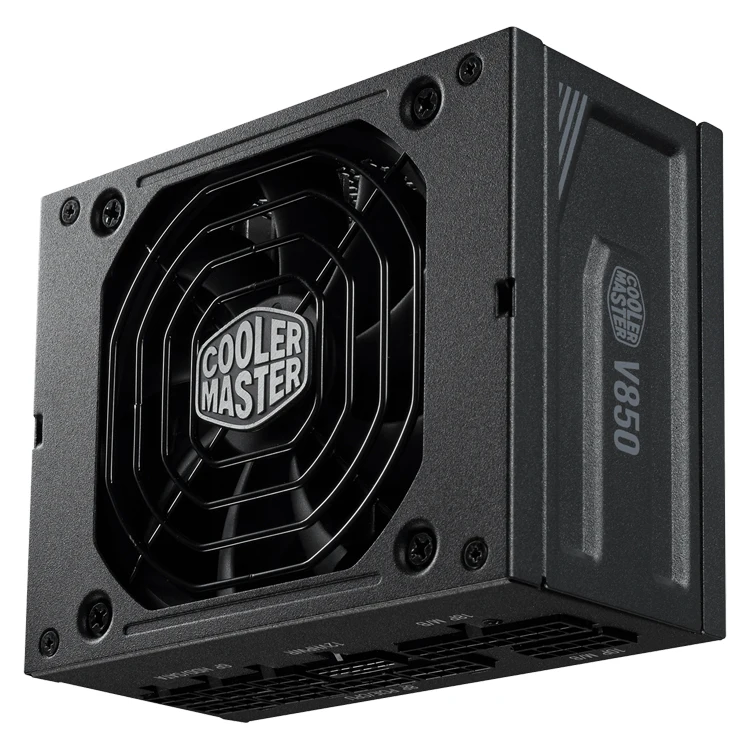

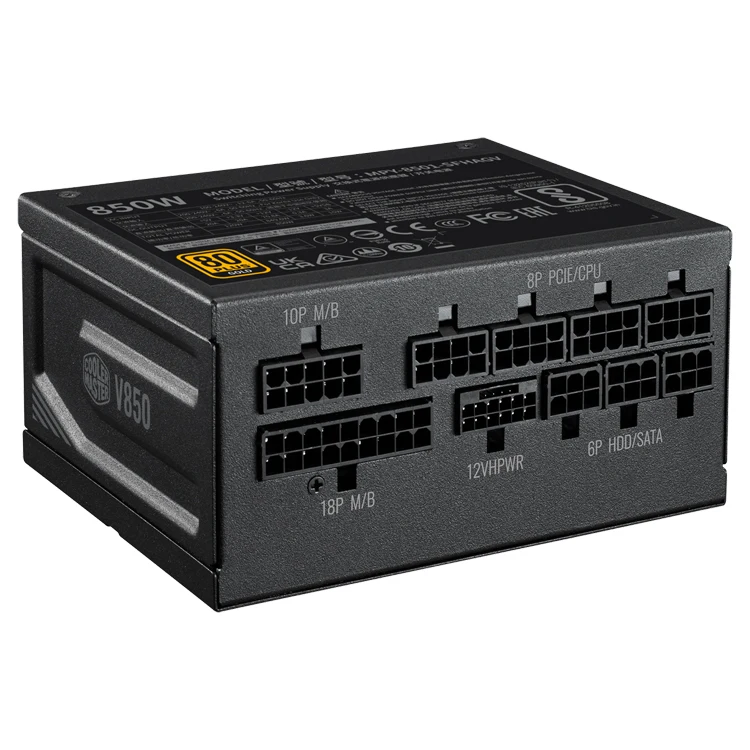

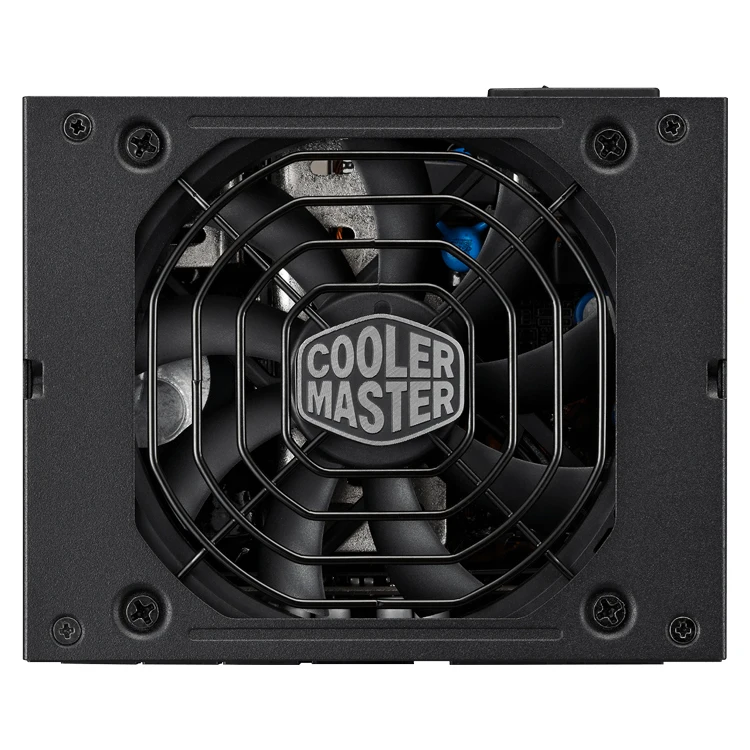

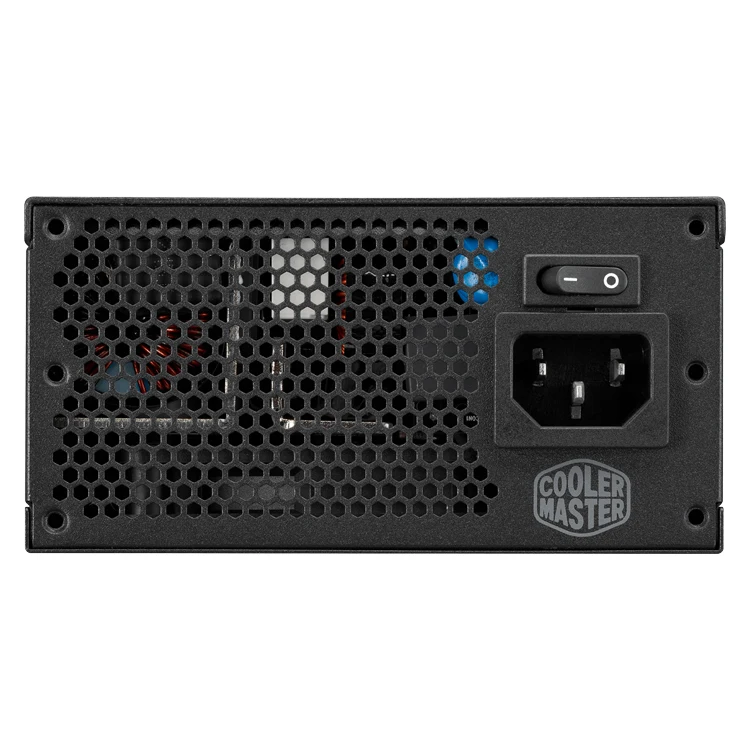

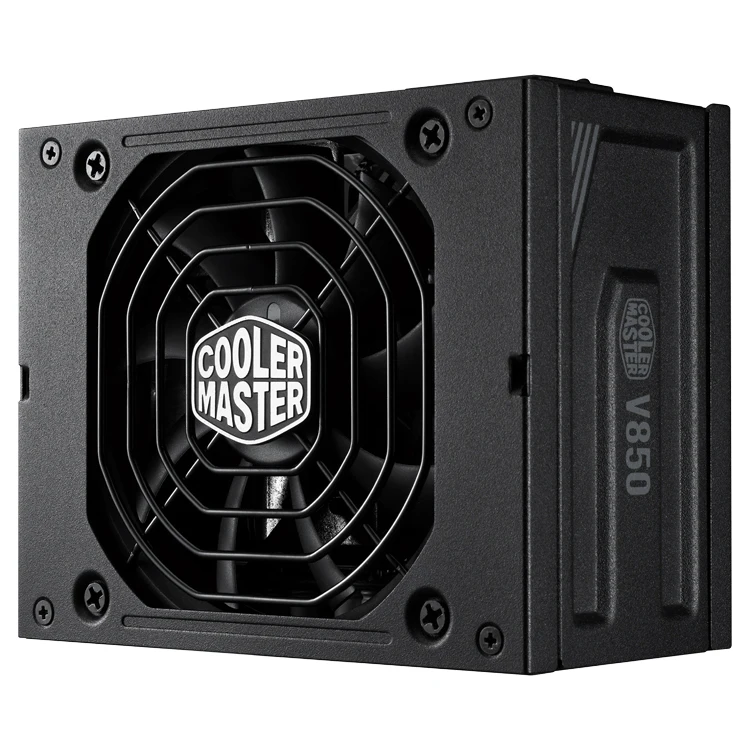

Cooler Master V850 SFX ATX 3.0 850W Gold Full Modular Power Supply with 80 Gold Efficiency Support ITX Case RTX 4080 4070 TI
- Category: >>>
- Supplier: Shenzhen Kezan Information Technology Co. Ltd.
Share on (1600868727531):
Product Overview
Description
Product Description
Cooler Master V850 SFX ATX 3.0 850W Gold Full Modular Power Supply with 80+ Gold Efficiency Support ITX Case RTX 4080 4070 TI
- Flexible compatibility
- ATX 3.0 support & a 90-degree 12VHPWR cable
- 80 PLUS Gold certified
- Fully modular cabling
- 100% Japanese capacitors
- 10-year Warranty
| MODEL | MPY-8501-SFHAGV |
| ATX VERSION | ATX3.0, SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| INPUT VOLTAGE | 100-240V |
| INPUT CURRENT | 12-6A |
| INPUT FREQUENCY | 50-60Hz |
| DIMENSIONS (L X W X H) | 100 x 125 x 63.5 mm |
| FAN SIZE | 92mm |
| FAN BEARING | FDB |
| EFFICIENCY | 90% @ Typical Load |
| 80 PLUS RATING | 80 PLUS Gold |
| ETA Rating | Gold |
| LAMBDA Rating | Standard+ |
| ERP 2014 LOT 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | 16ms |
| MTBF | >100,000 Hours |
| PROTECTIONS | OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection |
| REGULATORY | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA |
| ATX 24-PIN CONNECTORS | 1 |
| EPS 4+4 PIN CONNECTORS | 1 |
| EPS 8 PIN CONNECTOR | 1 |
| SATA CONNECTORS | 2 |
| PERIPHERAL 4-PIN CONNECTORS | 1 |
| FDD Cable 4 Pin Connectors | 1 |
| PCI-E 6+2 PIN CONNECTORS | 2 |
| 12VHPWR Connector | 1 |
| SERIES | V SFX Series |
| 80 PLUS | Gold |
| MODULAR | Full Modular |
| WATTAGE | Above 750W |
SMALL BUT MIGHTY
As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
FLEXIBLE COMPATIBILITY
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.0 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
ATX 3.0 SUPPORT &
A DURABLE 90-DEGREE 12VHPWR CABLE
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.
80 PLUS GOLD CERTIFIED
The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.

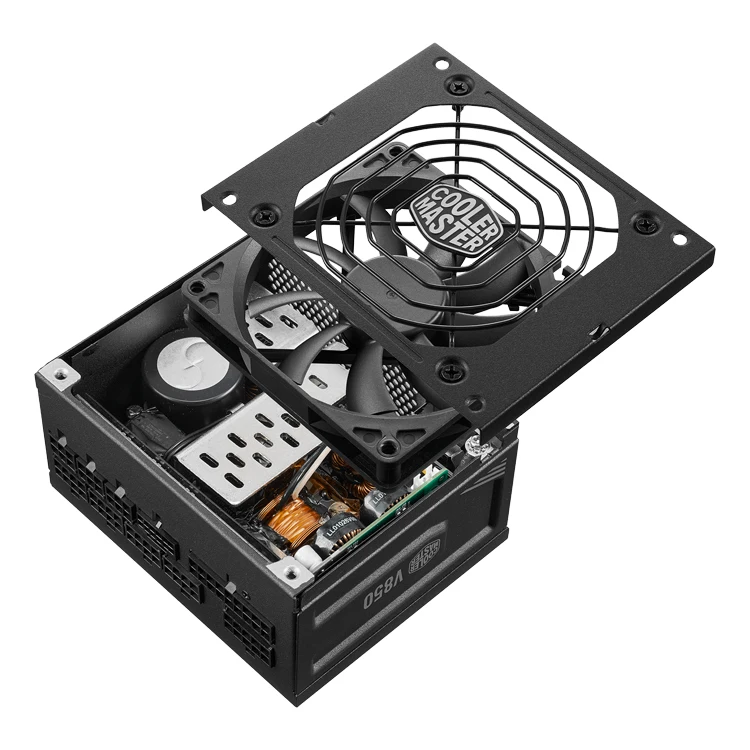

100% JAPANESE CAPACITORS
Large, high-quality Japanese capacitors feature inmproved efficiency and reduced ripple noise.

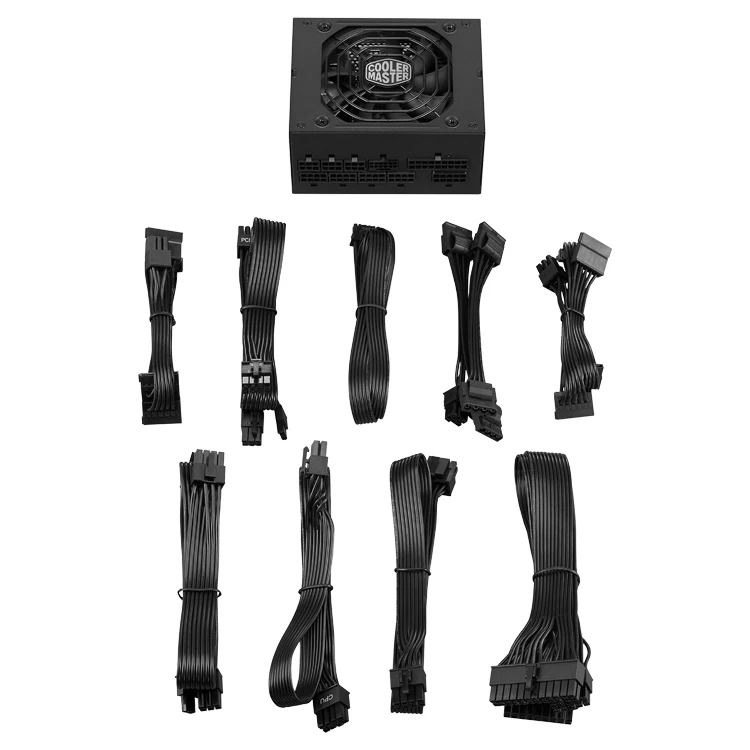

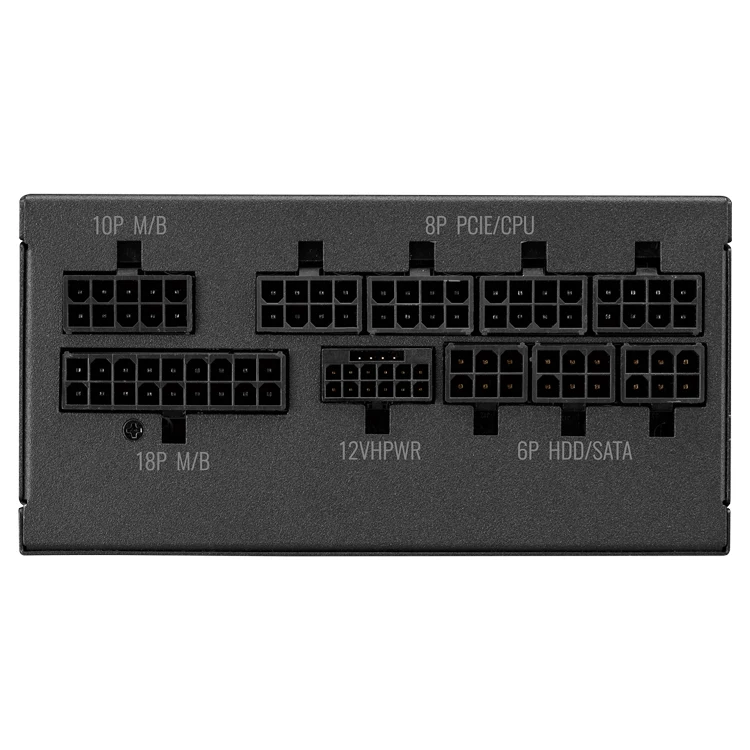

FULLY MODULAR CABLING
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
