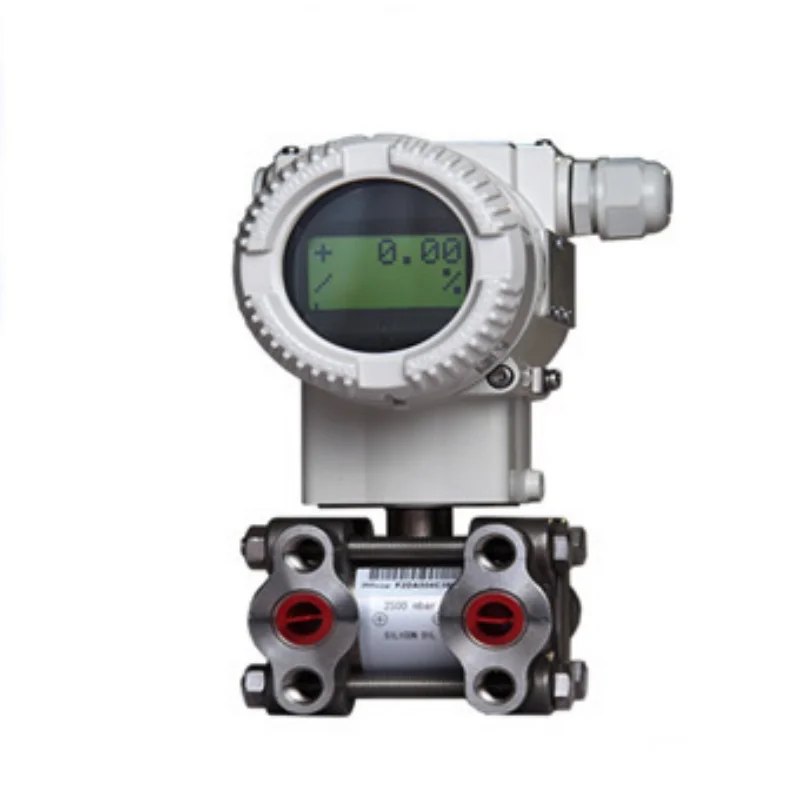

Remote Differential Pressure Level transmitter SS316L Diaphragm Silicone oil Pressure Sensor High Accuracy.
- Category: >>>
- Supplier: Shanghai Rocksensor Automation Co. Ltd.
Share on (1600868847231):
Product Overview
Description
Product Description

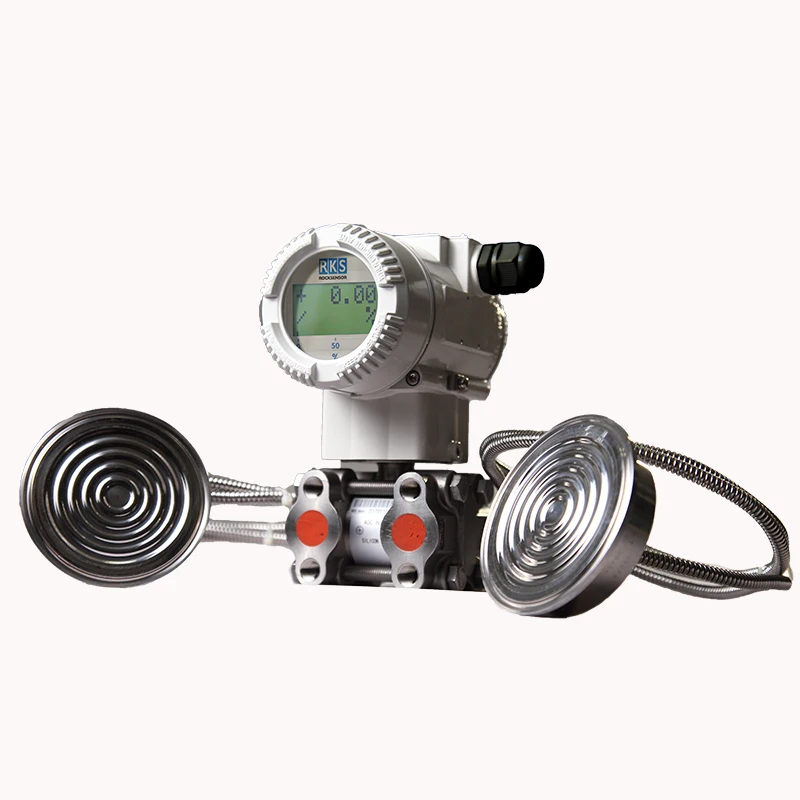

RP1001-B/C Remote Seal Differential Pressure Transmitter
Brief Introduction:
The remote seal differential pressure transmitter RP1001 is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. RP1001 outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly
accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications,
self-diagnostics and optional status output for pressure high/low alarm. The range Limits is 0—1kPa~2MPa, The flange’s working pressure are 1.6/4MPa,6.4MPa,10MPa,150psi,300psi or 600psi.
Specifications:
RP1001-B/C Remote Seal Differential Pressure Transmitter
| Measurement Type | Differential,level |
| Output | 4-20mA Hart |
| Reference Accuracy | 0.075%/0.1% |
| Long Term Stability | ±0.1% ×Span /3 years |
Amb. Temp. (Explosion Protected Type) |
-45 to 65°C |
| Rangedown | 100:1 |
Measuring | range |
| B | 0-200Pa~6kPa(0-20~600 mmH2O)/(0-2~60mbar) |
| C | 0-4kPa~40kPa(0-400~4000 mH2O)/(0-40~400mbar) |
| D | 0-2.5kPa~250kPa(0-0.25~25 mH2O)/ (0-25~2500mbar) |
| F | 0-30kPa~3MPa(0-3~300mH2O)/(0-0.3~30bar) |

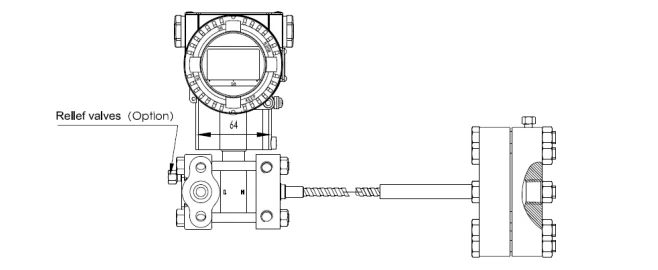

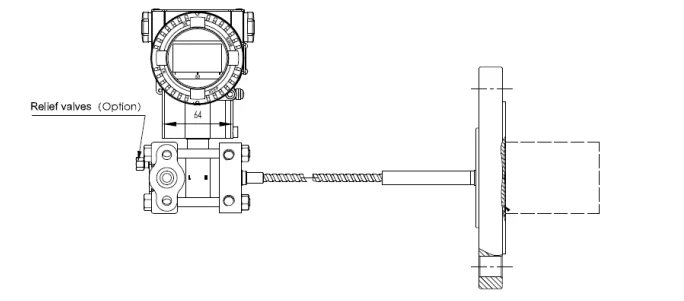

Drawings:

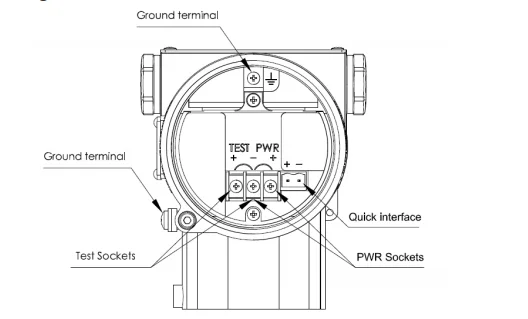

Wiring:
Applications:
Certificates:
Why choose us ?

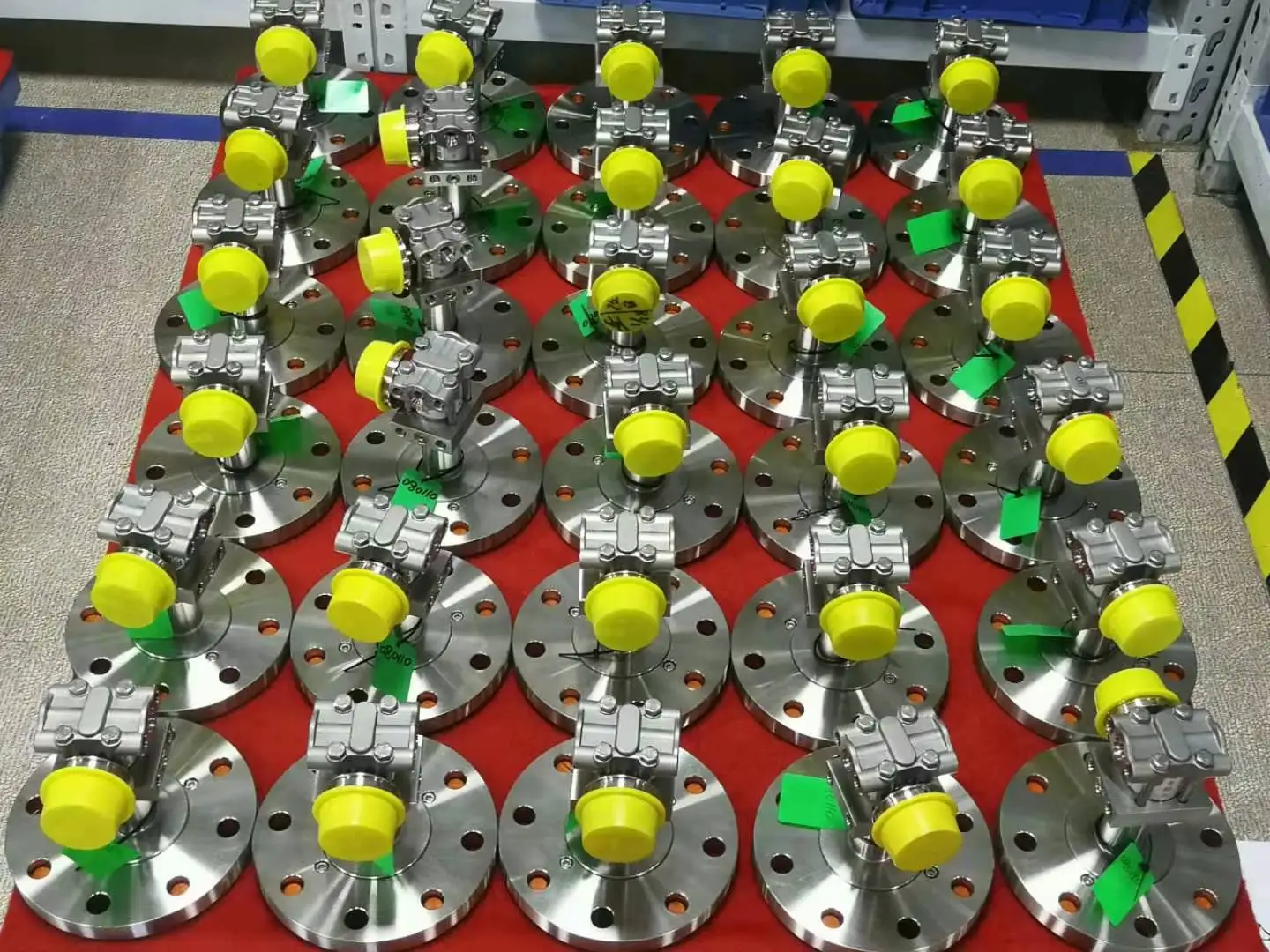

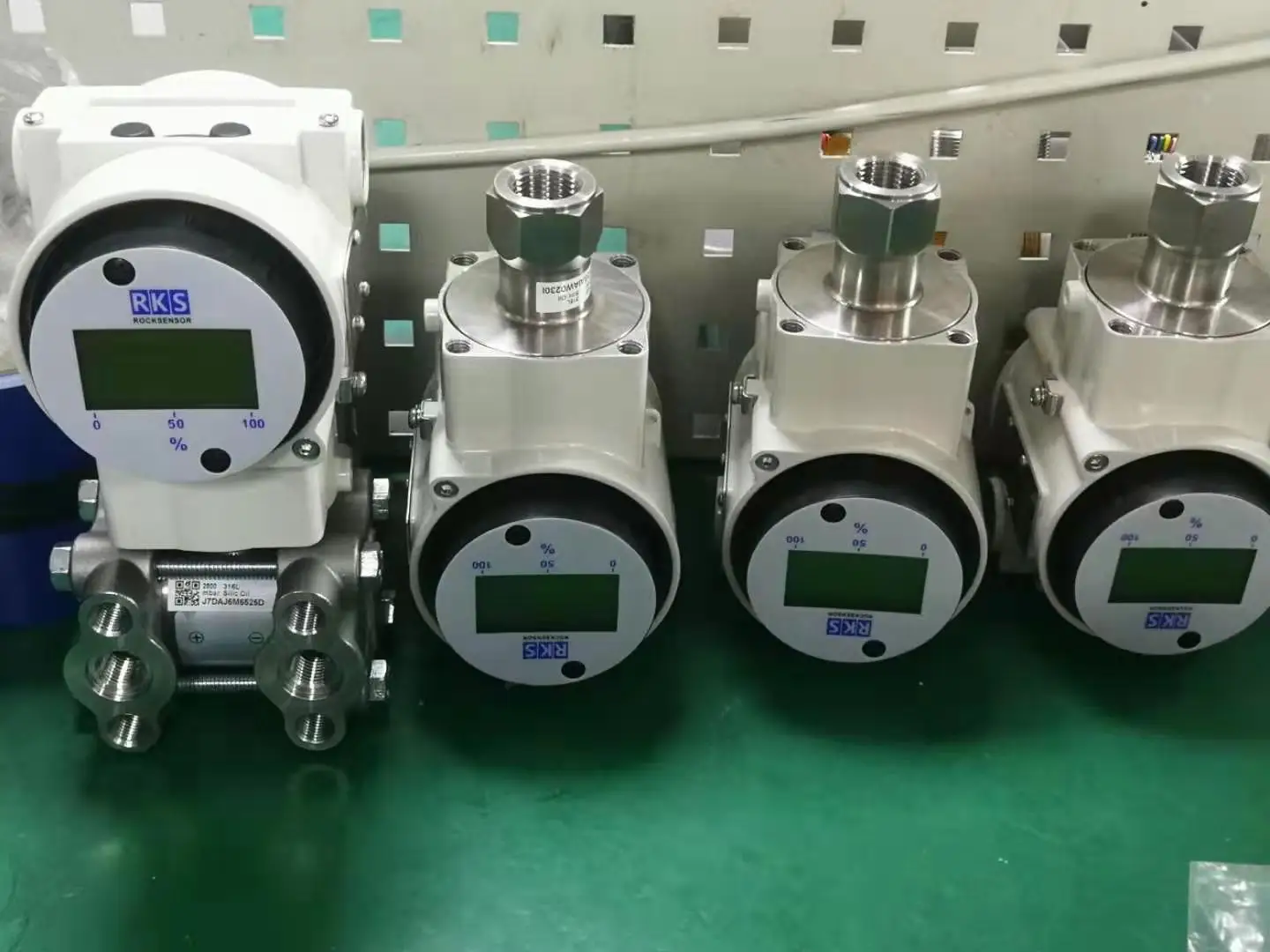

Production Line:
