Mud Water Pump for Sale Sludge Pumps
- Category: >>>
- Supplier: Zhengzhou Share Machinery Co. Ltd.
Share on (1600868879154):
Product Overview
Description
Product Description

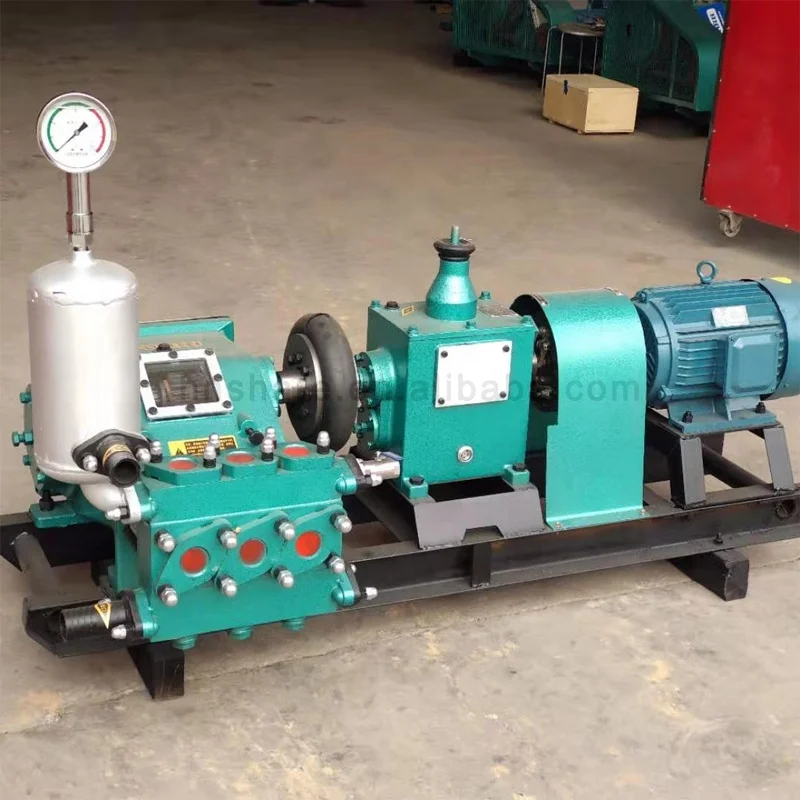

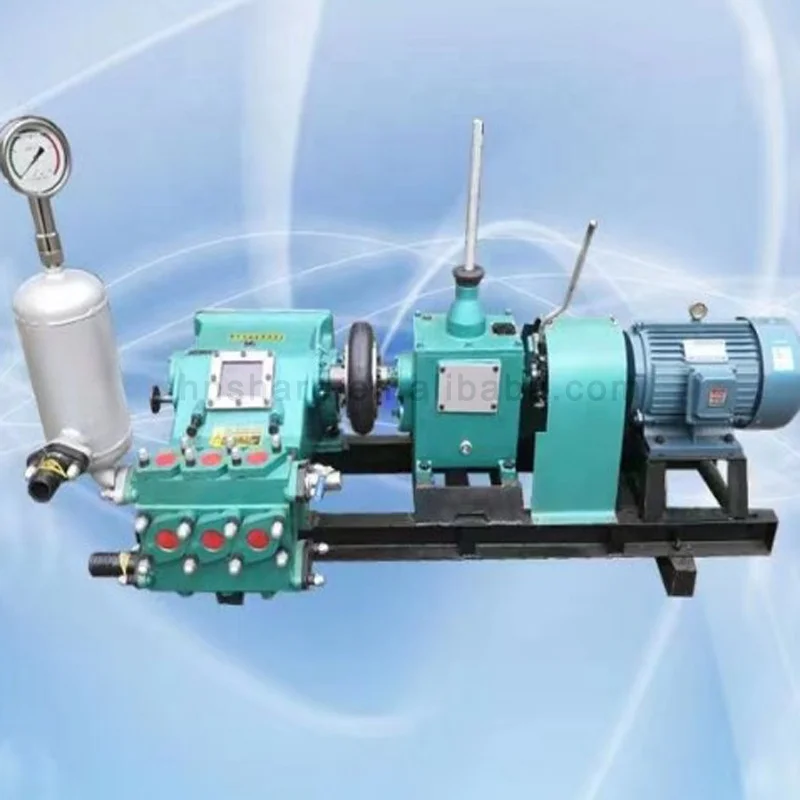

Mud Water Pump for Sale Sludge Pumps
Mud pump is a special equipment for grouting cement and mortar in crankshaft variable grouting project. It is mainly used for curtain grouting, consolidation grouting, anchor grouting of dam foundation, large displacement and long-distance transmission of grout slurry, etc.
The pump has low energy consumption, flexible operation, high quality and durability, good dismountability and easy to move.

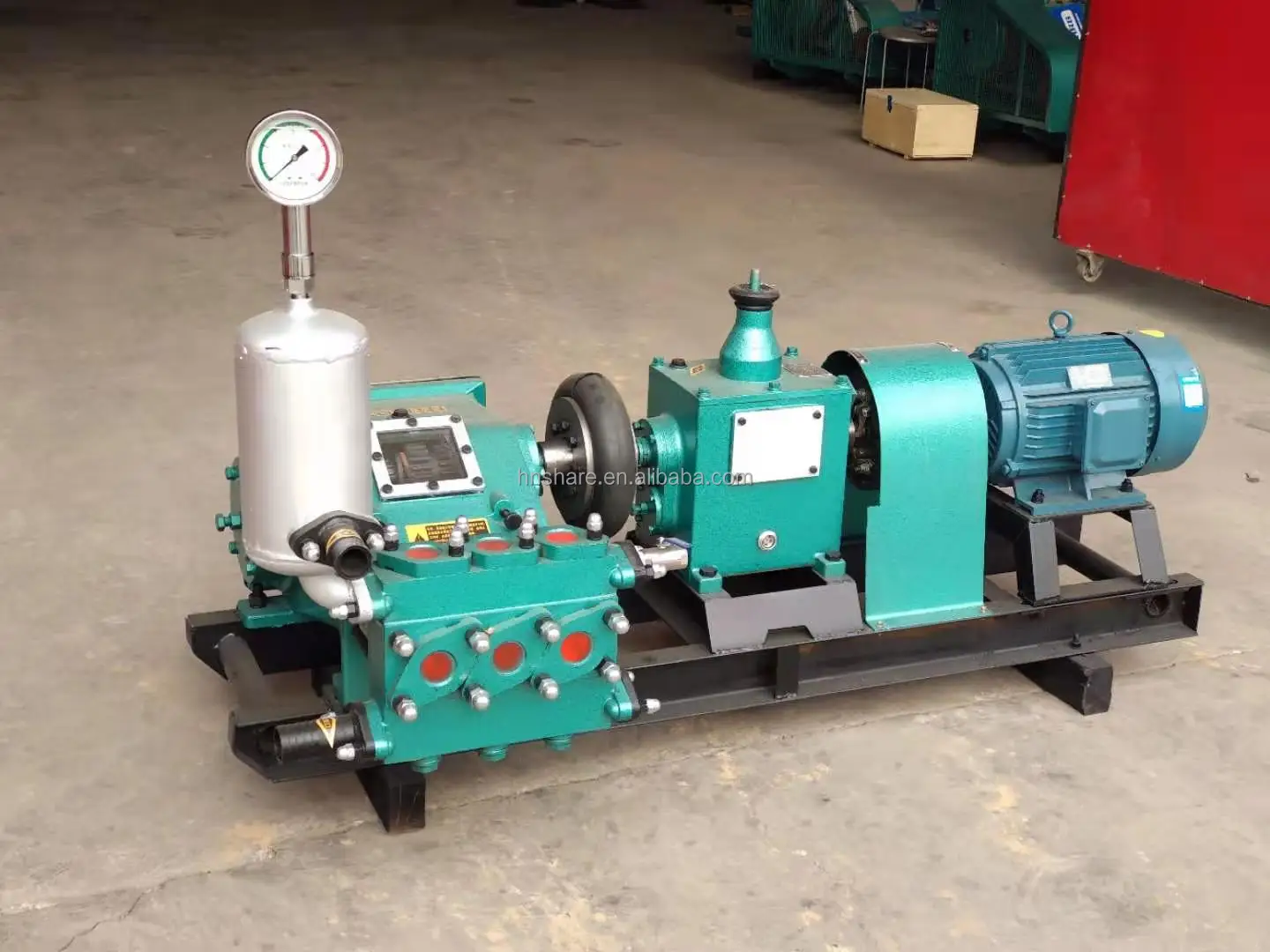

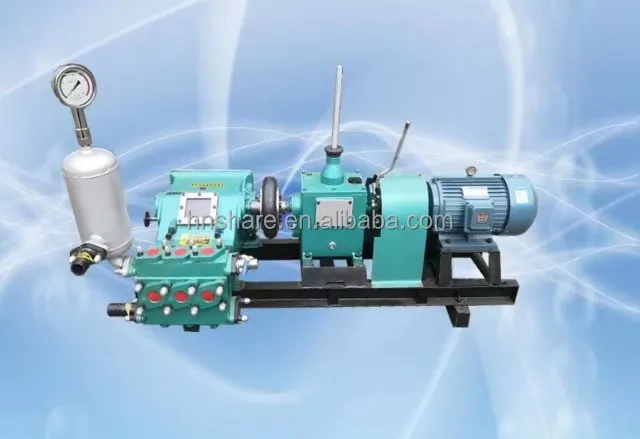

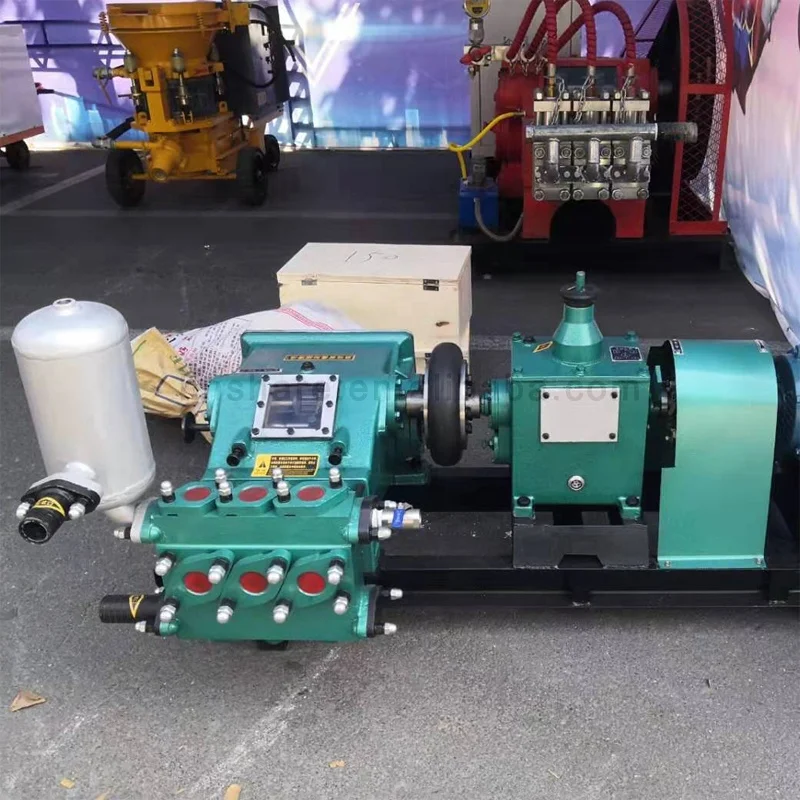

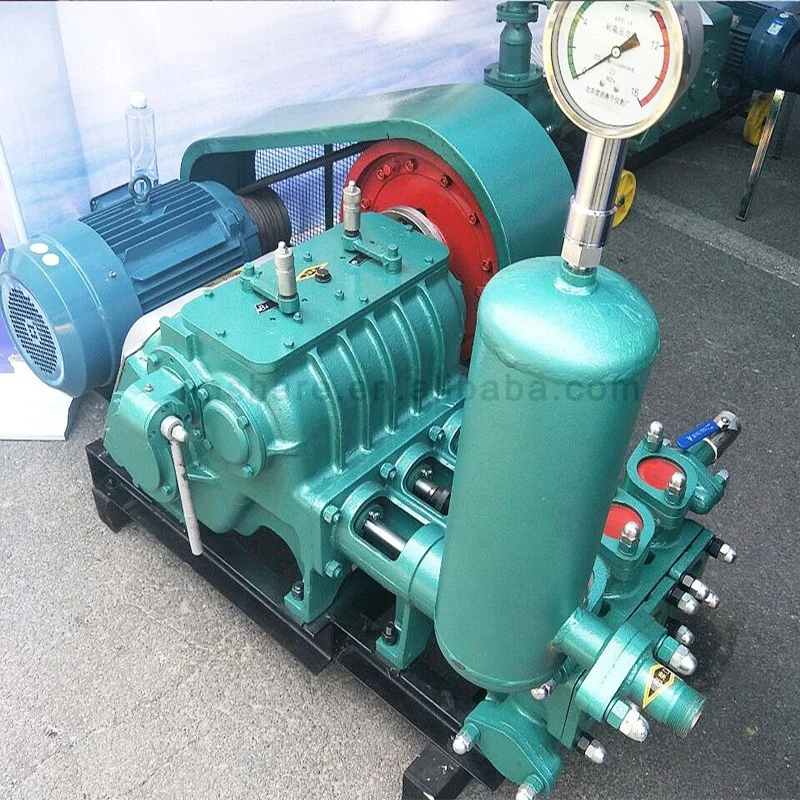

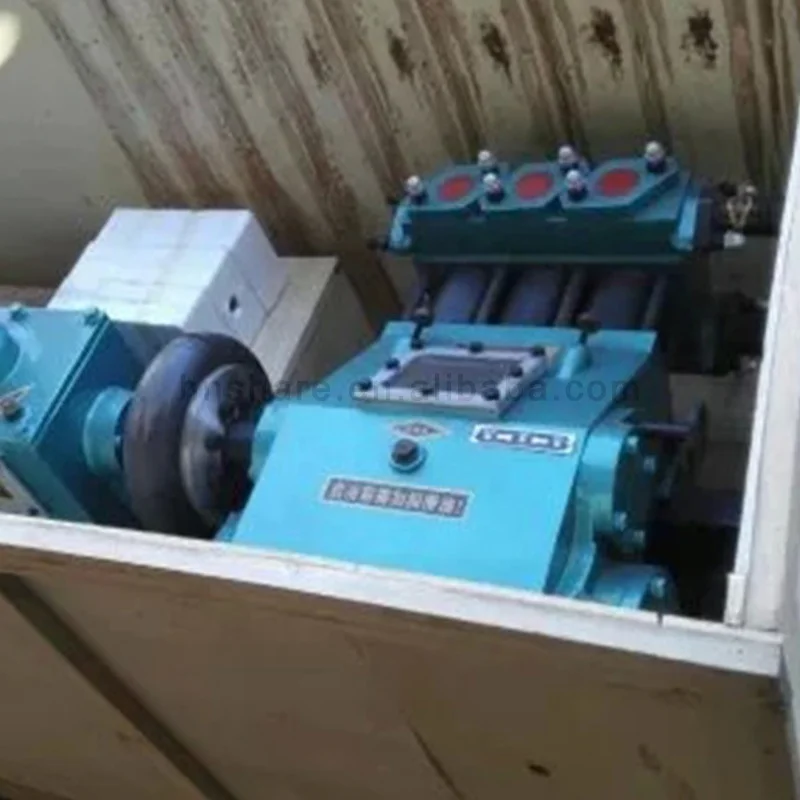

Detail Images
Model | SR-NJB150 | ||||||||||||||
Stroke length (mm) | 70 | ||||||||||||||
Cylinder dia. (mm) | 70 | ||||||||||||||
Pump speed(r/min) | 222 | 130 | 86 | 57 | 183 | 107 | 71 | 47 | |||||||
Flow(L/min) | 150 | 90 | 58 | 38 | 125 | 72 | 47 | 32 | |||||||
Pressure(Mpa) | 1.8 | 3.2 | 4.8 | 7.0 | 2.3 | 4.0 | 6.0 | 7.0 | |||||||
Input power(kw) | 7.5 | ||||||||||||||
Input speed(r/min) | 580 | ||||||||||||||
Input torque(NM) | 48 | ||||||||||||||
Dia. of water inlet pipe(mm) | 51 | ||||||||||||||
Dia. of water outlet pipe(mm) | 25-32 | ||||||||||||||
Dimension(mm) | 1155*795*995 | ||||||||||||||
Weight(kg) | 500 | ||||||||||||||
Advantages:
1. The conveying liquid flow is stable without overflow, pulsation, stirring and shearing of slurry.
2. The flow is proportional to speed and can be adjusted through the speed change mechanism or speed regulating motor.
3. It has strong self suction capacity and can directly pump liquid without bottom valve.
4. Stable operation, low vibration and noise.
5. Simple structure, easy disassembly and maintenance.
1. The conveying liquid flow is stable without overflow, pulsation, stirring and shearing of slurry.
2. The flow is proportional to speed and can be adjusted through the speed change mechanism or speed regulating motor.
3. It has strong self suction capacity and can directly pump liquid without bottom valve.
4. Stable operation, low vibration and noise.
5. Simple structure, easy disassembly and maintenance.
