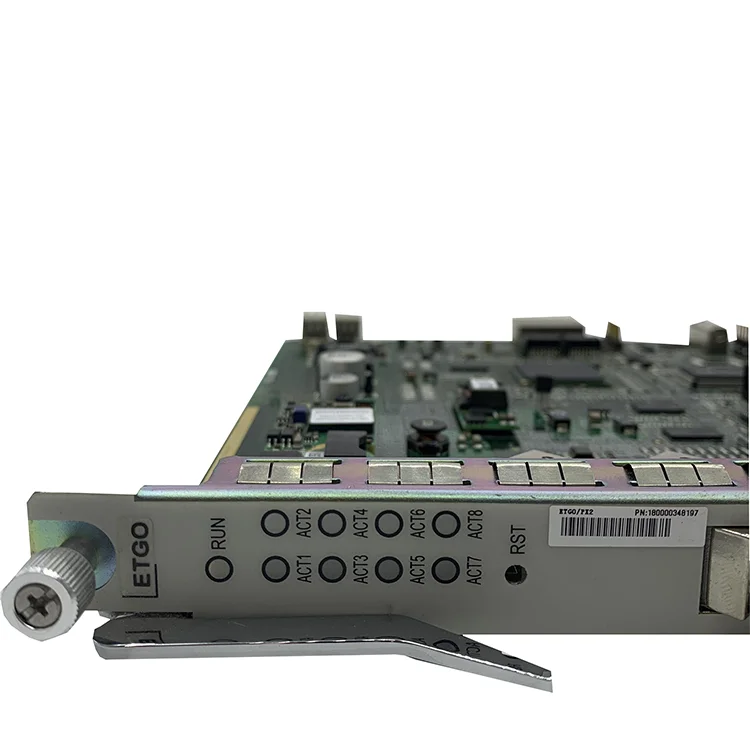

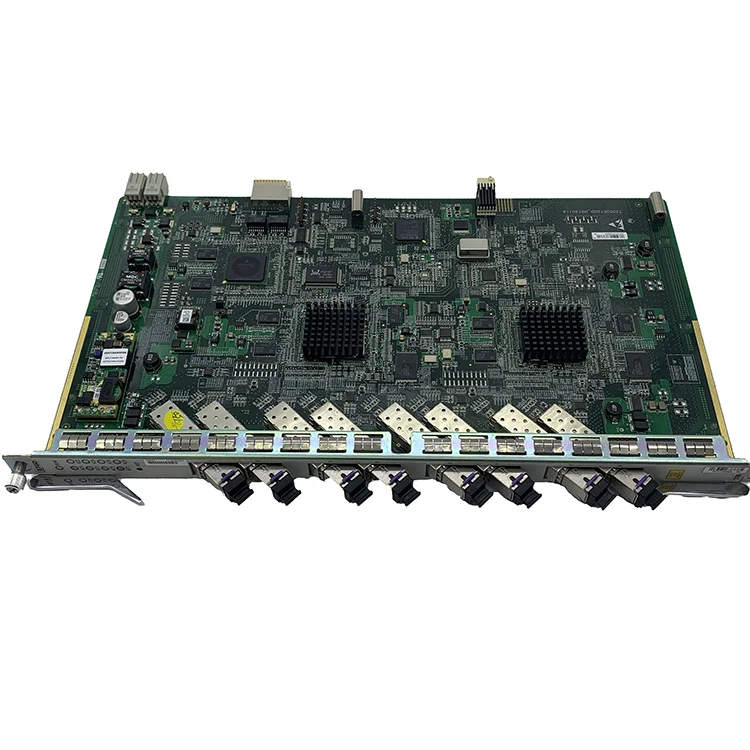

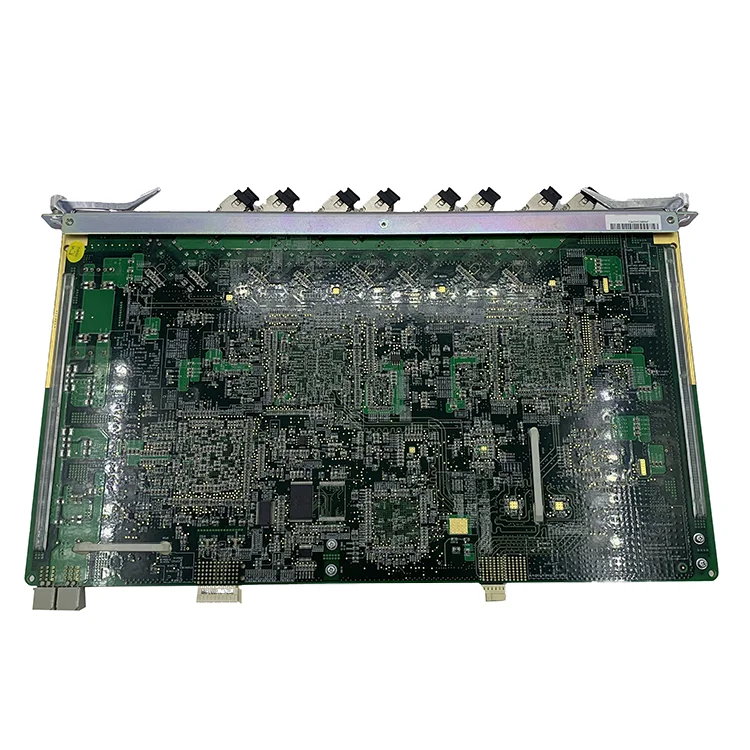

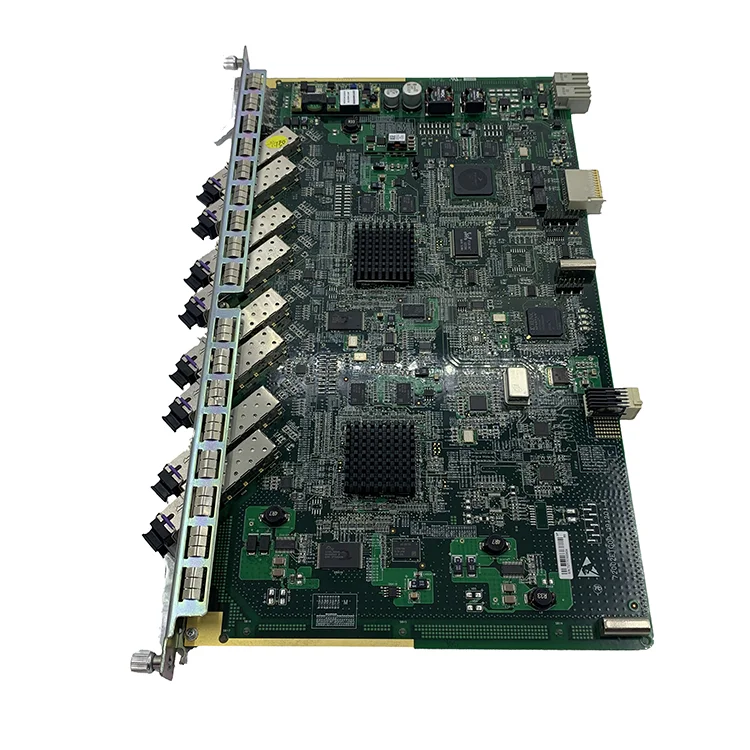

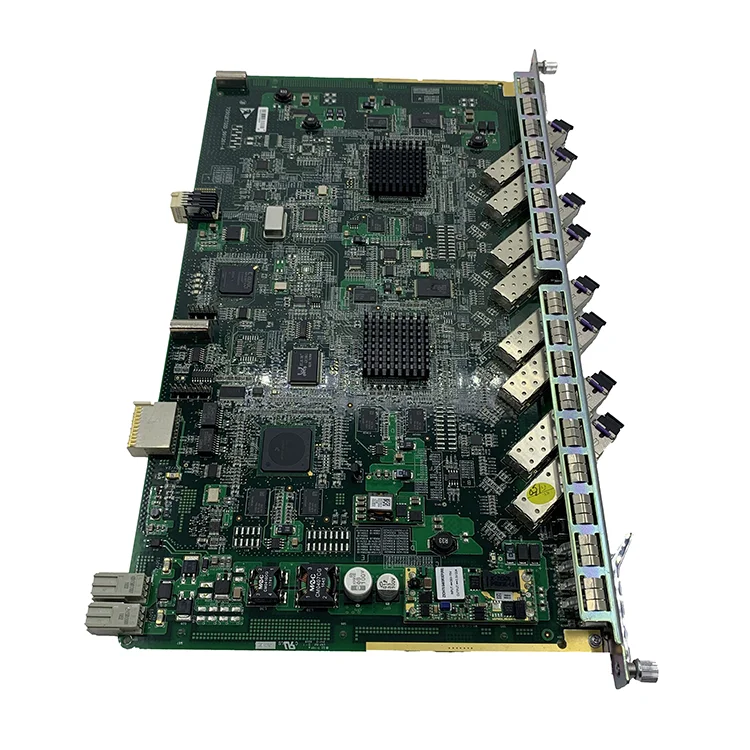

8 port EPON Service card ETGO for ZTE C300 C320

Product Overview

Description

Overview

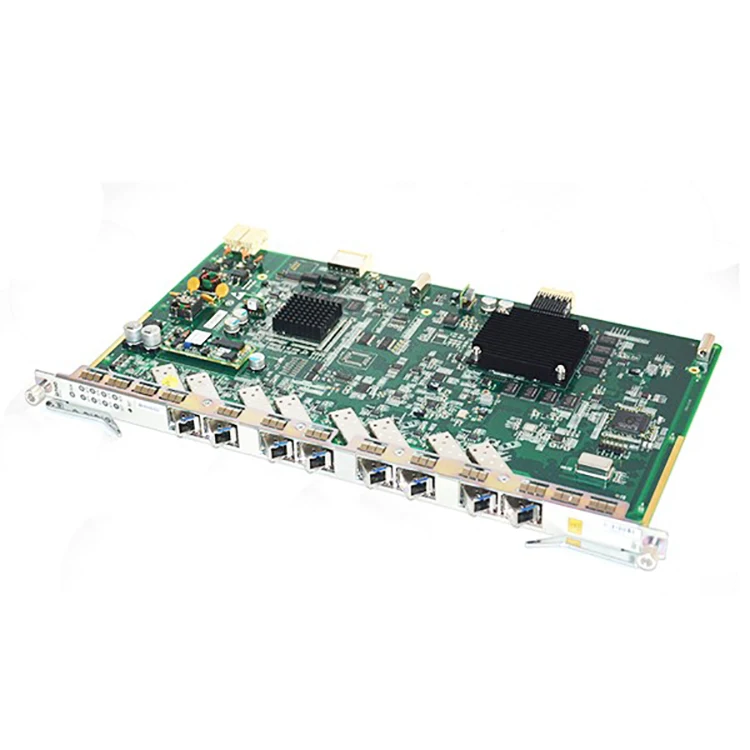

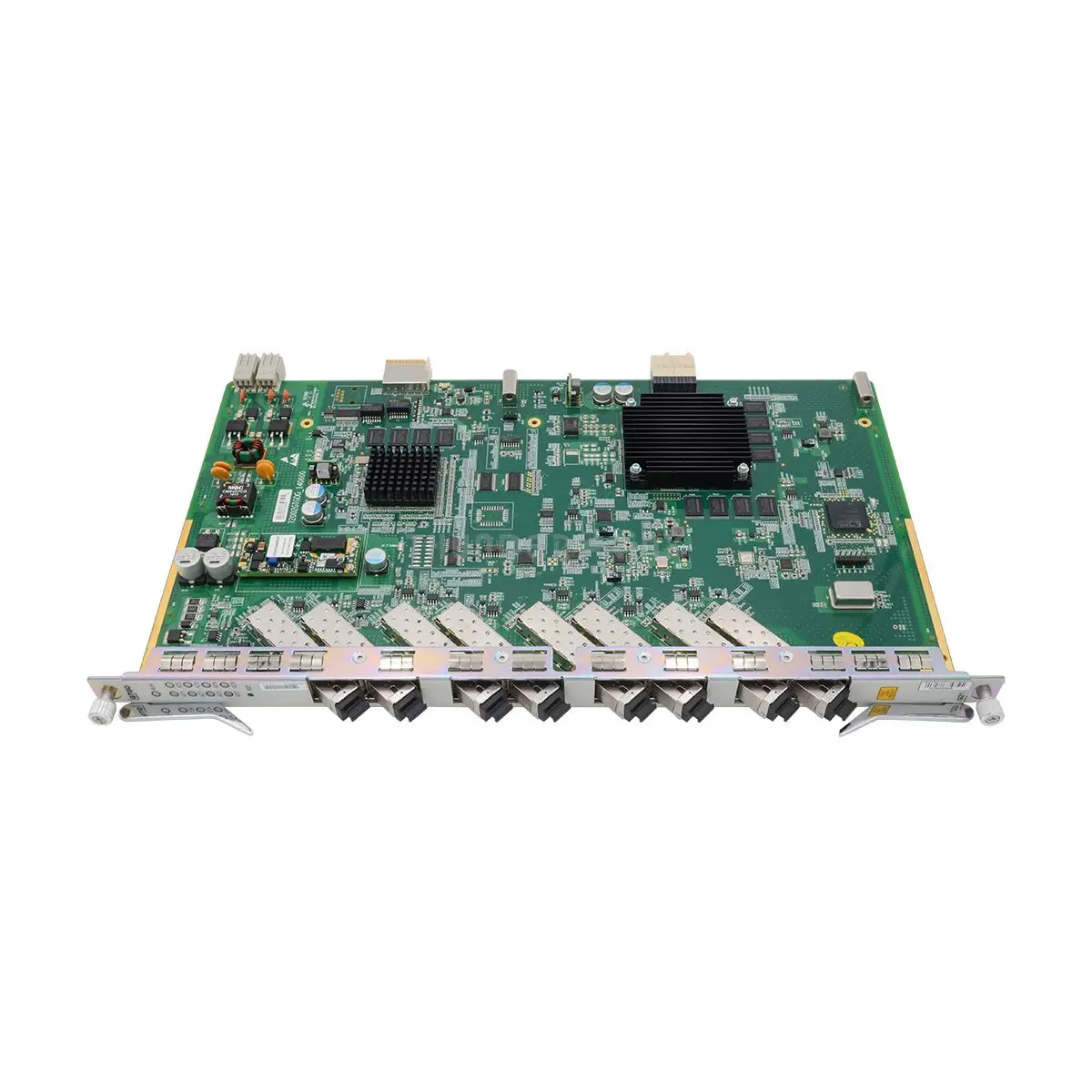

ZTE GTGO Service Board targets a large-capacity xPON aggregation access platform for next-generation networks and provides access aggregation and management control for HSI, VoIP, TDM, IPTV, CATV, mobile 2G/3G, WiFi and other full-service services for next-generation networks. Carrier-class QoS and security reliability. It meets the requirements of “large capacity, high density, meeting the network evolution and deployment requirements of “large capacity, less office”, enhanced access capability, and meets the requirements of network flattening. High-density interface board provides special solutions for large split ratio and long-distance application scenarios.

Specifications

Brand	ZTE
Model	GTGO
GPON Port	8-GPON Port
Type	C+ Module: Single Fiber Bidirectional Optical Module, Class C+
MAX Split ratio (Class B+)	1:64
MAX Split ratio (Class C+/Class C++)	1:128
Operating Wavelength	Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type	SFP
Port Rate	Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimum Output Optical Power	C+ Module : 3.00 dBm
Maximum Output Optical Power	C+ Module : 7.00 dBm
Maximum Receiver Sensitivity	C+ Module : -32.00 dBm
Optical Connector Type	SC/PC
Optical Fiber Type	Single-mode
Reach	20.00 km
Overload Optical Power	C+ Module : -12.0 dBm
Extinction Ratio	8.2 dB
Weight	1kg
Dimensions (W x D x H)	22.86 mm x 237.00 mm x 395.40 mm
